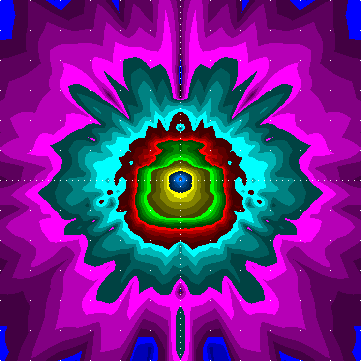

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] L600IZXS_250Ht.tm
# [LUMINAIRE] IZX-S
# [LUMCAT] Zeus
# [DATE] 29/11/2011 12:45:17
# down given: 100.0%
# out given: 76.5%
# tilt: 0.00
# [LAMP] 1 MT 250 25000 4000 E40
# Bulbs: 1, 25000 lm each
# Source file: Zeus_IZX-S_1_MT_250_25000_4000_E40.ldt
# Luminaire flux = 773 raw, for the given bulb(s) it would be 19318 lm,
# 77.3 % of the bulb flux
# between 75 and 90: 0.4 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 8.0 cd / 1000 lm , 0.3 % of the luminaire flux
# 90deg and above: max 6.0 cd / 1000 lm , 0.1 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 3 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 17 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 23 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 10 cd / 1000 lm,
# maximum spec. lum. intensity 3713 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516 3516
2.5 3132 3147 3164 3184 3206 3230 3256 3283 3311 3340 3371 3401 3432 3463 3494 3525 3555 3585 3615 3585 3555 3525 3494 3463 3432 3401 3371 3340 3311 3283 3256 3230 3206 3184 3164 3147 3132 3066 3002 2942 2886 2833 2783 2738 2697 2660 2628 2601 2579 2562 2551 2546 2548 2557 2572 2557 2548 2546 2551 2562 2579 2601 2628 2660 2697 2738 2783 2833 2886 2942 3002 3066
5.0 2589 2624 2667 2717 2773 2836 2904 2978 3055 3136 3220 3306 3394 3451 3506 3560 3613 3664 3713 3664 3613 3560 3506 3451 3394 3306 3220 3136 3055 2978 2904 2836 2773 2717 2667 2624 2589 2492 2402 2318 2241 2169 2101 2037 1978 1923 1871 1825 1785 1735 1693 1660 1637 1626 1628 1626 1637 1660 1693 1735 1785 1825 1871 1923 1978 2037 2101 2169 2241 2318 2402 2492
7.5 2137 2163 2201 2252 2318 2399 2497 2610 2740 2761 2720 2673 2637 2615 2608 2579 2566 2575 2607 2575 2566 2579 2608 2615 2637 2673 2720 2761 2740 2610 2497 2399 2318 2252 2201 2163 2137 2023 1918 1820 1729 1643 1561 1483 1407 1396 1414 1429 1446 1466 1488 1492 1497 1504 1514 1504 1497 1492 1488 1466 1446 1429 1414 1396 1407 1483 1561 1643 1729 1820 1918 2023
10.0 1604 1623 1660 1715 1791 1887 1995 1948 1901 1855 1808 1759 1711 1650 1601 1569 1521 1496 1500 1496 1521 1569 1601 1650 1711 1759 1808 1855 1901 1948 1995 1887 1791 1715 1660 1623 1604 1505 1419 1341 1267 1195 1126 1152 1180 1207 1236 1267 1301 1324 1350 1378 1384 1390 1400 1390 1384 1378 1350 1324 1301 1267 1236 1207 1180 1152 1126 1195 1267 1341 1419 1505
12.5 1120 1140 1179 1236 1312 1356 1313 1264 1221 1168 1098 1047 1031 1017 999 987 978 966 972 966 978 987 999 1017 1031 1047 1098 1168 1221 1264 1313 1356 1312 1236 1179 1140 1120 1052 997 949 902 881 916 953 992 1032 1071 1096 1103 1109 1110 1113 1114 1106 1107 1106 1114 1113 1110 1109 1103 1096 1071 1032 992 953 916 881 902 949 997 1052
15.0 795 814 848 897 941 901 857 813 765 733 707 678 642 598 553 507 471 447 444 447 471 507 553 598 642 678 707 733 765 813 857 901 941 897 848 814 795 751 717 687 670 705 746 793 842 859 866 871 872 863 851 841 839 821 814 821 839 841 851 863 872 871 866 859 842 793 746 705 670 687 717 751
17.5 581 598 627 668 654 621 582 547 517 481 442 388 348 348 345 344 343 343 346 343 343 344 345 348 348 388 442 481 517 547 582 621 654 668 627 598 581 556 537 522 541 573 610 657 675 686 690 688 680 672 657 649 647 638 631 638 647 649 657 672 680 688 690 686 675 657 610 573 541 522 537 556
20.0 438 451 475 495 471 444 414 386 353 310 282 279 275 268 261 258 253 250 247 250 253 258 261 268 275 279 282 310 353 386 414 444 471 495 475 451 438 420 409 410 442 476 510 526 542 554 551 543 534 516 495 480 468 457 447 457 468 480 495 516 534 543 551 554 542 526 510 476 442 410 409 420
22.5 331 345 367 368 350 331 307 272 231 230 225 222 213 201 190 185 182 180 176 180 182 185 190 201 213 222 225 230 231 272 307 331 350 368 367 345 331 326 325 337 364 400 416 430 443 444 434 416 401 395 388 388 389 389 387 389 389 388 388 395 401 416 434 444 443 430 416 400 364 337 325 326
25.0 253 263 280 276 264 248 231 203 194 187 178 164 152 140 128 119 114 111 105 111 114 119 128 140 152 164 178 187 194 203 231 248 264 276 280 263 253 251 255 275 300 318 340 359 354 349 336 332 331 333 326 323 323 323 327 323 323 323 326 333 331 332 336 349 354 359 340 318 300 275 255 251
27.5 203 218 234 220 208 193 177 169 164 156 133 108 91.3 82.7 87.6 90.0 91.2 97.0 91.0 97.0 91.2 90.0 87.6 82.7 91.3 108 133 156 164 169 177 193 208 220 234 218 203 199 202 228 255 269 285 288 282 274 286 287 281 281 297 305 314 317 316 317 314 305 297 281 281 287 286 274 282 288 285 269 255 228 202 199
30.0 171 181 189 182 173 164 150 143 129 106 82.1 64.3 64.5 66.8 72.1 77.9 74.4 85.5 77.0 85.5 74.4 77.9 72.1 66.8 64.5 64.3 82.1 106 129 143 150 164 173 182 189 181 171 174 178 192 212 227 237 236 240 242 248 252 268 289 310 310 316 314 304 314 316 310 310 289 268 252 248 242 240 236 237 227 212 192 178 174
32.5 147 151 154 151 145 138 135 126 90.6 59.2 49.1 50.5 52.2 53.8 58.1 63.2 61.5 67.6 63.0 67.6 61.5 63.2 58.1 53.8 52.2 50.5 49.1 59.2 90.6 126 135 138 145 151 154 151 147 148 153 162 173 190 194 195 214 223 231 249 266 293 304 294 287 283 274 283 287 294 304 293 266 249 231 223 214 195 194 190 173 162 153 148
35.0 135 140 137 131 122 118 113 86.7 50.9 38.4 37.9 38.6 41.3 45.7 48.5 49.5 48.6 50.3 49.0 50.3 48.6 49.5 48.5 45.7 41.3 38.6 37.9 38.4 50.9 86.7 113 118 122 131 137 140 135 130 135 145 149 159 168 183 202 217 227 242 256 263 271 264 253 251 244 251 253 264 271 263 256 242 227 217 202 183 168 159 149 145 135 130
37.5 119 115 117 117 118 109 90.9 47.5 29.7 29.8 29.3 33.7 35.4 37.7 40.5 40.8 40.5 40.8 40.0 40.8 40.5 40.8 40.5 37.7 35.4 33.7 29.3 29.8 29.7 47.5 90.9 109 118 117 117 115 119 125 124 128 130 136 151 182 197 216 224 225 238 239 244 243 237 235 236 235 237 243 244 239 238 225 224 216 197 182 151 136 130 128 124 125
40.0 109 109 106 103 101 99.5 58.6 26.2 23.0 22.6 26.5 30.6 30.9 30.9 33.1 33.9 33.6 32.0 31.0 32.0 33.6 33.9 33.1 30.9 30.9 30.6 26.5 22.6 23.0 26.2 58.6 99.5 101 103 106 109 109 108 108 112 118 126 155 182 197 204 211 212 220 227 224 226 224 220 228 220 224 226 224 227 220 212 211 204 197 182 155 126 118 112 108 108
42.5 98.0 101 98.7 95.5 92.0 74.2 23.5 19.0 17.8 19.3 22.7 25.7 24.7 26.7 25.8 27.4 28.5 28.7 25.0 28.7 28.5 27.4 25.8 26.7 24.7 25.7 22.7 19.3 17.8 19.0 23.5 74.2 92.0 95.5 98.7 101 98.0 100 103 103 109 128 164 180 195 192 193 203 206 215 212 215 216 216 219 216 216 215 212 215 206 203 193 192 195 180 164 128 109 103 103 100
45.0 89.0 85.5 86.9 92.2 87.4 50.4 14.7 13.5 14.4 14.5 18.8 16.8 19.1 22.2 20.3 21.7 24.7 25.0 19.0 25.0 24.7 21.7 20.3 22.2 19.1 16.8 18.8 14.5 14.4 13.5 14.7 50.4 87.4 92.2 86.9 85.5 89.0 93.6 89.4 92.1 101 137 165 174 180 183 181 195 197 203 205 209 207 212 210 212 207 209 205 203 197 195 181 183 180 174 165 137 101 92.1 89.4 93.6
47.5 76.0 78.0 74.2 73.4 71.3 14.9 15.2 9.5 9.4 12.1 14.0 11.4 12.7 15.0 17.7 23.4 28.0 28.8 23.5 28.8 28.0 23.4 17.7 15.0 12.7 11.4 14.0 12.1 9.4 9.5 15.2 14.9 71.3 73.4 74.2 78.0 76.0 70.4 74.1 80.7 93.4 143 166 170 167 173 171 183 189 191 196 197 196 199 195 199 196 197 196 191 189 183 171 173 167 170 166 143 93.4 80.7 74.1 70.4
50.0 52.0 51.4 55.3 58.5 41.6 9.0 6.5 8.0 6.5 12.3 8.3 9.7 11.7 20.4 22.6 30.6 32.0 33.1 28.0 33.1 32.0 30.6 22.6 20.4 11.7 9.7 8.3 12.3 6.5 8.0 6.5 9.0 41.6 58.5 55.3 51.4 52.0 56.4 59.0 65.4 85.8 132 152 157 157 165 168 170 182 179 181 186 185 186 179 186 185 186 181 179 182 170 168 165 157 157 152 132 85.8 65.4 59.0 56.4
52.5 37.0 36.6 36.4 38.6 14.4 7.9 4.8 4.9 9.8 6.4 7.4 11.7 21.4 25.3 24.9 26.2 20.7 18.9 17.5 18.9 20.7 26.2 24.9 25.3 21.4 11.7 7.4 6.4 9.8 4.9 4.8 7.9 14.4 38.6 36.4 36.6 37.0 38.5 39.7 42.0 70.6 114 131 138 147 146 160 154 164 165 152 138 123 113 111 113 123 138 152 165 164 154 160 146 147 138 131 114 70.6 42.0 39.7 38.5
55.0 20.0 19.6 19.4 23.0 3.3 5.7 6.1 8.8 4.2 8.1 6.6 17.7 18.3 14.7 12.5 13.5 6.5 4.5 7.0 4.5 6.5 13.5 12.5 14.7 18.3 17.7 6.6 8.1 4.2 8.8 6.1 5.7 3.3 23.0 19.4 19.6 20.0 15.5 21.0 28.2 57.7 75.6 96.1 106 118 126 126 132 123 100 82.7 61.8 50.9 38.7 43.0 38.7 50.9 61.8 82.7 100 123 132 126 126 118 106 96.1 75.6 57.7 28.2 21.0 15.5
57.5 5.0 3.6 8.1 5.8 5.6 4.2 6.1 4.6 6.2 3.2 9.6 9.2 10.2 3.2 3.9 6.0 3.6 3.4 3.5 3.4 3.6 6.0 3.9 3.2 10.2 9.2 9.6 3.2 6.2 4.6 6.1 4.2 5.6 5.8 8.1 3.6 5.0 9.8 7.4 12.4 26.6 38.8 56.7 64.9 77.6 87.5 94.4 79.4 58.8 33.9 30.5 26.2 27.4 23.2 27.5 23.2 27.4 26.2 30.5 33.9 58.8 79.4 94.4 87.5 77.6 64.9 56.7 38.8 26.6 12.4 7.4 9.8
60.0 4.0 6.1 2.7 3.6 1.3 4.1 4.7 5.5 3.9 3.5 4.5 3.9 5.3 2.9 4.2 1.9 3.4 2.6 0.0 2.6 3.4 1.9 4.2 2.9 5.3 3.9 4.5 3.5 3.9 5.5 4.7 4.1 1.3 3.6 2.7 6.1 4.0 3.8 3.3 3.8 6.3 13.1 23.0 25.3 42.5 53.0 44.7 34.7 22.4 22.2 17.4 14.9 13.7 10.2 12.0 10.2 13.7 14.9 17.4 22.2 22.4 34.7 44.7 53.0 42.5 25.3 23.0 13.1 6.3 3.8 3.3 3.8
62.5 2.0 3.6 3.5 3.9 4.5 4.8 3.2 3.7 4.5 3.8 2.3 3.8 4.2 3.2 4.3 1.9 3.4 3.5 3.5 3.5 3.4 1.9 4.3 3.2 4.2 3.8 2.3 3.8 4.5 3.7 3.2 4.8 4.5 3.9 3.5 3.6 2.0 2.1 3.0 4.4 3.2 4.9 4.7 10.9 20.0 22.7 10.2 18.5 12.3 11.4 8.6 8.8 9.0 6.9 6.5 6.9 9.0 8.8 8.6 11.4 12.3 18.5 10.2 22.7 20.0 10.9 4.7 4.9 3.2 4.4 3.0 2.1
65.0 5.0 4.4 4.1 3.3 4.7 3.0 3.9 4.0 3.4 2.7 2.6 2.9 4.1 2.4 4.6 2.6 3.3 4.8 7.0 4.8 3.3 2.6 4.6 2.4 4.1 2.9 2.6 2.7 3.4 4.0 3.9 3.0 4.7 3.3 4.1 4.4 5.0 4.3 2.0 4.4 4.8 7.4 3.0 8.3 5.3 9.7 6.6 6.3 7.5 7.6 5.8 5.9 6.3 3.9 1.0 3.9 6.3 5.9 5.8 7.6 7.5 6.3 6.6 9.7 5.3 8.3 3.0 7.4 4.8 4.4 2.0 4.3
67.5 3.0 4.4 4.7 5.4 3.3 4.5 4.5 4.7 1.7 3.9 1.7 2.2 2.5 1.9 3.8 1.9 2.9 3.1 3.5 3.1 2.9 1.9 3.8 1.9 2.5 2.2 1.7 3.9 1.7 4.7 4.5 4.5 3.3 5.4 4.7 4.4 3.0 4.1 7.6 1.7 0.8 5.2 4.4 2.2 4.7 4.4 4.6 4.0 5.5 3.7 4.2 4.0 5.0 2.9 2.0 2.9 5.0 4.0 4.2 3.7 5.5 4.0 4.6 4.4 4.7 2.2 4.4 5.2 0.8 1.7 7.6 4.1
70.0 6.0 5.4 7.6 4.0 3.1 5.2 2.4 3.4 1.8 4.0 0.5 1.9 1.4 2.3 3.5 1.4 2.3 0.8 0.0 0.8 2.3 1.4 3.5 2.3 1.4 1.9 0.5 4.0 1.8 3.4 2.4 5.2 3.1 4.0 7.6 5.4 6.0 5.6 1.8 10.0 3.5 3.9 5.6 0.3 3.3 2.9 3.4 1.7 3.8 3.0 2.8 2.6 3.9 2.1 3.0 2.1 3.9 2.6 2.8 3.0 3.8 1.7 3.4 2.9 3.3 0.3 5.6 3.9 3.5 10.0 1.8 5.6
72.5 3.0 2.9 5.3 5.5 3.7 0.8 3.0 1.2 2.4 3.1 0.4 1.7 1.2 3.4 4.1 1.7 2.3 1.0 0.0 1.0 2.3 1.7 4.1 3.4 1.2 1.7 0.4 3.1 2.4 1.2 3.0 0.8 3.7 5.5 5.3 2.9 3.0 5.6 3.0 1.4 4.1 0.8 4.7 1.6 3.9 3.8 2.0 1.2 2.0 2.2 2.0 2.2 3.1 2.1 1.5 2.1 3.1 2.2 2.0 2.2 2.0 1.2 2.0 3.8 3.9 1.6 4.7 0.8 4.1 1.4 3.0 5.6
75.0 5.0 3.0 2.4 3.3 3.1 2.2 1.5 1.1 4.9 2.4 0.2 2.1 1.7 3.4 4.0 2.0 2.3 1.3 0.0 1.3 2.3 2.0 4.0 3.4 1.7 2.1 0.2 2.4 4.9 1.1 1.5 2.2 3.1 3.3 2.4 3.0 5.0 3.7 5.9 3.9 1.7 3.1 1.4 1.9 3.4 2.6 1.1 2.1 3.1 1.1 2.2 1.7 2.2 2.0 0.0 2.0 2.2 1.7 2.2 1.1 3.1 2.1 1.1 2.6 3.4 1.9 1.4 3.1 1.7 3.9 5.9 3.7
77.5 2.0 1.2 1.9 3.1 1.9 1.5 1.9 1.6 5.0 2.8 1.7 3.1 2.0 3.0 2.7 2.0 1.7 2.5 0.5 2.5 1.7 2.0 2.7 3.0 2.0 3.1 1.7 2.8 5.0 1.6 1.9 1.5 1.9 3.1 1.9 1.2 2.0 4.3 2.8 1.8 2.7 2.6 1.1 0.8 2.2 2.0 1.9 4.3 4.2 1.5 2.4 1.1 1.3 1.5 4.0 1.5 1.3 1.1 2.4 1.5 4.2 4.3 1.9 2.0 2.2 0.8 1.1 2.6 2.7 1.8 2.8 4.3
80.0 1.0 1.2 3.6 2.2 3.2 2.2 2.1 2.1 2.1 3.7 2.8 2.3 1.7 2.7 0.8 2.0 1.1 3.9 1.0 3.9 1.1 2.0 0.8 2.7 1.7 2.3 2.8 3.7 2.1 2.1 2.1 2.2 3.2 2.2 3.6 1.2 1.0 2.4 1.0 3.6 2.3 1.8 2.6 1.1 1.5 2.4 3.3 3.3 1.7 3.5 2.8 0.4 0.2 1.0 8.0 1.0 0.2 0.4 2.8 3.5 1.7 3.3 3.3 2.4 1.5 1.1 2.6 1.8 2.3 3.6 1.0 2.4
82.5 1.0 2.4 1.7 1.5 2.0 2.3 2.6 1.8 1.2 1.6 2.7 0.6 1.0 1.9 0.2 1.6 1.9 3.5 1.5 3.5 1.9 1.6 0.2 1.9 1.0 0.6 2.7 1.6 1.2 1.8 2.6 2.3 2.0 1.5 1.7 2.4 1.0 3.4 1.6 0.6 1.5 0.7 1.9 1.7 1.4 1.8 3.9 1.1 0.2 3.0 2.5 0.6 0.5 1.5 4.0 1.5 0.5 0.6 2.5 3.0 0.2 1.1 3.9 1.8 1.4 1.7 1.9 0.7 1.5 0.6 1.6 3.4
85.0 0.0 0.5 0.6 0.2 1.8 1.5 0.3 0.7 1.4 0.6 1.1 0.2 0.3 0.4 0.0 1.1 2.9 3.0 2.0 3.0 2.9 1.1 0.0 0.4 0.3 0.2 1.1 0.6 1.4 0.7 0.3 1.5 1.8 0.2 0.6 0.5 0.0 0.2 1.9 0.9 1.3 2.4 0.3 1.9 2.3 1.3 1.9 1.7 0.8 0.6 2.0 1.0 1.0 2.0 0.0 2.0 1.0 1.0 2.0 0.6 0.8 1.7 1.9 1.3 2.3 1.9 0.3 2.4 1.3 0.9 1.9 0.2
87.5 2.0 2.1 2.3 0.2 3.2 3.3 2.9 1.7 1.5 0.9 0.1 0.0 0.9 0.0 1.4 0.5 1.5 3.0 1.0 3.0 1.5 0.5 1.4 0.0 0.9 0.0 0.1 0.9 1.5 1.7 2.9 3.3 3.2 0.2 2.3 2.1 2.0 1.7 0.4 2.0 1.4 1.6 2.0 1.7 2.3 1.6 0.7 1.6 1.4 0.0 3.9 0.5 0.5 3.0 0.0 3.0 0.5 0.5 3.9 0.0 1.4 1.6 0.7 1.6 2.3 1.7 2.0 1.6 1.4 2.0 0.4 1.7
90.0 0.0 1.0 0.0 0.0 2.0 0.0 3.0 0.0 0.0 3.0 0.0 0.0 2.0 0.0 3.0 0.0 0.0 3.0 0.0 3.0 0.0 0.0 3.0 0.0 2.0 0.0 0.0 3.0 0.0 0.0 3.0 0.0 2.0 0.0 0.0 1.0 0.0 3.0 0.0 0.0 3.0 0.0 4.0 0.0 0.0 3.0 0.0 1.0 2.0 0.0 6.0 0.0 0.0 4.0 0.0 4.0 0.0 0.0 6.0 0.0 2.0 1.0 0.0 3.0 0.0 0.0 4.0 0.0 3.0 0.0 0.0 3.0
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
