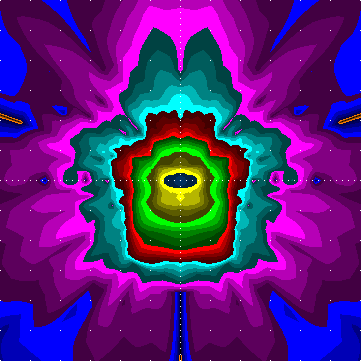

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] L600IZXC_400Ht.tm
# [LUMINAIRE] IZX-C
# [LUMCAT] Zeus
# [DATE] 29/11/2011 12:45:09
# down given: 100.0%
# out given: 67.4%
# tilt: 0.00
# [LAMP] 1 MT 400 38000 4000 E40
# Bulbs: 1, 38000 lm each
# Source file: Zeus_IZX-C_1_MT_400_38000_4000_E40.ldt
# Luminaire flux = 680 raw, for the given bulb(s) it would be 25851 lm,
# 68.0 % of the bulb flux
# between 75 and 90: 0.3 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 4.7 cd / 1000 lm , 0.2 % of the luminaire flux
# 90deg and above: max 3.0 cd / 1000 lm , 0.0 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 1 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 6 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 118 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 58 cd / 1000 lm,
# maximum spec. lum. intensity 822 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822 822
2.5 812 805 797 790 783 777 771 765 759 755 750 747 744 741 739 738 738 738 739 738 738 738 739 741 744 747 750 755 759 765 771 777 783 790 797 805 812 810 807 805 803 802 800 799 798 797 797 797 798 798 799 800 802 803 805 803 802 800 799 798 798 797 797 797 798 799 800 802 803 805 807 810
5.0 706 698 691 685 680 677 673 671 668 666 665 664 663 658 655 653 652 653 655 653 652 653 655 658 663 664 665 666 668 671 673 677 680 685 691 698 706 704 703 704 706 710 715 720 727 735 744 753 764 766 769 773 778 783 788 783 778 773 769 766 764 753 744 735 727 720 715 710 706 704 703 704
7.5 626 616 607 600 595 591 588 587 587 586 584 579 575 571 568 563 559 557 557 557 559 563 568 571 575 579 584 586 587 587 588 591 595 600 607 616 626 623 622 623 626 630 635 643 651 653 653 654 656 659 663 662 662 666 672 666 662 662 663 659 656 654 653 653 651 643 635 630 626 623 622 623
10.0 566 554 544 536 529 523 518 513 509 507 506 504 503 494 485 478 469 462 458 462 469 478 485 494 503 504 506 507 509 513 518 523 529 536 544 554 566 564 563 564 566 570 574 568 561 558 556 555 554 551 548 546 546 549 555 549 546 546 548 551 554 555 556 558 561 568 574 570 566 564 563 564
12.5 553 534 517 500 486 474 463 453 448 444 442 439 431 423 411 399 390 381 375 381 390 399 411 423 431 439 442 444 448 453 463 474 486 500 517 534 553 550 548 546 544 537 524 513 505 496 485 474 467 460 454 451 449 446 447 446 449 451 454 460 467 474 485 496 505 513 524 537 544 546 548 550
15.0 537 516 495 475 457 440 424 410 400 389 381 376 371 355 338 323 311 300 292 300 311 323 338 355 371 376 381 389 400 410 424 440 457 475 495 516 537 534 533 531 528 513 498 482 470 449 426 406 390 377 365 359 358 347 338 347 358 359 365 377 390 406 426 449 470 482 498 513 528 531 533 534
17.5 540 512 484 457 437 418 398 379 357 340 329 320 315 313 301 292 286 282 280 282 286 292 301 313 315 320 329 340 357 379 398 418 437 457 484 512 540 535 530 526 510 493 479 458 422 391 365 341 328 325 323 323 325 318 308 318 325 323 323 325 328 341 365 391 422 458 479 493 510 526 530 535
20.0 528 502 476 451 430 408 381 347 318 297 288 289 286 283 277 271 265 263 267 263 265 271 277 283 286 289 288 297 318 347 381 408 430 451 476 502 528 522 516 509 490 470 446 407 371 335 316 310 306 303 302 305 300 290 277 290 300 305 302 303 306 310 316 335 371 407 446 470 490 509 516 522
22.5 529 507 484 458 433 411 360 315 280 273 271 272 266 244 223 206 195 191 190 191 195 206 223 244 266 272 271 273 280 315 360 411 433 458 484 507 529 522 514 495 469 450 406 359 315 306 298 288 284 283 283 285 286 283 270 283 286 285 283 283 284 288 298 306 315 359 406 450 469 495 514 522
25.0 514 524 527 474 427 382 324 274 268 263 257 230 198 172 148 128 117 118 113 118 117 128 148 172 198 230 257 263 268 274 324 382 427 474 527 524 514 509 504 476 445 407 365 321 307 298 286 276 267 264 266 267 269 276 262 276 269 267 266 264 267 276 286 298 307 321 365 407 445 476 504 509
27.5 508 493 484 440 390 336 279 262 258 248 200 159 121 101 105 102 104 110 114 110 104 102 105 101 121 159 200 248 258 262 279 336 390 440 484 493 508 498 487 446 413 379 331 307 296 289 288 278 262 253 265 280 292 306 308 306 292 280 265 253 262 278 288 289 296 307 331 379 413 446 487 498
30.0 474 448 424 390 345 290 258 250 235 183 131 95.9 93.8 92.2 100 97.7 105 102 115 102 105 97.7 100 92.2 93.8 95.9 131 183 235 250 258 290 345 390 424 448 474 470 455 406 369 342 315 292 287 292 291 284 286 284 287 304 321 336 354 336 321 304 287 284 286 284 291 292 287 292 315 342 369 406 455 470
32.5 440 405 376 350 302 249 243 235 176 120 90.6 86.8 83.8 85.0 92.7 96.2 103 107 112 107 103 96.2 92.7 85.0 83.8 86.8 90.6 120 176 235 243 249 302 350 376 405 440 436 408 352 335 315 291 269 279 294 310 312 314 317 309 314 325 341 361 341 325 314 309 317 314 312 310 294 279 269 291 315 335 352 408 436
35.0 323 311 298 287 251 227 228 186 122 94.5 86.9 77.2 80.7 81.7 86.2 93.5 101 112 109 112 101 93.5 86.2 81.7 80.7 77.2 86.9 94.5 122 186 228 227 251 287 298 311 323 322 306 273 277 274 263 256 264 305 333 342 334 329 322 319 326 344 368 344 326 319 322 329 334 342 333 305 264 256 263 274 277 273 306 322
37.5 207 209 208 203 189 202 195 145 109 96.6 88.6 85.7 84.8 80.1 82.8 89.6 97.0 99.9 104 99.9 97.0 89.6 82.8 80.1 84.8 85.7 88.6 96.6 109 145 195 202 189 203 208 209 207 201 193 192 217 223 231 242 263 326 357 355 346 340 327 317 316 310 322 310 316 317 327 340 346 355 357 326 263 242 231 223 217 192 193 201
40.0 119 138 141 137 136 173 152 118 108 106 99.2 102 87.8 81.0 80.4 88.3 93.1 88.5 98.0 88.5 93.1 88.3 80.4 81.0 87.8 102 99.2 106 108 118 152 173 136 137 141 138 119 117 122 128 147 171 200 225 272 340 360 359 347 330 311 310 306 278 276 278 306 310 311 330 347 359 360 340 272 225 200 171 147 128 122 117
42.5 117 126 116 107 115 126 110 105 101 101 104 97.2 81.8 79.4 79.8 85.7 88.6 86.0 88.5 86.0 88.6 85.7 79.8 79.4 81.8 97.2 104 101 101 105 110 126 115 107 116 126 117 104 98.3 104 119 139 175 216 264 327 361 335 328 315 289 278 265 238 234 238 265 278 289 315 328 335 361 327 264 216 175 139 119 104 98.3 104
45.0 103 123 109 96.0 103 89.6 80.1 81.0 83.7 84.8 89.6 81.3 76.4 78.1 80.3 82.0 84.4 83.3 79.0 83.3 84.4 82.0 80.3 78.1 76.4 81.3 89.6 84.8 83.7 81.0 80.1 89.6 103 96.0 109 123 103 99.3 92.2 91.6 103 120 156 204 246 320 313 302 288 265 247 230 216 197 192 197 216 230 247 265 288 302 313 320 246 204 156 120 103 91.6 92.2 99.3
47.5 105 116 103 92.0 92.5 62.8 63.7 59.9 58.6 64.6 71.4 73.5 74.4 77.5 75.1 71.3 73.5 71.0 65.0 71.0 73.5 71.3 75.1 77.5 74.4 73.5 71.4 64.6 58.6 59.9 63.7 62.8 92.5 92.0 103 116 105 96.9 86.6 88.7 93.9 107 137 183 227 257 265 253 228 210 208 207 201 191 183 191 201 207 208 210 228 253 265 257 227 183 137 107 93.9 88.7 86.6 96.9
50.0 95.0 106 94.6 84.8 73.9 54.1 52.3 41.6 33.8 41.7 58.1 66.2 65.4 61.5 56.8 56.0 60.5 57.8 51.0 57.8 60.5 56.0 56.8 61.5 65.4 66.2 58.1 41.7 33.8 41.6 52.3 54.1 73.9 84.8 94.6 106 95.0 86.3 82.0 81.8 88.5 99.5 130 176 193 212 216 196 186 188 192 195 193 187 174 187 193 195 192 188 186 196 216 212 193 176 130 99.5 88.5 81.8 82.0 86.3
52.5 86.0 90.4 80.0 74.3 57.1 52.4 42.5 27.7 9.7 21.9 39.5 49.9 47.2 40.7 40.1 40.0 42.2 37.7 32.5 37.7 42.2 40.0 40.1 40.7 47.2 49.9 39.5 21.9 9.7 27.7 42.5 52.4 57.1 74.3 80.0 90.4 86.0 71.1 70.1 74.7 82.9 95.3 140 165 162 177 172 173 173 173 175 178 179 177 170 177 179 178 175 173 173 173 172 177 162 165 140 95.3 82.9 74.7 70.1 71.1
55.0 57.0 64.8 55.7 54.1 48.2 50.0 32.5 13.3 10.7 11.7 18.6 32.1 28.5 26.1 22.5 22.1 23.8 17.6 14.0 17.6 23.8 22.1 22.5 26.1 28.5 32.1 18.6 11.7 10.7 13.3 32.5 50.0 48.2 54.1 55.7 64.8 57.0 47.8 47.5 53.7 66.0 89.6 144 148 149 155 162 163 161 161 159 161 164 166 165 166 164 161 159 161 161 163 162 155 149 148 144 89.6 66.0 53.7 47.5 47.8
57.5 29.0 33.8 28.8 27.0 36.4 45.3 19.8 8.7 11.8 6.5 7.6 16.9 14.9 11.4 8.9 12.8 16.2 14.2 10.5 14.2 16.2 12.8 8.9 11.4 14.9 16.9 7.6 6.5 11.8 8.7 19.8 45.3 36.4 27.0 28.8 33.8 29.0 21.2 22.9 27.6 43.1 73.8 109 123 135 147 156 152 151 149 136 129 128 128 127 128 128 129 136 149 151 152 156 147 135 123 109 73.8 43.1 27.6 22.9 21.2
60.0 10.0 19.8 16.9 16.4 23.7 31.0 8.5 9.5 6.0 4.3 4.8 6.6 7.3 6.4 7.5 9.5 10.5 11.4 7.0 11.4 10.5 9.5 7.5 6.4 7.3 6.6 4.8 4.3 6.0 9.5 8.5 31.0 23.7 16.4 16.9 19.8 10.0 9.4 6.9 10.1 16.7 37.1 59.6 89.5 113 138 141 141 126 111 96.6 90.3 88.5 89.9 89.0 89.9 88.5 90.3 96.6 111 126 141 141 138 113 89.5 59.6 37.1 16.7 10.1 6.9 9.4
62.5 4.0 12.6 13.0 13.2 11.4 10.4 8.7 4.2 4.2 3.2 1.3 4.0 5.7 4.7 6.9 8.6 7.9 8.5 5.0 8.5 7.9 8.6 6.9 4.7 5.7 4.0 1.3 3.2 4.2 4.2 8.7 10.4 11.4 13.2 13.0 12.6 4.0 3.9 3.4 3.4 8.2 8.5 14.6 36.3 68.8 103 118 103 87.3 72.6 70.2 72.3 75.6 81.4 83.0 81.4 75.6 72.3 70.2 72.6 87.3 103 118 103 68.8 36.3 14.6 8.5 8.2 3.4 3.4 3.9
65.0 6.0 7.3 10.1 13.4 7.6 5.3 6.6 2.9 2.6 0.8 0.5 2.1 5.5 6.6 6.2 7.8 5.6 5.7 3.0 5.7 5.6 7.8 6.2 6.6 5.5 2.1 0.5 0.8 2.6 2.9 6.6 5.3 7.6 13.4 10.1 7.3 6.0 4.9 3.1 3.1 4.9 1.6 4.3 5.3 21.8 53.1 67.3 64.1 67.2 64.8 64.6 64.9 67.5 74.1 77.0 74.1 67.5 64.9 64.6 64.8 67.2 64.1 67.3 53.1 21.8 5.3 4.3 1.6 4.9 3.1 3.1 4.9
67.5 0.0 3.3 2.2 5.5 1.3 6.7 3.4 4.1 0.1 2.0 0.2 3.5 5.2 6.7 4.8 5.5 4.3 5.4 5.0 5.4 4.3 5.5 4.8 6.7 5.2 3.5 0.2 2.0 0.1 4.1 3.4 6.7 1.3 5.5 2.2 3.3 0.0 1.4 1.8 2.1 0.4 2.1 2.5 3.4 3.1 9.5 27.8 42.1 57.8 54.3 46.8 41.1 38.6 40.4 42.0 40.4 38.6 41.1 46.8 54.3 57.8 42.1 27.8 9.5 3.1 3.4 2.5 2.1 0.4 2.1 1.8 1.4
70.0 2.0 2.2 3.5 0.9 5.6 3.2 3.0 1.9 0.9 1.6 0.8 4.0 3.6 4.6 3.6 3.3 3.8 5.5 7.0 5.5 3.8 3.3 3.6 4.6 3.6 4.0 0.8 1.6 0.9 1.9 3.0 3.2 5.6 0.9 3.5 2.2 2.0 1.1 1.4 2.6 2.8 2.2 3.0 3.0 2.3 3.0 5.9 19.5 31.2 24.0 16.5 10.7 6.3 5.5 7.0 5.5 6.3 10.7 16.5 24.0 31.2 19.5 5.9 3.0 2.3 3.0 3.0 2.2 2.8 2.6 1.4 1.1
72.5 0.0 0.6 4.2 3.0 2.9 4.4 1.4 1.5 1.1 0.9 0.8 2.0 2.2 2.9 2.7 3.1 4.2 4.8 4.0 4.8 4.2 3.1 2.7 2.9 2.2 2.0 0.8 0.9 1.1 1.5 1.4 4.4 2.9 3.0 4.2 0.6 0.0 1.7 0.4 3.0 1.6 1.1 1.4 2.8 3.0 2.7 3.1 5.6 1.7 2.1 2.7 2.2 1.8 2.4 3.5 2.4 1.8 2.2 2.7 2.1 1.7 5.6 3.1 2.7 3.0 2.8 1.4 1.1 1.6 3.0 0.4 1.7
75.0 3.0 2.2 1.0 1.4 2.6 1.8 1.6 0.2 1.1 0.2 1.3 1.4 1.3 2.3 2.4 4.1 4.7 4.0 1.0 4.0 4.7 4.1 2.4 2.3 1.3 1.4 1.3 0.2 1.1 0.2 1.6 1.8 2.6 1.4 1.0 2.2 3.0 0.6 1.0 0.8 1.3 1.8 0.6 0.9 3.6 1.7 2.2 1.2 1.5 0.7 1.6 0.9 0.8 0.3 0.0 0.3 0.8 0.9 1.6 0.7 1.5 1.2 2.2 1.7 3.6 0.9 0.6 1.8 1.3 0.8 1.0 0.6
77.5 0.0 1.1 0.9 2.3 0.9 1.0 0.1 0.5 0.9 1.0 1.4 0.4 0.7 2.0 2.4 3.8 4.7 3.9 2.5 3.9 4.7 3.8 2.4 2.0 0.7 0.4 1.4 1.0 0.9 0.5 0.1 1.0 0.9 2.3 0.9 1.1 0.0 1.0 1.9 1.0 1.7 2.1 0.6 1.4 2.2 1.3 0.4 0.4 1.6 0.4 0.9 0.7 0.7 0.6 0.0 0.6 0.7 0.7 0.9 0.4 1.6 0.4 0.4 1.3 2.2 1.4 0.6 2.1 1.7 1.0 1.9 1.0
80.0 2.0 1.5 1.6 0.5 0.0 0.5 0.8 0.7 0.6 2.0 1.5 0.5 1.0 1.4 2.1 3.0 4.7 3.9 4.0 3.9 4.7 3.0 2.1 1.4 1.0 0.5 1.5 2.0 0.6 0.7 0.8 0.5 0.0 0.5 1.6 1.5 2.0 0.7 1.6 1.8 1.4 1.8 1.5 1.0 1.2 1.5 0.3 0.5 1.4 1.5 0.9 1.0 0.9 1.0 0.0 1.0 0.9 1.0 0.9 1.5 1.4 0.5 0.3 1.5 1.2 1.0 1.5 1.8 1.4 1.8 1.6 0.7
82.5 0.0 1.5 1.6 0.5 0.0 1.4 0.7 1.0 1.3 2.4 1.8 1.0 1.5 1.0 1.3 1.6 2.5 2.0 4.0 2.0 2.5 1.6 1.3 1.0 1.5 1.0 1.8 2.4 1.3 1.0 0.7 1.4 0.0 0.5 1.6 1.5 0.0 0.9 1.4 1.9 0.9 1.2 1.4 1.2 0.5 0.9 0.9 0.9 1.1 1.6 1.0 1.0 1.4 1.0 0.0 1.0 1.4 1.0 1.0 1.6 1.1 0.9 0.9 0.9 0.5 1.2 1.4 1.2 0.9 1.9 1.4 0.9
85.0 3.0 1.3 0.9 0.2 0.2 0.9 1.7 1.6 1.0 1.2 1.2 1.7 2.6 1.0 0.3 0.1 0.1 0.0 4.0 0.0 0.1 0.1 0.3 1.0 2.6 1.7 1.2 1.2 1.0 1.6 1.7 0.9 0.2 0.2 0.9 1.3 3.0 0.4 0.8 1.2 1.7 0.6 2.5 0.9 0.9 0.4 1.0 1.0 1.0 1.1 1.0 1.0 2.0 1.0 0.0 1.0 2.0 1.0 1.0 1.1 1.0 1.0 1.0 0.4 0.9 0.9 2.5 0.6 1.7 1.2 0.8 0.4
87.5 0.0 0.1 0.1 0.2 0.5 0.2 1.0 0.9 0.0 0.3 1.0 1.2 1.7 0.6 0.0 0.0 0.0 0.0 3.0 0.0 0.0 0.0 0.0 0.6 1.7 1.2 1.0 0.3 0.0 0.9 1.0 0.2 0.5 0.2 0.1 0.1 0.0 0.5 0.7 0.0 0.0 0.0 1.0 1.0 1.5 0.3 1.7 0.6 0.6 0.6 0.5 0.5 1.0 0.5 1.0 0.5 1.0 0.5 0.5 0.6 0.6 0.6 1.7 0.3 1.5 1.0 1.0 0.0 0.0 0.0 0.7 0.5
90.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 2.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 2.0 1.0 0.0 0.0 0.0 0.0 1.0 0.0 1.0 3.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 2.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 3.0 1.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 2.0
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
