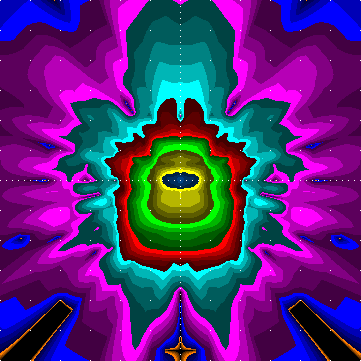

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] L600IZXC_250Ht.tm
# [LUMINAIRE] IZX-C
# [LUMCAT] Zeus
# [DATE] 29/11/2011 12:45:09
# down given: 100.0%
# out given: 76.5%
# tilt: 0.00
# [LAMP] 1 MT 250 25000 4000 E40
# Bulbs: 1, 25000 lm each
# Source file: Zeus_IZX-C_1_MT_250_25000_4000_E40.ldt
# Luminaire flux = 771 raw, for the given bulb(s) it would be 19274 lm,
# 77.1 % of the bulb flux
# between 75 and 90: 0.4 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 9.0 cd / 1000 lm , 0.3 % of the luminaire flux
# 90deg and above: max 4.0 cd / 1000 lm , 0.1 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 3 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 14 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 127 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 72 cd / 1000 lm,
# maximum spec. lum. intensity 1035 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035
2.5 998 996 994 993 992 992 992 992 993 995 997 999 1002 1005 1008 1012 1016 1021 1025 1021 1016 1012 1008 1005 1002 999 997 995 993 992 992 992 992 993 994 996 998 990 982 975 968 962 956 951 947 943 940 938 936 935 935 936 937 940 943 940 937 936 935 935 936 938 940 943 947 951 956 962 968 975 982 990
5.0 861 860 860 863 867 873 881 890 901 913 926 941 956 964 973 983 993 1004 1015 1004 993 983 973 964 956 941 926 913 901 890 881 873 867 863 860 860 861 852 844 839 835 832 830 829 829 829 831 833 836 834 835 836 839 844 850 844 839 836 835 834 836 833 831 829 829 829 830 832 835 839 844 852
7.5 758 757 759 763 768 775 784 795 807 803 796 794 794 797 802 797 795 796 801 796 795 797 802 797 794 794 796 803 807 795 784 775 768 763 759 757 758 750 744 739 736 734 733 732 731 726 721 718 716 715 716 716 717 722 729 722 717 716 716 715 716 718 721 726 731 732 733 734 736 739 744 750
10.0 703 710 718 726 733 738 740 704 672 654 641 629 619 616 615 616 603 592 587 592 603 616 615 616 619 629 641 654 672 704 740 738 733 726 718 710 703 697 692 688 684 681 676 658 642 632 624 617 611 605 600 597 597 601 608 601 597 597 600 605 611 617 624 632 642 658 676 681 684 688 692 697
12.5 673 673 676 681 691 686 650 613 573 539 513 499 494 490 486 483 477 470 467 470 477 483 486 490 494 499 513 539 573 613 650 686 691 681 676 673 673 663 655 648 644 634 614 595 576 558 543 528 515 504 495 491 491 494 501 494 491 491 495 504 515 528 543 558 576 595 614 634 644 648 655 663
15.0 664 663 662 662 652 601 556 516 474 451 442 429 411 401 392 374 354 348 347 348 354 374 392 401 411 429 442 451 474 516 556 601 652 662 662 663 664 649 635 623 609 581 554 529 509 486 461 438 418 402 389 385 387 389 394 389 387 385 389 402 418 438 461 486 509 529 554 581 609 623 635 649
17.5 640 649 657 664 609 540 475 431 418 402 393 392 360 333 325 316 308 301 295 301 308 316 325 333 360 392 393 402 418 431 475 540 609 664 657 649 640 635 630 622 586 547 514 484 450 418 388 356 332 317 308 307 313 317 323 317 313 307 308 317 332 356 388 418 450 484 514 547 586 622 630 635
20.0 646 658 669 658 574 492 424 395 369 350 331 324 314 287 272 262 263 259 243 259 263 262 272 287 314 324 331 350 369 395 424 492 574 658 669 658 646 629 615 597 556 512 469 439 407 370 332 298 270 251 240 236 242 247 251 247 242 236 240 251 270 298 332 370 407 439 469 512 556 597 615 629
22.5 642 669 692 643 543 447 406 370 337 309 288 267 250 232 220 207 205 203 190 203 205 207 220 232 250 267 288 309 337 370 406 447 543 643 692 669 642 620 600 565 522 483 442 403 368 325 285 244 212 207 211 223 235 247 262 247 235 223 211 207 212 244 285 325 368 403 442 483 522 565 600 620
25.0 638 664 692 636 538 433 385 347 302 263 243 219 192 173 163 152 146 146 136 146 146 152 163 173 192 219 243 263 302 347 385 433 538 636 692 664 638 604 573 528 481 440 402 367 318 271 233 224 224 228 227 231 238 247 272 247 238 231 227 228 224 224 233 271 318 367 402 440 481 528 573 604
27.5 609 649 678 574 522 445 346 299 258 221 185 165 135 118 125 135 140 149 153 149 140 135 125 118 135 165 185 221 258 299 346 445 522 574 678 649 609 574 539 484 434 398 359 316 268 223 233 239 243 249 249 245 254 267 292 267 254 245 249 249 243 239 233 223 268 316 359 398 434 484 539 574
30.0 573 608 601 464 375 343 288 243 198 175 140 113 111 108 114 132 143 152 170 152 143 132 114 108 111 113 140 175 198 243 288 343 375 464 601 608 573 530 487 430 387 354 315 272 242 247 251 257 256 269 274 261 271 288 312 288 271 261 274 269 256 257 251 247 242 272 315 354 387 430 487 530
32.5 473 498 470 355 319 289 241 193 161 127 111 103 99.0 98.0 119 145 163 176 195 176 163 145 119 98.0 99.0 103 111 127 161 193 241 289 319 355 470 498 473 437 400 356 343 320 270 229 262 293 272 273 272 285 292 275 275 299 318 299 275 275 292 285 272 273 272 293 262 229 270 320 343 356 400 437
35.0 334 382 350 257 254 235 193 158 125 105 98.0 87.0 115 133 151 171 187 201 219 201 187 171 151 133 115 87.0 98.0 105 125 158 193 235 254 257 350 382 334 318 296 268 276 260 222 236 272 307 305 293 286 294 301 287 277 308 324 308 277 287 301 294 286 293 305 307 272 236 222 260 276 268 296 318
37.5 256 286 251 200 197 186 160 123 108 91.0 97.0 122 153 172 165 161 166 181 192 181 166 161 165 172 153 122 97.0 91.0 108 123 160 186 197 200 251 286 256 228 208 202 221 197 192 243 279 322 326 311 299 308 308 303 290 306 318 306 290 303 308 308 299 311 326 322 279 243 192 197 221 202 208 228
40.0 142 161 154 148 160 153 143 117 102 100 132 166 162 145 137 127 137 159 164 159 137 127 137 145 162 166 132 100 102 117 143 153 160 148 154 161 142 126 130 151 174 153 201 249 286 330 335 325 315 317 316 316 304 306 312 306 304 316 316 317 315 325 335 330 286 249 201 153 174 151 130 126
42.5 122 131 115 107 122 139 133 114 109 128 168 148 130 113 111 106 115 127 130 127 115 106 111 113 130 148 168 128 109 114 133 139 122 107 115 131 122 103 99.0 111 131 138 200 236 279 323 338 330 327 327 323 317 297 295 295 295 297 317 323 327 327 330 338 323 279 236 200 138 131 111 99.0 103
45.0 109 123 102 103 112 96.0 99.0 84.0 102 133 128 114 104 100 96.0 96.0 93.0 97.0 96.0 97.0 93.0 96.0 96.0 100 104 114 128 133 102 84.0 99.0 96.0 112 103 102 123 109 93.0 87.0 96.0 110 135 163 202 248 314 337 333 324 318 320 310 287 283 278 283 287 310 320 318 324 333 337 314 248 202 163 135 110 96.0 87.0 93.0
47.5 109 110 99.0 87.0 99.0 70.0 61.0 61.0 82.0 85.0 87.0 93.0 90.0 87.0 87.0 89.0 89.0 92.0 90.0 92.0 89.0 89.0 87.0 87.0 90.0 93.0 87.0 85.0 82.0 61.0 61.0 70.0 99.0 87.0 99.0 110 109 92.0 81.0 85.0 100 118 138 182 214 276 323 318 304 308 307 292 259 248 246 248 259 292 307 308 304 318 323 276 214 182 138 118 100 85.0 81.0 92.0
50.0 97.0 107 86.0 84.0 79.0 57.0 41.0 42.0 46.0 43.0 68.0 77.0 79.0 85.0 86.0 86.0 91.0 87.0 84.0 87.0 91.0 86.0 86.0 85.0 79.0 77.0 68.0 43.0 46.0 42.0 41.0 57.0 79.0 84.0 86.0 107 97.0 85.0 74.0 84.0 96.0 106 124 165 195 244 273 281 273 271 269 262 228 213 214 213 228 262 269 271 273 281 273 244 195 165 124 106 96.0 84.0 74.0 85.0
52.5 80.0 94.0 74.0 73.0 64.0 48.0 39.0 30.0 9.0 31.0 48.0 64.0 75.0 85.0 74.0 65.0 61.0 54.0 51.0 54.0 61.0 65.0 74.0 85.0 75.0 64.0 48.0 31.0 9.0 30.0 39.0 48.0 64.0 73.0 74.0 94.0 80.0 69.0 65.0 79.0 90.0 100 131 155 177 199 219 239 233 232 229 225 211 195 193 195 211 225 229 232 233 239 219 199 177 155 131 100 90.0 79.0 65.0 69.0
55.0 67.0 63.0 58.0 51.0 54.0 48.0 32.0 13.0 13.0 17.0 30.0 46.0 61.0 53.0 39.0 30.0 26.0 21.0 17.0 21.0 26.0 30.0 39.0 53.0 61.0 46.0 30.0 17.0 13.0 13.0 32.0 48.0 54.0 51.0 58.0 63.0 67.0 50.0 48.0 64.0 72.0 96.0 132 155 163 170 188 196 201 201 196 191 189 177 172 177 189 191 196 201 201 196 188 170 163 155 132 96.0 72.0 64.0 48.0 50.0
57.5 50.0 52.0 39.0 39.0 25.0 72.0 19.0 10.0 7.0 9.0 10.0 28.0 30.0 16.0 14.0 13.0 15.0 14.0 12.0 14.0 15.0 13.0 14.0 16.0 30.0 28.0 10.0 9.0 7.0 10.0 19.0 72.0 25.0 39.0 39.0 52.0 50.0 36.0 29.0 42.0 55.0 93.0 118 136 151 159 166 172 178 172 159 152 147 138 134 138 147 152 159 172 178 172 166 159 151 136 118 93.0 55.0 42.0 29.0 36.0
60.0 15.0 22.0 24.0 23.0 18.0 34.0 6.0 8.0 7.0 3.0 6.0 8.0 10.0 9.0 9.0 8.0 10.0 9.0 7.0 9.0 10.0 8.0 9.0 9.0 10.0 8.0 6.0 3.0 7.0 8.0 6.0 34.0 18.0 23.0 24.0 22.0 15.0 16.0 15.0 28.0 43.0 76.0 85.0 102 128 143 151 155 140 126 112 109 101 100 96.0 100 101 109 112 126 140 155 151 143 128 102 85.0 76.0 43.0 28.0 15.0 16.0
62.5 10.0 9.0 15.0 15.0 17.0 11.0 9.0 5.0 5.0 5.0 2.0 6.0 6.0 6.0 5.0 8.0 8.0 7.0 4.0 7.0 8.0 8.0 5.0 6.0 6.0 6.0 2.0 5.0 5.0 5.0 9.0 11.0 17.0 15.0 15.0 9.0 10.0 4.0 4.0 12.0 31.0 40.0 53.0 71.0 95.0 121 127 110 94.0 83.0 83.0 89.0 91.0 92.0 90.0 92.0 91.0 89.0 83.0 83.0 94.0 110 127 121 95.0 71.0 53.0 40.0 31.0 12.0 4.0 4.0
65.0 0.0 7.0 13.0 15.0 14.0 7.0 6.0 5.0 3.0 5.0 3.0 5.0 5.0 3.0 5.0 10.0 8.0 6.0 0.0 6.0 8.0 10.0 5.0 3.0 5.0 5.0 3.0 5.0 3.0 5.0 6.0 7.0 14.0 15.0 13.0 7.0 0.0 3.0 5.0 7.0 13.0 10.0 22.0 39.0 58.0 79.0 81.0 71.0 76.0 82.0 80.0 83.0 87.0 86.0 84.0 86.0 87.0 83.0 80.0 82.0 76.0 71.0 81.0 79.0 58.0 39.0 22.0 10.0 13.0 7.0 5.0 3.0
67.5 2.0 4.0 4.0 12.0 3.0 3.0 8.0 3.0 3.0 4.0 3.0 3.0 2.0 1.0 5.0 8.0 8.0 7.0 4.0 7.0 8.0 8.0 5.0 1.0 2.0 3.0 3.0 4.0 3.0 3.0 8.0 3.0 3.0 12.0 4.0 4.0 2.0 2.0 5.0 2.0 2.0 3.0 5.0 12.0 24.0 31.0 47.0 59.0 72.0 71.0 60.0 56.0 54.0 48.0 47.0 48.0 54.0 56.0 60.0 71.0 72.0 59.0 47.0 31.0 24.0 12.0 5.0 3.0 2.0 2.0 5.0 2.0
70.0 1.0 2.0 3.0 5.0 3.0 4.0 4.0 2.0 3.0 4.0 1.0 0.0 2.0 3.0 3.0 6.0 8.0 8.0 7.0 8.0 8.0 6.0 3.0 3.0 2.0 0.0 1.0 4.0 3.0 2.0 4.0 4.0 3.0 5.0 3.0 2.0 1.0 2.0 0.0 8.0 3.0 4.0 3.0 3.0 5.0 13.0 24.0 40.0 41.0 34.0 25.0 20.0 17.0 8.0 10.0 8.0 17.0 20.0 25.0 34.0 41.0 40.0 24.0 13.0 5.0 3.0 3.0 4.0 3.0 8.0 0.0 2.0
72.5 0.0 1.0 1.0 7.0 3.0 2.0 3.0 2.0 2.0 5.0 1.0 0.0 1.0 4.0 3.0 6.0 9.0 8.0 8.0 8.0 9.0 6.0 3.0 4.0 1.0 0.0 1.0 5.0 2.0 2.0 3.0 2.0 3.0 7.0 1.0 1.0 0.0 4.0 0.0 6.0 1.0 2.0 1.0 2.0 2.0 1.0 10.0 15.0 6.0 8.0 7.0 8.0 10.0 5.0 5.0 5.0 10.0 8.0 7.0 8.0 6.0 15.0 10.0 1.0 2.0 2.0 1.0 2.0 1.0 6.0 0.0 4.0
75.0 2.0 2.0 4.0 1.0 2.0 3.0 2.0 5.0 3.0 2.0 1.0 1.0 2.0 3.0 4.0 6.0 9.0 8.0 8.0 8.0 9.0 6.0 4.0 3.0 2.0 1.0 1.0 2.0 3.0 5.0 2.0 3.0 2.0 1.0 4.0 2.0 2.0 1.0 1.0 1.0 1.0 2.0 2.0 2.0 0.0 2.0 3.0 4.0 3.0 5.0 5.0 4.0 7.0 3.0 0.0 3.0 7.0 4.0 5.0 5.0 3.0 4.0 3.0 2.0 0.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0
77.5 0.0 3.0 1.0 0.0 3.0 1.0 1.0 3.0 2.0 2.0 1.0 1.0 2.0 2.0 5.0 6.0 9.0 8.0 8.0 8.0 9.0 6.0 5.0 2.0 2.0 1.0 1.0 2.0 2.0 3.0 1.0 1.0 3.0 0.0 1.0 3.0 0.0 2.0 1.0 3.0 2.0 0.0 4.0 1.0 1.0 2.0 1.0 2.0 1.0 2.0 4.0 5.0 4.0 2.0 0.0 2.0 4.0 5.0 4.0 2.0 1.0 2.0 1.0 2.0 1.0 1.0 4.0 0.0 2.0 3.0 1.0 2.0
80.0 1.0 2.0 2.0 1.0 2.0 1.0 1.0 2.0 3.0 3.0 1.0 1.0 1.0 1.0 5.0 6.0 8.0 9.0 7.0 9.0 8.0 6.0 5.0 1.0 1.0 1.0 1.0 3.0 3.0 2.0 1.0 1.0 2.0 1.0 2.0 2.0 1.0 2.0 1.0 2.0 0.0 1.0 2.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 4.0 7.0 1.0 0.0 0.0 0.0 1.0 7.0 4.0 1.0 1.0 1.0 0.0 0.0 1.0 1.0 2.0 1.0 0.0 2.0 1.0 2.0
82.5 2.0 1.0 2.0 1.0 1.0 1.0 3.0 2.0 1.0 1.0 1.0 0.0 1.0 1.0 4.0 4.0 6.0 5.0 4.0 5.0 6.0 4.0 4.0 1.0 1.0 0.0 1.0 1.0 1.0 2.0 3.0 1.0 1.0 1.0 2.0 1.0 2.0 1.0 2.0 1.0 2.0 1.0 3.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 4.0 4.0 1.0 1.0 0.0 1.0 1.0 4.0 4.0 1.0 1.0 1.0 0.0 0.0 1.0 1.0 3.0 1.0 2.0 1.0 2.0 1.0
85.0 1.0 2.0 1.0 1.0 1.0 3.0 3.0 2.0 1.0 1.0 1.0 0.0 2.0 2.0 2.0 1.0 2.0 1.0 0.0 1.0 2.0 1.0 2.0 2.0 2.0 0.0 1.0 1.0 1.0 2.0 3.0 3.0 1.0 1.0 1.0 2.0 1.0 0.0 1.0 2.0 2.0 1.0 2.0 0.0 0.0 0.0 0.0 0.0 0.0 2.0 3.0 0.0 1.0 1.0 0.0 1.0 1.0 0.0 3.0 2.0 0.0 0.0 0.0 0.0 0.0 0.0 2.0 1.0 2.0 2.0 1.0 0.0
87.5 0.0 1.0 1.0 4.0 1.0 2.0 2.0 2.0 2.0 1.0 1.0 2.0 1.0 1.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 2.0 1.0 1.0 2.0 1.0 1.0 2.0 2.0 2.0 2.0 1.0 4.0 1.0 1.0 0.0 2.0 2.0 3.0 2.0 2.0 1.0 0.0 0.0 0.0 0.0 2.0 0.0 2.0 3.0 0.0 1.0 1.0 1.0 1.0 1.0 0.0 3.0 2.0 0.0 2.0 0.0 0.0 0.0 0.0 1.0 2.0 2.0 3.0 2.0 2.0
90.0 0.0 0.0 0.0 0.0 0.0 3.0 0.0 0.0 0.0 0.0 1.0 4.0 0.0 0.0 2.0 0.0 0.0 0.0 2.0 0.0 0.0 0.0 2.0 0.0 0.0 4.0 1.0 0.0 0.0 0.0 0.0 3.0 0.0 0.0 0.0 0.0 0.0 3.0 0.0 1.0 4.0 3.0 0.0 0.0 2.0 1.0 1.0 4.0 0.0 1.0 2.0 0.0 0.0 1.0 2.0 1.0 0.0 0.0 2.0 1.0 0.0 4.0 1.0 1.0 2.0 0.0 0.0 3.0 4.0 1.0 0.0 3.0
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
