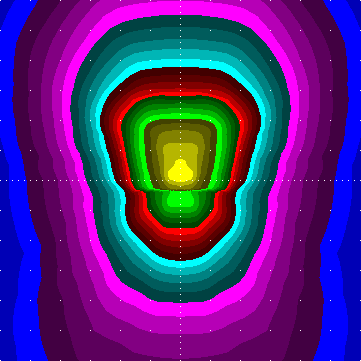

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] 3091904s.tm
# [LUMINAIRE] IZX-A
# [LUMCAT] Zeus
# [DATE] 29/11/2011 12:45:08
# down given: 100.0%
# out given: 64.7%
# tilt: 0.00
# [LAMP] 1 ST 150 17500 1950 E40
# Bulbs: 1, 17500 lm each
# Source file: Zeus_IZX-A_1_ST_150_17500_1950_E40.ldt
# Luminaire flux = 648 raw, for the given bulb(s) it would be 11346 lm,
# 64.8 % of the bulb flux
# between 75 and 90: 0.5 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 5.7 cd / 1000 lm , 0.2 % of the luminaire flux
# 90deg and above: max 1.8 cd / 1000 lm , 0.0 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 2 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 9 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 545 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 286 cd / 1000 lm,
# maximum spec. lum. intensity 629 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233
2.0 230 233 236 237 239 240 241 243 245 244 247 247 247 249 250 248 251 249 251 249 251 248 250 249 247 247 247 244 245 243 241 240 239 237 236 233 230 229 229 228 226 225 222 221 219 218 215 215 214 213 212 211 211 212 211 212 211 211 212 213 214 215 215 218 219 221 222 225 226 228 229 229
4.0 231 234 238 242 244 246 250 252 256 259 262 262 264 266 267 266 271 270 268 270 271 266 267 266 264 262 262 259 256 252 250 246 244 242 238 234 231 228 225 223 218 215 212 208 205 203 200 197 195 193 193 190 191 190 191 190 191 190 193 193 195 197 200 203 205 208 212 215 218 223 225 228
6.0 230 235 239 242 249 252 258 262 270 273 277 281 282 284 283 284 286 286 286 286 286 284 283 284 282 281 277 273 270 262 258 252 249 242 239 235 230 226 221 216 211 204 201 196 190 187 184 179 177 174 172 170 170 169 168 169 170 170 172 174 177 179 184 187 190 196 201 204 211 216 221 226
8.0 228 235 240 247 253 258 264 272 278 281 283 285 288 292 294 295 296 297 297 297 296 295 294 292 288 285 283 281 278 272 264 258 253 247 240 235 228 223 215 209 200 193 187 182 175 170 166 161 158 154 152 151 150 148 147 148 150 151 152 154 158 161 166 170 175 182 187 193 200 209 215 223
10.0 226 232 241 250 257 264 275 280 284 289 294 299 301 305 310 310 313 313 314 313 313 310 310 305 301 299 294 289 284 280 275 264 257 250 241 232 226 219 210 200 192 184 177 168 161 155 151 146 142 138 136 134 134 133 134 133 134 134 136 138 142 146 151 155 161 168 177 184 192 200 210 219
12.0 224 232 244 253 263 272 279 286 292 297 304 310 311 314 319 320 320 322 318 322 320 320 319 314 311 310 304 297 292 286 279 272 263 253 244 232 224 215 205 193 182 173 163 156 147 140 136 132 130 128 127 125 125 124 124 124 125 125 127 128 130 132 136 140 147 156 163 173 182 193 205 215
14.0 222 231 245 257 269 278 284 292 297 302 307 309 313 315 318 316 315 319 315 319 315 316 318 315 313 309 307 302 297 292 284 278 269 257 245 231 222 210 197 183 172 161 150 143 135 131 127 125 122 121 120 119 119 120 119 120 119 119 120 121 122 125 127 131 135 143 150 161 172 183 197 210
16.0 221 232 249 261 275 283 293 298 306 306 311 310 310 311 315 313 316 314 315 314 316 313 315 311 310 310 311 306 306 298 293 283 275 261 249 232 221 207 193 176 163 150 142 132 126 122 120 118 117 116 116 115 112 110 109 110 112 115 116 116 117 118 120 122 126 132 142 150 163 176 193 207
18.0 219 236 249 267 279 293 299 305 309 310 309 309 309 310 313 315 318 317 317 317 318 315 313 310 309 309 309 310 309 305 299 293 279 267 249 236 219 205 187 170 155 143 133 127 121 118 116 115 112 103 86.3 67.6 54.6 49.0 47.6 49.0 54.6 67.6 86.3 103 112 115 116 118 121 127 133 143 155 170 187 205
20.0 213 233 248 268 283 295 304 309 309 306 307 305 308 312 316 315 316 317 321 317 316 315 316 312 308 305 307 306 309 309 304 295 283 268 248 233 213 196 178 161 146 133 125 120 116 114 112 97.6 64.9 40.8 32.3 29.1 29.2 29.5 29.9 29.5 29.2 29.1 32.3 40.8 64.9 97.6 112 114 116 120 125 133 146 161 178 196
22.0 205 223 242 259 278 296 303 305 305 302 299 303 305 308 310 313 316 317 316 317 316 313 310 308 305 303 299 302 305 305 303 296 278 259 242 223 205 187 168 150 136 125 117 114 112 107 76.3 39.2 28.9 28.9 29.5 30.4 31.4 31.8 32.1 31.8 31.4 30.4 29.5 28.9 28.9 39.2 76.3 107 112 114 117 125 136 150 168 187
24.0 188 209 228 245 267 283 295 298 298 297 295 297 301 302 306 310 311 313 313 313 311 310 306 302 301 297 295 297 298 298 295 283 267 245 228 209 188 171 153 137 126 116 111 109 103 63.7 31.7 28.5 29.5 30.7 31.5 32.7 33.9 34.8 35.0 34.8 33.9 32.7 31.5 30.7 29.5 28.5 31.7 63.7 103 109 111 116 126 137 153 171
26.0 171 189 206 229 248 267 282 289 291 289 288 293 294 298 302 306 311 313 316 313 311 306 302 298 294 293 288 289 291 289 282 267 248 229 206 189 171 154 139 126 115 108 107 103 64.3 28.9 28.0 30.3 31.9 33.2 34.4 35.6 36.8 37.7 38.1 37.7 36.8 35.6 34.4 33.2 31.9 30.3 28.0 28.9 64.3 103 107 108 115 126 139 154
28.0 151 167 183 204 224 246 265 277 284 285 286 285 290 296 304 307 313 319 322 319 313 307 304 296 290 285 286 285 284 277 265 246 224 204 183 167 151 136 125 115 107 104 103 77.1 28.1 26.3 29.4 32.2 34.4 36.0 37.2 38.3 39.4 40.3 40.7 40.3 39.4 38.3 37.2 36.0 34.4 32.2 29.4 26.3 28.1 77.1 103 104 107 115 125 136
30.0 132 145 160 179 198 221 242 261 272 279 281 281 286 297 309 323 331 337 339 337 331 323 309 297 286 281 281 279 272 261 242 221 198 179 160 145 132 121 112 107 102 101 92.6 35.3 23.7 26.9 30.8 34.7 37.3 38.9 40.4 41.6 42.9 43.8 44.5 43.8 42.9 41.6 40.4 38.9 37.3 34.7 30.8 26.9 23.7 35.3 92.6 101 102 107 112 121
32.0 117 126 140 157 177 198 220 242 260 272 277 279 286 304 320 338 353 359 364 359 353 338 320 304 286 279 277 272 260 242 220 198 177 157 140 126 117 110 104 101 98.1 97.6 60.6 22.1 24.1 27.5 32.0 36.2 40.2 42.7 44.0 45.0 46.1 47.3 48.1 47.3 46.1 45.0 44.0 42.7 40.2 36.2 32.0 27.5 24.1 22.1 60.6 97.6 98.1 101 104 110
34.0 107 115 128 142 159 177 200 225 250 266 275 285 296 320 339 355 365 371 373 371 365 355 339 320 296 285 275 266 250 225 200 177 159 142 128 115 107 102 97.4 96.3 94.8 90.2 28.9 22.4 24.9 28.4 32.6 38.5 43.3 46.0 47.4 47.8 48.9 49.8 49.8 49.8 48.9 47.8 47.4 46.0 43.3 38.5 32.6 28.4 24.9 22.4 28.9 90.2 94.8 96.3 97.4 102
36.0 102 109 119 133 146 162 183 208 233 255 275 293 308 328 345 359 365 370 370 370 365 359 345 328 308 293 275 255 233 208 183 162 146 133 119 109 102 98.3 93.3 92.7 92.3 65.3 21.3 23.2 25.6 28.9 33.6 40.1 45.9 49.2 50.0 50.0 50.0 50.7 50.9 50.7 50.0 50.0 50.0 49.2 45.9 40.1 33.6 28.9 25.6 23.2 21.3 65.3 92.3 92.7 93.3 98.3
38.0 99.7 105 115 128 140 153 169 195 220 248 278 302 317 337 356 372 377 380 382 380 377 372 356 337 317 302 278 248 220 195 169 153 140 128 115 105 99.7 95.1 90.2 89.4 89.4 34.8 21.8 24.1 26.3 29.4 34.3 40.8 47.6 51.2 51.8 51.0 50.6 51.1 51.3 51.1 50.6 51.0 51.8 51.2 47.6 40.8 34.3 29.4 26.3 24.1 21.8 34.8 89.4 89.4 90.2 95.1
40.0 97.3 103 112 124 135 145 160 182 211 248 281 308 330 351 373 386 397 395 395 395 397 386 373 351 330 308 281 248 211 182 160 145 135 124 112 103 97.3 92.1 87.4 87.0 79.6 21.6 22.3 24.8 26.9 29.8 34.6 41.5 48.0 52.2 52.5 51.2 50.2 49.7 50.0 49.7 50.2 51.2 52.5 52.2 48.0 41.5 34.6 29.8 26.9 24.8 22.3 21.6 79.6 87.0 87.4 92.1
42.0 94.9 98.9 110 122 133 145 158 176 208 246 281 320 347 377 405 423 430 428 424 428 430 423 405 377 347 320 281 246 208 176 158 145 133 122 110 98.9 94.9 88.9 84.7 82.8 57.6 20.2 22.5 24.8 27.0 30.1 34.4 41.2 47.8 52.1 51.9 50.4 48.7 48.0 48.5 48.0 48.7 50.4 51.9 52.1 47.8 41.2 34.4 30.1 27.0 24.8 22.5 20.2 57.6 82.8 84.7 88.9
44.0 91.8 95.0 105 117 130 141 158 174 208 242 286 329 375 411 446 458 458 454 449 454 458 458 446 411 375 329 286 242 208 174 158 141 130 117 105 95.0 91.8 85.6 81.2 79.2 31.1 19.4 22.0 24.5 27.0 29.9 33.9 40.1 46.7 50.6 50.9 49.0 46.9 45.8 45.8 45.8 46.9 49.0 50.9 50.6 46.7 40.1 33.9 29.9 27.0 24.5 22.0 19.4 31.1 79.2 81.2 85.6
46.0 87.2 90.9 97.9 112 127 139 156 179 208 241 290 354 412 455 480 492 488 477 470 477 488 492 480 455 412 354 290 241 208 179 156 139 127 112 97.9 90.9 87.2 82.1 77.2 74.1 18.3 18.2 20.8 23.4 26.2 29.3 32.9 38.5 44.1 48.2 48.3 45.9 43.6 42.5 42.3 42.5 43.6 45.9 48.3 48.2 44.1 38.5 32.9 29.3 26.2 23.4 20.8 18.2 18.3 74.1 77.2 82.1
48.0 82.3 86.3 91.3 105 123 136 156 178 206 240 299 379 453 492 516 519 510 498 496 498 510 519 516 492 453 379 299 240 206 178 156 136 123 105 91.3 86.3 82.3 77.9 71.7 61.3 14.9 16.7 19.0 21.9 24.8 27.6 30.8 35.3 40.8 45.0 44.7 42.2 40.0 38.5 38.1 38.5 40.0 42.2 44.7 45.0 40.8 35.3 30.8 27.6 24.8 21.9 19.0 16.7 14.9 61.3 71.7 77.9
50.0 75.8 78.9 84.5 97.4 117 131 151 177 205 241 312 400 475 519 546 543 530 510 509 510 530 543 546 519 475 400 312 241 205 177 151 131 117 97.4 84.5 78.9 75.8 70.6 63.6 38.7 13.0 14.7 17.0 19.8 23.1 25.4 28.1 31.8 36.6 40.1 40.7 38.4 36.2 34.7 34.1 34.7 36.2 38.4 40.7 40.1 36.6 31.8 28.1 25.4 23.1 19.8 17.0 14.7 13.0 38.7 63.6 70.6
52.0 65.9 69.6 75.8 87.5 108 124 146 173 202 245 314 407 501 544 559 549 528 510 508 510 528 549 559 544 501 407 314 245 202 173 146 124 108 87.5 75.8 69.6 65.9 60.6 53.3 18.7 11.0 12.5 14.6 17.7 20.7 23.0 24.8 27.7 31.7 35.4 36.4 34.1 32.1 30.8 30.6 30.8 32.1 34.1 36.4 35.4 31.7 27.7 24.8 23.0 20.7 17.7 14.6 12.5 11.0 18.7 53.3 60.6
54.0 54.8 57.2 64.4 76.7 98.1 115 142 171 201 249 314 413 512 556 564 552 537 520 519 520 537 552 564 556 512 413 314 249 201 171 142 115 98.1 76.7 64.4 57.2 54.8 47.7 40.7 9.7 9.1 10.2 12.3 15.3 18.3 20.3 21.5 23.6 26.9 30.4 31.6 30.2 28.3 26.9 26.6 26.9 28.3 30.2 31.6 30.4 26.9 23.6 21.5 20.3 18.3 15.3 12.3 10.2 9.1 9.7 40.7 47.7
56.0 41.1 43.5 51.3 64.1 84.9 101 132 165 200 248 310 407 508 564 575 574 561 554 545 554 561 574 575 564 508 407 310 248 200 165 132 101 84.9 64.1 51.3 43.5 41.1 33.8 27.4 7.0 7.2 8.2 10.3 13.0 16.0 17.6 18.6 19.8 22.4 25.7 27.4 26.7 24.9 24.0 23.5 24.0 24.9 26.7 27.4 25.7 22.4 19.8 18.6 17.6 16.0 13.0 10.3 8.2 7.2 7.0 27.4 33.8
58.0 27.5 30.4 37.4 50.1 67.5 87.6 116 154 197 248 306 400 514 586 600 605 593 590 596 590 593 605 600 586 514 400 306 248 197 154 116 87.6 67.5 50.1 37.4 30.4 27.5 20.8 14.3 5.4 5.6 6.7 8.6 10.9 13.6 15.2 15.7 16.5 18.6 21.2 23.5 23.3 22.2 21.4 21.0 21.4 22.2 23.3 23.5 21.2 18.6 16.5 15.7 15.2 13.6 10.9 8.6 6.7 5.6 5.4 14.3 20.8
60.0 16.5 19.3 24.6 33.4 49.7 71.4 98.2 140 183 241 310 407 534 613 629 625 610 604 605 604 610 625 629 613 534 407 310 241 183 140 98.2 71.4 49.7 33.4 24.6 19.3 16.5 11.4 5.8 4.1 4.5 5.4 7.0 9.2 11.4 12.8 13.1 13.7 15.0 17.6 20.0 20.2 19.4 19.0 18.8 19.0 19.4 20.2 20.0 17.6 15.0 13.7 13.1 12.8 11.4 9.2 7.0 5.4 4.5 4.1 5.8 11.4
62.0 9.3 11.4 15.1 20.3 31.4 48.4 78.1 120 167 226 310 425 552 622 620 587 552 536 534 536 552 587 620 622 552 425 310 226 167 120 78.1 48.4 31.4 20.3 15.1 11.4 9.3 5.4 3.3 3.3 3.5 4.5 5.8 7.6 9.4 10.6 10.9 11.1 12.0 14.3 16.5 17.3 16.9 16.7 16.8 16.7 16.9 17.3 16.5 14.3 12.0 11.1 10.9 10.6 9.4 7.6 5.8 4.5 3.5 3.3 3.3 5.4
64.0 5.8 7.4 9.8 12.1 17.2 30.6 50.4 86.2 140 196 299 419 512 545 508 458 420 397 391 397 420 458 508 545 512 419 299 196 140 86.2 50.4 30.6 17.2 12.1 9.8 7.4 5.8 3.5 2.6 2.6 2.7 3.6 4.6 5.9 7.4 8.2 8.4 8.7 9.5 11.1 13.1 14.2 14.2 14.1 14.2 14.1 14.2 14.2 13.1 11.1 9.5 8.7 8.4 8.2 7.4 5.9 4.6 3.6 2.7 2.6 2.6 3.5
66.0 3.7 4.7 6.2 7.9 11.3 18.1 30.8 58.1 102 158 254 352 408 403 365 332 310 298 298 298 310 332 365 403 408 352 254 158 102 58.1 30.8 18.1 11.3 7.9 6.2 4.7 3.7 2.4 1.9 2.0 2.2 2.7 3.5 4.4 5.3 5.9 6.2 6.5 7.2 8.3 10.1 11.1 11.2 11.4 11.7 11.4 11.2 11.1 10.1 8.3 7.2 6.5 6.2 5.9 5.3 4.4 3.5 2.7 2.2 2.0 1.9 2.4
68.0 2.4 3.1 3.8 4.9 7.3 11.7 20.7 38.1 73.1 120 182 240 280 286 259 229 216 211 212 211 216 229 259 286 280 240 182 120 73.1 38.1 20.7 11.7 7.3 4.9 3.8 3.1 2.4 1.7 1.5 1.6 1.7 2.2 2.5 3.2 3.7 4.2 4.6 4.8 5.4 6.3 7.5 8.5 8.8 9.1 9.3 9.1 8.8 8.5 7.5 6.3 5.4 4.8 4.6 4.2 3.7 3.2 2.5 2.2 1.7 1.6 1.5 1.7
70.0 1.6 2.0 2.4 3.1 4.9 7.7 12.1 25.7 53.2 82.2 108 138 172 191 181 155 121 99.3 94.3 99.3 121 155 181 191 172 138 108 82.2 53.2 25.7 12.1 7.7 4.9 3.1 2.4 2.0 1.6 1.3 1.2 1.2 1.4 1.5 1.9 2.2 2.5 2.8 3.1 3.5 4.0 4.5 5.4 6.2 6.7 6.7 6.9 6.7 6.7 6.2 5.4 4.5 4.0 3.5 3.1 2.8 2.5 2.2 1.9 1.5 1.4 1.2 1.2 1.3
72.0 1.2 1.4 1.6 2.2 3.5 5.2 7.8 16.3 30.3 45.0 54.6 63.1 76.7 69.4 58.7 49.8 44.5 42.0 41.2 42.0 44.5 49.8 58.7 69.4 76.7 63.1 54.6 45.0 30.3 16.3 7.8 5.2 3.5 2.2 1.6 1.4 1.2 1.0 0.9 1.0 1.1 1.2 1.4 1.6 1.8 2.0 2.3 2.7 3.1 3.4 3.9 4.5 4.8 4.8 4.9 4.8 4.8 4.5 3.9 3.4 3.1 2.7 2.3 2.0 1.8 1.6 1.4 1.2 1.1 1.0 0.9 1.0
74.0 0.8 1.0 1.1 1.5 2.4 3.3 4.9 8.6 14.1 19.6 24.3 26.5 28.7 31.8 31.9 29.1 27.0 26.0 25.8 26.0 27.0 29.1 31.9 31.8 28.7 26.5 24.3 19.6 14.1 8.6 4.9 3.3 2.4 1.5 1.1 1.0 0.8 0.7 0.7 0.8 0.8 0.9 1.0 1.2 1.4 1.5 1.8 2.1 2.5 2.6 2.8 3.2 3.4 3.4 3.4 3.4 3.4 3.2 2.8 2.6 2.5 2.1 1.8 1.5 1.4 1.2 1.0 0.9 0.8 0.8 0.7 0.7
76.0 0.6 0.7 0.8 1.1 1.5 2.0 2.9 4.3 6.5 8.7 10.9 13.1 15.2 17.6 18.3 16.9 15.8 15.3 15.1 15.3 15.8 16.9 18.3 17.6 15.2 13.1 10.9 8.7 6.5 4.3 2.9 2.0 1.5 1.1 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.9 1.0 1.2 1.4 1.8 2.0 2.1 2.1 2.4 2.5 2.4 2.4 2.4 2.5 2.4 2.1 2.1 2.0 1.8 1.4 1.2 1.0 0.9 0.8 0.7 0.6 0.6 0.6 0.6
78.0 0.5 0.6 0.6 0.8 1.0 1.3 1.8 2.5 3.4 4.5 5.7 7.0 8.5 9.9 10.4 9.8 9.3 9.1 9.0 9.1 9.3 9.8 10.4 9.9 8.5 7.0 5.7 4.5 3.4 2.5 1.8 1.3 1.0 0.8 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.7 0.9 1.0 1.2 1.5 1.7 1.8 1.8 1.9 2.0 1.9 1.9 1.9 2.0 1.9 1.8 1.8 1.7 1.5 1.2 1.0 0.9 0.7 0.6 0.5 0.5 0.5 0.5 0.5
80.0 0.4 0.4 0.5 0.6 0.7 0.9 1.1 1.5 1.9 2.4 3.0 3.7 4.5 5.4 5.7 5.5 5.3 5.2 5.1 5.2 5.3 5.5 5.7 5.4 4.5 3.7 3.0 2.4 1.9 1.5 1.1 0.9 0.7 0.6 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.8 0.9 1.1 1.3 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.3 1.1 0.9 0.8 0.6 0.5 0.4 0.4 0.4 0.4 0.4
82.0 0.3 0.3 0.3 0.4 0.5 0.6 0.7 0.9 1.2 1.4 1.6 1.9 2.3 2.8 3.1 3.0 2.8 2.8 2.7 2.8 2.8 3.0 3.1 2.8 2.3 1.9 1.6 1.4 1.2 0.9 0.7 0.6 0.5 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.5 0.6 0.8 1.0 1.2 1.4 1.7 1.8 1.8 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.8 1.8 1.7 1.4 1.2 1.0 0.8 0.6 0.5 0.4 0.4 0.3 0.3 0.3
84.0 0.2 0.3 0.3 0.3 0.3 0.4 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.4 1.3 1.3 1.2 1.2 1.2 1.3 1.3 1.4 1.2 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.4 0.3 0.3 0.3 0.3 0.2 0.2 0.3 0.3 0.3 0.4 0.5 0.6 0.8 0.9 1.2 1.4 1.7 1.9 1.9 2.0 2.0 1.9 1.9 1.9 2.0 2.0 1.9 1.9 1.7 1.4 1.2 0.9 0.8 0.6 0.5 0.4 0.3 0.3 0.3 0.2
86.0 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.5 0.4 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.4 0.5 0.6 0.7 0.9 1.2 1.4 1.6 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.6 1.4 1.2 0.9 0.7 0.6 0.5 0.4 0.3 0.2 0.2 0.2
88.0 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.4 0.5 0.7 0.9 1.2 1.4 1.6 1.7 1.8 1.8 1.8 1.8 1.7 1.8 1.8 1.8 1.8 1.7 1.6 1.4 1.2 0.9 0.7 0.5 0.4 0.3 0.2 0.2 0.2 0.2
90.0 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.3 0.4 0.6 0.7 1.0 1.2 1.4 1.6 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.6 1.4 1.2 1.0 0.7 0.6 0.4 0.3 0.2 0.2 0.1 0.1
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
