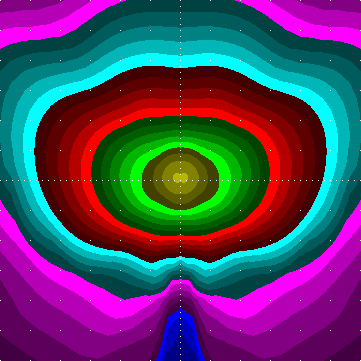

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] LVA10A121A
# [LUMINAIRE] Vital-iReflec200-VC
# [LUMCAT] Vital
# [DATE] 12/04/2010 21:27:34
# down given: 99.0%
# out given: 47.9%
# tilt: 0.00
# [LAMP] 1 FSM 42 3200 4000 GX24q4
# Bulbs: 1, 3200 lm each
# Source file: Vital_Vital-iReflec200-VC_1_FSM_42_3200_4000_GX24q4.ldt
# Luminaire flux = 480 raw, for the given bulb(s) it would be 1534 lm,
# 48.0 % of the bulb flux
# between 75 and 90: 3.1 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 33.7 cd / 1000 lm , 1.7 % of the luminaire flux
# 90deg and above: max 1.5 cd / 1000 lm , 0.9 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 14 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 36 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 150 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 131 cd / 1000 lm,
# maximum spec. lum. intensity 152 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129 129
2.0 129 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 129 129 129 129 129 129 128 128 128 128 128 128 127 127 127 127 127 127 127 127 127 127 127 127 127 128 128 128 128 128 128 129 129 129 129 129
4.0 132 132 133 133 133 133 133 133 133 132 132 132 132 132 132 132 132 132 132 132 132 132 132 132 132 132 132 132 133 133 133 133 133 133 133 132 132 132 131 131 131 130 130 129 129 128 127 127 126 126 126 126 125 125 125 125 125 126 126 126 126 127 127 128 129 129 130 130 131 131 131 132
6.0 135 135 135 136 136 136 136 136 136 136 135 134 134 134 133 133 133 134 134 134 133 133 133 134 134 134 135 136 136 136 136 136 136 136 135 135 135 134 134 133 133 132 131 131 130 129 128 127 126 125 124 124 124 124 124 124 124 124 124 125 126 127 128 129 130 131 131 132 133 133 134 134
8.0 136 136 137 137 137 138 138 138 138 138 137 137 136 136 135 135 134 135 135 135 134 135 135 136 136 137 137 138 138 138 138 138 137 137 137 136 136 135 135 134 133 133 132 131 130 129 128 127 126 124 123 123 122 122 122 122 122 123 123 124 126 127 128 129 130 131 132 133 133 134 135 135
10.0 135 136 136 137 137 138 138 138 138 138 138 137 137 136 135 134 134 134 135 134 134 134 135 136 137 137 138 138 138 138 138 138 137 137 136 136 135 134 134 133 132 131 130 130 129 128 127 126 124 123 121 120 119 119 119 119 119 120 121 123 124 126 127 128 129 130 130 131 132 133 134 134
12.0 137 137 138 139 139 140 140 141 141 141 140 140 140 139 138 137 136 136 136 136 136 137 138 139 140 140 140 141 141 141 140 140 139 139 138 137 137 136 135 134 133 131 130 129 128 127 126 125 124 123 121 120 119 118 119 118 119 120 121 123 124 125 126 127 128 129 130 131 133 134 135 136
14.0 137 138 139 140 141 141 142 142 143 143 142 142 142 141 140 138 137 137 137 137 137 138 140 141 142 142 142 143 143 142 142 141 141 140 139 138 137 136 135 134 133 131 130 128 127 126 125 124 123 122 121 119 118 117 117 117 118 119 121 122 123 124 125 126 127 128 130 131 133 134 135 136
16.0 137 138 139 140 141 142 143 143 143 144 143 143 142 142 141 140 138 137 138 137 138 140 141 142 142 143 143 144 143 143 143 142 141 140 139 138 137 136 135 134 132 131 129 127 126 125 124 122 122 121 120 118 116 115 116 115 116 118 120 121 122 122 124 125 126 127 129 131 132 134 135 136
18.0 136 137 138 140 141 142 143 143 143 144 143 143 143 142 142 140 138 137 138 137 138 140 142 142 143 143 143 144 143 143 143 142 141 140 138 137 136 134 133 132 130 129 128 126 124 123 122 121 120 119 118 117 115 114 114 114 115 117 118 119 120 121 122 123 124 126 128 129 130 132 133 134
20.0 135 136 137 138 139 140 142 143 144 144 143 143 143 142 142 141 139 137 138 137 139 141 142 142 143 143 143 144 144 143 142 140 139 138 137 136 135 133 132 130 129 127 125 124 122 121 119 118 118 117 116 115 113 111 111 111 113 115 116 117 118 118 119 121 122 124 125 127 129 130 132 133
22.0 133 135 136 137 138 139 140 141 143 144 143 143 143 142 142 141 139 137 138 137 139 141 142 142 143 143 143 144 143 141 140 139 138 137 136 135 133 132 130 129 127 125 123 122 120 119 117 116 115 114 113 113 111 109 109 109 111 113 113 114 115 116 117 119 120 122 123 125 127 129 130 132
24.0 132 133 134 135 136 136 138 139 140 142 142 142 142 141 141 140 138 136 136 136 138 140 141 141 142 142 142 142 140 139 138 136 136 135 134 133 132 130 129 127 125 123 121 119 118 116 115 113 112 111 111 110 108 106 106 106 108 110 111 111 112 113 115 116 118 119 121 123 125 127 129 130
26.0 130 131 132 134 134 135 136 137 138 140 141 142 141 141 140 140 138 135 136 135 138 140 140 141 141 142 141 140 138 137 136 135 134 134 132 131 130 128 126 124 122 120 118 116 114 113 111 110 109 108 107 107 105 103 103 103 105 107 107 108 109 110 111 113 114 116 118 120 122 124 126 128
28.0 127 128 130 131 132 133 134 135 136 137 138 140 140 140 139 138 137 134 135 134 137 138 139 140 140 140 138 137 136 135 134 133 132 131 130 128 127 125 123 121 119 117 115 113 112 110 109 107 106 105 105 104 103 100 100 100 103 104 105 105 106 107 109 110 112 113 115 117 119 121 123 125
30.0 126 127 129 131 132 133 133 134 135 137 138 140 141 140 139 138 137 135 135 135 137 138 139 140 141 140 138 137 135 134 133 133 132 131 129 127 126 124 122 120 118 116 114 112 110 108 107 106 105 104 104 103 103 99.9 99.3 99.9 103 103 104 104 105 106 107 108 110 112 114 116 118 120 122 124
32.0 125 127 129 131 132 133 133 134 135 136 137 139 140 140 139 138 138 135 135 135 138 138 139 140 140 139 137 136 135 134 133 133 132 131 129 127 125 123 121 119 117 114 112 110 108 107 105 104 104 104 103 103 103 100 99.7 100 103 103 103 104 104 104 105 107 108 110 112 114 117 119 121 123
34.0 124 126 128 131 131 132 132 133 133 134 135 137 139 139 138 137 137 134 134 134 137 137 138 139 139 137 135 134 133 133 132 132 131 131 128 126 124 122 120 118 115 112 110 107 105 104 103 103 103 103 103 104 104 101 100 101 104 104 103 103 103 103 103 104 105 107 110 112 115 118 120 122
36.0 124 125 128 131 132 132 132 132 132 133 134 135 137 138 137 136 136 133 133 133 136 136 137 138 137 135 134 133 132 132 132 132 132 131 128 125 124 122 120 117 115 112 109 106 104 102 101 101 102 103 104 104 104 102 101 102 104 104 104 103 102 101 101 102 104 106 109 112 115 117 120 122
38.0 123 125 127 130 132 133 132 131 131 131 132 133 134 136 135 134 133 131 131 131 133 134 135 136 134 133 132 131 131 131 132 133 132 130 127 125 123 121 120 117 114 112 109 106 103 101 99.5 99.6 100 102 103 103 104 102 101 102 104 103 103 102 100 99.6 99.5 101 103 106 109 112 114 117 120 121
40.0 123 124 125 128 130 131 131 131 129 128 129 130 131 132 132 130 130 128 127 128 130 130 132 132 131 130 129 128 129 131 131 131 130 128 125 124 123 122 120 118 115 113 109 106 102 99.5 97.8 97.6 98.2 99.3 100 100 101 99.8 98.3 99.8 101 100 100 99.3 98.2 97.6 97.8 99.5 102 106 109 113 115 118 120 122
42.0 124 125 126 127 128 129 129 128 127 127 125 126 126 127 127 126 125 123 122 123 125 126 127 127 126 126 125 127 127 128 129 129 128 127 126 125 124 123 122 119 117 114 111 107 103 98.9 96.6 95.4 95.4 96.0 96.5 96.1 96.2 95.6 94.4 95.6 96.2 96.1 96.5 96.0 95.4 95.4 96.6 98.9 103 107 111 114 117 119 122 123
44.0 127 127 127 128 128 128 127 125 124 122 120 120 120 121 122 120 120 118 117 118 120 120 122 121 120 120 120 122 124 125 127 128 128 128 127 127 127 126 124 122 119 116 113 109 104 98.7 95.5 93.5 92.6 92.2 91.6 91.1 91.3 90.5 88.9 90.5 91.3 91.1 91.6 92.2 92.6 93.5 95.5 98.7 104 109 113 116 119 122 124 126
46.0 129 130 130 130 130 129 126 123 119 116 114 113 113 114 115 114 113 112 111 112 113 114 115 114 113 113 114 116 119 123 126 129 130 130 130 130 129 128 127 125 122 119 115 110 104 98.6 94.4 91.6 89.7 88.3 86.9 85.7 85.4 84.9 83.1 84.9 85.4 85.7 86.9 88.3 89.7 91.6 94.4 98.6 104 110 115 119 122 125 127 128
48.0 132 132 132 132 131 129 126 121 115 111 107 106 106 106 107 106 105 105 103 105 105 106 107 106 106 106 107 111 115 121 126 129 131 132 132 132 132 131 130 128 126 122 118 112 104 97.7 92.9 89.4 86.8 84.2 82.1 80.9 79.4 77.7 77.2 77.7 79.4 80.9 82.1 84.2 86.8 89.4 92.9 97.7 104 112 118 122 126 128 130 131
50.0 135 136 135 134 133 130 126 120 114 107 102 99.8 98.6 99.0 98.9 98.2 97.6 96.9 95.1 96.9 97.6 98.2 98.9 99.0 98.6 99.8 102 107 114 120 126 130 133 134 135 136 135 134 133 132 129 125 120 113 104 96.2 90.9 86.8 83.0 79.7 77.3 75.5 73.2 71.7 68.6 71.7 73.2 75.5 77.3 79.7 83.0 86.8 90.9 96.2 104 113 120 125 129 132 133 134
52.0 138 139 138 137 135 131 126 120 112 105 98.7 94.5 92.1 91.2 91.4 90.2 88.7 87.9 86.0 87.9 88.7 90.2 91.4 91.2 92.1 94.5 98.7 105 112 120 126 131 135 137 138 139 138 138 138 136 132 127 120 112 103 94.1 87.9 83.1 78.4 74.4 71.7 69.2 66.4 63.3 61.0 63.3 66.4 69.2 71.7 74.4 78.4 83.1 87.9 94.1 103 112 120 127 132 136 138 138
54.0 142 142 141 140 137 133 127 120 111 103 95.9 90.2 86.2 84.1 83.6 82.3 79.6 78.8 77.2 78.8 79.6 82.3 83.6 84.1 86.2 90.2 95.9 103 111 120 127 133 137 140 141 142 142 142 142 139 135 128 120 111 100 91.1 84.1 78.5 73.2 68.5 65.2 61.7 58.3 55.2 52.9 55.2 58.3 61.7 65.2 68.5 73.2 78.5 84.1 91.1 100 111 120 128 135 139 142 142
56.0 146 146 144 142 139 135 128 120 111 102 93.3 86.7 81.4 77.6 75.8 74.0 71.9 70.7 68.2 70.7 71.9 74.0 75.8 77.6 81.4 86.7 93.3 102 111 120 128 135 139 142 144 146 146 145 143 140 134 126 118 107 96.7 86.6 79.1 72.9 67.3 62.1 57.9 53.8 50.1 47.6 45.6 47.6 50.1 53.8 57.9 62.1 67.3 72.9 79.1 86.6 96.7 107 118 126 134 140 143 145
58.0 148 148 147 145 142 136 129 120 110 100 90.7 83.5 77.3 72.3 68.9 66.8 64.7 64.0 61.5 64.0 64.7 66.8 68.9 72.3 77.3 83.5 90.7 100 110 120 129 136 142 145 147 148 148 146 143 138 130 122 113 103 92.1 81.1 72.9 66.4 60.7 55.6 50.8 46.6 43.4 41.4 39.8 41.4 43.4 46.6 50.8 55.6 60.7 66.4 72.9 81.1 92.1 103 113 122 130 138 143 146
60.0 150 151 150 147 143 138 129 119 108 98.0 88.2 80.1 73.2 66.9 62.6 60.4 58.5 57.4 54.9 57.4 58.5 60.4 62.6 66.9 73.2 80.1 88.2 98.0 108 119 129 138 143 147 150 151 150 146 141 134 125 116 106 95.0 84.6 74.1 65.1 58.6 53.4 48.9 44.0 39.9 36.6 35.1 33.5 35.1 36.6 39.9 44.0 48.9 53.4 58.6 65.1 74.1 84.6 95.0 106 116 125 134 141 146
62.0 149 152 151 148 143 135 126 116 105 94.2 84.4 76.0 68.4 61.7 56.7 54.3 52.9 51.5 48.6 51.5 52.9 54.3 56.7 61.7 68.4 76.0 84.4 94.2 105 116 126 135 143 148 151 152 149 144 137 128 118 108 98.0 86.7 75.1 64.3 56.3 50.2 45.5 41.2 36.9 32.7 29.6 27.6 25.3 27.6 29.6 32.7 36.9 41.2 45.5 50.2 56.3 64.3 75.1 86.7 98.0 108 118 128 137 144
64.0 145 149 150 148 142 133 122 111 98.9 89.0 79.7 71.5 64.0 57.3 52.0 49.1 47.6 46.0 43.3 46.0 47.6 49.1 52.0 57.3 64.0 71.5 79.7 89.0 98.9 111 122 133 142 148 150 149 145 138 129 120 110 99.5 88.9 77.5 65.5 54.4 46.1 40.7 36.6 33.1 29.5 24.9 21.7 19.8 17.7 19.8 21.7 24.9 29.5 33.1 36.6 40.7 46.1 54.4 65.5 77.5 88.9 99.5 110 120 129 138
66.0 136 141 143 142 137 129 118 104 91.7 81.5 73.5 66.2 59.3 53.1 47.7 44.0 42.6 41.2 38.3 41.2 42.6 44.0 47.7 53.1 59.3 66.2 73.5 81.5 91.7 104 118 129 137 142 143 141 136 128 119 109 99.0 88.4 77.4 66.1 55.0 44.5 36.3 31.1 27.6 24.9 21.9 17.8 14.7 13.0 10.7 13.0 14.7 17.8 21.9 24.9 27.6 31.1 36.3 44.5 55.0 66.1 77.4 88.4 99.0 109 119 128
68.0 122 128 131 131 127 120 110 96.9 83.4 72.5 65.0 59.6 54.0 48.8 43.7 39.4 37.2 36.1 34.0 36.1 37.2 39.4 43.7 48.8 54.0 59.6 65.0 72.5 83.4 96.9 110 120 127 131 131 128 122 114 106 96.7 86.6 75.9 65.2 54.5 44.1 34.3 26.8 22.6 20.2 18.2 16.0 12.3 8.7 8.2 7.1 8.2 8.7 12.3 16.0 18.2 20.2 22.6 26.8 34.3 44.1 54.5 65.2 75.9 86.6 96.7 106 114
70.0 106 111 114 115 113 107 98.2 87.0 74.5 63.3 55.3 51.1 47.8 43.6 39.3 35.1 32.3 30.9 29.2 30.9 32.3 35.1 39.3 43.6 47.8 51.1 55.3 63.3 74.5 87.0 98.2 107 113 115 114 111 106 99.6 91.7 82.9 73.2 62.8 52.1 41.9 32.8 24.4 17.8 14.6 13.2 12.7 11.4 8.1 6.0 5.7 2.9 5.7 6.0 8.1 11.4 12.7 13.2 14.6 17.8 24.4 32.8 41.9 52.1 62.8 73.2 82.9 91.7 99.6
72.0 91.1 95.4 97.7 98.2 96.8 92.3 84.8 74.4 63.5 53.9 46.4 42.2 40.4 37.8 34.5 31.0 28.0 26.2 24.7 26.2 28.0 31.0 34.5 37.8 40.4 42.2 46.4 53.9 63.5 74.4 84.8 92.3 96.8 98.2 97.7 95.4 91.1 84.8 77.2 68.8 59.8 50.0 40.0 30.8 22.7 15.7 10.7 8.0 7.2 7.3 7.7 6.7 4.4 2.2 1.8 2.2 4.4 6.7 7.7 7.3 7.2 8.0 10.7 15.7 22.7 30.8 40.0 50.0 59.8 68.8 77.2 84.8
74.0 75.8 80.6 83.4 84.3 82.5 77.8 71.2 61.8 51.4 43.3 37.4 34.3 32.5 31.1 28.9 26.5 23.8 21.7 20.4 21.7 23.8 26.5 28.9 31.1 32.5 34.3 37.4 43.3 51.4 61.8 71.2 77.8 82.5 84.3 83.4 80.6 75.8 69.8 63.0 54.8 46.5 37.9 29.3 21.5 15.2 9.9 6.4 4.8 4.3 4.3 4.3 4.5 3.1 1.0 0.8 1.0 3.1 4.5 4.3 4.3 4.3 4.8 6.4 9.9 15.2 21.5 29.3 37.9 46.5 54.8 63.0 69.8
76.0 57.8 63.2 67.2 69.0 68.6 65.2 58.5 49.4 40.0 32.2 27.6 25.7 24.9 24.1 22.8 21.3 19.3 17.4 16.5 17.4 19.3 21.3 22.8 24.1 24.9 25.7 27.6 32.2 40.0 49.4 58.5 65.2 68.6 69.0 67.2 63.2 57.8 51.9 45.5 38.3 31.3 24.7 18.7 13.4 9.1 5.8 3.8 3.1 2.8 2.7 2.5 2.0 1.2 0.5 0.3 0.5 1.2 2.0 2.5 2.7 2.8 3.1 3.8 5.8 9.1 13.4 18.7 24.7 31.3 38.3 45.5 51.9
78.0 37.0 42.3 47.2 50.9 52.5 50.9 46.3 38.6 29.3 22.0 18.0 17.1 17.3 17.3 16.7 15.9 14.9 13.5 12.9 13.5 14.9 15.9 16.7 17.3 17.3 17.1 18.0 22.0 29.3 38.6 46.3 50.9 52.5 50.9 47.2 42.3 37.0 30.9 25.4 19.7 14.2 9.2 6.4 4.7 3.7 3.0 2.9 2.9 3.1 3.1 2.4 1.5 1.1 0.3 0.2 0.3 1.1 1.5 2.4 3.1 3.1 2.9 2.9 3.0 3.7 4.7 6.4 9.2 14.2 19.7 25.4 30.9
80.0 13.0 19.8 24.1 29.5 32.4 33.7 32.1 26.8 19.8 13.6 10.1 9.2 9.6 10.4 10.7 10.4 9.9 9.3 9.0 9.3 9.9 10.4 10.7 10.4 9.6 9.2 10.1 13.6 19.8 26.8 32.1 33.7 32.4 29.5 24.1 19.8 13.0 9.2 7.2 5.7 4.6 4.0 3.6 3.3 3.0 2.8 2.6 2.6 2.6 2.5 1.8 1.4 1.2 0.3 0.2 0.3 1.2 1.4 1.8 2.5 2.6 2.6 2.6 2.8 3.0 3.3 3.6 4.0 4.6 5.7 7.2 9.2
82.0 4.4 5.3 6.6 8.0 11.8 15.5 17.6 16.2 12.1 7.9 5.7 4.9 4.7 4.8 5.2 5.6 5.9 5.7 5.6 5.7 5.9 5.6 5.2 4.8 4.7 4.9 5.7 7.9 12.1 16.2 17.6 15.5 11.8 8.0 6.6 5.3 4.4 3.9 3.6 3.4 3.0 2.6 2.4 2.5 2.7 2.7 2.5 2.5 2.5 2.3 1.5 1.2 1.2 0.2 0.2 0.2 1.2 1.2 1.5 2.3 2.5 2.5 2.5 2.7 2.7 2.5 2.4 2.6 3.0 3.4 3.6 3.9
84.0 2.9 3.4 3.3 3.2 3.3 3.6 3.8 4.4 5.5 4.4 3.4 2.9 2.7 2.5 2.4 2.4 2.5 2.7 2.8 2.7 2.5 2.4 2.4 2.5 2.7 2.9 3.4 4.4 5.5 4.4 3.8 3.6 3.3 3.2 3.3 3.4 2.9 2.6 2.3 2.2 2.1 2.3 2.5 2.6 2.3 2.0 1.9 1.8 1.8 1.5 0.9 0.7 0.7 0.2 0.2 0.2 0.7 0.7 0.9 1.5 1.8 1.8 1.9 2.0 2.3 2.6 2.5 2.3 2.1 2.2 2.3 2.6
86.0 2.0 2.0 2.1 2.3 2.8 2.9 2.4 2.1 1.8 1.7 1.5 1.7 1.8 1.7 1.6 1.5 1.5 1.6 1.5 1.6 1.5 1.5 1.6 1.7 1.8 1.7 1.5 1.7 1.8 2.1 2.4 2.9 2.8 2.3 2.1 2.0 2.0 1.9 1.9 1.9 2.1 2.0 1.8 1.7 1.7 1.5 1.3 1.1 1.1 0.8 0.5 0.3 0.3 0.2 0.2 0.2 0.3 0.3 0.5 0.8 1.1 1.1 1.3 1.5 1.7 1.7 1.8 2.0 2.1 1.9 1.9 1.9
88.0 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.6 1.9 1.7 1.5 1.4 1.2 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.4 1.5 1.7 1.9 1.6 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.5 1.4 1.3 1.3 1.1 1.0 0.9 0.7 0.6 0.5 0.4 0.3 0.2 0.2 0.2 0.2 0.2 0.3 0.4 0.5 0.6 0.7 0.9 1.0 1.1 1.3 1.3 1.4 1.5 1.6 1.6 1.6
90.0 1.4 1.5 1.5 1.5 1.4 1.3 1.2 1.0 0.9 0.9 0.9 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 0.9 0.9 0.9 1.0 1.2 1.3 1.4 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.2 1.2 1.1 0.9 0.8 0.7 0.6 0.5 0.5 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.5 0.5 0.6 0.7 0.8 0.9 1.1 1.2 1.2 1.3 1.3 1.4
92.0 1.1 1.2 1.3 1.3 1.2 1.1 1.0 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.3 1.2 1.1 1.1 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.5 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.1
94.0 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.7 0.7 0.8 0.8 0.8 0.8
96.0 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.7 0.8 0.8
98.0 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7
100.0 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8
102.0 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8
104.0 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9
106.0 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9
108.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0
110.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0
112.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 1.0
114.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9
116.0 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9
118.0 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8
120.0 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8
122.0 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8
124.0 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
126.0 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
128.0 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
130.0 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
132.0 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
134.0 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.7 0.7
136.0 0.8 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
138.0 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
140.0 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
150.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
160.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
170.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
180.0 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2
