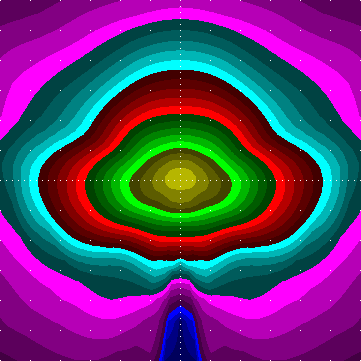

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] LVA10A128A
# [LUMINAIRE] Vital-iReflec200-VC
# [LUMCAT] Vital
# [DATE] 13/04/2010 19:56:37
# down given: 99.1%
# out given: 59.9%
# tilt: 0.00
# [LAMP] 1 FSM 18 1200 4000 GX24q2
# Bulbs: 1, 1200 lm each
# Source file: Vital_Vital-iReflec200-VC_1_FSM_18_1200_4000_GX24q2.ldt
# Luminaire flux = 600 raw, for the given bulb(s) it would be 720 lm,
# 60.0 % of the bulb flux
# between 75 and 90: 1.6 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 13.5 cd / 1000 lm , 1.3 % of the luminaire flux
# 90deg and above: max 1.7 cd / 1000 lm , 0.9 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 12 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 29 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 230 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 188 cd / 1000 lm,
# maximum spec. lum. intensity 251 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180
2.0 181 181 181 182 182 182 182 182 182 182 182 183 183 183 182 182 182 182 182 182 182 182 182 183 183 183 182 182 182 182 182 182 182 182 181 181 181 181 181 180 180 180 180 179 179 178 178 178 178 178 178 178 178 178 178 178 178 178 178 178 178 178 178 178 179 179 180 180 180 180 181 181
4.0 181 182 182 182 183 183 183 183 184 184 184 184 184 184 183 183 183 183 183 183 183 183 183 184 184 184 184 184 184 183 183 183 183 182 182 182 181 181 180 180 179 179 178 178 177 177 176 176 175 175 175 174 174 174 174 174 174 174 175 175 175 176 176 177 177 178 178 179 179 180 180 181
6.0 181 182 182 183 183 184 184 185 185 185 186 185 185 185 185 184 184 184 184 184 184 184 185 185 185 185 186 185 185 185 184 184 183 183 182 182 181 181 180 179 178 178 177 176 175 175 174 174 173 173 172 171 171 171 170 171 171 171 172 173 173 174 174 175 175 176 177 178 178 179 180 181
8.0 181 181 182 183 183 183 184 184 185 185 185 185 185 184 184 183 183 183 183 183 183 183 184 184 185 185 185 185 185 184 184 183 183 183 182 181 181 180 179 178 177 176 174 173 172 171 170 169 168 168 168 167 166 165 165 165 166 167 168 168 168 169 170 171 172 173 174 176 177 178 179 180
10.0 182 183 183 183 183 184 184 184 184 184 184 184 184 184 183 182 182 182 182 182 182 182 183 184 184 184 184 184 184 184 184 184 183 183 183 183 182 180 179 177 176 174 173 171 169 168 166 166 165 163 163 163 163 162 161 162 163 163 163 163 165 166 166 168 169 171 173 174 176 177 179 180
12.0 182 183 183 184 184 184 184 184 184 183 183 183 183 182 181 181 180 180 180 180 180 181 181 182 183 183 183 183 184 184 184 184 184 184 183 183 182 181 179 178 176 174 171 169 167 165 163 161 160 159 158 158 158 157 157 157 158 158 158 159 160 161 163 165 167 169 171 174 176 178 179 181
14.0 182 183 183 184 184 183 183 182 182 182 182 181 180 179 179 178 177 177 177 177 177 178 179 179 180 181 182 182 182 182 183 183 184 184 183 183 182 180 179 177 174 172 169 167 164 162 160 158 156 155 154 153 153 153 153 153 153 153 154 155 156 158 160 162 164 167 169 172 174 177 179 180
16.0 182 183 184 184 184 184 183 182 182 181 180 179 178 177 176 175 174 173 173 173 174 175 176 177 178 179 180 181 182 182 183 184 184 184 184 183 182 181 179 177 174 172 169 166 163 160 158 155 153 152 151 150 150 150 149 150 150 150 151 152 153 155 158 160 163 166 169 172 174 177 179 181
18.0 182 183 184 183 183 182 182 181 180 179 178 176 175 174 172 171 170 170 169 170 170 171 172 174 175 176 178 179 180 181 182 182 183 183 184 183 182 180 178 177 174 171 168 165 162 158 155 153 151 149 148 147 146 146 146 146 146 147 148 149 151 153 155 158 162 165 168 171 174 177 178 180
20.0 181 182 182 182 182 181 181 180 179 177 175 173 172 171 169 168 167 166 166 166 167 168 169 171 172 173 175 177 179 180 181 181 182 182 182 182 181 179 178 176 174 171 168 164 161 157 154 151 148 146 145 144 143 142 142 142 143 144 145 146 148 151 154 157 161 164 168 171 174 176 178 179
22.0 179 180 180 180 180 179 178 178 177 175 173 171 169 167 165 164 163 162 162 162 163 164 165 167 169 171 173 175 177 178 178 179 180 180 180 180 179 178 176 174 173 170 167 164 161 156 152 149 146 144 142 141 140 140 140 140 140 141 142 144 146 149 152 156 161 164 167 170 173 174 176 178
24.0 179 180 180 180 178 177 176 175 174 173 171 168 166 164 163 161 160 160 159 160 160 161 163 164 166 168 171 173 174 175 176 177 178 180 180 180 179 178 177 174 171 169 166 163 160 156 152 148 145 144 142 141 141 141 141 141 141 141 142 144 145 148 152 156 160 163 166 169 171 174 177 178
26.0 180 181 181 180 179 176 174 172 171 170 169 166 164 162 160 158 158 157 156 157 158 158 160 162 164 166 169 170 171 172 174 176 179 180 181 181 180 179 177 175 172 169 166 162 159 156 152 149 146 144 144 143 143 143 143 143 143 143 144 144 146 149 152 156 159 162 166 169 172 175 177 179
28.0 181 182 182 181 179 176 173 170 168 167 167 165 162 160 158 156 155 154 154 154 155 156 158 160 162 165 167 167 168 170 173 176 179 181 182 182 181 180 179 176 172 169 165 161 158 155 153 150 148 147 147 147 146 146 146 146 146 147 147 147 148 150 153 155 158 161 165 169 172 176 179 180
30.0 183 183 184 183 181 177 173 169 166 165 164 163 161 158 156 154 153 152 152 152 153 154 156 158 161 163 164 165 166 169 173 177 181 183 184 183 183 182 180 178 174 171 166 162 158 155 153 152 151 150 150 150 150 150 150 150 150 150 150 150 151 152 153 155 158 162 166 171 174 178 180 182
32.0 183 184 184 184 183 178 173 167 164 161 161 161 159 156 154 152 150 149 149 149 150 152 154 156 159 161 161 161 164 167 173 178 183 184 184 184 183 183 181 178 175 172 167 162 157 154 153 153 153 154 153 153 153 153 153 153 153 153 153 154 153 153 153 154 157 162 167 172 175 178 181 183
34.0 185 185 185 185 183 179 174 168 163 160 158 158 157 155 152 150 148 147 146 147 148 150 152 155 157 158 158 160 163 168 174 179 183 185 185 185 185 184 182 179 175 171 166 162 157 154 153 154 155 156 155 155 154 154 153 154 154 155 155 156 155 154 153 154 157 162 166 171 175 179 182 184
36.0 188 187 185 184 182 177 172 167 162 158 155 154 154 152 149 146 144 143 142 143 144 146 149 152 154 154 155 158 162 167 172 177 182 184 185 187 188 187 185 181 176 171 165 160 156 153 151 153 155 156 156 156 155 153 153 153 155 156 156 156 155 153 151 153 156 160 165 171 176 181 185 187
38.0 192 190 188 185 182 176 170 165 161 155 151 150 150 147 144 141 139 137 136 137 139 141 144 147 150 150 151 155 161 165 170 176 182 185 188 190 192 192 190 186 180 174 166 159 154 152 150 151 153 155 156 154 154 152 152 152 154 154 156 155 153 151 150 152 154 159 166 174 180 186 190 192
40.0 197 195 191 186 181 174 168 162 158 154 149 146 144 143 140 136 133 131 130 131 133 136 140 143 144 146 149 154 158 162 168 174 181 186 191 195 197 198 196 192 186 179 170 160 153 149 148 148 150 152 151 149 147 146 146 146 147 149 151 152 150 148 148 149 153 160 170 179 186 192 196 198
42.0 203 199 193 187 180 172 164 157 153 150 146 140 136 135 132 129 126 124 123 124 126 129 132 135 136 140 146 150 153 157 164 172 180 187 193 199 203 204 202 198 193 186 175 164 153 146 145 145 145 145 143 141 138 137 137 137 138 141 143 145 145 145 145 146 153 164 175 186 193 198 202 204
44.0 208 203 196 188 179 171 162 153 147 142 138 132 127 125 123 120 118 116 116 116 118 120 123 125 127 132 138 142 147 153 162 171 179 188 196 203 208 209 208 205 200 192 181 168 155 145 141 140 138 135 133 131 128 127 126 127 128 131 133 135 138 140 141 145 155 168 181 192 200 205 208 209
46.0 212 206 197 187 178 168 159 149 140 133 128 123 117 114 113 111 109 108 107 108 109 111 113 114 117 123 128 133 140 149 159 168 178 187 197 206 212 214 214 211 205 197 185 171 156 144 136 133 130 125 122 119 117 115 114 115 117 119 122 125 130 133 136 144 156 171 185 197 205 211 214 214
48.0 216 208 198 187 176 165 156 145 135 125 118 114 108 105 104 102 101 100 100.0 100 101 102 104 105 108 114 118 125 135 145 156 165 176 187 198 208 216 220 220 218 212 202 188 172 155 141 131 125 121 115 111 107 104 102 102 102 104 107 111 115 121 125 131 141 155 172 188 202 212 218 220 220
50.0 222 212 199 185 173 161 150 140 129 119 112 107 103 98.6 97.9 96.9 96.0 95.4 95.0 95.4 96.0 96.9 97.9 98.6 103 107 112 119 129 140 150 161 173 185 199 212 222 227 228 225 217 205 190 172 153 136 125 117 111 105 99.4 96.2 93.2 90.6 89.3 90.6 93.2 96.2 99.4 105 111 117 125 136 153 172 190 205 217 225 228 227
52.0 229 216 200 183 169 156 144 133 123 115 107 102 99.1 94.4 92.5 92.1 91.1 90.5 90.5 90.5 91.1 92.1 92.5 94.4 99.1 102 107 115 123 133 144 156 169 183 200 216 229 236 238 234 224 209 189 169 147 129 117 108 99.4 93.6 87.5 83.6 79.9 76.6 75.3 76.6 79.9 83.6 87.5 93.6 99.4 108 117 129 147 169 189 209 224 234 238 236
54.0 237 221 201 181 163 149 136 125 116 109 102 96.9 94.1 90.7 87.5 87.1 86.1 85.4 85.5 85.4 86.1 87.1 87.5 90.7 94.1 96.9 102 109 116 125 136 149 163 181 201 221 237 244 245 239 228 211 189 164 141 121 108 98.4 88.9 81.3 75.1 70.0 66.4 62.9 62.1 62.9 66.4 70.0 75.1 81.3 88.9 98.4 108 121 141 164 189 211 228 239 245 244
56.0 242 223 200 177 157 140 127 117 109 103 97.8 92.7 88.8 86.4 82.2 81.4 80.6 79.9 79.6 79.9 80.6 81.4 82.2 86.4 88.8 92.7 97.8 103 109 117 127 140 157 177 200 223 242 250 249 242 229 209 184 158 133 112 97.6 87.4 78.1 69.7 63.6 57.9 54.4 51.7 51.1 51.7 54.4 57.9 63.6 69.7 78.1 87.4 97.6 112 133 158 184 209 229 242 249 250
58.0 243 223 196 169 147 130 116 107 101 96.5 92.4 88.2 84.0 81.4 77.5 75.7 74.6 73.8 73.7 73.8 74.6 75.7 77.5 81.4 84.0 88.2 92.4 96.5 101 107 116 130 147 169 196 223 243 251 249 240 224 203 176 148 123 102 86.9 76.1 67.3 60.2 53.8 48.3 44.9 43.5 42.9 43.5 44.9 48.3 53.8 60.2 67.3 76.1 86.9 102 123 148 176 203 224 240 249 251
60.0 242 218 188 159 134 116 104 95.8 91.8 88.6 85.4 82.0 78.1 74.6 71.7 68.7 67.9 66.9 66.4 66.9 67.9 68.7 71.7 74.6 78.1 82.0 85.4 88.6 91.8 95.8 104 116 134 159 188 218 242 250 246 235 216 192 163 134 109 88.6 74.1 64.6 57.2 50.8 44.8 40.6 37.5 36.6 36.3 36.6 37.5 40.6 44.8 50.8 57.2 64.6 74.1 88.6 109 134 163 192 216 235 246 250
62.0 236 211 179 147 121 102 90.1 84.5 81.9 80.1 77.8 75.0 71.6 67.8 65.6 62.1 61.3 60.3 59.6 60.3 61.3 62.1 65.6 67.8 71.6 75.0 77.8 80.1 81.9 84.5 90.1 102 121 147 179 211 236 244 239 225 204 179 149 120 94.1 73.9 61.2 52.6 47.2 42.0 37.5 34.2 32.4 31.7 31.3 31.7 32.4 34.2 37.5 42.0 47.2 52.6 61.2 73.9 94.1 120 149 179 204 225 239 244
64.0 223 198 165 133 106 85.8 75.7 71.9 70.8 69.7 68.0 66.0 63.6 60.5 57.9 54.9 54.0 52.7 52.1 52.7 54.0 54.9 57.9 60.5 63.6 66.0 68.0 69.7 70.8 71.9 75.7 85.8 106 133 165 198 223 230 224 208 187 162 132 103 77.8 59.3 47.7 41.0 36.6 33.5 31.1 29.3 26.5 25.6 22.4 25.6 26.5 29.3 31.1 33.5 36.6 41.0 47.7 59.3 77.8 103 132 162 187 208 224 230
66.0 206 182 149 116 89.6 70.8 62.1 59.7 59.6 59.0 57.8 56.2 54.6 52.6 50.2 48.2 46.7 45.7 45.1 45.7 46.7 48.2 50.2 52.6 54.6 56.2 57.8 59.0 59.6 59.7 62.1 70.8 89.6 116 149 182 206 213 205 188 167 141 113 84.7 60.8 44.6 35.3 29.4 26.4 24.6 24.3 21.6 17.3 16.0 13.7 16.0 17.3 21.6 24.3 24.6 26.4 29.4 35.3 44.6 60.8 84.7 113 141 167 188 205 213
68.0 183 161 129 98.4 72.4 55.4 48.8 48.0 48.2 48.3 47.6 46.4 45.4 44.3 42.7 41.4 39.8 38.9 38.5 38.9 39.8 41.4 42.7 44.3 45.4 46.4 47.6 48.3 48.2 48.0 48.8 55.4 72.4 98.4 129 161 183 188 180 164 144 119 92.5 66.9 46.2 31.6 23.4 19.3 17.3 16.9 16.6 13.7 9.9 10.5 9.8 10.5 9.9 13.7 16.6 16.9 17.3 19.3 23.4 31.6 46.2 66.9 92.5 119 144 164 180 188
70.0 153 133 105 77.4 54.6 40.5 36.0 35.7 36.5 36.9 36.8 36.4 35.9 35.7 35.0 34.2 33.2 32.6 32.5 32.6 33.2 34.2 35.0 35.7 35.9 36.4 36.8 36.9 36.5 35.7 36.0 40.5 54.6 77.4 105 133 153 157 150 136 117 94.9 71.6 49.8 32.5 20.6 14.1 11.3 10.0 10.0 9.7 7.8 7.3 7.0 3.3 7.0 7.3 7.8 9.7 10.0 10.0 11.3 14.1 20.6 32.5 49.8 71.6 94.9 117 136 150 157
72.0 123 106 81.4 57.2 38.2 27.5 24.6 24.8 25.5 26.0 26.3 26.5 26.9 27.2 27.2 27.2 26.8 26.6 26.6 26.6 26.8 27.2 27.2 27.2 26.9 26.5 26.3 26.0 25.5 24.8 24.6 27.5 38.2 57.2 81.4 106 123 127 120 107 90.7 71.7 52.0 34.5 21.3 12.5 7.9 5.9 5.5 5.9 6.6 6.8 5.2 2.1 1.7 2.1 5.2 6.8 6.6 5.9 5.5 5.9 7.9 12.5 21.3 34.5 52.0 71.7 90.7 107 120 127
74.0 95.2 82.1 60.8 40.3 25.1 17.5 15.8 15.9 16.2 16.7 17.0 17.4 18.1 19.0 19.8 20.3 20.5 20.6 20.7 20.6 20.5 20.3 19.8 19.0 18.1 17.4 17.0 16.7 16.2 15.9 15.8 17.5 25.1 40.3 60.8 82.1 95.2 97.3 91.0 79.5 65.3 50.2 35.1 22.5 13.4 7.8 4.8 3.7 3.3 3.3 3.7 4.3 2.7 0.9 0.7 0.9 2.7 4.3 3.7 3.3 3.3 3.7 4.8 7.8 13.4 22.5 35.1 50.2 65.3 79.5 91.0 97.3
76.0 65.4 56.7 41.2 26.3 16.1 11.5 10.2 10.0 10.0 10.0 10.0 10.2 10.7 11.7 12.7 13.4 13.9 14.2 14.3 14.2 13.9 13.4 12.7 11.7 10.7 10.2 10.0 10.0 10.0 10.0 10.2 11.5 16.1 26.3 41.2 56.7 65.4 64.9 59.3 50.3 40.1 30.3 21.3 13.5 8.1 5.3 3.9 3.3 2.9 2.6 2.4 2.0 1.2 0.5 0.3 0.5 1.2 2.0 2.4 2.6 2.9 3.3 3.9 5.3 8.1 13.5 21.3 30.3 40.1 50.3 59.3 64.9
78.0 37.9 34.2 24.6 15.5 10.2 8.0 7.4 7.3 6.8 6.3 6.1 6.0 6.2 6.5 7.1 7.5 7.9 8.2 8.0 8.2 7.9 7.5 7.1 6.5 6.2 6.0 6.1 6.3 6.8 7.3 7.4 8.0 10.2 15.5 24.6 34.2 37.9 36.3 30.0 23.3 15.4 10.4 7.4 5.3 4.3 3.7 3.6 3.5 3.4 2.8 2.2 1.5 1.2 0.2 0.1 0.2 1.2 1.5 2.2 2.8 3.4 3.5 3.6 3.7 4.3 5.3 7.4 10.4 15.4 23.3 30.0 36.3
80.0 12.0 13.5 11.5 8.3 6.5 6.1 5.9 5.6 5.1 4.7 4.3 4.1 4.1 4.0 3.9 3.9 4.0 4.1 4.1 4.1 4.0 3.9 3.9 4.0 4.1 4.1 4.3 4.7 5.1 5.6 5.9 6.1 6.5 8.3 11.5 13.5 12.0 10.3 8.6 7.0 5.9 5.2 4.6 4.2 3.8 3.7 3.3 3.3 3.1 2.7 2.0 1.5 1.7 0.2 0.1 0.2 1.7 1.5 2.0 2.7 3.1 3.3 3.3 3.7 3.8 4.2 4.6 5.2 5.9 7.0 8.6 10.3
82.0 4.8 4.8 4.3 3.9 4.2 5.0 5.5 5.1 4.5 3.7 3.2 3.1 3.0 2.9 2.8 2.6 2.6 2.7 2.6 2.7 2.6 2.6 2.8 2.9 3.0 3.1 3.2 3.7 4.5 5.1 5.5 5.0 4.2 3.9 4.3 4.8 4.8 4.7 4.9 4.4 4.1 3.8 3.6 3.6 3.7 3.3 3.1 2.9 2.7 2.2 1.5 1.5 1.7 0.2 0.1 0.2 1.7 1.5 1.5 2.2 2.7 2.9 3.1 3.3 3.7 3.6 3.6 3.8 4.1 4.4 4.9 4.7
84.0 3.3 3.4 3.1 2.9 2.7 2.6 2.7 2.9 3.5 3.1 2.6 2.4 2.3 2.2 2.2 2.3 2.2 2.2 2.2 2.2 2.2 2.3 2.2 2.2 2.3 2.4 2.6 3.1 3.5 2.9 2.7 2.6 2.7 2.9 3.1 3.4 3.3 3.3 3.2 3.1 3.0 3.3 3.5 3.3 2.8 2.4 2.1 1.9 1.7 1.3 0.8 0.8 0.8 0.1 0.1 0.1 0.8 0.8 0.8 1.3 1.7 1.9 2.1 2.4 2.8 3.3 3.5 3.3 3.0 3.1 3.2 3.3
86.0 2.3 2.1 2.1 2.2 2.3 2.4 2.2 1.9 1.6 1.5 1.4 1.5 1.5 1.5 1.5 1.6 1.7 1.9 1.9 1.9 1.7 1.6 1.5 1.5 1.5 1.5 1.4 1.5 1.6 1.9 2.2 2.4 2.3 2.2 2.1 2.1 2.3 2.5 2.5 2.7 3.0 2.8 2.4 2.1 2.0 1.7 1.3 1.1 0.9 0.7 0.5 0.3 0.2 0.1 0.1 0.1 0.2 0.3 0.5 0.7 0.9 1.1 1.3 1.7 2.0 2.1 2.4 2.8 3.0 2.7 2.5 2.5
88.0 1.9 1.8 1.6 1.5 1.4 1.4 1.4 1.5 1.6 1.6 1.4 1.3 1.1 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.1 1.3 1.4 1.6 1.6 1.5 1.4 1.4 1.4 1.5 1.6 1.8 1.9 2.0 2.2 2.1 2.0 1.9 1.8 1.6 1.3 1.0 0.9 0.7 0.6 0.5 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.5 0.6 0.7 0.9 1.0 1.3 1.6 1.8 1.9 2.0 2.1 2.2 2.0
90.0 1.6 1.6 1.6 1.4 1.3 1.2 1.1 1.0 0.9 0.9 0.9 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.4 1.6 1.6 1.6 1.7 1.7 1.7 1.5 1.3 1.1 0.9 0.8 0.6 0.5 0.5 0.4 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.4 0.5 0.5 0.6 0.8 0.9 1.1 1.3 1.5 1.7 1.7 1.7
92.0 1.2 1.2 1.2 1.2 1.1 1.1 1.0 0.8 0.8 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.6 0.5 0.6 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.8 0.8 1.0 1.1 1.1 1.2 1.2 1.2 1.2 1.3 1.2 1.1 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3
94.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.7 0.7 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.7 0.7 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.0 0.9 0.9 0.8 0.7 0.6 0.5 0.5 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.2 0.3 0.3 0.3 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.5 0.5 0.6 0.7 0.8 0.9 0.9 1.0
96.0 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.8 0.9 0.9
98.0 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9
100.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.9
102.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9
104.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0
106.0 1.1 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.1 1.1
108.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 0.9 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.1
110.0 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.0 1.0 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.9 0.9 1.0 1.0 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.6 0.7 0.6 0.6 0.6 0.7 0.6 0.7 0.7 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.1
112.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.9 0.9 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.7 0.7 0.7 0.6 0.6 0.7 0.7 0.6 0.7 0.7 0.6 0.6 0.7 0.7 0.7 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.1
114.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.1
116.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9 1.0 1.0
118.0 0.9 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9
120.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.5 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9
122.0 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.9
124.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8
126.0 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8
128.0 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8
130.0 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8
132.0 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8
134.0 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9
136.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9
138.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.7 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0
140.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0
150.0 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.1
160.0 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2
170.0 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
180.0 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
