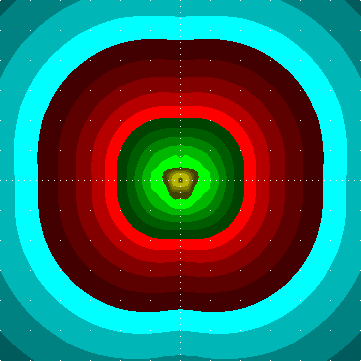

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] 8042807sM3.tm
# [LUMINAIRE] IJTS-M3
# [LUMCAT] Villa
# [DATE] 29/11/2011 12:43:06
# down given: 70.4%
# out given: 45.3%
# tilt: 0.00
# [LAMP] 1 ME 70 5600 2800 E27
# Bulbs: 1, 5600 lm each
# Source file: Villa_IJTS-M3_1_ME_70_5600_2800_E27.ldt
# Luminaire flux = 455 raw, for the given bulb(s) it would be 2548 lm,
# 45.5 % of the bulb flux
# between 75 and 90: 15.2 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 44.6 cd / 1000 lm , 39.1 % of the luminaire flux
# 90deg and above: max 42.3 cd / 1000 lm , 30.3 % of the luminaire flux
# CutOff Type: CIE_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 893 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:2852 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 51 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 49 cd / 1000 lm,
# maximum spec. lum. intensity 198 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 32.6 32.8 32.5 32.4 32.4 32.0 31.9 31.8 31.6 31.6 31.6 32.1 32.4 34.0 35.5 36.9 37.6 37.8 37.7 37.8 37.6 36.9 35.5 34.0 32.4 32.1 31.6 31.6 31.6 31.8 31.9 32.0 32.4 32.4 32.5 32.8 32.6 32.7 32.6 32.6 32.6 32.3 32.4 33.1 34.1 35.6 37.1 38.9 40.3 41.7 42.9 43.7 44.4 44.8 45.0 44.8 44.4 43.7 42.9 41.7 40.3 38.9 37.1 35.6 34.1 33.1 32.4 32.3 32.6 32.6 32.6 32.7
2.0 48.6 48.0 47.5 46.6 45.8 45.5 45.4 44.4 42.9 41.9 41.3 40.5 39.3 38.7 37.4 36.2 35.9 35.7 35.6 35.7 35.9 36.2 37.4 38.7 39.3 40.5 41.3 41.9 42.9 44.4 45.4 45.5 45.8 46.6 47.5 48.0 48.6 49.6 50.5 51.6 52.4 52.2 50.6 48.7 46.9 45.6 43.9 42.6 42.1 41.5 39.5 37.8 37.3 36.7 36.5 36.7 37.3 37.8 39.5 41.5 42.1 42.6 43.9 45.6 46.9 48.7 50.6 52.2 52.4 51.6 50.5 49.6
4.0 94.7 95.2 93.6 91.4 87.4 83.0 79.2 75.8 72.2 69.3 68.9 68.3 68.4 68.6 68.3 68.0 68.0 68.1 68.0 68.1 68.0 68.0 68.3 68.6 68.4 68.3 68.9 69.3 72.2 75.8 79.2 83.0 87.4 91.4 93.6 95.2 94.7 94.1 94.1 93.0 90.3 87.5 84.0 79.9 75.9 73.9 73.1 73.7 76.3 79.7 82.3 85.7 88.9 90.9 91.3 90.9 88.9 85.7 82.3 79.7 76.3 73.7 73.1 73.9 75.9 79.9 84.0 87.5 90.3 93.0 94.1 94.1
6.0 143 142 139 135 129 125 122 120 120 122 124 125 127 130 133 134 136 136 136 136 136 134 133 130 127 125 124 122 120 120 122 125 129 135 139 142 143 141 138 136 134 130 129 128 125 125 125 125 126 129 133 138 142 145 146 145 142 138 133 129 126 125 125 125 125 128 129 130 134 136 138 141
8.0 177 173 168 163 158 154 153 153 153 155 157 163 166 169 174 177 180 181 182 181 180 177 174 169 166 163 157 155 153 153 153 154 158 163 168 173 177 181 181 180 174 169 163 157 151 147 144 143 144 147 151 157 162 165 165 165 162 157 151 147 144 143 144 147 151 157 163 169 174 180 181 181
10.0 185 182 177 174 171 171 169 169 169 171 173 176 179 183 187 191 193 196 198 196 193 191 187 183 179 176 173 171 169 169 169 171 171 174 177 182 185 185 185 181 180 175 173 167 160 155 152 151 150 151 156 156 156 154 155 154 156 156 156 151 150 151 152 155 160 167 173 175 180 181 185 185
12.0 181 180 175 170 168 168 168 169 172 175 177 179 178 180 182 183 185 187 187 187 185 183 182 180 178 179 177 175 172 169 168 168 168 170 175 180 181 176 170 167 166 168 170 173 168 160 154 148 145 147 147 143 137 132 131 132 137 143 147 147 145 148 154 160 168 173 170 168 166 167 170 176
14.0 171 171 166 162 160 159 158 157 157 161 163 165 164 163 162 161 159 159 158 159 159 161 162 163 164 165 163 161 157 157 158 159 160 162 166 171 171 163 156 154 159 163 166 164 156 149 143 139 137 136 131 123 115 110 109 110 115 123 131 136 137 139 143 149 156 164 166 163 159 154 156 163
16.0 152 154 151 149 150 149 147 143 141 141 141 142 140 138 133 129 125 121 119 121 125 129 133 138 140 142 141 141 141 143 147 149 150 149 151 154 152 147 142 143 147 150 149 146 140 131 125 124 124 121 114 105 97.6 96.9 98.3 96.9 97.6 105 114 121 124 124 125 131 140 146 149 150 147 143 142 147
18.0 130 133 134 134 134 135 133 127 124 122 118 115 112 108 102 95.2 89.4 84.5 82.5 84.5 89.4 95.2 102 108 112 115 118 122 124 127 133 135 134 134 134 133 130 128 126 124 124 127 125 124 121 118 115 113 111 106 95.1 86.6 84.6 88.3 90.7 88.3 84.6 86.6 95.1 106 111 113 115 118 121 124 125 127 124 124 126 128
20.0 109 115 120 121 119 115 113 108 105 101 96.2 89.5 85.4 80.4 73.9 67.6 62.2 59.4 58.9 59.4 62.2 67.6 73.9 80.4 85.4 89.5 96.2 101 105 108 113 115 119 121 120 115 109 107 104 98.7 94.9 95.8 100 104 104 104 102 98.2 95.4 87.7 78.0 71.5 74.8 76.9 76.4 76.9 74.8 71.5 78.0 87.7 95.4 98.2 102 104 104 104 100 95.8 94.9 98.7 104 107
22.0 83.1 90.3 99.7 105 104 98.4 92.1 87.4 84.6 80.4 76.0 69.1 64.0 59.0 55.2 48.1 44.9 44.1 43.8 44.1 44.9 48.1 55.2 59.0 64.0 69.1 76.0 80.4 84.6 87.4 92.1 98.4 104 105 99.7 90.3 83.1 79.6 76.9 73.2 69.1 68.7 73.4 80.4 84.6 86.0 86.1 84.8 80.3 72.6 63.6 61.6 64.3 64.0 63.4 64.0 64.3 61.6 63.6 72.6 80.3 84.8 86.1 86.0 84.6 80.4 73.4 68.7 69.1 73.2 76.9 79.6
24.0 57.3 63.6 73.4 80.3 84.6 84.0 78.2 71.4 67.6 63.0 59.0 53.4 48.4 45.4 42.5 39.7 39.4 40.4 40.7 40.4 39.4 39.7 42.5 45.4 48.4 53.4 59.0 63.0 67.6 71.4 78.2 84.0 84.6 80.3 73.4 63.6 57.3 54.5 54.9 55.5 55.7 54.2 54.9 59.7 65.5 70.5 73.3 73.5 67.4 58.4 54.1 58.4 62.1 61.1 60.9 61.1 62.1 58.4 54.1 58.4 67.4 73.5 73.3 70.5 65.5 59.7 54.9 54.2 55.7 55.5 54.9 54.5
26.0 48.4 51.7 55.9 61.3 66.5 67.4 64.7 60.1 56.6 51.2 47.2 43.2 40.7 40.1 40.9 40.4 41.3 42.1 42.3 42.1 41.3 40.4 40.9 40.1 40.7 43.2 47.2 51.2 56.6 60.1 64.7 67.4 66.5 61.3 55.9 51.7 48.4 46.1 45.9 46.3 47.6 47.7 47.7 48.1 51.5 57.4 63.1 65.0 60.2 55.4 56.1 63.2 63.7 62.7 61.3 62.7 63.7 63.2 56.1 55.4 60.2 65.0 63.1 57.4 51.5 48.1 47.7 47.7 47.6 46.3 45.9 46.1
28.0 50.5 54.0 57.6 59.4 59.6 58.1 55.9 52.9 51.4 46.6 42.4 39.5 40.0 41.6 43.0 42.4 44.2 45.1 45.6 45.1 44.2 42.4 43.0 41.6 40.0 39.5 42.4 46.6 51.4 52.9 55.9 58.1 59.6 59.4 57.6 54.0 50.5 48.3 47.2 46.3 44.8 44.6 44.5 45.8 46.8 49.3 55.6 60.8 58.2 56.8 59.1 64.7 62.7 61.3 59.1 61.3 62.7 64.7 59.1 56.8 58.2 60.8 55.6 49.3 46.8 45.8 44.5 44.6 44.8 46.3 47.2 48.3
30.0 49.7 52.6 56.4 59.9 59.4 56.0 51.9 48.7 47.8 43.9 41.0 39.9 41.4 44.0 44.3 45.0 45.6 45.1 44.7 45.1 45.6 45.0 44.3 44.0 41.4 39.9 41.0 43.9 47.8 48.7 51.9 56.0 59.4 59.9 56.4 52.6 49.7 48.2 46.2 44.8 43.6 43.1 42.5 43.5 45.1 46.5 50.1 57.0 56.3 56.5 60.3 62.3 59.1 56.9 55.6 56.9 59.1 62.3 60.3 56.5 56.3 57.0 50.1 46.5 45.1 43.5 42.5 43.1 43.6 44.8 46.2 48.2
32.0 45.7 47.1 49.2 51.1 52.9 53.6 50.6 46.7 45.3 42.7 41.8 41.3 43.4 44.9 44.0 44.3 43.2 42.5 42.2 42.5 43.2 44.3 44.0 44.9 43.4 41.3 41.8 42.7 45.3 46.7 50.6 53.6 52.9 51.1 49.2 47.1 45.7 45.5 45.1 44.3 42.9 42.6 42.2 42.6 43.1 45.1 46.4 51.3 52.9 53.9 58.6 57.1 52.7 51.8 51.5 51.8 52.7 57.1 58.6 53.9 52.9 51.3 46.4 45.1 43.1 42.6 42.2 42.6 42.9 44.3 45.1 45.5
34.0 44.2 44.7 46.1 46.3 46.3 46.6 46.8 45.2 44.0 43.3 42.7 43.2 44.8 44.3 43.1 42.1 40.3 39.3 38.7 39.3 40.3 42.1 43.1 44.3 44.8 43.2 42.7 43.3 44.0 45.2 46.8 46.6 46.3 46.3 46.1 44.7 44.2 45.6 45.8 44.5 44.4 43.4 43.0 43.7 44.1 44.8 45.5 47.6 49.9 50.6 55.0 53.2 50.2 49.8 49.3 49.8 50.2 53.2 55.0 50.6 49.9 47.6 45.5 44.8 44.1 43.7 43.0 43.4 44.4 44.5 45.8 45.6
36.0 45.9 47.1 49.6 49.8 47.9 46.2 44.9 44.8 44.6 44.5 43.5 44.0 43.9 42.5 41.7 41.7 40.7 39.6 38.7 39.6 40.7 41.7 41.7 42.5 43.9 44.0 43.5 44.5 44.6 44.8 44.9 46.2 47.9 49.8 49.6 47.1 45.9 48.0 49.3 47.2 45.8 44.5 44.4 44.8 45.2 45.9 45.6 47.2 49.8 50.1 52.9 52.9 53.0 51.9 51.2 51.9 53.0 52.9 52.9 50.1 49.8 47.2 45.6 45.9 45.2 44.8 44.4 44.5 45.8 47.2 49.3 48.0
38.0 47.6 48.8 51.6 52.1 49.3 47.5 45.8 45.7 45.3 45.5 44.4 44.0 43.7 43.3 43.3 43.4 42.9 41.1 39.4 41.1 42.9 43.4 43.3 43.3 43.7 44.0 44.4 45.5 45.3 45.7 45.8 47.5 49.3 52.1 51.6 48.8 47.6 49.5 51.5 49.7 47.4 46.1 45.5 45.5 45.8 46.6 46.1 46.7 49.1 50.9 52.3 53.0 54.2 51.3 50.0 51.3 54.2 53.0 52.3 50.9 49.1 46.7 46.1 46.6 45.8 45.5 45.5 46.1 47.4 49.7 51.5 49.5
40.0 51.1 52.0 53.9 54.4 51.7 48.8 47.3 46.7 46.8 46.5 45.6 44.7 44.8 44.6 45.0 45.2 45.4 42.5 40.8 42.5 45.4 45.2 45.0 44.6 44.8 44.7 45.6 46.5 46.8 46.7 47.3 48.8 51.7 54.4 53.9 52.0 51.1 52.0 54.4 52.9 49.8 47.9 46.8 46.6 46.7 47.3 46.2 46.4 48.3 50.8 51.6 52.4 54.5 52.3 51.3 52.3 54.5 52.4 51.6 50.8 48.3 46.4 46.2 47.3 46.7 46.6 46.8 47.9 49.8 52.9 54.4 52.0
42.0 55.0 54.8 56.2 56.4 53.9 50.0 48.3 47.8 47.9 47.9 46.9 45.7 45.3 45.8 46.6 47.4 47.3 44.0 43.0 44.0 47.3 47.4 46.6 45.8 45.3 45.7 46.9 47.9 47.9 47.8 48.3 50.0 53.9 56.4 56.2 54.8 55.0 54.5 56.6 55.4 52.7 49.9 48.3 47.9 47.6 48.4 46.8 46.7 48.0 50.8 52.0 53.0 55.0 52.6 53.2 52.6 55.0 53.0 52.0 50.8 48.0 46.7 46.8 48.4 47.6 47.9 48.3 49.9 52.7 55.4 56.6 54.5
44.0 57.8 56.6 57.1 57.6 55.0 51.1 49.4 48.9 49.1 49.2 48.0 47.0 46.3 46.9 48.3 49.0 47.7 44.8 44.7 44.8 47.7 49.0 48.3 46.9 46.3 47.0 48.0 49.2 49.1 48.9 49.4 51.1 55.0 57.6 57.1 56.6 57.8 56.6 57.3 57.4 54.9 52.4 50.0 49.1 48.8 49.3 48.0 47.1 47.7 50.1 51.8 51.8 53.0 51.3 53.0 51.3 53.0 51.8 51.8 50.1 47.7 47.1 48.0 49.3 48.8 49.1 50.0 52.4 54.9 57.4 57.3 56.6
46.0 57.6 57.0 57.2 57.7 54.8 51.6 50.0 50.0 49.9 50.1 48.8 47.9 47.4 47.3 48.7 49.6 47.2 45.7 46.5 45.7 47.2 49.6 48.7 47.3 47.4 47.9 48.8 50.1 49.9 50.0 50.0 51.6 54.8 57.7 57.2 57.0 57.6 57.0 56.9 57.0 54.8 52.9 51.8 50.2 49.5 49.9 48.3 47.6 47.4 48.3 49.5 50.0 49.7 49.3 50.4 49.3 49.7 50.0 49.5 48.3 47.4 47.6 48.3 49.9 49.5 50.2 51.8 52.9 54.8 57.0 56.9 57.0
48.0 57.1 57.3 56.4 56.9 54.0 51.4 50.6 50.6 50.6 50.8 49.7 48.7 48.0 47.2 48.4 49.0 46.6 46.0 46.9 46.0 46.6 49.0 48.4 47.2 48.0 48.7 49.7 50.8 50.6 50.6 50.6 51.4 54.0 56.9 56.4 57.3 57.1 57.1 55.5 55.9 53.3 52.1 52.0 51.1 50.4 50.7 49.0 48.3 47.3 47.0 47.6 48.1 46.9 46.8 47.2 46.8 46.9 48.1 47.6 47.0 47.3 48.3 49.0 50.7 50.4 51.1 52.0 52.1 53.3 55.9 55.5 57.1
50.0 56.6 56.5 55.7 54.8 53.5 51.5 50.9 51.1 51.1 51.9 51.1 49.5 48.6 47.3 47.9 48.4 46.1 46.3 46.0 46.3 46.1 48.4 47.9 47.3 48.6 49.5 51.1 51.9 51.1 51.1 50.9 51.5 53.5 54.8 55.7 56.5 56.6 55.9 54.1 54.2 52.3 51.7 52.3 51.8 50.9 51.4 49.2 48.1 47.1 45.9 45.9 45.9 44.3 44.6 43.6 44.6 44.3 45.9 45.9 45.9 47.1 48.1 49.2 51.4 50.9 51.8 52.3 51.7 52.3 54.2 54.1 55.9
52.0 54.6 55.0 53.6 53.2 51.9 50.8 51.3 51.4 51.6 52.2 50.9 50.3 49.2 48.0 47.5 48.3 46.6 46.7 46.3 46.7 46.6 48.3 47.5 48.0 49.2 50.3 50.9 52.2 51.6 51.4 51.3 50.8 51.9 53.2 53.6 55.0 54.6 53.9 52.6 52.3 51.0 51.1 51.7 51.3 50.8 51.3 49.1 48.1 46.7 45.4 44.6 44.3 43.0 42.9 41.5 42.9 43.0 44.3 44.6 45.4 46.7 48.1 49.1 51.3 50.8 51.3 51.7 51.1 51.0 52.3 52.6 53.9
54.0 52.8 53.3 52.3 51.3 50.6 50.2 50.7 51.5 51.6 52.6 51.0 50.4 49.1 47.8 47.0 47.2 46.2 45.9 45.5 45.9 46.2 47.2 47.0 47.8 49.1 50.4 51.0 52.6 51.6 51.5 50.7 50.2 50.6 51.3 52.3 53.3 52.8 52.1 51.1 50.5 49.6 50.0 50.6 50.6 50.0 50.4 48.7 47.6 45.9 44.5 43.6 42.4 41.3 40.5 39.6 40.5 41.3 42.4 43.6 44.5 45.9 47.6 48.7 50.4 50.0 50.6 50.6 50.0 49.6 50.5 51.1 52.1
56.0 50.3 50.5 50.4 49.7 49.5 49.8 50.6 51.1 51.4 52.1 51.0 50.2 48.9 47.6 46.4 46.2 45.1 44.4 43.8 44.4 45.1 46.2 46.4 47.6 48.9 50.2 51.0 52.1 51.4 51.1 50.6 49.8 49.5 49.7 50.4 50.5 50.3 49.1 48.8 48.5 48.5 49.2 49.3 49.9 49.2 50.2 48.0 46.7 45.3 43.5 42.6 40.7 39.6 38.5 37.4 38.5 39.6 40.7 42.6 43.5 45.3 46.7 48.0 50.2 49.2 49.9 49.3 49.2 48.5 48.5 48.8 49.1
58.0 47.1 48.2 48.2 48.4 48.7 49.1 50.4 50.8 51.2 52.1 50.6 50.0 48.8 47.7 46.1 45.2 43.9 42.7 42.2 42.7 43.9 45.2 46.1 47.7 48.8 50.0 50.6 52.1 51.2 50.8 50.4 49.1 48.7 48.4 48.2 48.2 47.1 46.5 46.4 46.8 47.8 48.3 49.0 49.1 48.8 49.4 47.6 46.0 44.8 42.9 41.8 39.9 38.2 36.8 36.0 36.8 38.2 39.9 41.8 42.9 44.8 46.0 47.6 49.4 48.8 49.1 49.0 48.3 47.8 46.8 46.4 46.5
60.0 44.0 45.2 46.1 47.0 47.6 48.7 49.8 50.4 50.7 51.5 50.3 49.7 48.5 47.2 46.0 44.4 42.8 41.5 40.5 41.5 42.8 44.4 46.0 47.2 48.5 49.7 50.3 51.5 50.7 50.4 49.8 48.7 47.6 47.0 46.1 45.2 44.0 44.3 44.6 45.8 46.5 47.5 48.0 48.3 47.9 48.5 46.5 45.5 43.7 42.0 40.7 38.8 37.2 35.4 34.8 35.4 37.2 38.8 40.7 42.0 43.7 45.5 46.5 48.5 47.9 48.3 48.0 47.5 46.5 45.8 44.6 44.3
62.0 42.4 43.4 44.6 45.8 46.8 48.1 49.1 49.7 50.0 50.6 49.6 50.0 48.5 46.4 45.0 43.7 41.9 40.7 39.9 40.7 41.9 43.7 45.0 46.4 48.5 50.0 49.6 50.6 50.0 49.7 49.1 48.1 46.8 45.8 44.6 43.4 42.4 42.5 43.6 44.8 45.7 46.7 46.9 47.3 47.0 47.4 45.7 44.6 42.8 41.3 39.6 38.0 36.0 34.4 33.4 34.4 36.0 38.0 39.6 41.3 42.8 44.6 45.7 47.4 47.0 47.3 46.9 46.7 45.7 44.8 43.6 42.5
64.0 41.4 42.2 43.8 45.0 46.2 47.5 48.7 49.5 49.5 50.5 49.5 49.0 47.7 46.5 44.8 43.2 41.6 40.2 39.2 40.2 41.6 43.2 44.8 46.5 47.7 49.0 49.5 50.5 49.5 49.5 48.7 47.5 46.2 45.0 43.8 42.2 41.4 41.8 42.8 44.0 44.9 45.8 46.3 46.6 46.1 46.5 44.8 43.8 42.6 40.6 38.8 36.8 35.0 33.0 32.2 33.0 35.0 36.8 38.8 40.6 42.6 43.8 44.8 46.5 46.1 46.6 46.3 45.8 44.9 44.0 42.8 41.8
66.0 40.2 41.2 42.6 44.3 45.7 46.8 48.0 48.9 49.1 49.7 48.8 48.3 47.4 46.0 44.3 42.8 41.2 39.4 38.7 39.4 41.2 42.8 44.3 46.0 47.4 48.3 48.8 49.7 49.1 48.9 48.0 46.8 45.7 44.3 42.6 41.2 40.2 40.8 42.2 43.2 44.3 44.8 45.4 45.8 45.3 45.7 44.2 43.0 41.8 40.0 38.1 36.2 34.0 32.3 31.2 32.3 34.0 36.2 38.1 40.0 41.8 43.0 44.2 45.7 45.3 45.8 45.4 44.8 44.3 43.2 42.2 40.8
68.0 39.5 40.3 42.0 43.5 44.7 46.1 47.4 47.8 48.3 49.0 48.1 47.5 46.6 45.3 43.7 41.9 40.1 38.6 37.9 38.6 40.1 41.9 43.7 45.3 46.6 47.5 48.1 49.0 48.3 47.8 47.4 46.1 44.7 43.5 42.0 40.3 39.5 40.1 41.5 42.6 43.5 44.3 44.6 44.8 44.6 44.5 43.3 42.4 41.2 39.6 37.4 35.6 33.4 31.6 30.5 31.6 33.4 35.6 37.4 39.6 41.2 42.4 43.3 44.5 44.6 44.8 44.6 44.3 43.5 42.6 41.5 40.1
70.0 38.8 39.7 41.3 42.8 44.2 45.8 46.6 47.6 47.8 48.4 47.7 46.9 46.0 44.8 43.3 41.7 39.8 38.2 37.1 38.2 39.8 41.7 43.3 44.8 46.0 46.9 47.7 48.4 47.8 47.6 46.6 45.8 44.2 42.8 41.3 39.7 38.8 39.3 40.9 41.9 42.9 43.5 43.9 43.7 43.4 43.4 42.3 41.3 40.0 38.4 36.5 34.5 32.5 30.5 29.6 30.5 32.5 34.5 36.5 38.4 40.0 41.3 42.3 43.4 43.4 43.7 43.9 43.5 42.9 41.9 40.9 39.3
72.0 38.1 39.1 40.5 42.0 43.6 45.1 46.2 46.6 47.3 47.4 46.9 46.5 45.4 44.3 42.7 41.1 39.7 37.4 36.4 37.4 39.7 41.1 42.7 44.3 45.4 46.5 46.9 47.4 47.3 46.6 46.2 45.1 43.6 42.0 40.5 39.1 38.1 38.7 40.1 41.0 42.1 42.7 43.0 43.3 42.9 42.7 41.5 40.4 39.6 38.4 35.8 33.8 31.8 30.0 28.7 30.0 31.8 33.8 35.8 38.4 39.6 40.4 41.5 42.7 42.9 43.3 43.0 42.7 42.1 41.0 40.1 38.7
74.0 37.8 38.6 40.1 41.8 43.3 44.8 45.6 46.4 46.7 47.2 46.4 46.3 45.1 43.9 42.4 40.6 38.8 37.0 36.1 37.0 38.8 40.6 42.4 43.9 45.1 46.3 46.4 47.2 46.7 46.4 45.6 44.8 43.3 41.8 40.1 38.6 37.8 38.1 39.6 40.5 41.6 42.4 42.5 42.7 42.3 42.1 41.3 40.1 38.8 37.3 35.4 33.4 31.2 29.3 28.2 29.3 31.2 33.4 35.4 37.3 38.8 40.1 41.3 42.1 42.3 42.7 42.5 42.4 41.6 40.5 39.6 38.1
76.0 37.0 38.0 39.5 41.2 42.6 44.0 45.1 45.5 46.0 46.5 45.9 46.0 44.7 43.1 41.7 39.7 38.0 36.3 35.3 36.3 38.0 39.7 41.7 43.1 44.7 46.0 45.9 46.5 46.0 45.5 45.1 44.0 42.6 41.2 39.5 38.0 37.0 37.8 38.9 40.1 41.1 41.4 41.5 41.9 41.7 41.5 40.6 39.4 38.2 36.6 34.1 32.5 30.4 28.5 27.6 28.5 30.4 32.5 34.1 36.6 38.2 39.4 40.6 41.5 41.7 41.9 41.5 41.4 41.1 40.1 38.9 37.8
78.0 36.1 37.0 38.6 40.1 41.8 43.2 43.8 45.1 45.5 45.7 45.2 44.6 43.8 42.5 40.9 39.3 37.4 35.6 34.6 35.6 37.4 39.3 40.9 42.5 43.8 44.6 45.2 45.7 45.5 45.1 43.8 43.2 41.8 40.1 38.6 37.0 36.1 36.7 37.9 39.1 39.9 40.7 41.1 41.3 40.9 40.7 39.6 38.7 37.4 35.9 33.8 31.9 29.7 27.9 26.6 27.9 29.7 31.9 33.8 35.9 37.4 38.7 39.6 40.7 40.9 41.3 41.1 40.7 39.9 39.1 37.9 36.7
80.0 35.3 36.1 37.7 39.3 40.8 42.6 43.4 44.2 44.6 44.5 44.3 43.9 42.8 41.7 40.3 38.2 36.4 34.9 34.0 34.9 36.4 38.2 40.3 41.7 42.8 43.9 44.3 44.5 44.6 44.2 43.4 42.6 40.8 39.3 37.7 36.1 35.3 35.9 36.9 38.2 39.1 39.9 40.0 40.4 40.2 39.6 38.9 37.8 36.5 34.8 33.1 31.0 29.0 26.9 26.1 26.9 29.0 31.0 33.1 34.8 36.5 37.8 38.9 39.6 40.2 40.4 40.0 39.9 39.1 38.2 36.9 35.9
82.0 34.7 35.6 37.2 38.8 40.5 42.2 43.0 43.7 44.3 44.2 43.9 43.4 42.5 41.2 39.7 37.9 36.1 34.3 33.4 34.3 36.1 37.9 39.7 41.2 42.5 43.4 43.9 44.2 44.3 43.7 43.0 42.2 40.5 38.8 37.2 35.6 34.7 35.3 36.6 37.6 38.5 39.5 39.7 39.7 39.5 39.0 38.2 37.6 35.9 34.3 32.2 30.3 28.6 26.3 25.2 26.3 28.6 30.3 32.2 34.3 35.9 37.6 38.2 39.0 39.5 39.7 39.7 39.5 38.5 37.6 36.6 35.3
84.0 34.1 34.9 36.4 38.2 39.9 41.4 42.3 43.0 43.5 43.5 43.2 42.8 41.7 40.5 39.1 37.3 35.4 33.4 32.7 33.4 35.4 37.3 39.1 40.5 41.7 42.8 43.2 43.5 43.5 43.0 42.3 41.4 39.9 38.2 36.4 34.9 34.1 34.5 35.7 36.9 37.8 38.7 38.9 39.2 39.0 38.4 37.5 36.6 35.2 33.7 31.8 29.8 27.8 25.9 24.8 25.9 27.8 29.8 31.8 33.7 35.2 36.6 37.5 38.4 39.0 39.2 38.9 38.7 37.8 36.9 35.7 34.5
86.0 33.9 34.5 35.9 37.8 39.5 40.7 41.8 42.8 43.0 42.9 42.8 42.2 41.3 40.1 38.4 36.5 35.2 33.0 32.1 33.0 35.2 36.5 38.4 40.1 41.3 42.2 42.8 42.9 43.0 42.8 41.8 40.7 39.5 37.8 35.9 34.5 33.9 34.1 35.5 36.7 37.5 38.2 38.6 38.8 38.6 37.9 37.4 36.2 34.8 33.3 31.4 29.2 27.1 25.4 24.4 25.4 27.1 29.2 31.4 33.3 34.8 36.2 37.4 37.9 38.6 38.8 38.6 38.2 37.5 36.7 35.5 34.1
88.0 33.7 34.3 35.8 37.6 39.0 40.5 41.7 42.5 42.7 42.6 42.4 41.7 40.9 39.7 38.1 36.0 34.1 32.6 32.0 32.6 34.1 36.0 38.1 39.7 40.9 41.7 42.4 42.6 42.7 42.5 41.7 40.5 39.0 37.6 35.8 34.3 33.7 34.1 35.1 36.2 37.2 38.0 38.4 38.6 38.4 37.7 37.0 36.0 34.7 33.0 31.0 29.0 27.0 25.1 24.4 25.1 27.0 29.0 31.0 33.0 34.7 36.0 37.0 37.7 38.4 38.6 38.4 38.0 37.2 36.2 35.1 34.1
90.0 33.4 33.8 35.3 37.1 38.6 40.0 41.0 42.0 42.3 42.3 41.8 41.4 40.5 39.0 37.4 35.8 33.8 32.2 31.7 32.2 33.8 35.8 37.4 39.0 40.5 41.4 41.8 42.3 42.3 42.0 41.0 40.0 38.6 37.1 35.3 33.8 33.4 33.7 34.7 35.8 36.9 37.5 38.0 37.9 37.8 37.4 36.6 35.6 34.1 32.4 30.5 28.6 25.9 24.7 24.1 24.7 25.9 28.6 30.5 32.4 34.1 35.6 36.6 37.4 37.8 37.9 38.0 37.5 36.9 35.8 34.7 33.7
92.0 33.0 33.5 34.9 36.4 37.8 39.6 40.6 41.4 41.7 41.9 41.5 40.8 39.8 38.5 37.0 35.2 33.4 31.8 31.4 31.8 33.4 35.2 37.0 38.5 39.8 40.8 41.5 41.9 41.7 41.4 40.6 39.6 37.8 36.4 34.9 33.5 33.0 33.3 34.3 35.3 36.4 36.9 37.3 37.7 37.4 36.8 36.0 35.1 33.6 32.1 30.3 28.2 26.1 24.5 24.0 24.5 26.1 28.2 30.3 32.1 33.6 35.1 36.0 36.8 37.4 37.7 37.3 36.9 36.4 35.3 34.3 33.3
94.0 32.5 32.9 34.2 35.8 37.4 38.8 39.9 40.6 41.0 41.0 40.7 40.2 39.3 38.0 36.4 34.6 32.8 31.3 31.0 31.3 32.8 34.6 36.4 38.0 39.3 40.2 40.7 41.0 41.0 40.6 39.9 38.8 37.4 35.8 34.2 32.9 32.5 32.8 33.7 34.7 35.7 36.3 36.7 36.9 36.6 36.1 35.4 34.3 33.0 31.5 29.5 27.5 25.5 23.9 23.6 23.9 25.5 27.5 29.5 31.5 33.0 34.3 35.4 36.1 36.6 36.9 36.7 36.3 35.7 34.7 33.7 32.8
96.0 32.3 32.6 33.8 35.4 37.0 38.3 39.4 40.1 40.5 40.5 40.3 39.7 38.7 37.4 35.9 34.1 32.3 31.0 30.7 31.0 32.3 34.1 35.9 37.4 38.7 39.7 40.3 40.5 40.5 40.1 39.4 38.3 37.0 35.4 33.8 32.6 32.3 32.4 33.2 34.3 35.2 35.9 36.3 36.4 36.2 35.8 35.0 33.9 32.9 30.9 29.1 27.1 25.1 23.7 23.3 23.7 25.1 27.1 29.1 30.9 32.9 33.9 35.0 35.8 36.2 36.4 36.3 35.9 35.2 34.3 33.2 32.4
98.0 31.9 32.1 33.3 34.9 36.4 37.9 38.9 39.6 40.0 40.0 39.8 39.1 38.2 36.9 35.3 33.6 31.9 30.6 30.4 30.6 31.9 33.6 35.3 36.9 38.2 39.1 39.8 40.0 40.0 39.6 38.9 37.9 36.4 34.9 33.3 32.1 31.9 32.0 32.8 33.8 34.9 35.4 35.8 36.0 35.8 35.3 34.6 33.5 32.1 30.5 28.7 26.7 24.8 23.4 23.1 23.4 24.8 26.7 28.7 30.5 32.1 33.5 34.6 35.3 35.8 36.0 35.8 35.4 34.9 33.8 32.8 32.0
100.0 31.6 31.7 32.8 34.3 35.9 37.2 38.2 39.0 39.3 39.4 39.1 38.5 37.5 36.3 34.8 33.0 31.3 30.5 30.1 30.5 31.3 33.0 34.8 36.3 37.5 38.5 39.1 39.4 39.3 39.0 38.2 37.2 35.9 34.3 32.8 31.7 31.6 31.7 32.3 33.3 34.2 35.0 35.5 35.5 35.3 34.8 34.0 33.0 31.7 30.1 28.2 26.3 24.3 23.0 22.9 23.0 24.3 26.3 28.2 30.1 31.7 33.0 34.0 34.8 35.3 35.5 35.5 35.0 34.2 33.3 32.3 31.7
102.0 30.9 31.0 31.9 33.4 35.0 36.3 37.3 38.2 38.5 38.5 38.1 37.6 36.7 35.4 34.0 32.3 30.5 29.5 29.6 29.5 30.5 32.3 34.0 35.4 36.7 37.6 38.1 38.5 38.5 38.2 37.3 36.3 35.0 33.4 31.9 31.0 30.9 30.9 31.4 32.6 33.4 34.1 34.6 34.6 34.4 33.9 33.2 32.2 30.9 29.4 27.5 25.5 23.7 22.6 22.4 22.6 23.7 25.5 27.5 29.4 30.9 32.2 33.2 33.9 34.4 34.6 34.6 34.1 33.4 32.6 31.4 30.9
104.0 30.2 30.3 31.0 32.6 34.1 35.5 36.5 37.3 37.6 37.7 37.4 36.8 35.9 34.7 33.1 31.4 29.8 28.9 28.9 28.9 29.8 31.4 33.1 34.7 35.9 36.8 37.4 37.7 37.6 37.3 36.5 35.5 34.1 32.6 31.0 30.3 30.2 30.3 30.7 31.6 32.6 33.2 33.6 33.8 33.6 33.1 32.4 31.4 30.0 27.9 26.6 24.7 22.9 21.9 21.9 21.9 22.9 24.7 26.6 27.9 30.0 31.4 32.4 33.1 33.6 33.8 33.6 33.2 32.6 31.6 30.7 30.3
106.0 29.5 29.6 30.2 31.6 33.1 34.5 35.5 36.2 36.5 36.6 36.4 35.8 34.9 33.7 32.1 30.4 28.9 28.2 28.2 28.2 28.9 30.4 32.1 33.7 34.9 35.8 36.4 36.6 36.5 36.2 35.5 34.5 33.1 31.6 30.2 29.6 29.5 29.5 29.9 30.7 31.6 32.3 32.7 32.8 32.6 32.2 31.4 30.4 29.1 27.6 25.8 23.9 22.3 21.4 21.4 21.4 22.3 23.9 25.8 27.6 29.1 30.4 31.4 32.2 32.6 32.8 32.7 32.3 31.6 30.7 29.9 29.5
108.0 29.0 28.9 29.4 30.7 32.2 33.6 35.1 35.4 35.7 35.8 35.5 34.9 34.0 32.8 31.3 29.7 28.2 27.6 27.7 27.6 28.2 29.7 31.3 32.8 34.0 34.9 35.5 35.8 35.7 35.4 35.1 33.6 32.2 30.7 29.4 28.9 29.0 28.9 29.2 29.9 30.8 31.5 31.9 32.1 31.9 31.4 30.7 29.7 28.4 26.9 25.1 23.2 21.6 21.0 21.0 21.0 21.6 23.2 25.1 26.9 28.4 29.7 30.7 31.4 31.9 32.1 31.9 31.5 30.8 29.9 29.2 28.9
110.0 28.3 28.2 28.6 29.7 31.2 32.5 33.6 34.3 34.7 34.8 34.5 34.0 33.0 31.8 30.3 28.7 27.4 27.0 27.1 27.0 27.4 28.7 30.3 31.8 33.0 34.0 34.5 34.8 34.7 34.3 33.6 32.5 31.2 29.7 28.6 28.2 28.3 28.2 28.3 29.0 29.8 30.5 31.0 31.1 31.0 30.5 29.8 28.8 27.6 26.0 24.6 22.4 21.0 20.5 20.5 20.5 21.0 22.4 24.6 26.0 27.6 28.8 29.8 30.5 31.0 31.1 31.0 30.5 29.8 29.0 28.3 28.2
112.0 27.6 27.5 27.7 28.7 30.1 31.5 32.5 33.3 33.6 33.7 33.5 32.9 32.0 30.8 29.3 27.7 26.6 26.3 26.4 26.3 26.6 27.7 29.3 30.8 32.0 32.9 33.5 33.7 33.6 33.3 32.5 31.5 30.1 28.7 27.7 27.5 27.6 27.5 27.5 28.1 28.9 29.6 30.0 30.1 30.0 29.6 28.9 27.9 26.6 25.1 23.3 21.5 20.3 19.9 20.0 19.9 20.3 21.5 23.3 25.1 26.6 27.9 28.9 29.6 30.0 30.1 30.0 29.6 28.9 28.1 27.5 27.5
114.0 26.8 26.7 26.8 27.7 29.0 30.3 31.4 32.2 32.6 32.6 32.4 31.8 30.9 29.7 28.3 26.8 25.7 25.6 25.7 25.6 25.7 26.8 28.3 29.7 30.9 31.8 32.4 32.6 32.6 32.2 31.4 30.3 29.0 27.7 26.8 26.7 26.8 26.7 26.7 27.1 27.8 28.5 28.9 29.1 29.0 28.6 27.9 26.9 25.6 24.1 22.4 20.6 19.5 19.3 19.4 19.3 19.5 20.6 22.4 24.1 25.6 26.9 27.9 28.6 29.0 29.1 28.9 28.5 27.8 27.1 26.7 26.7
116.0 26.0 25.9 25.9 26.6 27.8 29.1 30.2 30.9 31.4 31.5 31.2 30.6 29.7 28.5 27.1 25.7 24.8 24.8 24.9 24.8 24.8 25.7 27.1 28.5 29.7 30.6 31.2 31.5 31.4 30.9 30.2 29.1 27.8 26.6 25.9 25.9 26.0 25.9 25.8 26.1 26.8 27.2 27.8 28.1 27.9 27.6 26.8 25.8 24.6 23.1 21.4 19.8 18.8 18.7 18.8 18.7 18.8 19.8 21.4 23.1 24.6 25.8 26.8 27.6 27.9 28.1 27.8 27.2 26.8 26.1 25.8 25.9
118.0 25.2 25.1 25.0 25.5 26.7 27.9 28.9 29.7 30.2 30.3 30.1 29.4 28.5 27.4 25.9 24.7 24.0 24.0 24.2 24.0 24.0 24.7 25.9 27.4 28.5 29.4 30.1 30.3 30.2 29.7 28.9 27.9 26.7 25.5 25.0 25.1 25.2 25.1 24.9 25.1 25.7 26.3 26.7 26.9 26.8 26.4 25.7 24.4 23.5 21.9 20.3 18.8 18.1 18.0 18.1 18.0 18.1 18.8 20.3 21.9 23.5 24.4 25.7 26.4 26.8 26.9 26.7 26.3 25.7 25.1 24.9 25.1
120.0 24.3 24.2 24.1 24.5 25.4 26.6 27.7 28.4 28.8 29.0 28.7 28.3 27.2 26.1 24.7 23.6 23.1 23.2 23.4 23.2 23.1 23.6 24.7 26.1 27.2 28.3 28.7 29.0 28.8 28.4 27.7 26.6 25.4 24.5 24.1 24.2 24.3 24.3 24.0 24.1 24.5 25.1 25.5 25.7 25.6 25.1 24.5 23.6 22.3 20.8 19.3 18.0 17.4 17.4 17.6 17.4 17.4 18.0 19.3 20.8 22.3 23.6 24.5 25.1 25.6 25.7 25.5 25.1 24.5 24.1 24.0 24.3
122.0 23.5 23.4 23.3 23.5 24.7 25.5 26.5 27.2 27.7 27.7 27.5 27.0 26.1 24.9 23.6 22.7 22.3 22.5 22.7 22.5 22.3 22.7 23.6 24.9 26.1 27.0 27.5 27.7 27.7 27.2 26.5 25.5 24.7 23.5 23.3 23.4 23.5 23.4 23.2 23.2 23.5 24.0 24.4 24.5 24.4 24.1 23.4 22.4 21.3 19.8 18.3 17.1 16.7 16.8 16.9 16.8 16.7 17.1 18.3 19.8 21.3 22.4 23.4 24.1 24.4 24.5 24.4 24.0 23.5 23.2 23.2 23.4
124.0 22.8 22.6 22.4 22.5 23.2 24.1 25.1 25.8 26.3 26.4 26.2 25.6 24.7 23.6 22.5 21.6 21.5 21.7 21.9 21.7 21.5 21.6 22.5 23.6 24.7 25.6 26.2 26.4 26.3 25.8 25.1 24.1 23.2 22.5 22.4 22.6 22.8 22.7 22.4 22.3 22.5 22.9 23.3 23.4 23.3 22.9 22.2 21.3 20.1 18.7 17.3 16.3 16.1 16.1 16.3 16.1 16.1 16.3 17.3 18.7 20.1 21.3 22.2 22.9 23.3 23.4 23.3 22.9 22.5 22.3 22.4 22.7
126.0 21.8 21.7 21.4 21.4 21.9 22.8 23.7 24.4 24.8 24.9 24.7 24.1 23.3 22.3 21.2 20.6 20.6 20.9 21.0 20.9 20.6 20.6 21.2 22.3 23.3 24.1 24.7 24.9 24.8 24.4 23.7 22.8 21.9 21.4 21.4 21.7 21.8 21.7 21.4 21.2 21.3 21.6 21.9 22.1 22.0 21.6 20.9 20.0 18.8 17.5 16.2 15.4 15.3 15.5 15.6 15.5 15.3 15.4 16.2 17.5 18.8 20.0 20.9 21.6 22.0 22.1 21.9 21.6 21.3 21.2 21.4 21.7
128.0 20.8 20.7 20.5 20.3 20.7 21.4 22.2 22.9 23.2 23.4 23.2 22.6 21.6 20.9 20.0 19.6 19.7 20.0 20.1 20.0 19.7 19.6 20.0 20.9 21.6 22.6 23.2 23.4 23.2 22.9 22.2 21.4 20.7 20.3 20.5 20.7 20.8 20.7 20.4 20.1 20.1 20.4 20.6 20.8 20.7 20.2 19.6 18.7 17.5 16.2 15.1 14.5 14.5 14.7 14.8 14.7 14.5 14.5 15.1 16.2 17.5 18.7 19.6 20.2 20.7 20.8 20.6 20.4 20.1 20.1 20.4 20.7
130.0 19.9 19.8 19.5 19.3 19.5 20.1 20.9 21.5 21.8 21.9 21.7 21.1 20.4 19.5 18.7 18.5 18.7 19.1 19.2 19.1 18.7 18.5 18.7 19.5 20.4 21.1 21.7 21.9 21.8 21.5 20.9 20.1 19.5 19.3 19.5 19.8 19.9 19.8 19.5 19.1 19.0 19.2 19.4 19.5 19.3 19.0 18.3 17.4 16.2 15.0 14.1 13.7 13.8 14.0 14.1 14.0 13.8 13.7 14.1 15.0 16.2 17.4 18.3 19.0 19.3 19.5 19.4 19.2 19.0 19.1 19.5 19.8
132.0 18.9 18.8 18.5 18.2 18.2 18.7 19.4 19.9 20.2 20.3 20.1 19.6 18.9 18.1 17.5 17.5 17.8 18.1 18.2 18.1 17.8 17.5 17.5 18.1 18.9 19.6 20.1 20.3 20.2 19.9 19.4 18.7 18.2 18.2 18.5 18.8 18.9 18.8 18.5 18.1 17.8 17.9 18.1 18.1 17.9 17.6 16.9 16.0 15.0 13.9 13.1 12.9 13.1 13.4 13.4 13.4 13.1 12.9 13.1 13.9 15.0 16.0 16.9 17.6 17.9 18.1 18.1 17.9 17.8 18.1 18.5 18.8
134.0 17.9 17.8 17.5 17.1 17.0 17.4 17.9 18.3 18.6 18.7 18.4 18.0 17.3 16.7 16.3 16.4 16.8 17.1 17.2 17.1 16.8 16.4 16.3 16.7 17.3 18.0 18.4 18.7 18.6 18.3 17.9 17.4 17.0 17.1 17.5 17.8 17.9 17.8 17.5 17.1 16.7 16.7 16.7 16.7 16.5 16.2 15.5 14.6 13.7 12.7 12.1 12.1 12.4 12.6 12.7 12.6 12.4 12.1 12.1 12.7 13.7 14.6 15.5 16.2 16.5 16.7 16.7 16.7 16.7 17.1 17.5 17.8
136.0 16.9 16.8 16.5 16.1 15.8 16.0 16.3 16.8 17.0 17.0 16.8 16.4 15.8 15.3 15.1 15.4 15.8 16.1 16.2 16.1 15.8 15.4 15.1 15.3 15.8 16.4 16.8 17.0 17.0 16.8 16.3 16.0 15.8 16.1 16.5 16.8 16.9 16.7 16.5 16.0 15.5 15.4 15.3 15.2 15.0 14.6 14.0 13.2 12.3 11.6 11.2 11.3 11.6 11.8 11.8 11.8 11.6 11.3 11.2 11.6 12.3 13.2 14.0 14.6 15.0 15.2 15.3 15.4 15.5 16.0 16.5 16.7
138.0 15.7 15.6 15.3 14.9 14.5 14.5 14.8 15.1 15.2 15.2 15.0 14.6 14.1 13.8 13.8 14.2 14.6 14.9 15.0 14.9 14.6 14.2 13.8 13.8 14.1 14.6 15.0 15.2 15.2 15.1 14.8 14.5 14.5 14.9 15.3 15.6 15.7 15.6 15.3 14.9 14.4 14.0 13.9 13.7 13.5 13.0 12.5 11.8 11.0 10.4 10.2 10.5 10.8 11.0 11.0 11.0 10.8 10.5 10.2 10.4 11.0 11.8 12.5 13.0 13.5 13.7 13.9 14.0 14.4 14.9 15.3 15.6
140.0 14.5 14.3 14.1 13.6 13.2 13.0 13.1 13.3 13.4 13.4 13.2 12.9 12.5 12.4 12.6 13.1 13.5 13.8 13.8 13.8 13.5 13.1 12.6 12.4 12.5 12.9 13.2 13.4 13.4 13.3 13.1 13.0 13.2 13.6 14.1 14.3 14.5 14.4 14.1 13.6 13.0 12.6 12.3 12.1 11.8 11.4 10.9 10.2 9.6 9.2 9.2 9.6 9.9 10.1 10.1 10.1 9.9 9.6 9.2 9.2 9.6 10.2 10.9 11.4 11.8 12.1 12.3 12.6 13.0 13.6 14.1 14.4
150.0 7.9 7.8 7.6 7.3 6.8 6.2 5.6 5.3 5.1 5.0 5.0 5.1 5.5 6.1 6.7 7.1 7.4 7.6 7.7 7.6 7.4 7.1 6.7 6.1 5.5 5.1 5.0 5.0 5.1 5.3 5.6 6.2 6.8 7.3 7.6 7.8 7.9 7.8 7.6 7.2 6.7 6.1 5.4 4.8 4.4 4.1 3.9 3.8 4.0 4.4 4.8 5.1 5.4 5.5 5.6 5.5 5.4 5.1 4.8 4.4 4.0 3.8 3.9 4.1 4.4 4.8 5.4 6.1 6.7 7.2 7.6 7.8
160.0 2.1 2.1 2.0 1.9 1.7 1.5 1.3 1.1 1.0 1.0 1.1 1.2 1.5 1.7 1.9 2.1 2.2 2.3 2.3 2.3 2.2 2.1 1.9 1.7 1.5 1.2 1.1 1.0 1.0 1.1 1.3 1.5 1.7 1.9 2.0 2.1 2.1 2.1 2.0 1.8 1.7 1.5 1.3 1.1 1.0 1.0 1.0 1.0 1.1 1.3 1.4 1.5 1.6 1.7 1.7 1.7 1.6 1.5 1.4 1.3 1.1 1.0 1.0 1.0 1.0 1.1 1.3 1.5 1.7 1.8 2.0 2.1
170.0 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9
180.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
