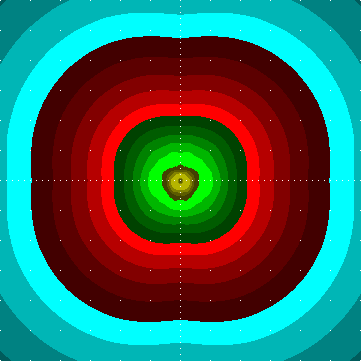

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] 8042406sM3.tm
# [LUMINAIRE] IJTS-M3
# [LUMCAT] Villa
# [DATE] 29/11/2011 12:43:06
# down given: 70.3%
# out given: 51.1%
# tilt: 0.00
# [LAMP] 1 ME 150 12500 2800 E40
# Bulbs: 1, 12500 lm each
# Source file: Villa_IJTS-M3_1_ME_150_12500_2800_E40.ldt
# Luminaire flux = 513 raw, for the given bulb(s) it would be 6418 lm,
# 51.3 % of the bulb flux
# between 75 and 90: 15.3 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 49.0 cd / 1000 lm , 39.2 % of the luminaire flux
# 90deg and above: max 45.3 cd / 1000 lm , 30.4 % of the luminaire flux
# CutOff Type: CIE_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 898 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:2862 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 56 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 54 cd / 1000 lm,
# maximum spec. lum. intensity 216 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 41.0 40.8 40.7 40.4 40.3 40.0 39.6 39.7 39.5 39.2 39.4 39.5 40.3 41.3 42.0 42.8 42.8 43.0 42.9 43.0 42.8 42.8 42.0 41.3 40.3 39.5 39.4 39.2 39.5 39.7 39.6 40.0 40.3 40.4 40.7 40.8 41.0 40.8 41.0 40.7 40.7 40.4 40.3 41.0 41.9 42.9 44.0 45.1 46.2 47.5 48.6 49.4 49.9 50.4 50.6 50.4 49.9 49.4 48.6 47.5 46.2 45.1 44.0 42.9 41.9 41.0 40.3 40.4 40.7 40.7 41.0 40.8
2.0 54.4 54.7 55.2 55.9 57.2 58.7 59.4 60.0 61.0 62.0 62.6 63.9 65.5 66.4 66.5 66.7 66.4 66.2 66.3 66.2 66.4 66.7 66.5 66.4 65.5 63.9 62.6 62.0 61.0 60.0 59.4 58.7 57.2 55.9 55.2 54.7 54.4 54.1 54.0 53.8 53.5 53.1 51.5 49.9 48.0 46.4 44.7 43.5 42.6 41.3 39.8 39.0 38.3 37.3 37.0 37.3 38.3 39.0 39.8 41.3 42.6 43.5 44.7 46.4 48.0 49.9 51.5 53.1 53.5 53.8 54.0 54.1
4.0 100 101 102 101 100 99.4 99.3 99.0 100 101 102 104 106 109 110 111 112 113 112 113 112 111 110 109 106 104 102 101 100 99.0 99.3 99.4 100 101 102 101 100 98.6 96.6 94.8 92.3 89.4 85.6 81.2 76.6 73.1 70.6 69.3 69.5 70.3 71.3 72.1 72.7 73.9 73.6 73.9 72.7 72.1 71.3 70.3 69.5 69.3 70.6 73.1 76.6 81.2 85.6 89.4 92.3 94.8 96.6 98.6
6.0 150 150 149 147 145 143 142 142 143 145 147 148 149 150 153 154 155 154 155 154 155 154 153 150 149 148 147 145 143 142 142 143 145 147 149 150 150 150 148 146 144 141 138 135 132 130 128 126 124 123 124 125 126 126 126 126 126 125 124 123 124 126 128 130 132 135 138 141 144 146 148 150
8.0 188 184 180 175 171 167 165 164 163 163 165 165 167 168 170 170 172 172 173 172 172 170 170 168 167 165 165 163 163 164 165 167 171 175 180 184 188 190 192 191 189 187 184 181 176 172 169 166 164 162 161 160 161 163 162 163 161 160 161 162 164 166 169 172 176 181 184 187 189 191 192 190
10.0 196 192 188 181 178 173 172 168 167 164 165 164 165 167 168 169 170 171 171 171 170 169 168 167 165 164 165 164 167 168 172 173 178 181 188 192 196 200 202 205 208 207 208 205 199 194 190 187 185 183 182 181 182 181 183 181 182 181 182 183 185 187 190 194 199 205 208 207 208 205 202 200
12.0 194 189 182 174 170 164 160 158 156 158 157 157 155 154 155 153 155 155 155 155 155 153 155 154 155 157 157 158 156 158 160 164 170 174 182 189 194 198 198 203 205 210 212 216 212 209 201 195 191 187 186 184 187 187 188 187 187 184 186 187 191 195 201 209 212 216 212 210 205 203 198 198
14.0 181 177 169 160 156 149 144 142 141 139 139 139 136 135 132 132 129 128 128 128 129 132 132 135 136 139 139 139 141 142 144 149 156 160 169 177 181 183 185 187 192 199 202 205 202 201 197 192 186 179 178 176 179 180 178 180 179 176 178 179 186 192 197 201 202 205 202 199 192 187 185 183
16.0 161 155 151 146 140 136 131 126 123 122 121 118 114 111 108 104 101 98.4 96.4 98.4 101 104 108 111 114 118 121 122 123 126 131 136 140 146 151 155 161 163 165 170 176 182 184 183 182 180 180 180 173 169 165 163 162 163 164 163 162 163 165 169 173 180 180 180 182 183 184 182 176 170 165 163
18.0 138 134 132 128 124 120 116 112 108 105 101 97.0 93.0 90.0 84.4 79.4 75.6 71.7 70.5 71.7 75.6 79.4 84.4 90.0 93.0 97.0 101 105 108 112 116 120 124 128 132 134 138 141 145 148 151 156 160 162 163 160 162 163 159 153 148 144 142 146 147 146 142 144 148 153 159 163 162 160 163 162 160 156 151 148 145 141
20.0 116 114 112 109 105 101 97.2 93.0 90.1 88.0 83.2 77.4 74.1 70.1 65.4 61.4 57.8 55.4 55.3 55.4 57.8 61.4 65.4 70.1 74.1 77.4 83.2 88.0 90.1 93.0 97.2 101 105 109 112 114 116 119 120 122 124 129 133 139 142 143 143 143 140 133 127 122 124 126 126 126 124 122 127 133 140 143 143 143 142 139 133 129 124 122 120 119
22.0 95.6 96.3 96.1 92.4 89.4 84.5 79.8 75.6 73.6 71.3 67.9 62.0 58.6 55.4 52.5 48.8 47.3 46.8 46.1 46.8 47.3 48.8 52.5 55.4 58.6 62.0 67.9 71.3 73.6 75.6 79.8 84.5 89.4 92.4 96.1 96.3 95.6 94.6 96.7 97.5 98.7 101 107 114 117 118 120 120 117 114 107 104 105 104 102 104 105 104 107 114 117 120 120 118 117 114 107 101 98.7 97.5 96.7 94.6
24.0 74.1 76.0 77.6 77.8 76.0 72.6 67.5 63.4 60.8 58.9 56.0 51.7 48.9 47.0 46.0 44.0 43.5 44.1 44.1 44.1 43.5 44.0 46.0 47.0 48.9 51.7 56.0 58.9 60.8 63.4 67.5 72.6 76.0 77.8 77.6 76.0 74.1 72.7 74.8 76.8 79.0 80.5 84.4 88.1 93.1 95.2 97.8 99.4 97.4 95.1 89.0 88.0 88.9 86.2 85.1 86.2 88.9 88.0 89.0 95.1 97.4 99.4 97.8 95.2 93.1 88.1 84.4 80.5 79.0 76.8 74.8 72.7
26.0 63.5 63.8 63.9 64.5 64.6 62.5 59.5 55.8 53.7 51.0 49.2 46.0 44.9 43.8 44.3 43.4 44.0 44.5 45.1 44.5 44.0 43.4 44.3 43.8 44.9 46.0 49.2 51.0 53.7 55.8 59.5 62.5 64.6 64.5 63.9 63.8 63.5 61.9 61.7 62.9 64.8 66.1 66.8 69.2 72.2 76.4 79.4 81.4 80.4 78.3 75.8 77.0 77.2 74.5 72.7 74.5 77.2 77.0 75.8 78.3 80.4 81.4 79.4 76.4 72.2 69.2 66.8 66.1 64.8 62.9 61.7 61.9
28.0 64.2 64.4 62.9 61.2 58.6 56.2 54.0 51.5 50.6 48.8 46.4 44.1 44.2 44.4 44.8 44.2 45.1 46.0 46.7 46.0 45.1 44.2 44.8 44.4 44.2 44.1 46.4 48.8 50.6 51.5 54.0 56.2 58.6 61.2 62.9 64.4 64.2 63.1 61.4 59.8 57.4 56.6 56.4 57.4 58.9 61.9 65.7 67.9 68.9 68.4 68.0 70.1 68.2 66.0 64.1 66.0 68.2 70.1 68.0 68.4 68.9 67.9 65.7 61.9 58.9 57.4 56.4 56.6 57.4 59.8 61.4 63.1
30.0 59.9 59.8 60.1 59.9 57.8 55.1 51.8 49.4 49.4 47.7 45.8 44.4 45.5 46.0 45.4 45.5 45.4 45.8 45.6 45.8 45.4 45.5 45.4 46.0 45.5 44.4 45.8 47.7 49.4 49.4 51.8 55.1 57.8 59.9 60.1 59.8 59.9 59.3 58.0 56.8 55.1 54.3 52.7 52.1 52.8 53.6 56.8 59.6 61.2 62.2 63.3 65.3 61.8 59.9 58.6 59.9 61.8 65.3 63.3 62.2 61.2 59.6 56.8 53.6 52.8 52.1 52.7 54.3 55.1 56.8 58.0 59.3
32.0 50.7 51.5 52.5 52.9 53.4 53.1 51.2 49.0 48.5 47.3 46.7 45.8 47.1 47.2 45.4 45.4 44.6 44.0 43.8 44.0 44.6 45.4 45.4 47.2 47.1 45.8 46.7 47.3 48.5 49.0 51.2 53.1 53.4 52.9 52.5 51.5 50.7 51.2 52.1 52.5 51.6 51.7 51.4 50.9 50.7 51.0 51.6 54.6 56.2 57.3 60.8 60.7 57.2 55.4 55.2 55.4 57.2 60.7 60.8 57.3 56.2 54.6 51.6 51.0 50.7 50.9 51.4 51.7 51.6 52.5 52.1 51.2
34.0 49.2 49.8 50.2 50.0 49.8 49.8 50.0 49.5 48.8 48.7 48.2 48.4 48.6 47.0 46.0 45.4 43.6 42.8 42.3 42.8 43.6 45.4 46.0 47.0 48.6 48.4 48.2 48.7 48.8 49.5 50.0 49.8 49.8 50.0 50.2 49.8 49.2 49.8 50.1 50.2 50.4 50.2 50.5 51.3 51.4 51.5 51.2 52.3 54.1 55.6 58.7 57.6 55.6 54.6 54.8 54.6 55.6 57.6 58.7 55.6 54.1 52.3 51.2 51.5 51.4 51.3 50.5 50.2 50.4 50.2 50.1 49.8
36.0 52.5 53.4 54.3 53.3 51.8 50.5 49.9 49.9 50.1 50.2 49.2 49.3 48.1 46.9 46.5 46.3 44.8 44.4 44.1 44.4 44.8 46.3 46.5 46.9 48.1 49.3 49.2 50.2 50.1 49.9 49.9 50.5 51.8 53.3 54.3 53.4 52.5 53.0 54.2 53.8 52.5 50.8 50.5 50.8 51.8 52.4 51.9 52.4 53.8 55.1 57.4 57.6 57.3 56.3 55.7 56.3 57.3 57.6 57.4 55.1 53.8 52.4 51.9 52.4 51.8 50.8 50.5 50.8 52.5 53.8 54.2 53.0
38.0 55.4 56.3 57.5 56.6 54.4 53.1 51.9 51.9 51.7 52.0 50.5 49.8 49.0 48.9 49.0 48.9 48.0 46.8 45.6 46.8 48.0 48.9 49.0 48.9 49.0 49.8 50.5 52.0 51.7 51.9 51.9 53.1 54.4 56.6 57.5 56.3 55.4 55.7 57.0 57.3 56.2 53.7 52.2 51.5 52.0 52.9 52.5 52.7 54.1 55.5 57.3 58.1 58.1 55.6 55.1 55.6 58.1 58.1 57.3 55.5 54.1 52.7 52.5 52.9 52.0 51.5 52.2 53.7 56.2 57.3 57.0 55.7
40.0 58.7 60.0 60.8 59.3 56.8 54.9 53.8 53.3 53.3 53.4 52.0 51.1 51.2 51.2 51.5 51.4 51.4 49.1 47.4 49.1 51.4 51.4 51.5 51.2 51.2 51.1 52.0 53.4 53.3 53.3 53.8 54.9 56.8 59.3 60.8 60.0 58.7 59.0 60.8 61.2 59.5 57.3 54.6 53.7 53.2 54.0 52.5 52.6 53.7 56.3 57.4 57.7 58.4 56.2 55.7 56.2 58.4 57.7 57.4 56.3 53.7 52.6 52.5 54.0 53.2 53.7 54.6 57.3 59.5 61.2 60.8 59.0
42.0 61.6 62.4 63.2 61.6 58.6 56.0 54.9 54.5 54.7 55.0 53.1 52.3 52.3 52.8 53.7 53.6 54.4 51.2 49.6 51.2 54.4 53.6 53.7 52.8 52.3 52.3 53.1 55.0 54.7 54.5 54.9 56.0 58.6 61.6 63.2 62.4 61.6 62.1 63.5 64.1 61.9 59.2 56.2 54.9 53.9 54.8 53.2 52.8 53.2 55.1 57.3 58.1 58.5 56.8 56.5 56.8 58.5 58.1 57.3 55.1 53.2 52.8 53.2 54.8 53.9 54.9 56.2 59.2 61.9 64.1 63.5 62.1
44.0 63.0 63.1 64.0 62.6 60.2 57.3 55.9 55.8 55.5 55.4 54.1 53.1 53.0 53.8 55.0 54.9 55.2 51.6 51.1 51.6 55.2 54.9 55.0 53.8 53.0 53.1 54.1 55.4 55.5 55.8 55.9 57.3 60.2 62.6 64.0 63.1 63.0 63.8 64.9 65.5 64.5 61.0 57.7 56.1 55.2 55.6 54.1 53.4 53.3 55.0 56.9 57.1 57.1 55.7 56.1 55.7 57.1 57.1 56.9 55.0 53.3 53.4 54.1 55.6 55.2 56.1 57.7 61.0 64.5 65.5 64.9 63.8
46.0 64.7 63.5 63.7 63.1 60.7 58.3 57.1 56.7 56.7 57.3 55.4 54.3 54.0 54.6 56.0 56.2 55.3 52.5 52.2 52.5 55.3 56.2 56.0 54.6 54.0 54.3 55.4 57.3 56.7 56.7 57.1 58.3 60.7 63.1 63.7 63.5 64.7 65.4 65.1 65.7 64.6 62.2 59.1 57.5 56.3 57.1 54.9 54.4 54.0 54.4 55.5 55.3 54.9 53.6 54.5 53.6 54.9 55.3 55.5 54.4 54.0 54.4 54.9 57.1 56.3 57.5 59.1 62.2 64.6 65.7 65.1 65.4
48.0 63.9 63.1 62.5 62.1 59.6 57.7 57.3 57.3 57.3 58.0 56.3 55.1 54.5 54.1 55.7 56.1 54.7 52.7 53.0 52.7 54.7 56.1 55.7 54.1 54.5 55.1 56.3 58.0 57.3 57.3 57.3 57.7 59.6 62.1 62.5 63.1 63.9 65.2 64.9 64.7 62.6 60.9 59.0 57.7 56.6 57.3 55.1 54.7 53.6 53.3 53.6 53.3 52.1 51.3 51.6 51.3 52.1 53.3 53.6 53.3 53.6 54.7 55.1 57.3 56.6 57.7 59.0 60.9 62.6 64.7 64.9 65.2
50.0 63.1 61.8 60.9 60.2 58.7 57.5 57.4 57.8 57.8 58.7 56.6 55.7 54.5 53.7 55.0 55.5 54.5 52.8 53.2 52.8 54.5 55.5 55.0 53.7 54.5 55.7 56.6 58.7 57.8 57.8 57.4 57.5 58.7 60.2 60.9 61.8 63.1 64.1 63.2 63.0 61.6 60.0 58.8 58.2 57.2 57.8 55.8 54.7 53.6 52.2 52.2 51.6 50.5 49.7 49.4 49.7 50.5 51.6 52.2 52.2 53.6 54.7 55.8 57.8 57.2 58.2 58.8 60.0 61.6 63.0 63.2 64.1
52.0 60.2 59.5 58.6 58.1 57.1 56.7 57.0 57.5 57.5 58.4 56.4 55.4 54.3 52.9 53.5 54.3 52.5 52.2 52.1 52.2 52.5 54.3 53.5 52.9 54.3 55.4 56.4 58.4 57.5 57.5 57.0 56.7 57.1 58.1 58.6 59.5 60.2 61.5 60.9 60.7 59.4 58.4 57.7 57.7 56.8 57.5 55.6 54.4 53.0 51.5 50.6 49.8 48.4 47.9 46.7 47.9 48.4 49.8 50.6 51.5 53.0 54.4 55.6 57.5 56.8 57.7 57.7 58.4 59.4 60.7 60.9 61.5
54.0 58.8 58.1 57.2 56.4 55.9 56.3 56.7 57.2 57.6 58.5 56.6 55.5 54.3 52.8 52.5 53.0 51.6 51.4 51.6 51.4 51.6 53.0 52.5 52.8 54.3 55.5 56.6 58.5 57.6 57.2 56.7 56.3 55.9 56.4 57.2 58.1 58.8 59.6 59.2 58.6 58.0 57.0 57.5 57.0 56.9 57.6 55.6 54.4 52.8 51.3 50.2 48.8 47.0 46.5 45.1 46.5 47.0 48.8 50.2 51.3 52.8 54.4 55.6 57.6 56.9 57.0 57.5 57.0 58.0 58.6 59.2 59.6
56.0 55.6 55.7 55.0 55.1 55.0 55.7 56.1 57.0 57.2 58.3 56.1 55.3 53.9 52.4 51.4 51.3 50.7 49.9 49.8 49.9 50.7 51.3 51.4 52.4 53.9 55.3 56.1 58.3 57.2 57.0 56.1 55.7 55.0 55.1 55.0 55.7 55.6 56.6 56.5 56.4 55.8 56.1 56.3 56.5 56.2 57.0 55.1 53.7 52.2 50.6 49.5 47.5 46.2 44.8 43.5 44.8 46.2 47.5 49.5 50.6 52.2 53.7 55.1 57.0 56.2 56.5 56.3 56.1 55.8 56.4 56.5 56.6
58.0 53.2 53.0 53.2 53.4 54.2 54.8 55.7 56.3 56.8 57.8 55.8 54.7 52.9 51.9 50.5 49.9 48.7 48.2 47.6 48.2 48.7 49.9 50.5 51.9 52.9 54.7 55.8 57.8 56.8 56.3 55.7 54.8 54.2 53.4 53.2 53.0 53.2 53.5 54.0 54.6 54.6 55.1 55.8 56.0 55.7 56.4 54.4 53.4 51.6 50.2 48.8 46.7 44.8 43.3 42.2 43.3 44.8 46.7 48.8 50.2 51.6 53.4 54.4 56.4 55.7 56.0 55.8 55.1 54.6 54.6 54.0 53.5
60.0 50.3 50.9 51.2 52.3 53.3 54.1 55.2 55.9 56.1 57.3 55.3 54.5 53.3 51.7 49.9 48.8 47.2 46.3 45.4 46.3 47.2 48.8 49.9 51.7 53.3 54.5 55.3 57.3 56.1 55.9 55.2 54.1 53.3 52.3 51.2 50.9 50.3 51.0 51.3 52.2 53.1 53.8 54.8 54.9 54.7 55.2 53.7 52.6 51.1 49.2 47.6 45.7 43.8 41.8 41.0 41.8 43.8 45.7 47.6 49.2 51.1 52.6 53.7 55.2 54.7 54.9 54.8 53.8 53.1 52.2 51.3 51.0
62.0 48.4 48.9 50.0 51.0 52.2 53.4 54.8 55.4 55.6 56.7 54.8 54.1 52.6 51.1 49.3 47.7 45.7 44.7 43.5 44.7 45.7 47.7 49.3 51.1 52.6 54.1 54.8 56.7 55.6 55.4 54.8 53.4 52.2 51.0 50.0 48.9 48.4 49.0 50.1 51.4 52.5 53.5 54.0 54.3 54.2 54.6 52.9 52.1 50.5 48.8 46.7 45.1 42.7 40.9 39.7 40.9 42.7 45.1 46.7 48.8 50.5 52.1 52.9 54.6 54.2 54.3 54.0 53.5 52.5 51.4 50.1 49.0
64.0 46.9 47.6 48.7 50.5 51.5 53.0 53.8 54.9 54.9 55.8 54.2 53.7 52.1 51.1 48.7 46.9 44.9 43.2 42.3 43.2 44.9 46.9 48.7 51.1 52.1 53.7 54.2 55.8 54.9 54.9 53.8 53.0 51.5 50.5 48.7 47.6 46.9 47.8 49.0 50.4 51.5 52.4 53.4 53.6 53.6 53.9 52.6 51.5 49.9 48.3 46.1 44.2 42.0 39.9 38.9 39.9 42.0 44.2 46.1 48.3 49.9 51.5 52.6 53.9 53.6 53.6 53.4 52.4 51.5 50.4 49.0 47.8
66.0 45.3 45.9 48.0 49.5 50.8 52.4 53.3 53.9 54.3 54.9 53.3 52.6 51.2 49.6 47.6 45.7 43.6 42.1 41.0 42.1 43.6 45.7 47.6 49.6 51.2 52.6 53.3 54.9 54.3 53.9 53.3 52.4 50.8 49.5 48.0 45.9 45.3 46.4 47.6 49.4 50.3 51.6 52.3 52.6 52.6 52.8 51.4 50.6 49.3 47.4 45.5 43.3 41.1 38.9 37.8 38.9 41.1 43.3 45.5 47.4 49.3 50.6 51.4 52.8 52.6 52.6 52.3 51.6 50.3 49.4 47.6 46.4
68.0 44.6 45.5 46.9 48.5 51.1 52.2 52.5 53.2 53.5 54.0 53.0 52.0 51.0 49.3 47.4 45.4 43.5 41.3 40.5 41.3 43.5 45.4 47.4 49.3 51.0 52.0 53.0 54.0 53.5 53.2 52.5 52.2 51.1 48.5 46.9 45.5 44.6 45.7 47.1 48.7 49.9 50.8 51.6 52.2 51.9 52.3 51.0 50.1 48.7 46.9 44.8 42.7 40.4 38.4 38.0 38.4 40.4 42.7 44.8 46.9 48.7 50.1 51.0 52.3 51.9 52.2 51.6 50.8 49.9 48.7 47.1 45.7
70.0 44.2 45.2 46.4 48.4 49.5 51.2 52.1 52.5 52.8 53.3 52.6 51.5 50.4 48.8 46.8 44.8 42.6 41.0 39.4 41.0 42.6 44.8 46.8 48.8 50.4 51.5 52.6 53.3 52.8 52.5 52.1 51.2 49.5 48.4 46.4 45.2 44.2 45.4 46.7 48.4 49.5 50.5 51.3 51.6 51.3 51.6 50.4 49.5 48.1 46.3 44.3 42.2 40.0 38.0 37.0 38.0 40.0 42.2 44.3 46.3 48.1 49.5 50.4 51.6 51.3 51.6 51.3 50.5 49.5 48.4 46.7 45.4
72.0 43.6 44.5 46.0 47.7 49.1 50.6 51.5 52.0 52.6 52.7 51.9 51.1 49.8 48.4 45.8 44.0 41.9 39.8 38.7 39.8 41.9 44.0 45.8 48.4 49.8 51.1 51.9 52.7 52.6 52.0 51.5 50.6 49.1 47.7 46.0 44.5 43.6 44.6 46.2 47.6 48.9 49.9 50.6 51.0 51.0 51.0 49.9 49.0 47.5 45.9 44.0 41.6 39.4 37.3 36.0 37.3 39.4 41.6 44.0 45.9 47.5 49.0 49.9 51.0 51.0 51.0 50.6 49.9 48.9 47.6 46.2 44.6
74.0 42.9 43.7 45.4 47.0 48.5 49.6 50.7 51.3 51.2 51.6 50.7 49.9 48.7 47.1 45.5 43.2 41.3 39.0 38.1 39.0 41.3 43.2 45.5 47.1 48.7 49.9 50.7 51.6 51.2 51.3 50.7 49.6 48.5 47.0 45.4 43.7 42.9 43.8 45.4 46.8 48.1 49.2 49.8 50.3 50.0 50.2 49.0 48.4 46.9 45.1 43.2 40.7 38.3 36.4 35.0 36.4 38.3 40.7 43.2 45.1 46.9 48.4 49.0 50.2 50.0 50.3 49.8 49.2 48.1 46.8 45.4 43.8
76.0 42.1 43.1 44.8 46.3 48.0 49.2 50.2 50.7 50.9 51.2 50.2 49.4 48.1 46.6 44.7 42.4 40.3 38.2 37.1 38.2 40.3 42.4 44.7 46.6 48.1 49.4 50.2 51.2 50.9 50.7 50.2 49.2 48.0 46.3 44.8 43.1 42.1 43.2 44.7 46.0 47.5 48.5 49.3 49.5 49.6 49.5 48.5 47.6 46.3 44.6 42.5 40.3 38.0 35.9 34.6 35.9 38.0 40.3 42.5 44.6 46.3 47.6 48.5 49.5 49.6 49.5 49.3 48.5 47.5 46.0 44.7 43.2
78.0 41.5 42.4 43.9 45.5 47.3 48.7 49.5 50.1 50.2 50.5 49.5 48.8 47.8 45.7 43.8 41.6 39.5 37.4 36.0 37.4 39.5 41.6 43.8 45.7 47.8 48.8 49.5 50.5 50.2 50.1 49.5 48.7 47.3 45.5 43.9 42.4 41.5 42.4 43.7 45.3 46.7 47.9 48.5 48.9 48.9 48.8 47.9 46.9 45.5 43.9 41.7 39.4 37.1 35.1 33.9 35.1 37.1 39.4 41.7 43.9 45.5 46.9 47.9 48.8 48.9 48.9 48.5 47.9 46.7 45.3 43.7 42.4
80.0 40.4 41.2 42.8 44.9 46.0 47.3 48.3 48.8 49.0 49.0 48.3 47.6 46.1 44.9 42.8 40.8 38.4 36.5 35.3 36.5 38.4 40.8 42.8 44.9 46.1 47.6 48.3 49.0 49.0 48.8 48.3 47.3 46.0 44.9 42.8 41.2 40.4 41.2 42.7 44.2 45.6 46.9 47.3 47.9 47.9 47.5 46.8 45.7 44.4 42.8 40.8 38.4 36.2 34.1 32.9 34.1 36.2 38.4 40.8 42.8 44.4 45.7 46.8 47.5 47.9 47.9 47.3 46.9 45.6 44.2 42.7 41.2
82.0 39.5 40.0 41.6 43.3 44.9 46.4 47.2 47.7 48.1 48.1 47.4 46.8 45.3 43.9 41.8 39.7 37.5 35.4 34.3 35.4 37.5 39.7 41.8 43.9 45.3 46.8 47.4 48.1 48.1 47.7 47.2 46.4 44.9 43.3 41.6 40.0 39.5 40.2 41.7 43.1 44.5 45.8 46.3 46.7 46.7 46.3 45.7 44.6 43.1 41.8 39.7 37.5 35.4 33.7 32.3 33.7 35.4 37.5 39.7 41.8 43.1 44.6 45.7 46.3 46.7 46.7 46.3 45.8 44.5 43.1 41.7 40.2
84.0 38.4 39.1 40.8 42.7 44.2 45.5 46.5 47.2 47.3 47.1 46.7 45.7 44.6 42.9 41.0 39.0 36.8 34.8 33.6 34.8 36.8 39.0 41.0 42.9 44.6 45.7 46.7 47.1 47.3 47.2 46.5 45.5 44.2 42.7 40.8 39.1 38.4 39.1 40.8 42.3 43.5 44.6 45.4 45.7 45.7 45.5 44.8 43.9 42.6 40.7 38.9 36.8 34.4 32.3 31.5 32.3 34.4 36.8 38.9 40.7 42.6 43.9 44.8 45.5 45.7 45.7 45.4 44.6 43.5 42.3 40.8 39.1
86.0 37.8 38.5 40.0 41.8 43.2 44.6 45.6 46.2 46.4 46.2 45.6 44.9 43.7 42.0 39.8 38.0 35.9 34.0 33.0 34.0 35.9 38.0 39.8 42.0 43.7 44.9 45.6 46.2 46.4 46.2 45.6 44.6 43.2 41.8 40.0 38.5 37.8 38.5 40.0 41.6 42.8 44.1 44.9 45.0 45.1 44.8 44.0 43.2 41.8 40.0 38.1 36.1 33.9 31.8 30.9 31.8 33.9 36.1 38.1 40.0 41.8 43.2 44.0 44.8 45.1 45.0 44.9 44.1 42.8 41.6 40.0 38.5
88.0 37.4 38.1 39.5 41.3 42.9 44.2 45.3 45.7 45.8 45.6 45.0 44.4 43.1 41.5 39.6 37.4 35.2 33.3 32.5 33.3 35.2 37.4 39.6 41.5 43.1 44.4 45.0 45.6 45.8 45.7 45.3 44.2 42.9 41.3 39.5 38.1 37.4 38.0 39.5 41.0 42.3 43.5 44.1 44.7 44.8 44.4 43.7 43.0 41.5 39.8 37.9 35.7 33.4 31.5 30.9 31.5 33.4 35.7 37.9 39.8 41.5 43.0 43.7 44.4 44.8 44.7 44.1 43.5 42.3 41.0 39.5 38.0
90.0 37.3 37.7 39.1 40.8 42.4 43.6 44.5 45.1 45.3 45.0 44.5 43.8 42.4 40.8 39.0 36.8 34.7 32.9 32.0 32.9 34.7 36.8 39.0 40.8 42.4 43.8 44.5 45.0 45.3 45.1 44.5 43.6 42.4 40.8 39.1 37.7 37.3 37.6 38.9 40.5 42.0 43.0 43.7 44.3 44.3 43.9 43.3 42.4 41.1 39.4 37.4 35.1 33.0 31.2 30.5 31.2 33.0 35.1 37.4 39.4 41.1 42.4 43.3 43.9 44.3 44.3 43.7 43.0 42.0 40.5 38.9 37.6
92.0 37.2 37.5 38.9 40.6 42.2 43.4 44.5 45.0 45.1 44.9 44.6 43.6 42.4 40.8 38.9 36.6 34.5 32.8 32.1 32.8 34.5 36.6 38.9 40.8 42.4 43.6 44.6 44.9 45.1 45.0 44.5 43.4 42.2 40.6 38.9 37.5 37.2 37.5 38.8 40.2 41.5 42.8 43.7 44.0 44.0 43.7 43.2 42.2 40.7 39.0 37.0 35.0 32.8 30.9 30.5 30.9 32.8 35.0 37.0 39.0 40.7 42.2 43.2 43.7 44.0 44.0 43.7 42.8 41.5 40.2 38.8 37.5
94.0 36.7 37.0 38.2 39.8 41.4 43.2 43.7 44.5 44.7 44.3 43.8 43.1 41.8 40.2 38.3 36.1 34.0 32.3 32.0 32.3 34.0 36.1 38.3 40.2 41.8 43.1 43.8 44.3 44.7 44.5 43.7 43.2 41.4 39.8 38.2 37.0 36.7 37.0 38.1 39.7 41.1 42.2 42.9 43.3 43.2 43.1 42.4 41.3 40.1 38.3 36.4 34.2 32.0 30.5 30.2 30.5 32.0 34.2 36.4 38.3 40.1 41.3 42.4 43.1 43.2 43.3 42.9 42.2 41.1 39.7 38.1 37.0
96.0 36.5 36.6 37.9 39.6 41.0 42.4 43.2 43.9 44.2 43.9 43.3 42.6 41.4 39.7 37.8 35.7 33.6 32.0 31.7 32.0 33.6 35.7 37.8 39.7 41.4 42.6 43.3 43.9 44.2 43.9 43.2 42.4 41.0 39.6 37.9 36.6 36.5 36.8 37.8 39.2 40.6 41.6 42.2 42.8 42.9 42.4 41.7 40.9 39.6 37.9 35.9 33.8 32.2 30.1 29.9 30.1 32.2 33.8 35.9 37.9 39.6 40.9 41.7 42.4 42.9 42.8 42.2 41.6 40.6 39.2 37.8 36.8
98.0 36.0 36.1 37.4 38.9 40.4 41.7 42.6 43.3 43.4 43.2 42.8 41.8 40.5 39.0 37.1 35.0 32.9 31.3 31.0 31.3 32.9 35.0 37.1 39.0 40.5 41.8 42.8 43.2 43.4 43.3 42.6 41.7 40.4 38.9 37.4 36.1 36.0 36.3 37.4 38.6 39.9 41.0 41.7 42.3 42.4 41.9 41.2 40.4 39.0 37.5 35.4 33.2 31.2 29.8 29.7 29.8 31.2 33.2 35.4 37.5 39.0 40.4 41.2 41.9 42.4 42.3 41.7 41.0 39.9 38.6 37.4 36.3
100.0 35.7 35.7 36.7 38.3 39.9 41.1 42.1 42.6 42.8 42.5 42.1 41.1 39.8 38.4 36.5 33.9 32.5 31.0 31.1 31.0 32.5 33.9 36.5 38.4 39.8 41.1 42.1 42.5 42.8 42.6 42.1 41.1 39.9 38.3 36.7 35.7 35.7 35.6 36.4 37.9 39.2 40.4 41.2 41.6 41.6 41.3 40.6 39.8 38.5 36.8 34.9 32.6 30.6 29.2 29.2 29.2 30.6 32.6 34.9 36.8 38.5 39.8 40.6 41.3 41.6 41.6 41.2 40.4 39.2 37.9 36.4 35.6
102.0 35.1 34.9 35.9 37.6 39.1 40.2 41.2 41.8 41.9 41.7 41.4 40.4 39.0 37.7 35.8 33.8 31.9 30.6 30.5 30.6 31.9 33.8 35.8 37.7 39.0 40.4 41.4 41.7 41.9 41.8 41.2 40.2 39.1 37.6 35.9 34.9 35.1 35.1 35.8 37.2 38.6 39.5 40.2 40.8 40.9 40.4 39.7 38.9 37.6 35.8 33.9 31.8 29.8 28.5 28.5 28.5 29.8 31.8 33.9 35.8 37.6 38.9 39.7 40.4 40.9 40.8 40.2 39.5 38.6 37.2 35.8 35.1
104.0 34.3 34.2 35.1 36.5 38.1 39.4 40.3 40.7 41.0 40.8 40.4 39.7 38.3 36.7 34.9 33.0 31.1 30.0 29.9 30.0 31.1 33.0 34.9 36.7 38.3 39.7 40.4 40.8 41.0 40.7 40.3 39.4 38.1 36.5 35.1 34.2 34.3 34.4 34.9 36.1 37.5 38.7 39.5 39.8 39.8 39.1 38.8 37.9 36.5 34.9 32.9 31.0 29.1 28.0 28.2 28.0 29.1 31.0 32.9 34.9 36.5 37.9 38.8 39.1 39.8 39.8 39.5 38.7 37.5 36.1 34.9 34.4
106.0 33.7 33.7 34.2 35.6 37.0 38.5 39.4 39.8 40.1 40.0 39.6 38.5 37.4 35.8 33.9 31.9 30.0 29.0 29.2 29.0 30.0 31.9 33.9 35.8 37.4 38.5 39.6 40.0 40.1 39.8 39.4 38.5 37.0 35.6 34.2 33.7 33.7 33.6 34.2 35.4 36.6 37.7 38.4 39.0 39.0 38.7 38.0 36.9 35.8 34.2 32.2 30.3 28.3 27.5 27.5 27.5 28.3 30.3 32.2 34.2 35.8 36.9 38.0 38.7 39.0 39.0 38.4 37.7 36.6 35.4 34.2 33.6
108.0 33.1 32.9 33.5 34.7 36.2 37.5 38.6 39.1 39.3 39.0 38.6 37.7 36.5 35.1 33.2 31.2 29.6 28.9 28.8 28.9 29.6 31.2 33.2 35.1 36.5 37.7 38.6 39.0 39.3 39.1 38.6 37.5 36.2 34.7 33.5 32.9 33.1 32.9 33.2 34.4 35.8 36.8 37.5 38.1 38.1 37.7 37.2 36.3 34.9 33.2 31.4 29.4 27.7 27.0 27.1 27.0 27.7 29.4 31.4 33.2 34.9 36.3 37.2 37.7 38.1 38.1 37.5 36.8 35.8 34.4 33.2 32.9
110.0 32.2 32.1 32.5 33.5 35.0 36.3 37.1 37.7 38.0 37.9 37.4 36.6 35.5 33.9 32.2 30.2 28.5 28.1 28.1 28.1 28.5 30.2 32.2 33.9 35.5 36.6 37.4 37.9 38.0 37.7 37.1 36.3 35.0 33.5 32.5 32.1 32.2 32.2 32.5 33.3 34.5 35.7 36.6 36.8 36.9 36.8 36.0 35.2 33.9 32.2 30.9 28.3 26.8 26.4 26.5 26.4 26.8 28.3 30.9 32.2 33.9 35.2 36.0 36.8 36.9 36.8 36.6 35.7 34.5 33.3 32.5 32.2
112.0 31.4 31.2 31.5 32.3 33.8 35.0 36.0 36.7 36.9 36.7 36.3 35.5 34.2 32.8 30.9 29.1 27.7 27.2 27.4 27.2 27.7 29.1 30.9 32.8 34.2 35.5 36.3 36.7 36.9 36.7 36.0 35.0 33.8 32.3 31.5 31.2 31.4 31.2 31.5 32.1 33.2 34.4 35.0 35.5 35.6 35.2 34.7 33.8 32.4 30.9 29.1 27.3 25.9 25.5 25.7 25.5 25.9 27.3 29.1 30.9 32.4 33.8 34.7 35.2 35.6 35.5 35.0 34.4 33.2 32.1 31.5 31.2
114.0 30.5 30.4 30.4 31.2 32.5 33.6 34.7 35.3 35.6 35.4 35.0 34.1 33.0 31.4 29.8 27.9 26.8 26.5 26.7 26.5 26.8 27.9 29.8 31.4 33.0 34.1 35.0 35.4 35.6 35.3 34.7 33.6 32.5 31.2 30.4 30.4 30.5 30.3 30.4 31.1 32.1 33.0 33.8 34.1 34.4 34.2 33.4 32.7 31.3 29.6 28.0 26.1 25.0 24.9 25.0 24.9 25.0 26.1 28.0 29.6 31.3 32.7 33.4 34.2 34.4 34.1 33.8 33.0 32.1 31.1 30.4 30.3
116.0 29.6 29.4 29.6 30.1 31.3 32.3 33.4 34.2 34.3 34.4 33.8 33.1 31.9 30.5 28.7 27.0 26.1 25.8 26.1 25.8 26.1 27.0 28.7 30.5 31.9 33.1 33.8 34.4 34.3 34.2 33.4 32.3 31.3 30.1 29.6 29.4 29.6 29.5 29.4 29.6 30.8 32.0 32.6 33.2 33.3 33.1 32.4 31.5 30.2 28.5 26.9 25.1 24.1 24.1 24.2 24.1 24.1 25.1 26.9 28.5 30.2 31.5 32.4 33.1 33.3 33.2 32.6 32.0 30.8 29.6 29.4 29.5
118.0 28.7 28.7 28.5 29.1 30.0 31.3 32.0 32.9 33.0 33.0 32.5 31.6 30.5 28.9 27.4 25.7 25.1 25.0 25.2 25.0 25.1 25.7 27.4 28.9 30.5 31.6 32.5 33.0 33.0 32.9 32.0 31.3 30.0 29.1 28.5 28.7 28.7 28.6 28.4 28.8 29.7 30.5 31.3 31.8 31.9 31.6 31.1 30.2 28.9 26.8 25.6 24.1 23.3 23.3 23.5 23.3 23.3 24.1 25.6 26.8 28.9 30.2 31.1 31.6 31.9 31.8 31.3 30.5 29.7 28.8 28.4 28.6
120.0 27.5 27.5 27.4 27.6 28.6 29.6 30.4 31.2 31.4 31.4 31.0 30.1 29.0 27.6 26.0 24.6 24.0 24.1 24.2 24.1 24.0 24.6 26.0 27.6 29.0 30.1 31.0 31.4 31.4 31.2 30.4 29.6 28.6 27.6 27.4 27.5 27.5 27.5 27.1 27.4 28.2 29.1 29.8 30.2 30.3 30.1 29.4 28.5 27.3 25.8 24.1 22.8 22.3 22.4 22.6 22.4 22.3 22.8 24.1 25.8 27.3 28.5 29.4 30.1 30.3 30.2 29.8 29.1 28.2 27.4 27.1 27.5
122.0 26.6 26.3 26.2 26.4 27.2 28.1 29.0 29.7 29.9 29.9 29.4 28.7 27.7 26.2 24.8 23.6 23.2 23.4 23.6 23.4 23.2 23.6 24.8 26.2 27.7 28.7 29.4 29.9 29.9 29.7 29.0 28.1 27.2 26.4 26.2 26.3 26.6 26.9 26.4 26.0 26.7 27.5 28.2 28.6 28.7 28.5 28.0 27.1 25.9 24.5 22.9 21.7 21.4 21.5 21.7 21.5 21.4 21.7 22.9 24.5 25.9 27.1 28.0 28.5 28.7 28.6 28.2 27.5 26.7 26.0 26.4 26.9
124.0 25.8 25.7 25.4 25.6 26.1 27.1 27.7 28.4 28.6 28.6 28.2 27.3 26.3 25.0 23.6 22.5 22.3 22.5 22.7 22.5 22.3 22.5 23.6 25.0 26.3 27.3 28.2 28.6 28.6 28.4 27.7 27.1 26.1 25.6 25.4 25.7 25.8 25.7 25.4 25.2 25.8 26.3 27.0 27.4 27.5 27.1 26.7 25.7 24.5 23.2 22.1 20.7 20.6 20.9 21.0 20.9 20.6 20.7 22.1 23.2 24.5 25.7 26.7 27.1 27.5 27.4 27.0 26.3 25.8 25.2 25.4 25.7
126.0 24.9 24.6 24.4 24.3 24.7 25.5 26.2 26.9 27.0 27.0 26.6 25.8 24.8 23.5 22.3 21.4 21.4 21.6 21.8 21.6 21.4 21.4 22.3 23.5 24.8 25.8 26.6 27.0 27.0 26.9 26.2 25.5 24.7 24.3 24.4 24.6 24.9 24.6 24.3 24.1 24.2 24.9 25.5 25.7 25.9 25.7 25.0 24.3 23.1 21.7 20.4 19.6 19.6 19.9 20.1 19.9 19.6 19.6 20.4 21.7 23.1 24.3 25.0 25.7 25.9 25.7 25.5 24.9 24.2 24.1 24.3 24.6
128.0 23.7 23.6 23.2 22.9 23.3 24.0 24.6 25.2 25.3 25.3 24.9 24.2 23.2 22.0 20.8 20.3 20.5 20.8 20.7 20.8 20.5 20.3 20.8 22.0 23.2 24.2 24.9 25.3 25.3 25.2 24.6 24.0 23.3 22.9 23.2 23.6 23.7 23.5 23.1 22.8 22.9 23.3 24.0 24.3 24.3 24.1 23.5 22.6 21.6 20.3 19.1 18.6 18.8 19.0 19.1 19.0 18.8 18.6 19.1 20.3 21.6 22.6 23.5 24.1 24.3 24.3 24.0 23.3 22.9 22.8 23.1 23.5
130.0 22.4 22.4 22.1 21.7 21.9 22.4 22.9 23.5 23.7 23.6 23.2 22.5 21.6 20.4 19.5 19.2 19.3 19.8 19.8 19.8 19.3 19.2 19.5 20.4 21.6 22.5 23.2 23.6 23.7 23.5 22.9 22.4 21.9 21.7 22.1 22.4 22.4 22.3 22.0 21.6 21.5 21.9 22.4 22.7 22.7 22.4 21.9 21.1 20.0 18.8 17.9 17.6 17.8 18.1 18.1 18.1 17.8 17.6 17.9 18.8 20.0 21.1 21.9 22.4 22.7 22.7 22.4 21.9 21.5 21.6 22.0 22.3
132.0 21.3 21.2 20.8 20.4 20.5 20.8 21.3 21.8 21.9 21.8 21.3 20.8 19.9 18.9 18.1 18.0 18.4 18.6 18.8 18.6 18.4 18.0 18.1 18.9 19.9 20.8 21.3 21.8 21.9 21.8 21.3 20.8 20.5 20.4 20.8 21.2 21.3 21.0 20.7 20.3 20.1 20.4 20.5 20.9 21.0 20.7 20.2 19.1 18.3 17.3 16.5 16.4 16.8 17.0 17.2 17.0 16.8 16.4 16.5 17.3 18.3 19.1 20.2 20.7 21.0 20.9 20.5 20.4 20.1 20.3 20.7 21.0
134.0 20.0 19.8 19.5 19.1 18.9 19.2 19.5 19.9 20.0 20.0 19.7 18.9 18.1 17.4 16.8 16.9 17.3 17.6 17.8 17.6 17.3 16.9 16.8 17.4 18.1 18.9 19.7 20.0 20.0 19.9 19.5 19.2 18.9 19.1 19.5 19.8 20.0 19.8 19.5 19.0 18.6 18.7 19.0 19.1 19.2 18.8 18.3 17.6 16.7 15.8 15.2 15.3 15.8 16.0 16.1 16.0 15.8 15.3 15.2 15.8 16.7 17.6 18.3 18.8 19.2 19.1 19.0 18.7 18.6 19.0 19.5 19.8
136.0 18.8 18.7 18.3 17.7 17.5 17.6 17.9 18.1 18.2 18.1 17.7 17.1 16.4 15.7 15.4 15.6 16.1 16.3 16.5 16.3 16.1 15.6 15.4 15.7 16.4 17.1 17.7 18.1 18.2 18.1 17.9 17.6 17.5 17.7 18.3 18.7 18.8 18.6 18.3 17.8 17.3 17.2 17.3 17.4 17.4 17.1 16.6 15.9 15.0 14.3 14.0 14.3 14.7 15.0 15.1 15.0 14.7 14.3 14.0 14.3 15.0 15.9 16.6 17.1 17.4 17.4 17.3 17.2 17.3 17.8 18.3 18.6
138.0 17.4 17.3 17.0 16.5 16.1 16.0 16.1 16.3 16.3 16.2 15.8 15.3 14.7 14.2 14.1 14.5 14.9 15.2 15.3 15.2 14.9 14.5 14.1 14.2 14.7 15.3 15.8 16.2 16.3 16.3 16.1 16.0 16.1 16.5 17.0 17.3 17.4 17.3 16.9 16.4 15.8 15.6 15.6 15.6 15.5 15.2 14.8 14.1 13.4 12.9 12.8 13.2 13.6 13.8 13.9 13.8 13.6 13.2 12.8 12.9 13.4 14.1 14.8 15.2 15.5 15.6 15.6 15.6 15.8 16.4 16.9 17.3
140.0 16.1 16.0 15.8 15.2 14.6 14.4 14.4 14.5 14.5 14.3 13.9 13.5 13.0 12.7 12.8 13.3 13.7 14.0 14.1 14.0 13.7 13.3 12.8 12.7 13.0 13.5 13.9 14.3 14.5 14.5 14.4 14.4 14.6 15.2 15.8 16.0 16.1 15.9 15.6 15.1 14.5 14.0 13.9 13.8 13.7 13.4 12.9 12.4 11.8 11.5 11.6 12.1 12.5 12.7 12.8 12.7 12.5 12.1 11.6 11.5 11.8 12.4 12.9 13.4 13.7 13.8 13.9 14.0 14.5 15.1 15.6 15.9
150.0 8.8 8.8 8.5 8.1 7.6 6.8 6.3 5.9 5.6 5.4 5.3 5.4 5.7 6.3 6.9 7.3 7.7 7.9 7.9 7.9 7.7 7.3 6.9 6.3 5.7 5.4 5.3 5.4 5.6 5.9 6.3 6.8 7.6 8.1 8.5 8.8 8.8 8.7 8.5 8.1 7.5 6.8 6.0 5.5 5.1 4.8 4.7 4.7 5.0 5.6 6.1 6.5 6.8 7.0 7.1 7.0 6.8 6.5 6.1 5.6 5.0 4.7 4.7 4.8 5.1 5.5 6.0 6.8 7.5 8.1 8.5 8.7
160.0 2.3 2.3 2.2 2.1 1.9 1.7 1.4 1.2 1.1 1.1 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.5 2.5 2.5 2.4 2.2 2.0 1.8 1.6 1.4 1.2 1.1 1.1 1.2 1.4 1.7 1.9 2.1 2.2 2.3 2.3 2.3 2.2 2.1 1.9 1.6 1.4 1.2 1.1 1.1 1.1 1.2 1.3 1.5 1.7 1.8 2.0 2.0 2.1 2.0 2.0 1.8 1.7 1.5 1.3 1.2 1.1 1.1 1.1 1.2 1.4 1.6 1.9 2.1 2.2 2.3
170.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
180.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
