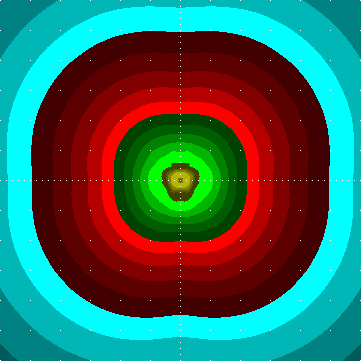

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] 8042401sM3.tm
# [LUMINAIRE] IJTS-M3
# [LUMCAT] Villa
# [DATE] 29/11/2011 12:43:07
# down given: 70.5%
# out given: 51.5%
# tilt: 0.00
# [LAMP] 1 ME 100 8300 2800 E40
# Bulbs: 1, 8300 lm each
# Source file: Villa_IJTS-M3_1_ME_100_8300_2800_E40.ldt
# Luminaire flux = 517 raw, for the given bulb(s) it would be 4291 lm,
# 51.7 % of the bulb flux
# between 75 and 90: 15.2 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 51.9 cd / 1000 lm , 39.0 % of the luminaire flux
# 90deg and above: max 48.1 cd / 1000 lm , 30.2 % of the luminaire flux
# CutOff Type: CIE_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 889 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:2830 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 58 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 56 cd / 1000 lm,
# maximum spec. lum. intensity 215 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 36.0 35.8 35.8 35.4 35.3 35.2 34.8 34.8 34.7 34.8 34.7 35.1 35.5 36.5 37.6 38.4 39.0 39.1 39.1 39.1 39.0 38.4 37.6 36.5 35.5 35.1 34.7 34.8 34.7 34.8 34.8 35.2 35.3 35.4 35.8 35.8 36.0 35.8 35.8 35.5 35.5 35.0 34.8 35.0 36.0 36.9 37.9 39.0 40.1 41.5 42.2 42.9 43.4 43.8 44.1 43.8 43.4 42.9 42.2 41.5 40.1 39.0 37.9 36.9 36.0 35.0 34.8 35.0 35.5 35.5 35.8 35.8
2.0 53.9 53.1 52.1 51.2 51.2 51.3 51.0 50.5 49.9 49.3 48.3 47.8 47.5 46.6 45.0 43.4 42.3 41.2 40.9 41.2 42.3 43.4 45.0 46.6 47.5 47.8 48.3 49.3 49.9 50.5 51.0 51.3 51.2 51.2 52.1 53.1 53.9 54.8 56.0 57.3 57.6 57.7 56.7 55.2 53.3 52.4 50.9 50.5 50.6 50.4 49.3 48.6 48.2 47.6 47.5 47.6 48.2 48.6 49.3 50.4 50.6 50.5 50.9 52.4 53.3 55.2 56.7 57.7 57.6 57.3 56.0 54.8
4.0 104 103 101 98.4 94.3 90.3 87.6 84.7 82.3 80.1 79.4 79.2 79.6 80.5 81.0 81.0 80.4 79.5 79.4 79.5 80.4 81.0 81.0 80.5 79.6 79.2 79.4 80.1 82.3 84.7 87.6 90.3 94.3 98.4 101 103 104 104 104 104 102 99.4 96.1 92.5 89.6 87.9 87.6 89.0 92.5 96.4 99.6 104 106 109 110 109 106 104 99.6 96.4 92.5 89.0 87.6 87.9 89.6 92.5 96.1 99.4 102 104 104 104
6.0 156 154 151 148 144 141 138 138 138 140 140 140 141 142 144 146 148 147 146 147 148 146 144 142 141 140 140 140 138 138 138 141 144 148 151 154 156 156 156 154 151 148 147 145 145 146 146 146 149 151 155 160 162 164 166 164 162 160 155 151 149 146 146 146 145 145 147 148 151 154 156 156
8.0 195 190 187 183 179 176 175 175 175 177 180 182 185 187 189 191 194 196 195 196 194 191 189 187 185 182 180 177 175 175 175 176 179 183 187 190 195 198 200 199 195 191 187 181 176 174 171 170 170 172 176 180 184 187 188 187 184 180 176 172 170 170 171 174 176 181 187 191 195 199 200 198
10.0 202 198 196 194 192 191 190 191 192 195 196 197 200 203 207 210 212 215 214 215 212 210 207 203 200 197 196 195 192 191 190 191 192 194 196 198 202 203 203 203 202 198 196 192 185 181 178 175 173 174 176 177 179 179 179 179 179 177 176 174 173 175 178 181 185 192 196 198 202 203 203 203
12.0 201 200 197 194 192 189 188 189 192 195 199 200 201 200 203 206 208 212 213 212 208 206 203 200 201 200 199 195 192 189 188 189 192 194 197 200 201 199 194 193 192 191 191 192 188 182 175 168 164 163 164 163 159 154 153 154 159 163 164 163 164 168 175 182 188 192 191 191 192 193 194 199
14.0 190 190 187 184 184 181 180 178 179 182 186 189 188 186 187 189 188 189 189 189 188 189 187 186 188 189 186 182 179 178 180 181 184 184 187 190 190 184 179 177 181 184 184 181 174 167 161 156 151 148 146 139 132 126 125 126 132 139 146 148 151 156 161 167 174 181 184 184 181 177 179 184
16.0 170 170 170 170 171 170 168 166 165 166 166 167 165 164 161 159 156 153 151 153 156 159 161 164 165 167 166 166 165 166 168 170 171 170 170 170 170 165 161 160 165 168 165 161 155 148 143 139 135 131 124 115 107 105 105 105 107 115 124 131 135 139 143 148 155 161 165 168 165 160 161 165
18.0 146 149 151 154 155 155 153 150 147 147 145 140 136 135 129 123 118 113 110 113 118 123 129 135 136 140 145 147 147 150 153 155 155 154 151 149 146 142 140 138 140 141 139 136 135 132 127 124 118 113 103 93.2 89.0 90.7 91.7 90.7 89.0 93.2 103 113 118 124 127 132 135 136 139 141 140 138 140 142
20.0 122 129 133 135 135 133 131 128 126 125 121 113 107 103 97.2 91.0 84.3 80.4 79.4 80.4 84.3 91.0 97.2 103 107 113 121 125 126 128 131 133 135 135 133 129 122 119 115 110 107 109 110 113 114 113 110 104 99.3 93.4 84.1 76.2 76.1 78.1 77.3 78.1 76.1 76.2 84.1 93.4 99.3 104 110 113 114 113 110 109 107 110 115 119
22.0 97.6 107 115 119 118 115 110 105 103 101 96.7 88.1 81.5 77.2 71.8 67.4 61.0 59.4 58.8 59.4 61.0 67.4 71.8 77.2 81.5 88.1 96.7 101 103 105 110 115 118 119 115 107 97.6 92.7 88.8 83.9 80.2 80.1 83.6 88.4 92.0 93.0 91.7 89.2 84.4 77.6 68.5 64.2 64.9 64.7 64.0 64.7 64.9 64.2 68.5 77.6 84.4 89.2 91.7 93.0 92.0 88.4 83.6 80.1 80.2 83.9 88.8 92.7
24.0 71.9 82.3 89.2 97.0 100 98.9 93.5 87.4 83.6 79.9 75.5 67.9 62.3 59.3 56.3 52.6 51.5 51.9 51.9 51.9 51.5 52.6 56.3 59.3 62.3 67.9 75.5 79.9 83.6 87.4 93.5 98.9 100 97.0 89.2 82.3 71.9 67.2 66.4 65.2 64.1 62.4 63.3 66.9 71.7 75.3 77.8 77.2 71.7 64.6 58.6 59.6 61.9 60.6 60.2 60.6 61.9 59.6 58.6 64.6 71.7 77.2 77.8 75.3 71.7 66.9 63.3 62.4 64.1 65.2 66.4 67.2
26.0 58.0 63.4 69.0 74.9 80.5 81.1 78.6 73.6 68.6 63.7 59.5 53.3 51.0 50.8 51.2 49.4 50.1 50.7 50.9 50.7 50.1 49.4 51.2 50.8 51.0 53.3 59.5 63.7 68.6 73.6 78.6 81.1 80.5 74.9 69.0 63.4 58.0 54.0 52.6 52.6 53.5 53.1 52.7 53.3 56.5 62.0 66.7 67.8 64.3 60.9 58.5 62.4 63.2 61.8 60.8 61.8 63.2 62.4 58.5 60.9 64.3 67.8 66.7 62.0 56.5 53.3 52.7 53.1 53.5 52.6 52.6 54.0
28.0 59.3 63.9 67.4 68.1 68.5 68.5 66.6 63.8 60.9 55.7 51.7 47.4 48.6 50.2 51.0 50.0 51.5 51.9 52.5 51.9 51.5 50.0 51.0 50.2 48.6 47.4 51.7 55.7 60.9 63.8 66.6 68.5 68.5 68.1 67.4 63.9 59.3 55.1 52.7 51.2 49.6 49.2 49.0 49.7 51.3 54.6 60.4 64.5 63.0 61.2 61.3 65.2 63.3 62.0 59.9 62.0 63.3 65.2 61.3 61.2 63.0 64.5 60.4 54.6 51.3 49.7 49.0 49.2 49.6 51.2 52.7 55.1
30.0 57.1 60.7 64.5 67.5 66.3 63.7 59.9 56.9 55.7 51.9 48.7 47.3 49.4 52.0 51.6 52.2 52.0 51.4 51.2 51.4 52.0 52.2 51.6 52.0 49.4 47.3 48.7 51.9 55.7 56.9 59.9 63.7 66.3 67.5 64.5 60.7 57.1 53.9 51.5 50.1 48.8 48.1 47.4 47.8 49.4 51.7 55.6 61.2 61.6 60.8 62.2 63.6 61.0 59.3 58.2 59.3 61.0 63.6 62.2 60.8 61.6 61.2 55.6 51.7 49.4 47.8 47.4 48.1 48.8 50.1 51.5 53.9
32.0 50.8 52.4 54.9 57.4 59.7 60.4 57.6 53.6 52.4 50.0 49.1 48.9 51.7 52.9 51.8 51.2 49.6 49.1 48.3 49.1 49.6 51.2 51.8 52.9 51.7 48.9 49.1 50.0 52.4 53.6 57.6 60.4 59.7 57.4 54.9 52.4 50.8 50.6 50.6 49.7 48.4 48.0 47.3 47.5 48.8 50.1 51.9 56.9 58.8 59.1 62.1 61.3 57.9 57.4 57.5 57.4 57.9 61.3 62.1 59.1 58.8 56.9 51.9 50.1 48.8 47.5 47.3 48.0 48.4 49.7 50.6 50.6
34.0 49.2 49.7 50.8 51.8 52.2 52.8 53.5 52.0 50.7 50.3 49.7 50.6 52.5 51.7 50.2 49.0 47.1 45.6 45.1 45.6 47.1 49.0 50.2 51.7 52.5 50.6 49.7 50.3 50.7 52.0 53.5 52.8 52.2 51.8 50.8 49.7 49.2 50.4 50.9 49.9 49.1 48.5 47.9 48.5 49.1 50.2 51.0 53.4 56.2 57.0 60.4 58.5 56.8 56.3 56.1 56.3 56.8 58.5 60.4 57.0 56.2 53.4 51.0 50.2 49.1 48.5 47.9 48.5 49.1 49.9 50.9 50.4
36.0 51.2 52.2 54.5 55.2 53.5 51.8 51.0 51.0 50.9 51.0 50.3 50.8 51.0 49.4 49.2 49.1 48.3 46.5 45.4 46.5 48.3 49.1 49.2 49.4 51.0 50.8 50.3 51.0 50.9 51.0 51.0 51.8 53.5 55.2 54.5 52.2 51.2 53.1 54.6 53.1 51.1 49.7 49.4 49.8 50.5 51.3 51.2 52.8 55.6 56.3 59.0 58.8 59.6 58.4 57.9 58.4 59.6 58.8 59.0 56.3 55.6 52.8 51.2 51.3 50.5 49.8 49.4 49.7 51.1 53.1 54.6 53.1
38.0 53.3 54.5 57.4 58.1 56.2 53.5 52.2 51.9 52.0 52.1 51.1 50.9 50.4 50.8 51.1 51.6 51.2 48.4 46.3 48.4 51.2 51.6 51.1 50.8 50.4 50.9 51.1 52.1 52.0 51.9 52.2 53.5 56.2 58.1 57.4 54.5 53.3 55.5 57.8 56.2 53.3 51.6 50.8 51.0 51.3 52.5 52.0 52.9 55.1 57.4 58.5 59.6 60.3 57.5 56.8 57.5 60.3 59.6 58.5 57.4 55.1 52.9 52.0 52.5 51.3 51.0 50.8 51.6 53.3 56.2 57.8 55.5
40.0 57.1 58.0 60.4 61.1 58.8 55.6 54.0 53.6 53.8 53.7 52.5 51.9 52.1 52.4 53.5 53.8 54.0 50.2 48.6 50.2 54.0 53.8 53.5 52.4 52.1 51.9 52.5 53.7 53.8 53.6 54.0 55.6 58.8 61.1 60.4 58.0 57.1 58.5 61.2 59.6 56.6 53.8 52.8 52.6 52.5 53.5 52.5 53.0 54.9 57.3 58.5 59.0 60.7 59.0 57.5 59.0 60.7 59.0 58.5 57.3 54.9 53.0 52.5 53.5 52.5 52.6 52.8 53.8 56.6 59.6 61.2 58.5
42.0 60.8 60.7 62.4 63.5 60.7 57.4 55.3 55.1 55.0 55.3 53.8 52.9 52.9 53.7 55.5 56.5 55.7 52.1 51.5 52.1 55.7 56.5 55.5 53.7 52.9 52.9 53.8 55.3 55.0 55.1 55.3 57.4 60.7 63.5 62.4 60.7 60.8 61.3 63.3 62.5 59.2 55.9 54.1 53.7 53.4 54.5 53.1 52.9 54.5 57.3 58.7 59.7 61.7 59.6 59.4 59.6 61.7 59.7 58.7 57.3 54.5 52.9 53.1 54.5 53.4 53.7 54.1 55.9 59.2 62.5 63.3 61.3
44.0 64.1 63.0 63.8 64.8 62.3 58.9 56.5 56.4 56.3 56.7 55.2 54.4 53.9 54.8 56.8 57.5 55.7 53.2 53.6 53.2 55.7 57.5 56.8 54.8 53.9 54.4 55.2 56.7 56.3 56.4 56.5 58.9 62.3 64.8 63.8 63.0 64.1 63.1 64.3 64.3 61.4 58.5 56.3 55.4 55.0 55.6 54.4 53.8 54.8 57.4 58.9 59.3 60.4 58.8 59.8 58.8 60.4 59.3 58.9 57.4 54.8 53.8 54.4 55.6 55.0 55.4 56.3 58.5 61.4 64.3 64.3 63.1
46.0 64.6 64.3 64.2 65.1 62.9 59.6 57.9 57.8 57.7 58.5 56.6 55.8 55.2 55.4 57.5 58.2 55.2 54.2 55.1 54.2 55.2 58.2 57.5 55.4 55.2 55.8 56.6 58.5 57.7 57.8 57.9 59.6 62.9 65.1 64.2 64.3 64.6 64.4 64.2 64.4 61.5 59.6 58.3 56.9 56.3 56.8 55.0 54.7 54.7 56.2 56.9 57.5 57.3 57.0 57.8 57.0 57.3 57.5 56.9 56.2 54.7 54.7 55.0 56.8 56.3 56.9 58.3 59.6 61.5 64.4 64.2 64.4
48.0 64.1 64.1 63.8 63.9 61.9 58.6 58.1 57.9 58.1 58.9 57.5 56.6 55.5 55.1 56.4 57.3 54.7 54.1 54.9 54.1 54.7 57.3 56.4 55.1 55.5 56.6 57.5 58.9 58.1 57.9 58.1 58.6 61.9 63.9 63.8 64.1 64.1 63.9 63.3 62.5 60.3 58.8 58.6 57.9 56.7 57.4 55.0 54.9 54.0 53.9 54.7 54.8 54.1 54.1 54.3 54.1 54.1 54.8 54.7 53.9 54.0 54.9 55.0 57.4 56.7 57.9 58.6 58.8 60.3 62.5 63.3 63.9
50.0 63.1 63.4 62.3 62.3 60.3 58.1 57.9 58.4 58.8 59.5 58.4 56.9 56.0 55.1 55.4 56.3 53.9 54.0 53.8 54.0 53.9 56.3 55.4 55.1 56.0 56.9 58.4 59.5 58.8 58.4 57.9 58.1 60.3 62.3 62.3 63.4 63.1 62.7 61.3 60.6 58.9 58.0 58.2 58.1 57.2 57.7 55.2 54.4 53.4 52.3 52.2 52.4 51.1 51.1 50.3 51.1 51.1 52.4 52.2 52.3 53.4 54.4 55.2 57.7 57.2 58.1 58.2 58.0 58.9 60.6 61.3 62.7
52.0 61.3 61.2 60.3 59.9 58.7 57.4 58.1 58.8 59.1 60.1 58.4 57.6 56.5 55.2 54.7 55.3 53.8 54.1 53.5 54.1 53.8 55.3 54.7 55.2 56.5 57.6 58.4 60.1 59.1 58.8 58.1 57.4 58.7 59.9 60.3 61.2 61.3 60.6 59.1 58.5 57.4 57.1 58.0 57.5 57.0 57.5 55.3 54.2 52.6 51.4 50.7 50.3 49.0 49.0 47.4 49.0 49.0 50.3 50.7 51.4 52.6 54.2 55.3 57.5 57.0 57.5 58.0 57.1 57.4 58.5 59.1 60.6
54.0 59.1 59.7 58.8 58.4 57.3 57.1 57.7 58.8 59.3 60.2 58.5 57.8 56.6 55.4 54.1 54.5 53.3 53.3 52.4 53.3 53.3 54.5 54.1 55.4 56.6 57.8 58.5 60.2 59.3 58.8 57.7 57.1 57.3 58.4 58.8 59.7 59.1 58.6 57.5 56.7 56.2 56.5 57.1 57.1 56.6 57.2 54.9 53.7 51.9 50.4 49.7 48.1 47.1 46.4 45.1 46.4 47.1 48.1 49.7 50.4 51.9 53.7 54.9 57.2 56.6 57.1 57.1 56.5 56.2 56.7 57.5 58.6
56.0 56.3 57.1 56.9 56.5 56.3 56.6 57.7 58.4 58.9 60.2 58.5 57.6 56.5 55.1 53.6 53.3 52.0 51.2 50.6 51.2 52.0 53.3 53.6 55.1 56.5 57.6 58.5 60.2 58.9 58.4 57.7 56.6 56.3 56.5 56.9 57.1 56.3 55.8 55.4 55.0 55.0 55.8 56.5 56.3 55.9 56.8 54.4 52.9 51.3 49.7 48.5 46.5 45.2 44.0 42.8 44.0 45.2 46.5 48.5 49.7 51.3 52.9 54.4 56.8 55.9 56.3 56.5 55.8 55.0 55.0 55.4 55.8
58.0 53.3 54.3 54.6 54.8 55.3 56.0 57.2 58.1 58.8 59.7 58.2 57.3 56.4 55.0 53.6 52.4 50.7 49.2 48.4 49.2 50.7 52.4 53.6 55.0 56.4 57.3 58.2 59.7 58.8 58.1 57.2 56.0 55.3 54.8 54.6 54.3 53.3 52.9 52.8 53.3 54.0 54.6 55.2 55.6 55.1 55.8 54.0 52.4 50.5 48.8 47.5 45.2 43.5 41.9 41.1 41.9 43.5 45.2 47.5 48.8 50.5 52.4 54.0 55.8 55.1 55.6 55.2 54.6 54.0 53.3 52.8 52.9
60.0 49.8 51.0 52.1 52.7 53.9 54.8 55.8 57.1 57.7 58.6 57.5 56.5 55.5 54.2 52.6 51.1 49.3 47.7 46.6 47.7 49.3 51.1 52.6 54.2 55.5 56.5 57.5 58.6 57.7 57.1 55.8 54.8 53.9 52.7 52.1 51.0 49.8 49.7 50.2 51.3 51.9 53.2 54.0 54.1 53.6 54.5 52.5 50.8 49.2 47.4 45.7 43.6 41.6 39.8 39.1 39.8 41.6 43.6 45.7 47.4 49.2 50.8 52.5 54.5 53.6 54.1 54.0 53.2 51.9 51.3 50.2 49.7
62.0 47.7 48.9 50.7 51.7 53.1 54.6 55.7 56.5 57.1 58.4 57.0 56.4 55.3 54.0 52.2 50.5 48.8 47.2 46.2 47.2 48.8 50.5 52.2 54.0 55.3 56.4 57.0 58.4 57.1 56.5 55.7 54.6 53.1 51.7 50.7 48.9 47.7 48.0 48.9 50.3 51.3 52.1 52.9 53.3 52.9 53.0 51.2 50.3 48.0 46.4 44.5 42.6 40.5 38.5 37.7 38.5 40.5 42.6 44.5 46.4 48.0 50.3 51.2 53.0 52.9 53.3 52.9 52.1 51.3 50.3 48.9 48.0
64.0 46.3 47.4 48.7 50.6 52.0 53.5 54.9 55.9 56.2 57.6 56.5 56.0 54.9 53.4 51.8 50.1 48.2 46.5 45.7 46.5 48.2 50.1 51.8 53.4 54.9 56.0 56.5 57.6 56.2 55.9 54.9 53.5 52.0 50.6 48.7 47.4 46.3 46.9 48.0 49.1 50.2 51.4 52.0 52.2 51.9 52.2 50.6 49.1 47.3 45.7 43.4 41.4 39.3 37.1 35.9 37.1 39.3 41.4 43.4 45.7 47.3 49.1 50.6 52.2 51.9 52.2 52.0 51.4 50.2 49.1 48.0 46.9
66.0 45.0 46.2 47.6 49.6 51.6 53.1 54.2 55.3 56.3 56.9 56.0 55.5 54.4 53.0 51.0 49.6 47.6 46.0 45.0 46.0 47.6 49.6 51.0 53.0 54.4 55.5 56.0 56.9 56.3 55.3 54.2 53.1 51.6 49.6 47.6 46.2 45.0 45.8 46.9 48.4 49.4 50.5 51.2 51.1 50.8 51.2 49.5 48.3 46.6 45.0 42.7 40.4 38.2 36.0 34.9 36.0 38.2 40.4 42.7 45.0 46.6 48.3 49.5 51.2 50.8 51.1 51.2 50.5 49.4 48.4 46.9 45.8
68.0 44.3 45.4 47.3 49.2 51.0 52.6 54.1 54.7 55.4 56.4 55.4 55.0 54.1 52.4 50.9 49.2 47.1 45.2 44.2 45.2 47.1 49.2 50.9 52.4 54.1 55.0 55.4 56.4 55.4 54.7 54.1 52.6 51.0 49.2 47.3 45.4 44.3 45.3 46.5 47.9 48.8 49.8 50.6 50.5 50.1 50.3 48.7 47.7 46.4 44.1 41.9 39.7 37.4 35.3 34.3 35.3 37.4 39.7 41.9 44.1 46.4 47.7 48.7 50.3 50.1 50.5 50.6 49.8 48.8 47.9 46.5 45.3
70.0 43.5 44.5 46.4 48.4 50.1 51.9 53.3 54.0 54.6 55.5 54.5 53.9 52.9 51.9 50.0 48.1 46.3 44.5 43.4 44.5 46.3 48.1 50.0 51.9 52.9 53.9 54.5 55.5 54.6 54.0 53.3 51.9 50.1 48.4 46.4 44.5 43.5 44.5 45.8 47.0 48.2 48.8 49.3 49.6 49.3 49.0 47.6 46.7 45.2 43.2 41.1 38.7 36.5 34.5 33.4 34.5 36.5 38.7 41.1 43.2 45.2 46.7 47.6 49.0 49.3 49.6 49.3 48.8 48.2 47.0 45.8 44.5
72.0 43.2 44.1 46.7 48.2 49.5 51.2 52.8 53.5 53.9 55.0 54.1 53.5 52.7 51.5 49.7 47.8 46.3 43.6 42.6 43.6 46.3 47.8 49.7 51.5 52.7 53.5 54.1 55.0 53.9 53.5 52.8 51.2 49.5 48.2 46.7 44.1 43.2 44.1 45.4 46.7 47.9 48.6 49.0 49.1 48.9 48.6 47.4 46.2 44.7 42.8 40.6 38.3 36.1 33.9 32.8 33.9 36.1 38.3 40.6 42.8 44.7 46.2 47.4 48.6 48.9 49.1 49.0 48.6 47.9 46.7 45.4 44.1
74.0 42.8 43.5 45.4 47.5 49.5 51.1 52.3 53.4 53.9 54.4 53.9 53.5 52.4 51.1 49.4 47.4 45.4 43.3 42.2 43.3 45.4 47.4 49.4 51.1 52.4 53.5 53.9 54.4 53.9 53.4 52.3 51.1 49.5 47.5 45.4 43.5 42.8 43.3 44.8 46.0 47.1 48.0 48.4 48.4 48.1 48.0 46.7 45.6 44.1 42.2 39.9 37.6 35.3 33.3 32.1 33.3 35.3 37.6 39.9 42.2 44.1 45.6 46.7 48.0 48.1 48.4 48.4 48.0 47.1 46.0 44.8 43.3
76.0 41.8 42.7 44.7 46.6 48.6 50.3 51.7 52.6 53.0 53.8 53.3 52.6 51.6 50.3 48.8 46.7 44.5 42.6 41.7 42.6 44.5 46.7 48.8 50.3 51.6 52.6 53.3 53.8 53.0 52.6 51.7 50.3 48.6 46.6 44.7 42.7 41.8 42.7 43.9 45.0 46.1 47.1 47.4 47.5 47.2 47.1 45.9 44.6 43.0 41.2 39.0 36.3 34.6 32.4 31.3 32.4 34.6 36.3 39.0 41.2 43.0 44.6 45.9 47.1 47.2 47.5 47.4 47.1 46.1 45.0 43.9 42.7
78.0 40.9 42.0 43.9 45.9 47.8 49.2 50.8 52.0 52.6 53.1 52.6 52.1 51.1 49.6 47.9 46.1 44.1 42.0 40.9 42.0 44.1 46.1 47.9 49.6 51.1 52.1 52.6 53.1 52.6 52.0 50.8 49.2 47.8 45.9 43.9 42.0 40.9 41.7 43.1 44.3 45.3 46.1 46.6 46.9 46.5 46.1 45.1 43.9 42.3 40.5 38.3 36.0 33.7 31.4 30.2 31.4 33.7 36.0 38.3 40.5 42.3 43.9 45.1 46.1 46.5 46.9 46.6 46.1 45.3 44.3 43.1 41.7
80.0 39.9 41.0 42.7 44.8 47.1 48.8 50.0 50.9 51.5 51.9 51.3 51.0 50.0 49.0 47.1 45.0 43.0 41.0 40.0 41.0 43.0 45.0 47.1 49.0 50.0 51.0 51.3 51.9 51.5 50.9 50.0 48.8 47.1 44.8 42.7 41.0 39.9 40.6 42.0 43.2 44.4 45.2 45.4 45.6 45.3 45.1 44.0 42.8 41.3 39.5 37.2 34.9 32.6 30.5 29.4 30.5 32.6 34.9 37.2 39.5 41.3 42.8 44.0 45.1 45.3 45.6 45.4 45.2 44.4 43.2 42.0 40.6
82.0 39.0 40.0 41.9 44.0 45.9 47.6 48.9 49.8 50.3 50.7 50.4 49.9 49.0 47.7 45.9 43.9 41.9 40.0 39.1 40.0 41.9 43.9 45.9 47.7 49.0 49.9 50.4 50.7 50.3 49.8 48.9 47.6 45.9 44.0 41.9 40.0 39.0 39.6 40.9 42.2 43.2 44.1 44.6 44.6 44.3 43.9 43.1 41.8 40.3 38.5 36.6 34.1 31.7 29.6 28.5 29.6 31.7 34.1 36.6 38.5 40.3 41.8 43.1 43.9 44.3 44.6 44.6 44.1 43.2 42.2 40.9 39.6
84.0 38.2 39.0 40.8 43.0 45.2 46.7 47.9 49.0 49.6 49.9 49.5 49.2 48.4 46.9 45.1 43.3 41.2 39.1 38.4 39.1 41.2 43.3 45.1 46.9 48.4 49.2 49.5 49.9 49.6 49.0 47.9 46.7 45.2 43.0 40.8 39.0 38.2 38.8 40.0 41.3 42.2 43.2 43.8 43.7 43.4 42.9 42.2 40.8 39.2 37.5 35.5 33.2 30.8 28.8 27.8 28.8 30.8 33.2 35.5 37.5 39.2 40.8 42.2 42.9 43.4 43.7 43.8 43.2 42.2 41.3 40.0 38.8
86.0 37.3 38.2 40.1 42.0 44.2 45.7 47.1 48.2 48.7 49.1 48.8 48.3 47.3 45.9 44.9 42.4 40.2 38.4 37.7 38.4 40.2 42.4 44.9 45.9 47.3 48.3 48.8 49.1 48.7 48.2 47.1 45.7 44.2 42.0 40.1 38.2 37.3 37.7 39.0 40.4 41.3 42.2 42.8 42.9 42.5 42.2 41.4 40.1 38.6 36.7 34.7 32.5 30.1 28.2 27.3 28.2 30.1 32.5 34.7 36.7 38.6 40.1 41.4 42.2 42.5 42.9 42.8 42.2 41.3 40.4 39.0 37.7
88.0 36.9 37.7 40.0 41.6 43.6 45.3 46.7 47.8 48.3 48.3 48.1 47.7 46.7 45.5 43.7 41.8 39.7 37.8 37.3 37.8 39.7 41.8 43.7 45.5 46.7 47.7 48.1 48.3 48.3 47.8 46.7 45.3 43.6 41.6 40.0 37.7 36.9 37.4 38.7 40.0 41.2 42.0 42.4 42.4 42.2 41.7 41.0 39.9 38.4 36.5 34.4 32.2 29.8 27.8 27.1 27.8 29.8 32.2 34.4 36.5 38.4 39.9 41.0 41.7 42.2 42.4 42.4 42.0 41.2 40.0 38.7 37.4
90.0 36.8 37.3 39.0 41.2 43.2 45.0 46.2 47.0 47.6 48.1 47.9 47.1 46.2 45.0 43.2 41.2 39.3 37.5 36.8 37.5 39.3 41.2 43.2 45.0 46.2 47.1 47.9 48.1 47.6 47.0 46.2 45.0 43.2 41.2 39.0 37.3 36.8 37.3 38.4 39.6 40.6 41.3 42.0 42.2 42.0 41.4 40.6 39.3 37.9 36.1 33.9 31.6 29.5 27.6 27.2 27.6 29.5 31.6 33.9 36.1 37.9 39.3 40.6 41.4 42.0 42.2 42.0 41.3 40.6 39.6 38.4 37.3
92.0 36.6 37.1 38.2 40.6 42.8 44.5 45.8 46.7 47.4 47.4 47.4 46.9 45.8 44.5 43.0 40.9 38.7 37.1 36.8 37.1 38.7 40.9 43.0 44.5 45.8 46.9 47.4 47.4 47.4 46.7 45.8 44.5 42.8 40.6 38.2 37.1 36.6 36.9 37.9 39.2 40.2 41.1 41.6 41.9 41.7 41.1 40.2 38.9 37.4 35.7 33.7 31.5 29.2 27.3 26.8 27.3 29.2 31.5 33.7 35.7 37.4 38.9 40.2 41.1 41.7 41.9 41.6 41.1 40.2 39.2 37.9 36.9
94.0 36.3 36.7 38.3 40.3 42.2 44.0 45.4 46.2 46.7 47.1 47.0 46.5 45.4 44.0 41.9 40.4 38.5 36.9 36.6 36.9 38.5 40.4 41.9 44.0 45.4 46.5 47.0 47.1 46.7 46.2 45.4 44.0 42.2 40.3 38.3 36.7 36.3 36.6 37.5 38.8 39.9 40.7 41.0 41.3 41.1 40.5 39.7 38.6 37.0 35.4 33.2 30.8 28.7 27.1 26.6 27.1 28.7 30.8 33.2 35.4 37.0 38.6 39.7 40.5 41.1 41.3 41.0 40.7 39.9 38.8 37.5 36.6
96.0 35.9 36.2 37.8 39.7 41.7 43.2 44.7 45.6 46.2 46.4 46.3 45.8 44.6 43.5 41.6 39.8 37.9 36.2 36.1 36.2 37.9 39.8 41.6 43.5 44.6 45.8 46.3 46.4 46.2 45.6 44.7 43.2 41.7 39.7 37.8 36.2 35.9 36.1 37.1 38.3 39.2 40.1 40.7 40.6 40.7 39.9 39.2 38.0 36.5 34.8 32.7 30.3 28.3 26.6 26.2 26.6 28.3 30.3 32.7 34.8 36.5 38.0 39.2 39.9 40.7 40.6 40.7 40.1 39.2 38.3 37.1 36.1
98.0 35.4 35.7 37.1 39.0 40.8 42.5 44.0 44.8 45.4 45.7 45.5 45.1 43.9 42.8 41.1 39.2 37.3 35.8 35.7 35.8 37.3 39.2 41.1 42.8 43.9 45.1 45.5 45.7 45.4 44.8 44.0 42.5 40.8 39.0 37.1 35.7 35.4 35.6 36.3 37.4 38.6 39.3 40.0 39.9 39.8 39.1 38.2 37.4 35.8 34.0 32.0 29.7 27.5 26.1 25.9 26.1 27.5 29.7 32.0 34.0 35.8 37.4 38.2 39.1 39.8 39.9 40.0 39.3 38.6 37.4 36.3 35.6
100.0 34.9 35.0 36.3 38.1 40.0 41.8 43.1 44.0 44.7 44.9 44.6 44.1 43.4 41.8 40.2 38.3 36.3 35.2 35.2 35.2 36.3 38.3 40.2 41.8 43.4 44.1 44.6 44.9 44.7 44.0 43.1 41.8 40.0 38.1 36.3 35.0 34.9 34.9 35.7 36.8 37.9 38.6 39.0 39.3 39.2 38.6 37.7 36.6 35.1 33.4 31.3 29.1 27.0 25.7 25.5 25.7 27.0 29.1 31.3 33.4 35.1 36.6 37.7 38.6 39.2 39.3 39.0 38.6 37.9 36.8 35.7 34.9
102.0 34.3 34.3 35.5 37.5 39.7 40.9 42.3 43.2 43.6 44.0 44.0 43.4 42.2 41.0 39.4 37.5 35.8 34.6 34.5 34.6 35.8 37.5 39.4 41.0 42.2 43.4 44.0 44.0 43.6 43.2 42.3 40.9 39.7 37.5 35.5 34.3 34.3 34.4 35.0 36.1 37.2 37.9 38.2 38.4 38.3 38.0 37.2 36.0 34.5 32.7 30.6 28.5 26.5 25.2 25.3 25.2 26.5 28.5 30.6 32.7 34.5 36.0 37.2 38.0 38.3 38.4 38.2 37.9 37.2 36.1 35.0 34.4
104.0 33.8 33.8 34.7 36.4 38.3 40.1 41.3 42.2 42.9 43.0 43.1 42.4 41.5 40.1 38.5 36.6 35.0 34.0 33.9 34.0 35.0 36.6 38.5 40.1 41.5 42.4 43.1 43.0 42.9 42.2 41.3 40.1 38.3 36.4 34.7 33.8 33.8 33.7 34.2 35.3 36.4 37.1 37.6 37.6 37.4 36.9 36.1 35.0 33.6 31.9 29.9 27.8 25.8 25.0 24.8 25.0 25.8 27.8 29.9 31.9 33.6 35.0 36.1 36.9 37.4 37.6 37.6 37.1 36.4 35.3 34.2 33.7
106.0 33.3 33.2 33.9 35.8 37.6 39.3 40.5 41.5 41.9 42.3 42.2 41.7 40.6 39.2 37.5 35.8 34.2 33.2 33.3 33.2 34.2 35.8 37.5 39.2 40.6 41.7 42.2 42.3 41.9 41.5 40.5 39.3 37.6 35.8 33.9 33.2 33.3 33.3 33.7 34.5 35.4 36.2 36.8 37.1 36.9 36.5 35.7 34.5 33.1 31.3 29.3 27.1 25.2 24.3 24.4 24.3 25.2 27.1 29.3 31.3 33.1 34.5 35.7 36.5 36.9 37.1 36.8 36.2 35.4 34.5 33.7 33.3
108.0 32.7 32.5 33.1 34.7 36.6 38.3 39.6 40.6 41.1 41.2 41.1 40.5 39.7 38.4 36.3 34.9 33.3 32.7 32.9 32.7 33.3 34.9 36.3 38.4 39.7 40.5 41.1 41.2 41.1 40.6 39.6 38.3 36.6 34.7 33.1 32.5 32.7 32.5 32.9 33.5 34.6 35.4 36.0 36.2 36.0 35.5 34.6 33.6 32.1 30.4 28.4 26.3 24.5 23.7 23.8 23.7 24.5 26.3 28.4 30.4 32.1 33.6 34.6 35.5 36.0 36.2 36.0 35.4 34.6 33.5 32.9 32.5
110.0 31.9 31.8 32.3 33.6 35.4 37.1 38.4 39.4 39.9 40.2 40.0 39.5 38.6 37.3 35.6 33.9 32.5 32.0 32.2 32.0 32.5 33.9 35.6 37.3 38.6 39.5 40.0 40.2 39.9 39.4 38.4 37.1 35.4 33.6 32.3 31.8 31.9 31.7 31.8 32.6 33.6 34.4 34.8 35.2 35.0 34.5 33.7 32.6 31.2 29.5 27.4 25.4 23.8 23.2 23.4 23.2 23.8 25.4 27.4 29.5 31.2 32.6 33.7 34.5 35.0 35.2 34.8 34.4 33.6 32.6 31.8 31.7
112.0 31.0 30.9 31.3 32.5 34.1 35.9 37.3 38.3 38.7 39.1 39.0 38.3 37.4 36.2 34.5 32.8 31.6 31.2 31.2 31.2 31.6 32.8 34.5 36.2 37.4 38.3 39.0 39.1 38.7 38.3 37.3 35.9 34.1 32.5 31.3 30.9 31.0 31.0 31.0 31.8 32.7 33.4 33.8 34.1 34.0 33.3 32.4 31.5 30.2 28.5 26.5 24.5 23.0 22.6 22.7 22.6 23.0 24.5 26.5 28.5 30.2 31.5 32.4 33.3 34.0 34.1 33.8 33.4 32.7 31.8 31.0 31.0
114.0 30.3 30.1 30.3 31.4 33.0 34.7 36.0 37.0 37.7 37.8 37.6 37.1 36.2 34.9 33.5 31.7 30.6 30.4 30.5 30.4 30.6 31.7 33.5 34.9 36.2 37.1 37.6 37.8 37.7 37.0 36.0 34.7 33.0 31.4 30.3 30.1 30.3 30.2 30.1 30.6 31.5 32.2 32.7 32.9 32.8 32.4 31.7 30.4 29.0 27.3 25.4 23.5 22.2 22.0 22.1 22.0 22.2 23.5 25.4 27.3 29.0 30.4 31.7 32.4 32.8 32.9 32.7 32.2 31.5 30.6 30.1 30.2
116.0 29.4 29.2 29.4 30.2 31.6 33.6 34.7 35.6 36.1 36.4 36.3 35.7 34.8 33.6 32.1 30.5 29.5 29.5 29.7 29.5 29.5 30.5 32.1 33.6 34.8 35.7 36.3 36.4 36.1 35.6 34.7 33.6 31.6 30.2 29.4 29.2 29.4 29.3 29.2 29.4 30.2 31.0 31.5 31.8 31.7 31.3 30.4 29.3 27.8 26.2 24.2 22.5 21.5 21.4 21.5 21.4 21.5 22.5 24.2 26.2 27.8 29.3 30.4 31.3 31.7 31.8 31.5 31.0 30.2 29.4 29.2 29.3
118.0 28.5 28.4 28.3 29.0 30.5 31.8 33.1 34.3 34.9 35.1 34.9 34.4 33.6 32.1 30.6 29.3 28.5 28.6 28.9 28.6 28.5 29.3 30.6 32.1 33.6 34.4 34.9 35.1 34.9 34.3 33.1 31.8 30.5 29.0 28.3 28.4 28.5 28.2 28.1 28.4 29.1 29.7 30.3 30.5 30.4 29.9 29.1 28.1 26.6 25.0 23.1 21.9 20.6 20.6 20.7 20.6 20.6 21.9 23.1 25.0 26.6 28.1 29.1 29.9 30.4 30.5 30.3 29.7 29.1 28.4 28.1 28.2
120.0 27.5 27.4 27.2 27.7 28.9 30.4 31.7 32.7 33.3 33.7 33.5 32.9 32.0 30.7 29.3 28.0 27.5 27.7 27.9 27.7 27.5 28.0 29.3 30.7 32.0 32.9 33.5 33.7 33.3 32.7 31.7 30.4 28.9 27.7 27.2 27.4 27.5 27.4 27.1 27.3 27.8 28.4 28.9 29.2 29.1 28.6 27.8 26.8 25.4 23.8 22.0 20.5 19.9 20.0 20.1 20.0 19.9 20.5 22.0 23.8 25.4 26.8 27.8 28.6 29.1 29.2 28.9 28.4 27.8 27.3 27.1 27.4
122.0 26.6 26.5 26.3 26.7 27.7 29.1 30.4 31.3 31.9 32.2 32.1 31.6 30.6 29.4 28.0 26.8 26.7 26.9 27.1 26.9 26.7 26.8 28.0 29.4 30.6 31.6 32.1 32.2 31.9 31.3 30.4 29.1 27.7 26.7 26.3 26.5 26.6 26.6 26.2 26.2 26.6 27.2 27.7 27.9 27.8 27.3 26.5 25.5 24.2 22.5 20.9 19.6 19.2 19.3 19.5 19.3 19.2 19.6 20.9 22.5 24.2 25.5 26.5 27.3 27.8 27.9 27.7 27.2 26.6 26.2 26.2 26.6
124.0 25.5 25.4 25.2 25.3 26.2 27.3 28.5 29.4 30.0 30.3 30.1 29.6 28.8 27.7 26.4 25.5 25.4 25.7 25.9 25.7 25.4 25.5 26.4 27.7 28.8 29.6 30.1 30.3 30.0 29.4 28.5 27.3 26.2 25.3 25.2 25.4 25.5 25.3 25.1 24.9 25.2 25.6 25.9 26.3 26.2 25.9 25.1 24.0 22.7 21.1 19.6 18.5 18.3 18.4 18.5 18.4 18.3 18.5 19.6 21.1 22.7 24.0 25.1 25.9 26.2 26.3 25.9 25.6 25.2 24.9 25.1 25.3
126.0 24.4 24.3 24.0 24.0 24.6 25.7 26.8 27.8 28.3 28.7 28.4 27.9 27.1 26.0 25.0 24.3 24.3 24.6 24.8 24.6 24.3 24.3 25.0 26.0 27.1 27.9 28.4 28.7 28.3 27.8 26.8 25.7 24.6 24.0 24.0 24.3 24.4 24.3 23.9 23.6 23.8 24.2 24.5 24.7 24.6 24.1 23.6 22.5 21.2 19.7 18.2 17.4 17.3 17.6 17.7 17.6 17.3 17.4 18.2 19.7 21.2 22.5 23.6 24.1 24.6 24.7 24.5 24.2 23.8 23.6 23.9 24.3
128.0 23.2 23.1 22.8 22.7 23.1 24.1 25.1 26.0 26.5 26.8 26.6 26.2 25.4 24.6 23.4 23.0 23.2 23.5 23.5 23.5 23.2 23.0 23.4 24.6 25.4 26.2 26.6 26.8 26.5 26.0 25.1 24.1 23.1 22.7 22.8 23.1 23.2 23.1 22.7 22.4 22.4 22.7 23.0 23.1 23.0 22.6 21.9 20.9 19.6 18.3 17.0 16.3 16.4 16.6 16.7 16.6 16.4 16.3 17.0 18.3 19.6 20.9 21.9 22.6 23.0 23.1 23.0 22.7 22.4 22.4 22.7 23.1
130.0 22.1 22.0 21.6 21.4 21.6 22.4 23.3 24.1 24.6 24.9 24.7 24.3 23.5 22.7 21.9 21.6 21.9 22.3 22.4 22.3 21.9 21.6 21.9 22.7 23.5 24.3 24.7 24.9 24.6 24.1 23.3 22.4 21.6 21.4 21.6 22.0 22.1 21.9 21.6 21.2 21.1 21.2 21.5 21.6 21.4 21.1 20.4 19.4 18.1 16.9 15.8 15.4 15.5 15.8 15.9 15.8 15.5 15.4 15.8 16.9 18.1 19.4 20.4 21.1 21.4 21.6 21.5 21.2 21.1 21.2 21.6 21.9
132.0 20.9 20.7 20.4 20.1 20.2 20.8 21.5 22.3 22.8 22.9 22.8 22.4 21.7 20.9 20.3 20.3 20.7 21.0 21.1 21.0 20.7 20.3 20.3 20.9 21.7 22.4 22.8 22.9 22.8 22.3 21.5 20.8 20.2 20.1 20.4 20.7 20.9 20.7 20.4 19.9 19.7 19.7 19.9 20.0 19.8 19.4 18.7 17.8 16.6 15.5 14.6 14.4 14.7 14.9 15.0 14.9 14.7 14.4 14.6 15.5 16.6 17.8 18.7 19.4 19.8 20.0 19.9 19.7 19.7 19.9 20.4 20.7
134.0 19.6 19.5 19.3 18.8 18.7 19.1 19.8 20.4 20.9 21.0 20.9 20.5 19.9 19.2 18.8 19.0 19.4 19.8 19.9 19.8 19.4 19.0 18.8 19.2 19.9 20.5 20.9 21.0 20.9 20.4 19.8 19.1 18.7 18.8 19.3 19.5 19.6 19.5 19.2 18.7 18.3 18.2 18.3 18.3 18.1 17.7 17.1 16.1 15.1 14.1 13.5 13.5 13.8 14.0 14.1 14.0 13.8 13.5 13.5 14.1 15.1 16.1 17.1 17.7 18.1 18.3 18.3 18.2 18.3 18.7 19.2 19.5
136.0 18.4 18.3 18.0 17.6 17.3 17.5 18.0 18.6 19.0 19.1 18.9 18.6 18.1 17.6 17.5 17.8 18.3 18.7 18.8 18.7 18.3 17.8 17.5 17.6 18.1 18.6 18.9 19.1 19.0 18.6 18.0 17.5 17.3 17.6 18.0 18.3 18.4 18.3 18.2 17.5 17.0 16.9 16.8 16.8 16.6 16.1 15.5 14.6 13.7 12.8 12.4 12.6 13.0 13.2 13.3 13.2 13.0 12.6 12.4 12.8 13.7 14.6 15.5 16.1 16.6 16.8 16.8 16.9 17.0 17.5 18.2 18.3
138.0 17.3 17.2 16.9 16.4 16.0 16.1 16.4 16.8 17.1 17.2 17.1 16.8 16.4 16.1 16.1 16.6 17.1 17.4 17.5 17.4 17.1 16.6 16.1 16.1 16.4 16.8 17.1 17.2 17.1 16.8 16.4 16.1 16.0 16.4 16.9 17.2 17.3 17.2 16.9 16.3 15.8 15.4 15.3 15.2 14.9 14.5 13.9 13.1 12.3 11.6 11.4 11.7 12.1 12.3 12.4 12.3 12.1 11.7 11.4 11.6 12.3 13.1 13.9 14.5 14.9 15.2 15.3 15.4 15.8 16.3 16.9 17.2
140.0 16.0 15.9 15.5 15.1 14.5 14.4 14.5 14.9 15.1 15.1 15.0 14.8 14.5 14.4 14.6 15.1 15.6 15.9 16.1 15.9 15.6 15.1 14.6 14.4 14.5 14.8 15.0 15.1 15.1 14.9 14.5 14.4 14.5 15.1 15.5 15.9 16.0 15.8 15.5 15.0 14.3 13.9 13.6 13.4 13.1 12.5 12.0 11.4 10.7 10.2 10.3 10.7 11.0 11.3 11.3 11.3 11.0 10.7 10.3 10.2 10.7 11.4 12.0 12.5 13.1 13.4 13.6 13.9 14.3 15.0 15.5 15.8
150.0 8.7 8.7 8.4 8.1 7.5 6.9 6.2 5.9 5.7 5.7 5.7 5.9 6.4 7.1 7.7 8.3 8.7 8.9 9.0 8.9 8.7 8.3 7.7 7.1 6.4 5.9 5.7 5.7 5.7 5.9 6.2 6.9 7.5 8.1 8.4 8.7 8.7 8.6 8.4 8.0 7.5 6.8 6.0 5.4 4.9 4.6 4.3 4.3 4.4 4.9 5.4 5.8 6.0 6.2 6.3 6.2 6.0 5.8 5.4 4.9 4.4 4.3 4.3 4.6 4.9 5.4 6.0 6.8 7.5 8.0 8.4 8.6
160.0 2.4 2.3 2.2 2.1 1.9 1.7 1.5 1.3 1.2 1.1 1.2 1.4 1.7 2.0 2.2 2.4 2.6 2.7 2.7 2.7 2.6 2.4 2.2 2.0 1.7 1.4 1.2 1.1 1.2 1.3 1.5 1.7 1.9 2.1 2.2 2.3 2.4 2.3 2.2 2.1 1.9 1.7 1.5 1.3 1.1 1.1 1.1 1.2 1.3 1.5 1.6 1.7 1.9 1.9 1.9 1.9 1.9 1.7 1.6 1.5 1.3 1.2 1.1 1.1 1.1 1.3 1.5 1.7 1.9 2.1 2.2 2.3
170.0 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
180.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.1 1.2 1.2 1.2 1.1 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
