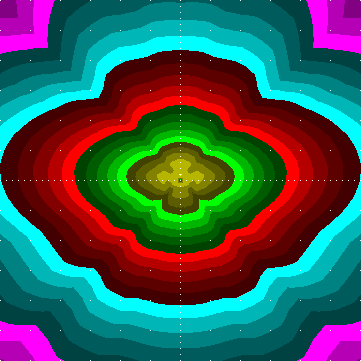

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] 8042402sM1.tm
# [LUMINAIRE] IJTS-M2
# [LUMCAT] Villa
# [DATE] 29/11/2011 12:43:05
# down given: 98.3%
# out given: 69.5%
# tilt: 0.00
# [LAMP] 1 SE 100 10200 1950 E40
# Bulbs: 1, 10200 lm each
# Source file: Villa_IJTS-M2_1_SE_100_10200_1950_E40.ldt
# Luminaire flux = 703 raw, for the given bulb(s) it would be 7167 lm,
# 70.3 % of the bulb flux
# between 75 and 90: 5.4 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 80.2 cd / 1000 lm , 3.8 % of the luminaire flux
# 90deg and above: max 13.8 cd / 1000 lm , 1.8 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 35 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 120 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 265 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 233 cd / 1000 lm,
# maximum spec. lum. intensity 299 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 22.9 22.9 22.8 22.6 22.5 22.3 22.3 22.4 22.4 22.4 22.5 23.1 23.8 24.8 25.6 26.5 27.2 27.3 27.2 27.3 27.2 26.5 25.6 24.8 23.8 23.1 22.5 22.4 22.4 22.4 22.3 22.3 22.5 22.6 22.8 22.9 22.9 22.9 23.1 23.0 23.1 23.0 23.0 23.6 24.5 25.6 26.5 27.7 28.9 30.2 30.9 31.5 31.9 32.1 32.3 32.1 31.9 31.5 30.9 30.2 28.9 27.7 26.5 25.6 24.5 23.6 23.0 23.0 23.1 23.0 23.1 22.9
2.0 40.4 39.7 38.9 38.2 38.1 38.2 38.4 38.4 38.3 37.9 37.3 37.1 36.7 35.9 34.7 33.3 32.1 31.3 30.7 31.3 32.1 33.3 34.7 35.9 36.7 37.1 37.3 37.9 38.3 38.4 38.4 38.2 38.1 38.2 38.9 39.7 40.4 41.3 42.6 43.8 44.2 44.1 43.1 41.9 40.3 39.4 38.2 37.8 37.7 37.3 36.4 35.7 35.4 34.6 34.4 34.6 35.4 35.7 36.4 37.3 37.7 37.8 38.2 39.4 40.3 41.9 43.1 44.1 44.2 43.8 42.6 41.3
4.0 88.8 88.2 86.5 84.1 80.7 77.2 74.8 73.3 70.9 69.7 69.5 70.1 71.4 72.4 73.7 74.0 73.5 73.1 73.0 73.1 73.5 74.0 73.7 72.4 71.4 70.1 69.5 69.7 70.9 73.3 74.8 77.2 80.7 84.1 86.5 88.2 88.8 88.8 88.9 88.1 86.4 84.0 80.8 77.7 74.4 73.3 72.7 73.8 77.0 81.0 84.4 88.3 91.0 93.3 94.1 93.3 91.0 88.3 84.4 81.0 77.0 73.8 72.7 73.3 74.4 77.7 80.8 84.0 86.4 88.1 88.9 88.8
6.0 138 137 135 132 129 125 124 125 126 129 132 133 135 138 140 144 145 145 144 145 145 144 140 138 135 133 132 129 126 125 124 125 129 132 135 137 138 139 137 135 132 129 128 127 126 126 127 128 130 133 137 142 145 147 148 147 145 142 137 133 130 128 127 126 126 127 128 129 132 135 137 139
8.0 175 171 168 165 162 160 160 163 165 168 172 176 180 184 187 190 194 195 195 195 194 190 187 184 180 176 172 168 165 163 160 160 162 165 168 171 175 178 180 178 174 170 165 160 155 152 150 149 150 152 155 159 165 167 168 167 165 159 155 152 150 149 150 152 155 160 165 170 174 178 180 178
10.0 180 177 176 174 174 175 177 180 184 188 190 191 196 200 205 208 211 214 215 214 211 208 205 200 196 191 190 188 184 180 177 175 174 174 176 177 180 181 182 181 179 175 174 170 163 158 155 152 151 151 154 156 158 158 158 158 158 156 154 151 151 152 155 158 163 170 174 175 179 181 182 181
12.0 180 180 177 174 174 174 176 179 183 188 193 196 197 201 207 210 214 219 220 219 214 210 207 201 197 196 193 188 183 179 176 174 174 174 177 180 180 176 171 168 167 166 167 167 163 157 150 144 141 142 144 144 141 137 135 137 141 144 144 142 141 144 150 157 163 167 167 166 167 168 171 176
14.0 179 179 176 175 174 173 170 169 171 176 184 190 194 196 201 206 208 210 212 210 208 206 201 196 194 190 184 176 171 169 170 173 174 175 176 179 179 172 164 160 160 161 159 155 147 141 137 134 133 134 134 130 125 122 120 122 125 130 134 134 133 134 137 141 147 155 159 161 160 160 164 172
16.0 172 175 174 176 178 176 170 165 162 164 170 177 183 188 191 195 196 195 194 195 196 195 191 188 183 177 170 164 162 165 170 176 178 176 174 175 172 165 157 153 153 152 145 135 128 123 123 124 125 127 124 119 114 113 113 113 114 119 124 127 125 124 123 123 128 135 145 152 153 153 157 165
18.0 165 170 174 176 177 175 169 164 160 159 162 167 174 181 184 186 186 184 183 184 186 186 184 181 174 167 162 159 160 164 169 175 177 176 174 170 165 158 151 145 139 134 127 118 114 112 115 118 121 122 117 111 109 112 114 112 109 111 117 122 121 118 115 112 114 118 127 134 139 145 151 158
20.0 161 170 176 178 176 172 166 160 156 155 157 159 169 179 183 186 186 186 187 186 186 186 183 179 169 159 157 155 156 160 166 172 176 178 176 170 161 155 146 132 125 117 109 106 101 101 106 113 116 116 112 108 110 113 112 113 110 108 112 116 116 113 106 101 101 106 109 117 125 132 146 155
22.0 161 172 180 183 181 174 166 157 151 150 152 158 170 183 189 194 196 199 198 199 196 194 189 183 170 158 152 150 151 157 166 174 181 183 180 172 161 153 144 131 119 107 101 97.0 91.2 88.8 96.7 108 114 114 110 109 113 114 113 114 113 109 110 114 114 108 96.7 88.8 91.2 97.0 101 107 119 131 144 153
24.0 163 172 179 185 186 182 173 161 152 147 151 161 177 193 203 209 215 220 222 220 215 209 203 193 177 161 151 147 152 161 173 182 186 185 179 172 163 155 149 139 128 114 103 92.7 83.5 80.9 91.3 107 113 112 111 116 120 120 120 120 120 116 111 112 113 107 91.3 80.9 83.5 92.7 103 114 128 139 149 155
26.0 177 182 184 187 188 186 181 170 158 150 154 169 190 209 221 226 233 237 238 237 233 226 221 209 190 169 154 150 158 170 181 186 188 187 184 182 177 168 161 153 142 130 116 98.0 81.2 76.3 88.5 107 115 117 119 126 129 129 127 129 129 126 119 117 115 107 88.5 76.3 81.2 98.0 116 130 142 153 161 168
28.0 205 212 213 208 198 191 187 180 169 159 163 180 206 224 233 237 242 244 244 244 242 237 233 224 206 180 163 159 169 180 187 191 198 208 213 212 205 196 185 173 157 144 132 112 86.9 75.3 87.0 109 121 125 127 132 130 128 126 128 130 132 127 125 121 109 87.0 75.3 86.9 112 132 144 157 173 185 196
30.0 223 232 237 234 223 207 197 191 179 169 173 194 220 234 239 241 244 247 246 247 244 241 239 234 220 194 173 169 179 191 197 207 223 234 237 232 223 213 202 189 170 153 141 121 93.3 76.1 84.7 109 123 126 128 128 125 123 121 123 125 128 128 126 123 109 84.7 76.1 93.3 121 141 153 170 189 202 213
32.0 224 232 239 241 236 222 209 198 185 175 179 201 226 234 234 236 240 241 240 241 240 236 234 234 226 201 179 175 185 198 209 222 236 241 239 232 224 216 206 192 173 156 145 123 95.9 77.3 80.5 104 121 121 124 123 119 119 119 119 119 123 124 121 121 104 80.5 77.3 95.9 123 145 156 173 192 206 216
34.0 228 235 240 240 235 225 216 205 189 176 179 201 224 229 227 230 233 235 235 235 233 230 227 229 224 201 179 176 189 205 216 225 235 240 240 235 228 220 208 192 172 155 142 122 94.9 77.6 84.7 98.8 117 117 121 119 117 118 119 118 117 119 121 117 117 98.8 84.7 77.6 94.9 122 142 155 172 192 208 220
36.0 237 249 254 250 238 224 216 209 192 177 176 198 218 222 221 228 233 234 233 234 233 228 221 222 218 198 176 177 192 209 216 224 238 250 254 249 237 226 212 193 170 152 139 121 93.8 77.7 81.2 97.3 115 117 120 121 122 122 122 122 122 121 120 117 115 97.3 81.2 77.7 93.8 121 139 152 170 193 212 226
38.0 241 255 265 264 248 227 216 211 194 175 173 192 213 217 219 226 233 231 227 231 233 226 219 217 213 192 173 175 194 211 216 227 248 264 265 255 241 229 216 194 169 149 136 118 91.2 77.4 82.5 98.5 115 120 122 124 125 123 121 123 125 124 122 120 115 98.5 82.5 77.4 91.2 118 136 149 169 194 216 229
40.0 241 254 264 262 247 228 216 209 190 171 167 187 209 214 215 222 226 221 219 221 226 222 215 214 209 187 167 171 190 209 216 228 247 262 264 254 241 227 212 192 165 146 132 115 89.4 76.6 82.3 99.2 113 122 122 122 126 122 121 122 126 122 122 122 113 99.2 82.3 76.6 89.4 115 132 146 165 192 212 227
42.0 242 254 263 261 244 223 211 205 185 167 162 182 202 205 204 210 214 209 208 209 214 210 204 205 202 182 162 167 185 205 211 223 244 261 263 254 242 224 205 188 163 143 129 113 88.5 76.3 82.8 100 113 122 122 121 126 123 123 123 126 121 122 122 113 100 82.8 76.3 88.5 113 129 143 163 188 205 224
44.0 248 259 264 260 240 218 206 198 179 161 155 174 190 191 191 197 199 197 197 197 199 197 191 191 190 174 155 161 179 198 206 218 240 260 264 259 248 227 207 186 161 142 128 112 88.9 76.7 83.6 102 113 120 121 120 123 121 123 121 123 120 121 120 113 102 83.6 76.7 88.9 112 128 142 161 186 207 227
46.0 257 269 271 263 241 215 201 190 170 150 144 163 177 176 175 182 182 181 183 181 182 182 175 176 177 163 144 150 170 190 201 215 241 263 271 269 257 235 211 193 160 143 129 112 89.4 76.6 83.8 103 113 118 118 116 117 117 120 117 117 116 118 118 113 103 83.8 76.6 89.4 112 129 143 160 193 211 235
48.0 265 280 281 269 243 214 197 183 160 139 132 151 164 162 160 166 166 166 169 166 166 166 160 162 164 151 132 139 160 183 197 214 243 269 281 280 265 242 214 186 160 142 131 114 90.9 76.8 83.1 104 113 114 113 112 111 112 114 112 111 112 113 114 113 104 83.1 76.8 90.9 114 131 142 160 186 214 242
50.0 274 290 288 273 244 216 196 175 149 128 120 140 152 149 145 150 151 153 154 153 151 150 145 149 152 140 120 128 149 175 196 216 244 273 288 290 274 257 218 186 157 140 130 115 92.2 77.7 82.2 103 112 113 109 108 106 108 109 108 106 108 109 113 112 103 82.2 77.7 92.2 115 130 140 157 186 218 257
52.0 279 294 292 275 246 216 194 170 140 116 108 127 138 137 131 136 138 139 139 139 138 136 131 137 138 127 108 116 140 170 194 216 246 275 292 294 279 253 219 185 155 139 130 115 92.7 77.0 80.5 102 110 110 106 104 104 106 105 106 104 104 106 110 110 102 80.5 77.0 92.7 115 130 139 155 185 219 253
54.0 284 299 296 273 244 219 188 163 133 107 96.4 113 125 124 119 122 124 126 125 126 124 122 119 124 125 113 96.4 107 133 163 188 219 244 273 296 299 284 258 222 184 152 136 127 114 92.9 75.9 78.9 99.0 107 108 102 100 101 103 101 103 101 100 102 108 107 99.0 78.9 75.9 92.9 114 127 136 152 184 222 258
56.0 283 299 294 269 238 206 181 156 125 97.8 90.1 103 112 114 110 111 113 114 113 114 113 111 110 114 112 103 90.1 97.8 125 156 181 206 238 269 294 299 283 256 223 183 149 131 122 112 91.0 74.3 76.3 96.2 103 103 99.0 95.5 96.4 96.6 96.6 96.6 96.4 95.5 99.0 103 103 96.2 76.3 74.3 91.0 112 122 131 149 183 223 256
58.0 280 295 288 263 234 200 173 148 118 89.7 80.1 94.5 104 105 102 102 104 104 103 104 104 102 102 105 104 94.5 80.1 89.7 118 148 173 200 234 263 288 295 280 255 221 180 145 126 119 110 89.4 72.4 72.8 92.4 98.5 97.8 94.5 90.6 91.7 91.3 91.3 91.3 91.7 90.6 94.5 97.8 98.5 92.4 72.8 72.4 89.4 110 119 126 145 180 221 255
60.0 276 289 282 256 225 192 162 138 108 81.5 72.9 87.5 96.4 96.6 95.2 94.1 95.9 94.8 93.4 94.8 95.9 94.1 95.2 96.6 96.4 87.5 72.9 81.5 108 138 162 192 225 256 282 289 276 251 219 178 141 119 115 107 85.5 68.2 69.4 88.0 93.6 93.1 88.7 85.7 87.6 86.1 86.4 86.1 87.6 85.7 88.7 93.1 93.6 88.0 69.4 68.2 85.5 107 115 119 141 178 219 251
62.0 266 278 271 246 214 179 150 127 98.8 73.3 65.6 79.2 88.2 87.3 86.9 87.5 89.0 87.1 87.1 87.1 89.0 87.5 86.9 87.3 88.2 79.2 65.6 73.3 98.8 127 150 179 214 246 271 278 266 244 214 173 134 115 109 102 81.3 64.4 65.6 82.9 88.2 87.1 82.6 79.4 80.8 79.6 79.8 79.6 80.8 79.4 82.6 87.1 88.2 82.9 65.6 64.4 81.3 102 109 115 134 173 214 244
64.0 255 265 258 231 201 166 137 116 87.8 64.4 58.4 71.7 79.4 78.7 76.3 78.5 81.5 79.9 79.4 79.9 81.5 78.5 76.3 78.7 79.4 71.7 58.4 64.4 87.8 116 137 166 201 231 258 265 255 233 203 167 128 107 102 95.9 76.1 59.5 60.9 77.0 80.3 80.3 74.9 71.9 73.5 72.1 72.4 72.1 73.5 71.9 74.9 80.3 80.3 77.0 60.9 59.5 76.1 95.9 102 107 128 167 203 233
66.0 241 250 242 216 186 152 123 103 77.1 55.8 51.7 63.4 70.7 69.8 67.0 68.4 73.1 71.9 71.6 71.9 73.1 68.4 67.0 69.8 70.7 63.4 51.7 55.8 77.1 103 123 152 186 216 242 250 241 220 192 156 120 101 95.1 88.5 70.5 54.1 55.3 69.9 73.0 72.4 67.5 65.0 65.5 64.7 64.9 64.7 65.5 65.0 67.5 72.4 73.0 69.9 55.3 54.1 70.5 88.5 95.1 101 120 156 192 220
68.0 224 233 223 198 169 145 110 91.0 67.0 47.7 45.0 56.2 62.6 62.0 58.9 59.3 63.6 63.8 63.3 63.8 63.6 59.3 58.9 62.0 62.6 56.2 45.0 47.7 67.0 91.0 110 145 169 198 223 233 224 204 176 142 110 92.0 86.9 81.2 64.1 48.5 49.9 63.1 65.0 64.2 59.3 57.0 57.9 57.2 56.9 57.2 57.9 57.0 59.3 64.2 65.0 63.1 49.9 48.5 64.1 81.2 86.9 92.0 110 142 176 204
70.0 204 212 202 180 151 122 96.5 78.6 56.8 40.1 39.0 51.5 55.1 54.1 51.1 51.5 55.2 55.5 55.3 55.5 55.2 51.5 51.1 54.1 55.1 51.5 39.0 40.1 56.8 78.6 96.5 122 151 180 202 212 204 185 158 127 97.9 82.8 78.1 73.3 57.8 43.1 44.0 55.7 56.9 55.6 50.9 49.0 49.4 49.0 48.6 49.0 49.4 49.0 50.9 55.6 56.9 55.7 44.0 43.1 57.8 73.3 78.1 82.8 97.9 127 158 185
72.0 181 189 180 158 131 105 81.4 65.5 46.7 32.3 33.0 42.8 47.0 46.1 43.4 43.3 47.1 47.5 47.6 47.5 47.1 43.3 43.4 46.1 47.0 42.8 33.0 32.3 46.7 65.5 81.4 105 131 158 180 189 181 163 138 110 84.9 72.2 68.1 64.4 50.3 40.0 37.9 47.7 48.1 46.8 42.3 40.9 41.2 40.8 40.6 40.8 41.2 40.9 42.3 46.8 48.1 47.7 37.9 40.0 50.3 64.4 68.1 72.2 84.9 110 138 163
74.0 157 164 156 137 112 87.8 66.5 52.6 36.7 25.1 27.4 36.4 39.6 38.9 36.4 35.9 38.9 39.2 39.1 39.2 38.9 35.9 36.4 38.9 39.6 36.4 27.4 25.1 36.7 52.6 66.5 87.8 112 137 156 164 157 141 117 92.0 71.2 61.2 58.3 52.2 43.0 31.0 31.8 39.7 39.9 38.7 34.3 33.3 33.8 33.5 33.4 33.5 33.8 33.3 34.3 38.7 39.9 39.7 31.8 31.0 43.0 52.2 58.3 61.2 71.2 92.0 117 141
76.0 131 137 130 113 92.3 71.5 52.4 40.8 27.4 18.8 22.2 30.2 32.3 32.0 30.6 29.0 31.4 31.6 31.5 31.6 31.4 29.0 30.6 32.0 32.3 30.2 22.2 18.8 27.4 40.8 52.4 71.5 92.3 113 130 137 131 117 96.1 74.3 57.5 51.0 47.6 45.5 35.2 24.9 25.9 32.1 31.9 31.7 26.9 26.2 26.6 26.5 26.3 26.5 26.6 26.2 26.9 31.7 31.9 32.1 25.9 24.9 35.2 45.5 47.6 51.0 57.5 74.3 96.1 117
78.0 105 110 101 90.2 72.1 55.0 39.1 29.9 19.9 13.8 18.0 24.4 25.9 26.5 23.9 23.1 25.1 24.9 24.7 24.9 25.1 23.1 23.9 26.5 25.9 24.4 18.0 13.8 19.9 29.9 39.1 55.0 72.1 90.2 101 110 105 92.9 75.1 57.7 44.2 39.9 37.6 36.0 27.9 19.2 20.2 25.1 24.7 24.0 20.3 19.9 20.2 20.1 19.9 20.1 20.2 19.9 20.3 24.0 24.7 25.1 20.2 19.2 27.9 36.0 37.6 39.9 44.2 57.7 75.1 92.9
80.0 76.9 80.2 75.7 65.6 51.6 38.3 26.6 20.4 13.6 9.5 13.6 18.3 19.2 19.6 17.8 17.2 18.9 18.8 18.2 18.8 18.9 17.2 17.8 19.6 19.2 18.3 13.6 9.5 13.6 20.4 26.6 38.3 51.6 65.6 75.7 80.2 76.9 67.8 54.7 41.3 31.5 28.9 27.3 26.1 20.5 13.9 14.7 17.9 17.6 16.9 14.2 13.9 14.3 14.4 14.2 14.4 14.3 13.9 14.2 16.9 17.6 17.9 14.7 13.9 20.5 26.1 27.3 28.9 31.5 41.3 54.7 67.8
82.0 53.1 55.3 51.4 45.9 34.1 24.9 17.5 13.6 9.3 6.4 9.9 13.3 14.1 14.5 12.9 12.4 13.9 14.0 13.9 14.0 13.9 12.4 12.9 14.5 14.1 13.3 9.9 6.4 9.3 13.6 17.5 24.9 34.1 45.9 51.4 55.3 53.1 46.8 37.2 27.8 21.4 19.9 19.0 18.2 14.3 9.6 10.2 12.2 11.9 11.6 9.5 9.3 9.9 10.2 9.9 10.2 9.9 9.3 9.5 11.6 11.9 12.2 10.2 9.6 14.3 18.2 19.0 19.9 21.4 27.8 37.2 46.8
84.0 32.9 33.8 30.5 25.7 19.4 14.7 10.7 8.7 6.1 4.2 6.8 8.9 9.6 9.8 8.7 8.4 9.7 9.8 9.7 9.8 9.7 8.4 8.7 9.8 9.6 8.9 6.8 4.2 6.1 8.7 10.7 14.7 19.4 25.7 30.5 33.8 32.9 29.4 23.4 17.6 13.8 13.1 12.3 11.7 9.2 6.4 6.7 7.6 7.5 7.5 6.0 6.1 6.8 7.0 6.6 7.0 6.8 6.1 6.0 7.5 7.5 7.6 6.7 6.4 9.2 11.7 12.3 13.1 13.8 17.6 23.4 29.4
86.0 20.2 20.1 17.1 13.8 10.5 9.1 7.1 5.6 4.2 3.1 4.5 5.8 6.3 6.6 5.4 5.4 6.4 6.6 6.4 6.6 6.4 5.4 5.4 6.6 6.3 5.8 4.5 3.1 4.2 5.6 7.1 9.1 10.5 13.8 17.1 20.1 20.2 18.4 15.1 12.0 9.6 9.2 8.6 8.2 6.4 5.2 4.7 5.2 5.2 5.2 4.2 4.6 5.2 5.3 5.0 5.3 5.2 4.6 4.2 5.2 5.2 5.2 4.7 5.2 6.4 8.2 8.6 9.2 9.6 12.0 15.1 18.4
88.0 15.7 15.4 12.7 10.3 8.1 7.4 5.8 4.6 3.5 2.7 3.5 4.5 4.8 4.9 3.8 3.9 4.6 4.7 4.7 4.7 4.6 3.9 3.8 4.9 4.8 4.5 3.5 2.7 3.5 4.6 5.8 7.4 8.1 10.3 12.7 15.4 15.7 14.6 12.3 10.0 8.0 7.6 7.0 6.4 5.2 3.9 4.0 4.4 4.5 4.5 3.7 4.0 4.5 4.6 4.3 4.6 4.5 4.0 3.7 4.5 4.5 4.4 4.0 3.9 5.2 6.4 7.0 7.6 8.0 10.0 12.3 14.6
90.0 13.8 13.6 11.2 9.0 7.1 6.4 5.0 4.0 3.0 2.3 3.0 3.9 4.1 4.2 3.3 3.4 3.9 4.0 3.9 4.0 3.9 3.4 3.3 4.2 4.1 3.9 3.0 2.3 3.0 4.0 5.0 6.4 7.1 9.0 11.2 13.6 13.8 12.8 10.8 8.8 7.0 6.5 5.9 5.6 4.3 3.3 3.5 3.8 3.9 3.9 3.3 3.4 3.8 3.9 3.6 3.9 3.8 3.4 3.3 3.9 3.9 3.8 3.5 3.3 4.3 5.6 5.9 6.5 7.0 8.8 10.8 12.8
92.0 12.1 11.9 9.9 7.3 6.2 5.6 4.4 3.6 2.8 2.1 2.7 3.4 3.6 3.7 2.9 3.0 3.4 3.5 3.3 3.5 3.4 3.0 2.9 3.7 3.6 3.4 2.7 2.1 2.8 3.6 4.4 5.6 6.2 7.3 9.9 11.9 12.1 11.2 9.6 7.8 6.2 5.6 5.0 4.7 3.7 2.8 3.0 3.3 3.4 3.3 2.8 2.7 2.9 2.9 2.7 2.9 2.9 2.7 2.8 3.3 3.4 3.3 3.0 2.8 3.7 4.7 5.0 5.6 6.2 7.8 9.6 11.2
94.0 8.5 8.5 7.2 5.8 5.1 4.6 3.8 3.2 2.5 2.0 2.4 2.9 3.1 3.1 2.5 2.2 2.4 2.5 2.3 2.5 2.4 2.2 2.5 3.1 3.1 2.9 2.4 2.0 2.5 3.2 3.8 4.6 5.1 5.8 7.2 8.5 8.5 7.9 6.8 5.5 4.8 4.4 4.1 3.8 3.0 2.4 2.6 2.8 2.8 2.7 2.2 1.8 1.8 1.8 1.8 1.8 1.8 1.8 2.2 2.7 2.8 2.8 2.6 2.4 3.0 3.8 4.1 4.4 4.8 5.5 6.8 7.9
96.0 4.0 4.0 3.6 3.4 3.7 3.5 3.1 2.7 2.2 1.7 2.1 2.5 2.5 2.3 1.9 1.6 1.5 1.6 1.5 1.6 1.5 1.6 1.9 2.3 2.5 2.5 2.1 1.7 2.2 2.7 3.1 3.5 3.7 3.4 3.6 4.0 4.0 3.9 3.8 3.8 3.7 3.3 3.0 2.9 2.4 1.9 2.1 2.3 2.2 2.0 1.9 1.6 1.7 1.6 1.5 1.6 1.7 1.6 1.9 2.0 2.2 2.3 2.1 1.9 2.4 2.9 3.0 3.3 3.7 3.8 3.8 3.9
98.0 3.0 2.9 2.6 2.5 2.8 2.7 2.3 2.1 1.8 1.5 1.7 1.8 1.8 1.7 1.7 1.4 1.4 1.4 1.3 1.4 1.4 1.4 1.7 1.7 1.8 1.8 1.7 1.5 1.8 2.1 2.3 2.7 2.8 2.5 2.6 2.9 3.0 3.1 3.0 3.1 3.0 2.7 2.2 2.1 1.8 1.5 1.7 1.7 1.6 1.7 1.7 1.5 1.6 1.6 1.5 1.6 1.6 1.5 1.7 1.7 1.6 1.7 1.7 1.5 1.8 2.1 2.2 2.7 3.0 3.1 3.0 3.1
100.0 2.9 2.8 2.5 2.2 2.1 2.1 1.9 1.8 1.6 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.4 1.4 1.3 1.4 1.4 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.6 1.8 1.9 2.1 2.1 2.2 2.5 2.8 2.9 3.0 2.7 2.5 2.4 2.2 2.0 1.9 1.8 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.6 1.5 1.6 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.8 1.9 2.0 2.2 2.4 2.5 2.7 3.0
102.0 2.8 2.7 2.4 2.1 2.0 1.9 1.8 1.7 1.6 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.6 1.7 1.8 1.9 2.0 2.1 2.4 2.7 2.8 2.9 2.6 2.4 2.2 2.2 2.0 1.9 1.8 1.6 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.6 1.8 1.9 2.0 2.2 2.2 2.4 2.6 2.9
104.0 2.4 2.3 2.2 2.1 2.0 1.9 1.8 1.7 1.6 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.4 2.3 2.2 2.2 2.1 2.0 2.0 1.9 1.7 1.7 1.7 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.9 2.0 2.0 2.1 2.2 2.2 2.3 2.4
106.0 2.0 2.0 1.9 2.0 1.9 1.8 1.8 1.7 1.6 1.5 1.4 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.4 1.5 1.6 1.7 1.8 1.8 1.9 2.0 1.9 2.0 2.0 2.1 2.1 2.1 2.1 2.0 2.0 1.9 1.9 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.9 1.9 2.0 2.0 2.1 2.1 2.1 2.1
108.0 2.0 2.0 1.9 1.9 1.9 1.8 1.8 1.7 1.6 1.5 1.4 1.4 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.4 1.4 1.5 1.6 1.7 1.8 1.8 1.9 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.7 1.7 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.7 1.7 1.7 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.0
110.0 2.0 1.9 1.9 1.9 1.9 1.8 1.8 1.7 1.6 1.5 1.4 1.4 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.4 1.4 1.5 1.6 1.7 1.8 1.8 1.9 1.9 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.7 1.7 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.7 1.7 1.7 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.0
112.0 2.0 1.9 1.9 1.9 1.9 1.8 1.7 1.7 1.6 1.4 1.4 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.4 1.4 1.6 1.7 1.7 1.8 1.9 1.9 1.9 1.9 2.0 2.0 2.0 2.0 1.9 1.9 1.9 1.9 1.8 1.7 1.7 1.7 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.8 1.9 1.9 1.9 1.9 2.0 2.0 2.0
114.0 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.5 1.4 1.4 1.3 1.3 1.2 1.2 1.2 1.2 1.1 1.2 1.1 1.2 1.2 1.2 1.2 1.3 1.3 1.4 1.4 1.5 1.6 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.9 1.9 1.9 1.9 1.8 1.8 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.4 1.4 1.5 1.4 1.4 1.5 1.5 1.5 1.6 1.6 1.7 1.7 1.8 1.8 1.9 1.9 1.9 1.9 1.8 1.8
116.0 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.4 1.3 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.3 1.4 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.6 1.6 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.6 1.6 1.6 1.7 1.7 1.8 1.8 1.8 1.8 1.7 1.7
118.0 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.4 1.3 1.3 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.3 1.3 1.4 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7
120.0 1.7 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.4 1.3 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.3 1.4 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.5 1.6 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.6 1.5 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7
122.0 1.7 1.6 1.6 1.6 1.6 1.6 1.5 1.4 1.4 1.3 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.3 1.4 1.4 1.5 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.4 1.4 1.4 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7
124.0 1.7 1.6 1.6 1.6 1.6 1.5 1.5 1.4 1.4 1.3 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.3 1.4 1.4 1.5 1.5 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.4 1.4 1.4 1.3 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7
126.0 1.7 1.6 1.6 1.6 1.6 1.5 1.5 1.4 1.3 1.3 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.3 1.3 1.4 1.5 1.5 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7
128.0 1.7 1.7 1.6 1.6 1.6 1.5 1.5 1.4 1.4 1.3 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.3 1.4 1.4 1.5 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.5 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7
130.0 1.8 1.7 1.7 1.6 1.6 1.6 1.5 1.4 1.4 1.3 1.3 1.2 1.2 1.2 1.1 1.1 1.1 1.2 1.2 1.2 1.1 1.1 1.1 1.2 1.2 1.2 1.3 1.3 1.4 1.4 1.5 1.6 1.6 1.6 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.5 1.5 1.5 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.7 1.8 1.8 1.8 1.8 1.8
132.0 1.9 1.8 1.7 1.7 1.6 1.6 1.5 1.5 1.4 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.4 1.5 1.5 1.6 1.6 1.7 1.7 1.8 1.9 1.9 1.8 1.8 1.8 1.8 1.7 1.7 1.7 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.8 1.8 1.8 1.8 1.9
134.0 1.9 1.8 1.7 1.7 1.6 1.6 1.6 1.5 1.4 1.4 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.4 1.4 1.5 1.6 1.6 1.6 1.7 1.7 1.8 1.9 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.9
136.0 1.9 1.8 1.7 1.7 1.7 1.6 1.6 1.6 1.5 1.4 1.4 1.4 1.3 1.3 1.3 1.2 1.2 1.3 1.3 1.3 1.2 1.2 1.3 1.3 1.3 1.4 1.4 1.4 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.8 1.9 1.9 1.8 1.8 1.9 1.9 1.9 1.9 1.8 1.7 1.7 1.7 1.6 1.6 1.6 1.5 1.6 1.6 1.7 1.6 1.6 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.8 1.9 1.9 1.9 1.9 1.8 1.8 1.9
138.0 1.9 1.9 1.8 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.8 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.8 1.8 1.8 1.7 1.7 1.6 1.6 1.6 1.7 1.7 1.7 1.6 1.6 1.6 1.7 1.7 1.8 1.8 1.8 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9
140.0 2.0 1.9 1.8 1.8 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.3 1.4 1.4 1.4 1.3 1.3 1.4 1.4 1.4 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.8 1.8 1.9 2.0 2.0 1.9 1.9 2.0 2.0 2.0 2.0 1.9 1.9 1.8 1.8 1.8 1.7 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.7 1.8 1.8 1.8 1.9 1.9 2.0 2.0 2.0 2.0 1.9 1.9 2.0
150.0 2.0 2.0 1.9 1.9 1.8 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.8 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9 2.0 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
160.0 2.0 2.0 2.0 2.0 1.9 1.9 1.9 1.8 1.8 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.8 1.8 1.9 1.9 1.9 2.0 2.0 2.0 2.0 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.0 2.0 2.0 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.0 2.0 2.0 2.1 2.1 2.1 2.1 2.1 2.1 2.1
170.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.2 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.0 2.0 2.0 2.0 2.0
180.0 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1
