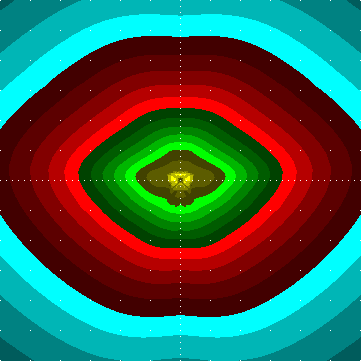

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] 8042904sM1.tm
# [LUMINAIRE] IJTS-M1
# [LUMCAT] Villa
# [DATE] 29/11/2011 12:43:01
# down given: 84.9%
# out given: 61.7%
# tilt: 0.00
# [LAMP] 1 MT 70 6300 2800 E27
# Bulbs: 1, 6300 lm each
# Source file: Villa_IJTS-M1_1_MT_70_6300_2800_E27.ldt
# Luminaire flux = 623 raw, for the given bulb(s) it would be 3926 lm,
# 62.3 % of the bulb flux
# between 75 and 90: 14.1 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 99.8 cd / 1000 lm , 23.4 % of the luminaire flux
# 90deg and above: max 55.9 cd / 1000 lm , 15.6 % of the luminaire flux
# CutOff Type: Non-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 421 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:1494 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 189 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 180 cd / 1000 lm,
# maximum spec. lum. intensity 282 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 55.6 55.4 55.3 55.1 55.3 55.4 55.5 55.6 55.4 55.3 55.1 55.0 54.8 56.0 62.0 68.5 73.1 76.8 77.2 76.8 73.1 68.5 62.0 56.0 54.8 55.0 55.1 55.3 55.4 55.6 55.5 55.4 55.3 55.1 55.3 55.4 55.6 55.6 55.6 55.7 55.6 55.5 55.1 55.3 56.2 62.9 69.7 74.8 79.2 82.3 83.2 83.7 84.0 84.3 83.8 84.3 84.0 83.7 83.2 82.3 79.2 74.8 69.7 62.9 56.2 55.3 55.1 55.5 55.6 55.7 55.6 55.6
2.0 67.5 67.7 68.5 68.6 68.8 64.6 59.0 50.7 46.4 43.5 41.6 41.3 40.0 38.4 37.3 37.0 37.7 38.1 37.9 38.1 37.7 37.0 37.3 38.4 40.0 41.3 41.6 43.5 46.4 50.7 59.0 64.6 68.8 68.6 68.5 67.7 67.5 67.9 69.0 71.6 74.9 78.0 75.1 68.5 62.5 58.7 54.8 53.4 52.6 50.6 48.2 48.6 48.7 48.7 48.7 48.7 48.7 48.6 48.2 50.6 52.6 53.4 54.8 58.7 62.5 68.5 75.1 78.0 74.9 71.6 69.0 67.9
4.0 79.9 82.1 85.0 83.7 79.6 74.6 70.1 63.3 58.2 55.6 54.4 54.9 54.6 53.6 35.5 33.8 33.3 33.2 33.2 33.2 33.3 33.8 35.5 53.6 54.6 54.9 54.4 55.6 58.2 63.3 70.1 74.6 79.6 83.7 85.0 82.1 79.9 79.0 78.8 77.3 79.6 85.1 88.1 82.8 69.1 60.5 57.8 60.5 66.7 75.2 83.7 88.2 90.3 91.7 92.3 91.7 90.3 88.2 83.7 75.2 66.7 60.5 57.8 60.5 69.1 82.8 88.1 85.1 79.6 77.3 78.8 79.0
6.0 154 151 162 153 151 156 142 102 83.5 85.8 93.3 130 163 169 164 156 150 140 136 140 150 156 164 169 163 130 93.3 85.8 83.5 102 142 156 151 153 162 151 154 160 158 164 179 187 193 163 102 84.7 84.4 106 153 165 165 164 163 162 162 162 163 164 165 165 153 106 84.4 84.7 102 163 193 187 179 164 158 160
8.0 176 177 172 162 150 155 161 154 133 144 165 203 206 192 185 186 199 208 211 208 199 186 185 192 206 203 165 144 133 154 161 155 150 162 172 177 176 184 212 232 226 217 208 192 123 91.4 91.2 138 161 157 153 150 148 147 146 147 148 150 153 157 161 138 91.2 91.4 123 192 208 217 226 232 212 184
10.0 242 270 271 262 256 216 177 190 175 176 200 222 205 196 206 217 218 219 219 219 218 217 206 196 205 222 200 176 175 190 177 216 256 262 271 270 242 197 181 202 227 216 205 192 133 85.0 92.9 147 144 131 120 114 113 111 111 111 113 114 120 131 144 147 92.9 85.0 133 192 205 216 227 202 181 197
12.0 252 263 263 256 242 222 163 202 212 199 233 226 212 224 231 229 224 222 221 222 224 229 231 224 212 226 233 199 212 202 163 222 242 256 263 263 252 222 163 153 190 191 201 202 159 83.3 87.2 141 134 123 120 115 111 110 110 110 111 115 120 123 134 141 87.2 83.3 159 202 201 191 190 153 163 222
14.0 264 276 274 274 260 239 174 170 198 200 252 224 227 228 201 177 161 154 151 154 161 177 201 228 227 224 252 200 198 170 174 239 260 274 274 276 264 239 183 150 189 195 186 172 139 66.3 89.2 142 140 130 123 119 114 112 111 112 114 119 123 130 140 142 89.2 66.3 139 172 186 195 189 150 183 239
16.0 265 281 280 282 277 248 191 210 215 194 222 195 166 148 138 132 124 119 118 119 124 132 138 148 166 195 222 194 215 210 191 248 277 282 280 281 265 241 208 160 188 193 171 150 140 64.9 99.3 142 144 140 128 123 122 127 130 127 122 123 128 140 144 142 99.3 64.9 140 150 171 193 188 160 208 241
18.0 190 205 212 221 248 246 187 236 223 161 167 147 134 113 81.1 68.8 64.0 63.0 62.6 63.0 64.0 68.8 81.1 113 134 147 167 161 223 236 187 246 248 221 212 205 190 171 148 94.4 134 174 151 146 142 67.3 114 143 144 132 113 94.6 89.0 89.6 89.0 89.6 89.0 94.6 113 132 144 143 114 67.3 142 146 151 174 134 94.4 148 171
20.0 204 221 229 233 229 188 123 240 176 94.6 138 109 75.7 71.5 70.3 69.4 68.9 70.0 70.0 70.0 68.9 69.4 70.3 71.5 75.7 109 138 94.6 176 240 123 188 229 233 229 221 204 180 153 104 80.5 72.0 70.2 138 149 73.2 128 143 102 53.9 50.8 61.4 71.3 76.2 77.9 76.2 71.3 61.4 50.8 53.9 102 143 128 73.2 149 138 70.2 72.0 80.5 104 153 180
22.0 129 162 208 244 252 206 121 133 94.9 78.0 81.7 76.5 75.9 74.7 74.6 73.4 73.4 73.8 73.6 73.8 73.4 73.4 74.6 74.7 75.9 76.5 81.7 78.0 94.9 133 121 206 252 244 208 162 129 107 96.3 89.1 64.7 60.8 68.6 72.0 86.5 75.7 106 71.8 64.3 51.6 57.3 67.6 75.3 78.0 76.9 78.0 75.3 67.6 57.3 51.6 64.3 71.8 106 75.7 86.5 72.0 68.6 60.8 64.7 89.1 96.3 107
24.0 78.9 81.9 83.7 91.1 131 147 108 87.8 86.1 82.3 80.4 78.5 78.2 78.0 76.2 73.4 74.2 75.4 75.5 75.4 74.2 73.4 76.2 78.0 78.2 78.5 80.4 82.3 86.1 87.8 108 147 131 91.1 83.7 81.9 78.9 76.6 74.3 68.7 66.8 66.4 66.2 66.0 73.4 73.3 71.8 70.4 65.0 54.7 64.4 73.4 75.2 77.6 78.2 77.6 75.2 73.4 64.4 54.7 65.0 70.4 71.8 73.3 73.4 66.0 66.2 66.4 66.8 68.7 74.3 76.6
26.0 85.1 87.2 88.9 92.0 96.4 97.6 93.2 89.6 92.7 88.2 83.3 79.6 78.9 79.8 78.9 76.8 78.7 80.3 80.9 80.3 78.7 76.8 78.9 79.8 78.9 79.6 83.3 88.2 92.7 89.6 93.2 97.6 96.4 92.0 88.9 87.2 85.1 81.8 77.0 74.5 74.7 72.4 69.8 67.6 65.1 72.0 73.4 72.8 67.0 56.7 67.6 74.4 80.9 79.5 78.8 79.5 80.9 74.4 67.6 56.7 67.0 72.8 73.4 72.0 65.1 67.6 69.8 72.4 74.7 74.5 77.0 81.8
28.0 92.0 94.6 96.5 99.6 103 105 99.1 94.1 101 91.6 83.6 82.5 81.6 82.2 82.3 80.8 83.8 86.2 87.6 86.2 83.8 80.8 82.3 82.2 81.6 82.5 83.6 91.6 101 94.1 99.1 105 103 99.6 96.5 94.6 92.0 87.8 83.3 80.7 77.1 74.7 72.1 70.1 67.0 64.0 72.2 74.2 65.3 61.8 72.9 78.4 80.6 80.9 77.7 80.9 80.6 78.4 72.9 61.8 65.3 74.2 72.2 64.0 67.0 70.1 72.1 74.7 77.1 80.7 83.3 87.8
30.0 98.9 102 104 107 112 114 108 99.5 106 88.8 86.1 85.1 84.8 84.6 85.5 85.7 89.7 92.4 94.8 92.4 89.7 85.7 85.5 84.6 84.8 85.1 86.1 88.8 106 99.5 108 114 112 107 104 102 98.9 94.6 88.2 82.7 77.4 73.8 71.7 70.0 68.2 65.3 63.5 74.6 66.2 66.8 75.2 77.8 78.4 75.8 73.5 75.8 78.4 77.8 75.2 66.8 66.2 74.6 63.5 65.3 68.2 70.0 71.7 73.8 77.4 82.7 88.2 94.6
32.0 104 108 111 113 118 121 117 103 99.4 89.6 88.0 87.7 87.8 88.0 87.8 89.5 92.2 96.2 98.7 96.2 92.2 89.5 87.8 88.0 87.8 87.7 88.0 89.6 99.4 103 117 121 118 113 111 108 104 101 93.2 87.0 81.5 76.7 72.0 68.9 67.5 65.9 63.6 66.4 65.3 69.3 71.5 69.1 66.0 59.9 60.1 59.9 66.0 69.1 71.5 69.3 65.3 66.4 63.6 65.9 67.5 68.9 72.0 76.7 81.5 87.0 93.2 101
34.0 108 112 119 119 114 112 112 100 95.1 92.1 90.6 89.9 90.1 90.6 90.4 89.2 87.6 87.7 87.8 87.7 87.6 89.2 90.4 90.6 90.1 89.9 90.6 92.1 95.1 100 112 112 114 119 119 112 108 106 99.6 93.2 86.0 80.3 75.1 70.9 66.8 65.6 64.5 62.4 62.9 63.6 64.2 64.0 60.2 61.4 62.9 61.4 60.2 64.0 64.2 63.6 62.9 62.4 64.5 65.6 66.8 70.9 75.1 80.3 86.0 93.2 99.6 106
36.0 115 120 126 126 122 112 106 100 96.3 93.7 92.0 91.8 91.6 90.7 90.2 89.4 88.2 87.2 86.8 87.2 88.2 89.4 90.2 90.7 91.6 91.8 92.0 93.7 96.3 100 106 112 122 126 126 120 115 112 106 98.3 89.7 83.7 77.8 73.3 69.2 65.8 64.3 63.8 66.2 66.9 69.6 75.6 66.6 64.2 61.8 64.2 66.6 75.6 69.6 66.9 66.2 63.8 64.3 65.8 69.2 73.3 77.8 83.7 89.7 98.3 106 112
38.0 124 129 136 133 123 115 108 102 97.5 94.4 92.4 92.0 91.6 91.5 91.5 90.8 90.5 88.7 88.4 88.7 90.5 90.8 91.5 91.5 91.6 92.0 92.4 94.4 97.5 102 108 115 123 133 136 129 124 117 116 103 93.9 86.7 80.5 75.4 71.0 67.5 65.4 64.8 76.1 75.8 72.0 72.8 76.5 68.0 63.8 68.0 76.5 72.8 72.0 75.8 76.1 64.8 65.4 67.5 71.0 75.4 80.5 86.7 93.9 103 116 117
40.0 133 138 141 141 131 119 111 104 98.2 94.3 92.6 92.0 91.9 92.0 92.3 92.7 95.8 89.9 89.2 89.9 95.8 92.7 92.3 92.0 91.9 92.0 92.6 94.3 98.2 104 111 119 131 141 141 138 133 123 121 111 98.4 91.0 82.8 77.3 72.7 69.1 66.5 65.1 71.6 76.4 71.9 69.6 77.9 70.7 69.7 70.7 77.9 69.6 71.9 76.4 71.6 65.1 66.5 69.1 72.7 77.3 82.8 91.0 98.4 111 121 123
42.0 142 145 154 147 136 121 112 105 98.9 95.0 92.9 92.2 92.0 92.7 93.8 96.5 96.5 91.4 90.4 91.4 96.5 96.5 93.8 92.7 92.0 92.2 92.9 95.0 98.9 105 112 121 136 147 154 145 142 132 126 114 105 95.4 85.4 79.2 74.0 70.5 67.6 66.1 66.2 74.0 75.2 71.2 77.1 68.5 71.1 68.5 77.1 71.2 75.2 74.0 66.2 66.1 67.6 70.5 74.0 79.2 85.4 95.4 105 114 126 132
44.0 151 154 161 155 139 123 114 105 98.7 94.2 91.9 91.4 91.3 91.9 96.8 96.6 96.4 91.2 92.0 91.2 96.4 96.6 96.8 91.9 91.3 91.4 91.9 94.2 98.7 105 114 123 139 155 161 154 151 142 129 117 108 95.6 87.4 80.5 75.2 71.5 68.7 67.1 66.2 68.0 74.6 72.6 74.3 72.7 73.7 72.7 74.3 72.6 74.6 68.0 66.2 67.1 68.7 71.5 75.2 80.5 87.4 95.6 108 117 129 142
46.0 157 164 165 163 140 125 114 105 98.0 93.9 91.4 90.6 90.7 91.0 95.2 96.1 93.6 93.2 93.8 93.2 93.6 96.1 95.2 91.0 90.7 90.6 91.4 93.9 98.0 105 114 125 140 163 165 164 157 147 130 121 110 97.6 91.3 81.8 76.3 72.4 69.3 67.9 67.2 67.2 69.7 72.2 68.4 70.6 69.2 70.6 68.4 72.2 69.7 67.2 67.2 67.9 69.3 72.4 76.3 81.8 91.3 97.6 110 121 130 147
48.0 166 174 170 164 140 126 114 105 97.0 92.6 90.0 89.3 89.3 89.9 92.2 94.9 91.2 93.2 92.6 93.2 91.2 94.9 92.2 89.9 89.3 89.3 90.0 92.6 97.0 105 114 126 140 164 170 174 166 150 132 122 109 98.8 90.6 83.3 77.1 73.1 69.5 68.7 68.3 67.6 67.1 70.1 65.8 67.2 66.7 67.2 65.8 70.1 67.1 67.6 68.3 68.7 69.5 73.1 77.1 83.3 90.6 98.8 109 122 132 150
50.0 170 180 174 163 141 126 113 103 95.7 91.0 89.0 87.6 87.6 88.1 88.7 92.9 88.8 91.2 90.2 91.2 88.8 92.9 88.7 88.1 87.6 87.6 89.0 91.0 95.7 103 113 126 141 163 174 180 170 153 133 123 109 99.0 90.6 83.3 77.1 72.8 69.9 68.9 68.0 67.3 66.7 69.2 65.2 66.3 65.4 66.3 65.2 69.2 66.7 67.3 68.0 68.9 69.9 72.8 77.1 83.3 90.6 99.0 109 123 133 153
52.0 173 183 176 164 142 126 110 102 94.2 89.3 86.7 85.7 85.7 86.0 86.4 90.2 86.7 88.6 87.7 88.6 86.7 90.2 86.4 86.0 85.7 85.7 86.7 89.3 94.2 102 110 126 142 164 176 183 173 154 136 125 109 99.1 90.7 83.0 76.9 72.7 69.6 68.4 67.7 67.1 66.6 68.1 65.7 65.7 64.3 65.7 65.7 68.1 66.6 67.1 67.7 68.4 69.6 72.7 76.9 83.0 90.7 99.1 109 125 136 154
54.0 177 188 180 163 142 125 111 100 92.3 87.1 84.4 83.4 83.2 83.6 83.8 86.6 85.0 85.2 84.4 85.2 85.0 86.6 83.8 83.6 83.2 83.4 84.4 87.1 92.3 100 111 125 142 163 180 188 177 156 139 124 109 98.6 90.0 82.5 76.2 71.7 69.0 67.6 66.9 66.4 65.8 65.8 65.8 65.3 63.3 65.3 65.8 65.8 65.8 66.4 66.9 67.6 69.0 71.7 76.2 82.5 90.0 98.6 109 124 139 156
56.0 177 189 181 162 141 123 109 97.9 90.0 84.8 82.0 80.7 80.3 80.6 80.7 81.5 82.4 81.5 80.7 81.5 82.4 81.5 80.7 80.6 80.3 80.7 82.0 84.8 90.0 97.9 109 123 141 162 181 189 177 150 137 121 108 97.2 88.5 81.6 75.3 70.7 67.8 66.6 65.4 64.9 64.8 63.9 63.0 62.2 60.9 62.2 63.0 63.9 64.8 64.9 65.4 66.6 67.8 70.7 75.3 81.6 88.5 97.2 108 121 137 150
58.0 178 192 182 161 140 121 106 95.1 87.5 82.3 79.6 78.6 78.2 78.1 77.9 77.5 76.3 74.8 74.4 74.8 76.3 77.5 77.9 78.1 78.2 78.6 79.6 82.3 87.5 95.1 106 121 140 161 182 192 178 155 136 121 107 96.2 87.3 80.1 73.8 69.1 66.3 64.9 64.3 63.7 63.6 62.2 62.0 60.7 59.6 60.7 62.0 62.2 63.6 63.7 64.3 64.9 66.3 69.1 73.8 80.1 87.3 96.2 107 121 136 155
60.0 174 187 180 159 137 118 104 92.6 84.4 79.3 76.8 75.6 74.9 74.8 74.2 73.8 72.6 71.3 70.2 71.3 72.6 73.8 74.2 74.8 74.9 75.6 76.8 79.3 84.4 92.6 104 118 137 159 180 187 174 155 135 118 108 94.4 85.4 78.0 71.7 67.1 64.3 63.1 62.2 61.6 61.6 60.4 60.3 58.1 56.8 58.1 60.3 60.4 61.6 61.6 62.2 63.1 64.3 67.1 71.7 78.0 85.4 94.4 108 118 135 155
62.0 176 189 180 157 134 115 101 89.5 81.5 76.7 74.1 72.8 72.3 71.9 71.1 70.2 68.8 67.6 66.5 67.6 68.8 70.2 71.1 71.9 72.3 72.8 74.1 76.7 81.5 89.5 101 115 134 157 180 189 176 154 133 116 102 92.2 83.0 75.9 69.5 64.7 62.0 61.3 60.6 60.0 59.4 58.3 57.7 55.1 53.7 55.1 57.7 58.3 59.4 60.0 60.6 61.3 62.0 64.7 69.5 75.9 83.0 92.2 102 116 133 154
64.0 176 189 178 154 130 111 96.8 86.6 78.7 75.0 71.5 70.5 69.8 68.8 67.9 66.8 65.5 63.9 62.7 63.9 65.5 66.8 67.9 68.8 69.8 70.5 71.5 75.0 78.7 86.6 96.8 111 130 154 178 189 176 153 131 113 99.8 89.2 80.3 73.5 67.3 62.7 60.2 59.3 58.6 57.7 56.7 55.7 53.9 51.7 50.5 51.7 53.9 55.7 56.7 57.7 58.6 59.3 60.2 62.7 67.3 73.5 80.3 89.2 99.8 113 131 153
66.0 172 186 173 149 125 107 90.5 83.0 75.4 70.7 68.5 67.4 66.5 65.7 64.6 63.2 61.6 59.8 58.6 59.8 61.6 63.2 64.6 65.7 66.5 67.4 68.5 70.7 75.4 83.0 90.5 107 125 149 173 186 172 148 127 110 96.4 85.8 77.2 70.5 64.6 60.6 58.1 57.0 56.3 55.3 54.3 52.7 50.8 48.7 47.4 48.7 50.8 52.7 54.3 55.3 56.3 57.0 58.1 60.6 64.6 70.5 77.2 85.8 96.4 110 127 148
68.0 167 180 167 142 119 102 88.9 79.1 71.9 67.5 65.4 64.5 63.7 62.7 61.4 59.9 57.9 55.8 54.5 55.8 57.9 59.9 61.4 62.7 63.7 64.5 65.4 67.5 71.9 79.1 88.9 102 119 142 167 180 167 144 122 106 92.4 82.1 74.1 67.5 62.0 57.9 55.5 54.7 53.8 53.0 51.9 49.9 48.0 46.0 44.6 46.0 48.0 49.9 51.9 53.0 53.8 54.7 55.5 57.9 62.0 67.5 74.1 82.1 92.4 106 122 144
70.0 159 170 157 133 113 96.4 84.4 75.3 68.7 64.5 62.4 61.4 60.5 59.5 58.2 56.3 54.3 52.4 51.1 52.4 54.3 56.3 58.2 59.5 60.5 61.4 62.4 64.5 68.7 75.3 84.4 96.4 113 133 157 170 159 137 112 100 87.5 77.8 70.2 64.2 59.1 55.5 53.2 52.0 51.0 50.0 48.8 47.0 45.0 42.9 41.6 42.9 45.0 47.0 48.8 50.0 51.0 52.0 53.2 55.5 59.1 64.2 70.2 77.8 87.5 100 112 137
72.0 147 157 145 124 105 90.2 79.2 71.1 65.0 61.2 59.2 58.1 57.1 56.1 54.7 52.8 50.7 48.7 48.0 48.7 50.7 52.8 54.7 56.1 57.1 58.1 59.2 61.2 65.0 71.1 79.2 90.2 105 124 145 157 147 128 109 94.3 82.5 73.3 66.3 60.8 56.0 52.7 50.5 49.2 48.1 47.2 45.7 43.8 41.9 39.7 38.3 39.7 41.9 43.8 45.7 47.2 48.1 49.2 50.5 52.7 56.0 60.8 66.3 73.3 82.5 94.3 109 128
74.0 134 141 131 114 97.4 84.0 74.0 66.7 61.6 58.0 55.9 54.9 53.9 52.8 51.0 49.2 46.9 45.1 44.0 45.1 46.9 49.2 51.0 52.8 53.9 54.9 55.9 58.0 61.6 66.7 74.0 84.0 97.4 114 131 141 134 118 102 91.3 77.4 69.1 62.5 57.1 52.9 50.0 47.7 46.4 45.3 44.1 42.5 40.8 38.7 36.5 35.2 36.5 38.7 40.8 42.5 44.1 45.3 46.4 47.7 50.0 52.9 57.1 62.5 69.1 77.4 91.3 102 118
76.0 122 127 119 104 90.1 78.5 69.6 62.9 58.2 55.1 53.1 51.9 50.6 49.4 47.8 45.7 43.6 41.6 40.6 41.6 43.6 45.7 47.8 49.4 50.6 51.9 53.1 55.1 58.2 62.9 69.6 78.5 90.1 104 119 127 122 109 94.6 82.3 72.5 64.9 58.8 54.0 50.2 47.6 45.6 44.1 42.5 41.6 39.8 38.0 35.9 33.8 32.6 33.8 35.9 38.0 39.8 41.6 42.5 44.1 45.6 47.6 50.2 54.0 58.8 64.9 72.5 82.3 94.6 109
78.0 109 113 106 94.7 82.9 73.1 65.1 59.3 56.0 52.1 50.2 48.9 47.5 46.3 44.5 42.4 40.3 38.3 37.4 38.3 40.3 42.4 44.5 46.3 47.5 48.9 50.2 52.1 56.0 59.3 65.1 73.1 82.9 94.7 106 113 109 98.4 86.5 76.0 67.4 61.0 55.3 51.1 47.7 45.0 43.0 41.5 40.2 39.0 37.3 35.4 33.2 31.2 30.0 31.2 33.2 35.4 37.3 39.0 40.2 41.5 43.0 45.0 47.7 51.1 55.3 61.0 67.4 76.0 86.5 98.4
80.0 97.1 99.8 95.0 85.8 76.1 67.6 60.7 54.7 51.9 49.4 47.4 46.1 44.7 43.3 41.4 39.4 37.3 35.4 34.4 35.4 37.3 39.4 41.4 43.3 44.7 46.1 47.4 49.4 51.9 54.7 60.7 67.6 76.1 85.8 95.0 99.8 97.1 89.1 79.2 70.2 62.7 57.0 51.9 48.1 45.0 42.7 40.8 39.4 38.1 36.6 34.9 32.9 30.7 28.6 27.5 28.6 30.7 32.9 34.9 36.6 38.1 39.4 40.8 42.7 45.0 48.1 51.9 57.0 62.7 70.2 79.2 89.1
82.0 86.7 88.9 85.1 77.6 69.5 62.5 56.7 52.2 48.9 46.4 44.7 43.3 42.0 40.5 38.6 36.5 34.4 32.5 31.7 32.5 34.4 36.5 38.6 40.5 42.0 43.3 44.7 46.4 48.9 52.2 56.7 62.5 69.5 77.6 85.1 88.9 86.7 80.2 72.3 64.6 58.3 53.0 48.6 45.2 42.5 40.4 38.8 37.3 35.9 34.8 32.7 30.6 28.4 26.5 25.6 26.5 28.4 30.6 32.7 34.8 35.9 37.3 38.8 40.4 42.5 45.2 48.6 53.0 58.3 64.6 72.3 80.2
84.0 76.8 78.5 75.8 70.1 63.6 57.7 52.9 49.1 46.2 44.0 42.3 40.9 39.6 38.0 36.1 34.0 31.9 30.0 29.3 30.0 31.9 34.0 36.1 38.0 39.6 40.9 42.3 44.0 46.2 49.1 52.9 57.7 63.6 70.1 75.8 78.5 76.8 71.9 65.5 57.8 53.7 49.2 45.5 42.6 40.2 38.2 36.6 35.2 33.8 32.2 30.5 28.5 26.3 24.3 23.4 24.3 26.3 28.5 30.5 32.2 33.8 35.2 36.6 38.2 40.2 42.6 45.5 49.2 53.7 57.8 65.5 71.9
86.0 68.8 70.1 67.9 63.2 58.0 53.3 49.4 46.1 43.4 41.5 39.9 38.6 37.3 35.6 33.6 31.5 29.4 27.6 27.1 27.6 29.4 31.5 33.6 35.6 37.3 38.6 39.9 41.5 43.4 46.1 49.4 53.3 58.0 63.2 67.9 70.1 68.8 64.7 59.6 54.5 49.9 46.0 42.8 40.2 38.0 36.2 34.7 33.4 32.0 30.3 28.5 26.5 24.4 22.5 21.7 22.5 24.4 26.5 28.5 30.3 32.0 33.4 34.7 36.2 38.0 40.2 42.8 46.0 49.9 54.5 59.6 64.7
88.0 61.4 62.5 60.8 57.3 53.2 49.5 46.2 43.4 41.2 39.4 38.0 36.7 35.2 33.5 31.7 29.6 27.4 25.6 25.1 25.6 27.4 29.6 31.7 33.5 35.2 36.7 38.0 39.4 41.2 43.4 46.2 49.5 53.2 57.3 60.8 62.5 61.4 58.4 55.2 49.9 46.0 42.8 40.2 37.9 36.0 34.4 33.0 31.6 30.3 28.7 26.9 24.8 22.7 20.9 20.1 20.9 22.7 24.8 26.9 28.7 30.3 31.6 33.0 34.4 36.0 37.9 40.2 42.8 46.0 49.9 55.2 58.4
90.0 55.0 55.9 54.7 52.1 49.0 45.9 43.2 40.9 39.1 37.6 36.2 35.0 33.5 31.8 29.9 27.7 25.6 23.9 23.4 23.9 25.6 27.7 29.9 31.8 33.5 35.0 36.2 37.6 39.1 40.9 43.2 45.9 49.0 52.1 54.7 55.9 55.0 52.7 49.6 46.2 43.1 40.3 38.0 36.1 34.3 32.8 31.6 30.2 28.7 27.2 24.9 23.4 21.3 19.5 19.0 19.5 21.3 23.4 24.9 27.2 28.7 30.2 31.6 32.8 34.3 36.1 38.0 40.3 43.1 46.2 49.6 52.7
92.0 49.6 50.1 49.3 47.5 45.1 42.8 41.2 38.8 37.1 35.8 34.5 33.2 31.8 30.0 28.1 25.9 23.8 22.2 21.8 22.2 23.8 25.9 28.1 30.0 31.8 33.2 34.5 35.8 37.1 38.8 41.2 42.8 45.1 47.5 49.3 50.1 49.6 47.7 45.2 42.6 40.1 37.7 35.8 34.1 32.5 31.3 30.0 28.8 27.5 25.8 24.0 22.0 19.9 18.3 17.7 18.3 19.9 22.0 24.0 25.8 27.5 28.8 30.0 31.3 32.5 34.1 35.8 37.7 40.1 42.6 45.2 47.7
94.0 44.5 44.8 44.4 43.1 41.5 39.7 38.1 36.6 35.3 33.8 32.9 31.7 30.2 28.6 26.6 24.4 22.4 20.9 20.5 20.9 22.4 24.4 26.6 28.6 30.2 31.7 32.9 33.8 35.3 36.6 38.1 39.7 41.5 43.1 44.4 44.8 44.5 43.1 41.3 39.3 37.3 35.6 33.9 32.5 31.1 29.9 28.7 27.5 26.1 24.4 22.6 20.6 18.6 17.0 16.6 17.0 18.6 20.6 22.6 24.4 26.1 27.5 28.7 29.9 31.1 32.5 33.9 35.6 37.3 39.3 41.3 43.1
96.0 40.2 40.4 40.2 39.5 38.3 37.0 35.7 34.6 33.5 32.5 31.3 30.1 28.6 26.9 25.0 22.9 21.0 19.6 19.3 19.6 21.0 22.9 25.0 26.9 28.6 30.1 31.3 32.5 33.5 34.6 35.7 37.0 38.3 39.5 40.2 40.4 40.2 39.0 37.7 36.2 34.7 33.3 32.2 30.8 29.6 28.5 27.4 26.3 24.9 23.3 21.4 19.4 17.5 16.0 15.7 16.0 17.5 19.4 21.4 23.3 24.9 26.3 27.4 28.5 29.6 30.8 32.2 33.3 34.7 36.2 37.7 39.0
98.0 36.4 36.5 36.6 36.3 35.6 34.6 33.7 32.7 31.8 30.9 29.9 28.8 27.3 25.6 23.7 21.7 19.7 18.3 18.1 18.3 19.7 21.7 23.7 25.6 27.3 28.8 29.9 30.9 31.8 32.7 33.7 34.6 35.6 36.3 36.6 36.5 36.4 35.6 34.6 33.5 32.3 31.3 30.3 29.2 28.3 27.3 25.9 25.0 23.6 22.1 20.3 18.4 16.5 15.0 14.7 15.0 16.5 18.4 20.3 22.1 23.6 25.0 25.9 27.3 28.3 29.2 30.3 31.3 32.3 33.5 34.6 35.6
100.0 33.2 33.2 33.3 33.3 32.9 32.4 31.7 31.0 30.4 29.5 28.6 27.7 26.0 24.4 22.4 20.4 18.6 17.3 17.2 17.3 18.6 20.4 22.4 24.4 26.0 27.7 28.6 29.5 30.4 31.0 31.7 32.4 32.9 33.3 33.3 33.2 33.2 32.5 31.8 31.0 30.3 29.5 28.6 27.7 26.9 26.0 25.1 23.9 22.6 21.0 19.3 17.3 15.4 14.1 13.9 14.1 15.4 17.3 19.3 21.0 22.6 23.9 25.1 26.0 26.9 27.7 28.6 29.5 30.3 31.0 31.8 32.5
102.0 30.2 30.2 30.4 30.6 30.6 30.4 30.0 29.5 28.9 28.2 27.3 26.2 24.8 23.2 21.4 19.4 17.6 16.4 16.3 16.4 17.6 19.4 21.4 23.2 24.8 26.2 27.3 28.2 28.9 29.5 30.0 30.4 30.6 30.6 30.4 30.2 30.2 29.7 29.3 28.8 28.3 27.7 27.1 26.4 25.6 24.8 23.9 22.8 21.5 19.9 18.2 16.3 14.4 13.3 13.1 13.3 14.4 16.3 18.2 19.9 21.5 22.8 23.9 24.8 25.6 26.4 27.1 27.7 28.3 28.8 29.3 29.7
104.0 27.7 27.7 27.9 28.2 28.5 28.5 28.3 28.0 27.5 26.9 26.1 25.0 23.7 22.1 20.3 18.4 16.6 15.6 15.5 15.6 16.6 18.4 20.3 22.1 23.7 25.0 26.1 26.9 27.5 28.0 28.3 28.5 28.5 28.2 27.9 27.7 27.7 27.3 27.0 26.8 26.5 26.2 25.7 25.1 24.5 23.7 22.8 21.8 20.5 19.0 17.2 15.3 13.5 12.5 12.5 12.5 13.5 15.3 17.2 19.0 20.5 21.8 22.8 23.7 24.5 25.1 25.7 26.2 26.5 26.8 27.0 27.3
106.0 25.4 25.3 25.5 25.9 26.4 26.7 26.7 26.5 26.1 25.6 24.8 23.8 22.5 20.9 19.2 17.3 15.7 14.7 14.7 14.7 15.7 17.3 19.2 20.9 22.5 23.8 24.8 25.6 26.1 26.5 26.7 26.7 26.4 25.9 25.5 25.3 25.4 25.1 24.9 24.8 24.8 24.6 24.3 23.8 23.3 22.5 21.7 20.7 19.4 17.9 16.2 14.4 12.7 11.8 11.8 11.8 12.7 14.4 16.2 17.9 19.4 20.7 21.7 22.5 23.3 23.8 24.3 24.6 24.8 24.8 24.9 25.1
108.0 23.5 23.4 23.6 24.2 24.7 25.1 25.3 25.2 25.0 24.5 23.8 22.8 21.5 19.6 18.3 16.5 14.9 14.1 14.0 14.1 14.9 16.5 18.3 19.6 21.5 22.8 23.8 24.5 25.0 25.2 25.3 25.1 24.7 24.2 23.6 23.4 23.5 23.3 23.2 23.2 23.3 23.2 23.0 22.7 22.2 21.5 20.7 19.7 18.5 17.0 15.3 13.5 11.9 11.2 11.1 11.2 11.9 13.5 15.3 17.0 18.5 19.7 20.7 21.5 22.2 22.7 23.0 23.2 23.3 23.2 23.2 23.3
110.0 21.8 21.7 21.8 22.5 23.1 23.6 23.9 23.9 23.8 23.3 22.6 21.7 20.5 19.0 17.3 15.5 14.1 13.4 13.4 13.4 14.1 15.5 17.3 19.0 20.5 21.7 22.6 23.3 23.8 23.9 23.9 23.6 23.1 22.5 21.8 21.7 21.8 21.6 21.5 21.7 21.8 21.9 21.8 21.6 21.2 20.6 19.8 18.8 17.6 16.1 14.4 12.6 11.2 10.6 10.6 10.6 11.2 12.6 14.4 16.1 17.6 18.8 19.8 20.6 21.2 21.6 21.8 21.9 21.8 21.7 21.5 21.6
112.0 20.2 20.1 20.2 20.8 21.5 22.1 22.5 22.7 22.6 22.2 21.6 20.7 19.5 18.0 16.4 14.7 13.4 12.8 12.8 12.8 13.4 14.7 16.4 18.0 19.5 20.7 21.6 22.2 22.6 22.7 22.5 22.1 21.5 20.8 20.2 20.1 20.2 20.1 20.0 20.2 20.4 20.6 20.6 20.4 20.1 19.3 18.8 17.8 16.6 15.1 13.5 11.7 10.5 10.0 10.0 10.0 10.5 11.7 13.5 15.1 16.6 17.8 18.8 19.3 20.1 20.4 20.6 20.6 20.4 20.2 20.0 20.1
114.0 18.7 18.6 18.7 19.3 20.0 20.7 21.2 21.4 21.3 21.0 20.4 19.6 18.7 17.0 15.4 13.8 12.6 12.2 12.2 12.2 12.6 13.8 15.4 17.0 18.7 19.6 20.4 21.0 21.3 21.4 21.2 20.7 20.0 19.3 18.7 18.6 18.7 18.7 18.6 18.8 19.1 19.3 19.4 19.3 19.0 18.5 17.7 16.8 15.6 14.2 12.6 10.9 9.8 9.4 9.4 9.4 9.8 10.9 12.6 14.2 15.6 16.8 17.7 18.5 19.0 19.3 19.4 19.3 19.1 18.8 18.6 18.7
116.0 17.5 17.4 17.4 18.1 18.6 19.4 19.9 20.2 20.2 20.0 19.4 18.6 17.4 16.1 14.5 13.0 12.0 11.7 11.7 11.7 12.0 13.0 14.5 16.1 17.4 18.6 19.4 20.0 20.2 20.2 19.9 19.4 18.6 18.1 17.4 17.4 17.5 17.4 17.4 17.5 17.8 18.1 18.2 18.2 17.9 17.4 16.8 15.8 14.6 13.3 11.6 10.1 9.2 8.9 8.9 8.9 9.2 10.1 11.6 13.3 14.6 15.8 16.8 17.4 17.9 18.2 18.2 18.1 17.8 17.5 17.4 17.4
118.0 16.4 16.3 16.3 16.8 17.5 18.3 18.8 19.2 19.2 19.0 18.5 17.6 16.6 15.3 13.7 12.3 11.5 11.2 11.3 11.2 11.5 12.3 13.7 15.3 16.6 17.6 18.5 19.0 19.2 19.2 18.8 18.3 17.5 16.8 16.3 16.3 16.4 16.4 16.3 16.5 16.7 17.0 17.2 17.2 17.0 16.5 15.8 14.9 13.8 12.4 10.8 9.4 8.6 8.5 8.4 8.5 8.6 9.4 10.8 12.4 13.8 14.9 15.8 16.5 17.0 17.2 17.2 17.0 16.7 16.5 16.3 16.4
120.0 15.4 15.3 15.2 15.5 16.3 17.0 17.6 18.0 18.1 17.9 17.4 16.6 15.6 14.3 12.8 11.6 10.9 10.7 10.7 10.7 10.9 11.6 12.8 14.3 15.6 16.6 17.4 17.9 18.1 18.0 17.6 17.0 16.3 15.5 15.2 15.3 15.4 15.3 15.3 15.4 15.6 15.9 16.1 16.1 15.9 15.5 14.8 13.9 12.8 11.4 9.9 8.7 8.1 8.0 8.0 8.0 8.1 8.7 9.9 11.4 12.8 13.9 14.8 15.5 15.9 16.1 16.1 15.9 15.6 15.4 15.3 15.3
122.0 14.5 14.4 14.3 14.5 15.2 15.9 16.5 16.9 17.0 16.8 16.4 15.7 14.6 13.0 12.0 10.9 10.4 10.3 10.3 10.3 10.4 10.9 12.0 13.0 14.6 15.7 16.4 16.8 17.0 16.9 16.5 15.9 15.2 14.5 14.3 14.4 14.5 14.4 14.4 14.4 14.7 15.0 15.1 15.2 15.0 14.6 13.9 13.0 11.9 10.6 9.1 8.1 7.6 7.5 7.5 7.5 7.6 8.1 9.1 10.6 11.9 13.0 13.9 14.6 15.0 15.2 15.1 15.0 14.7 14.4 14.4 14.4
124.0 13.6 13.5 13.4 13.6 14.2 14.8 15.4 15.8 15.9 15.8 15.3 14.7 13.7 12.5 11.2 10.3 9.9 9.9 9.9 9.9 9.9 10.3 11.2 12.5 13.7 14.7 15.3 15.8 15.9 15.8 15.4 14.8 14.2 13.6 13.4 13.5 13.6 13.6 13.5 13.6 13.8 14.0 14.2 14.2 14.1 13.6 13.0 12.1 11.0 9.7 8.4 7.5 7.1 7.1 7.1 7.1 7.1 7.5 8.4 9.7 11.0 12.1 13.0 13.6 14.1 14.2 14.2 14.0 13.8 13.6 13.5 13.6
126.0 12.9 12.8 12.6 12.7 13.2 13.8 14.4 14.8 14.9 14.7 14.4 13.7 12.7 11.6 10.4 9.8 9.5 9.5 9.5 9.5 9.5 9.8 10.4 11.6 12.7 13.7 14.4 14.7 14.9 14.8 14.4 13.8 13.2 12.7 12.6 12.8 12.9 12.9 12.8 12.7 12.9 13.1 13.2 13.2 13.1 12.7 12.1 11.2 10.1 8.8 7.6 6.9 6.7 6.7 6.7 6.7 6.7 6.9 7.6 8.8 10.1 11.2 12.1 12.7 13.1 13.2 13.2 13.1 12.9 12.7 12.8 12.9
128.0 12.2 12.1 11.9 12.0 12.3 12.9 13.4 13.8 13.9 13.8 13.4 12.7 11.8 10.7 10.0 9.2 9.1 9.0 9.1 9.0 9.1 9.2 10.0 10.7 11.8 12.7 13.4 13.8 13.9 13.8 13.4 12.9 12.3 12.0 11.9 12.1 12.2 12.2 12.1 12.0 12.1 12.3 12.4 12.4 12.2 11.8 11.2 10.3 9.2 8.0 7.0 6.5 6.3 6.3 6.4 6.3 6.3 6.5 7.0 8.0 9.2 10.3 11.2 11.8 12.2 12.4 12.4 12.3 12.1 12.0 12.1 12.2
130.0 11.5 11.4 11.2 11.2 11.5 12.0 12.4 12.8 12.9 12.8 12.4 11.7 10.8 9.8 9.1 8.7 8.6 8.6 8.6 8.6 8.6 8.7 9.1 9.8 10.8 11.7 12.4 12.8 12.9 12.8 12.4 12.0 11.5 11.2 11.2 11.4 11.5 11.5 11.4 11.3 11.3 11.4 11.5 11.5 11.3 10.9 10.3 9.4 8.4 7.3 6.5 6.1 6.0 6.0 6.0 6.0 6.0 6.1 6.5 7.3 8.4 9.4 10.3 10.9 11.3 11.5 11.5 11.4 11.3 11.3 11.4 11.5
132.0 10.9 10.8 10.7 10.5 10.7 11.1 11.5 11.8 11.9 11.8 11.4 10.7 9.9 9.1 8.5 8.2 8.2 8.3 8.3 8.3 8.2 8.2 8.5 9.1 9.9 10.7 11.4 11.8 11.9 11.8 11.5 11.1 10.7 10.5 10.7 10.8 10.9 10.9 10.8 10.7 10.6 10.7 10.7 10.6 10.4 10.0 9.4 8.5 7.6 6.6 6.0 5.7 5.6 5.7 5.7 5.7 5.6 5.7 6.0 6.6 7.6 8.5 9.4 10.0 10.4 10.6 10.7 10.7 10.6 10.7 10.8 10.9
134.0 10.3 10.2 10.0 9.9 9.9 10.3 10.6 10.8 10.9 10.8 10.4 9.8 9.0 8.3 7.9 7.8 7.8 7.9 7.9 7.9 7.8 7.8 7.9 8.3 9.0 9.8 10.4 10.8 10.9 10.8 10.6 10.3 9.9 9.9 10.0 10.2 10.3 10.3 10.2 10.0 9.9 9.9 9.9 9.8 9.5 9.1 8.5 7.7 6.8 6.0 5.5 5.3 5.3 5.4 5.4 5.4 5.3 5.3 5.5 6.0 6.8 7.7 8.5 9.1 9.5 9.8 9.9 9.9 9.9 10.0 10.2 10.3
136.0 9.6 9.6 9.4 9.2 9.2 9.4 9.6 9.8 9.8 9.7 9.3 8.6 8.1 7.6 7.3 7.3 7.4 7.4 7.4 7.4 7.4 7.3 7.3 7.6 8.1 8.6 9.3 9.7 9.8 9.8 9.6 9.4 9.2 9.2 9.4 9.6 9.6 9.6 9.5 9.4 9.2 9.1 9.0 8.8 8.6 8.1 7.5 6.8 6.0 5.4 5.1 5.0 5.0 5.1 5.1 5.1 5.0 5.0 5.1 5.4 6.0 6.8 7.5 8.1 8.6 8.8 9.0 9.1 9.2 9.4 9.5 9.6
138.0 9.0 9.0 8.8 8.6 8.5 8.5 8.7 8.9 8.9 8.7 8.4 7.8 7.3 7.0 6.8 6.9 7.0 7.0 7.1 7.0 7.0 6.9 6.8 7.0 7.3 7.8 8.4 8.7 8.9 8.9 8.7 8.5 8.5 8.6 8.8 9.0 9.0 9.0 8.9 8.7 8.5 8.3 8.2 8.0 7.7 7.4 6.7 6.0 5.4 4.9 4.6 4.7 4.7 4.8 4.8 4.8 4.7 4.7 4.6 4.9 5.4 6.0 6.7 7.4 7.7 8.0 8.2 8.3 8.5 8.7 8.9 9.0
140.0 8.4 8.3 8.2 8.0 7.7 7.7 7.7 7.8 7.8 7.6 7.3 6.9 6.5 6.3 6.3 6.4 6.5 6.6 6.6 6.6 6.5 6.4 6.3 6.3 6.5 6.9 7.3 7.6 7.8 7.8 7.7 7.7 7.7 8.0 8.2 8.3 8.4 8.4 8.2 8.1 7.8 7.6 7.3 7.1 6.8 6.3 5.8 5.2 4.7 4.4 4.3 4.3 4.4 4.5 4.5 4.5 4.4 4.3 4.3 4.4 4.7 5.2 5.8 6.3 6.8 7.1 7.3 7.6 7.8 8.1 8.2 8.4
150.0 4.7 4.7 4.5 4.3 4.0 3.7 3.4 3.2 3.1 3.1 3.1 3.2 3.4 3.7 3.9 4.0 4.2 4.3 4.3 4.3 4.2 4.0 3.9 3.7 3.4 3.2 3.1 3.1 3.1 3.2 3.4 3.7 4.0 4.3 4.5 4.7 4.7 4.7 4.6 4.4 4.1 3.8 3.4 3.1 2.8 2.6 2.4 2.3 2.3 2.5 2.6 2.7 2.8 2.8 2.9 2.8 2.8 2.7 2.6 2.5 2.3 2.3 2.4 2.6 2.8 3.1 3.4 3.8 4.1 4.4 4.6 4.7
160.0 1.8 1.8 1.8 1.7 1.6 1.5 1.4 1.4 1.3 1.3 1.3 1.4 1.5 1.6 1.7 1.8 1.9 1.9 2.0 1.9 1.9 1.8 1.7 1.6 1.5 1.4 1.3 1.3 1.3 1.4 1.4 1.5 1.6 1.7 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.5 1.4 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.4 1.5 1.6 1.7 1.7 1.8 1.8
170.0 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3
180.0 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
