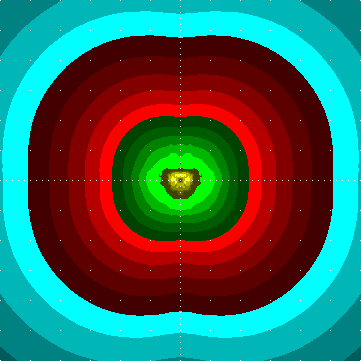

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] 8042803s.tm
# [LUMINAIRE] IJT-M3
# [LUMCAT] Villa
# [DATE] 29/11/2011 12:42:42
# down given: 70.5%
# out given: 51.5%
# tilt: 0.00
# [LAMP] 1 ST 70 6600 1950 E27
# Bulbs: 1, 6600 lm each
# Source file: Villa_IJT-M3_1_ST_70_6600_1950_E27.ldt
# Luminaire flux = 518 raw, for the given bulb(s) it would be 3418 lm,
# 51.8 % of the bulb flux
# between 75 and 90: 15.2 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 51.6 cd / 1000 lm , 39.0 % of the luminaire flux
# 90deg and above: max 47.9 cd / 1000 lm , 30.2 % of the luminaire flux
# CutOff Type: CIE_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 888 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:2828 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 57 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 55 cd / 1000 lm,
# maximum spec. lum. intensity 274 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 56.1 56.1 55.5 55.4 55.7 55.4 55.5 55.2 54.9 55.0 54.9 54.7 55.1 57.1 63.4 70.6 76.2 78.5 77.2 78.5 76.2 70.6 63.4 57.1 55.1 54.7 54.9 55.0 54.9 55.2 55.5 55.4 55.7 55.4 55.5 56.1 56.1 56.3 56.2 56.1 56.0 55.2 55.1 54.8 55.2 59.9 67.9 73.4 79.3 83.2 85.3 86.7 87.4 87.7 88.2 87.7 87.4 86.7 85.3 83.2 79.3 73.4 67.9 59.9 55.2 54.8 55.1 55.2 56.0 56.1 56.2 56.3
2.0 68.9 70.2 71.9 73.3 74.5 74.7 77.6 72.8 62.2 54.7 49.3 48.1 47.1 45.0 43.5 43.0 43.8 44.1 43.8 44.1 43.8 43.0 43.5 45.0 47.1 48.1 49.3 54.7 62.2 72.8 77.6 74.7 74.5 73.3 71.9 70.2 68.9 68.6 69.9 72.1 74.2 75.6 74.5 69.3 64.2 62.0 57.8 54.9 50.3 45.6 42.6 42.5 42.0 41.5 40.9 41.5 42.0 42.5 42.6 45.6 50.3 54.9 57.8 62.0 64.2 69.3 74.5 75.6 74.2 72.1 69.9 68.6
4.0 90.5 92.6 94.3 90.7 85.6 80.1 76.8 71.7 68.2 69.8 74.8 78.7 80.8 76.3 63.5 57.1 57.0 57.5 57.7 57.5 57.0 57.1 63.5 76.3 80.8 78.7 74.8 69.8 68.2 71.7 76.8 80.1 85.6 90.7 94.3 92.6 90.5 91.7 93.8 93.1 89.4 88.0 85.8 80.6 72.2 69.4 70.4 73.7 79.0 82.8 87.9 93.4 97.3 101 102 101 97.3 93.4 87.9 82.8 79.0 73.7 70.4 69.4 72.2 80.6 85.8 88.0 89.4 93.1 93.8 91.7
6.0 176 180 181 177 165 150 138 126 119 120 128 143 158 171 180 178 174 168 166 168 174 178 180 171 158 143 128 120 119 126 138 150 165 177 181 180 176 175 176 180 183 179 165 148 128 121 124 128 141 153 162 166 166 165 164 165 166 166 162 153 141 128 124 121 128 148 165 179 183 180 176 175
8.0 204 195 189 181 179 177 173 168 162 160 171 187 207 223 227 226 221 216 215 216 221 226 227 223 207 187 171 160 162 168 173 177 179 181 189 195 204 217 227 234 235 234 220 193 161 139 130 139 157 174 178 176 175 174 173 174 175 176 178 174 157 139 130 139 161 193 220 234 235 234 227 217
10.0 246 262 274 267 250 235 213 196 191 197 214 231 247 246 237 236 237 242 241 242 237 236 237 246 247 231 214 197 191 196 213 235 250 267 274 262 246 237 231 230 227 227 225 198 160 131 129 144 162 166 157 149 147 144 142 144 147 149 157 166 162 144 129 131 160 198 225 227 227 230 231 237
12.0 242 255 252 241 224 206 208 218 219 223 236 250 249 238 228 223 220 215 213 215 220 223 228 238 249 250 236 223 219 218 208 206 224 241 252 255 242 219 196 185 183 194 220 218 176 135 128 147 152 143 138 131 128 127 127 127 128 131 138 143 152 147 128 135 176 218 220 194 183 185 196 219
14.0 264 270 266 257 243 229 197 178 177 221 234 237 223 208 198 190 180 173 170 173 180 190 198 208 223 237 234 221 177 178 197 229 243 257 266 270 264 236 206 191 190 199 207 194 148 111 109 139 153 144 137 134 128 126 125 126 128 134 137 144 153 139 109 111 148 194 207 199 190 191 206 236
16.0 260 273 272 268 252 234 214 192 169 180 193 202 184 164 143 123 110 103 99.5 103 110 123 143 164 184 202 193 180 169 192 214 234 252 268 272 273 260 246 223 205 197 202 201 180 133 99.4 108 142 156 149 133 125 122 128 131 128 122 125 133 149 156 142 108 99.4 133 180 201 202 197 205 223 246
18.0 172 184 193 200 216 242 218 194 172 164 165 152 120 94.0 76.3 66.4 58.1 53.9 52.6 53.9 58.1 66.4 76.3 94.0 120 152 165 164 172 194 218 242 216 200 193 184 172 165 150 126 143 186 182 164 132 108 111 143 138 113 100 102 112 121 122 121 112 102 100 113 138 143 111 108 132 164 182 186 143 126 150 165
20.0 183 199 211 218 198 155 127 186 153 121 107 90.2 68.1 53.3 43.1 40.7 40.5 41.3 40.7 41.3 40.5 40.7 43.1 53.3 68.1 90.2 107 121 153 186 127 155 198 218 211 199 183 167 151 124 94.5 78.3 75.2 130 139 105 103 119 104 78.4 71.7 74.6 80.3 83.4 84.1 83.4 80.3 74.6 71.7 78.4 104 119 103 105 139 130 75.2 78.3 94.5 124 151 167
22.0 94.8 117 154 189 206 162 110 89.9 90.7 67.7 58.3 53.3 42.4 40.8 41.3 40.4 40.9 41.1 40.8 41.1 40.9 40.4 41.3 40.8 42.4 53.3 58.3 67.7 90.7 89.9 110 162 206 189 154 117 94.8 88.1 93.4 102 77.7 51.7 59.6 64.7 90.5 95.1 77.9 92.6 71.4 49.2 53.2 63.3 71.8 74.0 73.1 74.0 71.8 63.3 53.2 49.2 71.4 92.6 77.9 95.1 90.5 64.7 59.6 51.7 77.7 102 93.4 88.1
24.0 49.1 50.4 51.7 55.9 86.9 131 104 64.6 66.3 49.0 44.7 42.2 40.8 40.2 39.0 37.2 38.0 39.1 39.3 39.1 38.0 37.2 39.0 40.2 40.8 42.2 44.7 49.0 66.3 64.6 104 131 86.9 55.9 51.7 50.4 49.1 49.3 49.4 47.1 48.3 51.5 52.9 55.1 65.8 69.4 64.0 66.2 54.4 46.8 57.0 65.0 66.8 69.9 70.7 69.9 66.8 65.0 57.0 46.8 54.4 66.2 64.0 69.4 65.8 55.1 52.9 51.5 48.3 47.1 49.4 49.3
26.0 50.7 51.4 52.0 54.2 56.9 57.3 63.0 54.7 54.8 49.5 44.2 40.6 39.9 39.9 38.8 37.2 39.5 41.1 41.6 41.1 39.5 37.2 38.8 39.9 39.9 40.6 44.2 49.5 54.8 54.7 63.0 57.3 56.9 54.2 52.0 51.4 50.7 49.6 48.6 49.8 52.1 53.4 53.9 54.5 54.5 63.1 64.1 63.8 54.1 47.8 58.0 65.0 70.3 69.1 68.1 69.1 70.3 65.0 58.0 47.8 54.1 63.8 64.1 63.1 54.5 54.5 53.9 53.4 52.1 49.8 48.6 49.6
28.0 52.6 53.1 53.9 56.4 58.6 60.3 56.3 53.2 58.7 50.0 42.8 40.8 39.6 39.8 40.2 39.0 42.0 44.5 45.4 44.5 42.0 39.0 40.2 39.8 39.6 40.8 42.8 50.0 58.7 53.2 56.3 60.3 58.6 56.4 53.9 53.1 52.6 51.4 51.9 52.4 51.6 51.4 52.1 53.8 54.5 53.1 62.0 62.3 51.9 52.1 61.7 66.4 67.5 66.8 64.1 66.8 67.5 66.4 61.7 52.1 51.9 62.3 62.0 53.1 54.5 53.8 52.1 51.4 51.6 52.4 51.9 51.4
30.0 54.2 54.4 55.2 58.1 62.2 64.7 60.5 56.6 59.3 46.8 43.5 41.7 40.9 40.6 40.9 41.9 45.3 48.6 50.3 48.6 45.3 41.9 40.9 40.6 40.9 41.7 43.5 46.8 59.3 56.6 60.5 64.7 62.2 58.1 55.2 54.4 54.2 53.6 52.1 51.0 49.6 49.2 49.2 50.6 53.1 53.0 51.9 62.3 51.8 54.8 61.5 63.8 62.8 59.7 57.2 59.7 62.8 63.8 61.5 54.8 51.8 62.3 51.9 53.0 53.1 50.6 49.2 49.2 49.6 51.0 52.1 53.6
32.0 53.5 54.1 54.8 56.9 61.0 66.4 63.9 56.4 53.3 46.0 44.6 43.2 42.6 42.0 42.2 43.7 46.7 50.4 52.6 50.4 46.7 43.7 42.2 42.0 42.6 43.2 44.6 46.0 53.3 56.4 63.9 66.4 61.0 56.9 54.8 54.1 53.5 53.3 53.3 53.0 50.3 49.2 48.1 48.5 49.4 51.7 50.7 53.0 50.5 54.4 57.3 55.0 51.0 48.6 46.9 48.6 51.0 55.0 57.3 54.4 50.5 53.0 50.7 51.7 49.4 48.5 48.1 49.2 50.3 53.0 53.3 53.3
34.0 52.5 52.1 56.9 55.1 52.6 54.2 57.3 51.0 48.7 47.1 45.7 44.6 43.7 43.7 43.4 42.9 41.5 41.6 41.6 41.6 41.5 42.9 43.4 43.7 43.7 44.6 45.7 47.1 48.7 51.0 57.3 54.2 52.6 55.1 56.9 52.1 52.5 56.5 56.0 53.0 52.3 50.5 49.4 49.3 49.6 49.8 50.1 49.0 49.4 49.5 51.7 54.0 49.3 48.9 47.8 48.9 49.3 54.0 51.7 49.5 49.4 49.0 50.1 49.8 49.6 49.3 49.4 50.5 52.3 53.0 56.0 56.5
36.0 54.1 54.0 59.7 60.9 59.2 53.3 50.6 50.1 49.6 48.8 47.4 46.6 45.9 44.3 43.5 42.6 41.6 40.5 40.3 40.5 41.6 42.6 43.5 44.3 45.9 46.6 47.4 48.8 49.6 50.1 50.6 53.3 59.2 60.9 59.7 54.0 54.1 58.4 58.1 56.6 53.5 52.3 51.2 50.8 50.8 50.2 49.2 49.5 53.2 51.7 53.5 58.8 53.9 50.7 50.3 50.7 53.9 58.8 53.5 51.7 53.2 49.5 49.2 50.2 50.8 50.8 51.2 52.3 53.5 56.6 58.1 58.4
38.0 55.9 56.2 62.0 62.7 58.4 54.1 52.6 52.0 51.0 50.5 48.9 47.8 46.4 45.4 45.1 44.0 45.9 41.7 41.2 41.7 45.9 44.0 45.1 45.4 46.4 47.8 48.9 50.5 51.0 52.0 52.6 54.1 58.4 62.7 62.0 56.2 55.9 59.0 63.2 58.0 55.5 54.5 53.3 52.8 52.3 51.7 50.8 50.4 56.7 56.8 56.6 60.6 60.7 52.4 51.9 52.4 60.7 60.6 56.6 56.8 56.7 50.4 50.8 51.7 52.3 52.8 53.3 54.5 55.5 58.0 63.2 59.0
40.0 62.7 64.7 67.6 66.7 60.3 55.4 54.7 53.7 52.9 52.6 50.8 49.3 48.2 48.2 47.5 48.1 50.2 43.6 43.1 43.6 50.2 48.1 47.5 48.2 48.2 49.3 50.8 52.6 52.9 53.7 54.7 55.4 60.3 66.7 67.6 64.7 62.7 62.6 69.5 64.4 58.1 56.6 55.4 54.6 54.0 53.9 51.6 50.4 56.2 60.5 58.4 57.1 62.7 53.6 54.4 53.6 62.7 57.1 58.4 60.5 56.2 50.4 51.6 53.9 54.0 54.6 55.4 56.6 58.1 64.4 69.5 62.6
42.0 67.2 68.4 69.5 70.7 65.7 57.9 55.6 55.2 54.3 53.9 52.1 50.5 49.3 48.8 51.2 51.3 51.3 44.9 44.4 44.9 51.3 51.3 51.2 48.8 49.3 50.5 52.1 53.9 54.3 55.2 55.6 57.9 65.7 70.7 69.5 68.4 67.2 65.5 70.9 68.0 66.8 60.0 57.1 56.0 55.5 55.5 52.8 51.0 53.4 57.8 60.2 55.8 60.9 54.3 56.7 54.3 60.9 55.8 60.2 57.8 53.4 51.0 52.8 55.5 55.5 56.0 57.1 60.0 66.8 68.0 70.9 65.5
44.0 74.2 71.9 76.7 72.8 64.2 58.4 56.9 56.0 55.7 55.3 53.2 52.0 50.8 49.6 54.1 52.8 50.9 46.5 47.9 46.5 50.9 52.8 54.1 49.6 50.8 52.0 53.2 55.3 55.7 56.0 56.9 58.4 64.2 72.8 76.7 71.9 74.2 73.3 71.4 68.9 67.5 62.6 58.8 57.0 56.6 56.4 53.8 52.1 51.2 54.8 60.1 55.9 56.6 55.2 57.0 55.2 56.6 55.9 60.1 54.8 51.2 52.1 53.8 56.4 56.6 57.0 58.8 62.6 67.5 68.9 71.4 73.3
46.0 72.1 70.7 74.2 74.7 63.1 58.7 57.7 57.4 56.4 56.2 54.4 52.9 51.8 51.0 54.0 53.2 49.6 49.2 49.4 49.2 49.6 53.2 54.0 51.0 51.8 52.9 54.4 56.2 56.4 57.4 57.7 58.7 63.1 74.7 74.2 70.7 72.1 73.2 70.0 69.0 66.0 63.3 60.5 58.3 57.1 57.4 54.7 52.9 52.0 51.9 54.5 54.9 51.1 52.7 52.0 52.7 51.1 54.9 54.5 51.9 52.0 52.9 54.7 57.4 57.1 58.3 60.5 63.3 66.0 69.0 70.0 73.2
48.0 73.0 72.6 70.5 71.3 61.8 58.5 57.9 57.5 56.6 56.7 54.9 53.6 52.3 51.0 50.5 52.8 47.3 49.4 48.9 49.4 47.3 52.8 50.5 51.0 52.3 53.6 54.9 56.7 56.6 57.5 57.9 58.5 61.8 71.3 70.5 72.6 73.0 70.3 66.4 66.7 63.5 61.4 60.7 59.2 57.6 57.9 55.2 53.6 52.3 50.4 49.2 51.8 46.3 48.1 47.4 48.1 46.3 51.8 49.2 50.4 52.3 53.6 55.2 57.9 57.6 59.2 60.7 61.4 63.5 66.7 66.4 70.3
50.0 70.6 71.2 67.8 67.1 58.8 57.7 57.8 57.6 57.3 57.3 55.4 54.3 52.8 51.2 49.8 52.3 46.8 48.8 48.1 48.8 46.8 52.3 49.8 51.2 52.8 54.3 55.4 57.3 57.3 57.6 57.8 57.7 58.8 67.1 67.8 71.2 70.6 67.7 62.4 64.2 60.6 60.3 60.2 59.1 57.8 57.7 55.2 53.8 51.9 50.1 48.1 49.6 45.2 46.0 45.3 46.0 45.2 49.6 48.1 50.1 51.9 53.8 55.2 57.7 57.8 59.1 60.2 60.3 60.6 64.2 62.4 67.7
52.0 66.6 66.6 62.9 63.3 57.9 57.7 57.7 57.9 57.6 57.9 56.1 54.8 53.3 51.5 50.1 52.2 47.2 48.4 48.0 48.4 47.2 52.2 50.1 51.5 53.3 54.8 56.1 57.9 57.6 57.9 57.7 57.7 57.9 63.3 62.9 66.6 66.6 64.3 61.0 62.3 58.6 59.1 59.5 58.6 57.6 57.9 55.3 53.9 52.0 49.7 47.6 48.2 45.1 44.9 43.4 44.9 45.1 48.2 47.6 49.7 52.0 53.9 55.3 57.9 57.6 58.6 59.5 59.1 58.6 62.3 61.0 64.3
54.0 65.0 65.5 61.6 60.3 57.2 56.8 57.3 57.5 57.4 57.6 55.9 54.6 53.1 51.4 49.7 51.0 47.4 47.4 47.1 47.4 47.4 51.0 49.7 51.4 53.1 54.6 55.9 57.6 57.4 57.5 57.3 56.8 57.2 60.3 61.6 65.5 65.0 62.4 60.0 59.4 57.8 58.3 58.3 58.1 57.4 58.1 55.1 53.2 51.4 49.7 47.4 45.8 45.0 44.1 42.5 44.1 45.0 45.8 47.4 49.7 51.4 53.2 55.1 58.1 57.4 58.1 58.3 58.3 57.8 59.4 60.0 62.4
56.0 60.0 61.1 59.9 57.3 56.3 56.5 57.0 57.4 57.5 57.8 56.0 54.6 53.2 51.4 49.6 48.5 47.7 46.4 45.4 46.4 47.7 48.5 49.6 51.4 53.2 54.6 56.0 57.8 57.5 57.4 57.0 56.5 56.3 57.3 59.9 61.1 60.0 57.6 57.1 55.6 57.8 57.9 57.0 57.1 56.4 57.4 54.6 52.4 50.5 48.4 46.6 44.3 42.6 41.4 40.2 41.4 42.6 44.3 46.6 48.4 50.5 52.4 54.6 57.4 56.4 57.1 57.0 57.9 57.8 55.6 57.1 57.6
58.0 58.1 59.9 56.3 56.0 55.9 56.3 56.8 57.3 57.6 57.8 56.2 54.7 52.9 51.1 49.3 47.6 45.8 43.8 43.4 43.8 45.8 47.6 49.3 51.1 52.9 54.7 56.2 57.8 57.6 57.3 56.8 56.3 55.9 56.0 56.3 59.9 58.1 55.9 54.0 55.0 56.2 56.3 56.6 56.6 55.6 56.2 53.8 52.0 49.9 47.5 45.9 43.4 42.2 40.5 39.6 40.5 42.2 43.4 45.9 47.5 49.9 52.0 53.8 56.2 55.6 56.6 56.6 56.3 56.2 55.0 54.0 55.9
60.0 51.5 52.1 53.4 54.4 55.2 55.9 56.4 57.0 57.1 57.4 56.2 54.8 53.0 51.1 49.3 47.4 44.9 43.0 41.7 43.0 44.9 47.4 49.3 51.1 53.0 54.8 56.2 57.4 57.1 57.0 56.4 55.9 55.2 54.4 53.4 52.1 51.5 52.0 52.8 53.7 54.9 55.4 55.8 55.7 55.2 55.2 52.9 51.2 49.2 46.9 44.8 42.3 41.3 38.8 38.0 38.8 41.3 42.3 44.8 46.9 49.2 51.2 52.9 55.2 55.2 55.7 55.8 55.4 54.9 53.7 52.8 52.0
62.0 50.4 51.2 52.3 53.5 54.6 55.5 56.5 56.7 56.5 56.8 55.7 54.6 52.8 50.8 48.7 46.7 44.3 42.4 41.1 42.4 44.3 46.7 48.7 50.8 52.8 54.6 55.7 56.8 56.5 56.7 56.5 55.5 54.6 53.5 52.3 51.2 50.4 51.1 51.7 53.1 53.7 54.7 55.0 54.9 54.1 54.3 52.1 50.5 48.4 45.2 43.5 41.6 39.7 37.0 35.8 37.0 39.7 41.6 43.5 45.2 48.4 50.5 52.1 54.3 54.1 54.9 55.0 54.7 53.7 53.1 51.7 51.1
64.0 49.6 50.4 51.6 52.8 54.3 55.1 55.8 56.3 56.2 56.5 55.3 54.2 52.5 50.7 48.5 46.1 43.9 41.9 40.6 41.9 43.9 46.1 48.5 50.7 52.5 54.2 55.3 56.5 56.2 56.3 55.8 55.1 54.3 52.8 51.6 50.4 49.6 50.3 51.0 52.3 53.1 53.8 53.9 54.0 53.3 53.1 50.9 49.5 47.6 45.1 42.4 40.3 37.7 35.6 34.1 35.6 37.7 40.3 42.4 45.1 47.6 49.5 50.9 53.1 53.3 54.0 53.9 53.8 53.1 52.3 51.0 50.3
66.0 48.7 49.4 50.7 52.2 53.7 54.8 55.6 55.8 55.8 55.9 54.7 53.9 52.2 50.3 48.2 45.9 43.4 41.6 40.4 41.6 43.4 45.9 48.2 50.3 52.2 53.9 54.7 55.9 55.8 55.8 55.6 54.8 53.7 52.2 50.7 49.4 48.7 49.3 50.3 51.8 52.2 52.8 52.9 53.0 52.3 52.0 50.1 48.7 46.7 44.4 41.7 39.2 36.5 34.1 32.9 34.1 36.5 39.2 41.7 44.4 46.7 48.7 50.1 52.0 52.3 53.0 52.9 52.8 52.2 51.8 50.3 49.3
68.0 48.0 48.7 49.9 51.6 52.8 53.8 54.8 55.2 55.0 55.2 54.1 53.0 51.6 49.8 47.5 45.3 42.9 40.7 39.6 40.7 42.9 45.3 47.5 49.8 51.6 53.0 54.1 55.2 55.0 55.2 54.8 53.8 52.8 51.6 49.9 48.7 48.0 48.9 49.9 51.0 51.8 52.3 52.5 52.1 51.5 51.1 49.1 47.9 45.7 43.5 40.8 38.3 35.6 33.3 31.9 33.3 35.6 38.3 40.8 43.5 45.7 47.9 49.1 51.1 51.5 52.1 52.5 52.3 51.8 51.0 49.9 48.9
70.0 47.4 48.2 49.7 51.0 52.3 53.4 53.9 54.4 54.3 54.5 53.2 52.3 50.8 49.1 46.9 44.7 42.2 40.3 38.7 40.3 42.2 44.7 46.9 49.1 50.8 52.3 53.2 54.5 54.3 54.4 53.9 53.4 52.3 51.0 49.7 48.2 47.4 48.1 49.2 50.3 50.9 51.6 51.7 51.2 50.5 50.4 48.5 46.9 44.8 42.6 40.2 37.5 34.9 32.6 31.1 32.6 34.9 37.5 40.2 42.6 44.8 46.9 48.5 50.4 50.5 51.2 51.7 51.6 50.9 50.3 49.2 48.1
72.0 46.9 47.7 49.6 50.3 51.4 52.6 53.4 54.0 54.0 54.0 53.0 52.1 50.3 48.7 46.7 44.8 41.6 39.5 38.2 39.5 41.6 44.8 46.7 48.7 50.3 52.1 53.0 54.0 54.0 54.0 53.4 52.6 51.4 50.3 49.6 47.7 46.9 47.8 48.8 49.7 50.4 50.8 50.9 50.6 49.9 49.8 47.9 46.4 44.4 42.1 39.5 36.9 34.4 31.9 30.5 31.9 34.4 36.9 39.5 42.1 44.4 46.4 47.9 49.8 49.9 50.6 50.9 50.8 50.4 49.7 48.8 47.8
74.0 46.1 47.1 48.3 49.9 51.4 52.7 53.2 53.8 53.8 53.7 52.7 51.6 50.1 48.2 46.0 43.7 41.4 39.0 37.8 39.0 41.4 43.7 46.0 48.2 50.1 51.6 52.7 53.7 53.8 53.8 53.2 52.7 51.4 49.9 48.3 47.1 46.1 46.7 47.9 48.8 49.6 50.1 50.0 50.0 49.1 48.5 47.0 45.4 43.4 41.2 38.7 35.7 33.2 30.7 29.3 30.7 33.2 35.7 38.7 41.2 43.4 45.4 47.0 48.5 49.1 50.0 50.0 50.1 49.6 48.8 47.9 46.7
76.0 45.6 46.3 47.8 49.4 51.0 52.1 52.8 53.2 53.3 53.2 52.3 51.3 49.8 48.1 45.8 43.3 41.0 38.7 37.4 38.7 41.0 43.3 45.8 48.1 49.8 51.3 52.3 53.2 53.3 53.2 52.8 52.1 51.0 49.4 47.8 46.3 45.6 46.3 47.3 48.2 49.0 49.5 49.6 49.3 48.6 48.2 46.5 45.0 42.9 40.6 38.1 35.3 32.7 29.7 28.8 29.7 32.7 35.3 38.1 40.6 42.9 45.0 46.5 48.2 48.6 49.3 49.6 49.5 49.0 48.2 47.3 46.3
78.0 44.7 45.5 46.9 48.1 50.4 51.6 52.4 52.8 52.7 52.7 51.9 50.8 49.3 47.3 45.0 42.4 40.1 37.7 36.5 37.7 40.1 42.4 45.0 47.3 49.3 50.8 51.9 52.7 52.7 52.8 52.4 51.6 50.4 48.1 46.9 45.5 44.7 45.2 46.4 47.5 48.2 48.8 48.8 48.6 47.8 47.1 45.6 44.0 42.0 39.7 37.1 34.3 31.8 29.4 28.1 29.4 31.8 34.3 37.1 39.7 42.0 44.0 45.6 47.1 47.8 48.6 48.8 48.8 48.2 47.5 46.4 45.2
80.0 43.7 44.4 46.0 47.4 48.9 50.5 51.2 51.6 51.4 51.6 50.5 49.5 47.9 46.0 44.1 41.5 39.3 37.0 35.9 37.0 39.3 41.5 44.1 46.0 47.9 49.5 50.5 51.6 51.4 51.6 51.2 50.5 48.9 47.4 46.0 44.4 43.7 44.3 45.3 46.2 47.0 47.6 47.7 47.3 46.6 45.8 44.3 42.7 40.6 38.5 35.9 33.5 30.7 28.2 26.9 28.2 30.7 33.5 35.9 38.5 40.6 42.7 44.3 45.8 46.6 47.3 47.7 47.6 47.0 46.2 45.3 44.3
82.0 42.5 43.2 44.7 46.6 48.2 49.3 50.0 50.6 50.7 50.4 49.6 48.7 47.1 45.4 43.2 40.5 38.2 36.1 35.0 36.1 38.2 40.5 43.2 45.4 47.1 48.7 49.6 50.4 50.7 50.6 50.0 49.3 48.2 46.6 44.7 43.2 42.5 43.2 44.3 45.1 45.9 46.6 46.5 46.3 45.5 44.6 43.3 41.8 39.8 37.7 35.1 32.4 29.5 27.3 26.1 27.3 29.5 32.4 35.1 37.7 39.8 41.8 43.3 44.6 45.5 46.3 46.5 46.6 45.9 45.1 44.3 43.2
84.0 41.8 42.5 44.0 45.5 47.1 48.3 49.0 49.7 49.6 49.4 48.6 47.7 46.1 44.4 42.1 39.7 37.3 35.2 33.9 35.2 37.3 39.7 42.1 44.4 46.1 47.7 48.6 49.4 49.6 49.7 49.0 48.3 47.1 45.5 44.0 42.5 41.8 42.3 43.2 44.2 44.8 45.5 45.4 45.1 44.5 43.2 42.4 40.6 38.9 36.4 34.1 31.3 28.9 26.4 25.3 26.4 28.9 31.3 34.1 36.4 38.9 40.6 42.4 43.2 44.5 45.1 45.4 45.5 44.8 44.2 43.2 42.3
86.0 40.8 41.6 43.0 44.7 46.2 47.4 48.4 48.8 48.7 48.5 47.8 46.7 45.7 43.4 41.5 39.1 36.5 34.3 33.4 34.3 36.5 39.1 41.5 43.4 45.7 46.7 47.8 48.5 48.7 48.8 48.4 47.4 46.2 44.7 43.0 41.6 40.8 41.2 42.3 43.3 44.0 44.2 44.6 44.3 43.6 42.6 41.5 40.0 38.2 35.9 33.3 30.7 27.9 25.7 24.8 25.7 27.9 30.7 33.3 35.9 38.2 40.0 41.5 42.6 43.6 44.3 44.6 44.2 44.0 43.3 42.3 41.2
88.0 40.5 41.0 42.7 44.3 46.1 47.1 47.8 48.2 48.2 47.9 47.2 46.2 44.9 43.1 40.9 38.5 36.1 33.9 33.1 33.9 36.1 38.5 40.9 43.1 44.9 46.2 47.2 47.9 48.2 48.2 47.8 47.1 46.1 44.3 42.7 41.0 40.5 41.0 42.0 43.1 43.6 44.1 44.3 43.9 43.4 42.4 41.3 39.6 37.5 35.4 33.2 30.5 27.7 25.5 24.6 25.5 27.7 30.5 33.2 35.4 37.5 39.6 41.3 42.4 43.4 43.9 44.3 44.1 43.6 43.1 42.0 41.0
90.0 40.2 40.6 42.0 43.5 45.2 46.5 47.5 47.9 47.8 47.6 46.9 45.9 44.5 42.4 40.2 38.1 35.6 33.5 32.8 33.5 35.6 38.1 40.2 42.4 44.5 45.9 46.9 47.6 47.8 47.9 47.5 46.5 45.2 43.5 42.0 40.6 40.2 40.5 41.3 42.3 43.2 43.7 43.8 43.4 43.0 41.9 40.7 39.2 37.2 35.1 32.7 30.0 28.0 25.2 24.5 25.2 28.0 30.0 32.7 35.1 37.2 39.2 40.7 41.9 43.0 43.4 43.8 43.7 43.2 42.3 41.3 40.5
92.0 39.9 40.3 41.8 43.4 44.7 46.2 47.0 47.4 47.6 47.0 46.1 45.1 43.8 41.7 39.7 37.5 35.1 33.1 32.8 33.1 35.1 37.5 39.7 41.7 43.8 45.1 46.1 47.0 47.6 47.4 47.0 46.2 44.7 43.4 41.8 40.3 39.9 40.2 41.0 42.1 42.9 43.1 43.1 43.0 42.4 41.5 40.4 38.6 36.9 34.6 32.2 29.6 27.0 24.9 24.3 24.9 27.0 29.6 32.2 34.6 36.9 38.6 40.4 41.5 42.4 43.0 43.1 43.1 42.9 42.1 41.0 40.2
94.0 39.5 39.9 41.0 42.7 44.2 45.5 46.3 46.8 46.9 46.6 46.1 44.8 43.4 41.5 39.5 36.5 34.6 32.8 32.3 32.8 34.6 36.5 39.5 41.5 43.4 44.8 46.1 46.6 46.9 46.8 46.3 45.5 44.2 42.7 41.0 39.9 39.5 39.6 40.4 41.2 42.2 42.7 42.8 42.5 42.1 40.9 39.8 38.2 36.4 34.2 31.6 29.0 26.5 24.6 24.0 24.6 26.5 29.0 31.6 34.2 36.4 38.2 39.8 40.9 42.1 42.5 42.8 42.7 42.2 41.2 40.4 39.6
96.0 39.0 39.3 40.7 42.1 43.6 44.9 45.8 46.1 46.3 46.0 45.2 44.3 42.9 40.9 38.8 36.4 34.2 32.6 32.3 32.6 34.2 36.4 38.8 40.9 42.9 44.3 45.2 46.0 46.3 46.1 45.8 44.9 43.6 42.1 40.7 39.3 39.0 39.3 40.0 40.9 41.5 41.9 42.0 42.0 41.4 40.5 39.3 37.7 35.8 33.6 31.1 28.5 26.1 24.3 23.8 24.3 26.1 28.5 31.1 33.6 35.8 37.7 39.3 40.5 41.4 42.0 42.0 41.9 41.5 40.9 40.0 39.3
98.0 38.6 38.8 40.1 41.6 42.9 44.1 45.1 45.6 45.5 45.1 44.6 43.6 42.0 40.2 38.1 35.8 33.6 31.8 31.5 31.8 33.6 35.8 38.1 40.2 42.0 43.6 44.6 45.1 45.5 45.6 45.1 44.1 42.9 41.6 40.1 38.8 38.6 38.7 39.6 40.2 41.0 41.4 41.7 41.6 40.8 39.5 38.7 37.0 35.4 33.2 30.6 28.1 25.6 23.8 23.5 23.8 25.6 28.1 30.6 33.2 35.4 37.0 38.7 39.5 40.8 41.6 41.7 41.4 41.0 40.2 39.6 38.7
100.0 38.0 38.0 39.3 40.7 42.2 43.3 44.1 44.7 44.8 44.5 43.7 42.8 41.7 39.3 37.3 35.1 32.8 31.3 31.1 31.3 32.8 35.1 37.3 39.3 41.7 42.8 43.7 44.5 44.8 44.7 44.1 43.3 42.2 40.7 39.3 38.0 38.0 38.0 38.6 39.6 40.3 40.6 40.8 40.5 40.2 38.9 37.9 36.1 34.4 32.3 29.7 27.2 24.9 23.3 23.2 23.3 24.9 27.2 29.7 32.3 34.4 36.1 37.9 38.9 40.2 40.5 40.8 40.6 40.3 39.6 38.6 38.0
102.0 37.4 37.5 38.4 39.9 41.7 42.6 43.4 43.9 43.9 43.5 43.0 42.1 40.5 38.7 36.7 34.3 32.3 31.0 30.8 31.0 32.3 34.3 36.7 38.7 40.5 42.1 43.0 43.5 43.9 43.9 43.4 42.6 41.7 39.9 38.4 37.5 37.4 37.5 38.0 38.7 39.4 39.7 40.1 40.0 39.2 38.3 37.1 35.6 33.6 31.5 29.2 26.7 24.3 23.0 22.9 23.0 24.3 26.7 29.2 31.5 33.6 35.6 37.1 38.3 39.2 40.0 40.1 39.7 39.4 38.7 38.0 37.5
104.0 37.0 37.1 37.8 39.3 40.7 41.8 42.6 43.0 43.2 42.8 42.2 41.1 39.7 37.9 35.9 33.7 31.6 30.4 30.6 30.4 31.6 33.7 35.9 37.9 39.7 41.1 42.2 42.8 43.2 43.0 42.6 41.8 40.7 39.3 37.8 37.1 37.0 36.9 37.2 38.1 38.8 39.1 39.5 39.1 38.5 37.7 36.5 35.0 33.0 31.0 28.7 26.2 23.9 22.8 22.5 22.8 23.9 26.2 28.7 31.0 33.0 35.0 36.5 37.7 38.5 39.1 39.5 39.1 38.8 38.1 37.2 36.9
106.0 36.3 36.2 36.8 38.4 39.9 40.9 41.7 42.2 42.2 42.1 41.3 40.2 38.8 37.1 35.1 32.8 30.9 29.8 29.8 29.8 30.9 32.8 35.1 37.1 38.8 40.2 41.3 42.1 42.2 42.2 41.7 40.9 39.9 38.4 36.8 36.2 36.3 36.2 36.4 37.1 37.9 38.4 38.5 38.4 37.9 36.9 35.8 34.2 32.3 30.3 27.8 25.4 23.2 22.1 22.2 22.1 23.2 25.4 27.8 30.3 32.3 34.2 35.8 36.9 37.9 38.4 38.5 38.4 37.9 37.1 36.4 36.2
108.0 35.5 35.5 36.0 37.3 38.7 39.8 40.7 41.1 41.2 40.9 40.3 39.3 37.9 36.1 33.6 31.9 30.1 29.4 29.3 29.4 30.1 31.9 33.6 36.1 37.9 39.3 40.3 40.9 41.2 41.1 40.7 39.8 38.7 37.3 36.0 35.5 35.5 35.3 35.6 36.2 37.0 37.4 37.6 37.4 37.0 35.9 34.8 33.3 31.5 29.4 27.0 24.6 22.6 21.7 21.7 21.7 22.6 24.6 27.0 29.4 31.5 33.3 34.8 35.9 37.0 37.4 37.6 37.4 37.0 36.2 35.6 35.3
110.0 34.9 34.6 35.0 36.1 37.6 38.7 39.5 40.1 39.9 39.9 39.2 38.2 36.9 35.1 32.9 30.9 29.2 28.5 28.6 28.5 29.2 30.9 32.9 35.1 36.9 38.2 39.2 39.9 39.9 40.1 39.5 38.7 37.6 36.1 35.0 34.6 34.9 34.5 34.7 35.1 35.8 36.4 36.5 36.5 35.8 35.0 33.8 32.2 30.5 28.4 26.2 23.8 21.8 21.1 21.2 21.1 21.8 23.8 26.2 28.4 30.5 32.2 33.8 35.0 35.8 36.5 36.5 36.4 35.8 35.1 34.7 34.5
112.0 33.7 33.6 33.9 35.1 36.8 38.0 38.0 38.4 38.6 38.4 37.8 36.7 35.5 33.9 31.8 30.0 28.4 28.0 28.0 28.0 28.4 30.0 31.8 33.9 35.5 36.7 37.8 38.4 38.6 38.4 38.0 38.0 36.8 35.1 33.9 33.6 33.7 33.6 33.5 34.0 34.5 35.0 35.2 34.9 34.5 33.7 32.0 31.0 29.2 27.1 24.9 22.5 20.8 20.4 20.4 20.4 20.8 22.5 24.9 27.1 29.2 31.0 32.0 33.7 34.5 34.9 35.2 35.0 34.5 34.0 33.5 33.6
114.0 32.6 32.4 32.6 33.6 34.7 36.0 36.8 37.4 37.4 37.1 36.7 35.4 34.0 32.4 30.5 28.5 27.1 26.9 26.9 26.9 27.1 28.5 30.5 32.4 34.0 35.4 36.7 37.1 37.4 37.4 36.8 36.0 34.7 33.6 32.6 32.4 32.6 32.4 32.5 32.8 33.2 33.8 34.0 33.8 33.3 32.5 31.5 29.9 28.2 26.2 23.9 21.6 20.1 19.8 20.0 19.8 20.1 21.6 23.9 26.2 28.2 29.9 31.5 32.5 33.3 33.8 34.0 33.8 33.2 32.8 32.5 32.4
116.0 31.8 31.5 31.5 32.4 33.6 34.9 35.3 35.9 36.1 35.9 35.2 34.3 32.9 31.2 29.2 27.4 26.3 26.3 26.4 26.3 26.3 27.4 29.2 31.2 32.9 34.3 35.2 35.9 36.1 35.9 35.3 34.9 33.6 32.4 31.5 31.5 31.8 31.6 31.3 31.5 32.0 32.5 32.5 32.4 32.1 31.4 30.1 28.7 27.1 24.9 22.8 20.5 19.4 19.3 19.4 19.3 19.4 20.5 22.8 24.9 27.1 28.7 30.1 31.4 32.1 32.4 32.5 32.5 32.0 31.5 31.3 31.6
118.0 30.8 30.7 30.6 31.3 32.4 33.4 34.2 34.7 34.7 34.5 34.0 33.0 31.6 30.0 28.0 26.3 25.5 25.5 25.6 25.5 25.5 26.3 28.0 30.0 31.6 33.0 34.0 34.5 34.7 34.7 34.2 33.4 32.4 31.3 30.6 30.7 30.8 30.7 30.4 30.4 30.9 31.3 31.6 31.4 30.8 30.1 29.0 27.6 25.8 23.9 21.6 20.1 18.7 18.6 18.8 18.6 18.7 20.1 21.6 23.9 25.8 27.6 29.0 30.1 30.8 31.4 31.6 31.3 30.9 30.4 30.4 30.7
120.0 29.7 29.7 29.4 29.9 30.8 31.8 32.7 33.2 33.3 33.1 32.5 31.6 30.3 28.5 26.8 25.2 24.5 24.6 24.7 24.6 24.5 25.2 26.8 28.5 30.3 31.6 32.5 33.1 33.3 33.2 32.7 31.8 30.8 29.9 29.4 29.7 29.7 29.6 29.3 29.1 29.6 30.0 30.0 29.9 29.6 28.8 27.7 26.4 24.6 22.6 20.4 18.6 17.9 18.0 18.1 18.0 17.9 18.6 20.4 22.6 24.6 26.4 27.7 28.8 29.6 29.9 30.0 30.0 29.6 29.1 29.3 29.6
122.0 28.8 28.7 28.4 28.7 29.6 30.6 31.2 31.7 31.9 31.7 31.0 30.2 29.0 27.3 25.4 23.9 23.6 23.7 23.8 23.7 23.6 23.9 25.4 27.3 29.0 30.2 31.0 31.7 31.9 31.7 31.2 30.6 29.6 28.7 28.4 28.7 28.8 28.6 28.2 28.0 28.2 28.6 28.8 28.7 28.2 27.5 26.5 25.0 23.3 21.4 19.3 17.7 17.2 17.4 17.5 17.4 17.2 17.7 19.3 21.4 23.3 25.0 26.5 27.5 28.2 28.7 28.8 28.6 28.2 28.0 28.2 28.6
124.0 27.5 27.3 27.0 27.2 27.8 28.7 29.5 29.9 30.1 29.8 29.3 28.5 27.1 25.5 23.8 22.7 22.4 22.6 22.8 22.6 22.4 22.7 23.8 25.5 27.1 28.5 29.3 29.8 30.1 29.9 29.5 28.7 27.8 27.2 27.0 27.3 27.5 27.4 27.0 26.7 26.8 27.0 27.1 27.0 26.7 25.9 24.8 23.5 21.8 19.9 17.9 16.6 16.3 16.5 16.6 16.5 16.3 16.6 17.9 19.9 21.8 23.5 24.8 25.9 26.7 27.0 27.1 27.0 26.8 26.7 27.0 27.4
126.0 26.3 26.2 25.9 25.9 26.4 27.2 28.0 28.4 28.5 28.4 27.8 26.9 25.6 24.1 22.5 21.6 21.6 21.8 22.0 21.8 21.6 21.6 22.5 24.1 25.6 26.9 27.8 28.4 28.5 28.4 28.0 27.2 26.4 25.9 25.9 26.2 26.3 26.2 25.8 25.5 25.5 25.6 25.7 25.4 25.2 24.5 23.5 22.1 20.4 18.5 16.7 15.7 15.6 15.8 15.9 15.8 15.6 15.7 16.7 18.5 20.4 22.1 23.5 24.5 25.2 25.4 25.7 25.6 25.5 25.5 25.8 26.2
128.0 25.3 25.1 24.8 24.6 25.0 25.7 26.4 26.8 27.0 26.8 26.3 25.3 24.1 23.0 21.1 20.6 20.6 20.9 21.0 20.9 20.6 20.6 21.1 23.0 24.1 25.3 26.3 26.8 27.0 26.8 26.4 25.7 25.0 24.6 24.8 25.1 25.3 25.2 24.7 24.3 24.2 24.2 24.3 24.2 23.8 23.1 22.1 20.7 19.1 17.2 15.6 14.9 14.9 15.1 15.2 15.1 14.9 14.9 15.6 17.2 19.1 20.7 22.1 23.1 23.8 24.2 24.3 24.2 24.2 24.3 24.7 25.2
130.0 24.1 23.9 23.6 23.3 23.5 24.1 24.7 25.2 25.3 25.1 24.5 23.6 22.3 20.9 19.8 19.4 19.6 19.9 20.0 19.9 19.6 19.4 19.8 20.9 22.3 23.6 24.5 25.1 25.3 25.2 24.7 24.1 23.5 23.3 23.6 23.9 24.1 24.0 23.5 23.1 22.8 22.8 22.8 22.6 22.3 21.6 20.5 19.2 17.5 15.8 14.5 14.0 14.1 14.3 14.4 14.3 14.1 14.0 14.5 15.8 17.5 19.2 20.5 21.6 22.3 22.6 22.8 22.8 22.8 23.1 23.5 24.0
132.0 22.7 22.5 22.1 21.7 21.8 22.4 22.9 23.3 23.4 23.1 22.6 21.7 20.4 19.1 18.3 18.2 18.5 18.8 18.9 18.8 18.5 18.2 18.3 19.1 20.4 21.7 22.6 23.1 23.4 23.3 22.9 22.4 21.8 21.7 22.1 22.5 22.7 22.5 22.2 21.6 21.3 21.2 21.1 20.9 20.5 19.8 18.8 17.5 15.9 14.3 13.3 13.0 13.2 13.4 13.5 13.4 13.2 13.0 13.3 14.3 15.9 17.5 18.8 19.8 20.5 20.9 21.1 21.2 21.3 21.6 22.2 22.5
134.0 21.4 21.3 21.0 20.5 20.4 20.7 21.2 21.5 21.6 21.3 20.7 19.8 18.7 17.6 17.0 17.1 17.4 17.7 17.8 17.7 17.4 17.1 17.0 17.6 18.7 19.8 20.7 21.3 21.6 21.5 21.2 20.7 20.4 20.5 21.0 21.3 21.4 21.3 20.9 20.3 19.9 19.7 19.5 19.3 18.8 18.1 17.1 15.8 14.3 13.0 12.2 12.2 12.4 12.6 12.7 12.6 12.4 12.2 12.2 13.0 14.3 15.8 17.1 18.1 18.8 19.3 19.5 19.7 19.9 20.3 20.9 21.3
136.0 20.2 20.1 19.8 19.3 19.0 19.1 19.5 19.8 19.9 19.6 18.7 17.8 16.8 16.0 15.9 16.0 16.4 16.7 16.8 16.7 16.4 16.0 15.9 16.0 16.8 17.8 18.7 19.6 19.9 19.8 19.5 19.1 19.0 19.3 19.8 20.1 20.2 20.1 19.8 19.2 18.7 18.3 18.1 17.8 17.3 16.6 15.5 14.3 12.9 11.8 11.3 11.4 11.7 11.9 12.0 11.9 11.7 11.4 11.3 11.8 12.9 14.3 15.5 16.6 17.3 17.8 18.1 18.3 18.7 19.2 19.8 20.1
138.0 18.9 18.8 18.4 17.9 17.5 17.5 17.7 17.9 17.8 17.5 16.9 16.1 15.2 14.7 14.6 14.9 15.4 15.7 15.8 15.7 15.4 14.9 14.6 14.7 15.2 16.1 16.9 17.5 17.8 17.9 17.7 17.5 17.5 17.9 18.4 18.8 18.9 18.8 18.5 17.9 17.2 16.8 16.5 16.0 15.4 14.7 13.7 12.5 11.3 10.6 10.3 10.6 10.9 11.1 11.2 11.1 10.9 10.6 10.3 10.6 11.3 12.5 13.7 14.7 15.4 16.0 16.5 16.8 17.2 17.9 18.5 18.8
140.0 17.4 17.3 17.0 16.5 15.9 15.7 15.8 15.8 15.8 15.4 14.9 14.1 13.5 13.2 13.3 13.7 14.2 14.5 14.6 14.5 14.2 13.7 13.3 13.2 13.5 14.1 14.9 15.4 15.8 15.8 15.8 15.7 15.9 16.5 17.0 17.3 17.4 17.3 17.0 16.4 15.7 15.1 14.7 14.2 13.6 12.8 11.6 10.8 9.9 9.4 9.3 9.7 10.0 10.2 10.3 10.2 10.0 9.7 9.3 9.4 9.9 10.8 11.6 12.8 13.6 14.2 14.7 15.1 15.7 16.4 17.0 17.3
150.0 9.6 9.5 9.2 8.8 8.2 7.4 6.6 6.1 5.8 5.7 5.7 5.9 6.2 6.8 7.4 7.9 8.3 8.5 8.5 8.5 8.3 7.9 7.4 6.8 6.2 5.9 5.7 5.7 5.8 6.1 6.6 7.4 8.2 8.8 9.2 9.5 9.6 9.5 9.2 8.7 8.1 7.2 6.3 5.5 4.9 4.4 4.1 4.0 4.1 4.5 4.9 5.3 5.5 5.7 5.7 5.7 5.5 5.3 4.9 4.5 4.1 4.0 4.1 4.4 4.9 5.5 6.3 7.2 8.1 8.7 9.2 9.5
160.0 2.4 2.3 2.3 2.1 1.9 1.7 1.5 1.3 1.1 1.1 1.2 1.4 1.7 2.0 2.2 2.4 2.6 2.7 2.7 2.7 2.6 2.4 2.2 2.0 1.7 1.4 1.2 1.1 1.1 1.3 1.5 1.7 1.9 2.1 2.3 2.3 2.4 2.3 2.2 2.1 1.9 1.7 1.4 1.2 1.1 1.1 1.1 1.1 1.2 1.4 1.6 1.7 1.8 1.8 1.8 1.8 1.8 1.7 1.6 1.4 1.2 1.1 1.1 1.1 1.1 1.2 1.4 1.7 1.9 2.1 2.2 2.3
170.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
180.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
