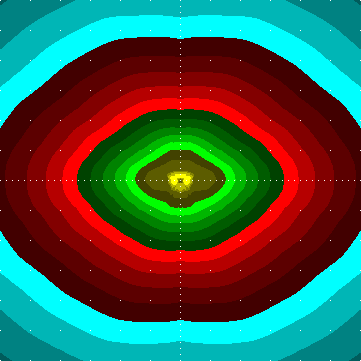

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] 8042204s.tm
# [LUMINAIRE] IJT-M1
# [LUMCAT] Villa
# [DATE] 29/11/2011 12:42:36
# down given: 85.2%
# out given: 68.0%
# tilt: 0.00
# [LAMP] 1 ST 100 10700 1950 E40
# Bulbs: 1, 10700 lm each
# Source file: Villa_IJT-M1_1_ST_100_10700_1950_E40.ldt
# Luminaire flux = 686 raw, for the given bulb(s) it would be 7345 lm,
# 68.6 % of the bulb flux
# between 75 and 90: 14.1 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 107.6 cd / 1000 lm , 23.1 % of the luminaire flux
# 90deg and above: max 60.9 cd / 1000 lm , 15.4 % of the luminaire flux
# CutOff Type: Non-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 415 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:1480 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 180 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 173 cd / 1000 lm,
# maximum spec. lum. intensity 314 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 67.3 67.4 67.0 67.3 67.3 67.3 67.4 67.2 67.4 66.8 66.5 66.5 66.7 68.8 76.3 83.9 90.0 91.6 89.2 91.6 90.0 83.9 76.3 68.8 66.7 66.5 66.5 66.8 67.4 67.2 67.4 67.3 67.3 67.3 67.0 67.4 67.3 67.7 67.3 67.3 67.4 66.7 66.6 66.6 66.8 69.6 77.4 82.1 88.1 93.0 96.4 98.4 99.5 101 100 101 99.5 98.4 96.4 93.0 88.1 82.1 77.4 69.6 66.8 66.6 66.6 66.7 67.4 67.3 67.3 67.7
2.0 84.8 86.2 87.6 90.3 91.3 93.1 101 95.9 88.7 82.0 74.4 73.7 72.2 70.9 68.7 68.6 69.3 68.9 69.3 68.9 69.3 68.6 68.7 70.9 72.2 73.7 74.4 82.0 88.7 95.9 101 93.1 91.3 90.3 87.6 86.2 84.8 85.0 85.0 86.9 86.9 85.9 81.3 72.8 70.4 67.2 60.5 50.9 48.6 45.5 43.5 43.3 42.9 43.3 42.6 43.3 42.9 43.3 43.5 45.5 48.6 50.9 60.5 67.2 70.4 72.8 81.3 85.9 86.9 86.9 85.0 85.0
4.0 123 126 127 122 116 113 108 103 107 112 120 126 131 131 128 122 123 126 126 126 123 122 128 131 131 126 120 112 107 103 108 113 116 122 127 126 123 121 117 115 113 109 103 86.7 81.0 74.1 69.1 68.6 70.3 71.2 72.6 79.8 81.8 85.5 86.5 85.5 81.8 79.8 72.6 71.2 70.3 68.6 69.1 74.1 81.0 86.7 103 109 113 115 117 121
6.0 219 224 221 208 201 190 176 169 170 171 182 203 216 229 239 241 240 237 238 237 240 241 239 229 216 203 182 171 170 169 176 190 201 208 221 224 219 219 210 208 209 199 181 156 144 144 135 133 135 141 152 159 162 164 166 164 162 159 152 141 135 133 135 144 144 156 181 199 209 208 210 219
8.0 241 239 235 230 224 217 214 213 211 213 227 248 270 279 281 279 281 282 284 282 281 279 281 279 270 248 227 213 211 213 214 217 224 230 235 239 241 253 260 263 264 258 246 222 192 169 150 149 159 177 188 193 196 195 194 195 196 193 188 177 159 149 150 169 192 222 246 258 264 263 260 253
10.0 298 312 314 302 290 275 252 237 236 243 265 286 295 288 280 275 276 278 279 278 276 275 280 288 295 286 265 243 236 237 252 275 290 302 314 312 298 284 278 270 259 253 242 230 195 164 158 152 171 184 179 176 171 170 170 170 171 176 179 184 171 152 158 164 195 230 242 253 259 270 278 284
12.0 288 294 287 272 259 252 251 261 260 260 277 290 279 262 251 248 242 238 237 238 242 248 251 262 279 290 277 260 260 261 251 252 259 272 287 294 288 265 239 226 222 227 252 251 214 172 153 158 170 171 164 157 152 150 148 150 152 157 164 171 170 158 153 172 214 251 252 227 222 226 239 265
14.0 298 306 303 289 274 255 232 211 220 253 258 254 240 225 213 197 187 181 179 181 187 197 213 225 240 254 258 253 220 211 232 255 274 289 303 306 298 276 249 235 235 233 236 227 190 155 135 151 172 169 160 157 149 147 148 147 149 157 160 169 172 151 135 155 190 227 236 233 235 235 249 276
16.0 295 309 309 298 280 268 239 211 199 203 215 218 189 171 150 134 125 120 117 120 125 134 150 171 189 218 215 203 199 211 239 268 280 298 309 309 295 284 268 249 239 233 229 215 176 147 129 153 177 172 160 159 159 168 172 168 159 159 160 172 177 153 129 147 176 215 229 233 239 249 268 284
18.0 215 227 243 253 246 267 242 210 187 183 179 170 134 110 99.9 93.2 85.9 81.4 80.2 81.4 85.9 93.2 99.9 110 134 170 179 183 187 210 242 267 246 253 243 227 215 215 210 212 193 197 216 192 170 133 132 152 171 140 134 140 154 163 165 163 154 140 134 140 171 152 132 133 170 192 216 197 193 212 210 215
20.0 211 226 236 243 216 167 173 188 173 137 130 122 97.2 83.3 75.1 75.2 75.2 75.1 74.5 75.1 75.2 75.2 75.1 83.3 97.2 122 130 137 173 188 173 167 216 243 236 226 211 194 185 172 138 124 145 146 173 137 132 140 139 111 110 115 124 127 130 127 124 115 110 111 139 140 132 137 173 146 145 124 138 172 185 194
22.0 105 128 149 187 207 183 135 118 128 96.5 94.2 87.9 80.8 78.8 78.0 77.3 78.2 77.6 76.8 77.6 78.2 77.3 78.0 78.8 80.8 87.9 94.2 96.5 128 118 135 183 207 187 149 128 105 101 102 112 117 91.0 86.6 91.8 126 130 108 120 106 82.9 83.6 87.8 95.5 101 102 101 95.5 87.8 83.6 82.9 106 120 108 130 126 91.8 86.6 91.0 117 112 102 101
24.0 89.8 91.1 93.7 96.4 120 140 133 99.0 96.8 89.1 86.1 83.6 83.0 82.2 79.9 78.2 77.9 78.0 78.1 78.0 77.9 78.2 79.9 82.2 83.0 83.6 86.1 89.1 96.8 99.0 133 140 120 96.4 93.7 91.1 89.8 86.9 84.8 80.6 78.5 79.6 77.7 76.6 86.5 100 90.1 94.4 79.3 66.0 79.1 89.2 92.9 97.5 98.9 97.5 92.9 89.2 79.1 66.0 79.3 94.4 90.1 100 86.5 76.6 77.7 79.6 78.5 80.6 84.8 86.9
26.0 96.8 99.4 101 103 104 104 102 98.2 98.2 93.5 88.5 85.5 85.1 84.6 83.5 81.4 81.9 82.0 82.4 82.0 81.9 81.4 83.5 84.6 85.1 85.5 88.5 93.5 98.2 98.2 102 104 104 103 101 99.4 96.8 93.9 90.3 88.3 87.4 84.3 81.2 77.1 74.6 82.9 85.3 83.9 72.0 69.7 80.6 86.8 93.2 94.2 94.4 94.2 93.2 86.8 80.6 69.7 72.0 83.9 85.3 82.9 74.6 77.1 81.2 84.3 87.4 88.3 90.3 93.9
28.0 104 107 109 110 112 111 104 100 104 95.2 89.9 88.3 87.3 87.4 86.5 85.3 85.9 86.8 87.1 86.8 85.9 85.3 86.5 87.4 87.3 88.3 89.9 95.2 104 100 104 111 112 110 109 107 104 101 97.3 94.7 90.7 86.7 83.1 79.8 76.2 72.6 78.8 84.9 71.6 74.1 84.3 88.8 90.6 91.9 89.9 91.9 90.6 88.8 84.3 74.1 71.6 84.9 78.8 72.6 76.2 79.8 83.1 86.7 90.7 94.7 97.3 101
30.0 112 115 115 117 119 118 113 106 106 93.5 92.0 91.2 90.4 90.3 89.8 89.5 90.0 91.5 91.6 91.5 90.0 89.5 89.8 90.3 90.4 91.2 92.0 93.5 106 106 113 118 119 117 115 115 112 107 104 99.6 93.0 87.2 83.8 80.7 77.8 73.2 71.6 80.2 72.7 82.3 85.9 86.5 82.8 78.2 76.1 78.2 82.8 86.5 85.9 82.3 72.7 80.2 71.6 73.2 77.8 80.7 83.8 87.2 93.0 99.6 104 107
32.0 119 120 122 122 124 124 119 109 104 96.1 94.3 93.9 93.7 93.1 92.6 92.6 93.4 94.7 95.4 94.7 93.4 92.6 92.6 93.1 93.7 93.9 94.3 96.1 104 109 119 124 124 122 122 120 119 115 110 103 97.9 91.8 85.8 81.2 77.9 75.4 72.2 74.7 76.9 78.3 79.2 75.0 68.7 65.2 62.6 65.2 68.7 75.0 79.2 78.3 76.9 74.7 72.2 75.4 77.9 81.2 85.8 91.8 97.9 103 110 115
34.0 123 125 128 127 122 118 117 107 101 98.2 96.4 96.1 95.8 95.8 95.4 94.2 92.1 91.8 91.1 91.8 92.1 94.2 95.4 95.8 95.8 96.1 96.4 98.2 101 107 117 118 122 127 128 125 123 122 116 109 103 95.5 89.4 83.8 79.4 75.8 73.8 71.3 73.1 72.3 73.7 77.2 70.4 68.9 67.0 68.9 70.4 77.2 73.7 72.3 73.1 71.3 73.8 75.8 79.4 83.8 89.4 95.5 103 109 116 122
36.0 131 135 137 135 128 119 113 107 102 99.0 98.0 97.2 97.3 96.3 95.5 94.3 92.2 91.4 91.1 91.4 92.2 94.3 95.5 96.3 97.3 97.2 98.0 99.0 102 107 113 119 128 135 137 135 131 129 124 116 107 99.3 92.5 86.7 81.3 77.1 74.7 72.5 75.1 74.4 78.4 82.3 76.3 72.0 72.0 72.0 76.3 82.3 78.4 74.4 75.1 72.5 74.7 77.1 81.3 86.7 92.5 99.3 107 116 124 129
38.0 139 145 149 147 135 121 116 111 104 100 98.3 98.2 98.2 97.2 97.3 96.3 96.2 92.8 92.7 92.8 96.2 96.3 97.3 97.2 98.2 98.2 98.3 100 104 111 116 121 135 147 149 145 139 137 134 125 113 101 95.9 90.9 83.5 78.1 75.3 73.8 76.3 78.4 78.6 80.8 82.8 74.7 73.1 74.7 82.8 80.8 78.6 78.4 76.3 73.8 75.3 78.1 83.5 90.9 95.9 101 113 125 134 137
40.0 150 153 155 150 138 126 117 110 106 101 99.0 98.2 98.0 98.5 98.0 98.5 99.7 93.7 93.0 93.7 99.7 98.5 98.0 98.5 98.0 98.2 99.0 101 106 110 117 126 138 150 155 153 150 143 141 129 116 107 99.1 91.6 85.6 80.6 77.2 74.5 76.5 80.9 81.0 80.3 86.0 76.6 76.4 76.6 86.0 80.3 81.0 80.9 76.5 74.5 77.2 80.6 85.6 91.6 99.1 107 116 129 141 143
42.0 158 163 164 155 142 129 119 111 104 101 99.0 98.2 98.1 98.2 99.6 100 101 94.2 93.6 94.2 101 100 99.6 98.2 98.1 98.2 99.0 101 104 111 119 129 142 155 164 163 158 150 149 136 124 112 102 94.0 87.1 82.2 78.5 75.6 75.9 79.6 83.3 80.0 84.4 77.2 78.8 77.2 84.4 80.0 83.3 79.6 75.9 75.6 78.5 82.2 87.1 94.0 102 112 124 136 149 150
44.0 168 171 171 163 145 130 120 112 105 100 98.5 97.7 97.6 97.8 101 102 101 94.1 94.8 94.1 101 102 101 97.8 97.6 97.7 98.5 100 105 112 120 130 145 163 171 171 168 160 154 142 129 115 104 96.0 89.0 83.9 79.8 76.9 76.1 78.0 83.3 80.9 81.6 78.7 80.5 78.7 81.6 80.9 83.3 78.0 76.1 76.9 79.8 83.9 89.0 96.0 104 115 129 142 154 160
46.0 174 175 175 165 145 130 119 110 103 98.7 96.5 95.8 95.7 95.6 100 99.5 96.7 94.3 94.6 94.3 96.7 99.5 100 95.6 95.7 95.8 96.5 98.7 103 110 119 130 145 165 175 175 174 168 156 144 127 117 106 96.3 89.1 83.9 80.1 77.3 76.3 76.0 79.7 80.4 77.2 77.8 76.9 77.8 77.2 80.4 79.7 76.0 76.3 77.3 80.1 83.9 89.1 96.3 106 117 127 144 156 168
48.0 181 181 177 165 145 130 119 109 102 97.2 94.6 94.3 93.8 94.2 96.0 97.6 95.2 93.9 93.1 93.9 95.2 97.6 96.0 94.2 93.8 94.3 94.6 97.2 102 109 119 130 145 165 177 181 181 173 157 146 130 117 107 97.7 89.7 84.1 80.1 77.9 76.7 75.7 75.1 78.3 74.1 74.5 73.3 74.5 74.1 78.3 75.1 75.7 76.7 77.9 80.1 84.1 89.7 97.7 107 117 130 146 157 173
50.0 186 186 178 158 143 133 118 105 100 96.1 92.6 91.9 91.8 91.9 91.8 94.8 89.6 91.0 90.2 91.0 89.6 94.8 91.8 91.9 91.8 91.9 92.6 96.1 100 105 118 133 143 158 178 186 186 179 159 143 130 120 107 95.8 89.4 85.3 80.0 77.6 76.5 75.5 74.2 75.2 72.6 73.0 72.1 73.0 72.6 75.2 74.2 75.5 76.5 77.6 80.0 85.3 89.4 95.8 107 120 130 143 159 179
52.0 184 186 176 162 142 128 116 105 97.9 93.0 91.0 89.5 89.2 89.2 89.3 91.6 86.4 87.6 87.2 87.6 86.4 91.6 89.3 89.2 89.2 89.5 91.0 93.0 97.9 105 116 128 142 162 176 186 184 175 160 146 129 117 106 97.2 89.0 83.2 79.5 77.0 75.6 74.3 73.2 74.0 71.1 71.2 70.4 71.2 71.1 74.0 73.2 74.3 75.6 77.0 79.5 83.2 89.0 97.2 106 117 129 146 160 175
54.0 188 187 177 161 146 127 113 103 95.4 90.7 87.8 87.0 86.7 85.8 85.4 88.4 83.4 84.0 83.5 84.0 83.4 88.4 85.4 85.8 86.7 87.0 87.8 90.7 95.4 103 113 127 146 161 177 187 188 177 161 144 128 116 106 95.8 87.9 82.2 78.1 76.3 74.5 73.6 72.3 71.8 70.9 69.3 67.8 69.3 70.9 71.8 72.3 73.6 74.5 76.3 78.1 82.2 87.9 95.8 106 116 128 144 161 177
56.0 188 188 177 159 141 125 111 101 93.1 87.9 85.5 84.2 83.6 83.1 81.9 82.2 80.6 79.6 78.3 79.6 80.6 82.2 81.9 83.1 83.6 84.2 85.5 87.9 93.1 101 111 125 141 159 177 188 188 177 161 142 128 115 104 95.0 86.8 81.3 77.0 75.0 73.2 72.4 71.1 69.8 68.3 66.4 64.8 66.4 68.3 69.8 71.1 72.4 73.2 75.0 77.0 81.3 86.8 95.0 104 115 128 142 161 177
58.0 186 184 175 162 139 119 109 101 90.1 84.6 82.7 81.9 80.7 79.8 78.8 77.7 76.0 73.3 72.4 73.3 76.0 77.7 78.8 79.8 80.7 81.9 82.7 84.6 90.1 101 109 119 139 162 175 184 186 170 157 144 126 111 103 95.7 85.1 79.6 75.6 73.6 71.8 70.4 69.5 68.4 66.4 64.0 63.3 64.0 66.4 68.4 69.5 70.4 71.8 73.6 75.6 79.6 85.1 95.7 103 111 126 144 157 170
60.0 179 179 173 160 136 116 106 98.0 87.0 81.8 79.9 78.8 77.5 76.2 75.1 73.6 70.8 68.3 67.3 68.3 70.8 73.6 75.1 76.2 77.5 78.8 79.9 81.8 87.0 98.0 106 116 136 160 173 179 179 167 156 143 125 108 98.3 93.6 83.0 76.2 73.0 71.7 69.8 68.6 67.9 66.5 64.7 61.7 60.6 61.7 64.7 66.5 67.9 68.6 69.8 71.7 73.0 76.2 83.0 93.6 98.3 108 125 143 156 167
62.0 186 180 171 153 134 116 103 92.0 85.0 79.8 77.0 75.9 74.7 73.3 71.8 70.3 67.1 64.6 63.3 64.6 67.1 70.3 71.8 73.3 74.7 75.9 77.0 79.8 85.0 92.0 103 116 134 153 171 180 186 171 155 138 122 110 98.7 89.2 81.5 75.2 71.3 69.5 68.4 67.1 66.0 64.3 62.4 60.0 58.3 60.0 62.4 64.3 66.0 67.1 68.4 69.5 71.3 75.2 81.5 89.2 98.7 110 122 138 155 171
64.0 180 178 169 145 130 117 99.1 87.5 81.3 77.6 74.1 72.8 71.6 70.4 68.1 65.0 63.1 61.6 59.5 61.6 63.1 65.0 68.1 70.4 71.6 72.8 74.1 77.6 81.3 87.5 99.1 117 130 145 169 178 180 172 154 131 120 110 95.4 84.3 78.6 74.1 69.1 67.1 66.2 65.3 63.3 61.0 59.3 57.2 55.1 57.2 59.3 61.0 63.3 65.3 66.2 67.1 69.1 74.1 78.6 84.3 95.4 110 120 131 154 172
66.0 176 177 164 140 124 112 95.4 83.6 77.9 74.3 71.2 69.2 68.2 66.7 64.2 61.0 59.2 57.4 55.4 57.4 59.2 61.0 64.2 66.7 68.2 69.2 71.2 74.3 77.9 83.6 95.4 112 124 140 164 177 176 169 151 128 116 105 92.4 80.8 75.2 71.2 66.1 64.2 63.6 62.4 60.4 58.0 55.9 53.3 51.8 53.3 55.9 58.0 60.4 62.4 63.6 64.2 66.1 71.2 75.2 80.8 92.4 105 116 128 151 169
68.0 173 173 159 141 119 107 90.5 79.4 74.2 70.9 67.5 65.5 64.4 63.0 60.1 57.0 55.0 53.2 51.0 53.2 55.0 57.0 60.1 63.0 64.4 65.5 67.5 70.9 74.2 79.4 90.5 107 119 141 159 173 173 166 147 124 112 102 88.9 78.2 73.0 68.7 64.2 62.1 61.1 60.0 57.9 54.9 54.0 52.1 49.3 52.1 54.0 54.9 57.9 60.0 61.1 62.1 64.2 68.7 73.0 78.2 88.9 102 112 124 147 166
70.0 167 166 152 128 113 102 86.8 76.6 71.5 68.7 65.3 63.4 62.2 60.2 57.6 54.3 52.3 50.4 48.5 50.4 52.3 54.3 57.6 60.2 62.2 63.4 65.3 68.7 71.5 76.6 86.8 102 113 128 152 166 167 161 142 119 107 97.9 85.0 75.2 70.2 66.2 61.7 59.6 58.7 57.6 55.5 52.4 50.4 48.4 46.1 48.4 50.4 52.4 55.5 57.6 58.7 59.6 61.7 66.2 70.2 75.2 85.0 97.9 107 119 142 161
72.0 158 156 142 120 107 96.4 82.2 72.4 67.9 65.3 62.0 60.1 58.8 57.4 54.1 51.0 48.9 47.0 44.9 47.0 48.9 51.0 54.1 57.4 58.8 60.1 62.0 65.3 67.9 72.4 82.2 96.4 107 120 142 156 158 152 135 112 102 92.5 80.5 72.9 66.5 62.9 58.7 56.7 55.8 54.6 52.2 48.9 47.1 45.1 43.0 45.1 47.1 48.9 52.2 54.6 55.8 56.7 58.7 62.9 66.5 72.9 80.5 92.5 102 112 135 152
74.0 147 144 131 112 99.1 89.9 77.1 68.3 64.3 61.9 58.6 56.8 55.5 53.9 50.9 47.5 45.5 43.4 41.7 43.4 45.5 47.5 50.9 53.9 55.5 56.8 58.6 61.9 64.3 68.3 77.1 89.9 99.1 112 131 144 147 142 126 105 95.5 87.0 75.6 67.2 63.3 59.1 55.9 53.8 52.9 51.5 49.0 46.0 43.9 41.8 39.8 41.8 43.9 46.0 49.0 51.5 52.9 53.8 55.9 59.1 63.3 67.2 75.6 87.0 95.5 105 126 142
76.0 134 131 120 103 92.1 84.2 72.6 64.7 61.0 58.4 55.6 54.1 52.3 50.8 47.8 44.4 42.3 40.4 38.4 40.4 42.3 44.4 47.8 50.8 52.3 54.1 55.6 58.4 61.0 64.7 72.6 84.2 92.1 103 120 131 134 130 117 98.0 89.4 81.4 71.3 63.5 60.0 56.8 53.1 51.0 49.7 48.4 46.0 42.7 40.7 39.0 36.7 39.0 40.7 42.7 46.0 48.4 49.7 51.0 53.1 56.8 60.0 63.5 71.3 81.4 89.4 98.0 117 130
78.0 120 118 109 94.1 85.2 76.5 67.9 61.0 57.7 55.4 52.4 50.4 49.0 47.7 44.6 41.3 39.3 37.5 35.6 37.5 39.3 41.3 44.6 47.7 49.0 50.4 52.4 55.4 57.7 61.0 67.9 76.5 85.2 94.1 109 118 120 117 107 90.8 83.1 76.1 66.6 60.0 56.5 53.7 50.3 48.1 46.8 45.6 42.8 39.8 37.9 35.9 33.9 35.9 37.9 39.8 42.8 45.6 46.8 48.1 50.3 53.7 56.5 60.0 66.6 76.1 83.1 90.8 107 117
80.0 108 106 97.7 86.0 78.6 72.7 63.7 57.6 54.8 52.6 50.0 47.8 46.5 45.1 42.0 38.6 36.7 34.9 33.2 34.9 36.7 38.6 42.0 45.1 46.5 47.8 50.0 52.6 54.8 57.6 63.7 72.7 78.6 86.0 97.7 106 108 105 96.4 83.6 76.8 71.0 62.5 56.3 53.4 50.9 47.6 45.6 44.3 43.0 40.1 37.6 35.0 33.3 31.4 33.3 35.0 37.6 40.1 43.0 44.3 45.6 47.6 50.9 53.4 56.3 62.5 71.0 76.8 83.6 96.4 105
82.0 96.1 94.8 88.4 78.4 72.0 67.0 59.2 54.2 51.3 49.6 47.1 44.9 43.4 42.1 39.1 35.9 33.7 32.0 30.4 32.0 33.7 35.9 39.1 42.1 43.4 44.9 47.1 49.6 51.3 54.2 59.2 67.0 72.0 78.4 88.4 94.8 96.1 92.7 87.2 76.7 71.0 65.8 58.4 53.0 50.2 48.0 45.1 42.8 41.5 40.2 37.5 34.3 32.3 30.5 28.8 30.5 32.3 34.3 37.5 40.2 41.5 42.8 45.1 48.0 50.2 53.0 58.4 65.8 71.0 76.7 87.2 92.7
84.0 85.8 83.8 79.3 72.8 66.2 60.1 55.4 51.5 48.5 46.1 44.5 42.8 41.0 39.0 36.8 34.2 31.5 29.1 28.4 29.1 31.5 34.2 36.8 39.0 41.0 42.8 44.5 46.1 48.5 51.5 55.4 60.1 66.2 72.8 79.3 83.8 85.8 83.8 79.1 71.9 65.2 59.5 54.5 50.5 47.4 44.6 42.7 40.9 39.1 37.2 35.0 32.6 29.9 27.6 26.6 27.6 29.9 32.6 35.0 37.2 39.1 40.9 42.7 44.6 47.4 50.5 54.5 59.5 65.2 71.9 79.1 83.8
86.0 76.4 74.6 71.1 66.2 60.6 55.8 51.7 48.2 45.7 43.8 42.1 40.4 38.7 36.7 34.2 31.9 29.3 27.2 26.3 27.2 29.3 31.9 34.2 36.7 38.7 40.4 42.1 43.8 45.7 48.2 51.7 55.8 60.6 66.2 71.1 74.6 76.4 74.9 70.7 66.7 59.8 54.9 51.0 47.3 44.5 42.3 40.1 38.6 36.8 34.9 32.7 30.1 27.7 25.3 24.5 25.3 27.7 30.1 32.7 34.9 36.8 38.6 40.1 42.3 44.5 47.3 51.0 54.9 59.8 66.7 70.7 74.9
88.0 68.0 66.7 63.8 59.8 55.4 51.5 48.1 45.4 43.1 41.2 39.7 38.3 36.5 34.4 32.1 29.6 27.2 25.2 24.4 25.2 27.2 29.6 32.1 34.4 36.5 38.3 39.7 41.2 43.1 45.4 48.1 51.5 55.4 59.8 63.8 66.7 68.0 66.9 63.8 59.7 55.0 51.0 47.3 44.5 42.0 40.0 38.2 36.4 34.7 32.4 30.6 28.2 25.7 23.6 22.8 23.6 25.7 28.2 30.6 32.4 34.7 36.4 38.2 40.0 42.0 44.5 47.3 51.0 55.0 59.7 63.8 66.9
90.0 60.9 59.4 57.4 55.4 51.1 47.4 45.3 43.4 40.9 39.0 37.9 36.9 34.8 32.2 30.4 28.6 25.5 23.5 23.0 23.5 25.5 28.6 30.4 32.2 34.8 36.9 37.9 39.0 40.9 43.4 45.3 47.4 51.1 55.4 57.4 59.4 60.9 59.7 57.8 55.3 50.9 46.7 44.6 42.5 39.6 37.5 36.3 35.0 32.9 30.5 28.8 27.0 23.9 21.6 21.2 21.6 23.9 27.0 28.8 30.5 32.9 35.0 36.3 37.5 39.6 42.5 44.6 46.7 50.9 55.3 57.8 59.7
92.0 55.2 53.9 52.3 49.9 47.5 44.9 42.4 40.7 39.2 37.6 36.1 34.7 33.1 31.2 28.9 26.4 24.2 22.2 21.7 22.2 24.2 26.4 28.9 31.2 33.1 34.7 36.1 37.6 39.2 40.7 42.4 44.9 47.5 49.9 52.3 53.9 55.2 54.3 52.6 49.9 46.9 44.3 41.8 39.7 37.7 36.1 34.4 33.0 31.3 29.4 27.2 24.8 22.4 20.4 19.9 20.4 22.4 24.8 27.2 29.4 31.3 33.0 34.4 36.1 37.7 39.7 41.8 44.3 46.9 49.9 52.6 54.3
94.0 49.7 48.6 47.5 45.9 43.9 42.0 40.3 38.5 37.2 35.9 34.5 33.2 31.6 29.7 27.5 25.1 22.8 21.0 20.6 21.0 22.8 25.1 27.5 29.7 31.6 33.2 34.5 35.9 37.2 38.5 40.3 42.0 43.9 45.9 47.5 48.6 49.7 49.0 47.9 45.8 43.8 41.5 39.5 37.5 36.0 34.4 33.0 31.4 30.3 27.9 25.7 23.3 21.0 19.2 18.7 19.2 21.0 23.3 25.7 27.9 30.3 31.4 33.0 34.4 36.0 37.5 39.5 41.5 43.8 45.8 47.9 49.0
96.0 44.5 43.8 43.0 41.8 40.4 39.0 37.7 36.6 35.3 34.2 33.0 31.6 30.0 28.1 25.9 23.6 21.4 19.7 19.3 19.7 21.4 23.6 25.9 28.1 30.0 31.6 33.0 34.2 35.3 36.6 37.7 39.0 40.4 41.8 43.0 43.8 44.5 44.3 43.3 41.9 39.8 38.5 36.9 35.3 33.9 32.6 31.2 29.9 28.2 26.3 24.2 21.8 19.6 17.8 17.4 17.8 19.6 21.8 24.2 26.3 28.2 29.9 31.2 32.6 33.9 35.3 36.9 38.5 39.8 41.9 43.3 44.3
98.0 40.4 39.6 39.1 38.3 37.5 36.7 35.5 34.6 33.5 32.5 31.5 30.1 28.6 26.8 24.6 22.3 20.7 18.6 18.3 18.6 20.7 22.3 24.6 26.8 28.6 30.1 31.5 32.5 33.5 34.6 35.5 36.7 37.5 38.3 39.1 39.6 40.4 40.2 39.6 38.7 37.5 36.1 34.9 33.6 32.3 31.1 30.0 28.6 27.0 25.2 23.1 20.7 18.5 16.9 16.5 16.9 18.5 20.7 23.1 25.2 27.0 28.6 30.0 31.1 32.3 33.6 34.9 36.1 37.5 38.7 39.6 40.2
100.0 36.4 36.0 35.7 35.2 34.8 34.2 33.6 32.7 31.9 31.0 29.9 28.7 27.1 25.3 23.2 21.0 19.0 17.5 17.3 17.5 19.0 21.0 23.2 25.3 27.1 28.7 29.9 31.0 31.9 32.7 33.6 34.2 34.8 35.2 35.7 36.0 36.4 36.5 36.1 35.5 34.8 33.9 32.9 31.8 30.8 29.7 28.5 27.2 25.7 23.8 21.7 19.4 17.3 15.8 15.5 15.8 17.3 19.4 21.7 23.8 25.7 27.2 28.5 29.7 30.8 31.8 32.9 33.9 34.8 35.5 36.1 36.5
102.0 33.1 32.7 32.6 32.6 32.4 32.0 31.6 31.1 30.5 29.7 28.7 27.4 26.0 24.2 22.1 20.0 17.9 16.6 16.4 16.6 17.9 20.0 22.1 24.2 26.0 27.4 28.7 29.7 30.5 31.1 31.6 32.0 32.4 32.6 32.6 32.7 33.1 33.1 32.9 32.7 32.3 31.7 30.9 29.9 29.1 28.1 27.0 25.8 24.3 22.4 20.4 18.2 15.7 14.8 14.6 14.8 15.7 18.2 20.4 22.4 24.3 25.8 27.0 28.1 29.1 29.9 30.9 31.7 32.3 32.7 32.9 33.1
104.0 30.3 30.0 29.7 29.9 30.0 30.0 29.7 29.3 28.9 28.3 27.1 25.8 24.7 23.4 20.8 18.4 17.0 16.0 15.5 16.0 17.0 18.4 20.8 23.4 24.7 25.8 27.1 28.3 28.9 29.3 29.7 30.0 30.0 29.9 29.7 30.0 30.3 30.2 30.1 30.0 29.9 29.5 28.9 28.1 27.6 26.8 25.6 24.1 22.9 21.6 19.2 16.6 15.0 14.1 13.8 14.1 15.0 16.6 19.2 21.6 22.9 24.1 25.6 26.8 27.6 28.1 28.9 29.5 29.9 30.0 30.1 30.2
106.0 27.7 27.4 27.4 27.6 27.9 28.0 28.1 27.7 27.3 26.7 25.9 24.9 23.0 21.8 19.9 17.8 16.0 15.0 14.9 15.0 16.0 17.8 19.9 21.8 23.0 24.9 25.9 26.7 27.3 27.7 28.1 28.0 27.9 27.6 27.4 27.4 27.7 27.7 27.8 27.9 27.8 27.6 27.2 26.8 26.1 25.4 24.3 23.2 21.7 20.0 18.1 16.0 14.1 13.1 13.1 13.1 14.1 16.0 18.1 20.0 21.7 23.2 24.3 25.4 26.1 26.8 27.2 27.6 27.8 27.9 27.8 27.7
108.0 25.7 25.3 25.4 25.7 26.1 26.5 26.6 26.5 26.2 25.6 24.8 23.7 22.4 20.7 18.9 16.9 15.2 14.3 14.3 14.3 15.2 16.9 18.9 20.7 22.4 23.7 24.8 25.6 26.2 26.5 26.6 26.5 26.1 25.7 25.4 25.3 25.7 25.6 25.6 25.8 26.0 26.0 25.7 25.5 25.0 24.2 23.1 22.1 20.6 19.0 17.0 15.0 13.3 12.4 12.3 12.4 13.3 15.0 17.0 19.0 20.6 22.1 23.1 24.2 25.0 25.5 25.7 26.0 26.0 25.8 25.6 25.6
110.0 23.8 23.4 23.6 24.0 24.5 24.9 25.1 25.1 25.0 24.4 23.7 22.7 21.4 19.8 18.0 16.0 14.4 13.6 13.6 13.6 14.4 16.0 18.0 19.8 21.4 22.7 23.7 24.4 25.0 25.1 25.1 24.9 24.5 24.0 23.6 23.4 23.8 23.8 23.8 24.1 24.2 24.5 24.3 24.1 23.5 22.9 22.0 21.0 19.5 17.9 16.0 14.1 12.4 11.7 11.7 11.7 12.4 14.1 16.0 17.9 19.5 21.0 22.0 22.9 23.5 24.1 24.3 24.5 24.2 24.1 23.8 23.8
112.0 22.0 21.6 21.6 22.2 22.8 23.3 23.7 23.8 23.7 23.2 22.6 21.6 20.6 18.8 17.0 15.1 13.7 13.1 13.1 13.1 13.7 15.1 17.0 18.8 20.6 21.6 22.6 23.2 23.7 23.8 23.7 23.3 22.8 22.2 21.6 21.6 22.0 22.0 22.1 22.4 22.7 22.9 22.8 22.8 22.3 21.8 20.9 19.8 18.5 16.8 15.0 13.0 11.6 11.1 11.0 11.1 11.6 13.0 15.0 16.8 18.5 19.8 20.9 21.8 22.3 22.8 22.8 22.9 22.7 22.4 22.1 22.0
114.0 20.3 20.1 20.1 20.6 21.4 21.9 22.3 22.5 22.4 22.0 21.4 20.5 19.2 17.7 15.9 14.2 12.9 12.5 12.5 12.5 12.9 14.2 15.9 17.7 19.2 20.5 21.4 22.0 22.4 22.5 22.3 21.9 21.4 20.6 20.1 20.1 20.3 20.4 20.4 20.6 21.1 21.4 21.5 21.4 21.1 20.5 19.7 18.7 17.3 15.8 13.9 12.1 10.9 10.4 10.5 10.4 10.9 12.1 13.9 15.8 17.3 18.7 19.7 20.5 21.1 21.4 21.5 21.4 21.1 20.6 20.4 20.4
116.0 19.0 18.8 18.7 19.2 19.9 20.6 21.1 21.3 21.3 21.0 20.4 19.5 18.3 16.8 15.1 13.5 12.4 12.0 11.9 12.0 12.4 13.5 15.1 16.8 18.3 19.5 20.4 21.0 21.3 21.3 21.1 20.6 19.9 19.2 18.7 18.8 19.0 19.1 19.1 19.3 19.8 20.1 20.3 20.2 19.9 19.4 18.6 17.6 16.3 14.7 12.9 11.2 10.2 9.9 9.9 9.9 10.2 11.2 12.9 14.7 16.3 17.6 18.6 19.4 19.9 20.2 20.3 20.1 19.8 19.3 19.1 19.1
118.0 17.8 17.6 17.5 17.9 18.7 19.4 19.9 20.2 20.2 20.0 19.4 18.5 17.4 15.9 14.3 12.8 11.8 11.5 11.5 11.5 11.8 12.8 14.3 15.9 17.4 18.5 19.4 20.0 20.2 20.2 19.9 19.4 18.7 17.9 17.5 17.6 17.8 17.9 17.9 18.1 18.5 18.8 19.0 19.0 18.8 18.3 17.5 16.5 15.3 13.7 11.9 10.4 9.5 9.3 9.3 9.3 9.5 10.4 11.9 13.7 15.3 16.5 17.5 18.3 18.8 19.0 19.0 18.8 18.5 18.1 17.9 17.9
120.0 16.6 16.4 16.3 16.6 17.3 18.0 18.6 19.0 19.0 18.7 18.2 17.4 16.2 14.8 13.3 11.9 11.2 11.0 10.9 11.0 11.2 11.9 13.3 14.8 16.2 17.4 18.2 18.7 19.0 19.0 18.6 18.0 17.3 16.6 16.3 16.4 16.6 16.6 16.6 16.8 17.1 17.5 17.7 17.8 17.5 17.1 16.4 15.4 14.2 12.6 11.0 9.6 8.9 8.8 8.8 8.8 8.9 9.6 11.0 12.6 14.2 15.4 16.4 17.1 17.5 17.8 17.7 17.5 17.1 16.8 16.6 16.6
122.0 15.7 15.5 15.4 15.5 16.2 17.1 17.5 17.8 17.9 17.6 17.2 16.6 15.3 13.6 12.5 11.6 10.7 10.5 10.5 10.5 10.7 11.6 12.5 13.6 15.3 16.6 17.2 17.6 17.9 17.8 17.5 17.1 16.2 15.5 15.4 15.5 15.7 15.7 15.7 15.8 16.1 16.5 16.7 16.7 16.5 15.9 15.4 14.7 13.2 11.7 10.1 9.2 8.5 8.4 8.4 8.4 8.5 9.2 10.1 11.7 13.2 14.7 15.4 15.9 16.5 16.7 16.7 16.5 16.1 15.8 15.7 15.7
124.0 14.8 14.6 14.5 14.6 15.2 16.0 16.4 16.7 16.9 16.6 16.2 15.6 14.3 12.7 11.7 11.0 10.2 10.2 10.2 10.2 10.2 11.0 11.7 12.7 14.3 15.6 16.2 16.6 16.9 16.7 16.4 16.0 15.2 14.6 14.5 14.6 14.8 14.8 14.8 14.9 15.1 15.5 15.7 15.7 15.5 14.9 14.4 13.7 12.2 10.4 9.3 8.6 8.0 8.0 8.0 8.0 8.0 8.6 9.3 10.4 12.2 13.7 14.4 14.9 15.5 15.7 15.7 15.5 15.1 14.9 14.8 14.8
126.0 13.9 13.8 13.6 13.7 14.2 14.9 15.3 15.6 15.8 15.5 15.1 14.6 13.3 11.8 10.9 10.3 9.8 9.7 9.7 9.7 9.8 10.3 10.9 11.8 13.3 14.6 15.1 15.5 15.8 15.6 15.3 14.9 14.2 13.7 13.6 13.8 13.9 13.9 13.9 13.9 14.1 14.4 14.6 14.6 14.5 13.9 13.4 12.6 11.2 9.4 8.5 7.9 7.5 7.5 7.5 7.5 7.5 7.9 8.5 9.4 11.2 12.6 13.4 13.9 14.5 14.6 14.6 14.4 14.1 13.9 13.9 13.9
128.0 13.1 13.0 12.8 12.8 13.2 13.7 14.2 14.5 14.6 14.5 14.0 13.3 12.2 11.1 10.1 9.5 9.3 9.3 9.3 9.3 9.3 9.5 10.1 11.1 12.2 13.3 14.0 14.5 14.6 14.5 14.2 13.7 13.2 12.8 12.8 13.0 13.1 13.1 13.1 13.0 13.2 13.4 13.5 13.6 13.3 13.0 12.3 11.4 10.1 8.9 7.8 7.2 7.1 7.1 7.1 7.1 7.1 7.2 7.8 8.9 10.1 11.4 12.3 13.0 13.3 13.6 13.5 13.4 13.2 13.0 13.1 13.1
130.0 12.4 12.3 12.1 12.0 12.3 12.8 13.3 13.6 13.6 13.5 13.0 12.3 11.3 10.3 9.5 9.0 8.9 8.9 8.9 8.9 8.9 9.0 9.5 10.3 11.3 12.3 13.0 13.5 13.6 13.6 13.3 12.8 12.3 12.0 12.1 12.3 12.4 12.4 12.3 12.3 12.3 12.4 12.6 12.6 12.3 12.0 11.3 10.3 9.2 7.8 7.2 6.7 6.7 6.7 6.7 6.7 6.7 6.7 7.2 7.8 9.2 10.3 11.3 12.0 12.3 12.6 12.6 12.4 12.3 12.3 12.3 12.4
132.0 11.7 11.6 11.4 11.3 11.4 11.7 12.2 12.5 12.6 12.5 12.0 11.1 10.4 9.7 8.8 8.5 8.4 8.5 8.5 8.5 8.4 8.5 8.8 9.7 10.4 11.1 12.0 12.5 12.6 12.5 12.2 11.7 11.4 11.3 11.4 11.6 11.7 11.7 11.6 11.5 11.5 11.5 11.6 11.5 11.4 11.0 10.2 9.1 8.3 7.5 6.6 6.3 6.2 6.3 6.3 6.3 6.2 6.3 6.6 7.5 8.3 9.1 10.2 11.0 11.4 11.5 11.6 11.5 11.5 11.5 11.6 11.7
134.0 11.0 10.9 10.7 10.5 10.6 10.8 11.2 11.5 11.5 11.2 10.8 10.0 9.4 8.9 8.2 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.2 8.9 9.4 10.0 10.8 11.2 11.5 11.5 11.2 10.8 10.6 10.5 10.7 10.9 11.0 11.0 10.9 10.7 10.7 10.7 10.7 10.5 10.3 10.0 9.2 8.1 7.4 6.8 6.0 5.9 5.9 5.9 6.0 5.9 5.9 5.9 6.0 6.8 7.4 8.1 9.2 10.0 10.3 10.5 10.7 10.7 10.7 10.7 10.9 11.0
136.0 10.3 10.3 10.1 9.8 9.8 9.9 10.3 10.4 10.4 10.3 9.8 9.1 8.5 8.1 7.6 7.5 7.6 7.6 7.7 7.6 7.6 7.5 7.6 8.1 8.5 9.1 9.8 10.3 10.4 10.4 10.3 9.9 9.8 9.8 10.1 10.3 10.3 10.3 10.2 10.0 9.9 9.8 9.7 9.5 9.3 8.9 8.2 7.4 6.6 6.1 5.5 5.5 5.5 5.6 5.6 5.6 5.5 5.5 5.5 6.1 6.6 7.4 8.2 8.9 9.3 9.5 9.7 9.8 9.9 10.0 10.2 10.3
138.0 9.7 9.6 9.5 9.2 9.0 9.1 9.3 9.4 9.4 9.3 8.8 8.2 7.8 7.4 7.1 7.2 7.2 7.3 7.3 7.3 7.2 7.2 7.1 7.4 7.8 8.2 8.8 9.3 9.4 9.4 9.3 9.1 9.0 9.2 9.5 9.6 9.7 9.7 9.6 9.4 9.2 9.0 8.9 8.6 8.4 8.0 7.3 6.4 5.9 5.5 5.2 5.2 5.3 5.3 5.3 5.3 5.3 5.2 5.2 5.5 5.9 6.4 7.3 8.0 8.4 8.6 8.9 9.0 9.2 9.4 9.6 9.7
140.0 9.0 9.0 8.8 8.5 8.3 8.2 8.3 8.4 8.4 8.2 7.8 7.3 7.0 6.8 6.6 6.7 6.8 6.9 6.9 6.9 6.8 6.7 6.6 6.8 7.0 7.3 7.8 8.2 8.4 8.4 8.3 8.2 8.3 8.5 8.8 9.0 9.0 9.0 8.9 8.6 8.4 8.2 8.0 7.6 7.4 7.0 6.3 5.6 5.2 5.0 4.7 4.8 4.9 5.0 5.0 5.0 4.9 4.8 4.7 5.0 5.2 5.6 6.3 7.0 7.4 7.6 8.0 8.2 8.4 8.6 8.9 9.0
150.0 5.1 5.1 5.0 4.7 4.5 4.1 3.8 3.6 3.5 3.5 3.5 3.6 3.7 3.9 4.2 4.4 4.5 4.6 4.6 4.6 4.5 4.4 4.2 3.9 3.7 3.6 3.5 3.5 3.5 3.6 3.8 4.1 4.5 4.7 5.0 5.1 5.1 5.1 5.0 4.8 4.5 4.2 3.8 3.5 3.2 2.9 2.7 2.6 2.6 2.8 2.9 3.0 3.1 3.2 3.2 3.2 3.1 3.0 2.9 2.8 2.6 2.6 2.7 2.9 3.2 3.5 3.8 4.2 4.5 4.8 5.0 5.1
160.0 2.1 2.1 2.0 1.9 1.9 1.8 1.7 1.6 1.5 1.5 1.5 1.6 1.7 1.8 2.0 2.0 2.1 2.2 2.2 2.2 2.1 2.0 2.0 1.8 1.7 1.6 1.5 1.5 1.5 1.6 1.7 1.8 1.9 1.9 2.0 2.1 2.1 2.1 2.0 2.0 1.9 1.8 1.7 1.6 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.6 1.7 1.8 1.9 2.0 2.0 2.1
170.0 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.5 1.5 1.5 1.6 1.6 1.6 1.5 1.5 1.5 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
180.0 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6
