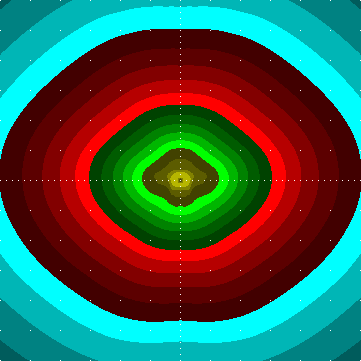

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] 8042806sM2.tm
# [LUMINAIRE] IJT-M1
# [LUMCAT] Villa
# [DATE] 29/11/2011 12:42:34
# down given: 84.8%
# out given: 58.9%
# tilt: 0.00
# [LAMP] 1 ME 70 5600 2800 E27
# Bulbs: 1, 5600 lm each
# Source file: Villa_IJT-M1_1_ME_70_5600_2800_E27.ldt
# Luminaire flux = 594 raw, for the given bulb(s) it would be 3326 lm,
# 59.4 % of the bulb flux
# between 75 and 90: 14.4 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 75.6 cd / 1000 lm , 23.7 % of the luminaire flux
# 90deg and above: max 45.3 cd / 1000 lm , 15.8 % of the luminaire flux
# CutOff Type: CIE_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 428 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:1524 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 127 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 117 cd / 1000 lm,
# maximum spec. lum. intensity 209 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 39.6 39.5 39.4 39.5 39.3 39.0 38.8 39.1 38.9 38.7 38.7 38.7 38.9 40.6 42.0 43.2 43.9 44.0 44.1 44.0 43.9 43.2 42.0 40.6 38.9 38.7 38.7 38.7 38.9 39.1 38.8 39.0 39.3 39.5 39.4 39.5 39.6 39.5 39.6 39.8 39.9 39.5 39.4 40.2 41.4 43.0 44.7 46.1 47.4 48.9 49.7 50.4 51.0 51.2 51.1 51.2 51.0 50.4 49.7 48.9 47.4 46.1 44.7 43.0 41.4 40.2 39.4 39.5 39.9 39.8 39.6 39.5
2.0 55.6 55.1 54.3 53.8 53.5 53.6 53.5 52.7 51.0 50.3 48.9 48.5 48.0 47.1 45.4 44.3 43.3 43.4 43.2 43.4 43.3 44.3 45.4 47.1 48.0 48.5 48.9 50.3 51.0 52.7 53.5 53.6 53.5 53.8 54.3 55.1 55.6 56.2 57.2 58.4 59.1 58.7 57.2 55.1 53.1 51.9 49.9 48.7 48.1 47.1 45.1 43.4 42.6 42.0 41.6 42.0 42.6 43.4 45.1 47.1 48.1 48.7 49.9 51.9 53.1 55.1 57.2 58.7 59.1 58.4 57.2 56.2
4.0 101 101 100 98.1 94.4 90.9 87.3 84.3 80.8 78.3 78.0 77.9 77.8 77.9 77.9 77.2 77.5 77.3 77.2 77.3 77.5 77.2 77.9 77.9 77.8 77.9 78.0 78.3 80.8 84.3 87.3 90.9 94.4 98.1 100 101 101 100 100 98.8 96.6 93.7 89.7 85.6 81.3 79.1 77.4 78.2 80.0 83.3 86.2 89.4 92.4 94.4 94.6 94.4 92.4 89.4 86.2 83.3 80.0 78.2 77.4 79.1 81.3 85.6 89.7 93.7 96.6 98.8 100 100
6.0 149 148 146 142 137 133 131 130 129 132 134 135 136 139 143 144 147 146 146 146 147 144 143 139 136 135 134 132 129 130 131 133 137 142 146 148 149 147 142 140 137 135 133 130 129 128 127 127 128 131 135 139 142 146 147 146 142 139 135 131 128 127 127 128 129 130 133 135 137 140 142 147
8.0 183 179 174 171 167 163 163 162 162 165 169 172 177 181 185 187 191 193 193 193 191 187 185 181 177 172 169 165 162 162 163 163 167 171 174 179 183 186 187 184 179 173 167 161 154 150 147 145 146 148 153 158 162 165 167 165 162 158 153 148 146 145 147 150 154 161 167 173 179 184 187 186
10.0 191 190 186 183 182 182 180 181 181 183 186 188 192 196 199 203 206 209 209 209 206 203 199 196 192 188 186 183 181 181 180 182 182 183 186 190 191 192 190 188 185 180 177 172 163 158 155 152 152 154 157 157 157 156 154 156 157 157 157 154 152 152 155 158 163 172 177 180 185 188 190 192
12.0 191 190 185 181 180 181 182 184 186 189 192 193 194 195 197 198 200 201 202 201 200 198 197 195 194 193 192 189 186 184 182 181 180 181 185 190 191 185 178 174 173 173 176 177 172 164 157 151 148 149 150 144 138 134 132 134 138 144 150 149 148 151 157 164 172 177 176 173 173 174 178 185
14.0 182 183 179 175 174 175 174 173 174 178 182 183 183 180 181 180 178 177 176 177 178 180 181 180 183 183 182 178 174 173 174 175 174 175 179 183 182 173 166 164 167 171 173 171 163 154 148 143 140 140 134 126 118 114 112 114 118 126 134 140 140 143 148 154 163 171 173 171 167 164 166 173
16.0 166 169 167 166 167 168 167 163 162 162 164 163 163 161 156 152 148 145 143 145 148 152 156 161 163 163 164 162 162 163 167 168 167 166 167 169 166 161 155 153 157 160 158 155 148 140 134 131 130 126 120 110 103 102 102 102 103 110 120 126 130 131 134 140 148 155 158 160 157 153 155 161
18.0 148 152 155 156 156 157 156 151 149 147 144 141 138 135 128 122 116 112 110 112 116 122 128 135 138 141 144 147 149 151 156 157 156 156 155 152 148 144 141 138 138 139 138 135 131 129 124 121 119 113 103 93.4 91.3 94.8 96.2 94.8 91.3 93.4 103 113 119 121 124 129 131 135 138 139 138 138 141 144
20.0 130 137 144 146 144 142 140 136 133 129 126 119 116 111 104 98.5 93.3 91.2 90.9 91.2 93.3 98.5 104 111 116 119 126 129 133 136 140 142 144 146 144 137 130 127 122 116 112 111 114 117 117 115 113 109 106 96.6 85.3 78.5 81.3 84.3 83.7 84.3 81.3 78.5 85.3 96.6 106 109 113 115 117 117 114 111 112 116 122 127
22.0 107 116 126 133 133 129 123 119 116 112 108 102 98.0 94.5 88.1 83.1 80.4 79.8 79.5 79.8 80.4 83.1 88.1 94.5 98.0 102 108 112 116 119 123 129 133 133 126 116 107 102 98.3 93.7 88.9 87.4 90.8 96.3 99.3 99.9 99.0 97.1 91.8 82.7 73.8 72.2 74.6 73.8 72.6 73.8 74.6 72.2 73.8 82.7 91.8 97.1 99.0 99.9 99.3 96.3 90.8 87.4 88.9 93.7 98.3 102
24.0 85.0 92.5 102 113 117 117 112 105 102 98.0 94.1 89.7 86.0 83.1 81.0 77.9 78.3 79.2 79.9 79.2 78.3 77.9 81.0 83.1 86.0 89.7 94.1 98.0 102 105 112 117 117 113 102 92.5 85.0 80.8 79.7 78.9 78.1 75.7 74.7 77.6 82.0 85.8 87.3 87.2 81.4 72.1 66.9 70.1 72.7 71.9 71.3 71.9 72.7 70.1 66.9 72.1 81.4 87.2 87.3 85.8 82.0 77.6 74.7 75.7 78.1 78.9 79.7 80.8
26.0 80.3 85.6 90.8 97.6 103 104 102 97.2 93.4 88.8 85.5 82.0 80.9 81.7 82.6 82.0 83.1 84.8 85.2 84.8 83.1 82.0 82.6 81.7 80.9 82.0 85.5 88.8 93.4 97.2 102 104 103 97.6 90.8 85.6 80.3 76.6 74.5 73.7 73.6 72.3 70.1 68.6 70.1 74.1 79.2 80.9 75.2 69.3 69.3 74.8 76.2 74.3 73.9 74.3 76.2 74.8 69.3 69.3 75.2 80.9 79.2 74.1 70.1 68.6 70.1 72.3 73.6 73.7 74.5 76.6
28.0 86.4 91.3 95.2 99.6 99.3 98.3 95.6 92.0 90.5 85.8 82.5 81.1 82.9 85.2 87.0 87.3 89.2 90.1 90.5 90.1 89.2 87.3 87.0 85.2 82.9 81.1 82.5 85.8 90.5 92.0 95.6 98.3 99.3 99.6 95.2 91.3 86.4 82.0 79.4 77.1 74.4 71.5 69.6 68.1 67.3 67.8 73.1 77.9 74.7 72.7 74.4 78.8 76.5 74.6 72.5 74.6 76.5 78.8 74.4 72.7 74.7 77.9 73.1 67.8 67.3 68.1 69.6 71.5 74.4 77.1 79.4 82.0
30.0 90.0 94.1 99.6 104 103 99.9 95.2 90.9 89.5 85.4 83.7 84.0 87.0 90.2 91.5 92.3 93.1 92.5 92.9 92.5 93.1 92.3 91.5 90.2 87.0 84.0 83.7 85.4 89.5 90.9 95.2 99.9 103 104 99.6 94.1 90.0 85.9 82.2 78.7 75.7 73.0 69.6 67.8 66.6 66.5 68.8 75.4 74.4 73.8 76.5 77.5 73.4 71.1 69.2 71.1 73.4 77.5 76.5 73.8 74.4 75.4 68.8 66.5 66.6 67.8 69.6 73.0 75.7 78.7 82.2 85.9
32.0 89.8 92.8 96.0 98.8 100 100 96.3 90.9 88.9 85.8 86.0 86.8 90.7 93.7 93.7 94.4 93.2 92.7 92.5 92.7 93.2 94.4 93.7 93.7 90.7 86.8 86.0 85.8 88.9 90.9 96.3 100 100 98.8 96.0 92.8 89.8 87.2 84.9 81.9 78.2 75.0 72.3 68.4 66.5 65.8 66.1 70.6 72.3 72.1 76.4 73.8 69.1 68.0 67.2 68.0 69.1 73.8 76.4 72.1 72.3 70.6 66.1 65.8 66.5 68.4 72.3 75.0 78.2 81.9 84.9 87.2
34.0 92.5 94.7 96.5 96.5 96.7 95.7 94.7 91.8 88.9 87.6 88.1 90.0 93.2 94.0 94.1 93.8 92.2 91.9 91.4 91.9 92.2 93.8 94.1 94.0 93.2 90.0 88.1 87.6 88.9 91.8 94.7 95.7 96.7 96.5 96.5 94.7 92.5 90.7 88.0 84.6 81.3 77.4 73.5 70.6 67.6 66.2 66.0 67.7 69.8 70.2 74.0 71.2 67.6 66.8 66.7 66.8 67.6 71.2 74.0 70.2 69.8 67.7 66.0 66.2 67.6 70.6 73.5 77.4 81.3 84.6 88.0 90.7
36.0 98.6 101 104 104 101 97.4 94.5 92.0 90.2 89.2 89.5 91.4 92.8 93.0 94.0 95.0 94.2 93.5 92.6 93.5 94.2 95.0 94.0 93.0 92.8 91.4 89.5 89.2 90.2 92.0 94.5 97.4 101 104 104 101 98.6 97.3 94.9 89.9 84.7 80.0 76.0 72.6 69.5 67.3 66.1 67.3 69.8 70.0 72.4 72.1 71.1 69.6 69.0 69.6 71.1 72.1 72.4 70.0 69.8 67.3 66.1 67.3 69.5 72.6 76.0 80.0 84.7 89.9 94.9 97.3
38.0 104 107 111 110 106 101 96.5 93.9 92.2 90.8 90.5 91.3 93.2 94.9 96.1 97.4 97.6 95.8 94.5 95.8 97.6 97.4 96.1 94.9 93.2 91.3 90.5 90.8 92.2 93.9 96.5 101 106 110 111 107 104 103 101 95.4 89.0 83.5 78.5 74.2 70.9 68.5 66.9 67.6 70.1 72.0 73.2 73.7 73.3 70.3 69.7 70.3 73.3 73.7 73.2 72.0 70.1 67.6 66.9 68.5 70.9 74.2 78.5 83.5 89.0 95.4 101 103
40.0 110 114 117 116 110 104 99.7 96.2 93.5 91.9 91.2 92.4 94.5 96.4 98.4 100 100 97.7 96.3 97.7 100 100 98.4 96.4 94.5 92.4 91.2 91.9 93.5 96.2 99.7 104 110 116 117 114 110 108 108 101 92.8 86.2 81.1 76.3 72.6 69.7 67.8 67.9 70.0 72.5 73.1 74.0 75.2 72.7 72.1 72.7 75.2 74.0 73.1 72.5 70.0 67.9 67.8 69.7 72.6 76.3 81.1 86.2 92.8 101 108 108
42.0 118 120 122 121 114 107 102 97.4 94.4 92.7 92.3 93.1 94.7 97.4 100 102 102 99.1 98.1 99.1 102 102 100 97.4 94.7 93.1 92.3 92.7 94.4 97.4 102 107 114 121 122 120 118 114 111 106 97.0 89.3 83.3 78.2 73.7 70.8 69.1 68.4 69.8 72.7 74.0 74.9 76.9 74.5 74.7 74.5 76.9 74.9 74.0 72.7 69.8 68.4 69.1 70.8 73.7 78.2 83.3 89.3 97.0 106 111 114
44.0 124 125 127 125 118 109 103 98.6 95.2 93.6 92.5 93.3 94.4 97.4 101 103 102 100 100 100 102 103 101 97.4 94.4 93.3 92.5 93.6 95.2 98.6 103 109 118 125 127 125 124 120 117 110 101 92.5 85.1 79.8 75.2 71.9 69.9 68.9 69.8 72.7 74.8 75.5 76.6 74.8 75.7 74.8 76.6 75.5 74.8 72.7 69.8 68.9 69.9 71.9 75.2 79.8 85.1 92.5 101 110 117 120
46.0 130 132 131 128 120 112 105 99.9 95.9 93.7 92.9 93.2 94.5 96.9 100 103 102 101 101 101 102 103 100 96.9 94.5 93.2 92.9 93.7 95.9 99.9 105 112 120 128 131 132 130 126 120 115 104 95.0 87.5 81.3 76.1 73.2 70.5 69.5 70.1 71.7 73.9 74.9 74.9 74.3 75.1 74.3 74.9 74.9 73.9 71.7 70.1 69.5 70.5 73.2 76.1 81.3 87.5 95.0 104 115 120 126
48.0 134 136 134 131 121 112 105 99.9 95.6 93.3 92.0 92.4 93.8 95.5 98.7 101 99.7 100 101 100 99.7 101 98.7 95.5 93.8 92.4 92.0 93.3 95.6 99.9 105 112 121 131 134 136 134 129 123 115 105 95.6 88.5 82.5 77.0 73.6 70.8 69.8 69.9 71.1 72.4 73.4 72.6 72.3 72.6 72.3 72.6 73.4 72.4 71.1 69.9 69.8 70.8 73.6 77.0 82.5 88.5 95.6 105 115 123 129
50.0 136 139 136 131 122 112 105 100 94.4 91.6 90.7 91.2 92.3 93.5 96.2 98.6 97.8 98.1 98.4 98.1 97.8 98.6 96.2 93.5 92.3 91.2 90.7 91.6 94.4 100 105 112 122 131 136 139 136 131 123 115 104 95.6 88.9 82.6 77.2 73.4 70.5 69.7 69.4 69.5 70.4 71.4 70.4 70.0 69.4 70.0 70.4 71.4 70.4 69.5 69.4 69.7 70.5 73.4 77.2 82.6 88.9 95.6 104 115 123 131
52.0 137 139 136 130 121 112 105 97.9 92.9 90.0 89.0 89.6 90.6 91.6 93.4 96.1 96.0 96.2 95.8 96.2 96.0 96.1 93.4 91.6 90.6 89.6 89.0 90.0 92.9 97.9 105 112 121 130 136 139 137 132 123 114 104 95.8 88.8 82.4 76.6 72.8 69.9 68.7 68.7 68.4 68.8 69.7 69.0 68.6 67.2 68.6 69.0 69.7 68.8 68.4 68.7 68.7 69.9 72.8 76.6 82.4 88.8 95.8 104 114 123 132
54.0 137 140 136 130 120 111 104 97.2 90.6 88.0 86.6 86.8 87.6 89.0 90.2 92.6 92.8 92.9 92.4 92.9 92.8 92.6 90.2 89.0 87.6 86.8 86.6 88.0 90.6 97.2 104 111 120 130 136 140 137 132 123 114 104 95.5 88.2 81.6 76.0 72.4 69.6 68.8 67.8 67.5 67.7 67.9 67.4 66.9 65.6 66.9 67.4 67.9 67.7 67.5 67.8 68.8 69.6 72.4 76.0 81.6 88.2 95.5 104 114 123 132
56.0 138 140 137 130 120 111 103 96.2 90.8 87.8 86.0 86.1 86.9 87.9 88.8 90.3 90.4 90.2 89.9 90.2 90.4 90.3 88.8 87.9 86.9 86.1 86.0 87.8 90.8 96.2 103 111 120 130 137 140 138 133 124 114 104 93.9 88.2 81.7 76.0 72.1 69.3 68.0 67.3 67.2 67.4 67.3 66.6 65.1 63.9 65.1 66.6 67.3 67.4 67.2 67.3 68.0 69.3 72.1 76.0 81.7 88.2 93.9 104 114 124 133
58.0 135 137 134 127 118 108 99.8 92.8 87.7 84.6 83.1 83.0 84.0 84.8 85.4 86.0 86.3 85.8 85.3 85.8 86.3 86.0 85.4 84.8 84.0 83.0 83.1 84.6 87.7 92.8 99.8 108 118 127 134 137 135 129 121 111 102 93.4 86.1 79.6 74.0 70.4 67.5 66.1 65.5 65.3 65.7 64.6 63.9 62.0 61.0 62.0 63.9 64.6 65.7 65.3 65.5 66.1 67.5 70.4 74.0 79.6 86.1 93.4 102 111 121 129
60.0 132 134 131 124 115 106 97.0 90.1 84.9 81.6 79.9 80.1 80.5 81.2 81.7 82.1 81.7 80.9 80.2 80.9 81.7 82.1 81.7 81.2 80.5 80.1 79.9 81.6 84.9 90.1 97.0 106 115 124 131 134 132 127 118 109 99.9 91.7 84.3 77.9 72.4 68.5 65.7 64.4 63.9 63.4 63.1 62.3 61.3 59.8 58.7 59.8 61.3 62.3 63.1 63.4 63.9 64.4 65.7 68.5 72.4 77.9 84.3 91.7 99.9 109 118 127
62.0 128 130 128 122 113 103 94.5 87.6 82.2 79.0 77.2 77.2 77.4 78.1 78.5 78.7 78.3 77.3 76.4 77.3 78.3 78.7 78.5 78.1 77.4 77.2 77.2 79.0 82.2 87.6 94.5 103 113 122 128 130 128 124 116 107 97.7 89.6 82.3 75.8 70.3 66.4 63.7 62.7 62.3 61.8 61.2 60.5 58.7 57.6 56.8 57.6 58.7 60.5 61.2 61.8 62.3 62.7 63.7 66.4 70.3 75.8 82.3 89.6 97.7 107 116 124
64.0 124 127 124 118 111 99.8 91.4 84.4 79.1 75.7 74.1 73.9 74.2 74.4 74.8 74.7 74.5 73.5 72.7 73.5 74.5 74.7 74.8 74.4 74.2 73.9 74.1 75.7 79.1 84.4 91.4 99.8 111 118 124 127 124 120 113 104 94.8 86.5 79.4 73.5 67.9 64.1 61.7 60.5 59.9 59.4 58.6 57.8 56.1 54.5 53.2 54.5 56.1 57.8 58.6 59.4 59.9 60.5 61.7 64.1 67.9 73.5 79.4 86.5 94.8 104 113 120
66.0 120 122 119 113 105 95.4 87.1 80.4 75.4 72.3 70.8 70.4 70.6 71.0 71.0 70.9 70.5 69.3 68.6 69.3 70.5 70.9 71.0 71.0 70.6 70.4 70.8 72.3 75.4 80.4 87.1 95.4 105 113 119 122 120 116 109 101 91.6 83.5 76.8 70.6 65.7 61.8 59.4 58.3 57.7 57.2 56.4 55.2 53.8 51.9 50.6 51.9 53.8 55.2 56.4 57.2 57.7 58.3 59.4 61.8 65.7 70.6 76.8 83.5 91.6 101 109 116
68.0 116 117 115 109 100 91.5 83.6 77.0 72.3 69.1 67.7 67.3 67.6 67.5 67.2 66.8 66.1 65.1 64.3 65.1 66.1 66.8 67.2 67.5 67.6 67.3 67.7 69.1 72.3 77.0 83.6 91.5 100 109 115 117 116 112 105 96.7 88.1 80.7 74.3 68.2 64.5 59.7 57.5 56.4 55.5 55.0 54.0 52.9 51.2 49.3 48.3 49.3 51.2 52.9 54.0 55.0 55.5 56.4 57.5 59.7 64.5 68.2 74.3 80.7 88.1 96.7 105 112
70.0 110 112 109 104 95.5 87.1 79.7 73.5 68.7 65.9 64.3 64.1 63.9 64.0 63.7 63.1 62.1 61.1 60.4 61.1 62.1 63.1 63.7 64.0 63.9 64.1 64.3 65.9 68.7 73.5 79.7 87.1 95.5 104 109 112 110 107 101 92.5 84.3 77.0 70.8 65.6 59.9 57.5 54.9 53.9 53.3 52.5 51.5 50.2 48.4 46.9 45.5 46.9 48.4 50.2 51.5 52.5 53.3 53.9 54.9 57.5 59.9 65.6 70.8 77.0 84.3 92.5 101 107
72.0 104 105 103 97.4 90.2 82.7 75.5 69.8 65.6 62.9 61.5 61.1 61.0 60.4 60.0 59.5 58.4 57.0 56.1 57.0 58.4 59.5 60.0 60.4 61.0 61.1 61.5 62.9 65.6 69.8 75.5 82.7 90.2 97.4 103 105 104 101 95.3 87.7 80.2 73.5 67.5 62.3 57.8 55.0 52.5 51.6 50.8 50.0 49.0 47.4 45.7 43.9 42.7 43.9 45.7 47.4 49.0 50.0 50.8 51.6 52.5 55.0 57.8 62.3 67.5 73.5 80.2 87.7 95.3 101
74.0 97.5 98.6 96.5 91.5 83.3 77.7 71.7 66.6 62.4 59.7 58.5 57.7 57.5 57.4 56.5 55.7 54.6 53.3 52.2 53.3 54.6 55.7 56.5 57.4 57.5 57.7 58.5 59.7 62.4 66.6 71.7 77.7 83.3 91.5 96.5 98.6 97.5 94.7 89.3 82.9 76.0 69.7 64.2 59.4 55.4 52.4 50.5 49.1 48.3 47.6 46.4 44.7 43.0 41.2 40.0 41.2 43.0 44.7 46.4 47.6 48.3 49.1 50.5 52.4 55.4 59.4 64.2 69.7 76.0 82.9 89.3 94.7
76.0 90.5 91.2 88.9 84.7 78.9 72.9 67.1 62.5 58.9 56.8 55.3 54.4 54.1 53.7 52.7 51.6 50.4 49.0 48.2 49.0 50.4 51.6 52.7 53.7 54.1 54.4 55.3 56.8 58.9 62.5 67.1 72.9 78.9 84.7 88.9 91.2 90.5 87.9 83.3 76.8 70.8 65.2 60.3 56.2 52.5 49.5 48.0 46.7 45.7 45.0 43.7 42.1 40.2 38.8 37.3 38.8 40.2 42.1 43.7 45.0 45.7 46.7 48.0 49.5 52.5 56.2 60.3 65.2 70.8 76.8 83.3 87.9
78.0 82.6 83.1 81.9 78.2 73.0 67.8 62.8 58.5 55.5 53.3 52.3 51.6 50.7 50.3 49.3 48.3 46.8 45.3 44.6 45.3 46.8 48.3 49.3 50.3 50.7 51.6 52.3 53.3 55.5 58.5 62.8 67.8 73.0 78.2 81.9 83.1 82.6 80.6 76.6 71.4 65.9 61.2 56.6 53.1 49.6 46.9 45.2 44.1 43.1 42.1 40.7 39.2 37.4 35.4 34.3 35.4 37.4 39.2 40.7 42.1 43.1 44.1 45.2 46.9 49.6 53.1 56.6 61.2 65.9 71.4 76.6 80.6
80.0 75.2 75.6 74.4 71.5 67.2 62.7 58.5 55.1 52.4 50.5 49.1 48.3 47.7 47.1 45.4 44.5 43.3 41.7 41.1 41.7 43.3 44.5 45.4 47.1 47.7 48.3 49.1 50.5 52.4 55.1 58.5 62.7 67.2 71.5 74.4 75.6 75.2 73.5 70.0 65.4 61.2 57.1 53.2 49.5 46.6 44.4 42.8 41.6 40.5 39.7 38.1 36.4 34.5 32.8 31.8 32.8 34.5 36.4 38.1 39.7 40.5 41.6 42.8 44.4 46.6 49.5 53.2 57.1 61.2 65.4 70.0 73.5
82.0 67.4 68.3 67.2 65.1 61.7 57.8 54.3 51.5 49.1 47.3 46.2 45.2 44.5 43.7 42.7 41.1 39.6 38.2 37.4 38.2 39.6 41.1 42.7 43.7 44.5 45.2 46.2 47.3 49.1 51.5 54.3 57.8 61.7 65.1 67.2 68.3 67.4 66.2 63.4 59.6 56.3 52.6 50.1 46.6 44.0 42.1 40.6 39.2 38.1 36.9 35.4 33.7 31.9 30.2 29.2 30.2 31.9 33.7 35.4 36.9 38.1 39.2 40.6 42.1 44.0 46.6 50.1 52.6 56.3 59.6 63.4 66.2
84.0 61.3 61.5 60.9 58.7 56.1 53.1 50.2 47.8 45.9 44.7 43.5 42.5 41.7 40.7 39.6 38.1 36.7 35.2 34.3 35.2 36.7 38.1 39.6 40.7 41.7 42.5 43.5 44.7 45.9 47.8 50.2 53.1 56.1 58.7 60.9 61.5 61.3 60.0 57.9 55.1 51.6 48.7 45.9 43.4 41.4 39.3 37.7 36.9 35.5 34.3 33.0 31.1 29.3 27.6 26.8 27.6 29.3 31.1 33.0 34.3 35.5 36.9 37.7 39.3 41.4 43.4 45.9 48.7 51.6 55.1 57.9 60.0
86.0 55.1 55.4 55.0 53.7 51.6 49.2 46.9 44.9 43.3 42.1 41.3 39.9 39.0 38.1 36.7 35.2 33.7 32.2 31.6 32.2 33.7 35.2 36.7 38.1 39.0 39.9 41.3 42.1 43.3 44.9 46.9 49.2 51.6 53.7 55.0 55.4 55.1 54.2 52.5 50.1 47.7 45.4 43.2 41.0 38.9 37.3 36.0 34.8 33.6 32.2 30.8 29.1 27.3 25.6 24.8 25.6 27.3 29.1 30.8 32.2 33.6 34.8 36.0 37.3 38.9 41.0 43.2 45.4 47.7 50.1 52.5 54.2
88.0 49.5 49.8 49.6 48.8 47.5 45.5 43.5 42.3 41.0 39.8 38.7 37.9 37.1 35.9 34.4 32.9 31.2 29.8 29.2 29.8 31.2 32.9 34.4 35.9 37.1 37.9 38.7 39.8 41.0 42.3 43.5 45.5 47.5 48.8 49.6 49.8 49.5 49.1 48.0 46.1 44.0 42.1 40.3 38.5 36.7 35.4 34.1 33.0 31.9 30.5 28.8 27.0 25.2 23.6 22.9 23.6 25.2 27.0 28.8 30.5 31.9 33.0 34.1 35.4 36.7 38.5 40.3 42.1 44.0 46.1 48.0 49.1
90.0 45.3 45.1 45.2 44.8 43.9 42.6 41.4 40.1 38.8 38.0 37.1 36.0 35.2 33.8 32.5 30.9 29.1 27.8 27.4 27.8 29.1 30.9 32.5 33.8 35.2 36.0 37.1 38.0 38.8 40.1 41.4 42.6 43.9 44.8 45.2 45.1 45.3 44.6 43.9 42.7 41.2 39.6 38.0 36.5 35.1 33.7 32.7 31.5 30.4 28.9 27.8 25.5 23.6 22.1 21.5 22.1 23.6 25.5 27.8 28.9 30.4 31.5 32.7 33.7 35.1 36.5 38.0 39.6 41.2 42.7 43.9 44.6
92.0 40.7 40.7 40.9 40.7 40.3 39.5 38.5 37.6 36.6 35.7 34.9 34.0 33.0 31.7 30.2 28.7 27.0 25.7 25.2 25.7 27.0 28.7 30.2 31.7 33.0 34.0 34.9 35.7 36.6 37.6 38.5 39.5 40.3 40.7 40.9 40.7 40.7 40.4 39.9 39.1 37.9 36.8 35.6 34.4 33.1 32.0 30.9 29.8 28.6 27.2 25.5 23.7 21.9 20.4 19.9 20.4 21.9 23.7 25.5 27.2 28.6 29.8 30.9 32.0 33.1 34.4 35.6 36.8 37.9 39.1 39.9 40.4
94.0 36.7 36.8 37.0 37.3 37.0 36.6 36.1 35.4 34.7 33.9 33.1 32.2 31.2 29.9 28.4 26.3 25.0 23.8 23.4 23.8 25.0 26.3 28.4 29.9 31.2 32.2 33.1 33.9 34.7 35.4 36.1 36.6 37.0 37.3 37.0 36.8 36.7 36.6 36.3 35.8 35.1 34.2 33.2 32.2 31.2 30.2 29.2 28.1 26.9 25.6 24.0 22.1 20.3 18.9 18.5 18.9 20.3 22.1 24.0 25.6 26.9 28.1 29.2 30.2 31.2 32.2 33.2 34.2 35.1 35.8 36.3 36.6
96.0 33.3 33.3 33.7 34.1 34.3 34.1 33.7 33.3 32.7 32.1 31.4 30.5 29.4 28.1 26.6 24.9 23.3 22.1 21.9 22.1 23.3 24.9 26.6 28.1 29.4 30.5 31.4 32.1 32.7 33.3 33.7 34.1 34.3 34.1 33.7 33.3 33.3 33.1 33.1 32.8 32.5 31.9 31.4 30.5 29.7 28.8 27.8 26.8 25.6 24.2 22.6 20.7 19.0 17.7 17.4 17.7 19.0 20.7 22.6 24.2 25.6 26.8 27.8 28.8 29.7 30.5 31.4 31.9 32.5 32.8 33.1 33.1
98.0 30.5 30.5 30.8 31.4 31.7 31.8 31.6 31.4 31.0 30.4 29.8 29.0 27.9 26.6 25.1 23.4 21.8 20.6 20.4 20.6 21.8 23.4 25.1 26.6 27.9 29.0 29.8 30.4 31.0 31.4 31.6 31.8 31.7 31.4 30.8 30.5 30.5 30.4 30.4 30.4 30.3 29.9 29.4 28.8 28.1 27.3 26.1 25.3 24.2 22.8 21.2 19.4 17.7 16.5 16.2 16.5 17.7 19.4 21.2 22.8 24.2 25.3 26.1 27.3 28.1 28.8 29.4 29.9 30.3 30.4 30.4 30.4
100.0 27.8 27.6 28.1 28.8 29.4 29.8 29.9 29.8 29.5 29.0 28.5 27.8 26.6 25.3 23.8 22.1 20.6 19.4 19.2 19.4 20.6 22.1 23.8 25.3 26.6 27.8 28.5 29.0 29.5 29.8 29.9 29.8 29.4 28.8 28.1 27.6 27.8 27.7 27.9 28.1 28.1 28.0 27.7 27.2 26.6 25.9 25.0 24.1 22.9 21.6 19.9 18.2 16.6 15.4 15.2 15.4 16.6 18.2 19.9 21.6 22.9 24.1 25.0 25.9 26.6 27.2 27.7 28.0 28.1 28.1 27.9 27.7
102.0 25.6 25.4 25.9 26.7 27.5 28.1 28.3 28.3 28.1 27.7 27.1 26.3 25.4 24.1 22.5 20.9 19.3 18.3 18.1 18.3 19.3 20.9 22.5 24.1 25.4 26.3 27.1 27.7 28.1 28.3 28.3 28.1 27.5 26.7 25.9 25.4 25.6 25.6 25.8 26.1 26.3 26.4 26.2 25.9 25.4 24.8 24.0 23.0 21.9 20.5 18.9 17.2 15.6 14.5 14.4 14.5 15.6 17.2 18.9 20.5 21.9 23.0 24.0 24.8 25.4 25.9 26.2 26.4 26.3 26.1 25.8 25.6
104.0 23.7 23.6 23.9 24.7 25.5 26.2 26.6 26.8 26.6 26.4 25.9 25.2 24.1 22.8 21.3 19.7 18.1 17.2 17.1 17.2 18.1 19.7 21.3 22.8 24.1 25.2 25.9 26.4 26.6 26.8 26.6 26.2 25.5 24.7 23.9 23.6 23.7 23.7 23.9 24.3 24.6 24.8 24.8 24.5 24.2 23.6 22.9 22.0 20.9 19.5 17.9 16.2 15.0 13.7 13.6 13.7 15.0 16.2 17.9 19.5 20.9 22.0 22.9 23.6 24.2 24.5 24.8 24.8 24.6 24.3 23.9 23.7
106.0 21.7 21.5 22.0 22.8 23.8 24.5 25.0 25.3 25.3 25.1 24.6 23.8 22.9 21.6 20.1 18.5 17.1 16.3 16.2 16.3 17.1 18.5 20.1 21.6 22.9 23.8 24.6 25.1 25.3 25.3 25.0 24.5 23.8 22.8 22.0 21.5 21.7 21.8 22.0 22.4 22.9 23.2 23.2 23.1 22.7 22.2 21.5 20.8 19.6 18.3 16.8 15.1 13.6 12.8 12.8 12.8 13.6 15.1 16.8 18.3 19.6 20.8 21.5 22.2 22.7 23.1 23.2 23.2 22.9 22.4 22.0 21.8
108.0 20.1 19.9 20.3 21.1 22.1 23.0 23.5 23.9 23.9 23.7 23.3 22.5 21.6 20.3 18.9 17.0 16.0 15.3 15.3 15.3 16.0 17.0 18.9 20.3 21.6 22.5 23.3 23.7 23.9 23.9 23.5 23.0 22.1 21.1 20.3 19.9 20.1 20.2 20.4 20.8 21.3 21.7 21.8 21.8 21.5 21.1 20.4 19.6 18.6 17.2 15.7 14.1 12.7 12.0 12.0 12.0 12.7 14.1 15.7 17.2 18.6 19.6 20.4 21.1 21.5 21.8 21.8 21.7 21.3 20.8 20.4 20.2
110.0 18.7 18.5 18.8 19.6 20.7 21.6 22.3 22.7 22.7 22.6 22.2 21.5 20.5 19.3 17.9 16.4 15.2 14.6 14.5 14.6 15.2 16.4 17.9 19.3 20.5 21.5 22.2 22.6 22.7 22.7 22.3 21.6 20.7 19.6 18.8 18.5 18.7 18.8 18.9 19.4 19.9 20.2 20.6 20.6 20.4 20.0 19.3 18.6 17.5 16.2 14.7 13.1 11.8 11.3 11.3 11.3 11.8 13.1 14.7 16.2 17.5 18.6 19.3 20.0 20.4 20.6 20.6 20.2 19.9 19.4 18.9 18.8
112.0 17.4 17.2 17.4 18.2 19.2 20.2 20.9 21.4 21.6 21.5 21.1 20.4 19.5 18.3 16.9 15.4 14.2 13.7 13.7 13.7 14.2 15.4 16.9 18.3 19.5 20.4 21.1 21.5 21.6 21.4 20.9 20.2 19.2 18.2 17.4 17.2 17.4 17.5 17.6 18.0 18.6 19.1 19.4 19.5 19.3 19.0 18.4 17.3 16.5 15.2 13.7 12.2 11.1 10.7 10.7 10.7 11.1 12.2 13.7 15.2 16.5 17.3 18.4 19.0 19.3 19.5 19.4 19.1 18.6 18.0 17.6 17.5
114.0 16.2 16.1 16.2 16.9 17.9 18.9 19.7 20.2 20.4 20.4 20.0 19.4 18.5 17.3 16.0 14.6 13.6 13.2 13.2 13.2 13.6 14.6 16.0 17.3 18.5 19.4 20.0 20.4 20.4 20.2 19.7 18.9 17.9 16.9 16.2 16.1 16.2 16.3 16.4 16.8 17.4 17.9 18.2 18.3 18.2 17.9 17.3 16.6 15.5 14.3 12.8 11.4 10.4 10.1 10.1 10.1 10.4 11.4 12.8 14.3 15.5 16.6 17.3 17.9 18.2 18.3 18.2 17.9 17.4 16.8 16.4 16.3
116.0 15.0 14.9 15.0 15.6 16.6 17.6 18.5 18.9 19.2 19.2 18.9 18.3 17.4 16.3 14.9 13.7 12.8 12.5 12.5 12.5 12.8 13.7 14.9 16.3 17.4 18.3 18.9 19.2 19.2 18.9 18.5 17.6 16.6 15.6 15.0 14.9 15.0 15.1 15.2 15.6 16.1 16.6 17.0 17.2 17.1 16.8 16.3 15.5 14.5 13.3 11.9 10.5 9.7 9.5 9.5 9.5 9.7 10.5 11.9 13.3 14.5 15.5 16.3 16.8 17.1 17.2 17.0 16.6 16.1 15.6 15.2 15.1
118.0 14.1 14.0 14.0 14.5 15.4 16.4 17.3 17.8 18.1 18.2 17.9 17.3 16.4 15.3 14.0 12.9 12.2 11.9 11.8 11.9 12.2 12.9 14.0 15.3 16.4 17.3 17.9 18.2 18.1 17.8 17.3 16.4 15.4 14.5 14.0 14.0 14.1 14.2 14.3 14.6 15.1 15.7 15.9 16.1 16.1 15.8 15.3 14.5 13.5 12.3 11.0 10.1 9.1 8.9 8.9 8.9 9.1 10.1 11.0 12.3 13.5 14.5 15.3 15.8 16.1 16.1 15.9 15.7 15.1 14.6 14.3 14.2
120.0 13.2 13.1 13.1 13.5 14.3 15.2 16.1 16.7 17.0 17.1 16.8 16.3 15.4 14.3 13.1 12.1 11.5 11.3 11.3 11.3 11.5 12.1 13.1 14.3 15.4 16.3 16.8 17.1 17.0 16.7 16.1 15.2 14.3 13.5 13.1 13.1 13.2 13.3 13.3 13.6 14.0 14.5 14.9 15.1 15.1 14.8 14.4 13.6 12.6 11.5 10.2 9.1 8.6 8.4 8.4 8.4 8.6 9.1 10.2 11.5 12.6 13.6 14.4 14.8 15.1 15.1 14.9 14.5 14.0 13.6 13.3 13.3
122.0 12.6 12.5 12.4 12.7 13.5 14.4 15.2 15.8 16.1 16.2 15.9 15.4 14.6 13.6 12.5 11.5 11.1 11.0 11.0 11.0 11.1 11.5 12.5 13.6 14.6 15.4 15.9 16.2 16.1 15.8 15.2 14.4 13.5 12.7 12.4 12.5 12.6 12.6 12.6 12.8 13.2 13.7 14.1 14.2 14.2 13.9 13.4 12.7 11.7 10.7 9.5 8.5 8.0 8.0 8.0 8.0 8.0 8.5 9.5 10.7 11.7 12.7 13.4 13.9 14.2 14.2 14.1 13.7 13.2 12.8 12.6 12.6
124.0 12.0 11.9 11.8 12.0 12.7 13.5 14.3 14.9 15.2 15.3 15.1 14.6 13.8 12.9 11.9 11.0 10.7 10.6 10.6 10.6 10.7 11.0 11.9 12.9 13.8 14.6 15.1 15.3 15.2 14.9 14.3 13.5 12.7 12.0 11.8 11.9 12.0 12.0 12.0 12.2 12.5 12.9 13.2 13.4 13.4 13.2 12.7 12.0 11.0 9.9 8.8 8.0 7.7 7.7 7.7 7.7 7.7 8.0 8.8 9.9 11.0 12.0 12.7 13.2 13.4 13.4 13.2 12.9 12.5 12.2 12.0 12.0
126.0 11.3 11.2 11.0 11.2 11.7 12.5 13.2 13.8 14.1 14.2 14.0 13.5 12.8 11.9 11.0 10.4 10.1 10.1 10.1 10.1 10.1 10.4 11.0 11.9 12.8 13.5 14.0 14.2 14.1 13.8 13.2 12.5 11.7 11.2 11.0 11.2 11.3 11.2 11.3 11.3 11.6 11.9 12.3 12.6 12.4 11.9 11.6 10.9 10.0 9.0 8.0 7.4 7.2 7.2 7.2 7.2 7.2 7.4 8.0 9.0 10.0 10.9 11.6 11.9 12.4 12.6 12.3 11.9 11.6 11.3 11.3 11.2
128.0 10.7 10.7 10.5 10.5 11.0 11.7 12.3 12.9 13.2 13.3 13.1 12.8 11.9 11.1 10.3 9.8 9.7 9.7 9.7 9.7 9.7 9.8 10.3 11.1 11.9 12.8 13.1 13.3 13.2 12.9 12.3 11.7 11.0 10.5 10.5 10.7 10.7 10.8 10.7 10.7 10.9 11.2 11.5 11.6 11.6 11.3 10.9 10.2 9.3 8.4 7.5 7.0 6.8 6.9 6.9 6.9 6.8 7.0 7.5 8.4 9.3 10.2 10.9 11.3 11.6 11.6 11.5 11.2 10.9 10.7 10.7 10.8
130.0 10.2 10.1 9.9 9.9 10.2 10.9 11.4 11.9 12.2 12.3 12.1 11.7 11.1 10.3 9.6 9.3 9.2 9.2 9.2 9.2 9.2 9.3 9.6 10.3 11.1 11.7 12.1 12.3 12.2 11.9 11.4 10.9 10.2 9.9 9.9 10.1 10.2 10.2 10.1 10.1 10.2 10.4 10.6 10.8 10.7 10.5 10.0 9.4 8.6 7.7 6.9 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.9 7.7 8.6 9.4 10.0 10.5 10.7 10.8 10.6 10.4 10.2 10.1 10.1 10.2
132.0 9.6 9.5 9.4 9.3 9.5 10.0 10.5 11.0 11.3 11.3 11.2 10.8 10.2 9.5 9.0 8.8 8.7 8.8 8.8 8.8 8.7 8.8 9.0 9.5 10.2 10.8 11.2 11.3 11.3 11.0 10.5 10.0 9.5 9.3 9.4 9.5 9.6 9.6 9.5 9.5 9.5 9.7 9.8 9.9 9.9 9.5 9.1 8.5 7.7 7.0 6.3 6.2 6.1 6.2 6.2 6.2 6.1 6.2 6.3 7.0 7.7 8.5 9.1 9.5 9.9 9.9 9.8 9.7 9.5 9.5 9.5 9.6
134.0 9.1 9.0 8.8 8.7 8.7 9.1 9.6 10.0 10.3 10.3 10.2 9.8 9.3 8.8 8.4 8.2 8.3 8.3 8.3 8.3 8.3 8.2 8.4 8.8 9.3 9.8 10.2 10.3 10.3 10.0 9.6 9.1 8.7 8.7 8.8 9.0 9.1 9.1 9.0 8.9 8.8 8.9 9.0 9.0 8.9 8.7 8.3 7.7 7.0 6.4 5.9 5.7 5.8 5.8 5.8 5.8 5.8 5.7 5.9 6.4 7.0 7.7 8.3 8.7 8.9 9.0 9.0 8.9 8.8 8.9 9.0 9.1
136.0 8.5 8.4 8.3 8.1 8.1 8.3 8.7 9.1 9.3 9.3 9.2 8.9 8.5 8.0 7.8 7.8 7.8 7.9 7.9 7.9 7.8 7.8 7.8 8.0 8.5 8.9 9.2 9.3 9.3 9.1 8.7 8.3 8.1 8.1 8.3 8.4 8.5 8.5 8.4 8.3 8.2 8.2 8.2 8.2 8.1 7.8 7.4 6.9 6.3 5.7 5.4 5.4 5.4 5.5 5.5 5.5 5.4 5.4 5.4 5.7 6.3 6.9 7.4 7.8 8.1 8.2 8.2 8.2 8.2 8.3 8.4 8.5
138.0 7.9 7.9 7.7 7.6 7.4 7.6 7.8 8.1 8.3 8.4 8.2 8.0 7.6 7.3 7.2 7.3 7.4 7.4 7.5 7.4 7.4 7.3 7.2 7.3 7.6 8.0 8.2 8.4 8.3 8.1 7.8 7.6 7.4 7.6 7.7 7.9 7.9 7.9 7.8 7.7 7.5 7.5 7.4 7.4 7.2 7.0 6.6 6.1 5.6 5.2 5.0 5.0 5.1 5.1 5.1 5.1 5.1 5.0 5.0 5.2 5.6 6.1 6.6 7.0 7.2 7.4 7.4 7.5 7.5 7.7 7.8 7.9
140.0 7.3 7.3 7.1 7.0 6.8 6.8 7.0 7.2 7.3 7.4 7.2 7.0 6.8 6.6 6.6 6.7 6.8 6.9 6.9 6.9 6.8 6.7 6.6 6.6 6.8 7.0 7.2 7.4 7.3 7.2 7.0 6.8 6.8 7.0 7.1 7.3 7.3 7.3 7.2 7.1 6.9 6.7 6.7 6.6 6.4 6.2 5.8 5.3 4.9 4.6 4.5 4.6 4.7 4.8 4.8 4.8 4.7 4.6 4.5 4.6 4.9 5.3 5.8 6.2 6.4 6.6 6.7 6.7 6.9 7.1 7.2 7.3
150.0 4.3 4.3 4.2 4.0 3.8 3.5 3.2 3.1 3.1 3.1 3.1 3.2 3.4 3.6 3.9 4.1 4.2 4.3 4.3 4.3 4.2 4.1 3.9 3.6 3.4 3.2 3.1 3.1 3.1 3.1 3.2 3.5 3.8 4.0 4.2 4.3 4.3 4.3 4.2 4.0 3.8 3.6 3.3 3.0 2.8 2.6 2.5 2.4 2.4 2.6 2.7 2.9 3.0 3.0 3.0 3.0 3.0 2.9 2.7 2.6 2.4 2.4 2.5 2.6 2.8 3.0 3.3 3.6 3.8 4.0 4.2 4.3
160.0 1.8 1.7 1.7 1.6 1.6 1.5 1.4 1.3 1.2 1.2 1.3 1.3 1.5 1.6 1.7 1.8 1.8 1.9 1.9 1.9 1.8 1.8 1.7 1.6 1.5 1.3 1.3 1.2 1.2 1.3 1.4 1.5 1.6 1.6 1.7 1.7 1.8 1.8 1.7 1.7 1.6 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.6 1.7 1.7 1.8
170.0 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
180.0 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
