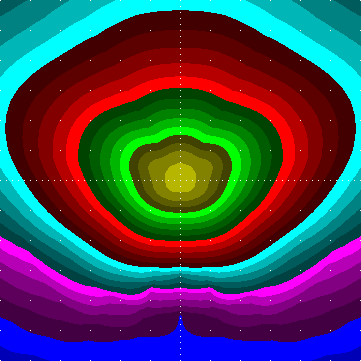

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] c001174s.tm
# [LUMINAIRE] IVH6
# [LUMCAT] Viento
# [DATE] 29/11/2011 12:42:32
# down given: 99.1%
# out given: 80.5%
# tilt: 0.00
# [LAMP] 1 QE 250 12700 4100 E40
# Bulbs: 1, 12700 lm each
# Source file: Viento_IVH6_1_QE_250_12700_4100_E40.ldt
# Luminaire flux = 811 raw, for the given bulb(s) it would be 10303 lm,
# 81.1 % of the bulb flux
# between 75 and 90: 5.8 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 91.8 cd / 1000 lm , 3.2 % of the luminaire flux
# 90deg and above: max 11.8 cd / 1000 lm , 0.9 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 17 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 61 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 286 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 251 cd / 1000 lm,
# maximum spec. lum. intensity 306 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156 156
10.0 162 163 163 163 163 163 163 162 161 162 161 161 161 161 161 160 160 160 160 160 160 160 160 161 161 161 161 162 161 162 163 163 163 163 163 163 162 163 163 162 162 161 161 161 160 159 158 157 155 155 155 155 155 155 154 154 155 155 155 155 155 157 158 159 160 161 161 161 162 162 163 163
20.0 170 170 170 169 170 168 168 167 168 168 168 169 171 171 172 173 174 176 177 176 174 173 172 171 171 169 168 168 168 167 168 168 170 169 170 170 170 172 171 171 171 171 171 172 170 169 169 168 166 164 161 158 157 155 154 155 157 158 161 164 166 168 169 169 170 172 171 171 171 171 171 172
30.0 182 182 184 187 189 191 192 194 192 193 195 194 194 194 193 193 194 196 198 196 195 193 193 194 194 194 195 193 192 194 192 191 189 187 184 182 182 181 181 183 183 183 182 180 178 177 174 170 167 163 159 155 152 150 147 150 152 155 159 163 167 170 174 177 178 180 182 183 183 183 181 181
35.0 191 193 195 199 204 209 209 211 209 209 206 206 206 207 208 209 210 210 211 210 210 209 208 207 206 206 206 209 209 211 209 209 204 199 195 193 191 191 192 192 193 191 186 183 180 174 169 164 160 154 149 143 141 138 135 138 141 143 149 154 160 164 169 174 180 183 186 191 193 192 192 191
40.0 203 206 211 219 228 235 234 231 226 223 221 219 218 219 221 222 224 225 227 225 224 222 221 219 218 219 221 223 226 231 234 235 228 219 211 206 203 203 202 201 198 195 190 184 177 167 159 154 148 142 136 130 127 123 120 123 127 130 136 142 148 154 159 167 177 184 190 195 198 201 202 203
45.0 215 224 234 247 261 268 271 266 252 234 221 217 212 215 217 219 221 223 224 222 221 219 217 215 212 217 221 234 252 266 271 268 261 247 234 224 215 210 208 205 202 195 186 176 167 158 148 141 133 127 121 114 111 108 105 108 111 114 121 127 133 141 148 158 167 176 186 195 202 205 208 210
47.5 219 229 244 261 273 285 286 276 260 239 219 211 203 206 210 214 215 216 216 216 215 214 210 206 203 211 219 239 260 276 286 285 273 261 244 229 219 214 211 207 200 190 181 171 160 149 140 132 124 118 112 105 102 99.5 96.6 99.5 102 105 112 118 124 132 140 149 160 171 181 190 200 207 211 214
50.0 223 233 249 269 285 294 294 284 267 245 219 206 194 198 203 207 209 211 213 211 209 207 203 198 194 206 219 245 267 284 294 294 285 269 249 233 223 216 210 205 195 185 174 162 150 138 129 122 115 108 102 96.0 93.2 90.4 87.6 90.4 93.2 96.0 102 108 115 122 129 138 150 162 174 185 195 205 210 216
52.5 223 237 253 275 291 304 303 292 277 248 221 203 186 191 196 201 203 204 205 204 203 201 196 191 186 203 221 248 277 292 303 304 291 275 253 237 223 213 206 198 187 176 163 153 141 131 121 113 105 99.0 92.8 86.5 84.2 81.9 79.6 81.9 84.2 86.5 92.8 99.0 105 113 121 131 141 153 163 176 187 198 206 213
55.0 220 236 253 279 296 305 304 293 276 249 218 199 179 185 191 196 197 198 199 198 197 196 191 185 179 199 218 249 276 293 304 305 296 279 253 236 220 206 197 187 177 163 151 141 130 120 110 102 94.9 88.9 82.9 76.8 75.1 73.3 71.6 73.3 75.0 76.8 82.8 88.9 94.9 102 110 120 130 141 151 163 177 187 197 206
57.5 214 232 253 279 296 306 304 296 276 247 215 193 171 176 182 188 190 191 193 191 190 188 182 176 171 193 215 247 276 296 304 306 296 279 253 232 214 201 189 176 162 149 137 125 118 108 99.3 91.7 84.1 78.4 72.8 67.1 65.4 63.7 61.9 63.6 65.3 67.1 72.8 78.4 84.1 91.7 99.3 108 118 125 137 149 162 176 189 201
60.0 207 226 250 273 287 296 296 289 268 239 205 184 163 167 172 176 177 178 178 178 177 176 172 168 163 184 205 239 268 289 296 296 287 273 250 226 207 190 176 162 147 133 121 111 103 94.2 85.9 78.7 71.5 66.5 61.5 56.5 55.0 53.6 52.1 53.6 55.1 56.5 61.5 66.5 71.5 78.7 85.9 94.2 103 111 121 133 147 162 176 190
62.5 199 219 243 264 278 283 286 278 259 226 198 175 153 157 161 165 165 165 165 165 165 165 161 157 153 175 198 226 259 278 286 283 278 264 243 219 199 180 163 147 130 115 103 94.3 86.4 79.1 72.6 66.3 60.0 55.2 50.4 45.6 44.2 42.8 41.3 42.7 44.2 45.6 50.4 55.2 60.0 66.3 72.6 79.1 86.4 94.3 103 115 130 147 163 180
65.0 183 206 230 251 263 271 270 261 240 214 184 165 145 149 152 156 154 152 150 152 154 156 152 149 145 165 184 214 240 261 270 271 263 251 230 206 183 164 145 127 111 95.4 84.5 76.2 70.0 64.3 58.6 53.4 48.2 43.9 39.6 35.2 33.8 32.3 30.9 32.3 33.8 35.2 39.5 43.9 48.2 53.4 58.6 64.3 70.0 76.2 84.5 95.4 111 127 145 164
67.5 164 186 209 230 243 251 248 239 219 195 168 150 133 137 141 144 143 141 139 141 143 144 140 137 133 150 168 195 219 239 248 251 243 230 209 186 164 143 125 107 89.7 75.9 65.7 59.6 53.7 49.3 44.9 40.6 36.2 32.5 28.8 25.0 23.7 22.4 21.2 22.5 23.8 25.0 28.7 32.5 36.2 40.6 44.9 49.3 53.7 59.6 65.7 75.9 89.7 107 125 143
70.0 140 164 189 209 222 231 229 215 196 171 148 133 118 121 125 129 127 125 123 125 127 129 125 121 118 133 148 171 196 215 229 231 222 209 189 164 140 121 102 86.3 71.2 58.6 49.5 43.9 39.1 35.5 31.8 28.3 24.7 21.8 19.0 16.1 14.5 12.9 11.3 12.9 14.5 16.1 19.0 21.8 24.7 28.3 31.8 35.5 39.1 43.9 49.5 58.6 71.2 86.3 102 121
72.5 114 137 162 179 193 199 196 185 168 146 125 114 102 103 104 105 105 106 106 106 105 105 104 103 102 114 125 146 168 185 196 199 193 179 162 137 114 94.7 79.1 65.4 53.0 42.8 35.1 29.9 26.0 22.8 19.7 17.0 14.3 11.6 8.9 6.2 5.1 4.0 2.9 4.0 5.1 6.2 8.9 11.6 14.3 17.0 19.7 22.8 26.0 29.9 35.1 42.8 53.0 65.4 79.1 94.7
75.0 90.2 112 134 147 156 162 160 150 137 120 105 96.2 87.2 87.8 88.4 88.9 87.7 86.6 85.4 86.6 87.8 88.9 88.3 87.8 87.2 96.2 105 120 137 150 160 162 156 147 134 112 90.2 73.4 58.3 47.3 36.6 28.3 22.1 17.9 14.8 12.5 10.3 8.3 6.3 4.7 3.1 1.4 1.3 1.2 1.1 1.2 1.3 1.4 3.0 4.6 6.3 8.3 10.3 12.5 14.8 17.9 22.1 28.3 36.6 47.3 58.3 73.4
77.5 64.8 84.0 102 114 122 124 120 113 104 92.6 83.5 77.9 72.3 73.6 74.9 76.2 75.4 74.6 73.7 74.5 75.4 76.2 74.9 73.6 72.3 77.9 83.5 92.6 104 113 120 124 122 114 102 84.0 64.8 50.7 38.8 29.4 21.2 14.7 10.6 7.9 6.2 4.9 3.6 2.6 1.6 1.3 1.0 0.6 0.5 0.4 0.3 0.4 0.5 0.6 0.9 1.3 1.6 2.6 3.6 4.9 6.2 7.9 10.6 14.7 21.2 29.4 38.8 50.7
80.0 39.5 54.0 69.3 80.7 89.3 91.8 89.1 82.0 74.1 66.9 62.4 59.9 57.5 59.0 60.5 62.0 61.5 61.0 60.5 61.0 61.5 62.0 60.5 59.0 57.5 59.9 62.4 66.9 74.1 82.0 89.1 91.8 89.3 80.7 69.3 54.0 39.5 29.0 20.2 13.6 8.5 5.3 3.6 2.7 2.0 1.6 1.3 1.1 0.8 0.7 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.7 0.8 1.1 1.3 1.6 2.0 2.7 3.6 5.3 8.5 13.6 20.2 29.0
82.5 17.7 26.7 37.6 48.5 57.1 61.3 60.3 55.7 49.4 44.5 41.6 41.9 42.1 44.2 46.4 48.5 47.8 47.0 46.3 47.0 47.8 48.5 46.4 44.3 42.1 41.9 41.6 44.5 49.4 55.7 60.3 61.3 57.1 48.5 37.6 26.7 17.7 11.0 6.2 3.4 2.4 2.1 1.8 1.5 1.2 1.1 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.8 0.9 1.1 1.2 1.5 1.8 2.1 2.4 3.4 6.2 11.0
85.0 3.6 7.4 13.7 21.7 29.1 34.5 36.0 34.0 31.0 28.1 26.2 26.5 26.9 29.2 31.5 33.8 33.5 33.1 32.8 33.1 33.4 33.8 31.5 29.2 26.9 26.5 26.2 28.1 31.0 34.0 36.0 34.5 29.1 21.7 13.7 7.4 3.6 2.6 2.3 2.0 1.6 1.4 1.2 1.1 1.0 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.1 1.2 1.4 1.6 2.0 2.3 2.6
87.5 2.3 2.5 2.7 4.2 8.6 13.3 16.2 17.0 16.5 15.8 15.4 16.1 16.8 18.1 19.4 20.6 20.8 21.1 21.3 21.1 20.9 20.6 19.3 18.1 16.8 16.1 15.4 15.8 16.5 17.0 16.2 13.3 8.6 4.2 2.7 2.5 2.3 1.9 1.5 1.3 1.2 1.1 1.1 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.1 1.1 1.2 1.3 1.5 1.9
90.0 1.3 1.7 2.0 2.1 2.1 2.3 3.5 5.4 6.4 7.0 7.7 8.6 9.5 10.2 10.9 11.7 11.7 11.8 11.8 11.8 11.8 11.7 11.0 10.3 9.5 8.6 7.7 7.0 6.4 5.4 3.5 2.3 2.1 2.1 2.0 1.7 1.3 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.1
92.5 1.0 1.0 1.0 1.1 1.3 1.4 1.4 1.4 1.5 2.0 2.6 3.3 4.0 4.4 4.9 5.3 5.5 5.6 5.8 5.6 5.4 5.3 4.9 4.5 4.0 3.3 2.6 2.0 1.5 1.4 1.4 1.4 1.3 1.1 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.0 1.0
95.0 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.3 1.6 1.8 1.9 2.0 2.1 2.0 1.9 1.8 1.5 1.3 1.0 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0
97.5 1.0 1.0 0.9 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1
100.0 1.1 1.0 1.0 0.9 0.9 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.9 0.9 1.0 1.0 1.1 1.2 1.2 1.2 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.2 1.2 1.2
102.5 1.2 1.2 1.1 1.0 1.0 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.1 1.1 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
105.0 1.3 1.3 1.2 1.1 1.1 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.9 0.9 1.0 1.1 1.1 1.2 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
120.0 1.3 1.3 1.2 1.2 1.1 1.0 1.0 0.9 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.3 1.3 1.3 1.3 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.3
135.0 1.1 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1
150.0 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
165.0 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
180.0 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
