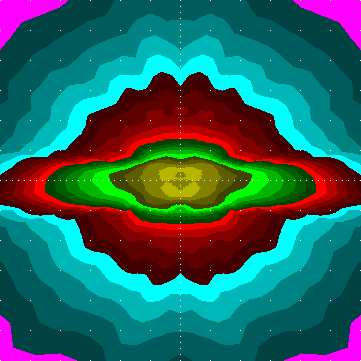

| In left plots, specific illuminances by a continuous row of luminaires spaced 5 and 6 heights are shown in their left halves (right half concerns a single luminaire). | The right plot is for a single luminaire, unrotated. | |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] IN120402A3
# [LUMINAIRE] T2-MTC-LYRE-PL-RETROLED-ROAD-NRN
# [LUMCAT] Thema
# [DATE] 26/04/2012/02/04/2012/02/04/2012 / FAUVIN
# down given: 96%
# out given: 68.5%
# tilt: 0.0
# [LAMP] 36 DS-CW 70 7400 CW LED
# Bulbs: 1, 7400 lm each
# Source file: Thema_T2-MTC-LYRE-PL-RETROLED-ROAD-NRN_36_DS-CW_70_7400_CW_LED.ldt
# Luminaire flux = 685 raw, for the given bulb(s) it would be 5069 lm,
# 68.5 % of the bulb flux
# between 75 and 90: 5.9 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 139.1 cd / 1000 lm , 5.8 % of the luminaire flux
# 90deg and above: max 21.8 cd / 1000 lm , 3.5 % of the luminaire flux
# CutOff Type: IES_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 78 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 291 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 533 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 623 cd / 1000 lm,
# maximum spec. lum. intensity 623 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124 124
2.5 117 114 118 117 118 118 119 122 120 126 123 128 127 129 124 128 126 127 126 127 126 128 124 129 127 128 123 126 120 122 119 118 118 117 118 114 117 118 113 117 114 117 113 121 113 120 115 121 118 123 121 121 123 122 124 122 123 121 121 123 118 121 115 120 113 121 113 117 114 117 113 118
5.0 120 123 122 129 123 136 133 139 138 141 136 136 135 134 135 131 137 128 138 128 137 131 135 134 135 136 136 141 138 139 133 136 123 129 122 123 120 114 118 118 121 115 119 113 118 112 118 112 119 117 120 118 120 120 121 120 120 118 120 117 119 112 118 112 118 113 119 115 121 118 118 114
7.5 124 124 130 130 133 136 137 135 133 126 127 122 126 116 119 115 118 116 118 116 118 115 119 116 126 122 127 126 133 135 137 136 133 130 130 124 124 123 123 128 124 127 124 130 128 130 130 129 127 126 128 124 130 125 132 125 130 124 128 126 127 129 130 130 128 130 124 127 124 128 123 123
10.0 125 125 129 135 134 139 136 134 129 131 129 128 119 121 115 116 112 109 112 109 112 116 115 121 119 128 129 131 129 134 136 139 134 135 129 125 125 122 123 122 121 121 123 124 124 126 124 123 126 124 125 125 124 123 124 123 124 125 125 124 126 123 124 126 124 124 123 121 121 122 123 122
12.5 127 131 137 146 146 147 137 140 134 134 130 128 128 135 128 123 116 119 111 119 116 123 128 135 128 128 130 134 134 140 137 147 146 146 137 131 127 122 123 127 128 131 131 131 129 130 134 131 138 132 133 128 125 123 124 123 125 128 133 132 138 131 134 130 129 131 131 131 128 127 123 122
15.0 138 144 146 155 150 150 141 161 155 151 141 141 143 145 136 139 129 143 140 143 129 139 136 145 143 141 141 151 155 161 141 150 150 155 146 144 138 131 133 131 135 136 135 134 142 138 142 138 140 140 148 139 138 126 126 126 138 139 148 140 140 138 142 138 142 134 135 136 135 131 133 131
17.5 144 156 161 168 164 168 157 180 162 165 160 173 165 159 150 156 150 165 157 165 150 156 150 159 165 173 160 165 162 180 157 168 164 168 161 156 144 136 143 141 151 144 150 146 163 161 157 149 153 152 151 145 146 147 158 147 146 145 151 152 153 149 157 161 163 146 150 144 151 141 143 136
20.0 154 166 168 176 176 182 185 194 173 183 175 195 181 173 166 171 170 170 176 170 170 171 166 173 181 195 175 183 173 194 185 182 176 176 168 166 154 147 150 152 157 159 167 168 179 173 172 170 176 161 158 155 162 158 164 158 162 155 158 161 176 170 172 173 179 168 167 159 157 152 150 147
22.5 165 180 186 190 191 195 198 208 198 212 206 209 199 183 179 176 176 168 165 168 176 176 179 183 199 209 206 212 198 208 198 195 191 190 186 180 165 156 162 163 170 169 182 192 194 180 185 180 183 171 170 168 180 173 181 173 180 168 170 171 183 180 185 180 194 192 182 169 170 163 162 156
25.0 174 189 193 200 206 200 210 217 214 227 221 206 196 179 169 156 156 144 153 144 156 156 169 179 196 206 221 227 214 217 210 200 206 200 193 189 174 170 174 172 188 192 199 212 201 197 207 204 205 188 192 190 198 191 193 191 198 190 192 188 205 204 207 197 201 212 199 192 188 172 174 170
27.5 183 203 207 214 218 211 229 226 222 230 223 196 185 156 151 129 133 117 125 117 133 129 151 156 185 196 223 230 222 226 229 211 218 214 207 203 183 180 185 186 202 201 209 213 206 211 222 216 215 204 203 202 196 194 196 194 196 202 203 204 215 216 222 211 206 213 209 201 202 186 185 180
30.0 190 211 212 218 222 222 238 229 223 216 206 176 154 126 122 102 103 89.3 99.9 89.3 103 102 122 126 154 176 206 216 223 229 238 222 222 218 212 211 190 186 192 194 213 212 215 220 211 224 231 228 214 210 196 195 176 178 164 178 176 195 196 210 214 228 231 224 211 220 215 212 213 194 192 186
32.5 197 221 220 226 228 236 242 223 213 200 187 147 129 107 101 82.7 82.6 71.1 78.1 71.1 82.6 82.7 101 107 129 147 187 200 213 223 242 236 228 226 220 221 197 198 203 203 219 218 225 222 219 226 220 218 203 194 171 164 139 147 138 147 139 164 171 194 203 218 220 226 219 222 225 218 219 203 203 198
35.0 207 232 222 234 237 247 241 216 202 183 159 128 114 103 89.8 74.4 70.1 59.7 63.2 59.7 70.1 74.4 89.8 103 114 128 159 183 202 216 241 247 237 234 222 232 207 207 211 216 234 228 231 227 220 220 206 202 182 173 143 134 108 115 105 115 108 134 143 173 182 202 206 220 220 227 231 228 234 216 211 207
37.5 217 248 237 255 247 257 238 215 205 174 146 130 119 95.9 83.1 64.9 59.4 50.4 51.3 50.4 59.4 64.9 83.1 95.9 119 130 146 174 205 215 238 257 247 255 237 248 217 220 231 234 245 243 242 231 214 211 185 181 157 148 116 104 80.1 85.3 73.2 85.3 80.1 104 116 148 157 181 185 211 214 231 242 243 245 234 231 220
40.0 234 264 254 278 269 267 243 234 203 172 148 115 103 79.8 69.8 55.9 52.9 47.7 48.4 47.7 52.9 55.9 69.8 79.8 103 115 148 172 203 234 243 267 269 278 254 264 234 232 245 250 267 249 246 227 206 191 167 155 127 118 89.7 79.9 58.8 59.8 50.3 59.8 58.8 79.9 89.7 118 127 155 167 191 206 227 246 249 267 250 245 232
42.5 254 285 275 297 290 293 265 251 210 144 118 93.8 85.6 65.8 58.3 47.9 48.8 43.5 44.6 43.5 48.8 47.9 58.3 65.8 85.6 93.8 118 144 210 251 265 293 290 297 275 285 254 251 263 274 287 261 253 226 195 177 157 136 113 98.9 79.9 65.7 50.9 44.9 43.7 44.9 50.9 65.7 79.9 98.9 113 136 157 177 195 226 253 261 287 274 263 251
45.0 272 303 294 322 308 314 288 231 175 107 93.1 74.1 71.6 53.0 47.8 40.8 40.7 37.1 39.2 37.1 40.7 40.8 47.8 53.0 71.6 74.1 93.1 107 175 231 288 314 308 322 294 303 272 272 276 295 299 276 255 216 198 182 158 130 111 96.1 79.4 62.3 52.8 49.7 48.1 49.7 52.8 62.3 79.4 96.1 111 130 158 182 198 216 255 276 299 295 276 272
47.5 294 320 307 336 323 331 282 151 117 79.1 71.2 56.1 55.0 39.5 38.5 33.1 33.3 29.4 31.4 29.4 33.3 33.1 38.5 39.5 55.0 56.1 71.2 79.1 117 151 282 331 323 336 307 320 294 288 292 307 290 270 237 215 214 188 150 127 106 91.6 59.4 52.8 43.2 42.4 38.8 42.4 43.2 52.8 59.4 91.6 106 127 150 188 214 215 237 270 290 307 292 288
50.0 313 347 324 353 332 310 213 103 87.4 60.5 54.6 41.8 39.1 30.0 29.5 24.4 26.5 22.3 24.1 22.3 26.5 24.4 29.5 30.0 39.1 41.8 54.6 60.5 87.4 103 213 310 332 353 324 347 313 312 305 308 271 258 233 231 212 179 131 108 67.7 62.3 40.0 38.7 31.6 31.6 29.5 31.6 31.6 38.7 40.0 62.3 67.7 108 131 179 212 231 233 258 271 308 305 312
52.5 352 382 346 356 313 207 120 76.1 66.1 47.6 41.3 30.9 28.5 23.2 22.3 19.0 19.0 16.9 18.2 16.9 19.0 19.0 22.3 23.2 28.5 30.9 41.3 47.6 66.1 76.1 120 207 313 356 346 382 352 337 308 298 243 232 238 236 185 151 73.2 63.9 43.9 39.5 27.3 28.1 23.1 24.5 21.5 24.5 23.1 28.1 27.3 39.5 43.9 63.9 73.2 151 185 236 238 232 243 298 308 337
55.0 386 406 355 341 262 99.6 76.2 54.8 50.5 37.4 30.7 22.0 21.3 18.2 18.3 16.5 16.0 14.8 15.6 14.8 16.0 16.5 18.3 18.2 21.3 22.0 30.7 37.4 50.5 54.8 76.2 99.6 262 341 355 406 386 364 307 275 216 230 229 214 117 77.8 47.1 41.8 31.0 27.4 20.5 20.5 17.8 18.7 17.1 18.7 17.8 20.5 20.5 27.4 31.0 41.8 47.1 77.8 117 214 229 230 216 275 307 364
57.5 399 439 374 300 181 54.5 50.6 39.5 37.3 28.9 23.8 18.0 17.8 15.6 16.0 14.8 14.4 13.3 13.8 13.3 14.4 14.8 16.0 15.6 17.8 18.0 23.8 28.9 37.3 39.5 50.6 54.5 181 300 374 439 399 377 313 257 212 229 192 145 56.0 48.6 35.3 30.8 23.8 21.0 17.3 16.8 15.6 15.6 14.5 15.6 15.6 16.8 17.3 21.0 23.8 30.8 35.3 48.6 56.0 145 192 229 212 257 313 377
60.0 423 456 379 226 87.4 33.9 32.4 30.6 29.1 23.6 19.6 15.9 15.6 14.1 14.3 13.3 13.5 12.1 12.7 12.1 13.5 13.3 14.3 14.1 15.6 15.9 19.6 23.6 29.1 30.6 32.4 33.9 87.4 226 379 456 423 389 304 244 218 212 109 57.5 37.1 35.3 27.8 24.4 19.0 18.0 15.6 15.0 13.9 13.9 12.9 13.9 13.9 15.0 15.6 18.0 19.0 24.4 27.8 35.3 37.1 57.5 109 212 218 244 304 389
62.5 459 501 360 145 46.0 25.4 24.5 25.4 23.0 19.9 17.0 14.4 14.3 12.9 12.9 11.8 12.1 11.1 11.1 11.1 12.1 11.8 12.9 12.9 14.3 14.4 17.0 19.9 23.0 25.4 24.5 25.4 46.0 145 360 501 459 411 317 254 206 166 30.3 31.7 28.7 28.6 23.0 19.3 16.0 15.9 14.1 13.3 12.3 12.6 11.5 12.6 12.3 13.3 14.1 15.9 16.0 19.3 23.0 28.6 28.7 31.7 30.3 166 206 254 317 411
65.0 496 533 338 71.7 34.0 20.8 20.3 20.5 18.8 16.6 14.9 13.1 13.0 12.1 11.8 11.1 10.8 10.4 10.4 10.4 10.8 11.1 11.8 12.1 13.0 13.1 14.9 16.6 18.8 20.5 20.3 20.8 34.0 71.7 338 533 496 443 359 268 170 72.0 20.3 24.3 23.9 23.0 18.5 15.5 13.9 14.7 13.6 11.8 10.9 10.9 12.8 10.9 10.9 11.8 13.6 14.7 13.9 15.5 18.5 23.0 23.9 24.3 20.3 72.0 170 268 359 443
67.5 536 555 290 45.9 29.0 18.9 18.2 17.0 16.0 17.0 13.4 12.9 12.1 17.8 15.3 14.4 10.8 14.8 14.8 14.8 10.8 14.4 15.3 17.8 12.1 12.9 13.4 17.0 16.0 17.0 18.2 18.9 29.0 45.9 290 555 536 466 410 258 93.3 25.0 18.1 19.9 20.1 19.3 18.8 13.9 12.8 14.0 14.1 13.5 15.0 14.3 13.0 14.3 15.0 13.5 14.1 14.0 12.8 13.9 18.8 19.3 20.1 19.9 18.1 25.0 93.3 258 410 466
70.0 596 569 226 34.3 27.1 21.4 20.3 15.7 17.1 18.3 15.0 14.1 13.8 14.9 14.5 14.6 17.0 14.3 13.0 14.3 17.0 14.6 14.5 14.9 13.8 14.1 15.0 18.3 17.1 15.7 20.3 21.4 27.1 34.3 226 569 596 497 434 217 33.2 21.8 20.9 19.0 18.4 18.5 18.3 16.9 16.9 14.0 14.1 13.8 16.1 12.9 11.6 12.9 16.1 13.8 14.1 14.0 16.9 16.9 18.3 18.5 18.4 19.0 20.9 21.8 33.2 217 434 497
72.5 623 514 125 25.3 23.9 19.0 18.7 19.8 17.5 15.6 14.1 14.6 17.0 13.2 12.9 15.7 17.3 15.7 11.3 15.7 17.3 15.7 12.9 13.2 17.0 14.6 14.1 15.6 17.5 19.8 18.7 19.0 23.9 25.3 125 514 623 556 395 132 22.3 20.8 20.8 22.0 17.7 16.3 15.6 16.1 18.2 14.0 13.8 15.9 15.9 13.8 10.7 13.8 15.9 15.9 13.8 14.0 18.2 16.1 15.6 16.3 17.7 22.0 20.8 20.8 22.3 132 395 556
75.0 564 356 62.6 22.4 19.9 17.0 17.1 19.1 16.5 13.8 12.3 15.0 16.0 12.6 11.9 16.4 17.6 15.8 11.1 15.8 17.6 16.4 11.9 12.6 16.0 15.0 12.3 13.8 16.5 19.1 17.1 17.0 19.9 22.4 62.6 356 564 499 288 46.9 18.6 18.3 19.2 21.4 17.8 13.9 14.1 15.7 14.9 14.7 12.9 16.6 15.4 12.4 12.1 12.4 15.4 16.6 12.9 14.7 14.9 15.7 14.1 13.9 17.8 21.4 19.2 18.3 18.6 46.9 288 499
77.5 304 150 30.8 19.8 17.3 15.2 16.9 17.0 16.2 12.9 12.0 14.1 13.1 13.1 11.2 16.2 16.7 13.6 11.0 13.6 16.7 16.2 11.2 13.1 13.1 14.1 12.0 12.9 16.2 17.0 16.9 15.2 17.3 19.8 30.8 150 304 323 124 25.3 18.1 16.5 17.6 18.1 15.8 14.0 14.6 14.7 13.1 13.5 14.9 16.1 14.1 10.6 11.8 10.6 14.1 16.1 14.9 13.5 13.1 14.7 14.6 14.0 15.8 18.1 17.6 16.5 18.1 25.3 124 323
80.0 101 51.8 20.4 16.3 16.0 13.9 15.8 15.0 15.0 12.8 13.0 12.6 12.4 11.9 12.3 14.2 15.1 12.6 13.4 12.6 15.1 14.2 12.3 11.9 12.4 12.6 13.0 12.8 15.0 15.0 15.8 13.9 16.0 16.3 20.4 51.8 101 139 38.3 19.0 18.0 14.9 15.6 15.9 14.4 14.9 14.4 12.4 11.8 11.8 16.2 15.4 12.3 11.7 9.9 11.7 12.3 15.4 16.2 11.8 11.8 12.4 14.4 14.9 14.4 15.9 15.6 14.9 18.0 19.0 38.3 139
82.5 33.2 26.1 15.8 13.8 15.9 12.8 14.3 13.2 13.1 13.6 12.1 11.0 11.5 10.5 15.4 11.5 11.3 11.4 10.6 11.4 11.3 11.5 15.4 10.5 11.5 11.0 12.1 13.6 13.1 13.2 14.3 12.8 15.9 13.8 15.8 26.1 33.2 54.9 17.9 15.4 16.6 14.0 13.1 13.8 13.2 15.8 14.2 11.1 10.4 12.4 16.3 14.5 10.5 12.6 10.6 12.6 10.5 14.5 16.3 12.4 10.4 11.1 14.2 15.8 13.2 13.8 13.1 14.0 16.6 15.4 17.9 54.9
85.0 16.4 15.5 13.0 12.3 14.0 10.9 11.8 12.6 12.1 14.7 10.6 9.9 9.8 13.1 15.8 13.7 11.1 12.6 8.2 12.6 11.1 13.7 15.8 13.1 9.8 9.9 10.6 14.7 12.1 12.6 11.8 10.9 14.0 12.3 13.0 15.5 16.4 23.8 13.4 13.4 15.6 13.5 11.2 12.3 12.5 17.0 13.1 10.2 9.4 14.4 13.6 15.7 10.1 10.6 13.2 10.6 10.1 15.7 13.6 14.4 9.4 10.2 13.1 17.0 12.5 12.3 11.2 13.5 15.6 13.4 13.4 23.8
87.5 12.6 12.5 11.2 11.1 14.6 10.0 10.8 10.0 11.1 14.8 10.8 8.8 9.3 16.6 14.1 9.4 10.5 9.3 13.7 9.3 10.5 9.4 14.1 16.6 9.3 8.8 10.8 14.8 11.1 10.0 10.8 10.0 14.6 11.1 11.2 12.5 12.6 14.3 11.4 12.5 14.6 13.0 10.4 11.5 14.8 16.8 11.5 10.1 10.5 16.3 13.8 16.3 13.3 9.5 15.7 9.5 13.3 16.3 13.8 16.3 10.5 10.1 11.5 16.8 14.8 11.5 10.4 13.0 14.6 12.5 11.4 14.3
90.0 10.4 11.1 10.4 10.7 14.5 9.5 8.3 8.7 11.1 14.3 9.6 7.6 8.9 15.5 11.3 6.8 9.3 9.0 16.5 9.0 9.3 6.8 11.3 15.5 8.9 7.6 9.6 14.3 11.1 8.7 8.3 9.5 14.5 10.7 10.4 11.1 10.4 11.9 9.9 12.4 12.4 13.0 8.7 8.9 14.5 14.4 10.4 8.9 13.5 12.6 12.3 10.7 10.6 11.6 11.1 11.6 10.6 10.7 12.3 12.6 13.5 8.9 10.4 14.4 14.5 8.9 8.7 13.0 12.4 12.4 9.9 11.9
92.5 7.8 7.1 7.4 7.8 10.1 7.6 6.0 5.7 7.5 11.0 7.2 5.3 7.7 7.9 6.4 4.4 3.9 3.7 7.8 3.7 3.9 4.4 6.4 7.9 7.7 5.3 7.2 11.0 7.5 5.7 6.0 7.6 10.1 7.8 7.4 7.1 7.8 8.6 7.3 8.2 7.7 10.8 5.9 7.3 8.6 12.4 7.3 8.9 10.5 10.2 6.6 7.8 5.3 11.6 5.8 11.6 5.3 7.8 6.6 10.2 10.5 8.9 7.3 12.4 8.6 7.3 5.9 10.8 7.7 8.2 7.3 8.6
95.0 6.2 5.9 6.6 6.5 7.6 8.1 5.1 4.9 5.4 7.4 6.0 5.1 4.8 4.7 5.8 3.5 3.3 3.0 4.4 3.0 3.3 3.5 5.8 4.7 4.8 5.1 6.0 7.4 5.4 4.9 5.1 8.1 7.6 6.5 6.6 5.9 6.2 6.8 6.4 6.8 7.0 8.3 5.4 5.6 5.6 8.5 6.1 5.1 6.6 6.4 5.3 3.9 3.7 5.5 6.1 5.5 3.7 3.9 5.3 6.4 6.6 5.1 6.1 8.5 5.6 5.6 5.4 8.3 7.0 6.8 6.4 6.8
97.5 5.4 5.3 5.8 5.8 6.4 7.1 6.8 4.6 5.6 5.6 6.6 5.3 10.8 4.4 4.1 2.9 2.8 3.3 12.6 3.3 2.8 2.9 4.1 4.4 10.8 5.3 6.6 5.6 5.6 4.6 6.8 7.1 6.4 5.8 5.8 5.3 5.4 6.4 5.8 5.9 6.3 7.6 8.3 6.3 5.5 7.1 6.3 4.8 8.9 5.6 5.0 3.6 3.4 3.5 10.7 3.5 3.4 3.6 5.0 5.6 8.9 4.8 6.3 7.1 5.5 6.3 8.3 7.6 6.3 5.9 5.8 6.4
100.0 6.4 7.6 5.1 5.7 5.8 7.8 14.5 4.9 5.2 4.9 5.6 3.8 21.7 4.0 4.1 3.1 2.6 3.3 19.1 3.3 2.6 3.1 4.1 4.0 21.7 3.8 5.6 4.9 5.2 4.9 14.5 7.8 5.8 5.7 5.1 7.6 6.4 12.0 5.1 5.4 5.9 6.1 16.8 11.4 5.4 5.4 5.8 4.6 21.8 5.9 3.8 3.8 3.2 3.6 17.9 3.6 3.2 3.8 3.8 5.9 21.8 4.6 5.8 5.4 5.4 11.4 16.8 6.1 5.9 5.4 5.1 12.0
102.5 7.6 5.1 4.5 4.8 4.7 4.4 14.9 4.1 4.3 4.2 5.9 3.9 15.5 3.9 4.0 3.5 2.5 4.1 12.2 4.1 2.5 3.5 4.0 3.9 15.5 3.9 5.9 4.2 4.3 4.1 14.9 4.4 4.7 4.8 4.5 5.1 7.6 8.4 4.7 4.9 4.9 5.3 15.3 7.6 4.8 4.9 5.5 3.8 17.6 5.8 3.3 3.2 2.5 4.3 18.8 4.3 2.5 3.2 3.3 5.8 17.6 3.8 5.5 4.9 4.8 7.6 15.3 5.3 4.9 4.9 4.7 8.4
105.0 8.2 4.4 4.1 4.4 4.1 4.7 11.6 5.5 3.5 3.4 4.8 8.3 5.6 5.2 2.8 4.5 2.5 6.3 4.0 6.3 2.5 4.5 2.8 5.2 5.6 8.3 4.8 3.4 3.5 5.5 11.6 4.7 4.1 4.4 4.1 4.4 8.2 4.9 4.5 5.6 4.2 4.4 11.6 6.2 3.8 4.2 4.9 4.4 6.7 4.6 2.8 3.5 2.5 5.5 5.6 5.5 2.5 3.5 2.8 4.6 6.7 4.4 4.9 4.2 3.8 6.2 11.6 4.4 4.2 5.6 4.5 4.9
107.5 3.0 3.5 5.1 3.8 3.8 6.1 5.9 5.1 3.4 3.2 3.3 6.6 3.8 4.4 2.7 2.5 3.3 3.3 2.9 3.3 3.3 2.5 2.7 4.4 3.8 6.6 3.3 3.2 3.4 5.1 5.9 6.1 3.8 3.8 5.1 3.5 3.0 3.9 4.2 4.2 3.8 4.6 5.3 7.5 3.7 3.5 3.3 7.4 4.7 5.6 3.0 3.0 3.5 5.6 3.2 5.6 3.5 3.0 3.0 5.6 4.7 7.4 3.3 3.5 3.7 7.5 5.3 4.6 3.8 4.2 4.2 3.9
110.0 2.5 3.4 4.1 3.4 3.6 4.1 4.1 5.7 3.5 3.1 3.2 3.5 3.5 3.2 3.1 2.4 4.1 2.5 2.5 2.5 4.1 2.4 3.1 3.2 3.5 3.5 3.2 3.1 3.5 5.7 4.1 4.1 3.6 3.4 4.1 3.4 2.5 3.5 4.7 4.0 3.7 5.6 4.2 6.3 4.0 3.3 3.2 5.4 3.9 4.0 3.3 2.5 4.4 4.8 2.6 4.8 4.4 2.5 3.3 4.0 3.9 5.4 3.2 3.3 4.0 6.3 4.2 5.6 3.7 4.0 4.7 3.5
112.5 2.4 3.0 3.4 3.3 3.6 3.7 3.8 3.9 3.5 3.0 3.2 2.9 3.2 2.7 3.1 2.5 2.8 2.3 2.3 2.3 2.8 2.5 3.1 2.7 3.2 2.9 3.2 3.0 3.5 3.9 3.8 3.7 3.6 3.3 3.4 3.0 2.4 3.3 3.9 3.6 3.7 4.4 3.7 5.1 4.2 3.2 3.7 3.7 3.6 2.9 3.3 2.5 3.2 2.5 2.4 2.5 3.2 2.5 3.3 2.9 3.6 3.7 3.7 3.2 4.2 5.1 3.7 4.4 3.7 3.6 3.9 3.3
115.0 2.4 2.9 3.2 3.3 3.6 3.2 3.3 3.3 3.5 2.9 3.0 2.7 3.0 2.5 2.5 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.5 2.5 3.0 2.7 3.0 2.9 3.5 3.3 3.3 3.2 3.6 3.3 3.2 2.9 2.4 3.2 3.7 3.8 3.7 3.5 3.3 3.5 3.6 3.1 3.2 2.9 3.0 2.6 2.6 2.8 2.5 2.4 2.3 2.4 2.5 2.8 2.6 2.6 3.0 2.9 3.2 3.1 3.6 3.5 3.3 3.5 3.7 3.8 3.7 3.2
117.5 2.3 2.7 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.8 2.8 2.6 2.6 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.6 2.6 2.8 2.8 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.7 2.3 3.1 3.1 3.4 3.2 3.3 3.2 3.2 3.1 3.0 2.8 2.8 2.7 2.7 2.4 2.5 2.3 2.3 2.3 2.3 2.3 2.5 2.4 2.7 2.7 2.8 2.8 3.0 3.1 3.2 3.2 3.3 3.2 3.4 3.1 3.1
120.0 2.3 2.5 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.6 2.4 2.5 2.3 2.3 2.2 2.3 2.3 2.3 2.3 2.3 2.2 2.3 2.3 2.5 2.4 2.6 2.7 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.5 2.3 2.8 2.8 3.0 3.0 3.0 3.0 3.0 2.8 2.8 2.7 2.5 2.5 2.4 2.3 2.3 2.2 2.3 2.3 2.3 2.2 2.3 2.3 2.4 2.5 2.5 2.7 2.8 2.8 3.0 3.0 3.0 3.0 3.0 2.8 2.8
122.5 2.3 2.4 2.5 2.7 2.7 2.8 2.8 2.8 2.7 2.6 2.5 2.4 2.3 2.3 2.3 2.2 2.3 2.3 2.3 2.3 2.3 2.2 2.3 2.3 2.3 2.4 2.5 2.6 2.7 2.8 2.8 2.8 2.7 2.7 2.5 2.4 2.3 2.7 2.8 2.8 2.8 2.9 2.8 2.8 2.7 2.7 2.6 2.5 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.5 2.6 2.7 2.7 2.8 2.8 2.9 2.8 2.8 2.8 2.7
125.0 2.2 2.3 2.5 2.5 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.5 2.5 2.3 2.2 2.5 2.7 2.8 2.7 2.8 2.7 2.8 2.6 2.6 2.4 2.5 2.3 2.3 2.3 2.2 2.3 2.3 2.3 2.3 2.3 2.2 2.3 2.3 2.3 2.5 2.4 2.6 2.6 2.8 2.7 2.8 2.7 2.8 2.7 2.5
127.5 2.2 2.3 2.5 2.5 2.6 2.6 2.6 2.6 2.5 2.5 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.5 2.5 2.6 2.6 2.6 2.6 2.5 2.5 2.3 2.2 2.5 2.5 2.7 2.7 2.7 2.6 2.7 2.6 2.5 2.4 2.3 2.3 2.3 2.2 2.2 2.3 2.3 2.3 2.3 2.3 2.2 2.2 2.3 2.3 2.3 2.4 2.5 2.6 2.7 2.6 2.7 2.7 2.7 2.5 2.5
130.0 2.3 2.3 2.4 2.5 2.5 2.5 2.5 2.6 2.5 2.6 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.6 2.5 2.6 2.5 2.5 2.5 2.5 2.4 2.3 2.3 2.5 2.5 2.6 2.6 2.6 2.5 2.6 2.5 2.5 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.5 2.5 2.6 2.5 2.6 2.6 2.6 2.5 2.5
132.5 2.3 2.4 2.5 2.5 2.5 2.6 2.6 2.6 2.5 2.6 2.5 2.4 2.4 2.4 2.3 2.4 2.5 2.5 2.5 2.5 2.5 2.4 2.3 2.4 2.4 2.4 2.5 2.6 2.5 2.6 2.6 2.6 2.5 2.5 2.5 2.4 2.3 2.5 2.5 2.6 2.7 2.6 2.5 2.5 2.5 2.5 2.4 2.4 2.4 2.3 2.3 2.3 2.4 2.4 2.4 2.4 2.4 2.3 2.3 2.3 2.4 2.4 2.4 2.5 2.5 2.5 2.5 2.6 2.7 2.6 2.5 2.5
135.0 2.4 2.4 2.5 2.6 2.6 2.7 2.6 2.6 2.5 2.6 2.5 2.5 2.5 2.4 2.5 2.5 2.5 2.5 2.6 2.5 2.5 2.5 2.5 2.4 2.5 2.5 2.5 2.6 2.5 2.6 2.6 2.7 2.6 2.6 2.5 2.4 2.4 2.5 2.6 2.6 2.7 2.7 2.5 2.6 2.5 2.5 2.4 2.5 2.4 2.3 2.3 2.3 2.5 2.5 2.5 2.5 2.5 2.3 2.3 2.3 2.4 2.5 2.4 2.5 2.5 2.6 2.5 2.7 2.7 2.6 2.6 2.5
137.5 2.5 2.5 2.6 2.7 2.7 2.7 2.6 2.7 2.7 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.6 2.6 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.6 2.7 2.7 2.6 2.7 2.7 2.7 2.6 2.5 2.5 2.6 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.4 2.5 2.5 2.5 2.6 2.5 2.5 2.5 2.4 2.5 2.5 2.5 2.5 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.6
140.0 2.6 2.6 2.7 2.8 2.7 2.8 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.5 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.5 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.8 2.7 2.8 2.7 2.6 2.6 2.7 2.7 2.7 2.8 2.7 2.7 2.6 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.6 2.6 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.6 2.6 2.7 2.7 2.8 2.7 2.7 2.7
142.5 2.7 2.7 2.7 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.7 2.7 2.6 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.7 2.7 2.7 2.7 2.7 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.8 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.5 2.5 2.6 2.7 2.6 2.7 2.6 2.7 2.6 2.5 2.5 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.8 2.8 2.8 2.8 2.8
145.0 2.8 2.8 2.8 2.9 2.9 3.0 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.8 2.8 2.8 2.8 3.0 2.9 2.9 2.8 2.8 2.8 2.8 2.8 2.9 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.6 2.7 2.6 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.7 2.6 2.7 2.7 2.7 2.8 2.8 2.8 2.8 2.9 2.8 2.8
147.5 2.8 2.8 2.8 2.9 2.9 3.0 2.8 2.9 2.8 2.8 2.8 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.8 2.8 2.8 2.9 2.8 3.0 2.9 2.9 2.8 2.8 2.8 2.8 2.8 2.9 2.8 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.8 2.7 2.7 2.7 2.8 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.8 2.8 2.8 2.8 2.8 2.9 2.8 2.8
150.0 2.8 2.8 2.8 2.8 2.9 2.8 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.7 2.7 2.6 2.7 2.6 2.6 2.6 2.7 2.6 2.7 2.7 2.7 2.7 2.7 2.8 2.8 2.8 2.8 2.8 2.9 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.8 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.8 2.7 2.7 2.7 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8
152.5 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.7 2.6 2.5 2.6 2.5 2.5 2.4 2.5 2.4 2.5 2.4 2.5 2.4 2.5 2.5 2.6 2.5 2.6 2.7 2.7 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.8 2.7 2.8 2.7 2.8 2.7 2.7 2.6 2.6 2.6 2.7 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.7 2.6 2.6 2.6 2.7 2.7 2.8 2.7 2.8 2.7 2.8 2.7 2.8
155.0 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.4 2.5 2.3 2.3 2.2 2.3 2.2 2.2 2.2 2.3 2.2 2.3 2.3 2.5 2.4 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.7 2.5 2.7 2.5 2.7 2.5 2.5 2.5 2.5 2.4 2.5 2.4 2.5 2.4 2.5 2.4 2.5 2.4 2.5 2.4 2.5 2.4 2.5 2.5 2.5 2.5 2.7 2.5 2.7 2.5 2.7 2.6 2.7
157.5 2.5 2.5 2.5 2.5 2.5 2.5 2.4 2.4 2.4 2.3 2.3 2.1 2.2 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.2 2.1 2.3 2.3 2.4 2.4 2.4 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.4 2.5 2.4 2.5 2.3 2.5 2.3 2.4 2.3 2.3 2.3 2.3 2.2 2.3 2.2 2.3 2.2 2.3 2.2 2.3 2.2 2.3 2.3 2.3 2.3 2.4 2.3 2.5 2.3 2.5 2.4 2.5 2.4 2.5
160.0 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.2 2.2 2.0 2.0 1.8 1.9 1.8 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.8 1.9 1.8 2.0 2.0 2.2 2.2 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.3 2.3 2.3 2.3 2.2 2.2 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.2 2.3 2.3 2.3 2.3 2.4 2.3 2.3
162.5 2.2 2.2 2.2 2.2 2.2 2.2 2.0 2.0 2.0 2.0 1.8 1.8 1.8 1.8 1.7 1.8 1.7 1.7 1.7 1.7 1.7 1.8 1.7 1.8 1.8 1.8 1.8 2.0 2.0 2.0 2.0 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.0 2.1 2.0 2.0 1.9 2.0 1.8 1.8 1.8 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.8 1.8 1.8 2.0 1.9 2.0 2.0 2.1 2.0 2.2 2.2 2.2
165.0 2.2 2.2 2.2 2.2 2.2 2.2 2.0 2.1 2.0 2.0 1.9 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.9 1.9 2.0 2.0 2.1 2.0 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.0 2.0 2.0 2.0 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.9 2.0 2.0 2.0 2.0 2.1 2.2 2.2
167.5 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.8 1.8 1.9 1.9 1.9 1.8 1.8 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.0 2.0 2.0 1.9 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.9 1.9 2.0 2.0 2.0 2.1 2.1 2.2 2.2 2.2
170.0 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 1.9 1.9 1.9 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.2 2.2 2.2
172.5 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.2 2.2 2.2
175.0 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.1 2.2 2.2 2.2
177.5 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.2 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.2 2.1 2.2 2.2 2.2
180.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
