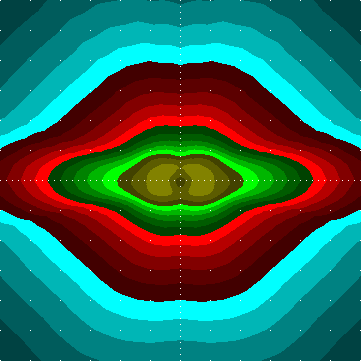

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] IN120404A3
# [LUMINAIRE] T1-4B-RETROLED-ROAD-NRN
# [LUMCAT] Thema
# [DATE] 26/04/2012/05/04/2012/04/04/2012 / FAUVIN
# down given: 94%
# out given: 63.7%
# tilt: 0.0
# [LAMP] 36 DS-CW 70 7400 CW LED
# Bulbs: 1, 7400 lm each
# Source file: Thema_T1-4B-RETROLED-ROAD-NRN_36_DS-CW_70_7400_CW_LED.ldt
# Luminaire flux = 637 raw, for the given bulb(s) it would be 4714 lm,
# 63.7 % of the bulb flux
# between 75 and 90: 9.4 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 170.9 cd / 1000 lm , 10.5 % of the luminaire flux
# 90deg and above: max 20.0 cd / 1000 lm , 6.3 % of the luminaire flux
# CutOff Type: IES_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 155 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 588 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 409 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 451 cd / 1000 lm,
# maximum spec. lum. intensity 451 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6 43.6
2.5 44.5 44.3 44.5 44.6 44.8 44.8 45.0 45.0 45.0 45.2 45.5 45.1 45.6 45.2 45.6 45.3 45.7 45.2 45.6 45.2 45.7 45.3 45.6 45.2 45.6 45.1 45.5 45.2 45.0 45.0 45.0 44.8 44.8 44.6 44.5 44.3 44.5 44.3 44.2 44.0 43.8 43.8 43.8 43.6 43.6 43.4 42.9 43.5 42.9 43.3 42.8 43.3 42.7 43.2 42.7 43.2 42.7 43.3 42.8 43.3 42.9 43.5 42.9 43.4 43.6 43.6 43.8 43.8 43.8 44.0 44.2 44.3
5.0 46.8 46.8 47.2 47.2 47.4 47.5 48.1 48.2 48.0 48.2 49.0 47.9 48.8 48.2 49.1 48.0 49.0 48.1 48.8 48.1 49.0 48.0 49.1 48.2 48.8 47.9 49.0 48.2 48.0 48.2 48.1 47.5 47.4 47.2 47.2 46.8 46.8 46.3 46.3 46.0 45.8 45.7 45.4 45.3 45.0 45.0 43.8 44.8 43.5 44.4 43.3 44.2 43.1 44.1 43.1 44.1 43.1 44.2 43.3 44.4 43.5 44.8 43.8 45.0 45.0 45.3 45.4 45.7 45.8 46.0 46.3 46.3
7.5 50.4 50.6 51.1 50.8 51.2 51.4 52.0 52.0 52.2 52.4 53.3 52.5 53.5 52.3 54.2 52.5 53.6 52.5 53.9 52.5 53.6 52.5 54.2 52.3 53.5 52.5 53.3 52.4 52.2 52.0 52.0 51.4 51.2 50.8 51.1 50.6 50.4 50.1 49.8 49.5 49.5 49.0 48.6 48.4 48.1 47.9 46.3 47.6 45.8 47.0 45.3 46.4 45.0 46.5 44.7 46.5 45.0 46.4 45.3 47.0 45.8 47.6 46.3 47.9 48.1 48.4 48.6 49.0 49.5 49.5 49.8 50.1
10.0 55.8 55.9 56.0 55.8 56.3 56.3 57.4 57.5 58.1 58.3 59.3 58.1 60.3 57.7 60.2 58.5 60.0 58.4 59.8 58.4 60.0 58.5 60.2 57.7 60.3 58.1 59.3 58.3 58.1 57.5 57.4 56.3 56.3 55.8 56.0 55.9 55.8 55.6 55.0 54.9 54.6 54.0 53.2 52.9 52.1 52.0 49.9 51.5 49.3 50.5 48.4 50.3 48.0 49.7 47.8 49.7 48.0 50.3 48.4 50.5 49.3 51.5 49.9 52.0 52.1 52.9 53.2 54.0 54.6 54.9 55.0 55.6
12.5 62.9 63.5 63.4 64.0 64.5 64.7 65.3 65.8 66.3 67.1 67.9 66.1 69.1 65.7 68.6 65.7 68.2 66.5 68.5 66.5 68.2 65.7 68.6 65.7 69.1 66.1 67.9 67.1 66.3 65.8 65.3 64.7 64.5 64.0 63.4 63.5 62.9 63.2 63.0 62.9 62.2 61.3 60.1 59.2 58.7 57.8 54.9 57.7 54.2 56.1 53.2 55.8 52.5 55.3 52.6 55.3 52.5 55.8 53.2 56.1 54.2 57.7 54.9 57.8 58.7 59.2 60.1 61.3 62.2 62.9 63.0 63.2
15.0 72.3 72.4 72.9 73.8 74.6 75.6 76.7 76.8 77.3 78.2 79.8 75.8 78.8 75.1 77.3 74.6 76.9 74.8 77.2 74.8 76.9 74.6 77.3 75.1 78.8 75.8 79.8 78.2 77.3 76.8 76.7 75.6 74.6 73.8 72.9 72.4 72.3 72.4 72.8 72.3 71.6 71.2 69.6 68.8 67.4 66.6 62.7 66.1 61.3 64.0 60.1 62.5 58.5 61.5 58.4 61.5 58.5 62.5 60.1 64.0 61.3 66.1 62.7 66.6 67.4 68.8 69.6 71.2 71.6 72.3 72.8 72.4
17.5 83.3 82.6 83.3 84.1 85.3 86.2 87.3 89.1 90.5 90.4 93.0 87.3 89.4 85.3 86.5 84.2 86.0 83.2 85.3 83.2 86.0 84.2 86.5 85.3 89.4 87.3 93.0 90.4 90.5 89.1 87.3 86.2 85.3 84.1 83.3 82.6 83.3 83.3 83.9 82.8 82.4 82.8 81.6 79.8 78.8 77.6 72.9 75.8 69.8 71.9 67.3 69.3 64.9 68.2 64.8 68.2 64.9 69.3 67.3 71.9 69.8 75.8 72.9 77.6 78.8 79.8 81.6 82.8 82.4 82.8 83.9 83.3
20.0 95.6 94.7 95.3 95.6 96.8 98.8 102 103 104 103 105 98.3 100 95.7 96.6 93.4 94.8 91.4 93.1 91.4 94.8 93.4 96.6 95.7 100 98.3 105 103 104 103 102 98.8 96.8 95.6 95.3 94.7 95.6 94.8 95.9 94.3 94.5 94.4 94.6 92.4 91.7 90.1 84.8 86.8 79.7 81.1 74.7 76.4 72.1 74.9 71.7 74.9 72.1 76.4 74.7 81.1 79.7 86.8 84.8 90.1 91.7 92.4 94.6 94.4 94.5 94.3 95.9 94.8
22.5 108 108 109 108 110 112 115 117 118 117 118 111 111 106 106 102 103 99.4 99.9 99.4 103 102 106 106 111 111 118 117 118 117 115 112 110 108 109 108 108 107 108 108 108 109 108 106 105 104 96.7 98.3 88.8 89.7 82.4 83.1 79.2 81.3 77.7 81.3 79.2 83.1 82.4 89.7 88.8 98.3 96.7 104 105 106 108 109 108 108 108 107
25.0 121 121 122 122 125 126 129 131 132 130 130 124 122 115 114 110 109 106 105 106 109 110 114 115 122 124 130 130 132 131 129 126 125 122 122 121 121 120 121 122 124 122 122 120 118 116 108 108 98.8 97.2 89.6 88.9 84.7 85.8 83.1 85.8 84.7 88.9 89.6 97.2 98.8 108 108 116 118 120 122 122 124 122 121 120
27.5 134 136 137 137 141 140 143 144 145 143 140 134 129 123 120 116 111 109 107 109 111 116 120 123 129 134 140 143 145 144 143 140 141 137 137 136 134 134 135 137 139 138 137 135 132 128 119 118 107 103 94.8 92.5 88.1 87.9 86.1 87.9 88.1 92.5 94.8 103 107 118 119 128 132 135 137 138 139 137 135 134
30.0 149 150 153 154 155 156 157 157 156 154 148 141 134 128 121 117 109 107 103 107 109 117 121 128 134 141 148 154 156 157 157 156 155 154 153 150 149 149 150 152 154 153 153 148 144 139 128 124 112 106 97.6 93.1 88.8 86.9 85.7 86.9 88.8 93.1 97.6 106 112 124 128 139 144 148 153 153 154 152 150 149
32.5 164 165 168 170 170 169 170 168 166 160 153 144 133 127 116 112 101 101 94.5 101 101 112 116 127 133 144 153 160 166 168 170 169 170 170 168 165 164 164 167 167 169 168 168 161 154 147 135 127 115 106 97.2 90.5 86.6 82.9 82.6 82.9 86.6 90.5 97.2 106 115 127 135 147 154 161 168 168 169 167 167 164
35.0 180 179 184 185 185 182 180 176 172 163 152 143 129 122 108 103 89.4 90.3 82.7 90.3 89.4 103 108 122 129 143 152 163 172 176 180 182 185 185 184 179 180 180 184 183 185 183 180 171 163 152 138 127 114 103 94.1 85.6 81.4 76.7 77.2 76.7 81.4 85.6 94.1 103 114 127 138 152 163 171 180 183 185 183 184 180
37.5 196 195 200 201 200 194 190 182 175 163 148 138 121 113 97.8 91.8 77.2 77.3 70.4 77.3 77.2 91.8 97.8 113 121 138 148 163 175 182 190 194 200 201 200 195 196 196 201 200 201 199 192 181 168 154 138 124 110 97.3 89.1 79.4 74.5 69.3 69.7 69.3 74.5 79.4 89.1 97.3 110 124 138 154 168 181 192 199 201 200 201 196
40.0 213 211 218 218 214 204 196 185 176 161 144 131 113 104 87.8 81.1 67.0 65.6 60.3 65.6 67.0 81.1 87.8 104 113 131 144 161 176 185 196 204 214 218 218 211 213 212 218 219 219 213 204 188 171 154 135 119 105 91.3 82.8 72.9 67.7 62.5 62.3 62.5 67.7 72.9 82.8 91.3 105 119 135 154 171 188 204 213 219 219 218 212
42.5 230 229 236 236 227 213 202 189 176 158 138 123 105 95.4 78.6 71.6 59.8 57.6 53.5 57.6 59.8 71.6 78.6 95.4 105 123 138 158 176 189 202 213 227 236 236 229 230 229 235 236 237 228 214 193 171 150 130 112 97.9 83.9 76.1 66.6 61.4 56.2 56.4 56.2 61.4 66.6 76.1 83.9 97.9 112 130 150 171 193 214 228 237 236 235 229
45.0 248 247 252 248 238 220 205 191 176 154 132 116 95.9 86.3 70.5 63.8 53.9 51.4 47.8 51.4 53.9 63.8 70.5 86.3 95.9 116 132 154 176 191 205 220 238 248 252 247 248 249 255 255 253 241 221 193 166 141 121 101 89.7 76.1 69.1 59.7 55.8 50.9 51.0 50.9 55.8 59.7 69.1 76.1 89.7 101 121 141 166 193 221 241 253 255 255 249
47.5 268 265 267 258 243 222 207 190 172 147 120 105 82.8 76.1 61.3 56.8 48.0 46.4 42.5 46.4 48.0 56.8 61.3 76.1 82.8 105 120 147 172 190 207 222 243 258 267 265 268 267 272 272 266 249 221 185 153 127 109 88.8 80.2 67.9 61.8 53.8 50.7 46.3 46.5 46.3 50.7 53.8 61.8 67.9 80.2 88.8 109 127 153 185 221 249 266 272 272 267
50.0 288 282 277 261 241 220 203 184 160 130 101 89.8 69.7 64.9 52.2 49.3 42.3 41.2 38.2 41.2 42.3 49.3 52.2 64.9 69.7 89.8 101 130 160 184 203 220 241 261 277 282 288 288 289 285 272 246 209 167 133 109 94.0 75.4 70.2 59.2 54.9 47.8 45.3 42.0 42.3 42.0 45.3 47.8 54.9 59.2 70.2 75.4 94.0 109 133 167 209 246 272 285 289 288
52.5 309 299 284 259 235 212 192 167 138 107 80.6 72.9 57.1 54.5 44.8 42.8 37.3 36.4 34.1 36.4 37.3 42.8 44.8 54.5 57.1 72.9 80.6 107 138 167 192 212 235 259 284 299 309 310 306 292 266 227 185 141 112 90.8 78.6 63.8 59.8 51.2 48.2 42.7 40.4 37.7 38.1 37.7 40.4 42.7 48.2 51.2 59.8 63.8 78.6 90.8 112 141 185 227 266 292 306 310
55.0 332 314 288 254 225 199 172 140 109 83.6 64.3 59.6 48.8 46.4 39.8 38.0 33.9 33.3 31.3 33.3 33.9 38.0 39.8 46.4 48.8 59.6 64.3 83.6 109 140 172 199 225 254 288 314 332 330 319 290 248 193 149 113 89.8 75.0 65.0 54.3 50.8 45.2 42.8 38.5 36.5 34.1 34.6 34.1 36.5 38.5 42.8 45.2 50.8 54.3 65.0 75.0 89.8 113 149 193 248 290 319 330
57.5 352 328 291 249 212 177 142 106 82.9 66.7 53.2 49.8 42.9 41.7 36.7 35.3 31.9 31.1 29.4 31.1 31.9 35.3 36.7 41.7 42.9 49.8 53.2 66.7 82.9 106 142 177 212 249 291 328 352 349 327 278 214 153 115 87.4 72.6 61.6 54.4 47.0 44.6 40.3 38.8 35.4 33.6 31.3 31.6 31.3 33.6 35.4 38.8 40.3 44.6 47.0 54.4 61.6 72.6 87.4 115 153 214 278 327 349
60.0 370 342 295 243 195 147 107 79.0 63.6 53.8 45.8 43.7 39.0 38.0 34.6 33.1 30.3 29.5 27.9 29.5 30.3 33.1 34.6 38.0 39.0 43.7 45.8 53.8 63.6 79.0 107 147 195 243 295 342 370 366 329 253 178 116 85.7 68.6 59.5 51.7 46.9 41.7 40.2 37.2 35.7 33.3 31.5 29.5 29.3 29.5 31.5 33.3 35.7 37.2 40.2 41.7 46.9 51.7 59.5 68.6 85.7 116 178 253 329 366
62.5 390 357 302 236 172 115 77.5 59.5 51.3 45.8 40.5 39.3 36.2 35.8 32.8 31.5 28.9 28.0 26.6 28.0 28.9 31.5 32.8 35.8 36.2 39.3 40.5 45.8 51.3 59.5 77.5 115 172 236 302 357 390 380 322 220 136 86.9 66.7 56.2 49.5 44.1 41.3 38.1 37.1 35.0 33.8 31.7 30.0 28.1 27.8 28.1 30.0 31.7 33.8 35.0 37.1 38.1 41.3 44.1 49.5 56.2 66.7 86.9 136 220 322 380
65.0 409 375 310 221 143 87.0 59.8 48.1 43.4 39.8 36.5 36.0 34.0 33.8 31.3 30.3 27.7 26.8 25.4 26.8 27.7 30.3 31.3 33.8 34.0 36.0 36.5 39.8 43.4 48.1 59.8 87.0 143 221 310 375 409 391 308 185 104 69.2 54.8 47.6 42.6 38.9 37.1 35.1 34.7 33.3 32.2 30.2 28.7 26.8 26.5 26.8 28.7 30.2 32.2 33.3 34.7 35.1 37.1 38.9 42.6 47.6 54.8 69.2 104 185 308 391
67.5 432 396 315 200 113 67.8 48.5 41.5 37.7 35.3 33.3 33.6 31.9 32.0 30.0 29.1 26.5 25.8 24.1 25.8 26.5 29.1 30.0 32.0 31.9 33.6 33.3 35.3 37.7 41.5 48.5 67.8 113 200 315 396 432 401 290 153 82.6 56.9 47.2 41.5 37.8 35.1 34.0 32.8 32.7 31.9 30.8 29.0 27.4 25.8 25.3 25.8 27.4 29.0 30.8 31.9 32.7 32.8 34.0 35.1 37.8 41.5 47.2 56.9 82.6 153 290 401
70.0 451 411 307 171 87.4 53.8 41.8 36.8 33.5 31.8 30.4 31.4 30.1 30.3 28.5 27.8 25.3 24.7 22.9 24.7 25.3 27.8 28.5 30.3 30.1 31.4 30.4 31.8 33.5 36.8 41.8 53.8 87.4 171 307 411 451 403 264 124 67.7 49.2 41.8 36.8 33.9 32.2 31.6 31.0 31.3 30.4 29.5 28.0 26.4 25.0 24.1 25.0 26.4 28.0 29.5 30.4 31.3 31.0 31.6 32.2 33.9 36.8 41.8 49.2 67.7 124 264 403
72.5 447 401 274 134 66.8 44.7 36.7 33.0 30.4 28.9 28.3 29.4 28.4 28.5 27.0 26.3 24.0 23.2 21.5 23.2 24.0 26.3 27.0 28.5 28.4 29.4 28.3 28.9 30.4 33.0 36.7 44.7 66.8 134 274 401 447 383 229 96.4 56.6 42.9 37.4 33.0 31.2 29.8 29.5 29.3 29.8 29.0 28.2 26.8 25.5 24.1 23.1 24.1 25.5 26.8 28.2 29.0 29.8 29.3 29.5 29.8 31.2 33.0 37.4 42.9 56.6 96.4 229 383
75.0 396 345 212 99.9 51.3 38.0 32.5 30.1 27.8 26.7 26.1 27.3 26.5 26.8 25.4 25.0 22.5 21.8 20.1 21.8 22.5 25.0 25.4 26.8 26.5 27.3 26.1 26.7 27.8 30.1 32.5 38.0 51.3 99.9 212 345 396 321 175 73.8 47.1 38.0 33.3 30.0 28.5 27.5 27.6 27.6 28.3 27.5 26.8 25.6 24.6 23.3 22.2 23.3 24.6 25.6 26.8 27.5 28.3 27.6 27.6 27.5 28.5 30.0 33.3 38.0 47.1 73.8 175 321
77.5 294 242 144 68.8 40.7 32.5 29.0 26.8 25.5 24.5 24.3 25.5 24.6 25.1 23.8 23.5 21.0 20.3 18.5 20.3 21.0 23.5 23.8 25.1 24.6 25.5 24.3 24.5 25.5 26.8 29.0 32.5 40.7 68.8 144 242 294 219 120 54.5 38.8 33.0 29.9 27.5 26.1 25.3 25.9 26.0 26.7 26.0 25.5 24.3 23.4 22.0 21.1 22.0 23.4 24.3 25.5 26.0 26.7 26.0 25.9 25.3 26.1 27.5 29.9 33.0 38.8 54.5 120 219
80.0 171 143 84.3 47.1 33.0 28.3 25.9 24.3 23.5 22.8 22.5 23.6 22.9 23.5 22.1 21.8 19.0 18.6 17.0 18.6 19.0 21.8 22.1 23.5 22.9 23.6 22.5 22.8 23.5 24.3 25.9 28.3 33.0 47.1 84.3 143 171 127 74.5 40.9 32.9 28.8 27.0 25.1 24.0 23.4 24.0 24.5 25.1 24.5 24.0 22.8 21.8 20.3 19.7 20.3 21.8 22.8 24.0 24.5 25.1 24.5 24.0 23.4 24.0 25.1 27.0 28.8 32.9 40.9 74.5 127
82.5 88.0 78.4 50.3 34.5 27.5 24.9 23.3 22.1 21.5 20.9 20.6 22.0 21.3 21.8 20.5 19.9 17.4 16.9 15.6 16.9 17.4 19.9 20.5 21.8 21.3 22.0 20.6 20.9 21.5 22.1 23.3 24.9 27.5 34.5 50.3 78.4 88.0 66.9 45.7 31.5 28.0 25.6 24.4 22.9 22.1 21.5 22.3 22.8 23.5 22.9 22.5 21.2 20.0 18.3 17.9 18.3 20.0 21.2 22.5 22.9 23.5 22.8 22.3 21.5 22.1 22.9 24.4 25.6 28.0 31.5 45.7 66.9
85.0 46.6 41.2 32.7 27.0 23.5 21.8 20.8 20.0 19.8 19.0 18.9 20.2 19.6 20.3 19.1 18.3 16.0 15.4 14.4 15.4 16.0 18.3 19.1 20.3 19.6 20.2 18.9 19.0 19.8 20.0 20.8 21.8 23.5 27.0 32.7 41.2 46.6 39.3 30.3 25.2 24.4 22.9 21.9 20.7 20.1 19.5 20.6 21.1 21.9 21.4 21.0 19.5 18.3 16.5 16.0 16.5 18.3 19.5 21.0 21.4 21.9 21.1 20.6 19.5 20.1 20.7 21.9 22.9 24.4 25.2 30.3 39.3
87.5 28.0 26.6 24.0 22.1 20.9 19.5 18.6 18.0 18.0 17.3 17.2 18.4 18.0 18.7 17.3 16.8 14.6 14.1 13.4 14.1 14.6 16.8 17.3 18.7 18.0 18.4 17.2 17.3 18.0 18.0 18.6 19.5 20.9 22.1 24.0 26.6 28.0 24.9 23.5 21.7 21.5 20.5 19.9 18.8 18.2 17.8 18.9 19.3 20.3 19.6 19.5 17.8 16.6 14.6 14.4 14.6 16.6 17.8 19.5 19.6 20.3 19.3 18.9 17.8 18.2 18.8 19.9 20.5 21.5 21.7 23.5 24.9
90.0 20.0 20.0 19.5 19.0 18.5 17.7 16.9 16.4 16.3 15.6 15.5 16.6 16.3 17.1 15.6 15.4 13.4 13.0 12.2 13.0 13.4 15.4 15.6 17.1 16.3 16.6 15.5 15.6 16.3 16.4 16.9 17.7 18.5 19.0 19.5 20.0 20.0 19.2 19.3 19.0 19.2 18.5 18.1 17.0 16.5 16.0 17.0 17.5 18.5 17.8 17.9 16.0 14.9 13.3 13.1 13.3 14.9 16.0 17.9 17.8 18.5 17.5 17.0 16.0 16.5 17.0 18.1 18.5 19.2 19.0 19.3 19.2
92.5 16.1 16.4 16.7 16.8 16.7 16.0 15.4 14.9 14.6 14.2 13.9 15.1 14.5 15.2 13.8 13.9 12.1 11.9 10.9 11.9 12.1 13.9 13.8 15.2 14.5 15.1 13.9 14.2 14.6 14.9 15.4 16.0 16.7 16.8 16.7 16.4 16.1 16.0 16.5 17.0 17.2 16.8 16.4 15.5 14.9 14.5 15.3 15.6 16.5 16.0 16.1 14.4 13.4 11.9 11.9 11.9 13.4 14.4 16.1 16.0 16.5 15.6 15.3 14.5 14.9 15.5 16.4 16.8 17.2 17.0 16.5 16.0
95.0 13.8 14.1 14.7 15.1 15.1 14.6 14.0 13.6 13.1 12.7 12.5 13.6 12.9 13.4 12.4 12.4 10.9 10.6 9.9 10.6 10.9 12.4 12.4 13.4 12.9 13.6 12.5 12.7 13.1 13.6 14.0 14.6 15.1 15.1 14.7 14.1 13.8 13.9 14.6 15.3 15.6 15.3 14.9 14.0 13.6 13.1 13.7 13.8 14.6 14.1 14.2 12.9 12.1 10.6 10.6 10.6 12.1 12.9 14.2 14.1 14.6 13.8 13.7 13.1 13.6 14.0 14.9 15.3 15.6 15.3 14.6 13.9
97.5 12.2 12.3 12.9 13.4 13.5 13.1 12.6 12.3 11.9 11.4 11.1 12.0 11.4 11.8 10.9 10.9 9.5 9.3 8.8 9.3 9.5 10.9 10.9 11.8 11.4 12.0 11.1 11.4 11.9 12.3 12.6 13.1 13.5 13.4 12.9 12.3 12.2 12.4 13.1 13.6 13.9 13.8 13.4 12.6 12.3 11.9 12.4 12.3 12.9 12.4 12.6 11.4 10.9 9.4 9.4 9.4 10.9 11.4 12.6 12.4 12.9 12.3 12.4 11.9 12.3 12.6 13.4 13.8 13.9 13.6 13.1 12.4
100.0 10.9 10.9 11.5 11.8 12.1 11.8 11.4 11.1 10.7 10.3 9.8 10.5 10.1 10.4 9.8 9.6 8.5 8.4 8.0 8.4 8.5 9.6 9.8 10.4 10.1 10.5 9.8 10.3 10.7 11.1 11.4 11.8 12.1 11.8 11.5 10.9 10.9 10.9 11.6 12.3 12.6 12.3 12.1 11.5 11.0 10.7 11.1 10.9 11.5 10.9 11.1 10.1 9.6 8.4 8.3 8.4 9.6 10.1 11.1 10.9 11.5 10.9 11.1 10.7 11.0 11.5 12.1 12.3 12.6 12.3 11.6 10.9
102.5 9.6 9.6 10.1 10.4 10.8 10.6 10.4 9.9 9.6 9.3 8.9 9.5 9.1 9.4 8.7 8.6 7.6 7.6 7.3 7.6 7.6 8.6 8.7 9.4 9.1 9.5 8.9 9.3 9.6 9.9 10.4 10.6 10.8 10.4 10.1 9.6 9.6 9.7 10.4 10.9 11.3 10.9 10.9 10.4 10.0 9.6 9.9 9.8 10.1 9.8 9.9 9.0 8.4 7.5 7.5 7.5 8.4 9.0 9.9 9.8 10.1 9.8 9.9 9.6 10.0 10.4 10.9 10.9 11.3 10.9 10.4 9.7
105.0 8.6 8.5 9.0 9.3 9.6 9.6 9.5 9.1 8.7 8.4 8.1 8.5 8.1 8.4 7.8 7.8 6.9 6.9 6.7 6.9 6.9 7.8 7.8 8.4 8.1 8.5 8.1 8.4 8.7 9.1 9.5 9.6 9.6 9.3 9.0 8.5 8.6 8.8 9.2 9.9 10.1 9.9 9.9 9.5 9.1 8.7 8.9 8.8 9.0 8.7 8.7 8.1 7.6 6.8 6.9 6.8 7.6 8.1 8.7 8.7 9.0 8.8 8.9 8.7 9.1 9.5 9.9 9.9 10.1 9.9 9.2 8.8
107.5 7.9 7.8 8.1 8.4 8.8 8.8 8.7 8.3 7.9 7.6 7.4 7.8 7.4 7.6 7.1 7.0 6.4 6.4 6.2 6.4 6.4 7.0 7.1 7.6 7.4 7.8 7.4 7.6 7.9 8.3 8.7 8.8 8.8 8.4 8.1 7.8 7.9 7.9 8.4 8.8 9.1 9.0 9.0 8.7 8.4 8.1 8.0 7.9 8.1 7.8 7.8 7.3 6.8 6.3 6.3 6.3 6.8 7.3 7.8 7.8 8.1 7.9 8.0 8.1 8.4 8.7 9.0 9.0 9.1 8.8 8.4 7.9
110.0 7.3 7.2 7.4 7.6 7.9 8.0 7.9 7.6 7.3 7.0 6.9 7.1 6.8 6.9 6.4 6.4 5.8 5.9 5.7 5.9 5.8 6.4 6.4 6.9 6.8 7.1 6.9 7.0 7.3 7.6 7.9 8.0 7.9 7.6 7.4 7.2 7.3 7.3 7.6 7.9 8.4 8.3 8.3 7.9 7.7 7.4 7.3 7.3 7.4 7.1 7.1 6.6 6.3 5.8 5.8 5.8 6.3 6.6 7.1 7.1 7.4 7.3 7.3 7.4 7.7 7.9 8.3 8.3 8.4 7.9 7.6 7.3
112.5 6.8 6.6 6.7 6.9 7.2 7.3 7.3 7.0 6.8 6.5 6.3 6.4 6.2 6.4 5.9 5.8 5.4 5.4 5.3 5.4 5.4 5.8 5.9 6.4 6.2 6.4 6.3 6.5 6.8 7.0 7.3 7.3 7.2 6.9 6.7 6.6 6.8 6.7 7.0 7.3 7.6 7.5 7.6 7.4 7.1 6.9 6.7 6.6 6.7 6.5 6.4 6.0 5.7 5.4 5.4 5.4 5.7 6.0 6.4 6.5 6.7 6.6 6.7 6.9 7.1 7.4 7.6 7.5 7.6 7.3 7.0 6.7
115.0 6.3 6.2 6.2 6.3 6.6 6.7 6.8 6.4 6.3 6.0 5.8 5.9 5.6 5.8 5.4 5.4 4.9 5.1 5.0 5.1 4.9 5.4 5.4 5.8 5.6 5.9 5.8 6.0 6.3 6.4 6.8 6.7 6.6 6.3 6.2 6.2 6.3 6.2 6.4 6.6 6.9 6.9 7.0 6.8 6.6 6.4 6.2 6.1 6.1 6.0 5.9 5.6 5.3 5.0 5.1 5.0 5.3 5.6 5.9 6.0 6.1 6.1 6.2 6.4 6.6 6.8 7.0 6.9 6.9 6.6 6.4 6.2
117.5 5.8 5.7 5.8 5.8 6.1 6.1 6.2 6.0 5.8 5.6 5.4 5.6 5.3 5.3 4.9 4.9 4.6 4.8 4.6 4.8 4.6 4.9 4.9 5.3 5.3 5.6 5.4 5.6 5.8 6.0 6.2 6.1 6.1 5.8 5.8 5.7 5.8 5.8 5.9 6.1 6.4 6.4 6.5 6.3 6.1 5.9 5.8 5.6 5.8 5.6 5.4 5.1 4.9 4.7 4.8 4.7 4.9 5.1 5.4 5.6 5.8 5.6 5.8 5.9 6.1 6.3 6.5 6.4 6.4 6.1 5.9 5.8
120.0 5.5 5.4 5.3 5.4 5.6 5.7 5.8 5.6 5.4 5.2 5.1 5.1 4.9 4.9 4.6 4.6 4.3 4.6 4.4 4.6 4.3 4.6 4.6 4.9 4.9 5.1 5.1 5.2 5.4 5.6 5.8 5.7 5.6 5.4 5.3 5.4 5.5 5.4 5.6 5.6 5.9 5.9 5.9 5.8 5.8 5.6 5.4 5.3 5.3 5.1 5.0 4.8 4.6 4.5 4.5 4.5 4.6 4.8 5.0 5.1 5.3 5.3 5.4 5.6 5.8 5.8 5.9 5.9 5.9 5.6 5.6 5.4
122.5 5.2 5.1 5.0 5.0 5.2 5.3 5.3 5.2 5.1 4.9 4.8 4.9 4.6 4.6 4.3 4.3 4.1 4.3 4.2 4.3 4.1 4.3 4.3 4.6 4.6 4.9 4.8 4.9 5.1 5.2 5.3 5.3 5.2 5.0 5.0 5.1 5.2 5.1 5.2 5.3 5.4 5.4 5.4 5.4 5.4 5.2 5.1 4.9 4.9 4.8 4.6 4.4 4.3 4.3 4.3 4.3 4.3 4.4 4.6 4.8 4.9 4.9 5.1 5.2 5.4 5.4 5.4 5.4 5.4 5.3 5.2 5.1
125.0 4.9 4.8 4.7 4.6 4.8 4.9 4.9 4.8 4.8 4.6 4.4 4.5 4.3 4.3 4.0 4.0 3.8 4.1 4.0 4.1 3.8 4.0 4.0 4.3 4.3 4.5 4.4 4.6 4.8 4.8 4.9 4.9 4.8 4.6 4.7 4.8 4.9 4.8 4.8 4.9 5.1 5.1 5.1 5.0 4.9 4.9 4.7 4.6 4.6 4.4 4.4 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.4 4.4 4.6 4.6 4.7 4.9 4.9 5.0 5.1 5.1 5.1 4.9 4.8 4.8
127.5 4.6 4.5 4.4 4.4 4.4 4.5 4.6 4.4 4.3 4.3 4.1 4.2 4.0 4.0 3.7 3.7 3.6 3.9 3.8 3.9 3.6 3.7 3.7 4.0 4.0 4.2 4.1 4.3 4.3 4.4 4.6 4.5 4.4 4.4 4.4 4.5 4.6 4.6 4.5 4.5 4.6 4.6 4.6 4.6 4.6 4.6 4.4 4.3 4.3 4.1 4.1 3.8 3.8 3.8 3.9 3.8 3.8 3.8 4.1 4.1 4.3 4.3 4.4 4.6 4.6 4.6 4.6 4.6 4.6 4.5 4.5 4.6
130.0 4.3 4.3 4.2 4.1 4.2 4.1 4.2 4.1 4.1 4.0 3.8 4.0 3.7 3.7 3.5 3.5 3.4 3.7 3.6 3.7 3.4 3.5 3.5 3.7 3.7 4.0 3.8 4.0 4.1 4.1 4.2 4.1 4.2 4.1 4.2 4.3 4.3 4.3 4.3 4.2 4.3 4.4 4.4 4.3 4.3 4.2 4.1 4.0 4.0 3.8 3.8 3.6 3.7 3.7 3.7 3.7 3.7 3.6 3.8 3.8 4.0 4.0 4.1 4.2 4.3 4.3 4.4 4.4 4.3 4.2 4.3 4.3
132.5 4.1 4.0 3.9 3.8 3.9 3.8 3.9 3.8 3.8 3.7 3.5 3.7 3.4 3.4 3.2 3.2 3.2 3.5 3.4 3.5 3.2 3.2 3.2 3.4 3.4 3.7 3.5 3.7 3.8 3.8 3.9 3.8 3.9 3.8 3.9 4.0 4.1 4.1 4.0 4.0 4.0 4.1 4.0 4.0 4.0 3.9 3.8 3.7 3.7 3.5 3.5 3.3 3.5 3.5 3.6 3.5 3.5 3.3 3.5 3.5 3.7 3.7 3.8 3.9 4.0 4.0 4.0 4.1 4.0 4.0 4.0 4.1
135.0 3.9 3.8 3.7 3.6 3.6 3.5 3.6 3.5 3.5 3.4 3.3 3.3 3.2 3.2 3.0 3.0 3.0 3.2 3.2 3.2 3.0 3.0 3.0 3.2 3.2 3.3 3.3 3.4 3.5 3.5 3.6 3.5 3.6 3.6 3.7 3.8 3.9 3.8 3.8 3.7 3.8 3.7 3.7 3.7 3.7 3.6 3.5 3.5 3.5 3.2 3.3 3.1 3.3 3.3 3.4 3.3 3.3 3.1 3.3 3.2 3.5 3.5 3.5 3.6 3.7 3.7 3.7 3.7 3.8 3.7 3.8 3.8
137.5 3.7 3.6 3.5 3.3 3.3 3.3 3.3 3.3 3.2 3.1 3.0 3.0 2.9 2.9 2.7 2.8 2.8 3.0 3.0 3.0 2.8 2.8 2.7 2.9 2.9 3.0 3.0 3.1 3.2 3.3 3.3 3.3 3.3 3.3 3.5 3.6 3.7 3.6 3.5 3.4 3.5 3.4 3.5 3.5 3.4 3.3 3.3 3.2 3.2 3.0 3.0 2.9 3.0 3.1 3.2 3.1 3.0 2.9 3.0 3.0 3.2 3.2 3.3 3.3 3.4 3.5 3.5 3.4 3.5 3.4 3.5 3.6
140.0 3.5 3.3 3.3 3.2 3.0 3.0 3.0 3.0 2.9 2.8 2.7 2.8 2.6 2.7 2.5 2.6 2.6 2.8 2.7 2.8 2.6 2.6 2.5 2.7 2.6 2.8 2.7 2.8 2.9 3.0 3.0 3.0 3.0 3.2 3.3 3.3 3.5 3.4 3.3 3.2 3.2 3.2 3.2 3.2 3.1 3.0 3.0 2.9 2.9 2.8 2.8 2.7 2.8 2.9 3.0 2.9 2.8 2.7 2.8 2.8 2.9 2.9 3.0 3.0 3.1 3.2 3.2 3.2 3.2 3.2 3.3 3.4
142.5 3.3 3.2 3.1 3.0 2.8 2.8 2.8 2.8 2.7 2.5 2.5 2.5 2.4 2.5 2.3 2.5 2.4 2.6 2.5 2.6 2.4 2.5 2.3 2.5 2.4 2.5 2.5 2.5 2.7 2.8 2.8 2.8 2.8 3.0 3.1 3.2 3.3 3.2 3.2 3.0 3.0 3.0 3.0 2.8 2.8 2.8 2.8 2.7 2.7 2.5 2.5 2.5 2.7 2.7 2.8 2.7 2.7 2.5 2.5 2.5 2.7 2.7 2.8 2.8 2.8 2.8 3.0 3.0 3.0 3.0 3.2 3.2
145.0 3.0 3.0 2.9 2.8 2.7 2.6 2.5 2.5 2.5 2.3 2.2 2.3 2.2 2.2 2.1 2.2 2.2 2.4 2.3 2.4 2.2 2.2 2.1 2.2 2.2 2.3 2.2 2.3 2.5 2.5 2.5 2.6 2.7 2.8 2.9 3.0 3.0 3.0 3.0 2.8 2.8 2.7 2.7 2.7 2.6 2.5 2.5 2.3 2.4 2.3 2.3 2.3 2.5 2.5 2.5 2.5 2.5 2.3 2.3 2.3 2.4 2.3 2.5 2.5 2.6 2.7 2.7 2.7 2.8 2.8 3.0 3.0
147.5 2.8 2.8 2.7 2.6 2.5 2.4 2.3 2.3 2.2 2.1 2.0 2.1 2.0 2.0 2.0 2.1 2.0 2.2 2.1 2.2 2.0 2.1 2.0 2.0 2.0 2.1 2.0 2.1 2.2 2.3 2.3 2.4 2.5 2.6 2.7 2.8 2.8 2.8 2.8 2.7 2.6 2.5 2.5 2.4 2.3 2.3 2.3 2.2 2.2 2.1 2.2 2.2 2.3 2.3 2.3 2.3 2.3 2.2 2.2 2.1 2.2 2.2 2.3 2.3 2.3 2.4 2.5 2.5 2.6 2.7 2.8 2.8
150.0 2.6 2.5 2.5 2.4 2.3 2.2 2.2 2.0 2.0 1.9 1.8 1.8 1.8 1.8 1.8 1.9 1.9 2.0 1.9 2.0 1.9 1.9 1.8 1.8 1.8 1.8 1.8 1.9 2.0 2.0 2.2 2.2 2.3 2.4 2.5 2.5 2.6 2.5 2.5 2.5 2.4 2.3 2.3 2.2 2.2 2.1 2.0 2.0 2.0 1.9 2.0 2.0 2.0 2.1 2.1 2.1 2.0 2.0 2.0 1.9 2.0 2.0 2.0 2.1 2.2 2.2 2.3 2.3 2.4 2.5 2.5 2.5
152.5 2.3 2.3 2.3 2.3 2.2 2.0 2.0 1.8 1.8 1.8 1.6 1.7 1.6 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.6 1.7 1.6 1.8 1.8 1.8 2.0 2.0 2.2 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.2 2.2 2.1 2.0 2.0 1.9 1.8 1.8 1.8 1.8 1.8 1.8 2.0 1.9 2.0 1.9 2.0 1.8 1.8 1.8 1.8 1.8 1.8 1.9 2.0 2.0 2.1 2.2 2.2 2.3 2.3 2.3
155.0 2.2 2.2 2.2 2.0 2.0 1.9 1.8 1.8 1.7 1.5 1.5 1.5 1.5 1.6 1.5 1.6 1.6 1.7 1.6 1.7 1.6 1.6 1.5 1.6 1.5 1.5 1.5 1.5 1.7 1.8 1.8 1.9 2.0 2.0 2.2 2.2 2.2 2.2 2.2 2.1 2.0 2.0 1.9 1.8 1.8 1.8 1.7 1.6 1.7 1.7 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.7 1.7 1.6 1.7 1.8 1.8 1.8 1.9 2.0 2.0 2.1 2.2 2.2
157.5 2.0 2.0 2.0 2.0 1.9 1.8 1.7 1.6 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.6 1.7 1.8 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 1.8 1.8 1.7 1.7 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.7 1.7 1.8 1.8 1.9 2.0 2.0 2.0
160.0 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.5 1.5 1.5 1.4 1.4 1.3 1.4 1.3 1.3 1.3 1.4 1.3 1.4 1.3 1.3 1.3 1.4 1.3 1.4 1.4 1.5 1.5 1.5 1.6 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.8 1.8 1.8 1.8
162.5 1.8 1.7 1.7 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.5 1.5 1.5 1.6 1.6 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.7 1.7 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.7 1.7 1.7 1.7 1.7 1.7
165.0 1.8 1.7 1.7 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.7 1.7 1.7 1.8 1.7 1.8 1.7 1.7 1.7 1.7 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.7 1.7 1.7 1.7 1.8 1.7
167.5 1.8 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.7 1.7 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.7 1.7 1.7 1.7 1.7 1.7
170.0 1.7 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7
172.5 1.7 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.7 1.7 1.7 1.7 1.7 1.7 1.7
175.0 1.7 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7
177.5 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7
180.0 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
