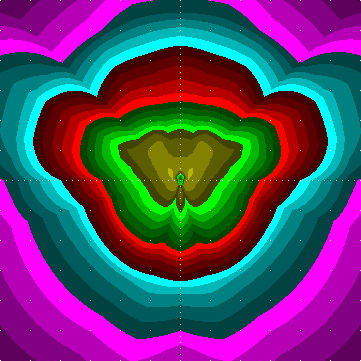

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] TH15I00S.LDT
# [LUMINAIRE] T1-2B-MI-OP4-(-12B)
# [LUMCAT] Thema
# [DATE] 27/10/2012/EFN
# down given: 98%
# out given: 72.1%
# tilt: 0.0
# [LAMP] 1 MT 150 15000 3000 G12
# Bulbs: 1, 15000 lm each
# Source file: Thema_T1-2B-MI-OP4---12B-__1_MT_150_15000_3000_G12.ldt
# Luminaire flux = 721 raw, for the given bulb(s) it would be 10820 lm,
# 72.1 % of the bulb flux
# between 75 and 90: 2.5 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 28.0 cd / 1000 lm , 2.6 % of the luminaire flux
# 90deg and above: max 4.7 cd / 1000 lm , 2.0 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 34 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 98 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 633 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 543 cd / 1000 lm,
# maximum spec. lum. intensity 633 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.4
2.5 15.3 14.3 12.1 9.4 7.0 6.3 5.6 6.3 7.0 9.4 12.1 14.3 15.3 13.9 13.8 12.6 11.2 10.2 11.8 10.2 11.2 12.6 13.8 13.9
5.0 25.2 23.3 18.7 13.4 8.6 7.1 5.8 7.1 8.6 13.4 18.7 23.3 25.2 22.5 22.1 19.7 17.0 15.0 18.2 15.0 17.0 19.7 22.1 22.5
7.5 71.8 61.3 33.2 21.7 15.0 12.9 11.4 12.9 15.0 21.7 33.2 61.3 71.8 78.8 68.7 60.2 53.3 27.5 17.9 27.5 53.3 60.2 68.7 78.8
10.0 118 99.3 47.7 30.0 21.4 18.6 16.9 18.6 21.4 30.0 47.7 99.3 118 135 115 101 89.6 40.1 17.6 40.1 89.6 101 115 135
12.5 129 121 93.6 78.4 61.4 46.8 29.3 46.8 61.4 78.4 93.6 121 129 134 118 103 90.9 37.5 54.0 37.5 90.9 103 118 134
15.0 140 143 140 127 101 75.0 41.7 75.0 101 127 140 143 140 132 120 105 92.3 35.0 90.3 35.0 92.3 105 120 132
17.5 136 146 150 140 120 90.4 90.6 90.4 120 140 150 146 136 127 119 106 96.4 39.3 91.3 39.3 96.4 106 119 127
20.0 131 148 161 153 139 106 140 106 139 153 161 148 131 122 118 108 100 43.6 92.3 43.6 100 108 118 122
22.5 128 144 168 165 151 121 154 121 151 165 168 144 128 119 116 108 101 44.8 95.8 44.8 101 108 116 119
25.0 125 140 175 177 164 136 169 136 164 177 175 140 125 117 114 109 101 46.0 99.3 46.0 101 109 114 117
27.5 128 143 174 186 170 142 171 142 170 186 174 143 128 117 114 110 101 46.2 101 46.2 101 110 114 117
30.0 131 145 173 195 175 148 174 148 175 195 173 145 131 117 114 112 101 46.4 103 46.4 101 112 114 117
32.5 133 151 176 204 182 153 170 153 182 204 176 151 133 118 114 112 101 47.4 103 47.4 101 112 114 118
35.0 134 156 179 212 189 157 167 157 189 212 179 156 134 118 113 112 101 48.4 104 48.4 101 112 113 118
37.5 137 162 187 220 201 164 160 164 201 220 187 162 137 119 113 109 101 49.6 105 49.6 101 109 113 119
40.0 140 169 195 228 213 171 153 171 213 228 195 169 140 119 113 107 100 50.7 107 50.7 100 107 113 119
42.5 141 181 213 241 234 182 156 182 234 241 213 181 141 117 111 105 98.1 50.2 104 50.2 98.1 105 111 117
45.0 142 193 231 255 254 192 159 192 254 255 231 193 142 115 109 103 95.9 49.6 102 49.6 95.9 103 109 115
47.5 142 208 259 290 296 207 180 207 296 290 259 208 142 113 107 101 93.6 47.6 102 47.6 93.6 101 107 113
50.0 143 223 288 325 339 223 200 223 339 325 288 223 143 111 106 98.6 91.2 45.6 103 45.6 91.2 98.6 106 111
52.5 144 231 329 389 415 242 235 242 415 389 329 231 144 109 108 101 90.8 44.2 97.9 44.2 90.8 101 108 109
55.0 145 239 370 452 491 260 270 260 491 452 370 239 145 107 110 102 90.4 42.8 93.3 42.8 90.4 102 110 107
57.5 147 247 436 471 477 237 262 237 477 471 436 247 147 105 98.7 91.4 85.6 41.1 88.2 41.1 85.6 91.4 98.7 105
60.0 148 254 502 491 463 213 254 213 463 491 502 254 148 104 87.3 80.3 80.7 39.4 83.0 39.4 80.7 80.3 87.3 104
62.5 136 270 567 373 326 168 192 168 326 373 567 270 136 90.8 87.6 80.1 77.1 40.5 77.8 40.5 77.1 80.1 87.6 90.8
65.0 124 286 633 255 189 124 131 124 189 255 633 286 124 78.0 87.8 79.9 73.6 41.5 72.7 41.5 73.6 79.9 87.8 78.0
67.5 91.5 283 543 183 137 92.2 95.5 92.2 137 183 543 283 91.5 51.2 55.5 53.0 50.5 30.5 49.8 30.5 50.5 53.0 55.5 51.2
70.0 59.4 280 453 112 85.2 60.7 60.2 60.7 85.2 112 453 280 59.4 24.4 23.1 26.0 27.4 19.6 26.9 19.6 27.4 26.0 23.1 24.4
72.5 42.2 199 297 67.8 65.8 51.8 56.8 51.8 65.8 67.8 297 199 42.2 16.4 15.0 16.3 17.2 14.1 17.3 14.1 17.2 16.3 15.0 16.4
75.0 25.0 118 141 24.2 46.5 42.8 53.5 42.8 46.5 24.2 141 118 25.0 8.3 6.9 6.5 7.0 8.5 7.6 8.5 7.0 6.5 6.9 8.3
77.5 16.0 70.9 84.7 14.6 26.0 25.5 30.8 25.5 26.0 14.6 84.7 70.9 16.0 6.3 5.7 5.5 5.7 6.9 5.3 6.9 5.7 5.5 5.7 6.3
80.0 7.1 23.8 28.0 5.0 5.6 8.3 8.1 8.3 5.6 5.0 28.0 23.8 7.1 4.3 4.4 4.5 4.3 5.3 3.1 5.3 4.3 4.5 4.4 4.3
82.5 4.6 13.2 15.4 3.5 3.8 5.2 4.8 5.2 3.8 3.5 15.4 13.2 4.6 3.4 3.7 3.8 3.7 4.8 2.7 4.8 3.7 3.8 3.7 3.4
85.0 2.1 2.6 2.9 2.1 1.9 2.1 1.5 2.1 1.9 2.1 2.9 2.6 2.1 2.5 2.9 3.1 3.0 4.3 2.2 4.3 3.0 3.1 2.9 2.5
87.5 2.1 2.3 2.5 1.9 1.8 2.0 1.5 2.0 1.8 1.9 2.5 2.3 2.1 2.5 3.0 3.1 3.0 4.5 2.2 4.5 3.0 3.1 3.0 2.5
90.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
92.5 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
95.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
97.5 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
100.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
102.5 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
105.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
107.5 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
110.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
112.5 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
115.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
117.5 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
120.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
122.5 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
125.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
127.5 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
130.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
132.5 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
135.0 2.1 2.0 2.0 1.8 1.7 2.0 1.4 2.0 1.7 1.8 2.0 2.0 2.1 2.6 3.1 3.1 3.1 4.7 2.2 4.7 3.1 3.1 3.1 2.6
137.5 2.0 1.9 1.9 1.7 1.6 1.9 1.3 1.9 1.6 1.7 1.9 1.9 2.0 2.4 2.9 2.9 2.9 4.4 2.1 4.4 2.9 2.9 2.9 2.4
140.0 1.9 1.8 1.8 1.6 1.5 1.8 1.2 1.8 1.5 1.6 1.8 1.8 1.9 2.3 2.8 2.8 2.8 4.2 2.0 4.2 2.8 2.8 2.8 2.3
142.5 1.8 1.7 1.7 1.5 1.4 1.7 1.2 1.7 1.4 1.5 1.7 1.7 1.8 2.2 2.6 2.6 2.6 3.9 1.9 3.9 2.6 2.6 2.6 2.2
145.0 1.6 1.6 1.6 1.4 1.3 1.6 1.1 1.6 1.3 1.4 1.6 1.6 1.6 2.0 2.4 2.4 2.4 3.7 1.7 3.7 2.4 2.4 2.4 2.0
147.5 1.5 1.5 1.5 1.3 1.2 1.5 1.0 1.5 1.2 1.3 1.5 1.5 1.5 1.9 2.3 2.3 2.3 3.4 1.6 3.4 2.3 2.3 2.3 1.9
150.0 1.4 1.3 1.3 1.2 1.1 1.3 0.9 1.3 1.1 1.2 1.3 1.3 1.4 1.7 2.1 2.1 2.1 3.1 1.5 3.1 2.1 2.1 2.1 1.7
152.5 1.3 1.2 1.2 1.1 1.0 1.2 0.9 1.2 1.0 1.1 1.2 1.2 1.3 1.5 1.9 1.9 1.9 2.8 1.4 2.8 1.9 1.9 1.9 1.5
155.0 1.2 1.1 1.1 1.0 0.9 1.1 0.8 1.1 0.9 1.0 1.1 1.1 1.2 1.4 1.7 1.7 1.7 2.6 1.2 2.6 1.7 1.7 1.7 1.4
157.5 1.0 1.0 1.0 0.9 0.9 1.0 0.7 1.0 0.9 0.9 1.0 1.0 1.0 1.3 1.5 1.5 1.5 2.3 1.1 2.3 1.5 1.5 1.5 1.3
160.0 0.9 0.9 0.9 0.8 0.8 0.9 0.6 0.9 0.8 0.8 0.9 0.9 0.9 1.2 1.4 1.4 1.4 2.1 1.0 2.1 1.4 1.4 1.4 1.2
162.5 0.8 0.8 0.8 0.7 0.7 0.8 0.6 0.8 0.7 0.7 0.8 0.8 0.8 1.0 1.2 1.2 1.2 1.8 0.9 1.8 1.2 1.2 1.2 1.0
165.0 0.7 0.7 0.7 0.6 0.6 0.7 0.5 0.7 0.6 0.6 0.7 0.7 0.7 0.9 1.0 1.0 1.0 1.6 0.7 1.6 1.0 1.0 1.0 0.9
167.5 0.6 0.6 0.6 0.5 0.5 0.6 0.4 0.6 0.5 0.5 0.6 0.6 0.6 0.8 0.9 0.9 0.9 1.3 0.6 1.3 0.9 0.9 0.9 0.8
170.0 0.5 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.7 0.7 0.7 1.0 0.5 1.0 0.7 0.7 0.7 0.6
172.5 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.5 0.5 0.5 0.5 0.8 0.3 0.8 0.5 0.5 0.5 0.5
175.0 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.5 0.2 0.5 0.3 0.3 0.3 0.3
177.5 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2 0.3 0.1 0.3 0.2 0.2 0.2 0.2
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
