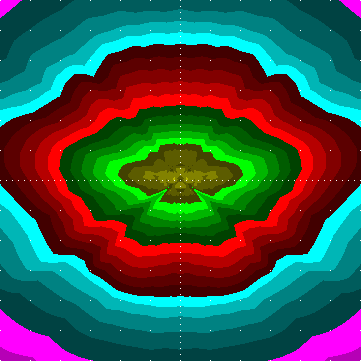

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] IN101231A.LDT
# [LUMINAIRE] CL44-CLEAR-ARC80-PL1E
# [LUMCAT] Parvis
# [DATE] 26/08/2011/
# down given: 97.12%
# out given: 62.78%
# tilt: 0
# [LAMP] 1 MT 150 13500 2800 E40
# Bulbs: 1, 13500 lm each
# Source file: Parvis_CL44-CLEAR-ARC80-PL1E_1_MT_150_13500_2800_E40.ldt
# Luminaire flux = 628 raw, for the given bulb(s) it would be 8476 lm,
# 62.8 % of the bulb flux
# between 75 and 90: 7.9 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 121.8 cd / 1000 lm , 5.6 % of the luminaire flux
# 90deg and above: max 10.8 cd / 1000 lm , 2.9 % of the luminaire flux
# CutOff Type: IES_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 52 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 159 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 405 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 401 cd / 1000 lm,
# maximum spec. lum. intensity 425 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0 39.0
2.5 36.3 38.5 38.0 37.5 40.3 38.6 41.0 40.4 41.5 42.9 44.3 43.7 45.5 45.3 47.0 46.8 50.3 49.3 47.9 49.3 50.3 46.8 47.0 45.3 45.5 43.7 44.3 42.9 41.5 40.4 41.0 38.6 40.3 37.5 38.0 38.5 36.3 42.9 37.1 48.3 50.4 58.0 39.3 60.0 74.8 75.4 76.9 69.3 72.9 66.6 74.4 69.3 66.1 66.1 73.5 66.1 66.1 69.3 74.4 66.6 72.9 69.3 76.9 75.4 74.8 60.0 39.3 58.0 50.4 48.3 37.1 42.9
5.0 68.6 75.4 73.6 80.3 75.5 82.0 79.4 67.0 79.0 52.6 56.0 49.6 52.6 57.8 57.0 55.2 60.8 60.3 60.3 60.3 60.8 55.2 57.0 57.8 52.6 49.6 56.0 52.6 79.0 67.0 79.4 82.0 75.5 80.3 73.6 75.4 68.6 55.1 50.5 68.4 51.3 74.4 64.3 93.8 99.7 109 108 107 109 103 106 98.1 104 98.9 105 98.9 104 98.1 106 103 109 107 108 109 99.7 93.8 64.3 74.4 51.3 68.4 50.5 55.1
7.5 86.2 111 81.7 111 80.8 86.6 77.1 82.1 80.3 84.0 84.3 85.5 94.9 84.5 88.1 59.3 60.8 62.8 65.5 62.8 60.8 59.3 88.1 84.5 94.9 85.5 84.3 84.0 80.3 82.1 77.1 86.6 80.8 111 81.7 111 86.2 85.5 98.0 81.6 71.6 70.9 71.3 75.9 83.9 115 115 108 109 105 110 99.0 101 95.6 101 95.6 101 99.0 110 105 109 108 115 115 83.9 75.9 71.3 70.9 71.6 81.6 98.0 85.5
10.0 123 145 129 138 131 128 121 121 97.2 120 91.3 90.1 98.6 120 83.7 86.0 109 120 131 120 109 86.0 83.7 120 98.6 90.1 91.3 120 97.2 121 121 128 131 138 129 145 123 137 101 71.2 57.5 64.7 66.9 67.3 69.0 93.1 117 105 102 96.4 99.7 92.1 96.1 93.0 98.4 93.0 96.1 92.1 99.7 96.4 102 105 117 93.1 69.0 67.3 66.9 64.7 57.5 71.2 101 137
12.5 137 155 140 149 145 142 137 131 134 128 101 94.6 120 103 96.6 96.2 124 121 131 121 124 96.2 96.6 103 120 94.6 101 128 134 131 137 142 145 149 140 155 137 142 122 117 90.3 53.3 74.5 72.3 68.6 90.9 127 108 102 93.8 99.3 90.4 94.4 90.8 94.7 90.8 94.4 90.4 99.3 93.8 102 108 127 90.9 68.6 72.3 74.5 53.3 90.3 117 122 142
15.0 131 143 129 141 135 138 133 142 136 139 98.7 104 117 85.9 105 121 125 119 128 119 125 121 105 85.9 117 104 98.7 139 136 142 133 138 135 141 129 143 131 143 129 131 90.4 45.4 65.9 73.7 76.3 80.6 97.8 109 95.6 92.2 87.8 86.1 88.1 85.3 90.3 85.3 88.1 86.1 87.8 92.2 95.6 109 97.8 80.6 76.3 73.7 65.9 45.4 90.4 131 129 143
17.5 112 139 122 153 142 141 134 141 136 129 87.4 111 102 77.6 118 111 117 107 124 107 117 111 118 77.6 102 111 87.4 129 136 141 134 141 142 153 122 139 112 118 93.8 103 87.1 49.5 47.7 78.1 76.6 80.3 81.6 67.3 72.8 49.4 53.7 45.8 47.8 44.0 39.8 44.0 47.8 45.8 53.7 49.4 72.8 67.3 81.6 80.3 76.6 78.1 47.7 49.5 87.1 103 93.8 118
20.0 88.6 102 95.1 112 110 130 120 138 127 116 88.3 113 78.1 81.8 123 110 115 108 113 108 115 110 123 81.8 78.1 113 88.3 116 127 138 120 130 110 112 95.1 102 88.6 96.8 102 93.3 57.0 51.0 38.5 46.5 56.9 58.4 71.3 55.5 72.6 59.5 71.0 51.8 55.4 43.3 55.4 43.3 55.4 51.8 71.0 59.5 72.6 55.5 71.3 58.4 56.9 46.5 38.5 51.0 57.0 93.3 102 96.8
22.5 118 121 123 111 121 106 106 101 94.6 94.8 51.5 86.4 77.6 79.8 109 112 112 115 128 115 112 112 109 79.8 77.6 86.4 51.5 94.8 94.6 101 106 106 121 111 123 121 118 104 103 80.8 72.9 55.6 40.9 54.6 57.0 82.2 72.4 81.3 74.1 76.9 74.6 72.1 79.4 78.6 82.3 78.6 79.4 72.1 74.6 76.9 74.1 81.3 72.4 82.2 57.0 54.6 40.9 55.6 72.9 80.8 103 104
25.0 104 105 110 122 133 117 131 107 135 62.8 62.8 60.2 82.6 79.7 88.0 78.6 78.9 80.5 90.1 80.5 78.9 78.6 88.0 79.7 82.6 60.2 62.8 62.8 135 107 131 117 133 122 110 105 104 108 91.6 122 104 110 39.8 57.3 101 119 109 91.8 91.4 80.2 79.7 70.7 78.6 64.0 73.5 64.0 78.6 70.7 79.7 80.2 91.4 91.8 109 119 101 57.3 39.8 110 104 122 91.6 108
27.5 131 170 133 138 128 138 111 105 90.8 89.6 68.3 96.5 63.2 78.9 76.8 53.9 64.7 54.3 47.7 54.3 64.7 53.9 76.8 78.9 63.2 96.5 68.3 89.6 90.8 105 111 138 128 138 133 170 131 144 141 145 134 91.3 43.8 50.4 67.2 97.5 84.6 77.5 81.1 75.7 76.9 70.6 72.5 69.6 74.7 69.6 72.5 70.6 76.9 75.7 81.1 77.5 84.6 97.5 67.2 50.4 43.8 91.3 134 145 141 144
30.0 151 152 146 148 146 133 132 125 121 121 77.9 110 81.7 123 111 117 110 104 123 104 110 117 111 123 81.7 110 77.9 121 121 125 132 133 146 148 146 152 151 135 113 128 105 99.9 48.0 43.7 67.1 96.3 84.8 74.2 76.3 75.5 74.1 65.9 68.9 70.1 67.8 70.1 68.9 65.9 74.1 75.5 76.3 74.2 84.8 96.3 67.1 43.7 48.0 99.9 105 128 113 135
32.5 141 172 157 175 159 151 125 127 106 100 80.6 89.3 78.9 93.3 101 92.9 124 113 125 113 124 92.9 101 93.3 78.9 89.3 80.6 100 106 127 125 151 159 175 157 172 141 146 121 131 112 106 54.5 35.8 64.8 86.8 79.8 76.5 76.4 75.4 74.3 65.1 70.4 68.9 65.1 68.9 70.4 65.1 74.3 75.4 76.4 76.5 79.8 86.8 64.8 35.8 54.5 106 112 131 121 146
35.0 144 162 151 173 162 155 133 131 124 114 91.1 103 102 121 120 115 124 110 119 110 124 115 120 121 102 103 91.1 114 124 131 133 155 162 173 151 162 144 143 124 124 105 101 52.7 30.5 63.1 88.1 78.9 73.6 74.3 70.1 70.4 64.2 70.1 64.9 67.3 64.9 70.1 64.2 70.4 70.1 74.3 73.6 78.9 88.1 63.1 30.5 52.7 101 105 124 124 143
37.5 149 155 154 174 163 154 141 134 132 126 102 111 120 138 135 136 143 124 128 124 143 136 135 138 120 111 102 126 132 134 141 154 163 174 154 155 149 144 124 120 107 107 54.6 30.5 61.6 87.2 80.4 71.4 73.2 72.0 67.9 62.2 65.8 59.9 64.8 59.9 65.8 62.2 67.9 72.0 73.2 71.4 80.4 87.2 61.6 30.5 54.6 107 107 120 124 144
40.0 156 177 175 184 169 159 139 140 138 138 106 119 136 154 148 145 152 139 135 139 152 145 148 154 136 119 106 138 138 140 139 159 169 184 175 177 156 151 129 120 110 107 58.3 31.5 60.2 88.8 82.6 75.2 73.1 71.9 70.6 64.1 66.4 57.9 64.2 57.9 66.4 64.1 70.6 71.9 73.1 75.2 82.6 88.8 60.2 31.5 58.3 107 110 120 129 151
42.5 180 211 195 205 182 166 143 141 140 140 113 127 148 157 157 149 161 144 140 144 161 149 157 157 148 127 113 140 140 141 143 166 182 205 195 211 180 172 147 135 116 109 60.4 35.8 59.9 85.2 80.8 72.4 70.8 68.9 69.2 64.7 65.1 61.5 68.4 61.5 65.1 64.7 69.2 68.9 70.8 72.4 80.8 85.2 59.9 35.8 60.4 109 116 135 147 172
45.0 209 255 235 241 205 176 146 155 149 147 121 131 155 161 157 150 162 144 145 144 162 150 157 161 155 131 121 147 149 155 146 176 205 241 235 255 209 204 169 145 113 111 57.3 40.3 61.5 90.0 83.6 77.1 71.0 70.2 71.7 66.8 69.3 62.0 68.1 62.0 69.3 66.8 71.7 70.2 71.0 77.1 83.6 90.0 61.5 40.3 57.3 111 113 145 169 204
47.5 238 299 274 280 219 175 139 156 159 153 129 135 167 159 157 148 156 137 134 137 156 148 157 159 167 135 129 153 159 156 139 175 219 280 274 299 238 231 179 168 123 129 67.7 43.8 62.2 92.1 85.1 77.7 71.8 69.2 71.7 67.7 68.9 62.8 68.3 62.8 68.9 67.7 71.7 69.2 71.8 77.7 85.1 92.1 62.2 43.8 67.7 129 123 168 179 231
50.0 262 318 301 315 235 182 146 149 157 152 125 134 168 157 147 134 139 122 126 122 139 134 147 157 168 134 125 152 157 149 146 182 235 315 301 318 262 240 178 168 126 126 70.3 45.8 60.8 91.4 84.3 75.1 69.6 69.7 71.3 67.9 68.8 63.0 68.2 63.0 68.8 67.9 71.3 69.7 69.6 75.1 84.3 91.4 60.8 45.8 70.3 126 126 168 178 240
52.5 306 346 330 308 246 185 157 151 160 155 121 129 158 147 134 125 128 112 113 112 128 125 134 147 158 129 121 155 160 151 157 185 246 308 330 346 306 246 181 158 126 128 71.4 48.2 60.2 90.9 81.9 73.8 70.3 69.2 69.6 67.2 64.3 57.7 63.0 57.7 64.3 67.2 69.6 69.2 70.3 73.8 81.9 90.9 60.2 48.2 71.4 128 126 158 181 246
55.0 309 383 366 327 245 186 160 149 157 150 117 114 145 128 117 111 111 102 104 102 111 111 117 128 145 114 117 150 157 149 160 186 245 327 366 383 309 266 172 143 125 127 72.4 49.3 56.3 88.6 80.9 72.7 69.3 66.2 65.6 60.2 61.7 54.3 60.6 54.3 61.7 60.2 65.6 66.2 69.3 72.7 80.9 88.6 56.3 49.3 72.4 127 125 143 172 266
57.5 326 412 370 353 258 194 165 159 157 145 111 104 131 117 112 102 101 95.7 98.1 95.7 101 102 112 117 131 104 111 145 157 159 165 194 258 353 370 412 326 269 173 146 127 123 73.7 48.2 52.7 84.9 78.2 71.3 69.4 64.8 60.5 56.0 55.9 51.2 51.9 51.2 55.9 56.0 60.5 64.8 69.4 71.3 78.2 84.9 52.7 48.2 73.7 123 127 146 173 269
60.0 345 425 383 356 256 200 159 155 146 136 101 88.9 118 102 97.9 91.2 89.4 85.3 88.0 85.3 89.4 91.2 97.9 102 118 88.9 101 136 146 155 159 200 256 356 383 425 345 274 173 146 126 125 71.6 52.1 54.9 82.9 77.3 68.6 68.6 61.2 55.1 49.7 47.7 40.5 42.0 40.5 47.7 49.7 55.1 61.2 68.6 68.6 77.3 82.9 54.9 52.1 71.6 125 126 146 173 274
62.5 314 405 373 347 256 194 155 146 138 120 89.5 82.2 105 93.9 89.4 80.5 79.3 76.1 77.2 76.1 79.3 80.5 89.4 93.9 105 82.2 89.5 120 138 146 155 194 256 347 373 405 314 271 178 150 131 130 72.2 54.3 53.8 81.8 74.4 68.4 67.2 59.2 53.5 46.0 43.2 40.3 42.0 40.3 43.2 46.0 53.5 59.2 67.2 68.4 74.4 81.8 53.8 54.3 72.2 130 131 150 178 271
65.0 323 403 383 352 254 187 149 133 128 120 83.3 75.7 95.6 86.2 82.3 72.9 73.6 69.2 70.0 69.2 73.6 72.9 82.3 86.2 95.6 75.7 83.3 120 128 133 149 187 254 352 383 403 323 268 180 150 134 135 73.9 57.9 52.8 82.6 71.3 65.4 66.8 55.8 51.0 42.3 41.7 38.5 39.1 38.5 41.7 42.3 51.0 55.8 66.8 65.4 71.3 82.6 52.8 57.9 73.9 135 134 150 180 268
67.5 314 401 391 368 259 181 143 130 122 111 78.4 72.9 82.2 76.4 74.3 64.6 66.5 63.2 64.6 63.2 66.5 64.6 74.3 76.4 82.2 72.9 78.4 111 122 130 143 181 259 368 391 401 314 270 175 149 132 134 73.1 56.3 49.5 74.9 65.7 62.1 65.2 53.4 50.5 41.9 39.0 35.8 36.7 35.8 39.0 41.9 50.5 53.4 65.2 62.1 65.7 74.9 49.5 56.3 73.1 134 132 149 175 270
70.0 305 401 381 365 251 177 134 124 118 106 71.6 64.4 79.4 69.7 68.9 59.1 61.5 57.9 59.8 57.9 61.5 59.1 68.9 69.7 79.4 64.4 71.6 106 118 124 134 177 251 365 381 401 305 260 166 147 131 123 67.7 52.5 47.3 70.2 62.8 61.7 62.2 52.1 46.8 39.3 36.4 30.5 30.3 30.5 36.4 39.3 46.8 52.1 62.2 61.7 62.8 70.2 47.3 52.5 67.7 123 131 147 166 260
72.5 267 359 352 337 230 160 121 111 108 96.4 63.5 57.6 73.1 65.3 63.6 54.5 55.7 52.4 55.3 52.4 55.7 54.5 63.6 65.3 73.1 57.6 63.5 96.4 108 111 121 160 230 337 352 359 267 228 149 128 116 114 65.4 49.6 43.2 68.0 57.4 56.0 55.7 48.9 42.2 35.8 31.3 26.5 27.6 26.5 31.3 35.8 42.2 48.9 55.7 56.0 57.4 68.0 43.2 49.6 65.4 114 116 128 149 228
75.0 210 275 273 263 181 136 92.6 81.3 92.1 84.5 56.6 46.0 63.5 59.8 57.0 48.8 48.7 42.8 46.3 42.8 48.7 48.8 57.0 59.8 63.5 46.0 56.6 84.5 92.1 81.3 92.6 136 181 263 273 275 210 188 111 106 81.1 94.2 61.3 40.8 31.8 51.1 38.2 41.2 40.6 37.3 32.1 26.1 25.0 22.4 22.0 22.4 25.0 26.1 32.1 37.3 40.6 41.2 38.2 51.1 31.8 40.8 61.3 94.2 81.1 106 111 188
77.5 137 180 191 174 132 80.9 65.6 49.3 57.3 60.3 31.0 37.7 46.9 41.8 42.2 35.5 36.3 31.7 33.0 31.7 36.3 35.5 42.2 41.8 46.9 37.7 31.0 60.3 57.3 49.3 65.6 80.9 132 174 191 180 137 106 75.7 49.4 50.1 47.7 45.0 23.9 20.5 19.5 18.6 16.8 19.0 16.0 15.3 13.9 14.1 13.4 12.6 13.4 14.1 13.9 15.3 16.0 19.0 16.8 18.6 19.5 20.5 23.9 45.0 47.7 50.1 49.4 75.7 106
80.0 85.0 115 122 106 77.4 44.8 30.1 24.1 27.3 23.6 20.8 21.1 22.2 19.6 19.0 16.5 16.1 14.8 15.7 14.8 16.1 16.5 19.0 19.6 22.2 21.1 20.8 23.6 27.3 24.1 30.1 44.8 77.4 106 122 115 85.0 60.4 41.7 34.8 29.6 30.0 30.0 16.6 15.1 13.8 11.9 12.4 12.2 11.2 10.6 10.1 10.0 9.1 9.4 9.1 10.0 10.1 10.6 11.2 12.2 12.4 11.9 13.8 15.1 16.6 30.0 30.0 29.6 34.8 41.7 60.4
82.5 48.2 60.0 75.3 56.2 45.0 25.8 20.0 17.0 18.4 17.5 17.3 15.9 16.1 15.2 14.8 12.5 11.6 10.5 11.2 10.5 11.6 12.5 14.8 15.2 16.1 15.9 17.3 17.5 18.4 17.0 20.0 25.8 45.0 56.2 75.3 60.0 48.2 32.3 27.5 23.7 20.8 19.2 15.0 12.9 12.1 11.1 9.4 9.7 9.2 8.5 8.2 7.6 7.9 7.1 7.4 7.1 7.9 7.6 8.2 8.5 9.2 9.7 9.4 11.1 12.1 12.9 15.0 19.2 20.8 23.7 27.5 32.3
85.0 23.5 23.4 27.2 21.7 19.5 15.8 13.0 11.7 13.7 12.9 12.8 11.9 11.6 11.4 10.4 9.0 8.0 7.4 7.8 7.4 8.0 9.0 10.4 11.4 11.6 11.9 12.8 12.9 13.7 11.7 13.0 15.8 19.5 21.7 27.2 23.4 23.5 20.4 17.8 17.4 16.1 15.0 10.0 11.1 10.1 9.4 7.8 7.4 8.1 7.1 6.8 6.4 6.5 5.9 6.1 5.9 6.5 6.4 6.8 7.1 8.1 7.4 7.8 9.4 10.1 11.1 10.0 15.0 16.1 17.4 17.8 20.4
87.5 14.6 16.0 15.1 15.0 12.3 11.8 9.3 8.8 9.9 9.2 8.6 7.4 7.7 6.4 6.6 4.9 4.9 4.2 4.6 4.2 4.9 4.9 6.6 6.4 7.7 7.4 8.6 9.2 9.9 8.8 9.3 11.8 12.3 15.0 15.1 16.0 14.6 14.7 13.1 12.9 11.5 11.9 10.0 9.4 8.6 8.3 7.0 6.3 6.8 5.9 5.9 5.3 5.4 5.0 5.0 5.0 5.4 5.3 5.9 5.9 6.8 6.3 7.0 8.3 8.6 9.4 10.0 11.9 11.5 12.9 13.1 14.7
90.0 10.4 10.3 10.8 9.4 8.9 7.8 6.9 5.9 6.7 5.1 5.8 4.2 4.4 3.4 3.6 2.9 3.1 2.8 2.9 2.8 3.1 2.9 3.6 3.4 4.4 4.2 5.8 5.1 6.7 5.9 6.9 7.8 8.9 9.4 10.8 10.3 10.4 9.9 9.3 9.1 8.4 8.3 5.0 6.7 6.1 5.9 5.7 5.1 5.4 5.2 4.8 4.6 4.6 4.4 4.6 4.4 4.6 4.6 4.8 5.2 5.4 5.1 5.7 5.9 6.1 6.7 5.0 8.3 8.4 9.1 9.3 9.9
92.5 6.6 6.6 6.7 6.5 6.1 5.1 4.9 4.2 4.0 3.7 3.5 3.1 3.0 2.8 2.8 2.5 2.7 2.4 2.5 2.4 2.7 2.5 2.8 2.8 3.0 3.1 3.5 3.7 4.0 4.2 4.9 5.1 6.1 6.5 6.7 6.6 6.6 6.3 6.3 5.8 5.8 5.3 1.0 4.4 4.4 4.2 4.3 4.0 4.2 3.7 3.7 3.3 3.6 3.5 3.7 3.5 3.6 3.3 3.7 3.7 4.2 4.0 4.3 4.2 4.4 4.4 1.0 5.3 5.8 5.8 6.3 6.3
95.0 4.6 4.9 4.8 4.8 4.3 4.2 3.8 3.5 3.3 3.1 3.0 2.8 2.7 2.5 2.4 2.3 2.4 2.2 2.3 2.2 2.4 2.3 2.4 2.5 2.7 2.8 3.0 3.1 3.3 3.5 3.8 4.2 4.3 4.8 4.8 4.9 4.6 4.7 4.3 4.3 3.9 4.0 1.0 3.6 3.3 3.3 3.3 3.3 3.1 3.0 3.0 2.9 3.2 2.9 3.1 2.9 3.2 2.9 3.0 3.0 3.1 3.3 3.3 3.3 3.3 3.6 1.0 4.0 3.9 4.3 4.3 4.7
97.5 3.9 4.3 4.1 4.1 3.8 3.7 3.5 3.2 3.0 2.8 2.7 2.4 2.4 2.2 2.3 2.0 2.2 2.0 2.1 2.0 2.2 2.0 2.3 2.2 2.4 2.4 2.7 2.8 3.0 3.2 3.5 3.7 3.8 4.1 4.1 4.3 3.9 4.1 3.8 3.7 3.5 3.4 1.0 3.2 3.0 2.8 2.8 2.6 2.5 2.3 2.4 2.2 2.4 2.2 2.2 2.2 2.4 2.2 2.4 2.3 2.5 2.6 2.8 2.8 3.0 3.2 1.0 3.4 3.5 3.7 3.8 4.1
100.0 3.5 3.7 3.5 3.6 3.5 3.3 3.2 2.9 2.8 2.5 2.5 2.3 2.2 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.3 2.5 2.5 2.8 2.9 3.2 3.3 3.5 3.6 3.5 3.7 3.5 3.5 3.3 3.3 3.2 3.1 1.0 2.8 2.8 2.5 2.5 2.3 2.3 2.2 2.2 1.9 2.0 1.9 2.0 1.9 2.0 1.9 2.2 2.2 2.3 2.3 2.5 2.5 2.8 2.8 1.0 3.1 3.2 3.3 3.3 3.5
102.5 3.2 3.5 3.2 3.3 3.2 3.2 2.9 2.8 2.7 2.4 2.4 2.2 2.2 2.0 2.0 1.8 2.0 1.8 1.9 1.8 2.0 1.8 2.0 2.0 2.2 2.2 2.4 2.4 2.7 2.8 2.9 3.2 3.2 3.3 3.2 3.5 3.2 3.3 3.1 3.2 3.0 3.0 1.0 2.8 2.8 2.6 2.5 2.3 2.3 2.2 2.2 2.0 2.1 1.9 2.0 1.9 2.1 2.0 2.2 2.2 2.3 2.3 2.5 2.6 2.8 2.8 1.0 3.0 3.0 3.2 3.1 3.3
105.0 3.0 3.3 3.0 3.3 3.0 3.0 2.8 2.8 2.6 2.3 2.3 2.1 2.0 1.8 1.9 1.8 1.9 1.7 1.8 1.7 1.9 1.8 1.9 1.8 2.0 2.1 2.3 2.3 2.6 2.8 2.8 3.0 3.0 3.3 3.0 3.3 3.0 3.2 3.0 3.2 3.0 3.1 1.0 2.8 2.7 2.7 2.5 2.4 2.3 2.3 2.3 2.2 2.3 2.1 2.3 2.1 2.3 2.2 2.3 2.3 2.3 2.4 2.5 2.7 2.7 2.8 1.0 3.1 3.0 3.2 3.0 3.2
107.5 2.9 3.2 2.9 3.1 2.9 2.9 2.8 2.7 2.5 2.3 2.3 2.0 2.0 1.8 1.9 1.8 1.8 1.7 1.8 1.7 1.8 1.8 1.9 1.8 2.0 2.0 2.3 2.3 2.5 2.7 2.8 2.9 2.9 3.1 2.9 3.2 2.9 3.1 2.8 3.0 2.9 2.9 1.0 2.8 2.7 2.5 2.5 2.4 2.3 2.2 2.3 2.2 2.3 2.3 2.5 2.3 2.3 2.2 2.3 2.2 2.3 2.4 2.5 2.5 2.7 2.8 1.0 2.9 2.9 3.0 2.8 3.1
110.0 2.8 3.1 2.9 3.0 2.9 2.8 2.8 2.6 2.5 2.3 2.2 2.0 1.9 1.8 1.9 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.9 1.8 1.9 2.0 2.2 2.3 2.5 2.6 2.8 2.8 2.9 3.0 2.9 3.1 2.8 3.0 2.8 3.0 2.8 2.9 1.0 2.7 2.6 2.5 2.5 2.3 2.3 2.2 2.2 2.0 2.2 2.0 2.1 2.0 2.2 2.0 2.2 2.2 2.3 2.3 2.5 2.5 2.6 2.7 1.0 2.9 2.8 3.0 2.8 3.0
112.5 2.9 3.1 2.9 3.0 2.8 2.8 2.8 2.5 2.5 2.3 2.3 2.0 1.9 1.8 1.8 1.8 1.8 1.7 1.8 1.7 1.8 1.8 1.8 1.8 1.9 2.0 2.3 2.3 2.5 2.5 2.8 2.8 2.8 3.0 2.9 3.1 2.9 3.0 2.8 3.0 2.8 2.8 1.0 2.7 2.7 2.5 2.5 2.3 2.3 2.2 2.2 2.0 2.1 1.9 2.1 1.9 2.1 2.0 2.2 2.2 2.3 2.3 2.5 2.5 2.7 2.7 1.0 2.8 2.8 3.0 2.8 3.0
115.0 3.0 3.2 2.9 3.1 2.9 2.8 2.8 2.6 2.4 2.3 2.3 2.0 2.0 1.8 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.9 1.8 2.0 2.0 2.3 2.3 2.4 2.6 2.8 2.8 2.9 3.1 2.9 3.2 3.0 3.1 2.9 3.1 3.1 3.0 1.0 2.8 2.8 2.6 2.5 2.3 2.3 2.3 2.3 2.1 2.2 2.0 2.2 2.0 2.2 2.1 2.3 2.3 2.3 2.3 2.5 2.6 2.8 2.8 1.0 3.0 3.1 3.1 2.9 3.1
117.5 3.4 3.4 3.3 3.3 3.0 3.0 2.8 2.7 2.6 2.4 2.3 2.1 2.1 1.9 1.9 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.9 1.9 2.1 2.1 2.3 2.4 2.6 2.7 2.8 3.0 3.0 3.3 3.3 3.4 3.4 3.7 3.5 3.6 3.3 3.3 1.0 3.1 2.9 2.8 2.7 2.5 2.5 2.3 2.4 2.3 2.4 2.2 2.4 2.2 2.4 2.3 2.4 2.3 2.5 2.5 2.7 2.8 2.9 3.1 1.0 3.3 3.3 3.6 3.5 3.7
120.0 3.7 3.9 3.5 3.8 3.4 3.1 2.9 2.8 2.7 2.5 2.4 2.2 2.2 2.0 2.0 1.8 1.9 1.8 1.9 1.8 1.9 1.8 2.0 2.0 2.2 2.2 2.4 2.5 2.7 2.8 2.9 3.1 3.4 3.8 3.5 3.9 3.7 4.0 3.6 3.9 3.7 3.7 1.0 3.4 3.2 3.0 2.8 2.7 2.5 2.5 2.5 2.6 2.7 2.7 2.8 2.7 2.7 2.6 2.5 2.5 2.5 2.7 2.8 3.0 3.2 3.4 1.0 3.7 3.7 3.9 3.6 4.0
122.5 3.7 4.0 3.6 3.8 3.6 3.4 3.2 2.8 3.1 3.0 3.0 2.3 2.4 2.1 2.2 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.2 2.1 2.4 2.3 3.0 3.0 3.1 2.8 3.2 3.4 3.6 3.8 3.6 4.0 3.7 4.0 3.7 4.1 3.8 3.9 1.0 3.6 3.3 3.2 2.8 2.7 2.8 3.0 2.8 2.6 2.7 2.5 2.7 2.5 2.7 2.6 2.8 3.0 2.8 2.7 2.8 3.2 3.3 3.6 1.0 3.9 3.8 4.1 3.7 4.0
125.0 4.1 4.3 3.9 4.0 3.7 3.6 3.4 2.9 3.3 3.2 3.1 3.1 3.0 3.1 3.1 3.1 3.0 3.0 2.7 3.0 3.0 3.1 3.1 3.1 3.0 3.1 3.1 3.2 3.3 2.9 3.4 3.6 3.7 4.0 3.9 4.3 4.1 4.5 4.3 4.6 4.4 4.5 1.0 4.1 3.9 3.3 3.2 2.8 3.1 2.8 3.0 2.8 2.8 2.7 2.9 2.7 2.8 2.8 3.0 2.8 3.1 2.8 3.2 3.3 3.9 4.1 1.0 4.5 4.4 4.6 4.3 4.5
127.5 4.6 4.9 4.3 4.6 3.8 4.1 3.5 2.9 3.3 3.9 3.5 3.3 3.5 3.6 3.7 3.8 3.8 3.8 3.6 3.8 3.8 3.8 3.7 3.6 3.5 3.3 3.5 3.9 3.3 2.9 3.5 4.1 3.8 4.6 4.3 4.9 4.6 5.2 4.8 5.6 5.2 5.6 1.0 5.7 4.9 3.5 3.6 3.4 3.7 3.5 3.4 3.2 3.3 3.0 3.4 3.0 3.3 3.2 3.4 3.5 3.7 3.4 3.6 3.5 4.9 5.7 1.0 5.6 5.2 5.6 4.8 5.2
130.0 4.6 4.5 4.8 4.6 4.8 4.2 4.7 2.9 4.4 4.0 3.9 3.0 4.0 3.3 3.4 3.0 3.2 3.0 3.3 3.0 3.2 3.0 3.4 3.3 4.0 3.0 3.9 4.0 4.4 2.9 4.7 4.2 4.8 4.6 4.8 4.5 4.6 4.4 4.3 4.4 4.6 4.6 1.0 4.1 3.7 3.3 3.2 3.0 3.2 3.2 3.2 2.8 2.9 2.8 3.0 2.8 2.9 2.8 3.2 3.2 3.2 3.0 3.2 3.3 3.7 4.1 1.0 4.6 4.6 4.4 4.3 4.4
132.5 3.5 3.9 3.5 3.8 3.6 3.6 3.4 2.8 3.2 3.4 3.5 3.0 3.5 3.1 3.0 2.7 2.8 2.7 2.9 2.7 2.8 2.7 3.0 3.1 3.5 3.0 3.5 3.4 3.2 2.8 3.4 3.6 3.6 3.8 3.5 3.9 3.5 3.9 3.6 4.1 3.8 4.2 1.0 3.7 3.5 3.2 2.9 2.6 2.7 2.8 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.8 2.7 2.6 2.9 3.2 3.5 3.7 1.0 4.2 3.8 4.1 3.6 3.9
135.0 3.3 3.6 3.2 3.4 3.1 3.1 2.9 2.6 2.9 3.0 2.9 2.9 3.0 2.7 2.8 2.6 2.6 2.5 2.8 2.5 2.6 2.6 2.8 2.7 3.0 2.9 2.9 3.0 2.9 2.6 2.9 3.1 3.1 3.4 3.2 3.6 3.3 3.5 3.3 3.7 3.6 3.5 1.0 3.3 3.2 2.8 2.8 2.4 2.5 2.2 2.3 2.1 2.3 2.0 2.1 2.0 2.3 2.1 2.3 2.2 2.5 2.4 2.8 2.8 3.2 3.3 1.0 3.5 3.6 3.7 3.3 3.5
137.5 3.0 3.2 3.2 3.2 3.2 3.0 2.8 2.5 3.3 2.8 2.8 2.5 2.6 2.5 2.6 2.6 2.5 2.3 2.5 2.3 2.5 2.6 2.6 2.5 2.6 2.5 2.8 2.8 3.3 2.5 2.8 3.0 3.2 3.2 3.2 3.2 3.0 3.1 3.0 3.0 2.9 2.9 1.0 2.9 2.7 2.4 2.5 2.3 2.2 2.0 2.0 1.9 2.0 1.9 2.1 1.9 2.0 1.9 2.0 2.0 2.2 2.3 2.5 2.4 2.7 2.9 1.0 2.9 2.9 3.0 3.0 3.1
140.0 2.8 2.8 2.8 3.0 3.0 2.8 2.8 2.8 2.7 2.4 2.4 2.5 2.3 2.5 2.7 2.5 2.4 2.2 2.2 2.2 2.4 2.5 2.7 2.5 2.3 2.5 2.4 2.4 2.7 2.8 2.8 2.8 3.0 3.0 2.8 2.8 2.8 2.8 2.6 2.7 2.7 2.7 1.0 2.5 2.5 2.3 2.3 2.2 2.2 1.9 2.0 1.9 2.0 1.8 2.0 1.8 2.0 1.9 2.0 1.9 2.2 2.2 2.3 2.3 2.5 2.5 1.0 2.7 2.7 2.7 2.6 2.8
142.5 2.7 2.9 3.0 3.2 3.1 3.0 3.0 2.8 2.6 2.3 2.3 2.2 2.3 2.2 2.3 2.3 2.3 2.2 2.3 2.2 2.3 2.3 2.3 2.2 2.3 2.2 2.3 2.3 2.6 2.8 3.0 3.0 3.1 3.2 3.0 2.9 2.7 2.8 2.6 2.8 2.6 2.6 1.0 2.3 2.3 2.3 2.2 2.1 2.1 1.9 2.0 1.9 1.9 1.8 2.0 1.8 1.9 1.9 2.0 1.9 2.1 2.1 2.2 2.3 2.3 2.3 1.0 2.6 2.6 2.8 2.6 2.8
145.0 2.8 3.0 2.9 3.5 3.2 3.2 2.9 2.8 2.7 2.3 2.3 2.3 2.4 2.3 2.6 2.3 2.5 2.5 2.5 2.5 2.5 2.3 2.6 2.3 2.4 2.3 2.3 2.3 2.7 2.8 2.9 3.2 3.2 3.5 2.9 3.0 2.8 2.9 2.5 2.7 2.5 2.6 1.0 2.3 2.2 2.2 2.2 2.1 2.1 2.0 2.0 1.9 1.9 1.8 2.0 1.8 1.9 1.9 2.0 2.0 2.1 2.1 2.2 2.2 2.2 2.3 1.0 2.6 2.5 2.7 2.5 2.9
147.5 2.9 3.2 3.0 3.3 3.2 3.2 2.9 2.9 2.8 2.5 2.3 2.3 2.6 2.8 2.7 2.6 2.8 2.5 2.8 2.5 2.8 2.6 2.7 2.8 2.6 2.3 2.3 2.5 2.8 2.9 2.9 3.2 3.2 3.3 3.0 3.2 2.9 3.0 2.7 2.8 2.5 2.5 1.0 2.3 2.2 2.2 2.2 2.1 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.1 2.2 2.2 2.2 2.3 1.0 2.5 2.5 2.8 2.7 3.0
150.0 3.0 3.2 3.1 3.6 3.3 3.4 3.1 3.1 3.1 2.5 2.4 2.5 2.5 3.4 3.3 2.8 3.2 2.8 2.9 2.8 3.2 2.8 3.3 3.4 2.5 2.5 2.4 2.5 3.1 3.1 3.1 3.4 3.3 3.6 3.1 3.2 3.0 3.0 2.7 2.8 2.5 2.5 1.0 2.3 2.2 2.2 2.2 2.1 2.1 2.0 2.0 1.9 1.9 1.9 2.0 1.9 1.9 1.9 2.0 2.0 2.1 2.1 2.2 2.2 2.2 2.3 1.0 2.5 2.5 2.8 2.7 3.0
152.5 3.2 3.4 3.5 3.6 3.8 3.5 3.5 3.5 3.0 2.7 2.3 2.3 2.6 3.0 3.3 3.7 3.6 3.5 4.2 3.5 3.6 3.7 3.3 3.0 2.6 2.3 2.3 2.7 3.0 3.5 3.5 3.5 3.8 3.6 3.5 3.4 3.2 3.3 3.0 3.1 2.7 2.5 1.0 2.3 2.1 2.2 2.3 2.1 2.0 2.0 2.0 1.9 2.0 1.9 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.1 2.3 2.2 2.1 2.3 1.0 2.5 2.7 3.1 3.0 3.3
155.0 3.7 3.6 3.6 3.9 3.8 3.8 3.5 3.6 3.8 2.8 2.3 2.2 2.4 3.3 4.0 4.1 4.6 4.7 4.7 4.7 4.6 4.1 4.0 3.3 2.4 2.2 2.3 2.8 3.8 3.6 3.5 3.8 3.8 3.9 3.6 3.6 3.7 3.7 3.3 3.3 2.6 2.5 1.0 2.2 2.1 2.2 2.2 2.2 2.2 2.0 2.1 2.0 2.0 1.9 2.0 1.9 2.0 2.0 2.1 2.0 2.2 2.2 2.2 2.2 2.1 2.2 1.0 2.5 2.6 3.3 3.3 3.7
157.5 3.3 3.9 3.6 4.3 3.8 4.4 3.8 4.3 3.9 3.0 2.1 2.2 2.3 3.0 3.3 4.3 4.6 4.9 5.6 4.9 4.6 4.3 3.3 3.0 2.3 2.2 2.1 3.0 3.9 4.3 3.8 4.4 3.8 4.3 3.6 3.9 3.3 3.8 2.8 2.9 2.5 2.4 1.0 2.1 2.1 2.2 2.3 2.2 2.2 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.2 2.2 2.3 2.2 2.1 2.1 1.0 2.4 2.5 2.9 2.8 3.8
160.0 3.0 3.6 3.0 3.8 3.3 4.0 3.3 4.0 3.4 3.3 2.0 2.0 2.2 2.4 2.3 3.3 2.5 3.7 4.6 3.7 2.5 3.3 2.3 2.4 2.2 2.0 2.0 3.3 3.4 4.0 3.3 4.0 3.3 3.8 3.0 3.6 3.0 3.6 2.8 3.2 2.3 2.2 1.0 2.0 2.0 2.1 2.3 2.4 2.4 2.1 2.2 1.9 2.0 1.9 1.9 1.9 2.0 1.9 2.2 2.1 2.4 2.4 2.3 2.1 2.0 2.0 1.0 2.2 2.3 3.2 2.8 3.6
162.5 2.5 2.5 2.5 2.5 2.7 2.5 2.8 2.3 2.9 2.3 1.8 1.5 1.6 1.5 1.6 1.5 1.8 1.5 1.8 1.5 1.8 1.5 1.6 1.5 1.6 1.5 1.8 2.3 2.9 2.3 2.8 2.5 2.7 2.5 2.5 2.5 2.5 2.6 2.5 2.4 2.0 2.0 1.0 1.8 1.8 1.9 2.0 2.4 2.3 2.2 2.1 2.1 2.0 1.9 2.0 1.9 2.0 2.1 2.1 2.2 2.3 2.4 2.0 1.9 1.8 1.8 1.0 2.0 2.0 2.4 2.5 2.6
165.0 2.1 2.0 2.0 2.0 2.1 1.8 2.0 1.7 1.8 1.6 1.5 1.5 1.5 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.5 1.5 1.5 1.6 1.8 1.7 2.0 1.8 2.1 2.0 2.0 2.0 2.1 2.1 2.0 1.9 1.8 1.8 1.0 1.7 1.7 1.6 1.8 1.9 2.0 1.6 1.8 1.6 1.8 1.6 1.7 1.6 1.8 1.6 1.8 1.6 2.0 1.9 1.8 1.6 1.7 1.7 1.0 1.8 1.8 1.9 2.0 2.1
167.5 1.6 1.8 1.6 1.7 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.7 1.6 1.8 1.6 1.8 1.6 1.7 1.7 1.6 1.0 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.0 1.6 1.7 1.7 1.6 1.8
170.0 1.6 1.7 1.6 1.7 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.7 1.6 1.7 1.6 1.7 1.6 1.7 1.6 1.6 1.0 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.4 1.3 1.5 1.3 1.4 1.3 1.5 1.3 1.4 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.0 1.6 1.6 1.7 1.6 1.7
172.5 1.6 1.7 1.5 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.5 1.7 1.6 1.7 1.5 1.7 1.5 1.5 1.0 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.0 1.5 1.5 1.7 1.5 1.7
175.0 1.6 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.6 1.7 1.6 1.6 1.5 1.5 1.0 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.0 1.5 1.5 1.6 1.6 1.7
177.5 1.6 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.6 1.7 1.5 1.6 1.5 1.5 1.0 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.4 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.4 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.0 1.5 1.5 1.6 1.5 1.7
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
