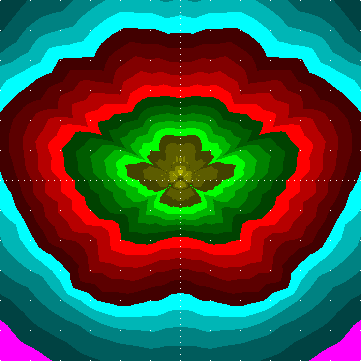

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] IN101231C.LDT
# [LUMINAIRE] CL44-CLEAR-ARC80-PL1A
# [LUMCAT] Parvis
# [DATE] 26/08/2011/
# down given: 96.9%
# out given: 61.42%
# tilt: 0
# [LAMP] 1 MT 150 13500 2800 E40
# Bulbs: 1, 13500 lm each
# Source file: Parvis_CL44-CLEAR-ARC80-PL1A_1_MT_150_13500_2800_E40.ldt
# Luminaire flux = 614 raw, for the given bulb(s) it would be 8293 lm,
# 61.4 % of the bulb flux
# between 75 and 90: 10.4 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 121.9 cd / 1000 lm , 6.5 % of the luminaire flux
# 90deg and above: max 10.4 cd / 1000 lm , 3.1 % of the luminaire flux
# CutOff Type: IES_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 57 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 181 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 322 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 288 cd / 1000 lm,
# maximum spec. lum. intensity 322 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1 55.1
2.5 54.5 58.7 46.4 50.0 42.1 42.9 41.4 40.1 35.8 37.8 33.9 37.8 36.4 40.9 44.3 45.2 50.0 50.4 48.6 50.4 50.0 45.2 44.3 40.9 36.4 37.8 33.9 37.8 35.8 40.1 41.4 42.9 42.1 50.0 46.4 58.7 54.5 66.9 62.2 72.5 72.2 81.6 79.7 87.8 84.5 93.2 94.2 99.8 96.9 102 113 108 115 107 115 107 115 108 113 102 96.9 99.8 94.2 93.2 84.5 87.8 79.7 81.6 72.2 72.5 62.2 66.9
5.0 52.2 63.6 48.2 53.0 51.2 45.4 41.4 37.9 43.2 39.9 40.2 41.2 41.2 49.5 54.8 58.5 66.4 62.8 64.7 62.8 66.4 58.5 54.8 49.5 41.2 41.2 40.2 39.9 43.2 37.9 41.4 45.4 51.2 53.0 48.2 63.6 52.2 70.8 61.8 81.9 74.2 97.1 85.5 104 97.3 109 107 110 111 120 130 127 136 132 134 132 136 127 130 120 111 110 107 109 97.3 104 85.5 97.1 74.2 81.9 61.8 70.8
7.5 70.5 66.2 79.4 86.7 81.0 88.3 42.5 75.2 77.6 78.8 85.5 58.7 67.2 58.5 70.4 72.8 75.3 75.2 75.5 75.2 75.3 72.8 70.4 58.5 67.2 58.7 85.5 78.8 77.6 75.2 42.5 88.3 81.0 86.7 79.4 66.2 70.5 55.0 63.9 66.4 69.3 96.7 88.4 112 111 113 107 110 106 115 125 122 130 127 129 127 130 122 125 115 106 110 107 113 111 112 88.4 96.7 69.3 66.4 63.9 55.0
10.0 78.4 108 104 125 115 131 76.6 131 103 137 103 87.5 98.5 109 96.7 96.0 108 118 117 118 108 96.0 96.7 109 98.5 87.5 103 137 103 131 76.6 131 115 125 104 108 78.4 71.8 57.2 50.8 50.6 65.0 74.7 94.8 98.6 121 111 109 105 110 118 114 125 122 124 122 125 114 118 110 105 109 111 121 98.6 94.8 74.7 65.0 50.6 50.8 57.2 71.8
12.5 105 135 114 136 122 138 83.6 134 127 143 137 118 111 120 121 132 152 161 173 161 152 132 121 120 111 118 137 143 127 134 83.6 138 122 136 114 135 105 103 73.2 58.8 53.5 52.7 60.8 84.4 86.8 113 107 106 99.9 105 108 106 112 110 114 110 112 106 108 105 99.9 106 107 113 86.8 84.4 60.8 52.7 53.5 58.8 73.2 103
15.0 113 127 114 124 119 138 90.7 146 132 146 131 116 109 118 129 141 161 157 164 157 161 141 129 118 109 116 131 146 132 146 90.7 138 119 124 114 127 113 125 93.9 80.9 54.1 43.5 57.1 68.1 70.9 86.3 87.9 83.9 76.3 79.5 78.6 75.1 79.2 80.7 75.7 80.7 79.2 75.1 78.6 79.5 76.3 83.9 87.9 86.3 70.9 68.1 57.1 43.5 54.1 80.9 93.9 125
17.5 92.7 125 117 125 121 136 91.4 144 135 154 130 113 100 112 136 144 156 153 155 153 156 144 136 112 100 113 130 154 135 144 91.4 136 121 125 117 125 92.7 111 77.3 74.6 51.8 36.6 45.4 54.6 59.9 58.6 61.4 55.7 54.1 49.8 54.5 50.6 52.7 50.8 52.5 50.8 52.7 50.6 54.5 49.8 54.1 55.7 61.4 58.6 59.9 54.6 45.4 36.6 51.8 74.6 77.3 111
20.0 78.2 90.9 78.1 119 102 147 92.9 146 139 147 124 101 95.9 114 143 142 151 145 152 145 151 142 143 114 95.9 101 124 147 139 146 92.9 147 102 119 78.1 90.9 78.2 83.6 69.1 62.4 42.8 34.8 32.7 45.8 54.2 58.5 54.9 63.9 63.5 71.9 77.6 74.9 79.6 75.7 87.8 75.7 79.6 74.9 77.6 71.9 63.5 63.9 54.9 58.5 54.2 45.8 32.7 34.8 42.8 62.4 69.1 83.6
22.5 85.9 85.3 83.6 91.5 90.1 106 91.0 129 114 143 111 96.9 85.3 113 157 146 153 149 152 149 153 146 157 113 85.3 96.9 111 143 114 129 91.0 106 90.1 91.5 83.6 85.3 85.9 69.1 68.0 57.6 47.5 39.5 41.4 68.2 69.0 96.3 79.2 83.2 77.6 81.9 90.3 93.7 92.9 94.0 102 94.0 92.9 93.7 90.3 81.9 77.6 83.2 79.2 96.3 69.0 68.2 41.4 39.5 47.5 57.6 68.0 69.1
25.0 76.3 82.9 84.8 87.6 108 100 87.5 106 92.5 100 76.2 71.0 88.6 106 127 130 132 130 148 130 132 130 127 106 88.6 71.0 76.2 100 92.5 106 87.5 100 108 87.6 84.8 82.9 76.3 88.1 77.9 108 86.8 67.0 38.5 57.1 88.2 91.7 90.5 87.0 87.3 83.0 96.9 87.4 89.1 93.7 93.2 93.7 89.1 87.4 96.9 83.0 87.3 87.0 90.5 91.7 88.2 57.1 38.5 67.0 86.8 108 77.9 88.1
27.5 102 131 102 113 96.2 115 60.4 101 111 97.5 86.7 61.4 90.8 80.3 91.7 84.5 88.6 85.2 92.2 85.2 88.6 84.5 91.7 80.3 90.8 61.4 86.7 97.5 111 101 60.4 115 96.2 113 102 131 102 124 112 106 92.7 57.6 39.4 58.1 69.5 89.2 79.5 85.7 81.4 83.4 91.5 88.1 89.8 94.8 91.8 94.8 89.8 88.1 91.5 83.4 81.4 85.7 79.5 89.2 69.5 58.1 39.4 57.6 92.7 106 112 124
30.0 103 119 118 122 120 123 90.0 132 108 117 91.7 104 68.0 109 115 83.2 93.8 89.4 95.2 89.4 93.8 83.2 115 109 68.0 104 91.7 117 108 132 90.0 123 120 122 118 119 103 111 87.8 101 84.3 67.4 39.3 56.5 75.8 90.0 83.6 84.8 81.8 87.7 93.2 85.7 95.2 92.3 91.4 92.3 95.2 85.7 93.2 87.7 81.8 84.8 83.6 90.0 75.8 56.5 39.3 67.4 84.3 101 87.8 111
32.5 106 127 119 140 126 134 73.9 122 116 113 90.2 89.2 87.1 135 147 137 138 129 138 129 138 137 147 135 87.1 89.2 90.2 113 116 122 73.9 134 126 140 119 127 106 118 94.2 103 88.9 72.1 40.2 52.6 73.4 90.5 84.7 85.6 81.7 85.1 90.8 83.0 92.3 91.4 93.0 91.4 92.3 83.0 90.8 85.1 81.7 85.6 84.7 90.5 73.4 52.6 40.2 72.1 88.9 103 94.2 118
35.0 109 134 127 147 140 146 84.1 133 121 126 95.2 95.2 95.8 119 130 134 157 142 152 142 157 134 130 119 95.8 95.2 95.2 126 121 133 84.1 146 140 147 127 134 109 114 94.4 98.0 84.8 72.2 40.6 50.8 72.8 86.7 82.1 82.3 83.4 86.2 88.1 82.6 89.2 86.6 90.6 86.6 89.2 82.6 88.1 86.2 83.4 82.3 82.1 86.7 72.8 50.8 40.6 72.2 84.8 98.0 94.4 114
37.5 103 126 118 141 141 155 89.4 139 127 137 109 107 110 140 150 149 170 154 164 154 170 149 150 140 110 107 109 137 127 139 89.4 155 141 141 118 126 103 101 90.4 93.4 86.0 73.2 43.0 50.5 74.7 87.4 85.0 82.2 83.8 84.7 88.8 80.5 86.5 82.5 87.5 82.5 86.5 80.5 88.8 84.7 83.8 82.2 85.0 87.4 74.7 50.5 43.0 73.2 86.0 93.4 90.4 101
40.0 112 127 120 138 141 153 91.3 144 129 146 111 114 126 158 171 166 178 168 173 168 178 166 171 158 126 114 111 146 129 144 91.3 153 141 138 120 127 112 108 94.5 98.3 88.9 77.9 46.8 51.7 74.9 90.2 86.3 83.6 80.0 86.7 85.7 79.1 81.9 78.5 82.8 78.5 81.9 79.1 85.7 86.7 80.0 83.6 86.3 90.2 74.9 51.7 46.8 77.9 88.9 98.3 94.5 108
42.5 123 142 139 144 138 148 90.1 146 137 143 118 119 133 162 178 183 192 180 182 180 192 183 178 162 133 119 118 143 137 146 90.1 148 138 144 139 142 123 117 97.4 102 91.3 78.8 50.6 52.2 72.2 89.6 85.0 82.8 78.6 83.6 82.1 75.7 78.5 76.2 79.8 76.2 78.5 75.7 82.1 83.6 78.6 82.8 85.0 89.6 72.2 52.2 50.6 78.8 91.3 102 97.4 117
45.0 133 173 164 176 153 151 92.5 150 136 147 120 120 141 173 188 199 205 185 190 185 205 199 188 173 141 120 120 147 136 150 92.5 151 153 176 164 173 133 135 105 98.1 84.4 78.4 47.5 54.7 71.5 91.3 87.2 83.5 76.9 80.7 80.5 75.1 75.3 73.6 76.4 73.6 75.3 75.1 80.5 80.7 76.9 83.5 87.2 91.3 71.5 54.7 47.5 78.4 84.4 98.1 105 135
47.5 147 192 186 206 177 170 93.2 154 144 151 123 122 146 179 196 208 212 193 197 193 212 208 196 179 146 122 123 151 144 154 93.2 170 177 206 186 192 147 141 110 110 88.4 82.1 52.9 56.9 72.2 89.4 87.5 84.0 75.4 77.1 78.5 72.6 72.4 70.3 72.4 70.3 72.4 72.6 78.5 77.1 75.4 84.0 87.5 89.4 72.2 56.9 52.9 82.1 88.4 110 110 141
50.0 159 200 200 223 186 183 94.4 152 149 158 131 122 153 187 208 218 222 193 196 193 222 218 208 187 153 122 131 158 149 152 94.4 183 186 223 200 200 159 153 115 114 89.5 82.6 51.8 57.2 70.5 85.9 83.0 80.3 71.8 73.9 74.7 68.2 66.0 63.2 64.8 63.2 66.0 68.2 74.7 73.9 71.8 80.3 83.0 85.9 70.5 57.2 51.8 82.6 89.5 114 115 153
52.5 158 206 204 225 195 191 94.6 157 150 163 134 128 159 196 213 219 213 187 187 187 213 219 213 196 159 128 134 163 150 157 94.6 191 195 225 204 206 158 147 113 113 93.9 86.7 52.2 59.3 69.9 84.0 78.2 73.4 67.1 70.1 69.8 63.1 59.4 54.8 57.0 54.8 59.4 63.1 69.8 70.1 67.1 73.4 78.2 84.0 69.9 59.3 52.2 86.7 93.9 113 113 147
55.0 168 226 230 234 195 177 94.7 156 151 167 140 131 167 196 216 212 206 180 182 180 206 212 216 196 167 131 140 167 151 156 94.7 177 195 234 230 226 168 148 109 114 99.9 93.3 58.3 58.9 69.9 84.0 73.2 69.4 62.6 64.7 62.8 55.6 51.7 46.9 49.3 46.9 51.7 55.6 62.8 64.7 62.6 69.4 73.2 84.0 69.9 58.9 58.3 93.3 99.9 114 109 148
57.5 175 258 252 264 209 179 90.9 158 150 167 142 134 167 195 213 205 198 176 174 176 198 205 213 195 167 134 142 167 150 158 90.9 179 209 264 252 258 175 154 112 113 102 96.3 61.3 57.8 69.9 87.2 72.9 67.8 57.0 58.8 56.6 48.6 45.9 40.6 41.6 40.6 45.9 48.6 56.6 58.8 57.0 67.8 72.9 87.2 69.9 57.8 61.3 96.3 102 113 112 154
60.0 187 270 278 308 235 203 88.2 155 148 171 140 133 165 187 194 184 180 159 155 159 180 184 194 187 165 133 140 171 148 155 88.2 203 235 308 278 270 187 161 119 121 107 100 64.9 58.4 72.7 87.3 73.8 68.9 55.2 53.1 47.9 42.0 39.6 34.6 34.0 34.6 39.6 42.0 47.9 53.1 55.2 68.9 73.8 87.3 72.7 58.4 64.9 100 107 121 119 161
62.5 181 275 280 322 261 228 94.3 153 146 158 135 125 154 170 171 160 158 139 136 139 158 160 171 170 154 125 135 158 146 153 94.3 228 261 322 280 275 181 165 120 124 111 104 67.2 60.0 70.7 90.0 75.3 69.8 56.2 52.0 42.7 37.4 33.3 29.7 30.4 29.7 33.3 37.4 42.7 52.0 56.2 69.8 75.3 90.0 70.7 60.0 67.2 104 111 124 120 165
65.0 181 253 260 305 261 233 99.8 152 137 145 125 114 142 150 145 136 134 116 118 116 134 136 145 150 142 114 125 145 137 152 99.8 233 261 305 260 253 181 163 124 125 115 106 71.0 65.7 76.1 90.7 76.3 68.2 58.5 53.3 41.9 35.7 32.7 30.7 30.1 30.7 32.7 35.7 41.9 53.3 58.5 68.2 76.3 90.7 76.1 65.7 71.0 106 115 125 124 163
67.5 176 240 258 288 254 225 102 151 126 132 112 100 119 127 123 118 112 97.3 96.5 97.3 112 118 123 127 119 100 112 132 126 151 102 225 254 288 258 240 176 161 125 128 116 106 70.7 64.3 72.9 90.4 73.6 68.6 59.7 52.8 42.2 33.3 31.6 29.0 28.1 29.0 31.6 33.3 42.2 52.8 59.7 68.6 73.6 90.4 72.9 64.3 70.7 106 116 128 125 161
70.0 174 236 247 282 242 218 102 148 120 118 100 85.7 102 108 105 95.1 94.0 83.6 79.7 83.6 94.0 95.1 105 108 102 85.7 100 118 120 148 102 218 242 282 247 236 174 162 126 129 115 104 71.2 61.4 67.8 82.3 70.7 65.4 56.0 49.7 40.2 31.7 29.7 27.0 25.2 27.0 29.7 31.7 40.2 49.7 56.0 65.4 70.7 82.3 67.8 61.4 71.2 104 115 129 126 162
72.5 172 238 249 280 237 212 101 143 113 110 87.3 68.4 89.5 92.7 93.9 80.3 81.2 70.4 67.8 70.4 81.2 80.3 93.9 92.7 89.5 68.4 87.3 110 113 143 101 212 237 280 249 238 172 162 127 124 109 96.9 62.8 57.8 66.5 80.9 72.1 66.1 55.8 47.5 37.4 29.4 26.8 22.7 21.3 22.7 26.8 29.4 37.4 47.5 55.8 66.1 72.1 80.9 66.5 57.8 62.8 96.9 109 124 127 162
75.0 150 212 230 265 222 203 99.9 133 107 103 75.3 55.6 78.3 78.7 83.7 69.2 69.6 58.8 56.3 58.8 69.6 69.2 83.7 78.7 78.3 55.6 75.3 103 107 133 99.9 203 222 265 230 212 150 149 110 117 99.9 92.7 61.6 55.4 64.1 78.7 64.6 59.1 49.4 44.3 34.9 27.4 25.0 19.8 18.4 19.8 25.0 27.4 34.9 44.3 49.4 59.1 64.6 78.7 64.1 55.4 61.6 92.7 99.9 117 110 149
77.5 122 170 168 215 177 178 93.4 117 92.9 95.2 65.0 47.5 63.2 67.8 72.8 59.6 55.9 45.9 45.2 45.9 55.9 59.6 72.8 67.8 63.2 47.5 65.0 95.2 92.9 117 93.4 178 177 215 168 170 122 130 91.2 95.4 75.7 75.7 51.2 47.0 45.2 67.2 48.5 51.2 40.8 36.3 27.7 23.4 21.2 17.5 16.9 17.5 21.2 23.4 27.7 36.3 40.8 51.2 48.5 67.2 45.2 47.0 51.2 75.7 75.7 95.4 91.2 130
80.0 74.0 86.9 109 119 122 106 80.2 73.0 56.7 63.2 45.2 38.1 43.1 47.2 48.9 42.5 38.3 30.8 33.9 30.8 38.3 42.5 48.9 47.2 43.1 38.1 45.2 63.2 56.7 73.0 80.2 106 122 119 109 86.9 74.0 58.0 52.2 38.5 39.1 33.5 28.5 22.3 22.7 21.1 19.8 17.8 18.2 17.1 16.5 15.6 15.5 13.9 13.6 13.9 15.5 15.6 16.5 17.1 18.2 17.8 19.8 21.1 22.7 22.3 28.5 33.5 39.1 38.5 52.2 58.0
82.5 35.0 44.1 51.6 54.2 50.7 39.9 50.1 28.4 24.4 24.9 26.3 22.0 23.1 23.4 25.7 21.6 19.3 14.9 13.8 14.9 19.3 21.6 25.7 23.4 23.1 22.0 26.3 24.9 24.4 28.4 50.1 39.9 50.7 54.2 51.6 44.1 35.0 31.0 26.1 23.4 22.7 21.1 18.1 15.2 13.6 14.0 12.7 12.6 13.1 12.9 12.6 11.9 12.6 11.9 11.3 11.9 12.6 11.9 12.6 12.9 13.1 12.6 12.7 14.0 13.6 15.2 18.1 21.1 22.7 23.4 26.1 31.0
85.0 18.6 21.3 23.5 22.5 21.7 17.8 17.0 16.5 15.9 18.6 16.7 17.6 16.1 18.1 18.5 16.5 13.9 10.7 10.5 10.7 13.9 16.5 18.5 18.1 16.1 17.6 16.7 18.6 15.9 16.5 17.0 17.8 21.7 22.5 23.5 21.3 18.6 18.8 17.1 17.5 16.1 16.5 13.4 12.4 10.8 11.5 10.1 9.8 10.4 9.9 10.0 9.5 10.5 9.9 9.4 9.9 10.5 9.5 10.0 9.9 10.4 9.8 10.1 11.5 10.8 12.4 13.4 16.5 16.1 17.5 17.1 18.8
87.5 13.3 16.1 13.9 17.0 13.8 12.4 12.5 13.0 11.8 13.8 11.7 11.9 10.1 11.4 10.9 9.6 8.1 6.9 6.9 6.9 8.1 9.6 10.9 11.4 10.1 11.9 11.7 13.8 11.8 13.0 12.5 12.4 13.8 17.0 13.9 16.1 13.3 15.3 12.3 14.4 12.4 13.8 11.1 10.5 9.0 9.6 8.4 8.2 9.1 8.6 8.5 8.1 8.6 8.0 8.0 8.0 8.6 8.1 8.5 8.6 9.1 8.2 8.4 9.6 9.0 10.5 11.1 13.8 12.4 14.4 12.3 15.3
90.0 9.3 10.0 9.9 10.4 9.4 8.3 8.0 7.9 7.3 7.2 7.2 6.1 5.6 4.9 5.1 4.3 4.4 4.1 4.2 4.1 4.4 4.3 5.1 4.9 5.6 6.1 7.2 7.2 7.3 7.9 8.0 8.3 9.4 10.4 9.9 10.0 9.3 9.7 9.2 9.2 8.4 8.8 7.9 7.6 7.0 7.3 6.8 6.6 7.2 6.8 7.0 6.9 7.4 7.1 6.9 7.1 7.4 6.9 7.0 6.8 7.2 6.6 6.8 7.3 7.0 7.6 7.9 8.8 8.4 9.2 9.2 9.7
92.5 6.9 5.8 6.7 5.7 5.9 5.1 4.5 4.4 4.1 4.1 3.8 3.7 3.6 3.6 3.7 3.6 3.7 3.4 3.5 3.4 3.7 3.6 3.7 3.6 3.6 3.7 3.8 4.1 4.1 4.4 4.5 5.1 5.9 5.7 6.7 5.8 6.9 5.8 6.8 5.7 5.9 5.7 5.7 4.9 5.3 4.7 5.4 4.7 5.5 4.7 5.5 4.9 5.9 5.6 5.3 5.6 5.9 4.9 5.5 4.7 5.5 4.7 5.4 4.7 5.3 4.9 5.7 5.7 5.9 5.7 6.8 5.8
95.0 3.6 4.1 3.8 4.3 3.8 4.1 3.5 3.8 3.2 3.4 3.1 3.2 3.0 3.2 3.3 3.2 3.3 3.2 3.2 3.2 3.3 3.2 3.3 3.2 3.0 3.2 3.1 3.4 3.2 3.8 3.5 4.1 3.8 4.3 3.8 4.1 3.6 4.1 3.6 3.8 3.7 3.8 3.5 3.6 3.4 3.7 3.6 3.8 3.6 4.0 4.2 4.3 5.0 4.9 4.9 4.9 5.0 4.3 4.2 4.0 3.6 3.8 3.6 3.7 3.4 3.6 3.5 3.8 3.7 3.8 3.6 4.1
97.5 3.1 3.6 3.3 3.6 3.3 3.5 2.5 3.2 2.8 3.0 2.8 2.8 2.6 2.8 2.9 2.8 3.0 2.8 3.0 2.8 3.0 2.8 2.9 2.8 2.6 2.8 2.8 3.0 2.8 3.2 2.5 3.5 3.3 3.6 3.3 3.6 3.1 3.4 3.1 3.3 3.1 3.2 3.0 3.1 3.0 3.0 3.0 3.0 3.0 2.9 3.3 3.1 3.5 3.3 3.1 3.3 3.5 3.1 3.3 2.9 3.0 3.0 3.0 3.0 3.0 3.1 3.0 3.2 3.1 3.3 3.1 3.4
100.0 2.8 3.2 3.0 3.2 2.9 3.1 2.0 2.9 2.6 2.6 2.6 2.6 2.4 2.6 2.7 2.6 2.8 2.7 2.8 2.7 2.8 2.6 2.7 2.6 2.4 2.6 2.6 2.6 2.6 2.9 2.0 3.1 2.9 3.2 3.0 3.2 2.8 3.0 2.8 2.9 2.6 2.8 2.6 2.8 2.6 2.7 2.7 2.6 2.6 2.6 2.8 2.6 2.8 2.8 2.7 2.8 2.8 2.6 2.8 2.6 2.6 2.6 2.7 2.7 2.6 2.8 2.6 2.8 2.6 2.9 2.8 3.0
102.5 2.5 2.9 2.6 2.9 2.6 2.8 2.0 2.8 2.4 2.5 2.4 2.5 2.3 2.4 2.6 2.5 2.6 2.5 2.6 2.5 2.6 2.5 2.6 2.4 2.3 2.5 2.4 2.5 2.4 2.8 2.0 2.8 2.6 2.9 2.6 2.9 2.5 2.8 2.5 2.7 2.5 2.7 2.4 2.7 2.5 2.6 2.6 2.6 2.6 2.6 2.8 2.6 2.8 2.8 2.8 2.8 2.8 2.6 2.8 2.6 2.6 2.6 2.6 2.6 2.5 2.7 2.4 2.7 2.5 2.7 2.5 2.8
105.0 2.4 2.8 2.5 2.8 2.5 2.7 2.0 2.6 2.4 2.4 2.3 2.4 2.2 2.3 2.4 2.3 2.5 2.4 2.4 2.4 2.5 2.3 2.4 2.3 2.2 2.4 2.3 2.4 2.4 2.6 2.0 2.7 2.5 2.8 2.5 2.8 2.4 2.6 2.4 2.6 2.4 2.7 2.4 2.6 2.5 2.7 2.6 2.6 2.6 2.6 2.8 2.8 3.0 3.1 3.2 3.1 3.0 2.8 2.8 2.6 2.6 2.6 2.6 2.7 2.5 2.6 2.4 2.7 2.4 2.6 2.4 2.6
107.5 2.3 2.7 2.4 2.7 2.4 2.6 2.0 2.6 2.3 2.3 2.2 2.2 2.1 2.2 2.3 2.2 2.4 2.3 2.4 2.3 2.4 2.2 2.3 2.2 2.1 2.2 2.2 2.3 2.3 2.6 2.0 2.6 2.4 2.7 2.4 2.7 2.3 2.6 2.4 2.6 2.4 2.6 2.4 2.6 2.4 2.6 2.6 2.6 2.5 2.6 2.8 2.7 3.2 3.3 3.5 3.3 3.2 2.7 2.8 2.6 2.5 2.6 2.6 2.6 2.4 2.6 2.4 2.6 2.4 2.6 2.4 2.6
110.0 2.3 2.6 2.4 2.6 2.4 2.6 2.0 2.5 2.2 2.3 2.2 2.2 2.1 2.2 2.3 2.2 2.4 2.3 2.4 2.3 2.4 2.2 2.3 2.2 2.1 2.2 2.2 2.3 2.2 2.5 2.0 2.6 2.4 2.6 2.4 2.6 2.3 2.5 2.4 2.5 2.4 2.6 2.4 2.6 2.4 2.6 2.5 2.6 2.5 2.6 2.8 2.6 2.9 2.8 2.8 2.8 2.9 2.6 2.8 2.6 2.5 2.6 2.5 2.6 2.4 2.6 2.4 2.6 2.4 2.5 2.4 2.5
112.5 2.3 2.6 2.4 2.6 2.4 2.6 2.0 2.4 2.2 2.3 2.2 2.2 2.0 2.2 2.3 2.2 2.4 2.3 2.4 2.3 2.4 2.2 2.3 2.2 2.0 2.2 2.2 2.3 2.2 2.4 2.0 2.6 2.4 2.6 2.4 2.6 2.3 2.6 2.3 2.6 2.4 2.6 2.4 2.6 2.4 2.6 2.5 2.6 2.6 2.6 2.8 2.6 2.8 2.8 2.8 2.8 2.8 2.6 2.8 2.6 2.6 2.6 2.5 2.6 2.4 2.6 2.4 2.6 2.4 2.6 2.3 2.6
115.0 2.4 2.6 2.4 2.6 2.5 2.6 2.0 2.4 2.2 2.4 2.2 2.2 2.1 2.2 2.4 2.2 2.4 2.4 2.4 2.4 2.4 2.2 2.4 2.2 2.1 2.2 2.2 2.4 2.2 2.4 2.0 2.6 2.5 2.6 2.4 2.6 2.4 2.6 2.4 2.7 2.7 2.8 2.8 2.8 2.6 2.8 2.6 2.6 2.6 2.8 3.0 2.9 3.0 2.9 3.1 2.9 3.0 2.9 3.0 2.8 2.6 2.6 2.6 2.8 2.6 2.8 2.8 2.8 2.7 2.7 2.4 2.6
117.5 2.7 2.9 2.7 2.8 2.6 2.6 2.0 2.5 2.3 2.4 2.3 2.2 2.2 2.3 2.4 2.4 2.6 2.5 2.6 2.5 2.6 2.4 2.4 2.3 2.2 2.2 2.3 2.4 2.3 2.5 2.0 2.6 2.6 2.8 2.7 2.9 2.7 3.1 2.8 3.2 2.8 3.1 2.8 3.0 2.6 2.9 2.8 2.8 2.8 2.8 3.1 3.2 3.4 3.4 3.6 3.4 3.4 3.2 3.1 2.8 2.8 2.8 2.8 2.9 2.6 3.0 2.8 3.1 2.8 3.2 2.8 3.1
120.0 2.9 3.2 2.8 3.1 2.8 2.8 2.0 2.6 2.3 2.5 2.4 2.3 2.3 2.4 2.5 2.4 2.6 2.5 2.6 2.5 2.6 2.4 2.5 2.4 2.3 2.3 2.4 2.5 2.3 2.6 2.0 2.8 2.8 3.1 2.8 3.2 2.9 3.4 3.0 3.4 3.2 3.6 3.3 3.4 3.0 3.2 3.1 2.9 2.9 3.2 3.4 3.3 3.7 3.5 3.6 3.5 3.7 3.3 3.4 3.2 2.9 2.9 3.1 3.2 3.0 3.4 3.3 3.6 3.2 3.4 3.0 3.4
122.5 2.9 3.3 2.9 3.2 2.8 2.9 2.0 2.7 2.6 2.7 2.8 2.4 2.5 2.5 2.8 2.6 2.8 2.7 2.8 2.7 2.8 2.6 2.8 2.5 2.5 2.4 2.8 2.7 2.6 2.7 2.0 2.9 2.8 3.2 2.9 3.3 2.9 3.3 3.0 3.5 3.4 3.8 3.5 3.8 3.4 3.6 3.4 3.2 3.5 3.3 3.6 3.4 3.7 3.4 3.6 3.4 3.7 3.4 3.6 3.3 3.5 3.2 3.4 3.6 3.4 3.8 3.5 3.8 3.4 3.5 3.0 3.3
125.0 3.2 3.5 3.2 3.4 3.2 3.2 2.0 3.0 2.9 3.2 3.0 3.1 3.1 3.8 4.1 4.1 4.1 4.1 3.8 4.1 4.1 4.1 4.1 3.8 3.1 3.1 3.0 3.2 2.9 3.0 2.0 3.2 3.2 3.4 3.2 3.5 3.2 3.7 3.5 3.8 3.8 4.3 4.1 4.4 4.0 4.1 3.3 3.9 3.8 4.0 4.2 3.9 4.3 4.0 4.3 4.0 4.3 3.9 4.2 4.0 3.8 3.9 3.3 4.1 4.0 4.4 4.1 4.3 3.8 3.8 3.5 3.7
127.5 3.5 4.3 3.4 4.8 3.2 4.5 2.0 3.8 3.2 4.6 3.8 3.8 3.6 4.7 5.1 5.3 5.3 5.2 5.1 5.2 5.3 5.3 5.1 4.7 3.6 3.8 3.8 4.6 3.2 3.8 2.0 4.5 3.2 4.8 3.4 4.3 3.5 3.9 3.6 4.1 3.8 4.5 3.8 4.6 3.8 3.6 3.4 3.8 3.9 4.2 4.1 4.1 4.4 4.3 4.3 4.3 4.4 4.1 4.1 4.2 3.9 3.8 3.4 3.6 3.8 4.6 3.8 4.5 3.8 4.1 3.6 3.9
130.0 3.0 3.4 3.3 3.4 3.5 3.4 2.0 2.9 3.4 3.6 3.5 3.4 3.4 4.0 4.5 4.4 4.7 4.9 4.9 4.9 4.7 4.4 4.5 4.0 3.4 3.4 3.5 3.6 3.4 2.9 2.0 3.4 3.5 3.4 3.3 3.4 3.0 3.4 3.0 3.4 3.2 3.5 3.1 3.6 3.2 3.3 3.2 3.2 3.4 3.6 3.7 3.8 3.9 3.8 3.9 3.8 3.9 3.8 3.7 3.6 3.4 3.2 3.2 3.3 3.2 3.6 3.1 3.5 3.2 3.4 3.0 3.4
132.5 2.7 3.2 2.8 3.2 3.0 3.2 2.0 2.8 3.0 3.4 3.4 3.3 3.2 3.6 4.1 3.7 3.8 4.0 4.2 4.0 3.8 3.7 4.1 3.6 3.2 3.3 3.4 3.4 3.0 2.8 2.0 3.2 3.0 3.2 2.8 3.2 2.7 3.0 2.8 3.2 3.0 3.2 3.0 3.2 3.0 3.0 3.0 2.8 2.9 3.0 3.2 3.2 3.4 3.4 3.4 3.4 3.4 3.2 3.2 3.0 2.9 2.8 3.0 3.0 3.0 3.2 3.0 3.2 3.0 3.2 2.8 3.0
135.0 2.6 3.0 2.6 3.0 2.6 2.8 2.0 2.7 2.7 3.2 3.0 3.2 3.0 3.0 3.6 3.2 3.6 3.5 3.9 3.5 3.6 3.2 3.6 3.0 3.0 3.2 3.0 3.2 2.7 2.7 2.0 2.8 2.6 3.0 2.6 3.0 2.6 2.9 2.6 2.8 2.8 2.8 2.7 2.8 2.6 2.6 2.7 2.6 2.6 2.6 2.8 2.7 2.9 2.8 2.8 2.8 2.9 2.7 2.8 2.6 2.6 2.6 2.7 2.6 2.6 2.8 2.7 2.8 2.8 2.8 2.6 2.9
137.5 2.4 2.8 2.5 2.8 2.8 2.8 2.0 2.7 2.8 2.8 2.7 2.6 2.4 2.7 2.9 3.1 3.2 3.2 3.5 3.2 3.2 3.1 2.9 2.7 2.4 2.6 2.7 2.8 2.8 2.7 2.0 2.8 2.8 2.8 2.5 2.8 2.4 2.5 2.4 2.4 2.3 2.4 2.3 2.6 2.3 2.5 2.6 2.4 2.4 2.4 2.6 2.5 2.8 2.6 2.7 2.6 2.8 2.5 2.6 2.4 2.4 2.4 2.6 2.5 2.3 2.6 2.3 2.4 2.3 2.4 2.4 2.5
140.0 2.2 2.3 2.3 2.4 2.4 2.5 2.0 2.6 2.4 2.5 2.3 2.4 2.4 2.6 2.8 2.8 2.8 2.8 3.0 2.8 2.8 2.8 2.8 2.6 2.4 2.4 2.3 2.5 2.4 2.6 2.0 2.5 2.4 2.4 2.3 2.3 2.2 2.3 2.1 2.3 2.2 2.3 2.2 2.3 2.2 2.4 2.4 2.3 2.3 2.4 2.6 2.4 2.6 2.6 2.7 2.6 2.6 2.4 2.6 2.4 2.3 2.3 2.4 2.4 2.2 2.3 2.2 2.3 2.2 2.3 2.1 2.3
142.5 2.1 2.4 2.4 2.7 2.7 2.8 2.0 2.6 2.3 2.4 2.3 2.3 2.4 2.5 2.9 2.8 3.0 3.0 3.1 3.0 3.0 2.8 2.9 2.5 2.4 2.3 2.3 2.4 2.3 2.6 2.0 2.8 2.7 2.7 2.4 2.4 2.1 2.2 2.1 2.4 2.2 2.3 2.1 2.2 2.1 2.3 2.2 2.3 2.3 2.3 2.5 2.4 2.6 2.5 2.7 2.5 2.6 2.4 2.5 2.3 2.3 2.3 2.2 2.3 2.1 2.2 2.1 2.3 2.2 2.4 2.1 2.2
145.0 2.2 2.5 2.3 2.9 2.7 3.0 2.0 2.6 2.9 2.6 2.4 2.3 2.5 2.9 3.3 3.2 3.4 3.2 3.4 3.2 3.4 3.2 3.3 2.9 2.5 2.3 2.4 2.6 2.9 2.6 2.0 3.0 2.7 2.9 2.3 2.5 2.2 2.4 2.0 2.3 2.1 2.3 2.0 2.2 2.0 2.3 2.2 2.3 2.3 2.3 2.6 2.4 2.6 2.5 2.7 2.5 2.6 2.4 2.6 2.3 2.3 2.3 2.2 2.3 2.0 2.2 2.0 2.3 2.1 2.3 2.0 2.4
147.5 2.2 2.6 2.4 2.8 2.7 3.0 2.0 2.9 2.8 2.6 2.4 2.4 2.7 3.4 3.8 3.4 3.9 3.7 3.8 3.7 3.9 3.4 3.8 3.4 2.7 2.4 2.4 2.6 2.8 2.9 2.0 3.0 2.7 2.8 2.4 2.6 2.2 2.6 2.2 2.4 2.1 2.2 2.0 2.2 2.0 2.2 2.2 2.3 2.3 2.4 2.6 2.5 2.7 2.6 2.7 2.6 2.7 2.5 2.6 2.4 2.3 2.3 2.2 2.2 2.0 2.2 2.0 2.2 2.1 2.4 2.2 2.6
150.0 2.4 2.7 2.5 3.0 3.0 3.4 2.0 3.4 3.0 2.8 2.5 2.6 2.8 3.5 4.4 4.4 5.0 4.5 5.0 4.5 5.0 4.4 4.4 3.5 2.8 2.6 2.5 2.8 3.0 3.4 2.0 3.4 3.0 3.0 2.5 2.7 2.4 2.5 2.2 2.4 2.2 2.2 2.0 2.1 2.0 2.3 2.3 2.3 2.3 2.4 2.6 2.6 2.7 2.6 2.7 2.6 2.7 2.6 2.6 2.4 2.3 2.3 2.3 2.3 2.0 2.1 2.0 2.2 2.2 2.4 2.2 2.5
152.5 2.8 3.1 3.0 3.2 3.6 3.8 2.0 3.6 3.6 3.5 2.8 2.8 3.0 3.8 5.3 5.1 6.6 7.0 7.4 7.0 6.6 5.1 5.3 3.8 3.0 2.8 2.8 3.5 3.6 3.6 2.0 3.8 3.6 3.2 3.0 3.1 2.8 2.8 2.4 2.5 2.2 2.2 2.0 2.2 2.0 2.3 2.2 2.3 2.3 2.4 2.6 2.5 2.7 2.7 2.7 2.7 2.7 2.5 2.6 2.4 2.3 2.3 2.2 2.3 2.0 2.2 2.0 2.2 2.2 2.5 2.4 2.8
155.0 2.9 3.4 3.2 3.8 3.8 4.3 2.0 4.6 4.1 4.3 2.8 2.8 3.4 4.0 5.2 5.8 7.1 8.0 8.6 8.0 7.1 5.8 5.2 4.0 3.4 2.8 2.8 4.3 4.1 4.6 2.0 4.3 3.8 3.8 3.2 3.4 2.9 3.0 2.5 2.5 2.2 2.2 2.0 2.1 2.0 2.3 2.2 2.3 2.3 2.4 2.6 2.6 2.8 2.6 2.7 2.6 2.8 2.6 2.6 2.4 2.3 2.3 2.2 2.3 2.0 2.1 2.0 2.2 2.2 2.5 2.5 3.0
157.5 2.6 3.2 3.2 3.8 3.2 4.7 2.0 4.7 3.8 4.3 2.9 3.1 2.9 3.4 4.0 4.6 5.2 6.0 7.0 6.0 5.2 4.6 4.0 3.4 2.9 3.1 2.9 4.3 3.8 4.7 2.0 4.7 3.2 3.8 3.2 3.2 2.6 2.7 2.0 2.2 2.0 2.1 2.0 2.1 2.0 2.4 2.4 2.4 2.4 2.4 2.6 2.5 2.7 2.6 2.7 2.6 2.7 2.5 2.6 2.4 2.4 2.4 2.4 2.4 2.0 2.1 2.0 2.1 2.0 2.2 2.0 2.7
160.0 2.2 2.7 2.3 2.8 2.6 3.2 2.0 3.4 3.0 3.8 3.0 2.4 2.0 2.3 2.5 3.0 3.1 3.9 3.8 3.9 3.1 3.0 2.5 2.3 2.0 2.4 3.0 3.8 3.0 3.4 2.0 3.2 2.6 2.8 2.3 2.7 2.2 2.6 2.1 2.3 1.8 1.9 1.8 2.0 2.0 2.4 2.4 2.4 2.4 2.4 2.5 2.4 2.6 2.5 2.6 2.5 2.6 2.4 2.5 2.4 2.4 2.4 2.4 2.4 2.0 2.0 1.8 1.9 1.8 2.3 2.1 2.6
162.5 2.0 2.1 2.0 2.0 2.0 2.2 2.0 2.3 2.3 2.2 2.1 1.8 1.6 1.8 2.0 1.8 2.1 1.9 2.2 1.9 2.1 1.8 2.0 1.8 1.6 1.8 2.1 2.2 2.3 2.3 2.0 2.2 2.0 2.0 2.0 2.1 2.0 2.0 1.9 1.9 1.6 1.7 1.6 1.8 1.7 2.0 2.0 2.3 2.3 2.4 2.6 2.5 2.6 2.4 2.6 2.4 2.6 2.5 2.6 2.4 2.3 2.3 2.0 2.0 1.7 1.8 1.6 1.7 1.6 1.9 1.9 2.0
165.0 1.6 1.6 1.6 1.6 1.6 1.6 2.0 1.6 1.5 1.6 1.6 1.5 1.6 1.6 1.6 1.6 1.7 1.7 1.8 1.7 1.7 1.6 1.6 1.6 1.6 1.5 1.6 1.6 1.5 1.6 2.0 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.8 1.8 2.0 2.2 2.0 2.2 2.1 2.3 2.2 2.2 2.2 2.3 2.1 2.2 2.0 2.2 2.0 1.8 1.8 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
167.5 1.2 1.4 1.3 1.4 1.3 1.4 2.0 1.4 1.3 1.4 1.4 1.4 1.4 1.5 1.6 1.5 1.7 1.6 1.6 1.6 1.7 1.5 1.6 1.5 1.4 1.4 1.4 1.4 1.3 1.4 2.0 1.4 1.3 1.4 1.3 1.4 1.2 1.4 1.2 1.4 1.3 1.4 1.4 1.5 1.4 1.6 1.6 1.6 1.6 1.7 1.9 1.8 1.9 1.9 1.9 1.9 1.9 1.8 1.9 1.7 1.6 1.6 1.6 1.6 1.4 1.5 1.4 1.4 1.3 1.4 1.2 1.4
170.0 1.1 1.4 1.2 1.4 1.3 1.4 2.0 1.3 1.2 1.4 1.3 1.4 1.4 1.4 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.5 1.6 1.4 1.4 1.4 1.3 1.4 1.2 1.3 2.0 1.4 1.3 1.4 1.2 1.4 1.1 1.4 1.2 1.4 1.3 1.4 1.3 1.4 1.4 1.5 1.4 1.5 1.5 1.6 1.8 1.7 1.8 1.8 1.8 1.8 1.8 1.7 1.8 1.6 1.5 1.5 1.4 1.5 1.4 1.4 1.3 1.4 1.3 1.4 1.2 1.4
172.5 1.2 1.4 1.2 1.4 1.2 1.4 2.0 1.4 1.2 1.4 1.4 1.4 1.4 1.5 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.5 1.6 1.5 1.4 1.4 1.4 1.4 1.2 1.4 2.0 1.4 1.2 1.4 1.2 1.4 1.2 1.4 1.2 1.4 1.2 1.4 1.3 1.4 1.3 1.4 1.5 1.5 1.5 1.6 1.7 1.6 1.8 1.7 1.8 1.7 1.8 1.6 1.7 1.6 1.5 1.5 1.5 1.4 1.3 1.4 1.3 1.4 1.2 1.4 1.2 1.4
175.0 1.2 1.4 1.2 1.4 1.2 1.4 2.0 1.4 1.3 1.4 1.4 1.4 1.4 1.5 1.6 1.6 1.7 1.6 1.8 1.6 1.7 1.6 1.6 1.5 1.4 1.4 1.4 1.4 1.3 1.4 2.0 1.4 1.2 1.4 1.2 1.4 1.2 1.4 1.2 1.4 1.2 1.4 1.3 1.4 1.4 1.6 1.5 1.5 1.5 1.6 1.6 1.6 1.8 1.7 1.8 1.7 1.8 1.6 1.6 1.6 1.5 1.5 1.5 1.6 1.4 1.4 1.3 1.4 1.2 1.4 1.2 1.4
177.5 1.2 1.4 1.2 1.4 1.3 1.4 2.0 1.4 1.3 1.4 1.4 1.5 1.4 1.5 1.6 1.6 1.7 1.6 1.8 1.6 1.7 1.6 1.6 1.5 1.4 1.5 1.4 1.4 1.3 1.4 2.0 1.4 1.3 1.4 1.2 1.4 1.2 1.4 1.2 1.4 1.2 1.4 1.3 1.4 1.4 1.5 1.5 1.5 1.4 1.5 1.7 1.6 1.8 1.7 1.8 1.7 1.8 1.6 1.7 1.5 1.4 1.5 1.5 1.5 1.4 1.4 1.3 1.4 1.2 1.4 1.2 1.4
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
