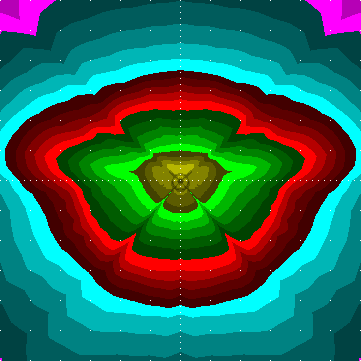

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] CL42-CLEAR-EXACT-CNN-J
# [LUMCAT] Parvis
# [DATE] 20/07/2012/
# down given: 95%
# out given: 64.4%
# tilt: 0.0
# [LAMP] 1 MT 70 7300 3000 G12
# Bulbs: 1, 7300 lm each
# Source file: Parvis_CL42-CLEAR-EXACT-CNN-J_1_MT_70_7300_3000_G12.ldt
# Luminaire flux = 644 raw, for the given bulb(s) it would be 4704 lm,
# 64.4 % of the bulb flux
# between 75 and 90: 7.0 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 80.9 cd / 1000 lm , 7.4 % of the luminaire flux
# 90deg and above: max 15.6 cd / 1000 lm , 4.6 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 88 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 279 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 381 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 437 cd / 1000 lm,
# maximum spec. lum. intensity 437 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0
2.5 36.4 35.3 36.1 35.8 36.8 36.3 35.0 37.6 39.1 39.4 40.3 39.7 40.3 40.2 42.2 44.3 45.8 48.6 41.9 48.6 45.8 44.3 42.2 40.2 40.3 39.7 40.3 39.4 39.1 37.6 35.0 36.3 36.8 35.8 36.1 35.3 36.4 34.3 37.1 34.2 37.4 34.3 37.5 37.3 38.9 38.1 40.6 38.7 40.4 40.2 41.0 41.5 41.3 41.8 44.4 41.8 41.3 41.5 41.0 40.2 40.4 38.7 40.6 38.1 38.9 37.3 37.5 34.3 37.4 34.2 37.1 34.3
5.0 66.9 85.7 84.9 81.6 82.1 80.4 55.6 57.3 87.0 99.2 126 115 123 121 122 121 125 125 123 125 125 121 122 121 123 115 126 99.2 87.0 57.3 55.6 80.4 82.1 81.6 84.9 85.7 66.9 76.3 45.8 60.8 40.1 58.2 37.2 42.6 39.5 40.5 42.4 41.1 44.2 43.7 45.8 45.1 47.0 47.0 47.5 47.0 47.0 45.1 45.8 43.7 44.2 41.1 42.4 40.5 39.5 42.6 37.2 58.2 40.1 60.8 45.8 76.3
7.5 133 130 139 109 112 85.1 75.9 71.1 91.3 98.1 129 140 146 148 139 137 142 147 146 147 142 137 139 148 146 140 129 98.1 91.3 71.1 75.9 85.1 112 109 139 130 133 123 126 118 124 114 114 106 112 82.9 44.9 49.8 73.1 90.7 76.5 72.3 70.0 74.9 90.0 74.9 70.0 72.3 76.5 90.7 73.1 49.8 44.9 82.9 112 106 114 114 124 118 126 123
10.0 140 142 144 131 104 96.6 84.8 72.4 84.1 102 119 119 151 122 141 122 123 121 127 121 123 122 141 122 151 119 119 102 84.1 72.4 84.8 96.6 104 131 144 142 140 127 124 121 125 120 117 119 119 107 59.0 66.9 107 106 111 109 99.0 93.1 96.6 93.1 99.0 109 111 106 107 66.9 59.0 107 119 119 117 120 125 121 124 127
12.5 101 97.2 91.5 91.9 73.6 75.2 72.3 60.2 56.8 59.1 64.4 70.9 80.3 87.7 92.1 93.4 102 101 103 101 102 93.4 92.1 87.7 80.3 70.9 64.4 59.1 56.8 60.2 72.3 75.2 73.6 91.9 91.5 97.2 101 87.4 123 93.7 121 108 123 108 118 107 55.5 89.0 108 113 110 102 104 112 115 112 104 102 110 113 108 89.0 55.5 107 118 108 123 108 121 93.7 123 87.4
15.0 61.8 69.3 78.1 83.3 87.7 88.6 70.6 67.7 74.6 103 129 155 149 163 166 165 174 176 165 176 174 165 166 163 149 155 129 103 74.6 67.7 70.6 88.6 87.7 83.3 78.1 69.3 61.8 54.9 49.3 48.7 43.8 51.6 40.4 57.1 53.9 66.2 42.1 67.4 86.3 86.1 87.9 83.2 86.4 85.0 71.9 85.0 86.4 83.2 87.9 86.1 86.3 67.4 42.1 66.2 53.9 57.1 40.4 51.6 43.8 48.7 49.3 54.9
17.5 113 126 127 143 142 129 90.1 78.6 81.1 109 162 158 177 181 185 188 199 193 195 193 199 188 185 181 177 158 162 109 81.1 78.6 90.1 129 142 143 127 126 113 94.3 89.9 76.0 72.0 68.4 59.8 65.1 56.7 51.6 39.2 42.6 43.0 42.5 44.3 44.9 44.4 48.8 53.6 48.8 44.4 44.9 44.3 42.5 43.0 42.6 39.2 51.6 56.7 65.1 59.8 68.4 72.0 76.0 89.9 94.3
20.0 137 129 140 132 142 138 97.6 85.9 86.9 119 185 184 195 196 197 189 199 199 201 199 199 189 197 196 195 184 185 119 86.9 85.9 97.6 138 142 132 140 129 137 118 121 116 119 113 112 107 107 97.4 43.3 101 107 102 96.8 88.2 91.2 76.1 87.4 76.1 91.2 88.2 96.8 102 107 101 43.3 97.4 107 107 112 113 119 116 121 118
22.5 126 128 135 137 148 154 111 96.9 92.1 137 207 211 216 212 210 207 209 215 216 215 209 207 210 212 216 211 207 137 92.1 96.9 111 154 148 137 135 128 126 125 129 122 122 119 111 117 107 90.8 41.5 91.8 116 121 111 116 116 116 132 116 116 116 111 121 116 91.8 41.5 90.8 107 117 111 119 122 122 129 125
25.0 139 141 148 151 159 156 124 108 104 146 219 216 223 208 201 198 200 195 203 195 200 198 201 208 223 216 219 146 104 108 124 156 159 151 148 141 139 130 135 127 130 110 117 104 105 91.0 40.0 89.9 98.1 106 103 108 112 114 117 114 112 108 103 106 98.1 89.9 40.0 91.0 105 104 117 110 130 127 135 130
27.5 133 136 149 152 167 173 146 131 125 183 235 228 226 214 200 193 191 184 191 184 191 193 200 214 226 228 235 183 125 131 146 173 167 152 149 136 133 127 130 126 125 121 117 114 110 92.8 41.2 99.1 105 100 102 98.4 109 104 106 104 109 98.4 102 100 105 99.1 41.2 92.8 110 114 117 121 125 126 130 127
30.0 149 150 164 174 188 197 168 146 143 204 242 228 221 203 188 181 177 169 175 169 177 181 188 203 221 228 242 204 143 146 168 197 188 174 164 150 149 130 128 118 127 115 116 112 111 92.9 45.0 95.8 109 110 109 114 115 111 119 111 115 114 109 110 109 95.8 45.0 92.9 111 112 116 115 127 118 128 130
32.5 153 163 188 191 206 213 186 154 146 213 238 221 208 185 168 159 153 145 156 145 153 159 168 185 208 221 238 213 146 154 186 213 206 191 188 163 153 138 141 127 132 125 125 128 116 103 46.5 99.2 103 99.6 108 109 109 112 109 112 109 109 108 99.6 103 99.2 46.5 103 116 128 125 125 132 127 141 138
35.0 164 177 197 202 213 226 198 159 150 209 229 209 191 163 146 135 128 123 129 123 128 135 146 163 191 209 229 209 150 159 198 226 213 202 197 177 164 147 147 133 133 127 130 125 124 108 45.7 105 109 110 109 111 107 110 111 110 107 111 109 110 109 105 45.7 108 124 125 130 127 133 133 147 147
37.5 165 180 202 211 224 235 211 165 156 206 215 192 169 144 126 117 112 108 113 108 112 117 126 144 169 192 215 206 156 165 211 235 224 211 202 180 165 150 145 136 133 127 126 123 126 118 47.8 114 114 119 123 125 120 121 121 121 120 125 123 119 114 114 47.8 118 126 123 126 127 133 136 145 150
40.0 171 180 205 209 229 237 214 166 158 199 199 171 147 124 109 104 102 98.7 101 98.7 102 104 109 124 147 171 199 199 158 166 214 237 229 209 205 180 171 155 149 135 132 122 125 120 123 114 47.4 110 116 116 120 121 119 122 119 122 119 121 120 116 116 110 47.4 114 123 120 125 122 132 135 149 155
42.5 173 184 209 209 233 242 218 162 158 192 182 151 129 109 100 97.6 95.0 93.5 97.3 93.5 95.0 97.6 100 109 129 151 182 192 158 162 218 242 233 209 209 184 173 155 147 135 131 120 120 116 118 106 46.8 105 110 112 112 112 113 116 111 116 113 112 112 112 110 105 46.8 106 118 116 120 120 131 135 147 155
45.0 170 180 204 208 234 244 217 159 150 186 165 135 112 100 95.7 92.8 89.9 89.1 92.0 89.1 89.9 92.8 95.7 100 112 135 165 186 150 159 217 244 234 208 204 180 170 151 145 132 130 120 117 112 114 101 42.8 97.6 103 109 108 111 109 107 103 107 109 111 108 109 103 97.6 42.8 101 114 112 117 120 130 132 145 151
47.5 164 176 201 209 234 239 210 149 139 171 146 116 100 92.8 89.9 86.9 83.9 84.6 88.6 84.6 83.9 86.9 89.9 92.8 100 116 146 171 139 149 210 239 234 209 201 176 164 143 140 129 124 117 114 110 110 99.0 42.0 93.6 101 103 101 105 104 104 99.7 104 104 105 101 103 101 93.6 42.0 99.0 110 110 114 117 124 129 140 143
50.0 161 174 193 197 216 208 193 134 126 154 126 104 94.6 86.8 87.2 81.8 80.5 80.2 83.6 80.2 80.5 81.8 87.2 86.8 94.6 104 126 154 126 134 193 208 216 197 193 174 161 143 134 125 121 115 111 107 109 99.9 43.5 92.3 97.1 99.6 97.7 99.3 101 98.1 97.4 98.1 101 99.3 97.7 99.6 97.1 92.3 43.5 99.9 109 107 111 115 121 125 134 143
52.5 154 165 183 178 189 178 165 116 97.7 137 110 97.1 90.9 83.3 83.6 80.4 78.9 77.8 79.6 77.8 78.9 80.4 83.6 83.3 90.9 97.1 110 137 97.7 116 165 178 189 178 183 165 154 137 133 124 120 116 112 108 105 99.3 47.6 96.3 102 103 101 99.1 103 98.4 99.8 98.4 103 99.1 101 103 102 96.3 47.6 99.3 105 108 112 116 120 124 133 137
55.0 156 167 193 181 174 149 141 97.8 75.4 114 99.5 92.3 91.1 81.4 85.7 82.6 79.3 76.4 78.7 76.4 79.3 82.6 85.7 81.4 91.1 92.3 99.5 114 75.4 97.8 141 149 174 181 193 167 156 136 132 125 124 117 117 109 110 101 49.1 94.3 101 101 97.7 96.3 101 95.8 97.6 95.8 101 96.3 97.7 101 101 94.3 49.1 101 110 109 117 117 124 125 132 136
57.5 163 180 215 194 177 142 132 87.9 67.3 103 94.1 91.2 89.2 80.6 87.8 81.1 76.7 71.7 74.4 71.7 76.7 81.1 87.8 80.6 89.2 91.2 94.1 103 67.3 87.9 132 142 177 194 215 180 163 142 136 130 127 120 119 111 111 102 49.1 94.8 99.8 99.3 94.9 91.4 97.0 92.7 93.9 92.7 97.0 91.4 94.9 99.3 99.8 94.8 49.1 102 111 111 119 120 127 130 136 142
60.0 172 202 254 211 178 142 127 77.8 60.1 98.8 91.2 88.4 85.1 78.5 86.3 76.6 71.4 66.0 67.6 66.0 71.4 76.6 86.3 78.5 85.1 88.4 91.2 98.8 60.1 77.8 127 142 178 211 254 202 172 149 142 133 128 121 119 111 110 101 48.7 94.9 97.3 95.4 90.6 88.3 90.7 88.9 89.7 88.9 90.7 88.3 90.6 95.4 97.3 94.9 48.7 101 110 111 119 121 128 133 142 149
62.5 186 246 314 237 186 144 126 74.6 57.3 96.3 87.8 85.6 80.4 76.8 81.4 70.2 64.7 60.3 61.2 60.3 64.7 70.2 81.4 76.8 80.4 85.6 87.8 96.3 57.3 74.6 126 144 186 237 314 246 186 159 149 135 129 122 119 111 110 98.8 48.5 93.3 97.1 94.4 87.3 85.6 87.1 86.4 86.1 86.4 87.1 85.6 87.3 94.4 97.1 93.3 48.5 98.8 110 111 119 122 129 135 149 159
65.0 213 300 381 269 200 146 125 72.5 57.5 93.9 88.4 83.1 77.8 73.9 74.8 64.8 59.2 55.9 58.1 55.9 59.2 64.8 74.8 73.9 77.8 83.1 88.4 93.9 57.5 72.5 125 146 200 269 381 300 213 175 163 140 132 122 119 111 109 97.6 48.5 92.4 94.1 91.6 85.7 83.4 82.1 83.3 82.2 83.3 82.1 83.4 85.7 91.6 94.1 92.4 48.5 97.6 109 111 119 122 132 140 163 175
67.5 238 341 422 300 222 152 127 73.5 56.8 94.4 88.7 82.1 76.3 69.5 66.8 58.5 53.3 50.8 52.6 50.8 53.3 58.5 66.8 69.5 76.3 82.1 88.7 94.4 56.8 73.5 127 152 222 300 422 341 238 191 179 144 131 121 120 111 107 94.8 47.5 90.3 91.0 87.7 82.1 79.4 73.8 78.6 75.9 78.6 73.8 79.4 82.1 87.7 91.0 90.3 47.5 94.8 107 111 120 121 131 144 179 191
70.0 246 362 437 331 239 161 131 72.8 55.1 92.2 86.8 77.4 71.8 62.7 58.3 51.0 46.8 45.8 47.7 45.8 46.8 51.0 58.3 62.7 71.8 77.4 86.8 92.2 55.1 72.8 131 161 239 331 437 362 246 188 176 140 129 119 119 109 105 91.6 45.0 85.9 87.8 83.2 78.2 75.1 71.9 71.4 67.2 71.4 71.9 75.1 78.2 83.2 87.8 85.9 45.0 91.6 105 109 119 119 129 140 176 188
72.5 228 347 420 319 218 133 117 67.6 48.0 60.0 56.7 49.9 40.8 35.7 36.4 32.0 28.0 28.9 32.3 28.9 28.0 32.0 36.4 35.7 40.8 49.9 56.7 60.0 48.0 67.6 117 133 218 319 420 347 228 146 141 112 120 107 109 95.4 100 86.7 41.8 79.7 82.3 75.6 72.7 68.8 65.6 63.0 56.7 63.0 65.6 68.8 72.7 75.6 82.3 79.7 41.8 86.7 100 95.4 109 107 120 112 141 146
75.0 138 269 324 245 145 86.3 62.1 43.5 35.8 26.2 25.2 22.8 18.8 18.3 17.7 16.5 16.1 15.8 16.1 15.8 16.1 16.5 17.7 18.3 18.8 22.8 25.2 26.2 35.8 43.5 62.1 86.3 145 245 324 269 138 79.9 55.8 59.5 48.2 61.3 45.2 52.5 49.2 49.2 34.0 50.5 49.3 42.4 41.2 42.0 40.7 42.2 33.0 42.2 40.7 42.0 41.2 42.4 49.3 50.5 34.0 49.2 49.2 52.5 45.2 61.3 48.2 59.5 55.8 79.9
77.5 96.9 170 226 168 115 65.9 48.3 34.6 29.4 19.3 20.8 17.5 15.5 15.2 14.2 13.2 13.3 12.9 13.1 12.9 13.3 13.2 14.2 15.2 15.5 17.5 20.8 19.3 29.4 34.6 48.3 65.9 115 168 226 170 96.9 49.6 40.3 35.2 35.3 34.2 32.9 27.8 26.1 22.9 28.7 27.9 28.4 25.7 23.3 22.5 20.8 21.1 18.6 21.1 20.8 22.5 23.3 25.7 28.4 27.9 28.7 22.9 26.1 27.8 32.9 34.2 35.3 35.2 40.3 49.6
80.0 40.2 72.0 80.9 69.4 53.8 40.2 33.3 24.0 19.8 13.3 15.3 14.4 13.2 12.8 12.1 11.4 11.4 11.1 11.5 11.1 11.4 11.4 12.1 12.8 13.2 14.4 15.3 13.3 19.8 24.0 33.3 40.2 53.8 69.4 80.9 72.0 40.2 30.3 26.0 27.0 27.8 27.0 27.8 23.0 22.8 20.2 27.0 26.0 25.8 22.7 20.0 18.8 17.6 17.7 15.6 17.7 17.6 18.8 20.0 22.7 25.8 26.0 27.0 20.2 22.8 23.0 27.8 27.0 27.8 27.0 26.0 30.3
82.5 16.9 18.9 16.6 17.9 15.6 16.0 15.4 14.4 15.3 8.9 12.2 12.5 11.5 11.4 11.1 10.3 10.4 10.2 10.3 10.2 10.4 10.3 11.1 11.4 11.5 12.5 12.2 8.9 15.3 14.4 15.4 16.0 15.6 17.9 16.6 18.9 16.9 18.4 19.1 20.6 21.7 21.2 22.7 19.0 20.4 19.4 26.0 24.9 24.5 20.9 18.3 17.1 15.6 15.8 13.8 15.8 15.6 17.1 18.3 20.9 24.5 24.9 26.0 19.4 20.4 19.0 22.7 21.2 21.7 20.6 19.1 18.4
85.0 15.9 15.3 14.9 14.5 14.1 13.3 13.0 12.9 14.4 7.9 11.5 11.7 10.8 10.5 10.1 9.4 9.3 9.0 9.1 9.0 9.3 9.4 10.1 10.5 10.8 11.7 11.5 7.9 14.4 12.9 13.0 13.3 14.1 14.5 14.9 15.3 15.9 17.0 19.1 19.7 22.3 21.3 23.3 18.5 19.9 18.9 25.9 24.4 23.5 19.7 16.9 16.0 14.3 14.5 12.8 14.5 14.3 16.0 16.9 19.7 23.5 24.4 25.9 18.9 19.9 18.5 23.3 21.3 22.3 19.7 19.1 17.0
87.5 15.3 14.8 14.5 13.7 13.4 12.6 12.4 12.4 13.8 7.4 10.9 10.8 10.0 9.6 9.5 8.7 8.5 8.3 8.4 8.3 8.5 8.7 9.5 9.6 10.0 10.8 10.9 7.4 13.8 12.4 12.4 12.6 13.4 13.7 14.5 14.8 15.3 16.4 19.6 19.6 23.2 20.5 23.1 16.0 18.5 16.3 23.5 20.5 19.9 16.2 13.1 12.4 11.1 11.4 8.4 11.4 11.1 12.4 13.1 16.2 19.9 20.5 23.5 16.3 18.5 16.0 23.1 20.5 23.2 19.6 19.6 16.4
90.0 11.4 11.5 10.7 10.1 10.7 9.8 11.0 10.4 13.1 6.4 10.0 9.1 9.1 8.4 8.5 7.6 7.8 7.4 7.7 7.4 7.8 7.6 8.5 8.4 9.1 9.1 10.0 6.4 13.1 10.4 11.0 9.8 10.7 10.1 10.7 11.5 11.4 12.9 13.3 15.0 15.4 15.6 14.7 11.2 11.9 9.3 12.3 11.6 10.1 8.6 7.4 6.9 6.6 6.4 5.2 6.4 6.6 6.9 7.4 8.6 10.1 11.6 12.3 9.3 11.9 11.2 14.7 15.6 15.4 15.0 13.3 12.9
92.5 6.9 7.6 7.3 7.1 7.1 7.1 7.5 7.9 8.8 5.3 7.5 6.9 6.6 6.1 5.8 5.8 5.8 5.8 5.7 5.8 5.8 5.8 5.8 6.1 6.6 6.9 7.5 5.3 8.8 7.9 7.5 7.1 7.1 7.1 7.3 7.6 6.9 7.7 7.6 8.3 7.9 8.2 7.8 7.4 7.5 5.6 8.1 8.0 7.4 6.6 5.9 5.6 5.4 5.3 4.8 5.3 5.4 5.6 5.9 6.6 7.4 8.0 8.1 5.6 7.5 7.4 7.8 8.2 7.9 8.3 7.6 7.7
95.0 5.8 6.1 6.3 6.3 6.4 6.3 6.6 7.1 7.5 5.0 6.9 6.4 6.1 5.6 5.4 5.3 5.4 5.4 5.1 5.4 5.4 5.3 5.4 5.6 6.1 6.4 6.9 5.0 7.5 7.1 6.6 6.3 6.4 6.3 6.3 6.1 5.8 6.1 6.0 5.9 5.9 5.9 6.1 6.1 6.3 4.6 7.3 6.8 6.5 5.8 5.4 5.1 5.1 4.9 4.6 4.9 5.1 5.1 5.4 5.8 6.5 6.8 7.3 4.6 6.3 6.1 6.1 5.9 5.9 5.9 6.0 6.1
97.5 5.6 5.7 5.9 5.8 6.1 5.9 6.2 6.4 6.7 4.8 6.5 6.0 5.9 5.4 5.2 5.1 5.2 5.1 5.1 5.1 5.2 5.1 5.2 5.4 5.9 6.0 6.5 4.8 6.7 6.4 6.2 5.9 6.1 5.8 5.9 5.7 5.6 5.5 5.6 5.4 5.5 5.5 5.7 5.6 5.9 4.4 6.6 6.1 5.9 5.3 5.0 4.8 4.8 4.6 4.5 4.6 4.8 4.8 5.0 5.3 5.9 6.1 6.6 4.4 5.9 5.6 5.7 5.5 5.5 5.4 5.6 5.5
100.0 5.3 5.3 5.5 5.3 5.7 5.4 5.8 5.9 6.1 4.4 6.0 5.6 5.3 5.0 4.7 4.6 4.6 4.5 4.5 4.5 4.6 4.6 4.7 5.0 5.3 5.6 6.0 4.4 6.1 5.9 5.8 5.4 5.7 5.3 5.5 5.3 5.3 5.1 5.3 5.1 5.3 5.1 5.3 5.4 5.6 4.2 6.1 5.6 5.4 4.9 4.7 4.5 4.4 4.3 4.3 4.3 4.4 4.5 4.7 4.9 5.4 5.6 6.1 4.2 5.6 5.4 5.3 5.1 5.3 5.1 5.3 5.1
102.5 4.9 4.9 5.2 5.1 5.2 5.1 5.4 5.4 5.6 4.1 5.4 5.1 4.9 4.6 4.4 4.3 4.3 4.2 4.1 4.2 4.3 4.3 4.4 4.6 4.9 5.1 5.4 4.1 5.6 5.4 5.4 5.1 5.2 5.1 5.2 4.9 4.9 4.8 5.0 4.8 4.9 4.9 5.1 5.1 5.2 4.1 5.5 5.1 4.9 4.7 4.5 4.3 4.3 4.2 4.2 4.2 4.3 4.3 4.5 4.7 4.9 5.1 5.5 4.1 5.2 5.1 5.1 4.9 4.9 4.8 5.0 4.8
105.0 4.8 4.8 5.1 4.9 5.1 4.9 5.1 5.2 5.3 4.1 5.3 4.9 4.8 4.5 4.3 4.2 4.3 4.2 4.1 4.2 4.3 4.2 4.3 4.5 4.8 4.9 5.3 4.1 5.3 5.2 5.1 4.9 5.1 4.9 5.1 4.8 4.8 4.6 4.9 4.6 4.8 4.8 4.8 4.9 5.0 4.1 5.3 4.9 4.7 4.4 4.3 4.2 4.2 4.1 4.2 4.1 4.2 4.2 4.3 4.4 4.7 4.9 5.3 4.1 5.0 4.9 4.8 4.8 4.8 4.6 4.9 4.6
107.5 4.8 4.7 4.9 4.8 4.9 4.8 4.9 5.0 5.1 4.1 5.1 4.9 4.8 4.5 4.4 4.2 4.3 4.2 4.3 4.2 4.3 4.2 4.4 4.5 4.8 4.9 5.1 4.1 5.1 5.0 4.9 4.8 4.9 4.8 4.9 4.7 4.8 4.6 4.8 4.6 4.7 4.6 4.7 4.7 4.8 4.0 4.9 4.7 4.4 4.3 4.2 4.1 4.1 4.0 4.1 4.0 4.1 4.1 4.2 4.3 4.4 4.7 4.9 4.0 4.8 4.7 4.7 4.6 4.7 4.6 4.8 4.6
110.0 4.7 4.6 4.8 4.8 4.8 4.7 4.8 4.8 4.8 4.0 4.9 4.8 4.6 4.4 4.4 4.2 4.3 4.1 4.1 4.1 4.3 4.2 4.4 4.4 4.6 4.8 4.9 4.0 4.8 4.8 4.8 4.7 4.8 4.8 4.8 4.6 4.7 4.4 4.6 4.4 4.6 4.4 4.6 4.6 4.7 4.0 4.8 4.5 4.3 4.2 4.2 4.0 4.0 3.9 4.1 3.9 4.0 4.0 4.2 4.2 4.3 4.5 4.8 4.0 4.7 4.6 4.6 4.4 4.6 4.4 4.6 4.4
112.5 4.6 4.5 4.8 4.7 4.8 4.7 4.7 4.8 4.8 4.0 4.7 4.6 4.4 4.3 4.2 4.3 4.3 4.1 4.2 4.1 4.3 4.3 4.2 4.3 4.4 4.6 4.7 4.0 4.8 4.8 4.7 4.7 4.8 4.7 4.8 4.5 4.6 4.4 4.5 4.4 4.4 4.4 4.4 4.5 4.6 4.0 4.6 4.4 4.3 4.1 4.1 4.0 4.0 3.9 4.1 3.9 4.0 4.0 4.1 4.1 4.3 4.4 4.6 4.0 4.6 4.5 4.4 4.4 4.4 4.4 4.5 4.4
115.0 4.6 4.5 4.8 4.6 4.8 4.6 4.7 4.7 4.7 4.0 4.6 4.4 4.3 4.3 4.2 4.1 4.2 4.1 4.1 4.1 4.2 4.1 4.2 4.3 4.3 4.4 4.6 4.0 4.7 4.7 4.7 4.6 4.8 4.6 4.8 4.5 4.6 4.4 4.5 4.4 4.4 4.3 4.4 4.5 4.6 4.0 4.6 4.3 4.2 4.1 4.2 4.1 4.1 4.0 4.2 4.0 4.1 4.1 4.2 4.1 4.2 4.3 4.6 4.0 4.6 4.5 4.4 4.3 4.4 4.4 4.5 4.4
117.5 4.6 4.4 4.7 4.6 4.7 4.5 4.6 4.6 4.6 4.0 4.6 4.4 4.3 4.2 4.2 4.1 4.2 4.1 4.1 4.1 4.2 4.1 4.2 4.2 4.3 4.4 4.6 4.0 4.6 4.6 4.6 4.5 4.7 4.6 4.7 4.4 4.6 4.4 4.5 4.4 4.4 4.3 4.4 4.4 4.5 4.1 4.6 4.3 4.2 4.1 4.2 4.1 4.1 4.0 4.2 4.0 4.1 4.1 4.2 4.1 4.2 4.3 4.6 4.1 4.5 4.4 4.4 4.3 4.4 4.4 4.5 4.4
120.0 4.6 4.4 4.7 4.6 4.6 4.4 4.5 4.6 4.5 3.9 4.4 4.3 4.3 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.2 4.3 4.3 4.4 3.9 4.5 4.6 4.5 4.4 4.6 4.6 4.7 4.4 4.6 4.4 4.4 4.4 4.3 4.2 4.3 4.4 4.5 4.1 4.5 4.3 4.2 4.1 4.1 4.1 4.1 4.0 4.1 4.0 4.1 4.1 4.1 4.1 4.2 4.3 4.5 4.1 4.5 4.4 4.3 4.2 4.3 4.4 4.4 4.4
122.5 4.6 4.4 4.6 4.4 4.6 4.4 4.4 4.5 4.5 3.9 4.3 4.2 4.2 4.1 4.1 4.0 4.0 4.0 4.1 4.0 4.0 4.0 4.1 4.1 4.2 4.2 4.3 3.9 4.5 4.5 4.4 4.4 4.6 4.4 4.6 4.4 4.6 4.3 4.4 4.3 4.3 4.2 4.3 4.3 4.4 4.0 4.5 4.2 4.2 4.1 4.1 4.0 4.0 4.0 4.1 4.0 4.0 4.0 4.1 4.1 4.2 4.2 4.5 4.0 4.4 4.3 4.3 4.2 4.3 4.3 4.4 4.3
125.0 4.6 4.4 4.6 4.5 4.5 4.4 4.4 4.4 4.4 3.8 4.3 4.2 4.2 4.1 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.1 4.2 4.2 4.3 3.8 4.4 4.4 4.4 4.4 4.5 4.5 4.6 4.4 4.6 4.4 4.4 4.3 4.3 4.2 4.3 4.3 4.3 4.1 4.5 4.3 4.2 4.1 4.1 4.0 4.1 4.0 4.1 4.0 4.1 4.0 4.1 4.1 4.2 4.3 4.5 4.1 4.3 4.3 4.3 4.2 4.3 4.3 4.4 4.4
127.5 4.8 4.6 4.8 4.8 4.8 4.6 4.6 4.8 4.9 3.9 4.3 4.3 4.4 4.4 4.3 4.3 4.3 4.2 4.1 4.2 4.3 4.3 4.3 4.4 4.4 4.3 4.3 3.9 4.9 4.8 4.6 4.6 4.8 4.8 4.8 4.6 4.8 4.5 4.6 4.5 4.6 4.4 4.3 4.3 4.5 4.3 4.6 4.3 4.3 4.2 4.2 4.1 4.1 4.1 4.2 4.1 4.1 4.1 4.2 4.2 4.3 4.3 4.6 4.3 4.5 4.3 4.3 4.4 4.6 4.5 4.6 4.5
130.0 5.4 5.1 5.4 5.1 5.2 4.9 4.9 4.9 4.8 3.8 4.3 4.3 4.6 4.6 4.5 4.3 4.4 4.4 4.4 4.4 4.4 4.3 4.5 4.6 4.6 4.3 4.3 3.8 4.8 4.9 4.9 4.9 5.2 5.1 5.4 5.1 5.4 5.1 5.4 5.1 5.4 5.1 5.1 4.4 4.9 5.0 5.2 5.2 5.0 4.8 4.7 4.8 4.6 4.7 5.0 4.7 4.6 4.8 4.7 4.8 5.0 5.2 5.2 5.0 4.9 4.4 5.1 5.1 5.4 5.1 5.4 5.1
132.5 5.3 5.3 5.3 5.4 5.0 5.2 5.1 4.9 4.9 3.8 4.3 4.6 4.7 4.7 4.6 4.5 4.6 4.6 4.6 4.6 4.6 4.5 4.6 4.7 4.7 4.6 4.3 3.8 4.9 4.9 5.1 5.2 5.0 5.4 5.3 5.3 5.3 5.2 5.3 5.1 5.4 5.2 5.2 4.8 5.0 5.2 5.3 5.4 5.6 5.5 5.7 5.6 5.4 5.5 5.8 5.5 5.4 5.6 5.7 5.5 5.6 5.4 5.3 5.2 5.0 4.8 5.2 5.2 5.4 5.1 5.3 5.2
135.0 5.3 4.9 5.1 5.0 5.1 4.9 4.9 4.9 5.0 3.8 4.3 4.7 4.8 4.8 4.8 4.7 4.6 4.6 4.6 4.6 4.6 4.7 4.8 4.8 4.8 4.7 4.3 3.8 5.0 4.9 4.9 4.9 5.1 5.0 5.1 4.9 5.3 5.2 5.3 5.4 5.4 5.5 5.3 4.9 4.9 5.1 5.9 6.1 6.1 6.1 6.1 6.3 6.2 6.6 6.7 6.6 6.2 6.3 6.1 6.1 6.1 6.1 5.9 5.1 4.9 4.9 5.3 5.5 5.4 5.4 5.3 5.2
137.5 5.4 5.1 5.4 5.3 5.4 5.1 5.1 4.9 4.8 3.8 4.4 4.7 4.8 4.9 4.9 4.8 4.7 4.9 4.9 4.9 4.7 4.8 4.9 4.9 4.8 4.7 4.4 3.8 4.8 4.9 5.1 5.1 5.4 5.3 5.4 5.1 5.4 5.3 5.5 5.3 5.7 5.4 5.6 5.2 4.9 5.2 5.6 5.8 6.2 6.2 6.4 6.7 6.7 6.7 6.6 6.7 6.7 6.7 6.4 6.2 6.2 5.8 5.6 5.2 4.9 5.2 5.6 5.4 5.7 5.3 5.5 5.3
140.0 5.2 4.9 5.1 4.9 5.1 4.7 4.9 4.5 4.5 3.8 4.2 4.4 4.6 4.6 4.7 4.5 4.4 4.4 4.5 4.4 4.4 4.5 4.7 4.6 4.6 4.4 4.2 3.8 4.5 4.5 4.9 4.7 5.1 4.9 5.1 4.9 5.2 5.2 5.3 5.2 5.3 5.1 5.3 5.3 4.8 5.1 5.5 5.6 6.2 6.3 6.4 6.7 6.5 6.4 6.2 6.4 6.5 6.7 6.4 6.3 6.2 5.6 5.5 5.1 4.8 5.3 5.3 5.1 5.3 5.2 5.3 5.2
142.5 4.7 4.4 4.7 4.4 4.6 4.3 4.2 4.1 4.0 3.7 3.9 4.0 4.1 4.2 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.2 4.2 4.1 4.0 3.9 3.7 4.0 4.1 4.2 4.3 4.6 4.4 4.7 4.4 4.7 4.6 4.8 4.7 4.7 4.6 4.7 4.6 4.4 4.4 4.9 4.8 5.3 5.3 5.5 5.6 5.8 5.5 5.0 5.5 5.8 5.6 5.5 5.3 5.3 4.8 4.9 4.4 4.4 4.6 4.7 4.6 4.7 4.7 4.8 4.6
145.0 4.4 4.3 4.4 4.3 4.3 4.1 4.1 3.9 3.9 3.6 3.8 3.8 4.0 4.1 4.0 4.0 3.9 3.9 3.9 3.9 3.9 4.0 4.0 4.1 4.0 3.8 3.8 3.6 3.9 3.9 4.1 4.1 4.3 4.3 4.4 4.3 4.4 4.3 4.4 4.3 4.4 4.2 4.1 4.1 4.2 4.0 4.2 4.2 4.3 4.3 4.3 4.3 4.4 4.3 4.2 4.3 4.4 4.3 4.3 4.3 4.3 4.2 4.2 4.0 4.2 4.1 4.1 4.2 4.4 4.3 4.4 4.3
147.5 4.3 4.1 4.3 4.2 4.3 4.0 3.9 3.8 3.8 3.6 3.8 3.8 3.9 3.9 4.0 3.8 3.8 3.8 3.8 3.8 3.8 3.8 4.0 3.9 3.9 3.8 3.8 3.6 3.8 3.8 3.9 4.0 4.3 4.2 4.3 4.1 4.3 4.1 4.2 4.1 4.1 4.0 4.0 3.8 3.8 3.7 3.8 3.8 3.9 4.0 4.0 4.0 3.9 3.9 3.9 3.9 3.9 4.0 4.0 4.0 3.9 3.8 3.8 3.7 3.8 3.8 4.0 4.0 4.1 4.1 4.2 4.1
150.0 4.2 3.9 4.2 4.1 4.2 3.9 3.8 3.8 3.8 3.5 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.7 3.7 3.7 3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.5 3.8 3.8 3.8 3.9 4.2 4.1 4.2 3.9 4.2 3.9 4.0 3.8 3.9 3.8 3.8 3.7 3.7 3.5 3.6 3.6 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.6 3.6 3.5 3.7 3.7 3.8 3.8 3.9 3.8 4.0 3.9
152.5 4.1 3.9 4.0 3.9 4.0 3.8 3.8 3.7 3.7 3.5 3.7 3.6 3.8 3.8 3.8 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.8 3.8 3.8 3.6 3.7 3.5 3.7 3.7 3.8 3.8 4.0 3.9 4.0 3.9 4.1 3.8 3.8 3.8 3.8 3.7 3.7 3.5 3.5 3.4 3.5 3.5 3.5 3.5 3.6 3.7 3.7 3.8 3.9 3.8 3.7 3.7 3.6 3.5 3.5 3.5 3.5 3.4 3.5 3.5 3.7 3.7 3.8 3.8 3.8 3.8
155.0 4.0 3.8 3.9 3.8 3.9 3.7 3.8 3.6 3.6 3.4 3.6 3.5 3.7 3.7 3.7 3.7 3.7 3.6 3.7 3.6 3.7 3.7 3.7 3.7 3.7 3.5 3.6 3.4 3.6 3.6 3.8 3.7 3.9 3.8 3.9 3.8 4.0 3.7 3.7 3.5 3.7 3.5 3.5 3.4 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.4 3.4 3.4 3.4 3.4 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.4 3.5 3.5 3.7 3.5 3.7 3.7
157.5 3.5 3.5 3.7 3.6 3.6 3.4 3.5 3.3 3.3 3.3 3.3 3.3 3.4 3.5 3.4 3.4 3.4 3.4 3.5 3.4 3.4 3.4 3.4 3.5 3.4 3.3 3.3 3.3 3.3 3.3 3.5 3.4 3.6 3.6 3.7 3.5 3.5 3.3 3.3 3.3 3.3 3.1 3.1 3.1 3.1 3.0 3.1 3.0 3.1 3.0 3.0 3.1 3.1 3.1 3.0 3.1 3.1 3.1 3.0 3.0 3.1 3.0 3.1 3.0 3.1 3.1 3.1 3.1 3.3 3.3 3.3 3.3
160.0 3.1 3.1 3.3 3.2 3.2 3.2 3.1 3.0 3.1 3.0 3.2 3.1 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.1 3.2 3.0 3.1 3.0 3.1 3.2 3.2 3.2 3.3 3.1 3.1 3.0 3.0 2.9 2.8 2.8 2.8 2.8 2.8 2.7 2.8 2.8 2.8 2.7 2.8 2.8 2.7 2.8 3.1 2.8 2.7 2.8 2.8 2.7 2.8 2.8 2.8 2.7 2.8 2.8 2.8 2.8 2.8 2.9 3.0 3.0
162.5 2.6 2.6 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.9 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.6 2.6 2.5 2.5 2.5 2.5 2.3 2.5 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.5 2.3 2.5 2.5 2.5 2.5
165.0 2.3 2.2 2.3 2.2 2.3 2.2 2.3 2.2 2.3 2.3 2.4 2.3 2.4 2.3 2.4 2.3 2.4 2.5 2.5 2.5 2.4 2.3 2.4 2.3 2.4 2.3 2.4 2.3 2.3 2.2 2.3 2.2 2.3 2.2 2.3 2.2 2.3 2.2 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.2
167.5 2.0 2.0 2.0 2.0 2.0 1.9 1.9 2.0 1.9 1.8 1.9 1.9 1.8 1.9 1.8 1.9 1.9 2.0 1.9 2.0 1.9 1.9 1.8 1.9 1.8 1.9 1.9 1.8 1.9 2.0 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.2 2.2 2.2 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
170.0 2.1 2.0 2.2 2.0 2.1 2.0 2.0 2.0 2.0 1.9 2.0 1.9 1.8 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.8 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.0 2.0 2.1 2.0 2.0 1.9 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 1.9 2.0 2.0 2.1 2.0 2.0 2.0 2.1 2.0 2.1 2.0
172.5 2.2 2.1 2.2 2.1 2.2 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.2 2.1 2.2 2.1 2.2 2.2 2.2 2.0 2.2 2.0 2.1 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.1 2.0 2.2 2.0 2.2 2.2
175.0 2.3 2.2 2.2 2.2 2.2 2.1 2.1 2.1 2.2 2.0 2.2 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.0 2.2 2.1 2.1 2.1 2.2 2.2 2.2 2.2 2.3 2.2 2.2 2.1 2.2 2.0 2.0 2.0 2.1 2.0 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.0 2.1 2.0 2.0 2.0 2.2 2.1 2.2 2.2
177.5 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.2 2.0 2.1 2.0 2.1 2.0 2.0 2.1 2.1 2.1 2.0 2.0 2.1 2.0 2.1 2.0 2.2 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.2 2.2 2.2 2.0 2.0 2.0 2.1 2.0 2.1 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.1 2.0 2.1 2.0 2.0 2.0 2.2 2.2 2.2 2.1
180.0 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
