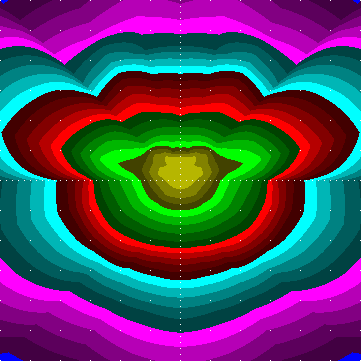

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] EINR559BM1.LDT
# [LUMINAIRE] OCE-EXACT-SNN-F
# [LUMCAT] Ocean
# [DATE] 08/11/2012/2007 INDUSTRIA Labor Capelle
# down given: 100%
# out given: 72.2%
# tilt: 0.0
# [LAMP] 1 MT 35 3800 3000 G12
# Bulbs: 1, 3800 lm each
# Source file: Ocean_OCE-EXACT-SNN-F_1_MT_35_3800_3000_G12.ldt
# Luminaire flux = 722 raw, for the given bulb(s) it would be 2743 lm,
# 72.2 % of the bulb flux
# between 75 and 90: 3.3 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 102.0 cd / 1000 lm , 0.7 % of the luminaire flux
# 90deg and above: max 0.8 cd / 1000 lm , 0.0 % of the luminaire flux
# CutOff Type: IES_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 0 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 0 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 428 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 536 cd / 1000 lm,
# maximum spec. lum. intensity 536 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164 164
2.5 164 166 167 168 170 170 170 170 170 168 167 166 164 163 161 160 159 159 157 159 159 160 161 163
5.0 166 170 175 175 174 174 174 174 174 175 175 170 166 161 158 155 153 152 151 152 153 155 158 161
7.5 170 179 181 177 175 175 176 175 175 177 181 179 170 163 156 152 149 149 148 149 149 152 156 163
10.0 175 186 184 178 177 177 180 177 177 178 184 186 175 164 156 150 147 148 147 148 147 150 156 164
12.5 179 191 187 181 182 186 193 186 182 181 187 191 179 167 156 149 146 147 147 147 146 149 156 167
15.0 182 194 188 185 194 200 206 200 194 185 188 194 182 167 156 149 145 145 145 145 145 149 156 167
17.5 182 194 190 194 206 206 209 206 206 194 190 194 182 166 154 148 144 144 143 144 144 148 154 166
20.0 182 194 195 206 212 201 201 201 212 206 195 194 182 163 153 148 143 142 141 142 143 148 153 163
22.5 182 195 204 216 207 193 195 193 207 216 204 195 182 162 152 147 142 139 139 139 142 147 152 162
25.0 181 198 218 219 201 192 198 192 201 219 218 198 181 162 152 147 142 136 136 136 142 147 152 162
27.5 180 204 233 218 199 201 213 201 199 218 233 204 180 162 151 147 141 131 132 131 141 147 151 162
30.0 181 210 244 218 204 223 242 223 204 218 244 210 181 162 150 146 137 125 127 125 137 146 150 162
32.5 185 223 250 220 221 262 292 262 221 220 250 223 185 162 148 145 130 120 120 120 130 145 148 162
35.0 190 243 259 224 250 304 322 304 250 224 259 243 190 159 145 140 123 114 113 114 123 140 145 159
37.5 190 257 270 230 291 302 294 302 291 230 270 257 190 155 139 134 118 109 106 109 118 134 139 155
40.0 186 260 274 242 326 250 222 250 326 242 274 260 186 151 133 128 112 102 98.4 102 112 128 133 151
42.5 183 261 266 261 330 184 157 184 330 261 266 261 183 146 127 117 105 96.7 94.6 96.7 105 117 127 146
45.0 179 259 257 286 299 137 120 137 299 286 257 259 179 140 122 107 99.0 91.8 86.8 91.8 99.0 107 122 140
47.5 168 256 253 311 247 112 104 112 247 311 253 256 168 134 120 101 94.1 86.1 81.0 86.1 94.1 101 120 134
50.0 156 247 247 325 192 101 94.8 101 192 325 247 247 156 128 119 98.0 89.8 81.7 77.6 81.7 89.8 98.0 119 128
52.5 148 235 233 294 152 93.2 88.0 93.2 152 294 233 235 148 124 118 96.0 85.9 77.7 74.6 77.7 85.9 96.0 118 124
55.0 145 240 217 210 124 87.4 79.2 87.4 124 210 217 240 145 123 116 94.6 82.7 75.3 72.4 75.3 82.7 94.6 116 123
57.5 143 266 215 134 104 80.4 75.4 80.4 104 134 215 266 143 123 115 92.9 80.4 73.3 69.6 73.3 80.4 92.9 115 123
60.0 140 312 225 104 91.0 75.1 69.2 75.1 91.0 104 225 312 140 122 113 90.9 78.3 70.5 67.4 70.5 78.3 90.9 113 122
62.5 143 373 238 96.1 84.2 71.8 51.8 71.8 84.2 96.1 238 373 143 122 111 88.0 75.0 66.0 63.8 66.0 75.0 88.0 111 122
65.0 154 428 256 92.3 79.3 63.2 41.8 63.2 79.3 92.3 256 428 154 121 108 83.5 69.7 57.8 54.2 57.8 69.7 83.5 108 121
67.5 147 489 284 87.2 74.3 49.2 35.8 49.2 74.3 87.2 284 489 147 118 104 77.2 56.5 39.5 36.0 39.5 56.5 77.2 104 118
70.0 119 536 293 79.7 67.8 38.0 30.0 38.0 67.8 79.7 293 536 119 105 89.0 64.2 32.3 22.6 22.4 22.6 32.3 64.2 89.0 105
72.5 50.5 448 235 59.2 57.0 28.8 23.8 28.8 57.0 59.2 235 448 50.5 69.4 56.2 36.7 17.0 14.4 15.2 14.4 17.0 36.7 56.2 69.4
75.0 30.1 309 156 26.7 38.6 16.1 13.0 16.1 38.6 26.7 156 309 30.1 32.7 25.5 14.3 9.8 9.1 9.2 9.1 9.8 14.3 25.5 32.7
77.5 19.7 191 97.0 8.6 13.5 4.8 4.6 4.8 13.5 8.6 97.0 191 19.7 23.3 15.8 6.6 5.2 4.9 5.6 4.9 5.2 6.6 15.8 23.3
80.0 11.9 102 51.3 4.9 3.4 3.8 2.8 3.8 3.4 4.9 51.3 102 11.9 14.7 9.8 3.8 2.6 3.2 3.4 3.2 2.6 3.8 9.8 14.7
82.5 6.0 28.6 18.8 2.2 1.7 2.8 2.0 2.8 1.7 2.2 18.8 28.6 6.0 8.0 5.3 1.9 1.3 1.5 2.2 1.5 1.3 1.9 5.3 8.0
85.0 2.0 4.5 3.8 1.0 1.0 1.8 1.8 1.8 1.0 1.0 3.8 4.5 2.0 3.4 2.2 1.0 1.0 1.0 1.2 1.0 1.0 1.0 2.2 3.4
87.5 1.0 1.2 0.4 0.6 0.7 1.0 0.8 1.0 0.7 0.6 0.4 1.2 1.0 0.8 0.6 0.4 0.3 0.2 0.2 0.2 0.3 0.4 0.6 0.8
90.0 0.0 0.2 0.0 0.0 0.0 0.8 0.0 0.8 0.0 0.0 0.0 0.2 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
92.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
95.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
97.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
102.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
105.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
107.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
110.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
112.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
115.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
117.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
120.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
122.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
125.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
127.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
130.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
132.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
135.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
137.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
140.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
142.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
145.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
147.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
150.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
152.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
155.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
157.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
160.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
162.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
165.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
167.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
170.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
172.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
175.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
177.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
