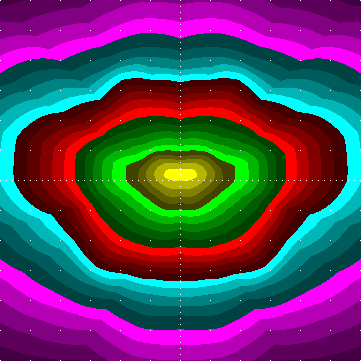

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] EINR197YM1.LDT
# [LUMINAIRE] OCE-EXACT-CNN-J
# [LUMCAT] Ocean
# [DATE] 08/11/2012/2007 INDUSTRIA Labor Capelle
# down given: 100%
# out given: 74.0%
# tilt: 0.0
# [LAMP] 1 MT 45 4300 2800 PGZ12
# Bulbs: 1, 4300 lm each
# Source file: Ocean_OCE-EXACT-CNN-J_1_MT_45_4300_2800_PGZ12.ldt
# Luminaire flux = 740 raw, for the given bulb(s) it would be 3183 lm,
# 74.0 % of the bulb flux
# between 75 and 90: 2.6 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 59.0 cd / 1000 lm , 0.6 % of the luminaire flux
# 90deg and above: max 0.2 cd / 1000 lm , 0.0 % of the luminaire flux
# CutOff Type: Full_CutOff
# 62.5 deg to <67.5 deg: max 322 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 321 cd / 1000 lm,
# maximum spec. lum. intensity 322 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199
2.5 201 205 208 211 213 214 214 214 213 211 208 205 201 197 193 190 187 186 185 186 187 190 193 197
5.0 205 213 219 224 226 228 228 228 226 224 219 213 205 197 190 183 178 174 172 174 178 183 190 197
7.5 210 221 231 237 240 241 240 241 240 237 231 221 210 199 188 178 170 164 163 164 170 178 188 199
10.0 216 231 244 251 252 251 248 251 252 251 244 231 216 201 187 174 164 157 154 157 164 174 187 201
12.5 221 240 255 262 261 258 253 258 261 262 255 240 221 202 185 171 159 151 146 151 159 171 185 202
15.0 224 247 265 272 268 261 254 261 268 272 265 247 224 202 182 168 155 145 140 145 155 168 182 202
17.5 226 255 273 279 272 260 252 260 272 279 273 255 226 200 179 164 152 140 135 140 152 164 179 200
20.0 233 265 284 284 273 257 247 257 273 284 284 265 233 201 177 161 149 136 130 136 149 161 177 201
22.5 240 277 294 289 271 250 237 250 271 289 294 277 240 203 175 158 146 133 125 133 146 158 175 203
25.0 246 288 304 294 266 239 224 239 266 294 304 288 246 203 173 155 143 129 120 129 143 155 173 203
27.5 251 297 312 296 259 222 206 222 259 296 312 297 251 203 171 153 139 125 114 125 139 153 171 203
30.0 256 306 316 295 249 202 183 202 249 295 316 306 256 202 169 151 136 120 109 120 136 151 169 202
32.5 259 312 318 291 236 180 159 180 236 291 318 312 259 200 166 148 132 117 105 117 132 148 166 200
35.0 260 316 317 283 219 157 137 157 219 283 317 316 260 197 162 145 129 113 100 113 129 145 162 197
37.5 260 315 313 272 199 136 118 136 199 272 313 315 260 194 157 140 125 109 95.0 109 125 140 157 194
40.0 265 318 306 259 177 119 102 119 177 259 306 318 265 191 152 134 121 104 90.0 104 121 134 152 191
42.5 267 319 298 243 156 104 90.0 104 156 243 298 319 267 189 147 128 116 100 86.6 100 116 128 147 189
45.0 270 318 289 224 136 94.2 80.4 94.2 136 224 289 318 270 184 142 122 111 95.7 81.2 95.7 111 122 142 184
47.5 269 314 273 202 119 85.7 72.8 85.7 119 202 273 314 269 180 136 116 105 89.9 75.2 89.9 105 116 136 180
50.0 261 294 243 174 106 79.9 67.0 79.9 106 174 243 294 261 176 131 112 99.2 84.7 70.8 84.7 99.2 112 131 176
52.5 253 269 203 143 96.1 75.5 62.2 75.5 96.1 143 203 269 253 171 128 108 94.6 79.0 65.2 79.0 94.6 108 128 171
55.0 257 266 175 118 88.5 70.4 58.0 70.4 88.5 118 175 266 257 168 125 104 90.0 75.4 61.6 75.4 90.0 104 125 168
57.5 264 276 164 105 81.7 65.4 52.8 65.4 81.7 105 164 276 264 168 123 101 85.7 72.4 58.6 72.4 85.7 101 123 168
60.0 276 289 160 97.5 75.9 59.9 46.8 59.9 75.9 97.5 160 289 276 166 120 98.4 81.7 68.6 54.8 68.6 81.7 98.4 120 166
62.5 292 307 156 92.5 70.6 53.1 40.8 53.1 70.6 92.5 156 307 292 165 115 94.9 76.4 63.8 50.0 63.8 76.4 94.9 115 165
65.0 306 322 153 87.7 65.0 47.0 35.0 47.0 65.0 87.7 153 322 306 163 110 89.8 70.5 58.9 45.8 58.9 70.5 89.8 110 163
67.5 304 321 147 82.0 59.3 40.7 29.6 40.7 59.3 82.0 147 321 304 156 104 83.3 63.8 50.8 37.8 50.8 63.8 83.3 104 156
70.0 271 284 129 73.6 52.3 33.0 22.4 33.0 52.3 73.6 129 284 271 136 93.4 75.1 52.6 36.4 27.2 36.4 52.6 75.1 93.4 136
72.5 186 208 82.8 49.8 42.4 21.8 14.2 21.8 42.4 49.8 82.8 208 186 92.7 68.3 60.5 30.7 18.3 15.4 18.3 30.7 60.5 68.3 92.7
75.0 136 152 47.4 20.4 24.0 9.2 6.4 9.2 24.0 20.4 47.4 152 136 41.9 32.6 31.6 12.5 9.3 9.0 9.3 12.5 31.6 32.6 41.9
77.5 94.7 104 32.3 9.5 6.7 5.5 3.8 5.5 6.7 9.5 32.3 104 94.7 28.7 13.5 10.2 5.2 5.7 4.8 5.7 5.2 10.2 13.5 28.7
80.0 54.0 59.0 19.5 5.8 3.4 3.5 2.8 3.5 3.4 5.8 19.5 59.0 54.0 17.6 8.4 4.8 2.6 3.4 3.2 3.4 2.6 4.8 8.4 17.6
82.5 19.9 20.9 8.8 3.2 1.7 1.8 1.8 1.8 1.7 3.2 8.8 20.9 19.9 8.5 4.8 2.8 1.3 1.5 1.4 1.5 1.3 2.8 4.8 8.5
85.0 3.0 4.3 2.6 1.6 0.7 1.0 0.8 1.0 0.7 1.6 2.6 4.3 3.0 2.8 2.2 1.4 1.0 1.0 1.0 1.0 1.0 1.4 2.2 2.8
87.5 1.0 1.2 0.4 0.6 0.0 0.8 0.0 0.8 0.0 0.6 0.4 1.2 1.0 1.6 0.6 0.4 0.3 0.2 0.2 0.2 0.3 0.4 0.6 1.6
90.0 0.0 0.2 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.2 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
92.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
95.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
97.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
102.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
105.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
107.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
110.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
112.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
115.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
117.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
120.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
122.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
125.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
127.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
130.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
132.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
135.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
137.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
140.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
142.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
145.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
147.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
150.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
152.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
155.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
157.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
160.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
162.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
165.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
167.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
170.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
172.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
175.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
177.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
