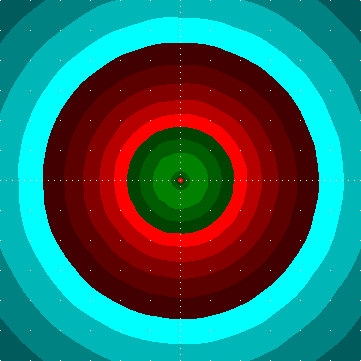

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] LI161B4W.LDT
# [LUMINAIRE] LINEA-161-V1B
# [LUMCAT] Linea
# [DATE] 07/10/07
# down given: 33%
# out given: 48.4%
# tilt: 0
# [LAMP] 1 MT 140 16500 2800 PGZ12
# Bulbs: 1, 16500 lm each
# Source file: Linea_LINEA-161-V1B_1_MT_140_16500_2800_PGZ12.ldt
# Luminaire flux = 484 raw, for the given bulb(s) it would be 7986 lm,
# 48.4 % of the bulb flux
# between 75 and 90: 16.1 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 62.2 cd / 1000 lm , 74.9 % of the luminaire flux
# 90deg and above: max 62.2 cd / 1000 lm , 66.8 % of the luminaire flux
# CutOff Type: Non-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground:2943 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:7588 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 29 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 33 cd / 1000 lm,
# maximum spec. lum. intensity 62 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9
5.0 3.2 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.2 3.2 3.3 3.3 3.3 3.3 3.4 3.5 3.5 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.3 3.3 3.2 3.1 3.2 3.1 3.1 3.2 3.2 3.3 3.3 3.4 3.3 3.3 3.3 3.3 3.4 3.4 3.5 3.5 3.5 3.5 3.5 3.5 3.4 3.4 3.3 3.4 3.3 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.3 3.3 3.2 3.2 3.2 3.2
10.0 5.9 5.8 5.7 5.8 5.8 5.7 5.8 5.9 5.9 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.8 5.9 5.9 5.9 5.8 5.8 5.8 5.8 5.8 5.8 5.9 5.8 5.8 5.7 5.6 5.5 5.4 5.4 5.4 5.4 5.4 5.4 5.4 5.5 5.5 5.6 5.7 5.7 5.7 5.8 5.8 5.8 5.8 5.9 5.8 5.7 5.8 5.7 5.7 5.7 5.7 5.7 5.8 5.9 5.8 5.5 5.7 5.8 5.9 5.9 6.0 5.9 5.9 5.8 5.8 5.8
15.0 8.0 8.2 8.1 8.2 8.1 8.2 8.3 8.3 8.1 8.2 8.2 8.2 8.1 8.2 8.3 8.2 8.2 8.0 8.1 8.0 7.8 8.0 7.9 8.1 8.0 8.0 8.1 8.3 8.4 8.4 8.1 8.0 8.0 8.1 8.0 8.0 7.9 8.0 8.0 8.2 8.2 8.2 8.2 8.2 8.2 8.4 8.4 8.4 8.4 8.3 8.2 8.1 8.0 7.9 8.0 8.0 7.9 7.9 8.1 8.1 8.0 8.0 7.9 7.9 7.7 7.8 7.9 8.0 8.3 8.2 8.1 8.1
20.0 10.6 10.1 10.2 10.3 10.5 10.5 10.5 10.7 10.7 10.6 10.5 10.4 10.4 10.2 10.5 10.4 10.4 10.6 10.8 10.8 10.6 10.6 10.5 10.4 10.6 10.9 10.8 10.7 10.7 10.7 10.7 10.7 10.7 10.6 10.5 10.6 10.6 10.7 10.6 10.5 10.8 10.9 10.7 10.9 10.8 10.9 10.7 10.7 10.5 10.4 10.3 10.3 10.2 10.1 10.4 10.3 10.2 10.3 10.3 10.4 10.4 10.4 10.4 10.3 10.1 10.1 10.2 10.4 10.6 10.4 10.5 10.4
25.0 12.7 12.6 12.3 12.5 12.3 12.7 12.7 12.8 12.9 13.1 12.8 12.4 12.3 12.4 12.5 12.6 12.6 12.9 13.2 13.2 13.2 13.1 13.0 13.0 13.1 13.1 13.0 12.8 12.7 12.8 12.6 12.6 12.8 12.7 12.7 12.7 12.5 12.8 12.8 12.9 12.7 12.9 12.9 12.7 12.7 12.6 12.5 12.5 12.4 12.6 12.4 12.5 12.5 12.6 12.7 13.0 12.9 12.9 12.8 12.8 12.8 13.0 12.7 12.6 12.4 12.5 12.5 12.8 12.8 12.9 12.9 12.8
30.0 15.3 15.0 15.1 15.0 15.1 15.0 14.9 15.0 15.0 15.0 15.2 15.0 14.9 15.2 15.2 15.0 15.2 15.4 15.4 15.4 15.3 15.0 14.9 15.0 15.3 15.1 15.4 15.3 14.8 14.6 14.6 14.6 14.8 14.8 14.9 15.0 15.2 15.2 15.2 15.3 14.9 14.7 14.9 14.7 14.9 14.6 14.5 14.8 14.7 14.6 14.7 14.7 14.8 14.9 15.0 15.2 15.0 15.1 15.1 15.2 15.2 15.0 14.8 14.9 14.7 14.7 14.9 14.7 14.7 14.7 15.2 15.3
35.0 17.2 17.2 17.0 17.1 17.0 17.2 17.1 17.4 17.1 16.9 17.1 17.0 17.3 17.2 17.3 17.4 17.2 17.2 17.2 17.4 17.2 16.6 16.8 17.1 17.0 17.1 17.1 17.3 17.1 17.1 17.2 17.2 17.1 17.1 17.3 17.6 17.5 17.4 17.4 17.6 17.5 17.1 16.9 17.0 17.1 17.0 16.7 16.8 17.1 16.8 17.0 17.0 16.8 16.9 17.0 17.5 17.3 17.3 17.5 17.4 17.3 17.2 17.1 17.5 17.3 17.2 17.2 17.0 16.8 16.8 17.2 17.2
40.0 19.0 18.6 18.8 18.8 19.1 19.1 19.0 19.3 19.4 19.3 19.1 19.2 19.2 19.3 19.2 19.3 19.3 18.9 19.2 19.1 19.1 18.8 18.8 18.9 19.0 19.2 19.4 19.4 18.8 18.7 18.9 19.0 19.0 18.7 18.8 19.0 19.1 19.0 19.0 19.4 19.5 19.3 19.1 19.4 19.7 19.3 18.8 18.9 18.9 19.5 20.0 19.5 19.5 18.8 19.1 19.5 19.4 19.6 19.4 19.5 19.5 19.4 19.5 19.6 19.4 19.5 19.0 19.0 19.2 19.3 19.4 19.0
45.0 21.1 21.0 21.2 21.3 21.5 21.4 21.5 21.4 21.2 21.1 21.1 21.3 21.6 21.4 21.2 21.2 21.0 21.0 21.2 21.0 20.9 21.0 21.0 20.9 20.9 21.5 21.9 21.5 21.1 20.9 20.6 20.8 21.3 21.1 20.9 20.9 20.8 21.0 21.1 21.2 21.3 21.3 21.3 21.3 21.6 21.2 20.5 20.5 21.1 21.4 21.5 21.8 21.7 21.7 21.4 21.5 21.1 20.9 21.1 20.9 21.2 21.4 21.6 21.8 21.2 20.9 21.1 21.0 20.9 21.2 21.0 21.2
50.0 23.4 23.2 23.3 23.4 23.3 23.3 23.3 23.3 22.6 23.1 23.2 23.3 23.4 23.5 23.1 23.1 23.2 23.1 23.0 23.0 22.7 23.0 23.1 23.2 23.5 23.6 23.5 23.4 23.1 23.2 23.1 22.9 23.2 23.1 22.9 23.1 22.7 22.8 22.6 22.9 23.2 23.1 23.0 22.9 22.6 22.9 23.0 23.0 23.1 23.0 23.3 23.2 23.1 23.2 23.9 23.5 23.4 23.1 22.9 23.0 23.2 23.5 23.9 23.5 22.9 22.5 23.2 23.2 23.1 22.6 22.7 23.2
55.0 25.4 25.4 25.3 25.4 25.1 25.1 25.3 25.4 24.8 24.6 25.1 25.3 25.0 25.1 24.9 25.0 25.3 25.2 25.2 25.1 25.2 25.4 25.5 25.7 25.6 24.9 24.9 24.9 25.6 25.1 24.9 25.3 24.8 24.8 25.0 25.3 25.1 24.4 24.5 25.0 25.2 24.6 24.5 24.8 24.8 25.1 25.0 25.2 25.3 25.4 25.4 25.4 25.0 24.9 25.1 24.9 25.2 25.0 24.8 25.1 25.1 25.2 25.1 24.8 24.4 24.6 25.0 24.9 24.9 24.5 24.7 25.0
60.0 26.6 27.3 27.4 27.2 27.4 27.4 26.8 26.7 26.9 26.8 27.2 27.4 26.8 26.9 26.9 26.8 26.7 27.2 27.0 26.9 27.0 26.9 26.8 27.2 27.3 26.8 26.4 27.0 27.0 27.1 26.8 26.6 26.9 26.7 26.6 27.0 27.1 26.7 27.0 27.2 27.1 26.4 26.1 26.9 26.9 26.9 27.0 26.8 26.8 26.9 27.0 27.6 26.8 26.2 26.3 26.6 26.8 26.8 26.7 26.8 26.7 26.8 26.6 26.6 26.6 26.9 26.6 26.9 26.9 27.1 27.0 26.5
65.0 29.0 28.9 29.3 29.1 28.6 29.1 28.6 28.8 28.6 28.9 29.2 29.1 28.8 29.0 29.1 28.6 28.9 28.8 28.5 28.6 28.4 28.7 28.8 28.8 28.8 28.8 28.4 28.5 28.6 28.8 28.9 28.7 29.1 29.3 28.5 28.6 28.6 28.3 28.4 28.5 28.9 28.8 28.9 28.6 28.2 28.2 28.2 28.2 28.7 29.0 29.0 28.9 28.4 28.0 28.4 28.5 28.7 29.0 28.8 29.1 29.2 29.1 28.5 28.6 29.0 28.8 28.6 28.6 28.9 28.5 28.3 28.5
70.0 30.9 30.5 30.6 30.6 30.7 30.6 30.4 30.7 31.0 30.8 30.8 30.3 29.9 29.8 30.5 31.0 30.8 30.4 29.8 29.5 29.4 30.4 30.4 30.4 30.6 30.7 30.9 31.0 30.4 30.1 30.2 30.8 30.8 30.7 30.2 30.5 30.3 30.1 30.7 30.5 30.7 31.0 30.7 29.9 29.7 30.6 30.6 30.3 30.6 30.7 30.9 30.6 30.4 30.4 30.5 30.7 30.7 30.9 30.7 31.1 31.0 30.3 30.7 30.0 30.6 31.0 30.2 30.6 30.5 30.0 30.3 31.0
75.0 32.5 32.4 32.1 32.3 32.0 31.7 32.3 32.5 32.8 32.4 32.3 32.9 31.6 31.4 31.8 32.4 32.3 32.0 31.5 31.7 32.2 32.2 32.1 32.3 32.4 32.0 32.4 32.7 32.5 32.7 32.7 32.8 32.5 32.1 32.1 32.3 32.3 31.9 32.5 32.3 32.9 33.1 32.3 32.0 31.5 32.2 32.3 32.3 32.2 32.0 32.2 32.8 31.8 32.5 32.9 33.0 32.5 32.5 32.7 32.5 32.7 32.3 32.7 32.7 32.5 32.7 32.4 32.7 32.7 32.0 32.5 32.9
80.0 34.1 34.0 34.1 34.5 33.8 33.9 34.4 34.2 34.7 34.0 34.2 34.0 34.4 34.2 33.5 34.1 34.2 34.0 33.9 34.6 34.4 33.8 33.7 34.3 34.1 33.9 33.9 34.4 34.4 34.1 34.3 34.2 34.1 34.2 33.8 33.9 33.2 33.3 34.0 34.1 34.4 34.0 33.7 33.9 34.0 34.3 34.6 34.1 33.9 34.2 34.5 34.2 34.3 34.2 34.5 34.6 34.8 34.4 34.4 34.4 34.6 33.9 33.9 34.2 34.0 33.5 34.2 34.5 34.3 33.8 33.8 34.1
85.0 35.9 36.1 36.5 36.6 36.0 35.8 36.1 36.0 36.1 36.1 36.6 36.3 36.4 36.2 35.8 35.8 35.8 36.0 36.6 36.4 35.9 36.1 36.0 36.6 35.6 35.3 35.8 36.4 36.4 36.1 35.9 35.6 36.1 36.1 35.8 35.5 35.5 35.6 35.9 36.3 36.0 35.7 36.2 36.7 36.1 36.1 35.8 36.2 36.5 36.2 36.0 35.9 36.2 36.1 36.0 36.0 35.9 36.6 36.9 36.6 36.4 35.6 35.7 36.6 36.2 35.7 35.8 35.3 36.0 35.9 35.6 36.1
90.0 37.9 38.2 39.1 38.8 38.6 37.9 37.8 37.9 38.0 38.3 39.1 38.3 38.0 37.9 38.0 38.1 38.0 38.4 38.7 37.7 38.3 38.4 38.1 38.1 38.1 37.7 38.6 38.5 37.8 38.0 38.6 38.2 37.9 37.8 38.4 38.2 38.6 38.0 38.1 38.3 37.9 38.0 38.1 38.8 38.4 38.0 37.7 38.5 38.7 38.1 38.3 38.3 38.1 37.6 38.2 38.5 38.6 38.8 39.1 38.6 38.2 38.6 38.8 39.0 38.2 38.4 38.9 37.5 37.7 38.3 38.2 38.0
95.0 41.1 40.6 40.5 41.2 41.2 41.0 40.1 40.2 40.6 41.3 41.3 40.5 40.3 41.1 40.9 40.9 40.6 41.2 40.8 40.7 40.9 40.7 40.4 40.7 40.4 40.6 40.8 40.7 40.2 40.2 40.7 40.9 40.5 40.7 41.3 40.5 40.4 40.8 40.7 40.6 40.6 40.0 40.3 41.2 40.9 40.7 40.5 40.5 40.5 40.4 40.7 40.6 40.3 40.4 40.6 40.8 40.7 40.8 40.9 41.1 40.9 41.2 40.9 40.6 40.8 41.1 41.3 40.5 40.1 40.9 40.8 40.8
100.0 43.9 43.1 42.9 43.8 44.3 43.8 43.0 43.6 43.6 43.4 43.9 43.8 43.7 43.9 43.8 43.1 43.0 43.8 43.6 43.3 43.7 43.6 43.5 43.5 43.2 42.9 43.4 43.8 43.7 43.0 43.0 43.4 43.2 42.9 43.7 43.6 43.0 42.9 43.8 43.7 43.2 43.1 42.5 43.3 43.5 43.1 43.6 43.0 42.9 43.2 42.7 43.1 43.0 43.2 43.5 44.0 43.7 43.6 43.3 43.6 43.7 43.2 42.9 43.3 43.2 43.9 43.6 43.0 42.8 43.4 43.4 43.4
105.0 45.9 46.0 46.2 46.9 46.3 46.6 46.5 46.7 45.6 46.2 46.9 47.1 46.0 45.9 46.1 45.7 46.1 47.0 47.0 46.4 46.6 46.0 46.4 46.5 46.5 46.4 46.1 46.1 46.2 46.2 46.0 46.3 45.7 45.9 46.1 46.8 45.8 45.3 46.6 46.4 45.8 46.6 46.1 46.0 46.0 46.1 46.3 45.7 45.9 46.2 46.5 46.5 46.4 46.7 46.2 46.7 46.3 46.7 46.7 46.8 46.4 45.8 46.3 46.1 46.4 46.7 46.3 45.5 45.6 46.2 46.0 46.6
110.0 49.1 48.6 48.6 49.5 49.7 50.0 49.6 49.1 48.8 48.9 49.6 49.6 49.3 49.1 49.4 49.0 49.4 49.9 50.1 49.5 49.1 48.6 49.4 49.5 49.9 49.5 49.6 49.4 49.2 49.2 49.2 49.6 49.7 49.3 49.4 49.2 48.5 48.9 49.5 49.0 48.7 49.3 49.3 49.8 49.1 48.9 48.9 48.9 49.3 50.0 50.1 50.2 50.1 49.5 49.6 49.0 48.6 49.3 49.6 49.5 48.7 49.3 48.9 49.2 49.4 49.4 49.7 49.3 49.7 49.8 49.4 49.3
115.0 52.2 52.0 51.7 52.2 52.3 53.3 52.5 52.0 52.1 52.3 52.7 52.4 52.5 53.0 52.1 52.4 52.6 52.9 52.9 52.5 52.3 52.2 51.9 53.2 53.2 53.3 53.6 52.9 52.5 52.2 52.4 52.9 52.8 52.5 52.8 52.2 51.9 52.9 52.6 52.4 52.6 52.1 52.5 52.0 51.9 52.2 53.0 52.9 53.2 53.6 53.2 53.0 52.8 51.7 51.8 52.3 52.2 52.5 52.1 52.3 52.2 52.3 53.0 52.5 52.8 52.1 52.2 52.4 52.6 52.9 52.7 52.6
120.0 55.3 55.0 55.0 55.2 55.4 55.7 55.7 55.8 55.5 55.6 55.6 55.1 55.3 55.1 55.5 55.8 56.1 55.6 55.9 56.3 55.8 55.4 55.0 55.6 55.5 55.7 55.5 55.2 55.3 55.7 55.7 55.5 55.5 55.8 56.2 55.1 55.1 55.6 54.8 54.2 55.0 55.8 54.7 54.1 54.5 55.3 55.6 55.0 54.7 55.5 55.7 55.3 56.0 55.5 55.7 55.3 55.6 55.4 55.8 56.0 55.4 55.5 55.8 55.9 55.4 55.3 54.6 54.9 55.4 55.5 54.9 55.3
125.0 57.2 56.7 57.2 58.4 58.3 57.6 57.6 58.6 58.3 58.2 58.1 57.6 57.4 57.2 57.9 58.4 58.0 57.1 57.6 58.8 59.2 57.7 58.3 58.2 58.1 57.4 57.5 57.5 57.8 57.8 58.2 58.0 58.1 58.8 59.2 57.8 57.7 57.3 57.1 56.9 57.5 57.5 57.1 56.9 57.6 58.1 58.4 58.2 57.8 58.1 57.7 58.3 58.3 58.5 58.3 57.4 56.8 57.8 57.9 58.4 57.8 57.8 57.1 57.0 58.1 57.5 57.1 57.1 57.9 58.0 57.7 57.9
130.0 59.1 59.5 59.2 59.3 60.1 59.7 59.2 59.9 59.9 59.5 59.6 60.0 60.3 60.0 59.4 60.2 60.0 60.1 60.0 60.5 60.3 60.2 59.9 60.6 59.8 59.4 59.7 59.6 59.6 60.1 59.7 60.0 59.7 60.4 60.7 60.0 59.4 59.5 59.3 59.8 58.8 59.0 59.1 59.2 60.4 60.5 59.9 59.8 60.0 59.5 59.7 59.7 60.6 61.0 60.6 59.7 59.6 59.7 60.5 59.9 59.7 59.7 59.3 58.9 59.4 59.2 59.7 59.8 59.9 59.7 59.2 59.2
135.0 60.9 61.4 61.2 60.7 60.9 60.8 60.3 60.1 60.3 60.4 61.1 61.6 61.7 60.4 60.4 61.0 61.6 61.6 61.3 60.6 60.5 61.2 61.2 60.6 60.7 60.5 60.7 60.3 61.1 61.4 61.3 60.5 60.4 60.7 61.6 61.3 60.7 60.9 60.9 61.5 60.9 60.7 60.9 60.9 61.0 60.7 60.2 60.4 60.8 60.3 60.4 60.8 61.6 61.2 61.0 60.3 60.8 60.3 60.4 60.7 61.5 61.7 61.3 61.8 61.1 60.9 61.2 60.8 60.8 60.8 60.4 59.9
140.0 61.1 61.3 61.5 61.3 60.8 61.2 60.3 60.9 60.8 60.7 60.7 61.4 61.2 60.0 60.7 61.0 61.6 61.8 61.4 61.0 61.9 61.9 62.0 60.7 61.0 60.5 60.1 60.8 61.6 62.2 61.6 61.2 60.9 61.0 61.5 61.4 61.6 61.8 61.9 61.2 60.7 60.4 61.2 61.4 61.3 60.5 60.8 60.8 61.2 60.3 61.4 61.4 61.5 61.4 61.2 61.6 61.7 60.9 60.3 60.6 61.0 61.7 61.5 61.4 61.4 60.8 60.4 60.1 61.1 61.3 61.5 61.0
145.0 60.2 60.5 60.3 60.4 60.6 60.7 60.8 61.0 61.0 60.2 59.8 60.2 60.2 59.7 59.6 60.1 59.9 59.5 59.9 59.7 61.0 61.2 60.6 60.1 60.1 60.0 60.4 60.9 60.9 60.9 60.8 60.4 60.2 60.5 60.2 60.4 60.7 60.1 60.1 59.7 60.1 60.3 60.3 60.4 60.3 60.6 60.4 60.1 60.4 59.8 60.1 60.5 60.3 60.0 60.2 60.4 60.0 59.8 59.7 60.2 60.2 60.0 59.5 59.8 59.8 59.5 59.8 59.9 61.0 60.8 60.8 60.5
150.0 58.4 58.2 58.1 58.2 58.2 58.4 58.7 58.6 58.4 58.4 58.0 57.5 57.9 58.2 58.5 58.6 58.7 58.4 58.4 58.2 58.2 57.8 58.0 58.0 58.6 58.7 59.1 58.5 58.1 58.7 58.7 58.5 58.5 58.2 57.6 58.0 58.2 57.8 57.7 58.0 58.0 58.8 58.4 58.1 58.0 58.1 58.4 58.5 58.0 58.2 58.5 57.9 58.2 58.1 58.2 58.2 57.3 57.6 57.8 58.1 58.3 58.2 58.0 58.3 58.5 58.5 59.3 59.3 59.1 59.1 58.2 58.6
155.0 54.8 54.5 54.5 54.6 54.8 54.7 54.4 54.9 54.6 54.6 54.6 54.6 54.7 55.0 55.2 55.5 55.4 55.4 55.2 54.6 54.1 53.8 54.3 54.9 55.0 54.7 55.1 54.6 54.3 54.9 54.6 54.9 55.0 54.9 54.8 54.6 55.0 54.9 54.6 54.1 54.3 55.2 55.2 55.2 55.5 55.1 54.7 54.5 54.5 54.6 55.1 54.8 54.9 54.7 54.4 54.5 54.5 54.6 55.2 55.5 55.3 54.8 55.0 54.3 54.4 54.6 55.1 55.3 55.1 54.6 54.5 54.9
160.0 50.6 50.8 50.5 50.1 50.6 50.0 49.9 49.7 49.9 50.0 50.7 50.9 51.2 51.3 50.9 50.5 50.0 50.3 49.9 50.0 50.1 50.4 49.9 50.3 50.1 49.8 49.6 49.6 49.8 50.0 49.5 49.9 49.8 49.3 49.9 50.6 50.4 50.0 49.7 49.4 49.7 50.2 50.4 50.6 51.1 50.8 50.2 49.7 49.8 49.9 50.0 49.9 50.6 50.4 50.1 50.0 50.4 50.3 50.5 50.6 50.7 50.5 50.1 50.1 50.0 49.8 49.8 50.0 50.2 50.5 50.5 50.4
165.0 45.5 45.2 44.9 44.8 44.8 44.3 44.2 44.1 44.3 44.7 44.9 45.2 45.6 45.6 45.4 45.2 44.9 44.6 44.6 44.7 44.5 44.7 44.9 45.0 44.9 44.9 45.1 44.9 45.0 44.7 44.6 44.4 44.1 44.4 44.1 44.4 44.3 44.5 44.5 44.7 44.6 44.3 44.9 45.2 45.1 44.6 44.7 44.9 44.5 44.6 44.7 44.6 44.9 45.2 45.1 45.3 45.3 45.1 44.7 44.7 44.5 44.7 44.5 44.8 44.9 45.3 45.1 45.4 45.1 45.1 45.2 45.3
170.0 39.1 38.9 39.0 39.1 39.1 38.8 39.0 38.7 38.7 38.8 39.0 39.0 39.0 38.8 39.0 38.9 39.0 38.9 38.7 38.3 38.6 38.4 38.5 39.0 39.1 39.4 39.4 39.2 39.6 39.3 39.1 39.2 39.0 39.3 39.3 38.9 39.0 39.2 39.0 38.9 39.1 39.2 39.1 39.1 38.9 39.1 39.1 38.9 38.8 38.8 38.8 38.9 38.9 38.7 38.5 38.6 38.7 38.8 38.8 38.6 38.7 38.9 38.9 39.0 39.0 39.3 39.1 39.2 39.4 39.5 39.5 39.2
175.0 33.0 33.1 33.1 33.2 33.0 33.1 33.3 33.4 33.4 33.4 33.6 33.6 33.7 33.6 33.3 33.3 33.2 33.1 33.1 33.2 33.4 33.3 33.2 33.3 33.4 33.2 33.4 33.5 33.5 33.7 33.7 33.7 33.5 33.5 33.4 33.4 33.3 33.0 32.9 32.7 32.7 32.8 32.8 32.5 32.7 32.5 32.5 32.6 32.6 32.6 32.5 32.5 32.5 32.5 32.5 32.4 32.6 32.5 32.7 32.9 32.7 32.8 32.8 32.9 32.9 33.0 33.0 33.2 33.2 33.2 33.1 33.0
180.0 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2 30.2
