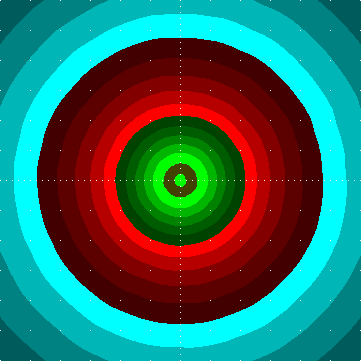

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] LI161A4W.LDT
# [LUMINAIRE] LINEA-161-V1A
# [LUMCAT] Linea
# [DATE] 07/10/07
# down given: 67%
# out given: 40.1%
# tilt: 0
# [LAMP] 1 MT 140 16500 2800 PGZ12
# Bulbs: 1, 16500 lm each
# Source file: Linea_LINEA-161-V1A_1_MT_140_16500_2800_PGZ12.ldt
# Luminaire flux = 401 raw, for the given bulb(s) it would be 6616 lm,
# 40.1 % of the bulb flux
# between 75 and 90: 18.6 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 36.9 cd / 1000 lm , 42.4 % of the luminaire flux
# 90deg and above: max 32.8 cd / 1000 lm , 33.1 % of the luminaire flux
# CutOff Type: CIE_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 948 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:3182 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 44 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 42 cd / 1000 lm,
# maximum spec. lum. intensity 52 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3
5.0 27.8 27.6 27.5 27.5 27.6 27.5 27.6 27.5 27.5 27.5 27.5 27.5 27.4 27.4 27.3 27.5 27.6 27.6 27.5 27.5 27.5 27.7 27.9 27.8 27.7 27.8 27.6 27.7 27.6 27.8 27.8 27.8 27.6 27.7 27.5 27.7 28.0 27.8 27.7 27.8 27.8 28.0 27.8 27.6 27.5 27.5 27.5 27.4 27.5 27.5 27.4 27.3 27.2 27.4 27.3 27.3 27.1 27.1 27.1 27.2 27.4 27.3 27.2 27.3 27.4 27.5 27.5 27.7 27.7 27.8 27.7 27.7
10.0 32.7 32.8 33.0 33.0 33.3 32.9 32.8 32.4 32.3 32.3 32.2 32.3 32.3 32.2 32.0 32.0 31.9 31.8 31.5 31.5 31.5 31.8 31.7 31.6 31.6 31.9 32.1 32.1 32.1 32.0 32.1 31.9 32.2 32.3 32.0 32.1 32.2 32.3 32.3 32.5 32.6 32.4 32.6 32.5 32.5 32.2 32.3 32.3 32.3 32.3 32.2 32.4 32.3 32.1 31.9 31.7 31.6 31.4 31.5 31.4 31.6 31.9 32.1 32.0 31.8 32.0 32.2 32.2 32.4 32.5 32.7 32.7
15.0 37.7 37.7 37.7 38.0 38.1 37.8 37.5 37.3 37.2 37.0 36.7 36.7 36.2 36.4 36.6 36.9 36.7 36.5 36.5 36.2 36.7 37.0 37.1 37.1 37.2 37.2 37.6 37.3 37.2 36.7 36.7 36.7 36.8 37.0 36.7 37.0 36.9 37.3 37.7 37.2 37.2 37.2 37.1 37.0 36.5 36.2 36.5 36.7 37.2 37.5 37.7 37.2 37.7 37.8 37.2 36.7 36.7 36.7 36.6 36.6 36.9 37.1 37.5 37.2 37.4 37.2 36.8 37.1 36.7 36.8 36.8 36.9
20.0 41.3 41.7 42.0 42.1 42.6 42.6 42.1 41.9 41.8 41.6 41.5 41.3 41.4 41.4 40.9 40.6 40.8 41.1 41.2 41.6 41.5 42.0 41.7 41.6 41.9 41.9 41.8 41.9 42.1 41.6 41.1 41.1 40.6 40.7 40.9 41.1 41.2 41.2 41.0 40.6 40.9 40.6 41.2 40.9 40.8 40.6 40.5 40.3 40.9 41.5 41.7 42.1 42.2 42.1 41.6 41.4 41.5 41.3 41.0 41.2 41.6 42.0 42.1 42.6 43.0 42.7 42.6 41.9 41.6 41.3 41.3 41.2
25.0 45.0 45.0 45.0 44.6 45.1 45.2 45.7 45.2 45.0 45.9 46.2 46.5 46.7 46.1 46.1 45.5 45.3 45.3 45.4 45.7 45.7 46.0 45.7 45.6 45.6 45.1 45.1 45.2 45.0 45.5 45.0 44.9 45.0 44.7 44.8 44.9 45.1 44.5 44.6 44.8 45.4 45.0 44.8 45.2 45.2 45.4 45.3 44.8 45.0 45.5 45.3 45.9 45.7 45.5 45.6 45.4 45.2 44.9 45.0 45.0 45.0 45.1 45.6 46.0 46.6 46.5 46.0 46.0 45.3 45.2 45.5 45.4
30.0 48.0 48.0 47.6 47.8 47.9 48.1 47.9 48.3 48.0 48.2 48.5 48.7 49.1 49.2 49.1 48.9 48.7 48.6 48.9 48.5 48.7 48.0 48.4 47.8 48.0 48.2 48.0 48.1 47.4 47.9 48.3 48.3 48.1 48.1 48.0 47.9 47.9 48.6 49.1 49.0 48.8 48.6 48.4 47.9 48.2 48.3 48.0 48.6 47.9 48.4 48.5 48.1 48.4 48.2 48.4 48.3 47.9 48.4 48.2 47.9 47.7 47.9 48.0 47.7 48.2 48.2 48.6 48.6 48.9 48.9 48.4 48.1
35.0 49.7 49.8 49.9 49.8 49.9 49.5 49.4 49.9 49.5 48.7 48.9 48.7 49.7 49.5 50.1 50.6 50.8 50.3 50.7 50.4 49.8 49.3 49.4 49.5 49.2 49.4 49.7 49.7 49.1 49.6 50.1 49.8 50.2 50.1 50.2 49.9 50.1 49.9 50.2 50.2 49.9 49.9 49.9 49.8 49.8 50.0 50.3 49.3 50.2 50.1 50.2 49.9 49.6 50.0 50.2 49.8 49.9 50.1 49.7 49.4 49.1 49.3 49.4 49.3 49.4 49.5 50.8 50.8 51.2 50.9 50.2 49.8
40.0 51.7 51.1 50.8 50.3 50.1 50.6 50.5 50.8 50.6 50.3 50.2 50.5 50.2 50.7 50.7 50.8 51.0 51.3 51.3 51.1 50.4 50.3 50.3 49.9 49.5 49.9 50.4 50.3 50.6 50.1 49.5 49.0 49.5 50.3 50.5 51.1 50.2 50.2 50.0 50.7 50.6 50.8 50.3 50.3 50.6 50.9 51.2 50.6 49.6 50.1 50.2 50.6 50.7 50.7 50.8 50.7 51.2 51.0 50.5 49.9 50.3 50.3 49.7 49.9 50.3 50.6 50.4 50.2 50.0 50.1 50.5 50.9
45.0 51.1 50.8 50.7 49.9 50.4 50.2 50.3 50.3 50.9 50.9 51.3 51.0 50.7 50.2 50.2 50.3 50.3 49.7 50.8 50.8 50.7 50.8 50.4 49.9 49.4 49.5 50.3 50.8 50.7 50.3 50.2 50.0 50.0 50.3 50.6 50.8 50.7 50.6 50.8 51.0 49.9 50.2 50.7 50.5 50.6 50.4 51.3 51.3 50.6 49.9 50.1 50.6 50.9 50.1 50.3 51.3 50.9 50.9 49.9 49.8 50.4 50.7 49.8 49.1 49.8 50.2 50.6 50.8 49.9 50.3 50.0 50.2
50.0 48.3 49.0 49.7 50.0 49.6 49.4 48.6 48.4 49.1 49.3 49.5 49.8 49.7 49.4 48.6 48.4 49.5 49.4 49.3 50.0 50.3 49.7 49.9 49.6 49.9 48.9 49.2 49.6 49.3 48.9 49.7 49.1 48.9 49.4 49.7 49.6 49.2 49.4 49.5 49.2 49.5 49.6 49.2 49.3 48.9 49.6 49.6 49.8 50.0 49.9 49.0 49.5 49.9 49.7 50.0 50.2 50.0 50.3 49.4 48.6 49.9 49.8 49.9 49.6 48.8 49.6 50.3 50.7 49.9 49.3 50.0 49.6
55.0 47.5 47.7 48.1 48.0 47.9 48.0 49.0 48.9 48.0 47.9 47.8 47.9 48.3 48.8 47.7 46.1 46.9 47.4 47.6 47.8 47.4 48.1 48.9 48.9 48.5 48.1 48.0 48.0 47.6 47.2 47.3 47.9 46.9 46.7 47.9 48.4 48.1 48.0 47.1 48.1 48.9 48.6 47.9 47.7 47.3 47.4 47.4 48.0 48.2 47.6 47.4 47.8 48.8 48.9 48.8 48.5 48.4 48.8 47.5 48.0 47.9 47.6 48.9 47.9 47.1 48.3 48.4 47.9 47.8 47.6 48.3 48.2
60.0 45.2 45.6 46.0 45.9 45.8 46.0 46.3 46.8 46.5 45.8 45.9 46.9 46.1 46.9 46.0 45.2 45.1 45.4 46.0 45.0 45.0 45.5 46.7 46.0 45.3 45.5 45.6 45.5 45.1 44.7 45.5 45.5 45.0 44.7 45.5 46.1 45.9 45.9 45.3 45.9 46.6 46.5 46.4 45.6 45.2 44.9 45.8 46.6 46.3 46.4 45.6 46.1 46.0 46.1 46.4 46.1 45.8 45.5 45.0 45.3 45.4 45.5 46.1 45.4 45.5 46.0 45.6 46.0 45.7 45.5 46.0 46.0
65.0 43.3 42.9 43.1 44.0 44.2 44.0 42.9 42.9 43.5 43.5 43.8 44.4 44.0 43.5 43.9 43.9 43.1 43.7 42.7 42.7 42.8 43.4 43.5 43.8 43.2 43.5 43.7 43.5 43.6 43.1 42.7 42.9 42.1 43.5 43.6 43.3 43.6 43.0 42.6 43.3 42.9 43.0 43.5 43.3 43.1 43.6 43.7 43.8 43.8 43.9 43.6 43.5 43.6 43.7 43.5 43.4 43.1 42.9 43.5 43.4 43.3 43.9 43.4 43.2 43.7 43.4 43.7 43.8 43.1 43.2 43.0 43.0
70.0 40.3 40.3 40.6 41.4 41.0 41.1 41.1 40.6 40.2 40.0 40.7 41.6 41.2 40.6 40.5 40.9 40.0 40.4 40.1 40.6 41.5 40.8 41.1 41.5 40.9 41.1 40.6 40.9 41.0 41.4 40.6 40.3 41.1 41.2 41.6 41.1 40.8 40.6 40.5 40.9 40.6 40.4 41.2 41.1 40.6 41.3 41.5 41.3 41.4 40.8 40.4 40.8 41.5 41.4 40.7 40.9 40.8 40.6 40.7 41.6 41.1 41.1 41.0 40.6 40.8 41.6 41.5 41.3 40.6 40.4 40.3 40.3
75.0 37.2 37.8 37.4 38.0 38.0 39.1 39.2 38.6 38.5 38.1 38.6 39.0 39.0 38.4 38.3 38.2 37.7 37.8 37.2 38.0 38.8 38.7 38.5 38.6 38.7 38.1 37.6 37.9 37.2 38.3 38.7 38.5 39.0 38.1 38.5 39.2 38.7 38.3 38.5 38.4 38.1 37.7 38.4 38.6 38.1 38.8 38.9 38.7 38.9 38.5 37.7 38.4 38.9 38.7 37.8 38.4 39.2 38.3 38.2 38.4 39.0 39.0 38.7 38.3 38.6 39.2 38.9 39.0 39.2 38.3 38.1 37.8
80.0 35.6 35.0 35.8 35.5 35.4 36.7 36.5 36.1 36.1 36.1 36.4 36.9 36.6 35.8 36.4 36.7 36.0 36.1 36.2 36.0 36.6 36.3 36.0 36.0 35.5 35.8 36.4 35.8 35.8 36.2 36.5 36.6 36.5 35.8 35.9 36.4 36.0 35.9 35.6 35.8 35.9 35.3 35.7 36.2 35.8 35.5 35.3 35.9 36.5 36.0 36.2 36.3 36.4 36.3 36.1 36.6 36.4 36.4 35.9 36.2 36.7 36.2 36.4 36.0 36.3 36.6 36.7 36.7 36.9 36.5 36.2 36.1
85.0 34.0 34.0 34.1 34.4 33.8 34.3 33.8 33.8 33.8 33.7 33.8 34.1 34.4 34.1 34.1 34.5 34.0 34.6 34.8 34.4 34.4 34.3 33.8 33.4 33.6 33.8 34.1 33.9 34.3 33.7 33.8 33.8 33.8 34.4 33.8 33.7 33.5 34.1 33.7 34.3 34.7 33.7 33.4 33.8 34.3 33.6 33.4 33.9 33.9 33.5 33.7 33.7 34.4 33.5 33.7 33.6 34.0 34.5 33.8 34.3 34.3 33.9 33.7 34.1 33.9 33.3 33.7 33.3 33.8 34.1 33.8 34.5
90.0 32.1 32.3 32.1 31.9 31.5 32.3 31.4 31.6 31.5 32.3 32.0 32.1 32.5 32.1 32.1 32.0 31.6 31.7 32.3 32.3 32.3 32.5 31.8 31.4 31.4 31.4 32.3 32.2 32.3 32.1 31.9 31.9 31.9 31.8 32.3 32.1 31.6 31.9 31.8 32.6 32.4 32.0 32.3 32.1 31.3 31.9 32.4 32.8 32.3 31.7 31.2 31.9 32.5 32.1 31.4 31.4 32.2 32.2 31.4 31.4 32.5 32.4 32.0 32.0 32.3 32.3 32.2 31.6 31.4 31.6 32.4 32.3
95.0 29.4 29.9 30.1 30.4 30.3 30.1 29.8 29.9 30.0 30.4 29.5 30.6 29.8 29.7 30.8 30.4 29.9 30.0 30.6 30.1 30.1 30.3 29.7 29.9 30.3 29.9 30.6 29.7 30.0 29.9 29.9 30.4 30.4 30.1 30.4 30.3 30.1 29.8 30.1 29.9 30.5 30.1 30.2 30.6 30.4 29.9 29.9 30.2 29.8 29.9 29.4 30.0 30.3 30.4 30.0 29.7 30.5 30.7 30.2 29.8 30.3 30.9 30.5 30.3 30.4 30.4 29.9 30.1 29.7 29.5 30.4 30.3
100.0 28.4 28.2 28.1 28.2 28.6 28.4 28.6 28.4 28.1 28.4 28.5 28.7 27.8 27.3 28.3 29.3 28.3 29.0 28.7 28.4 28.5 27.5 27.8 28.0 27.9 27.9 28.2 28.0 28.4 28.4 28.0 28.4 28.5 28.0 28.3 28.1 27.9 28.0 27.8 28.1 28.5 28.5 28.0 28.5 29.3 28.3 28.0 28.7 29.5 28.7 28.2 28.7 28.5 28.5 27.8 28.2 28.9 29.0 29.1 28.5 28.2 28.9 28.8 28.4 29.1 28.4 27.9 28.2 28.8 28.6 28.6 28.5
105.0 27.0 27.0 27.1 26.8 27.3 26.8 27.0 26.6 26.1 26.7 26.8 27.3 27.0 26.0 26.5 27.3 27.5 27.6 26.5 26.5 26.5 26.5 26.5 26.4 26.3 26.4 26.3 26.4 26.6 27.7 26.6 25.8 26.7 26.6 26.4 26.9 26.7 26.0 25.8 26.2 26.0 26.8 26.5 26.5 27.0 26.9 26.5 26.4 27.6 27.3 26.7 27.1 26.8 26.9 26.2 26.1 26.8 27.0 27.2 27.0 27.0 27.0 26.5 26.6 27.4 26.6 26.2 27.0 27.1 26.7 27.0 26.7
110.0 25.5 25.4 24.9 25.3 25.3 25.1 25.5 25.2 24.7 25.7 25.7 25.5 25.2 24.8 25.0 24.8 25.2 25.0 24.7 25.0 25.3 25.6 24.6 24.6 24.6 24.9 24.6 25.2 25.2 25.9 25.4 25.1 25.4 25.6 24.9 25.2 24.7 24.4 24.8 24.8 24.6 25.1 25.1 25.1 25.0 25.3 25.5 25.1 25.3 25.6 25.6 25.0 25.3 25.1 25.5 26.0 25.8 25.5 25.2 25.1 25.3 25.5 25.3 25.5 25.5 25.0 25.0 26.0 25.6 25.6 25.2 25.1
115.0 23.6 23.3 23.4 23.5 23.8 23.4 23.8 23.1 23.2 23.7 24.1 24.1 23.8 23.5 23.6 23.5 23.1 23.1 23.1 23.6 23.9 23.9 24.1 23.5 23.2 23.3 23.8 23.6 24.1 24.0 23.7 23.6 23.6 24.0 23.6 22.9 23.0 23.3 23.7 23.8 23.6 23.7 23.3 23.4 23.3 23.7 24.6 24.2 24.0 24.2 23.8 23.4 23.6 23.6 23.9 24.7 24.1 23.6 23.5 22.9 23.6 24.5 23.8 24.3 23.9 23.6 24.0 24.0 23.6 24.1 24.2 23.8
120.0 21.6 21.7 22.1 21.8 22.1 22.4 22.4 21.7 21.7 22.5 21.8 22.1 22.1 22.1 22.0 22.0 22.1 22.5 22.1 21.8 21.8 21.8 22.0 22.3 22.5 22.5 22.1 21.9 22.4 22.4 22.3 22.3 22.1 22.3 22.0 21.7 21.6 22.4 22.4 21.8 22.2 23.1 22.6 21.8 21.5 22.2 22.6 22.5 22.0 21.7 22.4 21.5 21.6 22.1 22.1 22.1 22.0 22.1 21.9 21.8 22.4 22.3 22.1 22.4 21.8 21.8 22.5 22.4 22.1 21.8 22.1 21.6
125.0 20.1 21.0 21.2 21.0 21.0 20.9 20.7 20.4 20.7 20.9 20.4 20.4 20.5 20.2 20.5 20.5 20.3 20.9 20.7 20.3 20.6 20.7 20.7 20.7 21.2 21.0 20.6 20.6 20.6 20.6 20.4 20.9 20.7 20.3 20.3 20.5 20.6 21.1 20.8 20.4 20.2 21.3 21.2 20.2 20.2 20.8 20.7 20.7 20.2 20.5 20.7 20.1 20.6 21.1 20.7 20.4 21.0 21.0 20.8 20.9 20.9 21.0 20.2 19.8 19.8 20.3 20.9 20.9 20.8 20.2 19.7 20.2
130.0 19.7 19.7 19.1 19.4 19.7 19.5 19.4 19.1 19.1 19.2 19.1 19.3 19.2 18.6 19.1 19.2 18.9 19.1 19.2 19.3 19.5 19.0 18.7 19.3 19.5 19.2 18.9 19.2 18.8 19.1 19.2 19.2 18.9 18.7 18.9 18.9 19.0 19.2 19.4 19.3 19.2 19.4 19.7 19.4 19.0 18.6 19.0 19.0 19.4 19.4 19.2 19.3 18.9 19.1 19.2 19.5 19.6 19.4 19.5 19.2 19.5 19.2 19.4 18.9 18.6 18.8 19.2 19.7 20.0 19.5 19.1 19.2
135.0 18.1 17.7 17.1 17.2 17.3 17.2 17.3 17.3 17.4 17.6 17.5 17.6 17.5 17.6 17.5 17.6 17.6 17.4 17.5 17.9 17.8 17.6 17.4 17.7 17.6 16.8 17.3 17.5 17.8 17.8 17.7 17.4 17.3 17.3 17.3 17.5 17.3 17.7 17.8 17.8 17.5 17.7 17.8 17.8 17.7 17.3 17.6 17.7 17.7 17.2 17.2 17.3 17.7 17.5 17.8 17.9 17.7 17.6 17.4 17.8 17.5 17.6 17.7 17.3 17.1 17.1 17.3 17.3 17.6 17.8 17.4 17.8
140.0 15.8 15.5 15.4 15.3 15.3 15.3 15.6 15.6 15.8 15.8 15.8 15.9 15.9 15.9 15.6 15.9 16.0 16.4 15.8 15.6 15.5 15.3 15.3 15.3 15.3 15.5 15.3 15.8 15.9 15.5 15.6 15.8 15.3 15.3 15.8 16.2 15.9 15.8 15.9 15.9 15.9 16.0 15.9 16.0 15.8 15.3 15.6 15.6 15.7 15.3 14.9 15.4 15.5 16.0 16.0 16.2 16.0 15.6 15.7 16.1 15.9 15.6 15.4 15.5 15.3 15.7 15.6 15.4 15.6 15.7 15.8 15.8
145.0 14.2 13.9 13.9 13.6 13.9 13.9 13.8 13.8 14.2 14.3 14.3 14.3 14.5 14.3 14.3 14.3 14.4 14.5 14.0 14.0 13.9 13.9 13.7 13.4 13.4 13.8 13.9 13.9 13.9 13.9 13.8 13.7 13.9 13.7 14.3 14.2 13.9 13.8 13.6 13.9 13.9 14.2 13.8 13.9 13.7 13.5 13.4 13.4 13.8 13.9 13.9 13.9 14.2 14.0 14.0 14.1 14.0 13.7 13.9 14.0 14.1 14.3 14.2 13.9 14.1 14.0 13.9 14.1 13.9 14.1 14.2 14.3
150.0 12.4 12.4 12.4 12.4 12.2 11.9 12.4 12.5 12.4 12.7 12.3 12.1 12.4 12.4 12.6 12.4 12.2 12.5 12.3 12.6 12.8 12.4 12.2 12.2 12.3 12.5 12.4 12.4 12.2 12.4 12.4 12.4 12.4 12.4 12.5 12.2 12.3 12.1 12.2 12.3 12.3 12.4 12.5 12.3 12.4 12.2 12.3 12.2 12.3 12.3 12.2 12.1 12.3 12.1 12.4 12.4 12.3 12.3 12.2 12.1 11.9 11.9 12.4 12.2 12.4 12.1 12.3 12.4 12.1 12.3 12.2 12.5
155.0 10.3 10.3 10.2 10.4 10.4 10.5 10.5 10.7 10.5 10.5 10.5 10.5 10.5 10.5 10.5 10.5 10.4 10.3 10.5 10.4 10.5 10.4 10.4 10.3 10.5 10.6 10.5 10.5 10.5 10.5 10.2 10.5 10.5 10.5 10.4 10.2 10.2 10.2 10.5 10.3 10.3 10.8 10.8 10.9 10.8 10.7 10.7 10.5 10.4 10.3 10.3 10.3 10.3 10.4 10.3 10.4 10.5 10.5 10.4 10.3 10.4 10.4 10.4 10.7 10.9 10.9 10.9 10.8 10.5 10.4 10.1 10.1
160.0 8.0 8.2 8.3 8.6 8.5 8.9 8.8 8.8 8.7 8.8 9.0 9.0 9.0 8.9 8.8 8.5 8.2 8.5 8.6 8.5 8.5 8.5 8.6 8.5 8.6 8.6 8.9 8.7 8.6 8.7 8.7 8.5 8.5 8.7 8.6 8.7 8.5 8.4 8.5 8.3 8.5 8.5 8.5 8.7 8.8 8.6 8.6 8.8 8.5 8.7 8.7 8.7 8.5 8.5 8.5 8.5 8.3 8.5 8.4 8.3 8.5 8.5 8.7 8.7 9.0 9.0 8.8 8.5 8.4 8.4 8.4 8.2
165.0 6.4 6.3 6.5 6.5 6.6 6.8 6.7 6.9 6.9 7.0 7.1 7.2 7.1 7.1 7.0 6.8 6.8 6.6 6.6 6.7 6.8 6.8 6.9 7.0 7.0 6.8 6.9 6.9 6.9 7.1 6.7 6.6 6.7 6.8 6.8 6.6 6.4 6.5 6.4 6.6 6.5 6.6 6.7 6.8 6.9 6.8 6.8 6.9 6.8 6.9 6.7 6.7 6.9 6.8 7.0 7.0 7.0 7.1 7.0 6.8 6.6 6.7 6.8 6.6 6.9 6.8 6.9 7.0 7.1 6.9 6.7 6.6
170.0 5.1 4.9 4.9 4.9 4.9 4.8 5.0 5.0 5.0 5.1 5.1 5.1 5.2 5.1 5.0 5.0 4.8 4.8 4.7 4.7 4.7 4.6 4.6 4.6 4.6 4.8 4.8 4.7 4.8 4.8 4.7 4.8 4.7 4.8 4.6 4.8 4.7 4.6 4.7 4.7 4.6 4.7 4.9 4.8 4.8 4.8 4.6 4.6 4.6 4.6 4.6 4.7 4.8 4.9 5.1 5.2 5.2 5.3 5.2 5.1 5.1 5.0 4.9 5.0 5.1 5.2 5.1 5.2 5.1 5.1 5.2 5.1
175.0 2.8 2.8 2.8 2.9 2.9 2.9 2.9 2.8 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.7 2.8 2.7 2.7 2.7 2.7 2.7 2.8 2.8 2.9 2.9 2.9 2.9 2.9 3.0 3.0 2.9 3.0 3.0 3.0 3.1 3.0 3.0 2.9 2.8 2.9 2.9 2.9 3.0 2.9 2.9 3.0 2.9 2.9 2.9 2.8 2.8 2.7 2.8 2.8 2.8 2.9 2.9 2.9 3.0 3.1 3.1 3.0 3.0 3.0 2.9 2.9 2.9 2.9 2.9 2.8 2.8
180.0 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7
