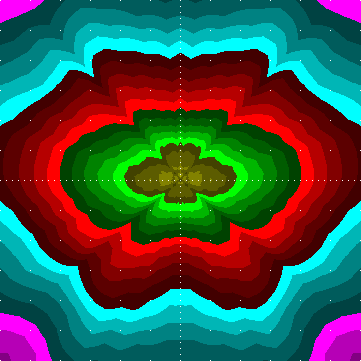

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] CL61-ARC80-PL1E
# [LUMCAT] Joy
# [DATE] 01/08/2011/
# down given: 97%
# out given: 60.8%
# tilt: 0.0
# [LAMP] 1 ST 150 17500 1950 E40
# Bulbs: 1, 17500 lm each
# Source file: Joy_CL61-CLEAR-ARC80-PL1E_1_ST_150_17500_1950_E40.ldt
# Luminaire flux = 608 raw, for the given bulb(s) it would be 10635 lm,
# 60.8 % of the bulb flux
# between 75 and 90: 10.2 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 119.4 cd / 1000 lm , 6.7 % of the luminaire flux
# 90deg and above: max 30.7 cd / 1000 lm , 3.2 % of the luminaire flux
# CutOff Type: IES_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 85 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 353 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 310 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 327 cd / 1000 lm,
# maximum spec. lum. intensity 327 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
2.5 36.9 39.4 35.5 37.3 32.6 32.6 42.0 31.6 35.3 31.9 34.1 32.5 33.2 32.3 32.0 31.3 33.0 31.2 33.6 31.2 33.0 31.3 32.0 32.3 33.2 32.5 34.1 31.9 35.3 31.6 42.0 32.6 32.6 37.3 35.5 39.4 36.9 46.5 39.3 53.2 44.5 56.0 52.3 58.9 55.8 61.0 61.3 60.8 64.9 54.8 64.3 54.9 63.4 58.9 58.3 58.9 63.4 54.9 64.3 54.8 64.9 60.8 61.3 61.0 55.8 58.9 52.3 56.0 44.5 53.2 39.3 46.5
5.0 69.7 80.4 80.7 97.3 79.7 109 84.8 103 67.5 76.3 66.4 61.0 67.6 61.0 58.9 62.2 61.2 70.4 77.3 70.4 61.2 62.2 58.9 61.0 67.6 61.0 66.4 76.3 67.5 103 84.8 109 79.7 97.3 80.7 80.4 69.7 66.6 56.2 62.0 56.0 61.9 65.0 72.4 67.6 82.7 87.0 92.9 96.1 91.2 96.5 90.6 106 84.8 84.4 84.8 106 90.6 96.5 91.2 96.1 92.9 87.0 82.7 67.6 72.4 65.0 61.9 56.0 62.0 56.2 66.6
7.5 95.4 103 99.4 112 105 114 110 122 101 96.8 85.2 77.1 73.3 82.1 90.8 100 102 108 133 108 102 100 90.8 82.1 73.3 77.1 85.2 96.8 101 122 110 114 105 112 99.4 103 95.4 90.3 82.0 76.4 63.7 62.3 60.0 64.2 60.8 73.5 80.2 86.0 87.4 82.7 84.5 76.9 91.5 80.6 80.5 80.6 91.5 76.9 84.5 82.7 87.4 86.0 80.2 73.5 60.8 64.2 60.0 62.3 63.7 76.4 82.0 90.3
10.0 97.3 103 102 115 98.5 111 105 124 110 102 83.3 76.3 78.1 87.4 108 104 126 108 152 108 126 104 108 87.4 78.1 76.3 83.3 102 110 124 105 111 98.5 115 102 103 97.3 102 90.9 94.1 72.1 66.6 56.9 52.2 46.6 60.2 67.9 72.9 71.6 68.5 70.3 63.2 66.1 67.6 66.7 67.6 66.1 63.2 70.3 68.5 71.6 72.9 67.9 60.2 46.6 52.2 56.9 66.6 72.1 94.1 90.9 102
12.5 59.6 48.0 62.1 50.0 47.6 50.0 75.1 118 85.3 94.0 78.8 71.8 78.5 86.6 99.6 91.9 95.6 89.1 124 89.1 95.6 91.9 99.6 86.6 78.5 71.8 78.8 94.0 85.3 118 75.1 50.0 47.6 50.0 62.1 48.0 59.6 43.6 48.1 49.4 55.5 60.6 44.6 47.9 42.2 51.0 63.7 62.7 63.1 57.1 61.2 56.5 61.2 58.4 58.9 58.4 61.2 56.5 61.2 57.1 63.1 62.7 63.7 51.0 42.2 47.9 44.6 60.6 55.5 49.4 48.1 43.6
15.0 86.1 89.2 85.6 104 79.3 101 78.0 61.6 61.1 67.8 55.0 50.5 70.8 83.8 86.0 81.3 87.2 87.6 114 87.6 87.2 81.3 86.0 83.8 70.8 50.5 55.0 67.8 61.1 61.6 78.0 101 79.3 104 85.6 89.2 86.1 96.4 78.3 90.8 71.5 46.0 37.6 45.2 49.0 56.6 62.4 65.5 72.4 68.1 74.0 67.7 76.0 70.0 75.4 70.0 76.0 67.7 74.0 68.1 72.4 65.5 62.4 56.6 49.0 45.2 37.6 46.0 71.5 90.8 78.3 96.4
17.5 92.7 96.9 95.2 103 89.2 108 110 107 78.9 54.2 46.0 55.0 62.6 79.0 84.2 79.2 85.1 84.8 111 84.8 85.1 79.2 84.2 79.0 62.6 55.0 46.0 54.2 78.9 107 110 108 89.2 103 95.2 96.9 92.7 98.7 89.1 95.7 85.7 90.6 64.9 53.4 55.1 72.6 79.8 81.7 84.4 78.7 79.4 71.3 77.4 71.9 71.1 71.9 77.4 71.3 79.4 78.7 84.4 81.7 79.8 72.6 55.1 53.4 64.9 90.6 85.7 95.7 89.1 98.7
20.0 110 124 113 123 114 119 103 110 104 75.4 70.5 67.0 85.8 88.4 97.7 92.4 100 102 134 102 100 92.4 97.7 88.4 85.8 67.0 70.5 75.4 104 110 103 119 114 123 113 124 110 115 101 108 89.2 90.0 71.1 77.0 62.1 76.5 89.0 86.9 85.9 78.0 81.2 73.4 78.9 75.0 74.0 75.0 78.9 73.4 81.2 78.0 85.9 86.9 89.0 76.5 62.1 77.0 71.1 90.0 89.2 108 101 115
22.5 113 118 107 122 120 127 109 106 107 105 62.7 73.2 102 106 111 99.3 110 104 138 104 110 99.3 111 106 102 73.2 62.7 105 107 106 109 127 120 122 107 118 113 117 107 114 100 100 70.7 68.1 61.8 75.7 89.6 87.9 89.7 82.4 85.8 75.7 80.5 77.9 72.2 77.9 80.5 75.7 85.8 82.4 89.7 87.9 89.6 75.7 61.8 68.1 70.7 100 100 114 107 117
25.0 114 120 111 122 108 115 121 109 95.3 85.7 77.7 81.3 114 113 112 104 106 102 132 102 106 104 112 113 114 81.3 77.7 85.7 95.3 109 121 115 108 122 111 120 114 120 110 117 102 104 77.4 65.0 56.8 76.9 85.2 88.7 92.8 83.0 86.6 76.1 78.8 76.8 76.9 76.8 78.8 76.1 86.6 83.0 92.8 88.7 85.2 76.9 56.8 65.0 77.4 104 102 117 110 120
27.5 129 131 131 138 116 118 110 111 97.2 91.5 81.7 86.3 115 113 109 108 106 102 133 102 106 108 109 113 115 86.3 81.7 91.5 97.2 111 110 118 116 138 131 131 129 125 119 121 105 105 77.1 63.9 56.2 76.1 90.9 89.0 93.0 81.8 85.8 74.7 77.9 75.3 74.7 75.3 77.9 74.7 85.8 81.8 93.0 89.0 90.9 76.1 56.2 63.9 77.1 105 105 121 119 125
30.0 141 146 139 155 130 137 120 121 101 87.7 74.5 89.3 123 114 112 113 112 105 135 105 112 113 112 114 123 89.3 74.5 87.7 101 121 120 137 130 155 139 146 141 144 135 140 116 110 82.9 61.1 54.9 76.0 87.9 90.1 90.1 82.0 82.6 72.6 75.5 72.1 71.8 72.1 75.5 72.6 82.6 82.0 90.1 90.1 87.9 76.0 54.9 61.1 82.9 110 116 140 135 144
32.5 150 158 148 160 138 144 129 132 110 93.5 77.3 91.3 126 117 119 116 121 109 140 109 121 116 119 117 126 91.3 77.3 93.5 110 132 129 144 138 160 148 158 150 153 141 149 121 121 87.9 61.6 53.2 71.6 86.7 88.7 86.6 79.0 79.7 68.4 71.3 67.9 68.2 67.9 71.3 68.4 79.7 79.0 86.6 88.7 86.7 71.6 53.2 61.6 87.9 121 121 149 141 153
35.0 149 160 153 166 139 147 132 130 118 96.7 79.5 99.2 127 117 126 125 130 116 148 116 130 125 126 117 127 99.2 79.5 96.7 118 130 132 147 139 166 153 160 149 147 136 144 120 118 92.7 61.6 49.8 70.1 84.5 86.0 83.3 74.5 73.1 65.8 67.6 62.2 61.6 62.2 67.6 65.8 73.1 74.5 83.3 86.0 84.5 70.1 49.8 61.6 92.7 118 120 144 136 147
37.5 139 145 145 157 140 145 128 134 111 96.7 76.2 105 134 121 130 133 134 119 156 119 134 133 130 121 134 105 76.2 96.7 111 134 128 145 140 157 145 145 139 133 125 126 110 109 88.2 62.1 45.3 62.3 77.4 81.3 79.5 69.7 70.0 63.2 66.3 58.1 71.8 58.1 66.3 63.2 70.0 69.7 79.5 81.3 77.4 62.3 45.3 62.1 88.2 109 110 126 125 133
40.0 149 161 143 147 133 140 132 128 110 95.0 76.1 106 139 130 137 141 138 125 160 125 138 141 137 130 139 106 76.1 95.0 110 128 132 140 133 147 143 161 149 148 132 132 104 102 85.7 62.1 42.8 57.2 74.7 75.3 75.3 68.4 67.6 63.5 65.3 56.1 55.1 56.1 65.3 63.5 67.6 68.4 75.3 75.3 74.7 57.2 42.8 62.1 85.7 102 104 132 132 148
42.5 184 186 165 164 137 139 130 133 111 95.8 78.7 113 140 126 137 140 142 126 157 126 142 140 137 126 140 113 78.7 95.8 111 133 130 139 137 164 165 186 184 180 161 152 115 104 84.5 60.2 42.0 53.9 68.9 72.9 72.6 68.0 68.7 64.1 64.0 57.4 57.3 57.4 64.0 64.1 68.7 68.0 72.6 72.9 68.9 53.9 42.0 60.2 84.5 104 115 152 161 180
45.0 234 229 208 190 150 151 139 135 116 94.7 80.1 115 143 129 137 144 147 125 156 125 147 144 137 129 143 115 80.1 94.7 116 135 139 151 150 190 208 229 234 228 198 191 144 112 92.5 65.5 41.6 54.3 69.7 71.8 71.5 65.7 70.0 64.5 61.8 57.4 56.7 57.4 61.8 64.5 70.0 65.7 71.5 71.8 69.7 54.3 41.6 65.5 92.5 112 144 191 198 228
47.5 247 247 228 228 177 169 145 135 116 102 81.4 118 147 129 141 149 145 121 151 121 145 149 141 129 147 118 81.4 102 116 135 145 169 177 228 228 247 247 245 218 212 159 125 103 70.2 39.5 53.7 71.3 71.8 70.5 65.5 67.9 57.8 60.2 55.3 55.5 55.3 60.2 57.8 67.9 65.5 70.5 71.8 71.3 53.7 39.5 70.2 103 125 159 212 218 245
50.0 256 258 232 231 188 181 149 147 121 99.1 82.3 116 148 128 141 148 139 111 141 111 139 148 141 128 148 116 82.3 99.1 121 147 149 181 188 231 232 258 256 258 222 217 160 131 107 73.5 38.4 55.2 70.1 72.0 69.1 65.4 65.0 52.3 58.4 51.3 51.3 51.3 58.4 52.3 65.0 65.4 69.1 72.0 70.1 55.2 38.4 73.5 107 131 160 217 222 258
52.5 264 256 230 223 181 181 156 155 124 98.7 84.7 115 145 126 134 140 128 104 134 104 128 140 134 126 145 115 84.7 98.7 124 155 156 181 181 223 230 256 264 254 228 205 151 130 107 72.2 37.7 54.5 73.3 71.1 69.2 64.5 61.8 51.2 53.3 46.0 59.2 46.0 53.3 51.2 61.8 64.5 69.2 71.1 73.3 54.5 37.7 72.2 107 130 151 205 228 254
55.0 295 295 257 234 177 172 154 155 130 100 81.3 114 139 121 126 121 114 95.0 123 95.0 114 121 126 121 139 114 81.3 100 130 155 154 172 177 234 257 295 295 290 242 214 149 134 105 73.2 38.4 53.4 73.7 69.8 70.1 61.5 57.4 48.0 46.9 39.4 39.2 39.4 46.9 48.0 57.4 61.5 70.1 69.8 73.7 53.4 38.4 73.2 105 134 149 214 242 290
57.5 302 316 282 263 190 173 151 152 132 102 78.4 112 129 111 114 103 99.4 84.2 107 84.2 99.4 103 114 111 129 112 78.4 102 132 152 151 173 190 263 282 316 302 288 236 207 148 133 108 73.7 38.4 53.7 71.8 67.9 68.6 58.3 53.9 42.9 43.9 37.0 39.4 37.0 43.9 42.9 53.9 58.3 68.6 67.9 71.8 53.7 38.4 73.7 108 133 148 207 236 288
60.0 293 304 284 275 198 178 148 147 129 98.8 72.6 108 117 100 99.8 87.5 87.3 73.5 88.6 73.5 87.3 87.5 99.8 100 117 108 72.6 98.8 129 147 148 178 198 275 284 304 293 276 230 208 145 130 110 78.6 40.3 53.1 71.9 66.6 66.7 55.3 50.0 38.4 39.7 34.6 34.1 34.6 39.7 38.4 50.0 55.3 66.7 66.6 71.9 53.1 40.3 78.6 110 130 145 208 230 276
62.5 295 310 279 271 199 180 144 140 123 92.2 66.5 99.8 108 87.4 86.2 72.1 73.8 63.1 76.9 63.1 73.8 72.1 86.2 87.4 108 99.8 66.5 92.2 123 140 144 180 199 271 279 310 295 272 223 198 142 131 111 81.3 41.6 51.8 69.4 66.5 64.7 52.9 45.7 34.7 35.7 30.2 30.0 30.2 35.7 34.7 45.7 52.9 64.7 66.5 69.4 51.8 41.6 81.3 111 131 142 198 223 272
65.0 286 297 278 262 192 178 141 135 115 85.0 61.3 93.2 96.8 78.4 76.1 61.3 64.0 53.9 67.3 53.9 64.0 61.3 76.1 78.4 96.8 93.2 61.3 85.0 115 135 141 178 192 262 278 297 286 260 215 190 140 136 115 85.6 41.9 51.9 67.6 64.1 62.0 49.6 43.8 32.2 31.2 25.6 24.5 25.6 31.2 32.2 43.8 49.6 62.0 64.1 67.6 51.9 41.9 85.6 115 136 140 190 215 260
67.5 304 315 284 269 195 172 135 129 108 77.2 55.3 88.1 87.7 71.8 66.6 55.0 54.3 47.3 59.3 47.3 54.3 55.0 66.6 71.8 87.7 88.1 55.3 77.2 108 129 135 172 195 269 284 315 304 284 227 197 142 136 117 88.1 43.9 50.2 68.3 64.4 61.5 47.6 42.6 29.6 27.5 22.4 21.9 22.4 27.5 29.6 42.6 47.6 61.5 64.4 68.3 50.2 43.9 88.1 117 136 142 197 227 284
70.0 315 327 296 279 198 175 131 123 99.6 70.8 51.1 82.1 78.3 63.6 60.1 48.9 46.5 40.4 49.9 40.4 46.5 48.9 60.1 63.6 78.3 82.1 51.1 70.8 99.6 123 131 175 198 279 296 327 315 290 226 194 140 134 115 89.5 45.4 49.7 65.5 63.2 59.7 45.3 40.7 27.3 24.9 20.0 19.6 20.0 24.9 27.3 40.7 45.3 59.7 63.2 65.5 49.7 45.4 89.5 115 134 140 194 226 290
72.5 296 319 293 286 200 173 130 114 93.4 66.1 47.4 76.9 72.4 58.2 54.6 44.4 40.7 34.3 40.5 34.3 40.7 44.4 54.6 58.2 72.4 76.9 47.4 66.1 93.4 114 130 173 200 286 293 319 296 276 208 192 140 129 114 87.7 45.2 47.8 63.9 61.7 58.9 44.7 41.3 28.1 22.8 18.4 17.7 18.4 22.8 28.1 41.3 44.7 58.9 61.7 63.9 47.8 45.2 87.7 114 129 140 192 208 276
75.0 254 264 254 243 176 164 119 116 91.4 63.3 41.8 73.7 67.5 49.5 47.3 36.1 33.8 27.6 32.9 27.6 33.8 36.1 47.3 49.5 67.5 73.7 41.8 63.3 91.4 116 119 164 176 243 254 264 254 220 167 153 112 126 105 92.9 45.5 46.7 68.9 65.8 48.5 40.1 35.5 26.0 21.5 16.7 16.7 16.7 21.5 26.0 35.5 40.1 48.5 65.8 68.9 46.7 45.5 92.9 105 126 112 153 167 220
77.5 186 186 176 172 125 117 83.3 75.8 67.6 70.5 29.4 57.1 54.7 39.9 34.4 26.5 24.8 18.5 23.9 18.5 24.8 26.5 34.4 39.9 54.7 57.1 29.4 70.5 67.6 75.8 83.3 117 125 172 176 186 186 161 115 101 71.0 73.5 58.9 47.3 29.3 38.8 49.6 54.0 50.5 36.8 34.7 24.9 19.9 15.4 15.1 15.4 19.9 24.9 34.7 36.8 50.5 54.0 49.6 38.8 29.3 47.3 58.9 73.5 71.0 101 115 161
80.0 113 119 118 109 73.9 61.6 45.7 34.6 34.0 37.0 20.6 33.6 34.0 24.6 20.5 15.2 14.4 11.7 12.6 11.7 14.4 15.2 20.5 24.6 34.0 33.6 20.6 37.0 34.0 34.6 45.7 61.6 73.9 109 118 119 113 89.2 62.4 48.9 37.6 32.0 30.8 22.6 17.1 16.4 18.5 25.5 29.9 19.6 19.7 14.9 14.0 12.0 11.9 12.0 14.0 14.9 19.7 19.6 29.9 25.5 18.5 16.4 17.1 22.6 30.8 32.0 37.6 48.9 62.4 89.2
82.5 69.4 70.4 79.8 65.0 50.6 41.7 29.3 24.1 17.5 15.2 13.5 13.6 17.3 14.4 12.4 9.5 9.5 7.6 10.0 7.6 9.5 9.5 12.4 14.4 17.3 13.6 13.5 15.2 17.5 24.1 29.3 41.7 50.6 65.0 79.8 70.4 69.4 54.1 39.0 27.8 21.7 19.8 16.2 14.1 9.6 7.3 8.4 12.3 13.3 10.9 13.1 11.7 11.9 11.0 11.0 11.0 11.9 11.7 13.1 10.9 13.3 12.3 8.4 7.3 9.6 14.1 16.2 19.8 21.7 27.8 39.0 54.1
85.0 39.6 42.7 39.9 42.0 24.9 26.1 18.6 17.5 13.7 12.3 10.9 9.8 9.5 7.3 6.5 5.9 5.9 6.0 6.4 6.0 5.9 5.9 6.5 7.3 9.5 9.8 10.9 12.3 13.7 17.5 18.6 26.1 24.9 42.0 39.9 42.7 39.6 34.4 25.8 19.1 15.6 14.3 12.3 11.0 7.5 5.4 6.4 10.5 11.2 9.6 11.4 10.2 10.3 9.8 9.7 9.8 10.3 10.2 11.4 9.6 11.2 10.5 6.4 5.4 7.5 11.0 12.3 14.3 15.6 19.1 25.8 34.4
87.5 31.3 30.8 29.4 28.4 18.1 18.3 15.7 14.9 11.9 10.7 9.8 8.7 7.9 5.8 5.2 4.7 4.9 4.8 5.2 4.8 4.9 4.7 5.2 5.8 7.9 8.7 9.8 10.7 11.9 14.9 15.7 18.3 18.1 28.4 29.4 30.8 31.3 28.7 20.6 14.5 13.1 13.0 11.2 10.2 7.2 4.9 5.9 10.0 9.8 8.5 9.9 8.8 9.6 8.0 7.8 8.0 9.6 8.8 9.9 8.5 9.8 10.0 5.9 4.9 7.2 10.2 11.2 13.0 13.1 14.5 20.6 28.7
90.0 29.1 29.7 27.8 25.8 15.5 16.2 14.5 13.8 10.9 11.0 9.4 8.4 7.8 5.5 5.1 4.3 4.3 4.0 4.5 4.0 4.3 4.3 5.1 5.5 7.8 8.4 9.4 11.0 10.9 13.8 14.5 16.2 15.5 25.8 27.8 29.7 29.1 25.8 19.5 14.3 12.5 13.1 10.8 10.7 7.1 4.5 5.7 9.3 8.7 7.8 9.1 7.6 8.3 6.8 6.8 6.8 8.3 7.6 9.1 7.8 8.7 9.3 5.7 4.5 7.1 10.7 10.8 13.1 12.5 14.3 19.5 25.8
92.5 29.8 30.7 28.3 28.5 16.8 14.7 13.7 12.6 10.7 12.0 10.4 9.1 8.0 5.5 4.8 3.6 3.8 3.3 3.8 3.3 3.8 3.6 4.8 5.5 8.0 9.1 10.4 12.0 10.7 12.6 13.7 14.7 16.8 28.5 28.3 30.7 29.8 28.6 20.2 17.0 12.3 13.1 11.2 11.1 7.6 4.6 5.9 9.0 8.0 7.3 7.8 7.5 7.3 6.2 6.2 6.2 7.3 7.5 7.8 7.3 8.0 9.0 5.9 4.6 7.6 11.1 11.2 13.1 12.3 17.0 20.2 28.6
95.0 22.3 21.6 20.2 19.0 12.3 10.7 9.1 9.6 8.1 8.6 7.9 6.7 5.3 3.6 3.3 2.5 2.8 2.5 3.0 2.5 2.8 2.5 3.3 3.6 5.3 6.7 7.9 8.6 8.1 9.6 9.1 10.7 12.3 19.0 20.2 21.6 22.3 19.6 15.5 12.8 10.7 12.0 11.5 11.9 7.5 5.0 6.0 8.8 8.0 6.7 7.0 6.3 6.4 5.6 5.8 5.6 6.4 6.3 7.0 6.7 8.0 8.8 6.0 5.0 7.5 11.9 11.5 12.0 10.7 12.8 15.5 19.6
97.5 12.1 12.5 11.7 12.0 9.1 8.3 6.7 5.9 4.4 4.1 4.0 4.1 3.7 3.2 3.0 2.2 2.2 2.0 2.6 2.0 2.2 2.2 3.0 3.2 3.7 4.1 4.0 4.1 4.4 5.9 6.7 8.3 9.1 12.0 11.7 12.5 12.1 11.7 8.9 8.5 7.8 8.3 8.6 9.5 5.8 3.8 5.0 7.7 6.7 4.7 4.5 4.1 3.7 3.6 4.1 3.6 3.7 4.1 4.5 4.7 6.7 7.7 5.0 3.8 5.8 9.5 8.6 8.3 7.8 8.5 8.9 11.7
100.0 5.1 4.9 5.0 6.2 5.5 5.1 4.2 3.5 2.8 2.5 2.4 2.2 2.4 2.4 2.7 2.0 2.0 1.7 2.2 1.7 2.0 2.0 2.7 2.4 2.4 2.2 2.4 2.5 2.8 3.5 4.2 5.1 5.5 6.2 5.0 4.9 5.1 4.5 4.2 5.4 6.3 5.3 5.4 4.9 3.8 3.2 3.4 5.1 4.1 3.3 3.5 3.1 2.2 2.1 2.2 2.1 2.2 3.1 3.5 3.3 4.1 5.1 3.4 3.2 3.8 4.9 5.4 5.3 6.3 5.4 4.2 4.5
102.5 3.3 3.1 3.6 3.7 3.4 3.3 3.0 2.6 2.2 2.1 2.1 1.8 1.8 1.7 1.7 1.5 1.8 1.7 2.2 1.7 1.8 1.5 1.7 1.7 1.8 1.8 2.1 2.1 2.2 2.6 3.0 3.3 3.4 3.7 3.6 3.1 3.3 3.6 3.3 4.0 4.4 3.9 3.6 3.1 2.5 2.4 2.3 2.7 2.5 2.4 2.6 2.8 2.0 1.7 1.9 1.7 2.0 2.8 2.6 2.4 2.5 2.7 2.3 2.4 2.5 3.1 3.6 3.9 4.4 4.0 3.3 3.6
105.0 3.0 3.0 3.0 3.1 3.0 2.6 2.4 2.2 2.0 2.0 1.9 1.7 1.7 1.5 1.7 1.5 1.8 1.6 2.0 1.6 1.8 1.5 1.7 1.5 1.7 1.7 1.9 2.0 2.0 2.2 2.4 2.6 3.0 3.1 3.0 3.0 3.0 3.4 3.0 3.1 2.9 2.8 2.5 2.5 2.1 2.0 2.1 2.0 2.0 1.7 2.0 1.7 1.8 1.7 1.9 1.7 1.8 1.7 2.0 1.7 2.0 2.0 2.1 2.0 2.1 2.5 2.5 2.8 2.9 3.1 3.0 3.4
107.5 3.0 2.9 2.7 2.8 2.4 2.3 2.1 2.0 1.9 1.9 1.9 1.7 1.6 1.5 1.5 1.4 1.7 1.6 2.2 1.6 1.7 1.4 1.5 1.5 1.6 1.7 1.9 1.9 1.9 2.0 2.1 2.3 2.4 2.8 2.7 2.9 3.0 3.2 2.9 2.5 2.3 2.3 2.1 2.2 2.0 2.0 2.0 1.8 1.8 1.6 1.7 1.5 1.7 1.6 1.9 1.6 1.7 1.5 1.7 1.6 1.8 1.8 2.0 2.0 2.0 2.2 2.1 2.3 2.3 2.5 2.9 3.2
110.0 2.5 2.5 2.3 2.2 2.2 2.2 2.0 2.0 1.9 2.0 1.8 1.6 1.6 1.5 1.5 1.3 1.5 1.4 1.9 1.4 1.5 1.3 1.5 1.5 1.6 1.6 1.8 2.0 1.9 2.0 2.0 2.2 2.2 2.2 2.3 2.5 2.5 2.5 2.2 2.4 2.1 2.2 2.0 2.1 2.0 2.0 2.0 1.8 1.7 1.5 1.6 1.4 1.6 1.6 1.9 1.6 1.6 1.4 1.6 1.5 1.7 1.8 2.0 2.0 2.0 2.1 2.0 2.2 2.1 2.4 2.2 2.5
112.5 2.0 2.0 1.8 2.0 2.0 2.0 1.9 2.0 1.8 2.0 1.8 1.6 1.5 1.4 1.3 1.2 1.3 1.2 1.7 1.2 1.3 1.2 1.3 1.4 1.5 1.6 1.8 2.0 1.8 2.0 1.9 2.0 2.0 2.0 1.8 2.0 2.0 2.0 1.9 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.0 1.9 1.7 1.5 1.5 1.3 1.5 1.5 1.7 1.5 1.5 1.3 1.5 1.5 1.7 1.9 2.0 2.2 2.0 2.1 2.0 2.0 2.0 2.0 1.9 2.0
115.0 2.0 2.0 1.8 2.0 1.8 2.0 1.9 2.0 1.8 1.8 1.8 1.6 1.5 1.3 1.3 1.2 1.3 1.2 1.6 1.2 1.3 1.2 1.3 1.3 1.5 1.6 1.8 1.8 1.8 2.0 1.9 2.0 1.8 2.0 1.8 2.0 2.0 2.0 1.7 2.0 1.9 2.0 1.9 2.0 1.9 1.9 2.0 1.9 1.7 1.5 1.5 1.3 1.6 1.5 1.6 1.5 1.6 1.3 1.5 1.5 1.7 1.9 2.0 1.9 1.9 2.0 1.9 2.0 1.9 2.0 1.7 2.0
117.5 2.0 2.0 1.9 2.0 1.7 2.0 1.9 2.0 1.7 1.7 1.7 1.5 1.5 1.2 1.3 1.2 1.3 1.2 1.6 1.2 1.3 1.2 1.3 1.2 1.5 1.5 1.7 1.7 1.7 2.0 1.9 2.0 1.7 2.0 1.9 2.0 2.0 2.0 1.8 1.9 1.8 2.0 1.8 1.9 1.7 1.8 1.8 1.7 1.7 1.5 1.5 1.4 1.6 1.6 1.6 1.6 1.6 1.4 1.5 1.5 1.7 1.7 1.8 1.8 1.7 1.9 1.8 2.0 1.8 1.9 1.8 2.0
120.0 2.1 2.2 2.0 2.1 1.7 2.0 1.9 2.0 1.7 1.7 1.7 1.5 1.5 1.2 1.3 1.2 1.3 1.3 1.7 1.3 1.3 1.2 1.3 1.2 1.5 1.5 1.7 1.7 1.7 2.0 1.9 2.0 1.7 2.1 2.0 2.2 2.1 2.0 1.8 1.9 1.7 1.9 1.8 1.9 1.7 1.7 1.7 1.7 1.7 1.5 1.5 1.4 1.7 1.7 1.7 1.7 1.7 1.4 1.5 1.5 1.7 1.7 1.7 1.7 1.7 1.9 1.8 1.9 1.7 1.9 1.8 2.0
122.5 2.6 2.5 2.3 2.2 1.7 1.9 1.7 1.9 1.7 1.7 1.6 1.5 1.5 1.2 1.3 1.2 1.5 1.5 1.7 1.5 1.5 1.2 1.3 1.2 1.5 1.5 1.6 1.7 1.7 1.9 1.7 1.9 1.7 2.2 2.3 2.5 2.6 2.2 1.9 1.9 1.7 1.9 1.7 1.8 1.6 1.7 1.7 1.7 1.6 1.5 1.5 1.5 2.1 2.2 2.2 2.2 2.1 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.6 1.8 1.7 1.9 1.7 1.9 1.9 2.2
125.0 2.8 3.0 2.7 2.4 1.6 1.7 1.7 1.7 1.5 1.5 1.5 1.4 1.5 1.2 1.3 1.2 1.8 1.9 2.5 1.9 1.8 1.2 1.3 1.2 1.5 1.4 1.5 1.5 1.5 1.7 1.7 1.7 1.6 2.4 2.7 3.0 2.8 2.9 2.0 1.9 1.7 1.8 1.7 1.8 1.6 1.6 1.6 1.6 1.6 1.4 1.5 1.5 2.8 2.8 2.6 2.8 2.8 1.5 1.5 1.4 1.6 1.6 1.6 1.6 1.6 1.8 1.7 1.8 1.7 1.9 2.0 2.9
127.5 3.2 3.0 2.9 2.6 1.6 1.7 1.6 1.7 1.5 1.5 1.5 1.4 1.5 1.2 1.3 1.2 2.3 2.2 3.2 2.2 2.3 1.2 1.3 1.2 1.5 1.4 1.5 1.5 1.5 1.7 1.6 1.7 1.6 2.6 2.9 3.0 3.2 3.1 2.4 1.9 1.7 1.8 1.7 1.8 1.6 1.6 1.6 1.5 1.5 1.4 1.5 1.5 3.3 3.0 3.0 3.0 3.3 1.5 1.5 1.4 1.5 1.5 1.6 1.6 1.6 1.8 1.7 1.8 1.7 1.9 2.4 3.1
130.0 3.3 3.3 3.0 2.9 1.7 1.8 1.6 1.7 1.5 1.5 1.5 1.5 1.5 1.2 1.3 1.5 2.7 2.3 3.2 2.3 2.7 1.5 1.3 1.2 1.5 1.5 1.5 1.5 1.5 1.7 1.6 1.8 1.7 2.9 3.0 3.3 3.3 3.3 2.6 2.0 1.7 1.8 1.7 1.8 1.6 1.6 1.5 1.5 1.5 1.4 1.5 2.0 3.3 3.2 3.2 3.2 3.3 2.0 1.5 1.4 1.5 1.5 1.5 1.6 1.6 1.8 1.7 1.8 1.7 2.0 2.6 3.3
132.5 3.3 3.3 3.1 3.1 1.8 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.2 1.3 2.0 2.7 2.6 3.2 2.6 2.7 2.0 1.3 1.2 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.8 3.1 3.1 3.3 3.3 3.3 2.6 2.1 1.7 1.8 1.7 1.8 1.5 1.6 1.6 1.5 1.5 1.4 1.5 2.1 3.0 3.0 3.2 3.0 3.0 2.1 1.5 1.4 1.5 1.5 1.6 1.6 1.5 1.8 1.7 1.8 1.7 2.1 2.6 3.3
135.0 3.3 3.3 3.0 3.0 1.9 1.7 1.6 1.6 1.5 1.5 1.5 1.4 1.5 1.3 1.3 2.0 2.7 2.6 3.2 2.6 2.7 2.0 1.3 1.3 1.5 1.4 1.5 1.5 1.5 1.6 1.6 1.7 1.9 3.0 3.0 3.3 3.3 3.3 2.5 2.1 1.7 1.8 1.7 1.7 1.5 1.6 1.5 1.5 1.5 1.5 1.5 1.9 2.6 2.7 2.8 2.7 2.6 1.9 1.5 1.5 1.5 1.5 1.5 1.6 1.5 1.7 1.7 1.8 1.7 2.1 2.5 3.3
137.5 3.1 3.2 2.8 2.8 1.8 1.6 1.6 1.6 1.4 1.5 1.5 1.4 1.5 1.3 1.5 2.0 2.5 2.5 3.0 2.5 2.5 2.0 1.5 1.3 1.5 1.4 1.5 1.5 1.4 1.6 1.6 1.6 1.8 2.8 2.8 3.2 3.1 3.2 2.5 2.2 1.7 1.8 1.6 1.7 1.5 1.6 1.5 1.5 1.5 1.5 1.5 1.7 2.2 2.3 2.3 2.3 2.2 1.7 1.5 1.5 1.5 1.5 1.5 1.6 1.5 1.7 1.6 1.8 1.7 2.2 2.5 3.2
140.0 2.7 2.5 2.3 2.5 1.8 1.6 1.5 1.6 1.4 1.5 1.4 1.4 1.4 1.2 1.5 2.0 2.4 2.3 3.0 2.3 2.4 2.0 1.5 1.2 1.4 1.4 1.4 1.5 1.4 1.6 1.5 1.6 1.8 2.5 2.3 2.5 2.7 2.5 2.1 2.0 1.6 1.8 1.6 1.7 1.5 1.6 1.5 1.5 1.5 1.4 1.5 1.7 2.0 2.0 2.0 2.0 2.0 1.7 1.5 1.4 1.5 1.5 1.5 1.6 1.5 1.7 1.6 1.8 1.6 2.0 2.1 2.5
142.5 2.2 2.0 2.0 1.9 1.6 1.6 1.5 1.5 1.3 1.5 1.4 1.4 1.4 1.3 1.5 1.5 1.7 1.7 2.3 1.7 1.7 1.5 1.5 1.3 1.4 1.4 1.4 1.5 1.3 1.5 1.5 1.6 1.6 1.9 2.0 2.0 2.2 2.0 1.9 1.8 1.6 1.7 1.6 1.7 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.4 1.7 1.7 1.6 1.7 1.7 1.4 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.7 1.6 1.7 1.6 1.8 1.9 2.0
145.0 1.7 1.7 1.7 1.7 1.5 1.6 1.5 1.5 1.3 1.4 1.4 1.4 1.4 1.3 1.4 1.4 1.6 1.5 1.9 1.5 1.6 1.4 1.4 1.3 1.4 1.4 1.4 1.4 1.3 1.5 1.5 1.6 1.5 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.5 1.7 1.6 1.6 1.4 1.5 1.5 1.5 1.4 1.3 1.4 1.3 1.5 1.5 1.6 1.5 1.5 1.3 1.4 1.3 1.4 1.5 1.5 1.5 1.4 1.6 1.6 1.7 1.5 1.7 1.7 1.7
147.5 1.6 1.7 1.6 1.7 1.5 1.6 1.5 1.5 1.3 1.4 1.3 1.4 1.4 1.3 1.4 1.2 1.5 1.4 1.9 1.4 1.5 1.2 1.4 1.3 1.4 1.4 1.3 1.4 1.3 1.5 1.5 1.6 1.5 1.7 1.6 1.7 1.6 1.7 1.5 1.7 1.5 1.7 1.5 1.6 1.4 1.5 1.5 1.5 1.4 1.3 1.4 1.3 1.5 1.4 1.3 1.4 1.5 1.3 1.4 1.3 1.4 1.5 1.5 1.5 1.4 1.6 1.5 1.7 1.5 1.7 1.5 1.7
150.0 1.7 1.7 1.7 1.7 1.5 1.7 1.5 1.5 1.3 1.4 1.3 1.3 1.4 1.3 1.4 1.3 1.4 1.4 1.9 1.4 1.4 1.3 1.4 1.3 1.4 1.3 1.3 1.4 1.3 1.5 1.5 1.7 1.5 1.7 1.7 1.7 1.7 1.6 1.5 1.7 1.5 1.7 1.5 1.6 1.4 1.5 1.4 1.5 1.4 1.3 1.4 1.3 1.5 1.4 1.3 1.4 1.5 1.3 1.4 1.3 1.4 1.5 1.4 1.5 1.4 1.6 1.5 1.7 1.5 1.7 1.5 1.6
152.5 1.7 1.8 1.7 2.0 1.6 1.7 1.5 1.5 1.2 1.3 1.2 1.2 1.3 1.3 1.4 1.3 1.4 1.4 1.7 1.4 1.4 1.3 1.4 1.3 1.3 1.2 1.2 1.3 1.2 1.5 1.5 1.7 1.6 2.0 1.7 1.8 1.7 1.7 1.6 1.7 1.5 1.7 1.5 1.5 1.4 1.4 1.4 1.5 1.4 1.3 1.4 1.3 1.5 1.4 1.3 1.4 1.5 1.3 1.4 1.3 1.4 1.5 1.4 1.4 1.4 1.5 1.5 1.7 1.5 1.7 1.6 1.7
155.0 1.7 1.7 1.7 1.9 1.5 1.5 1.4 1.4 1.2 1.2 1.2 1.2 1.3 1.4 1.5 1.3 1.5 1.3 1.7 1.3 1.5 1.3 1.5 1.4 1.3 1.2 1.2 1.2 1.2 1.4 1.4 1.5 1.5 1.9 1.7 1.7 1.7 1.7 1.6 1.7 1.5 1.6 1.5 1.5 1.2 1.4 1.3 1.3 1.4 1.3 1.4 1.3 1.5 1.4 1.3 1.4 1.5 1.3 1.4 1.3 1.4 1.3 1.3 1.4 1.2 1.5 1.5 1.6 1.5 1.7 1.6 1.7
157.5 1.5 1.5 1.5 1.5 1.4 1.5 1.3 1.4 1.2 1.2 1.2 1.2 1.2 1.2 1.4 1.3 1.5 1.4 1.9 1.4 1.5 1.3 1.4 1.2 1.2 1.2 1.2 1.2 1.2 1.4 1.3 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.5 1.4 1.5 1.2 1.4 1.3 1.3 1.4 1.3 1.4 1.3 1.5 1.4 1.3 1.4 1.5 1.3 1.4 1.3 1.4 1.3 1.3 1.4 1.2 1.5 1.4 1.5 1.3 1.5 1.5 1.5
160.0 1.4 1.5 1.4 1.5 1.3 1.5 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.6 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.5 1.3 1.5 1.4 1.5 1.4 1.4 1.4 1.5 1.3 1.5 1.3 1.5 1.2 1.4 1.3 1.3 1.4 1.3 1.4 1.3 1.5 1.4 1.3 1.4 1.5 1.3 1.4 1.3 1.4 1.3 1.3 1.4 1.2 1.5 1.3 1.5 1.3 1.5 1.4 1.4
162.5 1.3 1.3 1.2 1.4 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.1 1.2 1.1 1.5 1.1 1.2 1.1 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.4 1.2 1.3 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.2 1.3 1.3 1.3 1.4 1.3 1.4 1.3 1.5 1.4 1.3 1.4 1.5 1.3 1.4 1.3 1.4 1.3 1.3 1.3 1.2 1.4 1.3 1.4 1.3 1.4 1.3 1.4
165.0 1.2 1.3 1.2 1.4 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.1 1.2 1.1 1.5 1.1 1.2 1.1 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.4 1.2 1.3 1.2 1.2 1.2 1.4 1.2 1.3 1.2 1.4 1.2 1.3 1.3 1.3 1.4 1.3 1.4 1.2 1.4 1.3 1.3 1.3 1.4 1.2 1.4 1.3 1.4 1.3 1.3 1.3 1.2 1.4 1.2 1.3 1.2 1.4 1.2 1.2
167.5 1.2 1.2 1.2 1.4 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.1 1.5 1.1 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.4 1.2 1.2 1.2 1.2 1.2 1.4 1.2 1.3 1.3 1.4 1.2 1.3 1.3 1.3 1.4 1.3 1.4 1.2 1.4 1.3 1.3 1.3 1.4 1.2 1.4 1.3 1.4 1.3 1.3 1.3 1.2 1.4 1.3 1.3 1.2 1.4 1.2 1.2
170.0 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.6 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.3 1.3 1.4 1.3 1.4 1.2 1.4 1.3 1.3 1.3 1.4 1.2 1.4 1.3 1.4 1.3 1.3 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2
172.5 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.6 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.3 1.3 1.4 1.3 1.4 1.2 1.4 1.3 1.3 1.3 1.4 1.2 1.4 1.3 1.4 1.3 1.3 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2
175.0 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.6 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.3 1.3 1.4 1.3 1.4 1.2 1.4 1.3 1.3 1.3 1.4 1.2 1.4 1.3 1.4 1.3 1.3 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2
177.5 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.6 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.3 1.3 1.4 1.3 1.3 1.2 1.4 1.3 1.3 1.3 1.4 1.2 1.3 1.3 1.4 1.3 1.3 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2
180.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
