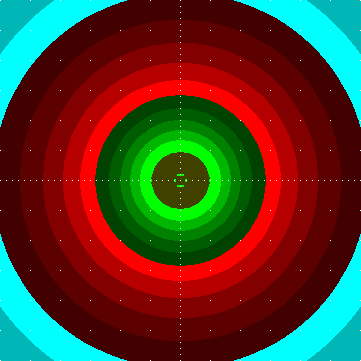

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] L250IJBRK100Sb.tm
# [LUMINAIRE] IJB-P1
# [LUMCAT] IJB
# [DATE] 29/11/2011 12:37:08
# down given: 100.0%
# out given: 70.0%
# tilt: 0.00
# [LAMP] 1 SE 100 10200 1950 E40
# Bulbs: 1, 10200 lm each
# Source file: IJB_IJB-P1_1_SE_100_10200_1950_E40.ldt
# Luminaire flux = 494 raw, for the given bulb(s) it would be 5035 lm,
# 49.4 % of the bulb flux
# between 75 and 90: 20.1 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 82.0 cd / 1000 lm , 17.9 % of the luminaire flux
# 90deg and above: max 81.0?cd / 1000 lm , 0.0?% of the luminaire flux
# CutOff Type: Non-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 0?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 0?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 93 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 89 cd / 1000 lm,
# maximum spec. lum. intensity 97 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0
2.5 36.0 36.0 36.0 36.0 36.0 36.0 36.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 36.0 36.0 36.0 36.0 36.0 36.0
5.0 36.0 36.0 36.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 36.0 36.0 36.0 36.0 36.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 35.0 35.0 35.0 35.0 35.0 35.0 35.0 36.0 36.0
7.5 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 33.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0
10.0 32.0 32.0 33.0 33.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 33.0 33.0 33.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 33.0 33.0 33.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 33.0 33.0 32.0 32.0 32.0 33.0 33.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 33.0 33.0 33.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 33.0 33.0 33.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 33.0 33.0 32.0
12.5 34.0 34.0 34.0 34.0 35.0 35.0 35.0 35.0 35.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 35.0 35.0 35.0 35.0 35.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 35.0 35.0 35.0 35.0 35.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 34.0 35.0 35.0 35.0 35.0 35.0 34.0 34.0 34.0
15.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0
17.5 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 39.0 38.0 38.0 38.0 37.0 37.0 37.0 38.0 37.0 37.0 37.0 38.0 38.0 38.0 39.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 39.0 38.0 38.0 38.0 37.0 37.0 37.0 38.0 37.0 37.0 37.0 38.0 38.0 38.0 39.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0 38.0
20.0 39.0 39.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 39.0 39.0 39.0 39.0 39.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 39.0 39.0 39.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 39.0 39.0 39.0 39.0 39.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 39.0
22.5 42.0 42.0 42.0 42.0 43.0 42.0 43.0 43.0 43.0 43.0 43.0 42.0 42.0 43.0 43.0 43.0 42.0 42.0 43.0 42.0 42.0 43.0 43.0 43.0 42.0 42.0 43.0 43.0 43.0 43.0 43.0 42.0 43.0 42.0 42.0 42.0 42.0 42.0 42.0 42.0 43.0 42.0 43.0 43.0 43.0 43.0 43.0 42.0 42.0 43.0 43.0 43.0 42.0 42.0 43.0 42.0 42.0 43.0 43.0 43.0 42.0 42.0 43.0 43.0 43.0 43.0 43.0 42.0 43.0 42.0 42.0 42.0
25.0 45.0 45.0 45.0 46.0 46.0 46.0 46.0 45.0 45.0 46.0 45.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 45.0 46.0 45.0 45.0 46.0 46.0 46.0 46.0 45.0 45.0 45.0 45.0 45.0 46.0 46.0 46.0 46.0 45.0 45.0 46.0 45.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 46.0 45.0 46.0 45.0 45.0 46.0 46.0 46.0 46.0 45.0 45.0
27.5 49.0 49.0 49.0 49.0 49.0 50.0 50.0 50.0 49.0 49.0 50.0 50.0 51.0 50.0 50.0 50.0 49.0 49.0 49.0 49.0 49.0 50.0 50.0 50.0 51.0 50.0 50.0 49.0 49.0 50.0 50.0 50.0 49.0 49.0 49.0 49.0 49.0 49.0 49.0 49.0 49.0 50.0 50.0 50.0 49.0 49.0 50.0 50.0 51.0 50.0 50.0 50.0 49.0 49.0 49.0 49.0 49.0 50.0 50.0 50.0 51.0 50.0 50.0 49.0 49.0 50.0 50.0 50.0 49.0 49.0 49.0 49.0
30.0 52.0 53.0 53.0 54.0 54.0 54.0 54.0 54.0 54.0 54.0 55.0 55.0 55.0 54.0 54.0 53.0 52.0 52.0 52.0 52.0 52.0 53.0 54.0 54.0 55.0 55.0 55.0 54.0 54.0 54.0 54.0 54.0 54.0 54.0 53.0 53.0 52.0 53.0 53.0 54.0 54.0 54.0 54.0 54.0 54.0 54.0 55.0 55.0 55.0 54.0 54.0 53.0 52.0 52.0 52.0 52.0 52.0 53.0 54.0 54.0 55.0 55.0 55.0 54.0 54.0 54.0 54.0 54.0 54.0 54.0 53.0 53.0
32.5 59.0 59.0 59.0 59.0 59.0 59.0 59.0 58.0 59.0 60.0 60.0 60.0 59.0 59.0 58.0 58.0 58.0 58.0 59.0 58.0 58.0 58.0 58.0 59.0 59.0 60.0 60.0 60.0 59.0 58.0 59.0 59.0 59.0 59.0 59.0 59.0 59.0 59.0 59.0 59.0 59.0 59.0 59.0 58.0 59.0 60.0 60.0 60.0 59.0 59.0 58.0 58.0 58.0 58.0 59.0 58.0 58.0 58.0 58.0 59.0 59.0 60.0 60.0 60.0 59.0 58.0 59.0 59.0 59.0 59.0 59.0 59.0
35.0 65.0 65.0 65.0 65.0 66.0 66.0 65.0 65.0 65.0 66.0 66.0 65.0 65.0 65.0 64.0 64.0 64.0 65.0 65.0 65.0 64.0 64.0 64.0 65.0 65.0 65.0 66.0 66.0 65.0 65.0 65.0 66.0 66.0 65.0 65.0 65.0 65.0 65.0 65.0 65.0 66.0 66.0 65.0 65.0 65.0 66.0 66.0 65.0 65.0 65.0 64.0 64.0 64.0 65.0 65.0 65.0 64.0 64.0 64.0 65.0 65.0 65.0 66.0 66.0 65.0 65.0 65.0 66.0 66.0 65.0 65.0 65.0
37.5 71.0 71.0 71.0 71.0 72.0 71.0 71.0 71.0 71.0 71.0 71.0 71.0 70.0 71.0 70.0 70.0 71.0 71.0 71.0 71.0 71.0 70.0 70.0 71.0 70.0 71.0 71.0 71.0 71.0 71.0 71.0 71.0 72.0 71.0 71.0 71.0 71.0 71.0 71.0 71.0 72.0 71.0 71.0 71.0 71.0 71.0 71.0 71.0 70.0 71.0 70.0 70.0 71.0 71.0 71.0 71.0 71.0 70.0 70.0 71.0 70.0 71.0 71.0 71.0 71.0 71.0 71.0 71.0 72.0 71.0 71.0 71.0
40.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 76.0 77.0 76.0 76.0 76.0 76.0 76.0 77.0 77.0 77.0 77.0 77.0 76.0 76.0 76.0 76.0 76.0 77.0 76.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 76.0 77.0 76.0 76.0 76.0 76.0 76.0 77.0 77.0 77.0 77.0 77.0 76.0 76.0 76.0 76.0 76.0 77.0 76.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0 77.0
42.5 82.0 83.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 81.0 81.0 81.0 82.0 81.0 81.0 81.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 83.0 82.0 83.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 81.0 81.0 81.0 82.0 81.0 81.0 81.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 82.0 83.0
45.0 87.0 88.0 87.0 87.0 86.0 87.0 87.0 87.0 86.0 86.0 86.0 87.0 86.0 86.0 86.0 86.0 85.0 86.0 86.0 86.0 85.0 86.0 86.0 86.0 86.0 87.0 86.0 86.0 86.0 87.0 87.0 87.0 86.0 87.0 87.0 88.0 87.0 88.0 87.0 87.0 86.0 87.0 87.0 87.0 86.0 86.0 86.0 87.0 86.0 86.0 86.0 86.0 85.0 86.0 86.0 86.0 85.0 86.0 86.0 86.0 86.0 87.0 86.0 86.0 86.0 87.0 87.0 87.0 86.0 87.0 87.0 88.0
47.5 91.0 91.0 90.0 91.0 90.0 90.0 91.0 90.0 90.0 90.0 90.0 90.0 89.0 89.0 89.0 90.0 89.0 90.0 90.0 90.0 89.0 90.0 89.0 89.0 89.0 90.0 90.0 90.0 90.0 90.0 91.0 90.0 90.0 91.0 90.0 91.0 91.0 91.0 90.0 91.0 90.0 90.0 91.0 90.0 90.0 90.0 90.0 90.0 89.0 89.0 89.0 90.0 89.0 90.0 90.0 90.0 89.0 90.0 89.0 89.0 89.0 90.0 90.0 90.0 90.0 90.0 91.0 90.0 90.0 91.0 90.0 91.0
50.0 94.0 94.0 93.0 94.0 94.0 93.0 93.0 93.0 93.0 93.0 93.0 92.0 92.0 92.0 93.0 93.0 93.0 94.0 94.0 94.0 93.0 93.0 93.0 92.0 92.0 92.0 93.0 93.0 93.0 93.0 93.0 93.0 94.0 94.0 93.0 94.0 94.0 94.0 93.0 94.0 94.0 93.0 93.0 93.0 93.0 93.0 93.0 92.0 92.0 92.0 93.0 93.0 93.0 94.0 94.0 94.0 93.0 93.0 93.0 92.0 92.0 92.0 93.0 93.0 93.0 93.0 93.0 93.0 94.0 94.0 93.0 94.0
52.5 96.0 96.0 95.0 96.0 95.0 95.0 95.0 95.0 96.0 94.0 94.0 94.0 95.0 96.0 95.0 95.0 94.0 94.0 94.0 94.0 94.0 95.0 95.0 96.0 95.0 94.0 94.0 94.0 96.0 95.0 95.0 95.0 95.0 96.0 95.0 96.0 96.0 96.0 95.0 96.0 95.0 95.0 95.0 95.0 96.0 94.0 94.0 94.0 95.0 96.0 95.0 95.0 94.0 94.0 94.0 94.0 94.0 95.0 95.0 96.0 95.0 94.0 94.0 94.0 96.0 95.0 95.0 95.0 95.0 96.0 95.0 96.0
55.0 97.0 97.0 96.0 96.0 96.0 96.0 96.0 96.0 95.0 95.0 95.0 96.0 96.0 95.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 95.0 96.0 96.0 95.0 95.0 95.0 96.0 96.0 96.0 96.0 96.0 96.0 97.0 97.0 97.0 96.0 96.0 96.0 96.0 96.0 96.0 95.0 95.0 95.0 96.0 96.0 95.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 95.0 96.0 96.0 95.0 95.0 95.0 96.0 96.0 96.0 96.0 96.0 96.0 97.0
57.5 96.0 95.0 95.0 96.0 95.0 95.0 95.0 95.0 95.0 95.0 96.0 94.0 94.0 93.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 93.0 94.0 94.0 96.0 95.0 95.0 95.0 95.0 95.0 95.0 96.0 95.0 95.0 96.0 95.0 95.0 96.0 95.0 95.0 95.0 95.0 95.0 95.0 96.0 94.0 94.0 93.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 94.0 93.0 94.0 94.0 96.0 95.0 95.0 95.0 95.0 95.0 95.0 96.0 95.0 95.0
60.0 94.0 94.0 93.0 93.0 94.0 93.0 93.0 93.0 93.0 93.0 93.0 92.0 92.0 92.0 93.0 93.0 94.0 94.0 94.0 94.0 94.0 93.0 93.0 92.0 92.0 92.0 93.0 93.0 93.0 93.0 93.0 93.0 94.0 93.0 93.0 94.0 94.0 94.0 93.0 93.0 94.0 93.0 93.0 93.0 93.0 93.0 93.0 92.0 92.0 92.0 93.0 93.0 94.0 94.0 94.0 94.0 94.0 93.0 93.0 92.0 92.0 92.0 93.0 93.0 93.0 93.0 93.0 93.0 94.0 93.0 93.0 94.0
62.5 91.0 91.0 91.0 90.0 91.0 90.0 91.0 90.0 91.0 91.0 90.0 90.0 90.0 90.0 91.0 92.0 92.0 92.0 93.0 92.0 92.0 92.0 91.0 90.0 90.0 90.0 90.0 91.0 91.0 90.0 91.0 90.0 91.0 90.0 91.0 91.0 91.0 91.0 91.0 90.0 91.0 90.0 91.0 90.0 91.0 91.0 90.0 90.0 90.0 90.0 91.0 92.0 92.0 92.0 93.0 92.0 92.0 92.0 91.0 90.0 90.0 90.0 90.0 91.0 91.0 90.0 91.0 90.0 91.0 90.0 91.0 91.0
65.0 87.0 88.0 88.0 88.0 88.0 88.0 88.0 88.0 89.0 89.0 88.0 87.0 89.0 89.0 90.0 90.0 90.0 90.0 91.0 90.0 90.0 90.0 90.0 89.0 89.0 87.0 88.0 89.0 89.0 88.0 88.0 88.0 88.0 88.0 88.0 88.0 87.0 88.0 88.0 88.0 88.0 88.0 88.0 88.0 89.0 89.0 88.0 87.0 89.0 89.0 90.0 90.0 90.0 90.0 91.0 90.0 90.0 90.0 90.0 89.0 89.0 87.0 88.0 89.0 89.0 88.0 88.0 88.0 88.0 88.0 88.0 88.0
67.5 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 88.0 87.0 87.0 87.0 87.0 88.0 88.0 89.0 89.0 89.0 89.0 89.0 89.0 89.0 88.0 88.0 87.0 87.0 87.0 87.0 88.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 88.0 87.0 87.0 87.0 87.0 88.0 88.0 89.0 89.0 89.0 89.0 89.0 89.0 89.0 88.0 88.0 87.0 87.0 87.0 87.0 88.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0
70.0 87.0 87.0 86.0 87.0 86.0 87.0 86.0 86.0 87.0 86.0 86.0 86.0 86.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 86.0 86.0 86.0 86.0 87.0 86.0 86.0 87.0 86.0 87.0 86.0 87.0 87.0 87.0 86.0 87.0 86.0 87.0 86.0 86.0 87.0 86.0 86.0 86.0 86.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 87.0 86.0 86.0 86.0 86.0 87.0 86.0 86.0 87.0 86.0 87.0 86.0 87.0
72.5 86.0 86.0 85.0 85.0 85.0 85.0 85.0 86.0 85.0 85.0 85.0 85.0 86.0 86.0 85.0 86.0 86.0 86.0 86.0 86.0 86.0 86.0 85.0 86.0 86.0 85.0 85.0 85.0 85.0 86.0 85.0 85.0 85.0 85.0 85.0 86.0 86.0 86.0 85.0 85.0 85.0 85.0 85.0 86.0 85.0 85.0 85.0 85.0 86.0 86.0 85.0 86.0 86.0 86.0 86.0 86.0 86.0 86.0 85.0 86.0 86.0 85.0 85.0 85.0 85.0 86.0 85.0 85.0 85.0 85.0 85.0 86.0
75.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0 84.0
77.5 83.0 82.0 83.0 83.0 83.0 83.0 82.0 82.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 82.0 82.0 83.0 83.0 83.0 83.0 82.0 83.0 82.0 83.0 83.0 83.0 83.0 82.0 82.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 83.0 82.0 82.0 83.0 83.0 83.0 83.0 82.0
80.0 81.0 81.0 81.0 81.0 81.0 82.0 81.0 82.0 82.0 82.0 82.0 82.0 82.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 82.0 82.0 82.0 82.0 82.0 82.0 81.0 82.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 82.0 81.0 82.0 82.0 82.0 82.0 82.0 82.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 82.0 82.0 82.0 82.0 82.0 82.0 81.0 82.0 81.0 81.0 81.0 81.0
82.5 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0
85.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0
87.5 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0
90.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0
