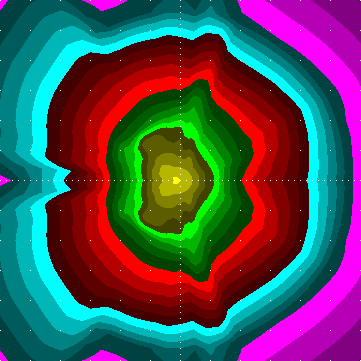

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] HR10S39S.LDT
# [LUMINAIRE] HA2-VMC-3EU-7B
# [LUMCAT] Harmony2
# [DATE] 2007
# down given: 97.91%
# out given: 76.44%
# tilt: 0
# [LAMP] 1 MT 100 8700 2800 E40
# Bulbs: 1, 8700 lm each
# Source file: Harmony2_HA2-VMC-3EU-7B_1_MT_100_8700_2800_E40.ldt
# Luminaire flux = 755 raw, for the given bulb(s) it would be 6570 lm,
# 75.5 % of the bulb flux
# between 75 and 90: 4.1 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 46.0 cd / 1000 lm , 1.9 % of the luminaire flux
# 90deg and above: max 3.3 cd / 1000 lm , 0.9 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 24 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 118 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 233 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 255 cd / 1000 lm,
# maximum spec. lum. intensity 501 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0
#V:
0.0 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197 197
5.0 197 197 196 196 194 191 185 185 184 183 183 182 181 182 181 182 182 183 187 191 192 193 190 191 195 202 212 227 241 237 228 218 215 210 210 215 224
10.0 175 181 177 177 177 176 174 175 176 176 177 180 181 182 183 186 187 188 191 191 191 191 192 195 198 198 203 207 218 236 265 278 267 247 232 232 226
15.0 164 168 168 169 168 168 164 165 166 167 169 170 171 173 171 176 174 181 183 185 187 190 190 191 192 193 195 195 197 199 203 213 220 224 216 217 211
20.0 156 160 161 162 162 160 158 158 158 157 158 160 163 164 164 168 167 174 178 181 179 183 185 186 189 190 192 191 193 194 196 201 204 208 207 212 203
25.0 144 149 148 151 152 151 148 149 146 147 148 149 149 149 148 148 149 154 160 165 167 172 175 180 185 186 190 193 196 198 198 202 205 209 206 207 199
30.0 130 135 134 137 138 137 132 131 129 131 137 145 147 145 139 137 137 142 151 153 154 160 167 174 187 196 204 208 216 217 216 221 216 213 205 205 197
35.0 118 124 124 125 125 119 115 111 112 117 127 147 162 168 165 157 149 151 166 166 168 179 190 206 216 223 228 233 246 254 259 258 253 243 222 208 198
40.0 106 109 112 113 111 107 103 102 106 110 116 125 154 181 177 169 150 152 168 170 180 204 222 235 239 236 236 249 267 269 258 245 237 232 221 221 212
45.0 108 113 109 107 104 101 102 103 98.5 101 106 113 125 152 156 160 147 149 183 195 194 202 214 235 241 249 259 257 261 239 230 229 229 218 206 203 184
50.0 97.5 109 105 102 103 97.4 98.5 100 96.3 97.2 102 107 114 134 160 165 151 156 222 209 201 215 226 240 247 255 253 271 253 226 217 202 185 182 168 150 142
55.0 66.1 71.8 72.4 80.4 89.6 87.6 83.4 84.3 85.3 90.1 95.1 101 106 118 162 173 166 179 252 240 222 248 268 284 299 316 330 333 274 221 175 163 163 150 129 119 110
60.0 50.4 53.6 54.7 62.2 72.3 79.7 81.0 76.2 77.7 81.8 85.8 91.1 97.1 106 156 183 196 196 278 290 280 334 372 391 413 436 501 473 344 227 164 142 142 115 99.4 91.5 82.1
65.0 32.5 40.9 46.6 57.6 68.7 69.6 69.8 72.8 74.3 77.6 80.7 85.6 91.0 98.8 138 188 233 204 212 185 165 163 155 146 135 125 119 117 119 136 174 150 124 88.7 74.1 67.8 62.2
70.0 31.5 40.6 44.1 57.0 69.3 71.9 77.7 73.2 71.9 74.0 76.2 79.6 81.9 88.5 114 197 255 155 113 113 109 108 107 104 98.4 92.4 88.4 87.8 86.3 83.9 80.3 68.4 58.5 58.0 53.0 35.7 33.6
75.0 35.5 39.8 42.8 48.1 56.7 62.0 70.4 64.4 58.5 55.9 52.5 50.0 50.2 51.9 63.8 139 107 71.3 80.1 93.8 88.8 92.4 94.7 91.8 88.2 85.4 80.1 76.9 75.5 72.2 67.2 59.8 49.8 45.9 45.7 16.4 22.7
80.0 6.4 6.5 6.6 6.9 6.9 7.6 7.8 7.4 7.1 6.8 6.6 6.4 6.5 6.8 7.3 11.1 18.4 9.7 12.9 12.7 9.7 9.1 8.5 8.7 15.5 40.0 46.0 42.7 39.6 38.6 35.4 31.7 28.0 22.6 22.6 11.5 5.8
85.0 3.4 3.5 3.5 3.6 3.6 3.7 3.7 3.8 3.9 3.9 3.9 4.0 4.1 4.1 4.2 4.3 4.4 4.5 4.7 4.6 4.4 4.3 4.2 4.2 4.1 4.2 4.1 3.9 3.8 3.7 3.7 3.5 3.5 3.4 3.3 3.3 3.0
90.0 2.5 2.5 2.5 2.6 2.7 2.7 2.8 2.9 2.9 2.9 3.0 3.1 3.1 3.2 3.2 3.2 3.2 3.3 3.2 3.1 3.1 3.0 3.0 2.9 2.9 2.8 2.8 2.7 2.7 2.6 2.5 2.5 2.5 2.4 2.3 2.3 2.1
135.0 2.5 2.5 2.5 2.6 2.7 2.7 2.8 2.9 2.9 2.9 3.0 3.1 3.1 3.2 3.2 3.2 3.2 3.3 3.2 3.1 3.1 3.0 3.0 2.9 2.9 2.8 2.8 2.7 2.7 2.6 2.5 2.5 2.5 2.4 2.3 2.3 2.1
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
