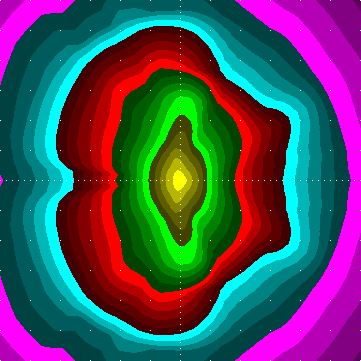

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] HR10S47S.LDT
# [LUMINAIRE] HA2-VMC-3ER-7B
# [LUMCAT] Harmony2
# [DATE] 2007
# down given: 97.79%
# out given: 71.81%
# tilt: 0
# [LAMP] 1 ST 100 10700 1950 E40
# Bulbs: 1, 10700 lm each
# Source file: Harmony2_HA2-VMC-3ER-7B_1_ST_100_10700_1950_E40.ldt
# Luminaire flux = 709 raw, for the given bulb(s) it would be 7584 lm,
# 70.9 % of the bulb flux
# between 75 and 90: 3.8 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 20.0 cd / 1000 lm , 1.8 % of the luminaire flux
# 90deg and above: max 4.3 cd / 1000 lm , 1.0 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 25 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 125 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 437 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 559 cd / 1000 lm,
# maximum spec. lum. intensity 559 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0
#V:
0.0 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258 258
5.0 247 240 237 240 241 238 238 236 236 239 240 240 244 245 248 247 252 250 255 251 253 253 249 248 247 251 254 254 249 248 254 261 262 262 259 261 264
10.0 227 223 223 223 222 220 219 216 217 221 223 224 229 233 239 242 248 250 255 254 260 261 258 258 259 256 255 252 248 247 242 239 239 239 241 239 247
15.0 199 194 194 190 189 187 188 188 191 196 198 203 204 207 213 218 226 229 240 240 248 251 248 246 245 240 239 235 229 227 225 225 223 219 216 218 221
20.0 169 163 164 163 163 161 164 166 164 167 168 171 173 177 188 196 206 214 226 230 239 238 235 235 234 227 223 218 214 213 208 203 203 201 199 201 202
25.0 149 144 145 144 144 145 147 148 148 151 152 157 159 163 175 184 196 209 225 232 242 241 235 229 220 211 205 201 202 197 194 189 185 184 183 182 186
30.0 134 132 131 131 133 133 136 137 139 142 144 145 148 153 164 174 189 207 228 241 255 248 240 222 213 199 191 186 180 179 173 170 166 162 161 159 162
35.0 114 113 111 113 117 119 122 125 128 130 135 139 143 148 164 175 187 202 226 243 260 253 235 213 199 189 177 165 159 155 150 147 144 138 137 136 139
40.0 84.9 83.3 83.4 88.8 94.3 99.4 105 111 115 120 125 132 136 144 160 172 184 198 219 237 252 235 218 194 184 172 161 152 142 137 132 128 126 123 121 120 124
45.0 65.8 64.9 65.4 69.7 74.4 78.6 85.4 91.1 98.9 108 113 121 126 133 153 179 198 214 229 241 254 232 213 186 173 160 145 137 129 124 119 115 111 107 104 104 107
50.0 55.2 53.8 56.3 61.0 64.1 67.8 70.8 76.3 83.9 94.8 102 112 116 125 143 187 232 264 281 265 257 218 189 165 150 141 124 115 110 107 102 98.1 95.0 91.5 88.9 87.4 92.6
55.0 41.9 41.2 44.1 49.8 54.8 59.0 64.2 70.6 76.8 84.7 90.0 95.4 101 110 125 173 249 306 341 301 256 205 174 150 138 121 107 101 97.5 94.1 90.3 85.6 82.7 79.2 75.1 72.3 75.4
60.0 30.3 30.4 33.4 39.6 46.1 53.2 60.6 66.5 72.5 80.2 86.3 93.4 99.3 113 141 224 319 367 375 320 274 225 183 147 126 110 100 94.0 89.6 85.6 82.2 77.0 72.5 68.5 62.2 54.3 58.8
65.0 23.5 23.6 25.2 31.3 39.0 47.6 56.3 63.7 70.1 78.8 84.3 91.3 99.0 115 162 266 366 424 437 387 318 245 196 158 135 116 98.9 88.7 81.9 77.7 73.3 68.7 62.4 57.9 52.1 37.5 44.4
70.0 19.4 19.6 21.0 22.6 31.1 40.0 51.5 58.7 63.5 70.7 77.0 83.0 90.6 104 166 328 458 551 559 461 362 268 206 169 153 132 105 85.9 76.2 69.9 64.2 59.5 53.7 47.8 43.6 24.6 28.0
75.0 12.5 13.5 15.6 16.4 21.1 28.9 33.7 28.1 19.5 15.6 14.7 15.6 16.3 17.4 22.3 38.3 67.4 110 151 181 201 174 129 130 135 127 103 80.3 68.7 61.2 54.6 47.5 43.2 36.9 29.3 15.9 14.0
80.0 6.1 5.6 5.8 5.6 5.6 5.8 6.1 6.2 6.2 6.5 6.9 7.2 7.0 7.4 8.1 9.3 11.2 13.8 15.2 15.1 15.7 18.7 20.0 14.5 14.5 13.3 17.8 17.8 17.5 15.6 14.2 12.9 11.7 11.2 9.9 8.5 7.2
85.0 2.8 2.6 2.7 2.8 2.8 2.9 3.1 3.2 3.3 3.5 3.7 4.0 4.2 4.5 4.8 5.1 5.4 5.7 5.8 5.8 5.7 5.6 5.3 5.0 5.0 4.7 4.4 4.1 3.8 3.6 3.4 3.2 3.1 3.0 2.9 3.0 3.0
90.0 1.9 1.8 1.9 2.0 2.0 2.1 2.2 2.3 2.5 2.7 2.9 3.1 3.3 3.4 3.7 4.0 4.2 4.2 4.3 4.2 4.1 4.0 3.7 3.4 3.3 3.1 2.8 2.6 2.3 2.1 2.0 1.9 1.8 1.8 1.7 1.7 1.6
135.0 1.9 1.8 1.9 2.0 2.0 2.1 2.2 2.3 2.5 2.7 2.9 3.1 3.3 3.4 3.7 4.0 4.2 4.2 4.3 4.2 4.1 4.0 3.7 3.4 3.3 3.1 2.8 2.6 2.3 2.1 2.0 1.9 1.8 1.8 1.7 1.7 1.6
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
