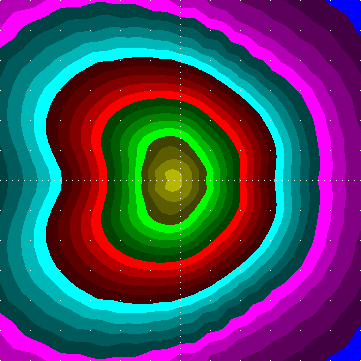

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] HA05F14S.LDT
# [LUMINAIRE] HA2-V-3EU2-7B
# [LUMCAT] Harmony2
# [DATE] 07/2009 / VIARDOT
# down given: 100%
# out given: 55.3%
# tilt: 0
# [LAMP] 1 FSM 57 4300 4000 GX24q5
# Bulbs: 1, 4300 lm each
# Source file: Harmony2_HA2-V-3EU2-7B_1_FSM_57_4300_4000_GX24q5.ldt
# Luminaire flux = 553 raw, for the given bulb(s) it would be 2378 lm,
# 55.3 % of the bulb flux
# between 75 and 90: 2.7 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 31.3 cd / 1000 lm , 0.7 % of the luminaire flux
# 90deg and above: max 1.2 cd / 1000 lm , 0.1?% of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 5?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 25?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 196 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 160 cd / 1000 lm,
# maximum spec. lum. intensity 213 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0
#V:
0.0 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131
2.5 126 127 127 127 127 128 128 128 128 129 129 130 130 130 131 131 132 132 133 133 134 134 134 134 135 135 135 135 135 135 135 136 135 135 135 135 135
5.0 122 123 122 123 124 125 125 126 127 128 129 129 130 130 132 132 134 134 135 135 137 137 138 138 139 139 140 140 140 140 140 141 140 140 140 140 139
7.5 118 118 118 119 121 122 123 124 125 126 127 128 129 130 131 132 134 134 136 136 138 139 140 141 142 143 144 144 145 145 145 145 145 144 144 144 143
10.0 114 114 115 116 118 119 120 121 122 123 125 126 128 128 130 131 133 134 136 138 139 141 142 143 145 146 147 148 149 150 150 150 150 149 148 148 147
12.5 109 110 111 113 114 116 117 118 120 121 123 124 126 128 130 131 133 135 137 139 141 143 145 146 148 150 151 152 153 154 155 155 155 154 152 152 150
15.0 106 106 108 110 111 113 114 115 117 119 121 123 125 127 129 131 134 136 138 141 143 146 148 150 152 154 156 157 158 159 159 160 159 158 156 156 154
17.5 102 103 105 107 108 110 111 113 115 117 119 121 123 125 128 130 133 136 139 142 145 148 151 154 157 159 161 163 164 164 165 165 164 163 161 159 157
20.0 97.9 99.4 101 103 104 107 108 110 112 115 117 120 122 124 127 130 133 136 139 142 146 149 152 156 160 164 167 169 170 170 171 170 169 168 165 163 160
22.5 94.2 95.6 97.7 99.9 101 104 105 107 110 112 115 118 121 124 127 129 133 135 139 142 146 150 153 157 162 166 171 174 177 177 178 176 175 172 169 166 163
25.0 90.4 91.9 94.3 96.3 97.8 100 102 105 107 110 113 116 119 122 126 129 132 135 139 142 146 150 154 158 163 167 172 177 181 183 184 182 180 176 173 169 166
27.5 86.5 87.9 90.3 92.7 94.3 97.2 99.3 102 105 108 111 114 117 121 125 128 133 136 140 143 147 151 154 158 163 168 173 178 184 188 190 188 186 181 177 172 169
30.0 82.8 84.3 86.7 89.3 91.5 94.7 97.1 99.4 102 104 108 111 115 119 124 128 132 136 140 144 148 151 154 159 163 168 173 178 184 190 194 194 191 185 181 175 171
32.5 79.6 81.3 83.8 86.6 89.2 92.4 94.4 96.2 98.1 101 105 108 113 117 122 126 131 135 139 144 148 152 155 159 163 167 172 177 183 190 196 198 196 189 183 176 172
35.0 77.0 78.7 81.3 84.3 87.2 89.9 91.1 92.7 94.6 97.3 101 104 109 113 118 123 128 133 138 143 148 153 156 160 164 167 171 175 181 188 196 201 199 192 184 177 172
37.5 74.6 76.3 78.9 82.0 84.6 87.2 88.2 89.4 91.3 93.7 96.6 101 105 110 115 120 125 131 136 142 147 153 156 161 164 168 171 174 179 185 194 200 201 193 184 176 170
40.0 72.3 74.0 76.6 79.8 82.2 84.4 85.2 85.8 87.3 89.6 92.8 96.7 101 107 112 118 124 130 136 143 149 155 158 162 165 169 171 174 176 181 190 196 200 193 183 173 168
42.5 70.0 71.4 73.4 77.3 80.1 81.4 81.3 81.4 82.4 85.4 88.4 93.1 98.1 104 110 117 123 132 139 146 152 160 162 167 168 171 172 174 175 178 185 191 195 190 179 170 164
45.0 67.1 68.6 71.0 75.1 76.8 77.3 76.4 76.7 78.1 81.6 85.4 90.2 95.9 102 110 117 125 135 143 152 160 168 170 174 174 175 175 175 175 175 178 184 188 185 174 165 159
47.5 63.5 65.4 68.1 71.7 72.7 72.4 71.4 72.9 75.4 79.1 83.2 88.0 94.0 101 110 119 129 141 151 161 170 178 181 184 184 183 180 178 175 173 173 176 179 176 168 159 153
50.0 60.4 62.0 65.1 67.8 68.1 68.1 68.4 70.6 73.7 77.1 81.3 85.9 92.1 99.8 110 120 133 146 159 170 182 189 193 195 196 192 188 182 176 171 167 167 169 166 159 150 146
52.5 56.6 58.5 61.2 63.0 63.3 64.7 65.9 68.8 72.1 75.4 79.1 83.6 89.6 97.4 108 120 135 148 164 176 189 198 203 205 207 203 198 189 179 170 163 158 157 154 147 142 137
55.0 51.4 53.7 56.3 58.3 59.8 61.7 63.4 66.5 69.6 72.6 76.4 79.7 86.1 93.1 105 117 133 148 164 176 190 199 206 210 213 210 206 196 183 170 158 149 145 139 135 131 128
57.5 46.5 48.0 50.8 53.3 55.6 57.6 60.0 63.3 66.4 68.4 71.3 74.7 79.2 87.4 98.4 113 128 143 158 171 183 193 202 207 213 212 210 199 186 170 155 142 133 126 120 118 116
60.0 40.5 42.4 45.2 48.2 50.2 53.0 55.6 58.4 61.3 62.8 64.2 67.4 71.3 79.5 90.8 104 119 133 148 161 172 182 190 197 205 207 207 199 187 169 151 134 122 112 104 105 104
62.5 34.6 36.5 39.2 41.9 44.5 47.7 49.6 51.3 52.8 53.9 56.3 59.3 63.5 69.7 81.0 92.9 107 119 132 145 155 166 175 183 191 194 196 192 183 166 147 127 111 97.9 90.0 89.1 89.1
65.0 28.5 30.3 32.7 35.3 38.7 41.3 41.9 43.2 44.1 46.0 48.7 51.0 54.5 59.5 68.8 79.9 91.7 102 113 123 135 144 155 165 172 178 181 178 172 158 140 119 99.6 85.8 77.3 75.2 74.1
67.5 22.5 22.9 25.5 29.3 31.9 33.0 33.4 34.9 37.1 37.7 39.4 41.0 42.8 47.9 54.3 62.8 72.4 81.2 90.1 101 109 120 130 140 151 156 159 160 155 145 130 110 89.8 74.8 65.1 59.6 60.2
70.0 15.5 17.0 19.0 21.8 23.7 25.1 25.6 26.7 28.3 28.3 30.0 31.1 32.8 36.1 40.5 47.7 52.9 60.8 68.1 76.9 83.1 92.1 102 111 121 130 135 138 135 125 115 99.9 80.6 64.9 53.5 47.3 47.2
72.5 10.8 11.6 13.1 14.9 16.3 17.0 17.5 17.7 18.8 18.8 19.3 19.2 21.5 22.5 25.5 31.3 35.0 40.0 46.8 51.3 57.7 64.8 73.8 82.9 91.1 101 106 110 111 106 98.1 86.4 69.6 52.8 43.0 36.5 33.7
75.0 6.6 6.8 7.7 8.7 9.4 9.6 9.7 10.2 10.3 10.1 10.1 10.9 10.5 12.5 13.5 16.5 18.8 22.3 25.2 30.6 33.5 40.9 45.8 55.2 63.4 70.3 76.7 79.4 82.6 82.3 76.6 68.4 56.7 43.3 32.8 25.8 24.0
77.5 3.3 3.7 3.9 4.0 4.3 4.7 4.8 5.1 4.9 4.7 4.2 4.7 4.3 5.4 5.2 7.5 7.4 10.6 11.8 15.1 17.0 21.2 25.2 30.6 34.7 44.7 48.1 52.6 54.8 55.0 53.1 49.6 41.6 31.7 23.4 17.7 15.7
80.0 2.0 2.1 2.1 2.3 2.3 2.5 2.5 2.6 2.4 2.4 2.2 2.3 2.2 2.3 2.3 2.8 2.9 4.2 4.1 5.8 6.6 9.1 10.6 14.5 16.1 21.5 23.5 26.9 28.5 31.3 30.8 27.7 23.8 18.2 13.4 10.9 10.1
82.5 1.3 1.4 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.6 1.5 1.5 1.5 1.6 1.6 1.6 1.7 1.8 1.8 2.3 2.2 3.5 3.5 4.8 5.6 7.8 8.6 11.0 10.8 13.1 11.6 11.6 9.0 7.8 6.1 5.1 5.4
85.0 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.1 1.0 1.1 1.1 1.1 1.2 1.1 1.1 1.2 1.2 1.3 1.3 1.5 1.4 1.9 1.7 2.5 2.3 3.3 2.5 3.0 2.3 3.0 2.2 2.2 1.8 1.8 1.7
87.5 0.7 0.8 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.8 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.8 0.7 0.8 0.8 0.8 0.7 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6
90.0 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.8 0.9 0.8 0.9 0.8 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.3
92.5 0.8 0.8 0.8 0.8 0.8 0.9 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3
95.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
97.5 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4
100.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5
