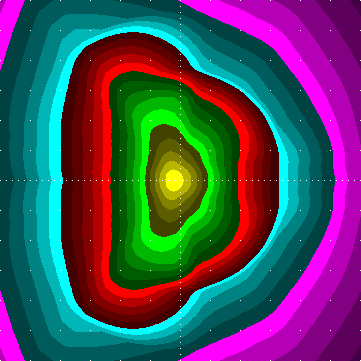

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] HR40I06S.LDT
# [LUMINAIRE] HA2-V-3ER-7B
# [LUMCAT] Harmony2
# [DATE] 2006
# down given: 99.07%
# out given: 74.91%
# tilt: 0
# [LAMP] 1 ST 400 55500 1950 E40
# Bulbs: 1, 55500 lm each
# Source file: Harmony2_HA2-V-3ER-7B_1_ST_400_55500_1950_E40.ldt
# Luminaire flux = 745 raw, for the given bulb(s) it would be 41344 lm,
# 74.5 % of the bulb flux
# between 75 and 90: 3.3 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 35.5 cd / 1000 lm , 1.0 % of the luminaire flux
# 90deg and above: max 2.0 cd / 1000 lm , 0.4 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 10 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 52 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 365 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 403 cd / 1000 lm,
# maximum spec. lum. intensity 403 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0
#V:
0.0 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233 233
5.0 211 213 212 212 211 211 212 212 216 215 216 219 218 219 223 223 225 231 235 236 235 239 241 240 243 244 245 249 254 252 257 257 260 259 261 262 257
10.0 190 193 192 191 190 190 188 190 195 196 199 203 207 210 211 217 219 228 231 238 236 248 248 252 257 263 263 265 270 272 276 276 284 282 285 289 281
15.0 169 172 170 169 170 173 171 173 174 174 182 184 187 189 192 199 201 210 216 226 228 240 244 249 260 269 275 278 285 286 290 294 296 294 299 307 295
20.0 149 154 151 154 154 156 153 157 157 157 164 166 170 173 177 184 186 197 203 212 221 232 241 249 258 269 273 278 290 292 296 300 300 298 302 307 296
25.0 134 137 136 138 138 142 139 143 146 147 148 152 152 154 158 163 168 179 188 200 211 224 236 246 256 263 271 275 285 284 289 291 294 289 287 291 283
30.0 117 118 118 119 121 123 125 126 129 129 131 135 137 139 142 147 152 163 174 187 197 215 229 241 250 258 264 266 270 269 266 272 272 269 265 268 260
35.0 100 101 101 102 105 106 106 108 110 113 115 118 119 126 130 136 143 157 169 183 196 217 232 240 245 248 253 253 248 240 240 238 242 238 233 235 230
40.0 83.8 86.8 86.8 88.8 91.2 90.7 90.4 91.8 93.2 95.8 101 109 116 123 130 137 145 161 174 189 202 223 235 236 241 242 241 226 219 210 202 202 199 198 192 192 188
45.0 72.1 75.0 75.1 77.4 78.0 77.3 76.7 78.0 82.7 89.2 98.0 106 115 121 129 140 146 166 182 198 206 224 237 241 241 236 219 204 191 178 170 166 163 160 153 150 144
50.0 60.6 63.2 64.0 64.7 64.7 65.0 65.8 72.5 80.4 86.8 95.4 104 111 117 124 132 143 168 189 209 224 241 241 239 234 226 208 185 172 154 141 135 130 124 117 115 110
55.0 50.9 52.2 53.4 52.9 53.2 55.6 60.8 69.5 78.1 84.7 91.9 99.4 105 110 115 121 135 173 208 243 258 274 272 267 257 235 209 179 157 132 116 108 104 99.6 94.5 92.9 90.3
60.0 37.0 38.8 39.9 41.0 44.5 51.0 58.2 66.8 74.9 80.5 87.4 94.5 98.5 103 108 114 130 170 216 264 288 316 325 314 302 267 222 179 148 124 108 93.7 86.9 81.3 77.6 75.2 73.7
65.0 26.1 27.5 27.9 30.9 37.3 45.6 53.1 60.2 68.9 75.2 81.8 88.3 92.6 96.0 101 107 127 177 232 287 315 346 362 365 353 314 240 172 132 108 92.6 78.6 68.4 63.8 60.5 59.2 57.1
70.0 18.4 18.9 19.8 23.8 30.4 36.6 43.6 50.9 59.0 64.1 70.0 74.9 79.4 82.8 87.8 93.4 115 193 272 343 377 398 403 393 377 329 237 155 108 86.1 69.3 57.6 49.2 44.7 43.2 42.7 39.8
75.0 9.2 9.1 10.4 10.1 8.9 7.9 7.3 7.4 7.7 7.7 8.3 9.2 9.4 9.4 9.6 10.4 13.1 21.9 37.8 64.2 100 157 220 274 305 282 183 111 76.1 58.8 48.0 40.0 33.6 28.7 27.0 25.0 22.7
80.0 3.5 3.2 3.3 3.3 3.4 3.5 3.6 3.7 3.8 4.0 4.3 4.7 4.8 4.7 4.9 5.0 5.4 6.2 7.4 9.1 10.8 13.1 16.5 21.0 27.2 35.5 35.2 27.7 22.6 19.0 16.9 15.0 13.3 11.4 10.6 9.6 8.1
85.0 1.3 1.3 1.3 1.4 1.4 1.6 1.7 1.8 1.9 2.1 2.2 2.4 2.5 2.6 2.6 2.7 2.6 2.7 2.7 2.9 2.9 3.0 3.0 2.9 2.8 2.7 2.5 2.2 1.9 1.7 1.6 1.5 1.5 1.6 1.6 1.6 1.2
90.0 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.4 1.6 1.7 1.8 1.9 2.0 2.0 2.0 1.9 1.9 1.9 1.8 1.7 1.5 1.3 1.2 1.1 0.9 0.9 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.4
135.0 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.4 1.6 1.7 1.8 1.9 2.0 2.0 2.0 1.9 1.9 1.9 1.8 1.7 1.5 1.3 1.2 1.1 0.9 0.9 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.4
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
