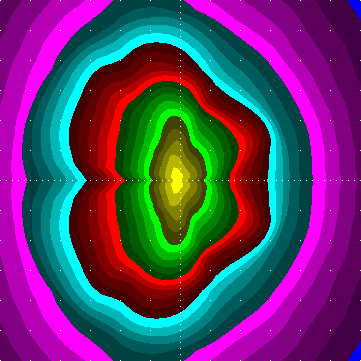

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] 3E
# [TEST] HR10S55S.LDT
# [LUMINAIRE] HA2-V-3ER-4C
# [LUMCAT] Harmony2
# [DATE] EFN / 2009
# down given: 99.13%
# out given: 67.9%
# tilt: 0
# [LAMP] 1 ST 100 10700 1950 E40
# Bulbs: 1, 10700 lm each
# Source file: Harmony2_HA2-V-3ER-4C_1_ST_100_10700_1950_E40.ldt
# Luminaire flux = 676 raw, for the given bulb(s) it would be 7228 lm,
# 67.6 % of the bulb flux
# between 75 and 90: 1.7 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 11.5 cd / 1000 lm , 0.7 % of the luminaire flux
# 90deg and above: max 1.8 cd / 1000 lm , 0.4 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 10 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 48 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 441 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 296 cd / 1000 lm,
# maximum spec. lum. intensity 441 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0
#V:
0.0 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212 212
5.0 185 182 184 185 187 188 193 195 199 202 205 207 213 217 219 223 225 227 230 233 236 236 236 242 244 244 243 244 241 239 236 233 232 232 228 227 230
10.0 158 156 158 162 167 172 180 188 193 199 204 208 212 217 221 223 229 233 238 243 248 253 257 261 263 264 261 260 255 255 255 250 246 239 233 229 228
15.0 133 133 137 145 153 161 169 171 174 180 182 185 191 196 201 204 214 218 230 237 247 256 258 263 263 263 264 263 258 254 252 244 243 235 226 217 217
20.0 114 116 126 139 146 150 156 156 158 161 163 166 171 178 185 192 203 216 225 236 246 256 260 263 262 259 260 253 246 244 241 232 226 219 207 195 189
25.0 104 109 122 134 139 143 146 145 147 150 150 152 157 163 170 178 191 206 220 234 251 259 267 274 270 260 249 241 231 223 220 213 207 198 188 172 162
30.0 94.5 102 116 127 130 132 134 135 138 141 141 142 146 151 159 170 184 202 225 245 265 275 281 281 269 250 237 230 215 204 201 193 190 179 167 148 137
35.0 76.8 86.2 103 110 113 117 121 123 127 134 136 138 141 146 152 165 185 208 235 259 284 295 304 292 271 241 223 209 200 187 177 173 166 157 145 128 110
40.0 54.3 65.5 80.3 85.1 89.9 95.2 102 108 115 123 127 132 136 143 148 161 183 204 234 260 284 306 315 292 257 225 203 186 171 165 157 148 141 134 124 107 89.3
45.0 44.1 55.2 66.1 68.5 72.0 76.7 83.4 89.7 98.6 109 116 123 128 134 141 156 188 222 257 276 292 301 295 269 238 208 189 172 151 139 132 127 120 114 107 89.7 69.6
50.0 35.1 45.2 52.0 56.3 62.0 67.9 73.1 78.1 83.6 93.2 102 108 116 123 132 151 205 276 333 358 343 307 269 228 199 179 167 146 124 116 108 104 97.4 91.7 86.4 70.7 51.2
55.0 27.9 34.4 38.2 44.9 53.1 60.9 67.1 70.2 75.6 83.4 88.0 92.6 98.0 105 115 142 208 292 357 388 361 319 258 209 174 156 142 121 103 97.6 91.0 85.5 78.7 74.8 70.5 57.8 39.4
60.0 18.2 19.1 23.9 34.0 42.9 51.7 58.8 63.6 68.9 75.6 80.2 86.0 89.7 96.8 107 140 215 303 372 408 389 342 270 205 163 143 119 103 91.7 84.9 78.6 71.7 67.3 63.3 59.8 48.7 31.2
65.0 14.1 13.3 15.6 20.5 31.3 40.5 49.0 55.3 61.3 67.7 73.1 79.2 82.9 88.9 97.4 131 219 318 403 441 422 354 277 213 174 142 113 95.0 82.4 74.0 65.9 60.0 54.1 50.7 48.8 33.4 23.3
70.0 10.3 11.0 12.7 14.2 19.2 28.3 34.6 36.3 32.1 27.7 23.2 21.0 19.7 21.5 25.4 43.8 88.2 150 214 271 296 274 226 180 155 134 111 84.8 68.9 60.6 53.9 47.3 41.0 37.5 34.4 19.8 13.9
75.0 3.9 3.8 4.0 4.3 4.6 4.7 4.9 5.1 5.3 5.8 6.2 6.8 7.5 8.2 9.7 13.1 20.2 30.5 44.8 58.1 68.2 72.6 64.0 51.8 54.3 66.1 63.9 53.3 43.5 38.1 34.3 30.3 25.4 19.7 15.3 10.2 7.5
80.0 1.8 1.7 1.8 1.8 1.9 2.0 2.0 2.1 2.3 2.4 2.6 3.0 3.2 3.4 3.7 4.2 5.0 6.3 8.2 10.2 11.2 11.5 10.7 9.0 8.4 8.1 7.4 6.8 5.9 5.5 4.9 4.5 4.3 4.0 3.9 3.8 3.6
85.0 0.8 0.7 0.7 0.8 0.8 0.9 0.9 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.0 2.1 2.1 2.3 2.4 2.5 2.4 2.3 2.1 2.0 2.0 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.2 1.1 1.1 0.9
90.0 0.7 0.6 0.7 0.7 0.7 0.8 0.8 0.9 1.1 1.2 1.3 1.4 1.5 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.5 1.4 1.3 1.2 1.1 0.9 0.8 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4
135.0 0.7 0.6 0.7 0.7 0.7 0.8 0.8 0.9 1.1 1.2 1.3 1.4 1.5 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.5 1.4 1.3 1.2 1.1 0.9 0.8 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
