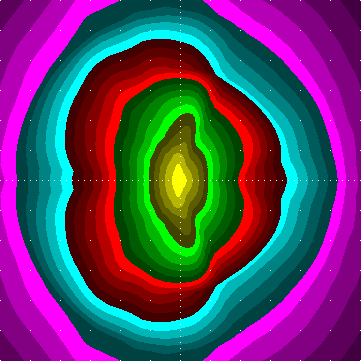

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] HR25I05S.LDT
# [LUMINAIRE] HA2-V-3ER-11B
# [LUMCAT] Harmony2
# [DATE] 2007
# down given: 99.12%
# out given: 75.78%
# tilt: 0
# [LAMP] 1 MT 250 25000 4000 E40
# Bulbs: 1, 25000 lm each
# Source file: Harmony2_HA2-V-3ER-11B_1_MT_250_25000_4000_E40.ldt
# Luminaire flux = 754 raw, for the given bulb(s) it would be 18843 lm,
# 75.4 % of the bulb flux
# between 75 and 90: 2.0 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 10.7 cd / 1000 lm , 0.8 % of the luminaire flux
# 90deg and above: max 1.9 cd / 1000 lm , 0.4 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 10 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 49 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 514 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 376 cd / 1000 lm,
# maximum spec. lum. intensity 514 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0
#V:
0.0 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259 259
5.0 242 243 242 244 243 244 247 248 251 253 251 256 255 256 257 259 261 260 261 261 264 263 258 260 261 262 261 266 265 266 264 261 264 263 264 261 261
10.0 222 223 222 221 220 221 228 232 234 234 236 243 243 246 249 254 258 261 263 264 267 269 266 266 264 263 261 260 258 260 257 254 257 252 249 247 246
15.0 197 193 192 190 188 188 194 198 201 203 206 215 216 224 227 240 249 258 267 273 279 276 267 265 257 253 246 245 243 244 237 237 239 238 232 228 225
20.0 172 173 169 168 167 167 171 174 177 181 184 187 193 199 209 225 236 249 261 275 276 274 268 264 252 250 243 236 226 220 219 217 218 217 219 213 205
25.0 147 150 149 151 151 154 159 161 162 164 165 169 176 186 196 213 235 256 274 291 296 287 272 259 245 235 231 221 214 210 200 196 199 198 198 192 183
30.0 133 135 136 138 139 143 148 151 156 157 157 159 165 176 185 204 228 256 287 307 302 290 276 264 250 234 222 211 206 201 191 184 181 183 179 173 167
35.0 118 119 119 123 125 128 135 140 146 149 153 157 161 170 182 211 237 265 296 320 313 292 266 248 235 223 216 209 195 189 178 171 160 161 159 155 147
40.0 85.8 89.7 92.8 100 105 111 118 126 133 138 145 149 156 163 179 221 253 281 304 324 318 302 273 248 229 217 199 187 178 168 159 144 138 132 132 129 120
45.0 64.7 69.1 71.4 77.5 81.2 88.0 98.4 108 117 125 131 138 143 151 173 218 266 291 303 310 307 291 257 236 230 205 179 166 155 149 136 125 116 109 108 105 97.1
50.0 53.8 58.9 62.5 67.0 71.8 75.1 81.1 89.1 99.4 109 117 123 129 139 167 232 307 336 309 293 276 258 223 211 204 180 162 143 133 128 115 105 95.3 88.1 85.8 84.6 78.9
55.0 46.3 49.8 53.7 58.4 62.7 67.2 73.6 79.5 85.8 92.2 97.6 105 112 124 155 250 359 367 325 301 279 249 202 190 178 160 136 120 111 108 101 92.3 83.9 76.5 72.5 71.9 68.7
60.0 37.6 41.1 46.2 52.9 55.6 60.2 66.3 72.2 77.5 83.8 90.5 97.5 107 123 175 309 430 438 384 337 292 246 199 176 160 139 115 105 100 95.5 86.7 79.7 74.7 66.9 60.9 59.6 57.7
65.0 25.8 27.5 33.7 44.0 50.2 53.8 59.7 64.6 69.9 75.0 81.8 89.3 97.6 115 186 359 507 514 437 370 307 261 213 183 163 142 120 100 87.6 83.1 73.3 65.9 60.3 53.5 46.6 42.3 41.2
70.0 22.4 21.9 22.0 28.6 38.0 44.9 50.6 54.4 56.1 56.8 59.7 62.1 64.1 70.1 107 223 341 376 349 328 292 253 209 182 158 140 111 87.5 74.5 68.1 60.0 51.7 45.1 38.2 30.7 24.9 25.9
75.0 15.0 13.6 11.4 11.2 11.8 12.1 11.8 11.1 10.3 9.6 9.6 9.9 10.3 11.5 14.8 24.5 37.9 54.3 64.4 76.4 86.7 87.9 76.4 76.3 85.6 89.3 80.5 65.0 55.4 49.4 42.8 36.1 30.3 25.4 19.5 15.0 16.2
80.0 2.9 2.8 2.9 3.0 2.9 3.0 3.2 3.3 3.5 3.7 4.0 4.1 4.3 4.4 4.8 5.5 6.9 8.7 9.9 10.7 10.4 10.7 9.7 9.6 9.7 8.1 7.1 6.6 6.4 6.0 5.5 5.2 5.2 5.1 5.1 5.0 4.4
85.0 1.2 1.1 1.2 1.2 1.2 1.3 1.4 1.4 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.5 2.7 2.9 3.1 3.2 2.9 2.7 2.5 2.4 2.2 2.0 1.9 1.8 1.7 1.6 1.5 1.4 1.3 1.3 1.3 1.2 1.2
90.0 0.7 0.7 0.7 0.7 0.8 0.9 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.7 1.8 1.9 1.9 1.9 1.9 1.8 1.7 1.6 1.5 1.4 1.2 1.1 1.0 0.9 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5
135.0 0.7 0.7 0.7 0.7 0.8 0.9 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.7 1.8 1.9 1.9 1.9 1.9 1.8 1.7 1.6 1.5 1.4 1.2 1.1 1.0 0.9 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
