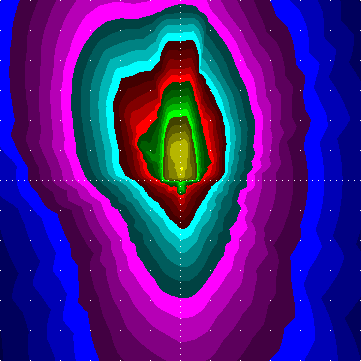

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] HP25I04N.LDT
# [LUMINAIRE] HA2-V-3EP-2L-20°G
# [LUMCAT] Harmony2
# [DATE]
# down given: 99.17%
# out given: 25.1%
# tilt: 0
# [LAMP] 1 MD 250 20000 4200 FC2
# Bulbs: 1, 20000 lm each
# Source file: Harmony2_HA2-V-3EP-2L-20G_1_MD_250_20000_4200_FC2.ldt
# Luminaire flux = 250 raw, for the given bulb(s) it would be 4997 lm,
# 25.0 % of the bulb flux
# between 75 and 90: 1.3 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 7.2 cd / 1000 lm , 0.7 % of the luminaire flux
# 90deg and above: max 1.8 cd / 1000 lm , 0.4 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 9 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 46 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 450 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 243 cd / 1000 lm,
# maximum spec. lum. intensity 669 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5 51.5
5.0 52.0 60.0 68.3 76.3 84.8 93.1 99.8 108 113 121 125 132 137 141 149 153 158 157 151 148 146 141 137 134 130 125 118 115 109 102 95.9 87.9 80.1 72.6 64.6 56.2 47.6 41.2 34.5 29.5 25.8 23.4 21.7 20.9 20.2 19.8 20.2 20.9 21.2 21.7 22.8 23.9 24.4 24.4 23.5 23.2 23.2 22.8 22.7 22.2 21.7 22.0 21.7 22.5 23.5 25.0 25.8 28.3 31.2 34.7 39.1 45.1
10.0 38.2 53.4 68.3 80.4 90.9 99.1 108 118 129 141 148 155 161 165 171 178 183 182 172 170 164 163 158 151 142 135 125 121 113 107 102 97.5 91.3 84.2 72.6 57.4 41.6 28.7 19.2 13.5 9.7 8.3 7.6 7.0 7.2 7.2 8.3 10.0 9.7 11.7 15.0 17.9 19.3 20.4 18.7 19.2 18.4 18.0 18.4 18.7 20.5 19.5 18.0 16.3 14.2 12.4 11.5 11.0 11.2 13.7 18.2 25.8
15.0 35.2 58.1 76.4 87.9 95.8 103 109 113 118 122 128 140 151 164 180 193 197 197 185 185 178 175 163 148 133 127 123 121 115 112 107 103 97.3 92.4 83.1 64.9 42.5 24.4 14.0 8.7 7.5 6.7 6.4 4.6 3.3 3.2 3.2 3.2 3.2 4.2 7.6 11.7 15.9 17.0 16.7 16.3 16.1 16.3 16.3 14.7 11.7 8.0 5.2 3.3 3.0 3.5 5.7 5.8 6.2 6.7 10.5 18.5
20.0 33.2 63.4 81.2 92.2 98.8 103 108 112 116 118 125 132 140 155 189 231 248 253 238 233 226 208 175 145 135 126 121 120 115 115 110 106 103 98.4 89.6 71.1 42.7 19.7 9.5 7.6 6.9 6.5 5.0 4.0 3.0 2.8 2.7 2.7 2.7 2.7 3.0 6.4 11.3 13.8 13.3 12.9 13.8 15.5 15.4 9.9 4.0 2.5 2.5 2.5 2.5 2.8 3.0 3.0 4.8 5.2 5.8 13.5
25.0 29.0 61.2 76.4 87.4 94.3 98.8 104 107 111 116 124 137 158 180 194 230 266 269 251 243 243 211 183 173 156 150 146 127 113 109 106 103 97.9 93.9 85.1 69.4 39.7 13.8 5.5 4.8 2.7 2.5 2.8 3.5 3.9 3.7 2.5 2.1 2.0 2.0 2.0 2.1 3.0 4.6 4.8 5.0 5.2 3.5 2.3 2.1 2.0 2.0 2.0 2.0 1.8 2.0 2.0 2.1 2.3 3.0 3.5 8.8
30.0 14.3 30.4 38.7 45.9 53.2 62.6 76.1 89.4 104 114 122 127 138 160 198 223 261 275 257 254 247 209 189 168 162 161 142 125 112 100 85.8 75.1 63.2 56.2 48.1 37.5 21.0 7.6 4.0 3.2 2.1 2.0 1.8 2.0 1.8 1.8 1.8 1.6 1.6 1.6 1.8 1.8 2.0 2.8 3.0 3.2 3.2 2.1 1.8 1.6 1.6 1.4 1.4 1.4 1.4 1.6 1.6 1.6 1.8 2.0 3.0 4.8
35.0 3.9 5.7 7.5 10.0 14.5 21.4 29.7 43.4 61.7 83.6 106 126 134 154 206 268 311 339 313 310 294 254 236 201 180 145 124 104 81.2 60.2 42.9 31.5 22.0 17.3 12.0 8.7 5.3 4.0 3.0 2.3 2.0 1.8 1.8 1.6 1.4 1.4 1.4 1.4 1.4 1.4 1.6 1.8 1.8 2.3 3.0 3.0 2.7 2.0 1.6 1.6 1.4 1.2 1.2 1.2 1.2 1.2 1.2 1.4 1.4 1.6 2.3 3.0
40.0 3.0 4.0 5.5 6.5 10.6 14.9 13.5 14.0 21.7 37.9 63.5 97.6 129 151 219 331 421 435 418 411 369 338 316 260 180 130 89.6 60.9 36.2 22.7 17.2 14.9 12.7 11.9 9.5 6.7 4.6 3.5 2.7 2.0 1.8 1.8 1.6 1.4 1.2 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.8 2.1 2.5 2.7 2.3 1.8 1.6 1.4 1.4 1.2 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.2 1.4 2.1
45.0 2.1 3.3 5.2 6.4 7.6 8.7 10.3 12.4 14.7 17.7 24.6 50.2 92.9 138 197 364 522 541 503 505 456 428 387 255 137 83.9 47.1 28.3 25.8 18.5 15.9 14.2 12.2 11.0 8.8 6.2 3.9 2.8 2.1 1.8 1.6 1.4 1.4 1.2 1.0 1.0 1.0 1.2 1.2 1.2 1.4 1.6 1.8 2.1 2.5 2.5 2.1 1.8 1.6 1.4 1.2 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.6
50.0 1.6 2.7 4.0 5.0 6.0 7.0 12.5 12.4 13.3 15.9 19.8 23.9 45.9 96.1 156 309 598 669 608 616 558 512 362 164 80.6 43.9 32.7 31.0 32.2 31.0 16.1 13.1 12.2 9.0 7.2 5.2 2.8 2.0 1.4 1.4 1.2 1.2 1.0 1.0 1.0 0.9 1.0 1.0 1.0 1.2 1.4 1.6 1.8 2.0 2.3 2.3 2.0 1.8 1.4 1.2 1.0 1.0 0.9 0.9 0.7 0.7 0.7 0.7 0.7 0.9 0.9 1.0
55.0 0.9 1.4 2.1 2.5 3.0 3.7 5.3 8.0 9.9 11.5 15.5 19.7 25.8 44.2 108 198 508 626 558 561 529 465 251 91.3 47.2 37.9 33.4 36.1 49.4 26.5 16.7 8.7 7.0 6.0 4.8 3.7 2.1 1.6 1.2 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.2 1.4 1.6 1.8 2.3 2.3 2.0 1.6 1.4 1.2 1.0 0.9 0.9 0.7 0.7 0.7 0.5 0.5 0.5 0.7 0.7 0.7
60.0 0.7 0.7 0.9 1.0 1.4 1.8 2.3 3.3 5.3 7.8 10.8 14.5 20.9 27.4 46.4 132 363 563 497 511 476 315 113 57.0 45.5 36.2 35.0 60.4 44.7 10.5 7.6 6.4 5.2 4.2 3.5 3.0 1.6 1.2 1.0 0.9 0.9 0.7 0.7 0.7 0.7 0.7 0.7 0.9 0.9 1.0 1.2 1.4 1.6 1.8 2.1 2.1 2.0 1.6 1.2 1.0 0.9 0.9 0.7 0.7 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
65.0 0.5 0.5 0.7 0.7 0.9 1.0 1.4 2.0 2.7 3.9 6.0 9.0 16.8 27.4 32.5 67.8 192 450 402 418 365 151 48.7 41.6 37.0 32.5 36.4 20.0 12.2 8.8 6.7 5.0 4.6 4.0 3.3 2.8 1.6 1.0 0.9 0.7 0.7 0.5 0.5 0.5 0.5 0.7 0.7 0.7 0.9 1.0 1.2 1.4 1.6 1.8 2.3 2.1 1.8 1.6 1.2 1.0 0.9 0.7 0.7 0.5 0.5 0.5 0.5 0.5 0.3 0.3 0.3 0.5
70.0 0.3 0.3 0.5 0.5 0.7 0.7 0.9 1.2 1.6 2.0 2.7 3.7 6.2 9.5 14.7 24.0 78.4 243 211 215 166 37.7 34.9 33.8 31.3 34.7 26.4 13.8 9.7 6.7 4.8 3.5 2.8 2.3 2.0 1.6 1.2 0.9 0.7 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.7 0.7 0.9 1.0 1.2 1.4 1.8 2.0 2.3 2.3 2.0 1.6 1.2 1.0 0.9 0.7 0.7 0.5 0.5 0.5 0.3 0.3 0.3 0.3 0.3 0.3
75.0 0.3 0.3 0.3 0.3 0.3 0.5 0.5 0.7 0.9 1.0 1.4 2.0 2.5 3.5 5.5 8.2 12.5 79.8 68.1 73.9 27.6 19.5 21.4 21.0 23.7 16.1 12.0 8.5 5.8 4.2 3.0 2.3 1.8 1.6 1.2 1.0 0.9 0.5 0.5 0.3 0.3 0.3 0.3 0.3 0.3 0.5 0.5 0.7 0.9 1.0 1.2 1.4 1.8 2.0 2.1 2.1 1.8 1.4 1.2 1.0 0.9 0.7 0.5 0.5 0.5 0.3 0.3 0.3 0.3 0.3 0.3 0.3
80.0 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.5 0.5 0.7 0.9 1.0 1.4 2.0 2.8 4.2 6.9 7.2 6.5 5.2 5.3 6.5 7.0 6.5 5.3 4.0 3.0 2.1 1.6 1.2 0.9 0.7 0.7 0.5 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.5 0.5 0.7 0.9 1.2 1.4 1.6 1.8 2.1 2.0 1.8 1.4 1.2 1.0 0.9 0.7 0.7 0.5 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.2
85.0 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.5 0.7 1.0 1.4 1.4 1.2 1.0 0.9 0.7 0.5 0.5 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.5 0.7 0.9 1.2 1.4 1.6 1.8 2.0 1.8 1.6 1.4 1.2 1.0 1.0 0.9 0.7 0.5 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2
90.0 0.2 0.2 0.2 0.0 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.2 0.2 0.2 0.2 0.3 0.5 0.7 0.9 1.0 1.2 1.4 1.6 1.8 1.8 1.6 1.4 1.4 1.2 1.0 0.9 0.7 0.5 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2
135.0 0.2 0.2 0.2 0.0 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.2 0.2 0.2 0.2 0.3 0.5 0.7 0.9 1.0 1.2 1.4 1.6 1.8 1.8 1.6 1.4 1.4 1.2 1.0 0.9 0.7 0.5 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
