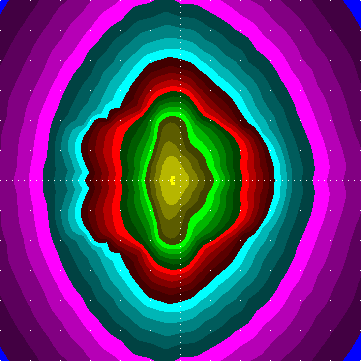

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] HI10S23S.LDT
# [LUMINAIRE] HA1-V-IREFLEC200-3C
# [LUMCAT] Harmony1
# [DATE] 03/07/2009 / FAUVIN
# down given: 98.38%
# out given: 67.79%
# tilt: 0
# [LAMP] 1 ST 100 10700 1950 E40
# Bulbs: 1, 10700 lm each
# Source file: Harmony1_HA1-V-IREFLEC200-3C_1_ST_100_10700_1950_E40.ldt
# Luminaire flux = 678 raw, for the given bulb(s) it would be 7253 lm,
# 67.8 % of the bulb flux
# between 75 and 90: 0.9 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 9.4 cd / 1000 lm , 1.9 % of the luminaire flux
# 90deg and above: max 3.1 cd / 1000 lm , 1.6 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 21 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 42 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 560 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 262 cd / 1000 lm,
# maximum spec. lum. intensity 560 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0
#V:
0.0 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177
2.5 168 167 167 167 169 169 169 169 171 171 171 172 173 173 174 175 176 177 178 179 180 180 181 182 183 184 184 185 186 186 185 187 186 186 185 187 187
5.0 160 160 159 161 160 162 163 163 165 166 166 168 169 171 172 174 176 178 179 181 183 185 186 188 189 191 191 192 194 194 195 196 195 195 194 195 197
7.5 155 153 153 154 155 157 158 158 160 161 162 164 166 168 170 173 175 178 180 184 185 189 190 193 195 197 197 199 201 201 203 202 203 202 200 202 203
10.0 150 149 149 150 151 153 154 155 156 158 158 162 163 166 168 172 174 178 181 186 189 193 195 199 200 203 204 207 208 207 209 210 210 209 207 208 210
12.5 147 146 145 147 148 149 150 151 153 154 155 158 159 162 165 169 172 177 181 186 190 195 199 202 205 209 211 214 215 215 216 216 217 216 215 215 216
15.0 145 143 142 144 145 146 147 148 150 151 151 154 155 158 161 166 168 175 179 185 189 195 199 204 209 212 215 218 221 222 224 224 223 224 222 223 224
17.5 142 141 139 141 142 143 143 143 144 145 146 149 150 155 157 163 166 173 176 184 186 194 196 203 208 214 218 223 228 229 231 233 231 232 231 232 233
20.0 140 139 137 138 138 139 138 139 139 140 141 146 147 153 155 162 165 172 175 181 184 191 193 201 206 213 219 227 232 236 238 240 241 241 240 242 240
22.5 137 136 133 134 134 134 133 133 133 135 136 141 144 152 156 162 166 172 176 182 186 191 195 201 205 214 219 230 238 243 248 248 249 248 248 249 250
25.0 135 133 130 131 130 130 128 127 127 129 131 138 143 150 157 162 169 173 181 185 192 196 202 207 214 221 226 235 243 250 256 256 256 255 253 253 255
27.5 132 129 127 127 125 125 123 122 120 123 126 133 142 149 159 164 172 177 185 191 198 204 215 221 230 233 237 241 246 252 259 259 257 256 253 254 256
30.0 128 126 124 123 122 121 118 117 115 119 123 131 142 149 160 167 175 181 192 201 211 216 228 237 248 249 249 246 246 250 256 256 253 250 248 251 254
32.5 118 120 118 118 117 116 113 111 112 115 123 130 140 148 160 168 178 186 198 212 224 237 253 261 266 259 257 253 251 247 249 248 242 239 240 246 250
35.0 115 114 114 114 113 112 107 108 111 114 123 128 138 145 156 167 178 187 202 221 242 259 277 281 278 271 267 263 260 248 242 236 230 224 226 234 240
37.5 112 111 110 110 108 106 102 103 109 114 122 127 135 141 152 161 175 185 204 225 253 272 289 293 290 283 276 267 264 246 235 222 211 205 206 218 227
40.0 111 109 108 107 104 101 98.0 101 110 113 121 125 131 135 144 153 167 180 201 226 256 276 296 300 300 290 281 264 254 239 225 207 194 191 192 202 208
42.5 110 108 106 104 101 96.5 95.6 99.7 107 113 117 122 127 130 136 145 158 176 201 229 253 277 291 300 302 291 277 254 237 223 214 190 176 173 174 183 197
45.0 110 108 105 102 95.8 91.4 94.2 99.0 105 109 116 120 124 127 133 142 155 178 211 241 264 284 297 303 299 289 261 237 218 202 193 178 159 156 155 162 170
47.5 108 105 101 96.7 88.6 87.0 92.9 96.5 103 107 113 117 122 125 131 140 155 185 226 259 285 306 316 317 308 279 245 218 191 176 167 157 136 135 133 135 140
50.0 99.5 97.4 91.8 86.2 80.2 81.0 89.0 93.4 101 104 109 114 119 122 128 140 159 199 246 284 308 331 345 341 314 267 223 184 155 138 133 120 115 110 113 112 118
52.5 90.9 88.5 79.5 73.6 71.6 75.8 84.8 89.8 96.0 100 105 110 116 120 127 140 166 214 270 310 339 366 375 356 311 244 186 149 122 103 96.7 91.4 85.0 79.0 80.6 84.2 91.3
55.0 81.5 76.1 68.6 63.4 63.2 70.6 80.5 84.3 90.5 94.7 100 106 113 119 127 142 175 235 293 340 375 400 401 355 281 200 146 115 97.4 87.4 79.9 74.4 69.0 62.5 60.7 63.3 65.0
57.5 61.1 63.7 58.7 54.1 57.6 65.2 73.2 77.5 83.6 88.2 94.4 101 109 116 127 146 188 261 334 385 430 449 424 336 223 150 114 95.5 84.4 77.3 72.7 67.2 61.0 52.5 51.8 53.1 56.1
60.0 49.7 51.7 48.8 46.5 52.0 58.7 66.0 70.8 75.8 82.0 87.7 95.0 103 112 124 147 202 297 384 453 495 512 449 297 172 118 95.2 83.0 76.6 70.6 66.2 60.1 54.7 46.2 42.3 44.2 48.1
62.5 40.7 42.1 40.9 40.5 46.4 53.0 58.3 63.3 69.0 75.0 80.8 86.6 96.7 100 113 131 205 310 430 502 560 524 435 249 135 97.8 83.2 76.1 69.8 64.4 60.1 54.5 47.5 40.6 35.1 35.1 38.4
65.0 34.7 34.6 32.9 34.1 40.9 46.4 51.9 56.5 61.9 60.0 63.3 61.7 67.6 64.3 65.3 89.5 143 255 371 426 461 401 324 182 108 84.3 73.9 67.6 64.2 59.0 54.4 47.1 41.4 35.1 30.0 27.5 30.2
67.5 29.1 28.5 26.6 28.5 35.3 38.2 42.4 40.8 38.7 36.3 29.1 28.8 30.6 33.4 36.0 53.1 94.5 169 238 256 262 240 149 103 76.2 70.4 67.6 61.5 57.7 51.4 46.9 40.9 36.1 30.7 24.1 21.3 23.7
70.0 19.5 20.2 18.1 19.1 21.2 21.8 22.7 18.4 12.5 13.0 14.3 17.0 19.2 22.2 26.1 35.6 56.0 95.8 130 147 131 116 78.0 44.2 25.2 30.1 37.2 43.9 50.8 45.9 40.7 35.5 31.6 25.2 19.3 15.8 17.7
72.5 10.6 10.3 10.9 10.0 9.4 8.3 7.0 7.5 7.5 8.1 9.3 11.4 13.6 14.8 17.2 22.2 31.2 49.4 62.2 71.1 66.1 56.6 39.3 25.8 17.5 14.2 11.4 15.6 12.4 28.8 29.1 25.9 23.6 18.4 13.1 8.9 12.2
75.0 4.3 4.6 4.3 4.2 4.3 4.2 4.5 4.9 4.9 5.4 6.8 7.9 8.7 10.0 11.3 14.2 18.1 24.8 28.5 34.2 30.6 29.0 21.0 16.0 12.8 10.9 8.9 7.5 6.5 7.0 6.9 11.4 11.4 9.4 6.4 4.8 5.5
77.5 2.7 3.1 3.1 3.1 3.0 3.0 3.1 3.4 3.6 4.0 4.5 5.0 5.2 6.7 7.1 9.1 10.3 14.3 16.0 16.8 16.2 15.1 12.2 10.3 7.9 7.2 5.6 5.3 4.8 4.4 4.0 3.8 3.6 3.3 3.2 3.4 3.4
80.0 2.0 2.2 2.1 2.0 2.0 2.1 2.2 2.2 2.5 2.5 3.0 3.3 3.5 4.2 4.5 5.3 6.1 7.2 7.2 9.4 8.0 8.0 6.3 5.7 4.7 4.1 3.5 3.3 2.9 2.6 2.5 2.4 2.2 2.2 2.1 2.0 2.2
82.5 1.2 1.3 1.4 1.3 1.3 1.3 1.4 1.6 1.6 1.8 1.9 2.1 2.2 2.5 2.5 2.9 3.2 3.7 4.1 4.4 4.2 4.0 3.3 3.1 2.5 2.5 2.2 2.0 1.9 1.8 1.6 1.6 1.4 1.4 1.3 1.4 1.5
85.0 0.7 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.2 1.2 1.4 1.4 1.6 1.6 1.9 1.9 2.0 2.1 2.3 2.1 2.2 2.0 1.9 1.5 1.5 1.3 1.3 1.1 1.1 1.0 1.1 1.0 1.0 1.0 1.0 1.0
87.5 0.5 0.5 0.5 0.5 0.5 0.7 0.7 0.7 0.7 0.9 1.0 1.1 1.1 1.2 1.1 1.3 1.2 1.3 1.2 1.3 1.3 1.2 1.1 1.0 0.9 0.9 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.5 0.7 0.7
90.0 0.5 0.7 0.5 0.7 0.5 0.7 0.7 0.7 0.9 0.9 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.7 0.7 0.5 0.5 0.5 0.4 0.5 0.4 0.4 0.4 0.4 0.4
92.5 0.5 0.7 0.7 0.7 0.7 0.7 0.7 0.9 1.0 1.0 1.0 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.1 1.1 1.1 1.0 1.0 0.9 0.9 0.7 0.7 0.7 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.5
95.0 0.7 0.7 0.7 0.7 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.3 1.4 1.3 1.4 1.3 1.3 1.2 1.1 1.1 1.0 1.0 0.9 0.9 0.8 0.7 0.7 0.7 0.7 0.7 0.5 0.5 0.5 0.5 0.5
97.5 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.1 1.1 1.2 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.2 1.1 1.1 1.0 0.9 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
100.0 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.4 1.5 1.6 1.5 1.6 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.3 1.1 1.0 1.0 0.9 0.9 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
102.5 0.9 1.0 1.0 1.0 1.0 1.1 1.1 1.3 1.4 1.4 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.4 1.4 1.4 1.3 1.1 1.0 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.8
105.0 1.0 1.1 1.0 1.1 1.1 1.2 1.3 1.4 1.4 1.6 1.6 1.8 1.6 1.8 1.6 1.8 1.6 1.6 1.6 1.6 1.6 1.5 1.4 1.4 1.3 1.1 1.1 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8
107.5 1.1 1.2 1.1 1.2 1.3 1.3 1.4 1.5 1.6 1.6 1.8 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.6 1.6 1.6 1.6 1.5 1.4 1.4 1.3 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
110.0 1.2 1.3 1.3 1.3 1.4 1.4 1.5 1.6 1.6 1.9 1.9 1.9 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9 1.6 1.6 1.6 1.5 1.4 1.3 1.2 1.1 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9
112.5 1.4 1.4 1.4 1.4 1.4 1.5 1.6 1.8 1.9 1.9 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9 1.8 1.6 1.6 1.5 1.4 1.3 1.2 1.1 1.0 1.0 1.0 1.0 1.0 0.9 1.0 1.0
115.0 1.5 1.5 1.5 1.5 1.6 1.6 1.8 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.8 1.6 1.6 1.4 1.3 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0
117.5 1.6 1.6 1.6 1.6 1.6 1.8 1.9 2.0 2.0 2.1 2.1 2.2 2.1 2.0 2.0 2.0 1.9 1.9 1.9 2.0 1.9 1.9 1.9 1.8 1.6 1.5 1.4 1.3 1.2 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.1
120.0 1.8 1.8 1.8 1.8 1.9 1.9 2.0 2.0 2.1 2.2 2.2 2.2 2.1 2.0 2.0 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.0 1.9 1.8 1.6 1.5 1.4 1.3 1.2 1.2 1.1 1.1 1.1 1.0 1.1 1.1
122.5 1.9 1.9 1.9 1.9 2.0 2.0 2.0 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 1.8 1.6 1.5 1.4 1.3 1.2 1.2 1.1 1.1 1.1 1.1 1.2
125.0 1.9 2.0 2.0 2.0 2.0 2.1 2.2 2.2 2.2 2.2 2.3 2.2 2.2 2.2 2.1 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 1.9 1.8 1.6 1.5 1.4 1.4 1.3 1.3 1.3 1.2 1.1 1.1 1.2
127.5 2.0 2.1 2.0 2.1 2.1 2.2 2.2 2.2 2.3 2.4 2.3 2.3 2.3 2.2 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.0 2.0 1.9 1.8 1.6 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.2 1.3
130.0 2.1 2.1 2.2 2.1 2.2 2.2 2.2 2.3 2.4 2.4 2.4 2.4 2.3 2.2 2.2 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.0 1.9 1.8 1.6 1.5 1.5 1.4 1.4 1.4 1.3 1.3 1.3 1.3
132.5 2.2 2.2 2.2 2.2 2.2 2.3 2.4 2.4 2.4 2.5 2.4 2.4 2.3 2.2 2.2 2.2 2.1 2.1 2.1 2.1 2.1 2.2 2.1 2.1 2.0 2.0 1.9 1.8 1.6 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4
135.0 2.2 2.3 2.2 2.3 2.3 2.3 2.4 2.4 2.5 2.5 2.5 2.5 2.4 2.4 2.3 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.0 1.9 1.8 1.6 1.6 1.5 1.4 1.4 1.4 1.4 1.4 1.4
137.5 2.3 2.3 2.3 2.3 2.4 2.4 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.4 2.3 2.4 2.3 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.0 2.0 1.9 1.8 1.6 1.6 1.6 1.4 1.4 1.4 1.4 1.5
140.0 2.3 2.4 2.4 2.4 2.4 2.4 2.5 2.5 2.5 2.5 2.6 2.5 2.5 2.5 2.5 2.5 2.4 2.4 2.4 2.4 2.3 2.3 2.3 2.2 2.2 2.1 2.0 2.0 1.9 1.8 1.6 1.6 1.6 1.6 1.4 1.5 1.6
142.5 2.4 2.4 2.4 2.4 2.5 2.5 2.5 2.5 2.6 2.6 2.6 2.7 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.4 2.4 2.4 2.3 2.3 2.2 2.1 2.0 2.0 1.9 1.8 1.6 1.6 1.6 1.6 1.6 1.6
145.0 2.4 2.5 2.5 2.5 2.5 2.5 2.5 2.6 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.7 2.6 2.6 2.6 2.5 2.5 2.5 2.5 2.4 2.3 2.3 2.2 2.1 2.0 2.0 1.9 1.9 1.6 1.6 1.6 1.6 1.8
147.5 2.5 2.5 2.5 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.4 2.3 2.2 2.2 2.1 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9
150.0 2.5 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.7 2.9 2.9 2.9 2.9 2.9 2.7 2.9 2.7 2.7 2.7 2.7 2.7 2.6 2.5 2.5 2.4 2.3 2.2 2.2 2.1 2.0 2.0 2.0 2.0 1.9 1.9 2.0
152.5 2.6 2.6 2.6 2.6 2.6 2.7 2.7 2.7 2.9 2.9 2.9 3.0 3.0 3.0 3.0 2.9 2.9 2.9 2.9 2.9 2.7 2.7 2.7 2.6 2.5 2.5 2.4 2.3 2.2 2.2 2.2 2.0 2.0 2.0 2.0 2.0 2.0
155.0 2.6 2.6 2.6 2.7 2.7 2.7 2.7 2.7 2.9 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.9 2.9 2.7 2.7 2.7 2.5 2.5 2.4 2.3 2.3 2.2 2.2 2.2 2.2 2.1 2.0 2.0 2.1
157.5 2.7 2.7 2.7 2.7 2.7 2.7 2.9 2.7 2.9 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.9 2.7 2.7 2.7 2.6 2.5 2.5 2.4 2.4 2.3 2.2 2.2 2.2 2.2 2.2 2.2 2.2
160.0 2.7 2.7 2.7 2.7 2.7 2.7 2.9 3.0 3.0 3.0 3.0 3.0 3.1 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.9 2.7 2.7 2.7 2.6 2.5 2.5 2.4 2.4 2.4 2.3 2.3 2.2 2.2 2.2 2.2 2.2
162.5 2.9 2.7 2.7 2.7 2.9 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.9 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.5 2.4 2.4 2.4 2.4 2.3 2.2 2.3 2.3
165.0 2.9 2.7 2.9 2.9 2.9 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.9 2.9 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.5 2.5 2.5 2.4 2.5 2.4 2.4 2.4 2.4
167.5 2.9 2.9 2.9 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.9 2.9 2.9 2.9 2.7 2.7 2.7 2.6 2.6 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
170.0 2.9 2.9 2.9 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.9 2.9 2.9 2.9 2.9 2.7 2.7 2.7 2.7 2.6 2.6 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.6
172.5 2.9 2.9 2.9 3.0 3.0 2.9 3.0 2.9 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.9 2.9 2.9 2.9 2.9 2.9 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.6 2.6 2.5 2.6 2.5 2.6 2.6
175.0 2.9 2.9 2.9 2.9 3.0 2.9 3.0 2.9 3.0 2.9 3.0 2.9 3.0 2.9 3.0 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.7 2.6 2.7
177.5 2.9 2.9 2.7 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7
180.0 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
