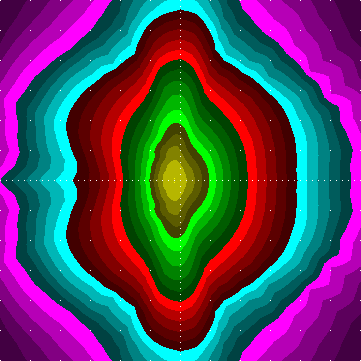

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL FRANCE
# [TEST] HA14I10S.LDT
# [LUMINAIRE] HA1-V-IREFLEC100-(6B)
# [LUMCAT] Harmony1
# [DATE] 03/04/2009 / VIARDOT
# down given: 98%
# out given: 65.6%
# tilt: 0
# [LAMP] 1 MT 140 16500 2800 PGZ12
# Bulbs: 1, 16500 lm each
# Source file: Harmony1_HA1-V-IREFLEC100--6B-__1_MT_140_16500_2800_PGZ12.ldt
# Luminaire flux = 656 raw, for the given bulb(s) it would be 10830 lm,
# 65.6 % of the bulb flux
# between 75 and 90: 3.6 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 62.8 cd / 1000 lm , 2.9 % of the luminaire flux
# 90deg and above: max 4.0 cd / 1000 lm , 2.3 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 30 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 62 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 335 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 356 cd / 1000 lm,
# maximum spec. lum. intensity 356 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0
#V:
0.0 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177 177
2.5 166 166 167 167 168 168 169 168 170 169 171 171 172 173 174 174 176 176 178 178 180 181 181 182 183 184 185 185 186 186 187 186 188 187 186 187 186
5.0 156 157 157 157 158 157 160 161 162 162 164 164 167 168 170 172 174 176 178 179 182 183 185 186 189 189 192 191 194 194 195 195 196 196 195 196 196
7.5 148 148 148 149 150 149 151 152 154 154 157 158 160 163 166 168 171 174 177 179 183 185 188 190 193 194 197 198 201 201 204 203 204 204 203 203 202
10.0 139 139 140 140 141 141 143 144 146 147 150 152 156 158 162 165 169 172 176 180 184 187 191 194 198 199 203 203 206 207 209 208 211 210 209 209 208
12.5 133 132 132 133 134 134 136 137 139 141 145 147 150 154 159 162 167 171 177 181 186 190 194 198 201 203 207 208 211 212 213 213 216 215 214 214 212
15.0 126 126 126 127 128 128 131 132 134 136 139 141 146 150 155 160 166 170 177 182 188 193 198 201 206 206 210 211 214 215 217 216 219 219 218 217 214
17.5 122 121 121 122 123 123 125 127 129 131 135 137 142 147 152 158 164 170 176 183 189 195 201 205 209 211 214 214 217 217 218 218 220 220 219 218 215
20.0 118 117 117 118 119 119 121 122 125 127 131 134 139 144 151 157 164 172 180 188 194 202 205 210 213 214 217 217 219 218 218 217 219 219 219 218 214
22.5 114 113 113 114 115 115 117 118 121 124 127 131 137 143 150 156 166 174 184 193 203 209 214 217 217 217 218 218 220 219 219 216 216 217 218 216 212
25.0 110 110 110 110 111 111 114 115 118 120 124 128 134 139 147 154 164 173 185 197 208 218 224 226 226 222 220 217 216 218 219 215 214 213 214 213 209
27.5 107 106 106 107 108 108 110 112 115 117 121 124 129 135 142 150 160 172 185 199 212 223 229 232 231 228 223 216 212 211 214 214 211 209 209 209 205
30.0 104 103 103 104 105 106 108 110 112 114 117 120 125 130 138 147 159 171 186 201 217 227 234 234 234 229 224 216 210 204 203 206 206 201 201 202 199
32.5 100 99.0 99.2 100 102 103 105 107 109 110 113 116 121 127 135 145 158 172 189 204 221 231 236 234 234 228 223 214 205 197 192 192 196 190 188 193 193
35.0 96.1 95.8 96.2 97.3 98.4 100 102 103 106 107 110 113 118 124 133 144 159 174 190 208 226 234 237 231 229 221 219 209 198 187 180 178 176 176 173 178 180
37.5 93.0 92.4 92.8 93.8 95.7 97.1 99.5 101 103 104 107 110 115 122 132 144 160 176 195 212 230 237 235 227 220 209 207 199 189 178 166 159 156 158 155 160 162
40.0 89.1 88.8 90.0 90.8 92.6 93.8 96.3 98.0 100 102 105 108 113 120 131 144 162 181 201 219 235 242 236 225 211 197 190 181 178 165 154 144 139 138 135 137 145
42.5 86.2 85.5 86.3 87.8 89.5 90.8 93.4 95.1 97.6 99.5 103 106 112 118 129 144 164 187 209 231 249 255 247 231 211 189 171 160 158 148 138 127 119 115 116 117 122
45.0 83.0 81.9 82.4 84.0 86.2 87.7 90.0 92.3 95.0 97.4 101 105 110 117 127 143 166 193 221 249 269 274 263 245 220 190 162 141 133 129 120 110 103 98.8 97.4 98.3 102
47.5 79.0 78.3 79.3 80.6 82.4 84.1 87.2 89.5 92.4 95.2 99.1 103 108 115 126 143 169 205 242 271 292 288 273 250 225 194 160 131 116 109 106 98.7 90.1 85.9 83.9 84.6 87.2
50.0 75.3 74.6 75.1 77.0 79.3 80.6 83.6 86.2 89.8 93.0 97.0 100 106 113 125 143 173 216 259 286 295 284 268 242 223 192 158 125 104 96.4 93.7 85.4 80.0 74.4 71.2 70.8 73.5
52.5 71.8 71.3 72.1 73.2 75.4 77.3 80.0 83.3 87.1 89.9 94.1 97.8 104 111 123 142 177 226 273 293 291 272 245 224 206 179 153 120 97.6 87.2 82.3 74.8 69.7 64.9 62.3 61.4 64.2
55.0 67.7 67.4 68.4 69.6 71.4 73.4 76.4 79.4 83.8 87.1 91.1 95.1 101 109 121 141 181 238 289 307 297 267 231 200 178 157 138 112 92.6 79.7 72.9 67.3 62.1 58.2 56.2 53.6 53.4
57.5 64.3 63.8 64.1 65.8 67.9 69.7 72.8 76.1 80.0 83.4 88.1 92.0 98.3 107 118 139 184 248 305 321 305 267 221 182 151 132 118 100 85.4 74.3 66.1 60.3 55.4 52.7 49.2 46.0 44.6
60.0 59.1 59.0 59.9 61.5 63.5 65.3 69.1 72.0 76.0 80.0 84.3 88.8 95.4 103 115 136 183 252 309 324 305 266 219 170 134 113 98.9 86.9 77.3 67.8 61.2 55.3 51.0 46.5 42.5 38.5 36.7
62.5 54.8 55.0 54.8 56.5 58.6 61.2 64.8 68.3 71.9 76.2 81.2 85.2 91.6 99.4 111 133 180 254 311 328 312 269 220 163 125 100 88.3 78.5 70.1 62.0 56.4 50.6 46.1 40.3 35.8 32.3 31.3
65.0 50.1 49.4 50.0 51.8 54.8 57.2 61.1 64.0 68.2 71.4 76.6 81.0 87.1 94.9 106 129 180 259 322 335 316 263 204 151 114 93.4 82.4 72.3 64.7 57.2 51.1 46.1 41.0 34.8 30.4 27.3 25.6
67.5 44.7 44.0 44.6 46.9 49.6 52.5 55.9 58.9 62.5 66.4 70.9 74.6 81.2 88.4 100 124 181 270 332 341 304 234 174 126 101 86.3 76.6 67.3 59.8 52.9 47.5 41.8 36.3 29.8 26.0 22.0 20.9
70.0 37.6 38.0 39.3 41.2 43.9 46.5 50.1 52.6 56.5 59.0 64.2 67.7 73.5 80.9 91.7 115 183 284 354 356 297 205 136 102 87.5 77.8 69.9 62.2 55.8 49.5 44.0 38.7 31.6 25.7 21.3 18.3 17.7
72.5 30.9 31.0 32.0 33.7 36.3 38.2 42.4 43.8 47.8 51.0 55.0 57.9 63.0 66.8 78.6 99.7 173 280 355 352 283 174 108 83.3 71.9 64.8 59.8 55.4 50.8 45.3 40.6 35.3 27.5 21.6 17.5 15.8 16.9
75.0 23.2 22.1 23.8 25.5 27.6 29.3 32.7 33.8 36.8 37.3 40.3 38.1 38.7 45.5 48.3 64.8 127 220 288 264 214 117 73.1 57.8 54.4 51.6 48.7 45.4 42.3 39.2 34.4 29.9 23.4 18.4 14.1 13.8 16.3
77.5 13.3 13.9 15.1 16.7 18.1 18.2 18.4 19.9 17.5 15.0 13.1 16.5 13.9 16.0 17.7 31.3 72.2 137 161 145 106 57.0 29.2 25.6 19.5 23.5 22.7 25.2 26.5 26.5 26.1 24.0 18.2 14.3 10.8 11.0 15.4
80.0 6.2 6.0 7.2 6.7 6.1 7.1 4.3 5.4 3.7 4.7 4.6 5.6 5.8 6.8 8.5 13.8 30.0 53.5 62.8 53.0 39.4 24.2 12.4 8.9 7.1 6.6 6.3 6.9 7.3 8.2 8.4 9.3 6.7 5.7 4.3 5.1 8.9
82.5 1.4 1.5 1.3 1.5 1.5 1.7 1.9 2.0 2.0 2.3 2.7 3.3 3.5 4.0 4.2 5.7 8.6 16.0 12.9 16.3 9.6 8.8 5.3 4.4 3.7 3.2 2.7 2.4 2.3 2.0 1.9 1.8 1.5 1.4 1.3 1.2 1.5
85.0 0.9 0.9 0.8 0.9 0.9 1.0 1.0 1.1 1.3 1.5 1.6 1.9 2.0 2.2 2.3 2.7 2.7 3.6 3.3 3.9 2.6 2.9 2.3 2.2 1.8 1.7 1.5 1.4 1.3 1.3 1.2 1.1 1.0 0.9 0.9 0.9 0.8
87.5 0.7 0.6 0.6 0.6 0.6 0.8 0.8 0.9 1.0 1.1 1.2 1.4 1.5 1.6 1.6 1.8 1.7 1.8 1.7 1.7 1.6 1.6 1.4 1.4 1.1 1.0 1.0 1.0 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6
90.0 0.8 0.6 0.6 0.7 0.8 0.8 0.9 0.9 1.0 1.2 1.3 1.5 1.6 1.6 1.7 1.8 1.8 1.8 1.8 1.7 1.6 1.5 1.4 1.3 1.1 1.0 1.0 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.5
92.5 0.9 0.7 0.8 0.8 0.8 0.9 0.9 1.0 1.1 1.3 1.5 1.6 1.7 1.8 1.9 1.9 1.9 1.9 1.9 1.9 1.8 1.6 1.5 1.4 1.3 1.1 1.0 1.0 0.9 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.6
95.0 0.9 0.8 0.9 0.8 0.9 1.0 1.0 1.1 1.3 1.5 1.7 1.8 1.9 2.0 2.0 2.1 2.0 2.1 2.0 2.0 1.9 1.8 1.6 1.5 1.5 1.3 1.1 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.7
97.5 1.0 0.9 0.9 1.0 1.0 1.1 1.1 1.3 1.5 1.6 1.8 1.9 2.0 2.1 2.2 2.2 2.3 2.3 2.3 2.2 2.0 1.9 1.9 1.7 1.5 1.4 1.3 1.1 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.7
100.0 1.1 1.0 1.0 1.0 1.1 1.2 1.3 1.4 1.6 1.8 2.0 2.1 2.3 2.3 2.3 2.4 2.3 2.4 2.3 2.3 2.3 2.1 2.0 1.9 1.8 1.5 1.4 1.3 1.1 1.1 1.0 1.0 1.0 1.0 1.0 0.9 0.8
102.5 1.3 1.1 1.1 1.2 1.3 1.3 1.4 1.6 1.8 1.9 2.1 2.3 2.3 2.4 2.4 2.5 2.4 2.4 2.4 2.3 2.3 2.3 2.2 2.0 1.9 1.6 1.5 1.4 1.3 1.1 1.1 1.1 1.0 1.0 1.0 1.0 0.9
105.0 1.4 1.2 1.3 1.3 1.4 1.4 1.6 1.7 1.9 2.1 2.3 2.4 2.5 2.6 2.6 2.6 2.6 2.5 2.4 2.4 2.4 2.3 2.3 2.1 1.9 1.8 1.6 1.5 1.4 1.3 1.2 1.1 1.1 1.1 1.1 1.1 1.0
107.5 1.5 1.4 1.4 1.4 1.5 1.6 1.7 1.9 2.0 2.3 2.4 2.5 2.7 2.7 2.7 2.7 2.6 2.6 2.6 2.5 2.5 2.4 2.3 2.2 2.0 1.9 1.8 1.5 1.5 1.4 1.3 1.2 1.2 1.2 1.1 1.2 1.0
110.0 1.7 1.5 1.5 1.6 1.6 1.7 1.9 2.0 2.2 2.4 2.6 2.7 2.8 2.8 2.8 2.8 2.7 2.6 2.6 2.6 2.6 2.6 2.4 2.3 2.2 2.0 1.9 1.6 1.5 1.5 1.4 1.3 1.3 1.3 1.2 1.2 1.1
112.5 1.8 1.6 1.7 1.7 1.8 1.9 2.0 2.2 2.4 2.5 2.7 2.8 2.8 2.9 2.8 2.8 2.8 2.7 2.7 2.7 2.7 2.7 2.6 2.4 2.3 2.2 1.9 1.8 1.6 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.2
115.0 1.9 1.8 1.9 1.9 2.0 2.1 2.2 2.3 2.6 2.7 2.8 3.0 2.9 3.0 2.9 2.9 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.6 2.4 2.3 2.0 1.9 1.8 1.6 1.5 1.5 1.4 1.4 1.4 1.4 1.3
117.5 2.1 2.0 2.0 2.0 2.1 2.2 2.3 2.5 2.7 2.8 2.9 3.0 3.1 3.1 3.1 2.9 2.9 2.8 2.8 2.8 2.9 2.8 2.8 2.7 2.5 2.3 2.2 1.9 1.9 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.4
120.0 2.3 2.1 2.2 2.2 2.3 2.3 2.5 2.7 2.8 3.0 3.1 3.1 3.2 3.1 3.1 3.1 2.9 2.9 2.9 2.9 2.9 2.8 2.8 2.7 2.6 2.4 2.3 2.0 1.9 1.8 1.7 1.6 1.6 1.6 1.6 1.6 1.4
122.5 2.4 2.3 2.3 2.3 2.4 2.5 2.7 2.8 2.9 3.0 3.2 3.2 3.2 3.2 3.2 3.1 2.9 2.9 2.9 2.9 2.9 2.9 2.8 2.8 2.6 2.4 2.3 2.2 2.0 1.9 1.8 1.7 1.7 1.7 1.6 1.6 1.5
125.0 2.5 2.5 2.4 2.5 2.6 2.7 2.8 2.8 3.1 3.2 3.3 3.3 3.3 3.2 3.2 3.1 3.0 2.9 2.9 2.9 2.9 2.9 2.9 2.8 2.7 2.5 2.4 2.3 2.1 1.9 1.9 1.8 1.8 1.7 1.7 1.7 1.6
127.5 2.7 2.5 2.6 2.7 2.8 2.8 2.9 3.0 3.1 3.3 3.3 3.3 3.3 3.3 3.2 3.1 3.1 3.0 3.0 3.0 3.0 3.0 2.9 2.8 2.7 2.6 2.4 2.3 2.2 2.0 1.9 1.9 1.8 1.8 1.8 1.8 1.7
130.0 2.8 2.7 2.8 2.8 2.8 2.9 3.1 3.2 3.2 3.3 3.4 3.5 3.4 3.3 3.3 3.2 3.2 3.1 3.1 3.0 3.1 3.0 3.0 2.9 2.8 2.7 2.5 2.3 2.3 2.1 2.0 1.9 1.9 1.9 1.9 1.9 1.8
132.5 2.9 2.8 2.8 2.9 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.5 3.5 3.4 3.3 3.3 3.3 3.2 3.2 3.2 3.2 3.1 3.1 3.0 2.9 2.8 2.6 2.4 2.3 2.2 2.1 2.0 2.0 2.0 2.0 1.9 1.9
135.0 3.0 2.9 2.9 3.0 3.1 3.1 3.2 3.3 3.4 3.5 3.5 3.5 3.5 3.5 3.4 3.3 3.3 3.3 3.3 3.3 3.3 3.2 3.2 3.1 3.0 2.8 2.7 2.6 2.4 2.3 2.2 2.1 2.1 2.1 2.0 2.0 1.9
137.5 3.1 3.0 3.1 3.1 3.2 3.2 3.3 3.4 3.5 3.5 3.6 3.6 3.6 3.5 3.5 3.5 3.4 3.4 3.4 3.3 3.3 3.3 3.3 3.1 3.0 2.9 2.8 2.7 2.5 2.4 2.3 2.3 2.2 2.2 2.2 2.1 2.0
140.0 3.2 3.1 3.2 3.2 3.2 3.3 3.4 3.4 3.5 3.5 3.7 3.6 3.7 3.6 3.6 3.5 3.5 3.5 3.5 3.5 3.4 3.4 3.3 3.2 3.1 3.0 2.9 2.8 2.6 2.5 2.4 2.3 2.3 2.3 2.3 2.3 2.1
142.5 3.3 3.2 3.2 3.3 3.3 3.3 3.5 3.5 3.5 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.6 3.5 3.6 3.5 3.5 3.5 3.4 3.3 3.2 3.1 3.0 2.8 2.7 2.6 2.5 2.5 2.4 2.4 2.3 2.3 2.3
145.0 3.3 3.3 3.3 3.3 3.3 3.4 3.5 3.5 3.6 3.7 3.7 3.8 3.8 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.6 3.5 3.5 3.4 3.3 3.2 3.0 2.9 2.8 2.7 2.6 2.6 2.5 2.5 2.5 2.5 2.4
147.5 3.3 3.3 3.3 3.3 3.5 3.5 3.5 3.5 3.7 3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.7 3.5 3.4 3.3 3.2 3.2 3.0 2.9 2.8 2.8 2.7 2.7 2.6 2.6 2.5 2.5
150.0 3.4 3.3 3.3 3.5 3.5 3.5 3.6 3.6 3.7 3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.6 3.5 3.4 3.3 3.2 3.1 3.0 3.0 2.8 2.8 2.8 2.7 2.7 2.7 2.6
152.5 3.4 3.5 3.5 3.5 3.5 3.5 3.6 3.7 3.7 3.7 3.8 3.8 3.8 3.8 3.9 3.8 3.9 3.9 3.9 3.8 3.8 3.8 3.7 3.5 3.5 3.3 3.3 3.2 3.1 3.0 3.0 2.9 2.9 2.8 2.8 2.8 2.7
155.0 3.5 3.5 3.5 3.5 3.5 3.6 3.7 3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.9 3.9 3.9 4.0 3.9 3.9 3.8 3.8 3.7 3.5 3.5 3.3 3.3 3.3 3.2 3.2 3.0 3.0 3.0 3.0 3.0 2.9 2.9
157.5 3.5 3.5 3.5 3.6 3.6 3.7 3.7 3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.9 3.9 4.0 4.0 4.0 3.8 3.8 3.8 3.7 3.6 3.5 3.5 3.4 3.3 3.3 3.2 3.2 3.1 3.1 3.0 3.0 3.0 3.0
160.0 3.6 3.6 3.6 3.7 3.7 3.7 3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.9 4.0 4.0 4.0 4.0 3.8 3.8 3.8 3.7 3.6 3.6 3.5 3.5 3.3 3.3 3.3 3.3 3.2 3.2 3.2 3.2 3.2 3.1
162.5 3.6 3.7 3.7 3.7 3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.9 3.9 3.9 4.0 4.0 4.0 4.0 3.8 3.8 3.8 3.8 3.7 3.6 3.5 3.5 3.4 3.4 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.2
165.0 3.7 3.7 3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.9 4.0 4.0 4.0 4.0 4.0 4.0 3.8 3.8 3.8 3.8 3.7 3.7 3.6 3.5 3.5 3.5 3.4 3.4 3.4 3.4 3.4 3.4 3.3 3.4
167.5 3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.9 3.8 3.9 4.0 4.0 4.0 4.0 4.0 4.0 3.8 3.8 3.8 3.8 3.7 3.7 3.6 3.7 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5
170.0 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.9 4.0 4.0 4.0 4.0 4.0 4.0 3.9 3.8 3.8 3.8 3.8 3.8 3.7 3.7 3.6 3.6 3.5 3.5 3.5 3.5 3.5 3.6 3.5 3.6
172.5 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 4.0 4.0 4.0 4.0 4.0 3.9 3.9 3.9 3.8 3.8 3.8 3.8 3.7 3.7 3.7 3.7 3.7 3.7 3.6 3.7 3.6 3.7 3.7 3.7
175.0 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.9 3.9 4.0 4.0 3.9 3.9 3.9 3.9 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.7 3.7 3.7 3.7 3.8 3.7 3.7 3.7 3.7
177.5 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.8 3.8 3.8 3.8 3.8
180.0 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8
