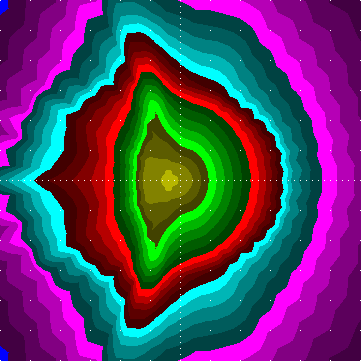

| In left plots, specific illuminances by a continuous row of luminaires spaced 5 and 6 heights are shown in their left halves (right half concerns a single luminaire). | The right plot is for a single luminaire, unrotated. | |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] 3e international
# [TEST] HA03I07S.LDT
# [LUMINAIRE] HA1-V-IREFLEC100-(-6C)
# [LUMCAT] Harmony1
# [DATE] 2009
# down given: 97.68%
# out given: 66.61%
# tilt: 0
# [LAMP] 1 MT 35 3800 3000 G12
# Bulbs: 1, 3800 lm each
# Source file: Harmony1_HA1-V-IREFLEC100---6C-__1_MT_35_3800_3000_G12.ldt
# Luminaire flux = 666 raw, for the given bulb(s) it would be 2531 lm,
# 66.6 % of the bulb flux
# between 75 and 90: 1.9 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 28.3 cd / 1000 lm , 2.7 % of the luminaire flux
# 90deg and above: max 4.3 cd / 1000 lm , 2.3 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 31 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 67 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 507 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 627 cd / 1000 lm,
# maximum spec. lum. intensity 627 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0
#V:
0.0 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122
2.5 119 119 119 119 119 119 119 119 119 119 120 120 120 120 120 121 121 122 121 122 122 123 123 123 123 124 124 124 124 125 124 125 125 125 125 125 125
5.0 116 116 116 116 116 116 116 117 117 117 117 118 118 119 119 119 120 121 121 122 122 123 124 124 125 126 126 127 128 128 128 128 129 129 129 129 130
7.5 114 113 114 114 114 114 114 114 115 115 115 116 116 117 117 118 118 119 120 121 122 123 124 126 127 128 129 130 131 132 132 133 133 134 134 134 135
10.0 111 111 112 111 111 111 112 112 112 112 113 114 114 115 116 116 117 118 119 120 121 122 124 126 127 129 131 133 134 136 137 138 139 140 140 140 141
12.5 110 109 109 109 110 109 110 110 110 110 111 112 113 113 114 115 116 118 119 120 121 123 125 126 128 130 132 135 137 140 142 144 145 147 147 148 148
15.0 107 107 107 107 107 107 107 107 108 108 109 110 111 112 113 114 115 117 119 121 122 124 126 127 130 133 134 138 140 144 147 150 152 155 155 156 156
17.5 105 104 104 105 105 105 105 105 105 107 108 109 110 111 112 114 115 117 119 121 123 126 128 130 133 137 138 143 145 150 154 157 160 163 163 166 166
20.0 103 102 102 103 102 102 103 103 104 105 106 107 109 109 111 113 115 117 119 121 124 127 131 134 137 142 144 151 153 158 161 167 170 174 173 176 177
22.5 99.8 99.4 100 101 101 100 100 101 101 102 104 105 107 108 110 112 113 116 118 121 124 128 132 138 142 148 153 161 164 170 172 175 179 184 184 185 186
25.0 97.0 96.3 97.1 97.5 97.7 97.8 98.8 99.1 99.9 101 103 104 106 107 109 110 112 115 118 121 124 128 132 140 145 154 162 173 176 181 181 183 186 189 191 190 191
27.5 94.7 94.1 94.8 95.3 95.9 95.7 96.4 97.5 98.3 99.7 101 103 104 106 108 110 112 115 118 121 124 128 133 141 148 158 169 181 186 190 189 187 189 193 195 195 195
30.0 92.2 91.7 92.7 93.3 94.0 93.9 95.3 95.9 97.1 98.7 101 102 104 105 107 109 111 115 118 121 124 129 133 142 151 163 173 186 193 197 195 193 194 199 202 204 203
32.5 90.4 89.9 90.6 91.5 92.6 92.4 93.5 94.6 96.1 97.9 100 102 104 105 106 108 109 113 118 122 126 130 135 142 154 166 176 189 200 205 204 202 202 207 210 213 214
35.0 88.8 88.3 88.9 89.8 90.8 90.8 92.4 93.3 95.4 97.1 99.6 101 103 104 105 106 108 112 117 125 128 133 138 143 159 170 180 196 206 214 213 210 209 213 217 217 218
37.5 86.8 86.2 86.9 87.8 88.9 89.3 91.2 92.2 94.3 96.2 98.4 100 102 103 104 105 107 111 118 127 132 137 143 145 164 175 186 203 215 224 223 218 215 219 222 224 222
40.0 84.4 84.0 85.1 85.9 86.8 87.3 89.4 90.9 93.3 95.3 97.4 99.4 101 102 103 104 105 110 117 128 135 141 151 159 172 183 194 210 226 238 235 231 227 237 238 245 240
42.5 82.3 82.1 82.8 83.8 84.7 85.6 87.8 89.5 91.8 94.1 96.2 98.4 100 101 103 104 105 109 116 129 138 148 161 170 183 195 202 219 237 257 254 259 257 275 270 277 269
45.0 80.3 80.1 80.9 81.6 82.3 83.7 86.1 87.8 89.9 92.4 94.6 97.2 99.4 101 102 103 104 108 115 128 143 158 178 186 201 213 213 230 250 276 284 299 305 321 307 306 300
47.5 78.8 78.4 79.0 79.5 80.5 81.8 83.9 86.3 88.1 90.4 92.9 96.0 98.0 100 102 102 103 108 115 128 148 171 198 205 226 236 231 251 268 300 319 332 346 357 343 340 334
50.0 77.6 76.8 77.2 77.4 78.4 79.9 81.7 83.9 86.0 88.4 90.7 94.0 96.8 99.4 101 101 102 107 115 130 153 182 215 235 252 271 266 289 299 332 352 363 363 361 369 358 363
52.5 75.3 74.9 75.1 75.3 76.1 77.6 79.3 81.6 83.6 86.1 88.3 92.2 95.1 98.3 99.8 100 101 107 116 133 159 192 231 251 278 310 312 341 336 360 388 360 335 303 334 303 326
55.0 72.6 72.6 72.6 73.1 73.6 75.3 77.1 79.0 80.7 83.3 85.9 90.0 93.1 96.8 98.8 99.1 99.8 105 117 136 165 203 252 282 312 347 365 397 352 351 386 302 258 211 241 200 226
57.5 69.2 69.9 69.6 70.6 70.8 72.7 74.4 76.5 78.3 80.5 82.8 87.3 91.0 95.1 97.9 98.1 98.4 104 116 138 169 215 279 317 355 369 401 399 329 278 300 213 186 144 159 139 151
60.0 66.1 66.5 66.6 67.7 68.3 69.7 71.4 73.6 75.2 77.4 79.7 84.4 88.0 92.7 95.9 96.5 96.7 102 114 137 172 229 314 368 428 368 357 299 246 187 198 156 133 100 106 90.9 96.2
62.5 61.9 62.6 62.3 64.2 64.8 66.8 67.9 70.1 71.1 73.8 76.2 80.4 83.5 89.2 92.3 93.3 94.1 99.7 113 137 176 251 362 432 507 340 245 181 161 120 129 107 93.5 71.5 72.2 64.1 65.6
65.0 56.7 57.8 57.2 59.3 59.5 61.5 61.8 64.8 65.2 68.8 70.2 75.7 78.1 83.8 86.7 87.8 89.3 95.4 109 138 186 289 443 481 469 257 170 118 106 88.7 87.6 76.4 69.1 55.0 54.4 49.5 49.7
67.5 49.8 51.5 50.0 51.8 51.3 54.2 54.2 57.3 56.3 61.7 63.0 68.9 69.9 76.6 79.8 81.8 83.8 90.8 105 137 198 361 572 442 311 166 118 85.3 81.2 70.2 68.2 58.3 51.5 42.3 44.3 41.8 40.7
70.0 39.3 40.7 39.3 42.7 41.5 44.1 40.8 45.3 40.7 47.0 42.0 50.6 42.5 55.8 52.9 55.8 57.1 68.6 82.7 118 193 428 627 406 186 104 85.3 69.4 67.2 60.0 58.0 48.1 40.0 34.6 36.9 37.2 38.2
72.5 19.0 22.6 19.1 26.0 19.3 25.1 17.0 20.3 12.5 17.5 11.1 14.4 13.2 17.9 18.9 19.4 21.9 25.8 38.3 64.6 133 341 448 282 115 71.6 66.7 55.9 54.9 50.4 50.8 40.6 32.6 28.5 31.3 35.7 40.3
75.0 6.0 7.7 5.8 8.1 6.1 7.3 5.8 6.7 6.0 6.9 6.6 8.1 8.7 11.6 13.4 13.7 13.9 16.3 21.7 34.8 70.6 185 221 58.0 48.2 23.6 39.7 33.2 42.4 39.3 42.5 32.7 27.7 24.5 26.5 32.8 42.4
77.5 3.8 3.8 3.5 3.9 3.8 4.2 4.0 4.4 4.2 4.8 4.8 6.1 6.7 8.9 10.1 10.6 10.2 11.1 13.9 19.5 36.3 71.4 84.1 23.9 19.0 9.9 9.6 6.9 13.2 10.9 26.8 21.1 21.5 19.0 23.2 27.0 47.4
80.0 2.6 2.7 2.3 2.7 2.4 2.8 2.6 3.1 2.9 3.6 3.4 4.3 4.3 5.9 6.5 6.4 6.5 6.3 7.8 9.4 15.4 25.4 28.3 9.2 9.5 5.7 5.2 3.6 3.7 2.8 3.6 2.8 5.8 3.0 7.9 6.4 27.0
82.5 1.8 1.8 1.5 1.7 1.6 1.8 1.8 2.2 2.3 2.6 2.4 3.0 2.8 3.5 3.5 3.6 3.6 3.5 3.7 4.2 5.7 6.7 8.1 3.3 4.4 2.7 2.8 1.9 2.0 1.5 1.7 1.3 1.5 1.3 1.4 1.1 1.2
85.0 1.5 1.3 1.3 1.3 1.3 1.5 1.5 1.7 1.8 1.9 1.8 2.1 1.8 2.1 2.0 1.8 2.0 1.8 1.9 1.8 2.0 1.8 1.9 0.9 1.7 1.2 1.3 1.0 1.1 0.9 1.0 0.9 1.0 0.9 1.0 0.8 0.7
87.5 1.4 1.2 1.2 1.3 1.3 1.4 1.5 1.6 1.6 1.7 1.6 1.7 1.6 1.6 1.6 1.5 1.5 1.4 1.3 1.1 1.1 1.0 1.0 0.5 0.8 0.8 0.8 0.6 0.7 0.6 0.7 0.6 0.6 0.6 0.6 0.6 0.5
90.0 1.6 1.3 1.4 1.4 1.5 1.5 1.6 1.7 1.8 1.8 1.9 1.8 1.8 1.8 1.7 1.5 1.5 1.4 1.4 1.1 1.0 1.0 1.0 0.4 0.8 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.5
92.5 1.7 1.5 1.6 1.5 1.6 1.7 1.9 1.9 2.0 1.9 2.0 1.9 2.0 1.9 1.9 1.8 1.7 1.5 1.5 1.4 1.3 1.1 1.0 0.6 0.9 0.8 0.8 0.8 0.8 0.7 0.8 0.7 0.7 0.7 0.6 0.7 0.5
95.0 1.9 1.7 1.8 1.7 1.9 1.9 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.0 2.0 1.9 1.9 1.8 1.6 1.5 1.4 1.3 1.1 0.6 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.6
97.5 2.2 1.9 1.9 1.9 2.1 2.1 2.3 2.3 2.3 2.3 2.4 2.3 2.3 2.3 2.2 2.1 2.0 1.9 1.8 1.6 1.5 1.4 1.3 0.6 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.7
100.0 2.3 2.1 2.2 2.2 2.3 2.3 2.4 2.6 2.6 2.6 2.6 2.5 2.6 2.4 2.4 2.3 2.2 2.0 1.9 1.8 1.6 1.5 1.4 0.7 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.8
102.5 2.6 2.3 2.4 2.3 2.5 2.4 2.7 2.8 2.8 2.8 2.8 2.7 2.7 2.6 2.6 2.4 2.3 2.2 2.0 1.9 1.8 1.6 1.5 0.8 1.3 1.2 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.8
105.0 2.8 2.5 2.6 2.6 2.7 2.7 2.9 2.9 3.0 2.9 2.9 2.8 2.8 2.7 2.6 2.4 2.3 2.3 2.2 2.0 1.9 1.8 1.6 0.9 1.4 1.3 1.3 1.2 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 0.9
107.5 3.0 2.7 2.8 2.8 2.9 2.9 3.1 3.1 3.1 3.0 3.1 2.9 2.8 2.7 2.6 2.5 2.4 2.3 2.3 2.2 2.0 1.9 1.8 0.9 1.5 1.4 1.3 1.3 1.3 1.3 1.2 1.1 1.1 1.1 1.1 1.1 1.0
110.0 3.2 2.9 3.1 2.9 3.2 3.1 3.3 3.3 3.3 3.2 3.2 3.1 2.8 2.7 2.6 2.5 2.5 2.4 2.4 2.3 2.1 1.9 1.9 0.9 1.6 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.1 1.1 1.0
112.5 3.4 3.2 3.3 3.2 3.3 3.3 3.4 3.4 3.4 3.3 3.2 3.1 2.9 2.7 2.6 2.6 2.6 2.6 2.5 2.3 2.2 2.0 1.9 1.0 1.6 1.5 1.5 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.1
115.0 3.5 3.3 3.3 3.3 3.4 3.4 3.5 3.5 3.5 3.3 3.3 3.1 3.0 2.8 2.7 2.7 2.7 2.7 2.6 2.4 2.3 2.2 2.0 1.0 1.7 1.6 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.2
117.5 3.6 3.4 3.4 3.4 3.6 3.5 3.6 3.5 3.5 3.4 3.3 3.2 3.1 2.9 2.8 2.8 2.8 2.8 2.7 2.5 2.4 2.3 2.2 1.1 1.8 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3
120.0 3.7 3.5 3.5 3.5 3.6 3.5 3.6 3.5 3.5 3.4 3.3 3.2 3.1 3.0 2.9 2.9 2.9 2.8 2.7 2.6 2.4 2.3 2.3 1.1 1.9 1.8 1.7 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.3
122.5 3.7 3.5 3.5 3.5 3.6 3.5 3.6 3.5 3.5 3.5 3.4 3.3 3.2 3.0 3.0 3.0 2.9 2.8 2.7 2.7 2.6 2.4 2.3 1.2 2.0 1.9 1.8 1.8 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.4
125.0 3.7 3.5 3.6 3.6 3.6 3.6 3.7 3.6 3.5 3.5 3.5 3.3 3.2 3.0 3.0 3.0 2.8 2.8 2.7 2.7 2.6 2.4 2.3 1.2 2.0 1.9 1.9 1.8 1.8 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.5
127.5 3.7 3.6 3.7 3.6 3.7 3.7 3.8 3.7 3.7 3.5 3.5 3.4 3.3 3.1 3.0 3.0 2.8 2.8 2.8 2.7 2.6 2.4 2.3 1.2 2.1 1.9 1.9 1.9 1.8 1.8 1.8 1.8 1.7 1.6 1.6 1.6 1.5
130.0 3.8 3.7 3.7 3.7 3.8 3.8 3.8 3.8 3.7 3.7 3.5 3.5 3.3 3.2 3.1 3.0 3.0 2.9 2.8 2.8 2.6 2.4 2.3 1.2 2.1 2.0 1.9 1.9 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.6
132.5 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.5 3.5 3.3 3.3 3.2 3.1 3.0 3.0 2.9 2.8 2.7 2.6 2.4 1.3 2.2 2.0 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.6
135.0 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.6 3.5 3.5 3.3 3.3 3.2 3.1 3.1 2.9 2.8 2.8 2.7 2.6 1.3 2.3 2.2 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.7
137.5 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.7 3.5 3.5 3.5 3.4 3.3 3.2 3.2 3.1 2.9 2.8 2.8 2.6 1.3 2.3 2.3 2.2 2.1 2.0 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.8
140.0 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.6 3.5 3.5 3.4 3.3 3.3 3.2 3.1 2.9 2.8 2.7 1.4 2.4 2.3 2.3 2.2 2.2 2.1 2.0 2.0 2.0 2.0 2.0 2.0 1.9
142.5 3.9 3.8 3.8 3.8 3.8 3.8 3.9 3.9 4.0 3.8 3.8 3.8 3.7 3.7 3.6 3.6 3.4 3.3 3.2 3.2 3.0 2.8 2.8 1.4 2.4 2.4 2.3 2.3 2.3 2.2 2.2 2.2 2.2 2.2 2.1 2.0 2.0
145.0 4.0 3.8 4.0 3.9 4.0 3.9 4.0 4.0 4.0 4.0 3.9 3.8 3.8 3.7 3.7 3.6 3.5 3.4 3.3 3.2 3.1 2.9 2.8 1.4 2.6 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.2 2.2 2.2 2.2 2.0
147.5 4.1 4.0 4.1 4.0 4.1 4.0 4.1 4.1 4.1 4.1 4.0 4.0 3.9 3.8 3.8 3.7 3.6 3.5 3.4 3.3 3.1 3.0 2.8 1.5 2.7 2.6 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.1
150.0 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.0 4.0 4.0 3.9 3.8 3.8 3.7 3.6 3.4 3.3 3.2 3.1 2.9 1.5 2.7 2.7 2.6 2.6 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.2
152.5 4.3 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.0 4.0 4.0 3.9 3.8 3.8 3.7 3.5 3.4 3.2 3.1 2.9 1.5 2.8 2.7 2.7 2.6 2.6 2.6 2.4 2.4 2.4 2.4 2.4 2.4 2.3
155.0 4.3 4.2 4.3 4.2 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.0 4.0 3.9 3.8 3.7 3.7 3.5 3.4 3.2 3.1 3.0 1.5 2.8 2.8 2.7 2.7 2.7 2.6 2.6 2.6 2.5 2.5 2.5 2.4 2.4
157.5 4.3 4.2 4.3 4.2 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.0 4.0 4.0 3.9 3.8 3.7 3.5 3.5 3.3 3.2 3.1 3.0 1.5 2.9 2.8 2.8 2.8 2.7 2.7 2.7 2.6 2.6 2.6 2.6 2.6 2.4
160.0 4.3 4.2 4.2 4.2 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.0 4.0 4.0 3.8 3.8 3.7 3.5 3.4 3.3 3.2 3.2 3.1 1.5 2.9 2.9 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.7 2.7 2.7 2.5
162.5 4.2 4.2 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.0 4.0 3.8 3.8 3.7 3.5 3.5 3.3 3.3 3.2 3.2 3.1 1.5 3.0 2.9 2.9 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.7 2.6
165.0 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.0 4.0 4.0 3.9 3.8 3.8 3.7 3.6 3.5 3.5 3.3 3.3 3.3 3.2 3.1 1.6 3.0 3.0 3.0 2.9 2.9 2.9 2.8 2.8 2.8 2.8 2.8 2.8 2.7
167.5 4.0 4.1 4.1 4.1 4.1 4.0 4.0 4.0 3.9 3.9 3.8 3.8 3.8 3.7 3.6 3.6 3.5 3.4 3.3 3.3 3.3 3.2 3.2 1.6 3.1 3.1 3.0 3.0 3.0 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.8
170.0 3.9 4.0 4.0 4.0 3.9 3.9 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.7 3.6 3.5 3.5 3.4 3.3 3.3 3.3 3.3 3.2 1.6 3.2 3.1 3.1 3.1 3.0 3.1 3.0 3.0 3.0 3.0 3.0 2.9 2.9
172.5 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.7 3.7 3.7 3.7 3.7 3.5 3.5 3.5 3.5 3.4 3.4 3.3 3.3 3.3 3.3 3.2 1.6 3.2 3.2 3.2 3.2 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 2.9
175.0 3.6 3.7 3.7 3.7 3.7 3.6 3.6 3.6 3.5 3.6 3.5 3.5 3.5 3.5 3.4 3.4 3.4 3.4 3.3 3.3 3.3 3.3 3.3 1.6 3.3 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.1
177.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.4 3.4 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 1.7 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.2
180.0 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3
