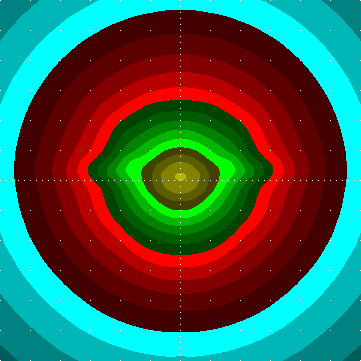

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] HAC-VTO-Ireflec220-3A
# [LUMCAT] HARMONY
# [DATE] 09/07/2013/28/05/2013/28/05/2013 / FAUVIN
# down given: 86%
# out given: 66.2%
# tilt: 0.0
# [LAMP] 1 MT 150 16500 2800 E40
# Bulbs: 1, 16500 lm each
# Source file: HARMONY_HAC-VTO-Ireflec220-3A_1_MT_150_16500_2800_E40.ldt
# Luminaire flux = 662 raw, for the given bulb(s) it would be 10927 lm,
# 66.2 % of the bulb flux
# between 75 and 90: 14.5 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 61.3 cd / 1000 lm , 22.0 % of the luminaire flux
# 90deg and above: max 51.0 cd / 1000 lm , 14.0 % of the luminaire flux
# CutOff Type: Non-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 438 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:1805 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 192 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 162 cd / 1000 lm,
# maximum spec. lum. intensity 192 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128
2.5 131 128 130 128 130 128 128 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 127 128 128 130 128 130 128 131 128 130 128 128 126 126 124 124 122 122 122 121 122 121 121 121 122 120 122 121 121 121 122 121 122 122 122 124 124 126 126 128 128 130 128
5.0 128 128 128 128 129 129 130 131 132 132 131 131 130 130 130 130 130 130 129 130 130 130 130 130 130 131 131 132 132 131 130 129 129 128 128 128 128 128 128 127 129 126 126 125 121 121 119 118 116 116 115 115 114 115 113 115 114 115 115 116 116 118 119 121 121 125 126 126 129 127 128 128
7.5 128 128 129 130 131 131 132 133 133 135 136 135 134 135 134 134 134 134 133 134 134 134 134 135 134 135 136 135 133 133 132 131 131 130 129 128 128 126 126 126 126 127 127 121 124 126 121 119 116 115 115 115 113 114 113 114 113 115 115 115 116 119 121 126 124 121 127 127 126 126 126 126
10.0 129 130 132 132 134 134 135 134 135 135 135 136 136 136 136 136 135 135 133 135 135 136 136 136 136 136 135 135 135 134 135 134 134 132 132 130 129 127 127 125 126 123 123 122 122 123 122 118 120 119 117 116 115 117 116 117 115 116 117 119 120 118 122 123 122 122 123 123 126 125 127 127
12.5 130 130 133 133 135 135 136 136 137 137 137 138 138 138 137 138 137 136 134 136 137 138 137 138 138 138 137 137 137 136 136 135 135 133 133 130 130 128 127 125 125 123 122 120 120 118 117 118 116 118 116 117 116 118 116 118 116 117 116 118 116 118 117 118 120 120 122 123 125 125 127 128
15.0 128 129 132 133 136 136 138 138 139 139 139 140 140 140 139 140 139 138 135 138 139 140 139 140 140 140 139 139 139 138 138 136 136 133 132 129 128 126 125 123 124 122 121 120 119 118 117 116 115 114 113 114 112 113 112 113 112 114 113 114 115 116 117 118 119 120 121 122 124 123 125 126
17.5 128 130 133 134 136 137 139 140 140 140 141 142 142 142 141 141 140 139 136 139 140 141 141 142 142 142 141 140 140 140 139 137 136 134 133 130 128 126 124 122 122 120 120 119 118 117 116 116 114 113 112 113 111 111 110 111 111 113 112 113 114 116 116 117 118 119 120 120 122 122 124 126
20.0 129 130 134 135 138 139 140 140 141 142 142 142 142 143 143 143 141 140 136 140 141 143 143 143 142 142 142 142 141 140 140 139 138 135 134 130 129 125 124 122 122 120 118 117 115 114 113 113 112 111 110 110 108 109 108 109 108 110 110 111 112 113 113 114 115 117 118 120 122 122 124 125
22.5 129 131 134 136 139 139 141 141 142 142 142 142 141 142 143 143 141 140 136 140 141 143 143 142 141 142 142 142 142 141 141 139 139 136 134 131 129 126 124 122 122 119 118 116 115 113 111 111 109 108 107 107 106 106 105 106 106 107 107 108 109 111 111 113 115 116 118 119 122 122 124 126
25.0 130 132 135 137 140 140 140 140 141 141 141 140 139 140 140 142 140 139 135 139 140 142 140 140 139 140 141 141 141 140 140 140 140 137 135 132 130 126 125 122 122 119 118 116 114 112 110 108 107 106 104 104 103 103 102 103 103 104 104 106 107 108 110 112 114 116 118 119 122 122 125 126
27.5 131 132 136 139 142 141 139 138 138 138 138 137 135 136 136 138 137 136 132 136 137 138 136 136 135 137 138 138 138 138 139 141 142 139 136 132 131 127 126 123 124 120 118 115 113 110 108 106 104 103 102 101 99.6 99.9 98.1 99.9 99.6 101 102 103 104 106 108 110 113 115 118 120 124 123 126 127
30.0 131 132 136 140 145 142 139 135 134 135 134 134 133 133 132 134 133 132 128 132 133 134 132 133 133 134 134 135 134 135 139 142 145 140 136 132 131 127 127 124 124 120 119 115 112 108 106 104 102 100 99.1 98.4 96.3 96.6 94.9 96.6 96.3 98.4 99.1 100 102 104 106 108 112 115 119 120 124 124 127 127
32.5 132 133 137 141 144 142 138 134 133 132 131 131 130 130 129 129 128 128 125 128 128 129 129 130 130 131 131 132 133 134 138 142 144 141 137 133 132 128 128 125 125 121 119 115 111 107 104 102 99.3 97.7 96.8 96.1 93.9 93.8 92.0 93.8 93.9 96.1 96.8 97.7 99.3 102 104 107 111 115 119 121 125 125 128 128
35.0 132 134 138 142 143 138 137 136 130 128 128 128 126 127 126 126 125 125 123 125 125 126 126 127 126 128 128 128 130 136 137 138 143 142 138 134 132 129 128 125 125 121 119 113 109 104 101 98.9 97.1 95.9 94.7 94.4 92.2 91.9 90.2 91.9 92.2 94.4 94.7 95.9 97.1 98.9 101 104 109 113 119 121 125 125 128 129
37.5 132 134 139 142 141 136 135 134 131 125 124 124 123 123 123 123 123 124 122 124 123 123 123 123 123 124 124 125 131 134 135 136 141 142 139 134 132 128 127 125 124 121 118 111 106 101 98.2 96.6 94.9 94.4 93.5 93.3 91.3 90.8 88.9 90.8 91.3 93.3 93.5 94.4 94.9 96.6 98.2 101 106 111 118 121 124 125 127 128
40.0 131 133 138 140 138 134 134 133 130 125 119 120 119 120 120 120 121 121 121 121 121 120 120 120 119 120 119 125 130 133 134 134 138 140 138 133 131 128 126 123 123 119 116 108 102 98.2 95.9 94.9 93.7 93.7 93.3 93.0 90.6 90.3 88.5 90.3 90.6 93.0 93.3 93.7 93.7 94.9 95.9 98.2 102 108 116 119 123 123 126 128
42.5 131 132 135 136 134 133 134 132 127 122 119 115 115 115 115 116 116 116 116 116 116 116 115 115 115 115 119 122 127 132 134 133 134 136 135 132 131 128 125 122 120 115 111 104 98.3 95.7 94.0 93.1 92.4 92.6 92.6 92.6 90.3 89.9 87.9 89.9 90.3 92.6 92.6 92.6 92.4 93.1 94.0 95.7 98.3 104 111 115 120 122 125 128
45.0 131 131 135 134 129 128 130 128 123 119 116 114 111 112 111 111 111 110 110 110 111 111 111 112 111 114 116 119 123 128 130 128 129 134 135 131 131 128 124 119 117 110 104 97.9 94.4 92.7 91.6 91.0 90.3 91.1 91.3 91.4 89.8 89.0 86.8 89.0 89.8 91.4 91.3 91.1 90.3 91.0 91.6 92.7 94.4 97.9 104 110 117 119 124 128
47.5 132 132 135 133 130 128 126 121 116 114 112 110 109 108 107 107 106 106 105 106 106 107 107 108 109 110 112 114 116 121 126 128 130 133 135 132 132 127 122 116 112 105 97.9 93.7 91.4 90.1 88.8 88.6 87.9 88.8 89.3 89.7 88.4 87.8 85.5 87.8 88.4 89.7 89.3 88.8 87.9 88.6 88.8 90.1 91.4 93.7 97.9 105 112 116 122 127
50.0 133 135 138 136 134 131 126 117 111 108 108 107 105 106 104 104 103 103 102 103 103 104 104 106 105 107 108 108 111 117 126 131 134 136 138 135 133 126 119 113 107 98.8 93.4 90.6 88.8 87.1 85.8 85.4 84.8 85.3 85.8 87.1 86.4 85.8 83.5 85.8 86.4 87.1 85.8 85.3 84.8 85.4 85.8 87.1 88.8 90.6 93.4 98.8 107 113 119 126
52.5 135 140 145 144 144 137 126 115 109 105 104 104 103 103 102 102 101 101 100 101 101 102 102 103 103 104 104 105 109 115 126 137 144 144 145 140 135 125 117 110 102 93.9 90.5 88.3 86.6 84.7 83.3 82.6 81.8 81.9 81.8 83.4 83.4 83.4 81.2 83.4 83.4 83.4 81.8 81.9 81.8 82.6 83.3 84.7 86.6 88.3 90.5 93.9 102 110 117 125
55.0 136 148 157 159 158 145 127 114 107 103 102 101 99.7 100 99.2 99.4 99.8 100 99.2 100 99.8 99.4 99.2 100 99.7 101 102 103 107 114 127 145 158 159 157 148 136 123 113 105 97.8 90.9 88.1 85.8 83.8 82.2 80.2 79.6 78.4 78.6 78.1 79.6 79.4 79.8 77.5 79.8 79.4 79.6 78.1 78.6 78.4 79.6 80.2 82.2 83.8 85.8 88.1 90.9 97.8 105 113 123
57.5 135 155 173 175 173 151 126 113 106 102 101 99.1 97.3 97.3 96.4 97.6 98.6 99.5 98.6 99.5 98.6 97.6 96.4 97.3 97.3 99.1 101 102 106 113 126 151 173 175 173 155 135 118 107 98.8 92.8 87.9 85.8 83.4 81.1 79.1 77.6 76.9 75.8 75.4 74.9 75.1 74.9 75.7 73.3 75.7 74.9 75.1 74.9 75.4 75.8 76.9 77.6 79.1 81.1 83.4 85.8 87.9 92.8 98.8 107 118
60.0 133 161 186 188 180 150 124 112 105 100 98.7 96.2 94.2 93.9 93.8 95.7 96.3 94.9 93.7 94.9 96.3 95.7 93.8 93.9 94.2 96.2 98.7 100 105 112 124 150 180 188 186 161 133 113 101 93.1 89.6 85.5 83.6 80.9 78.5 76.4 74.8 74.1 72.9 72.6 71.1 71.1 71.2 71.8 70.3 71.8 71.2 71.1 71.1 72.6 72.9 74.1 74.8 76.4 78.5 80.9 83.6 85.5 89.6 93.1 101 113
62.5 130 164 192 184 170 142 118 110 104 98.7 96.1 92.9 90.9 90.8 91.1 92.5 90.7 89.6 88.4 89.6 90.7 92.5 91.1 90.8 90.9 92.9 96.1 98.7 104 110 118 142 170 184 192 164 130 105 93.2 88.0 86.4 82.9 81.2 78.2 75.4 73.8 72.1 71.5 69.9 69.3 68.4 68.1 67.8 69.0 67.4 69.0 67.8 68.1 68.4 69.3 69.9 71.5 72.1 73.8 75.4 78.2 81.2 82.9 86.4 88.0 93.2 105
65.0 119 161 183 160 140 123 110 107 102 96.8 92.7 89.4 87.7 87.8 88.3 87.6 85.1 84.3 83.6 84.3 85.1 87.6 88.3 87.8 87.7 89.4 92.7 96.8 102 107 110 123 140 160 183 161 119 92.7 83.2 80.1 79.9 77.7 76.9 73.9 71.9 69.9 69.0 68.3 67.2 66.7 65.9 65.6 64.8 65.6 64.1 65.6 64.8 65.6 65.9 66.7 67.2 68.3 69.0 69.9 71.9 73.9 76.9 77.7 79.9 80.1 83.2 92.7
67.5 106 151 162 126 103 98.3 95.4 98.0 97.6 93.1 88.5 85.2 83.1 84.6 84.3 82.2 80.0 79.8 79.2 79.8 80.0 82.2 84.3 84.6 83.1 85.2 88.5 93.1 97.6 98.0 95.4 98.3 103 126 162 151 106 80.1 73.6 71.7 70.9 71.0 69.6 67.3 64.6 64.0 64.5 64.5 64.1 63.9 63.4 63.3 62.2 62.5 61.2 62.5 62.2 63.3 63.4 63.9 64.1 64.5 64.5 64.0 64.6 67.3 69.6 71.0 70.9 71.7 73.6 80.1
70.0 95.3 134 136 99.7 82.9 80.9 80.8 84.6 85.3 83.7 81.4 79.3 79.1 79.8 78.6 76.1 74.4 74.9 74.5 74.9 74.4 76.1 78.6 79.8 79.1 79.3 81.4 83.7 85.3 84.6 80.8 80.9 82.9 99.7 136 134 95.3 73.9 69.0 67.4 67.7 66.0 63.4 59.6 56.8 57.1 56.2 58.3 59.9 60.3 60.7 61.1 60.0 60.0 58.3 60.0 60.0 61.1 60.7 60.3 59.9 58.3 56.2 57.1 56.8 59.6 63.4 66.0 67.7 67.4 69.0 73.9
72.5 84.2 108 105 82.2 73.3 72.0 73.4 75.5 76.6 74.8 71.7 71.1 69.5 70.3 69.4 69.3 68.6 69.1 68.6 69.1 68.6 69.3 69.4 70.3 69.5 71.1 71.7 74.8 76.6 75.5 73.4 72.0 73.3 82.2 105 108 84.2 69.3 65.3 64.0 63.9 62.0 58.8 55.4 53.2 52.3 51.3 51.3 51.7 53.5 54.3 55.5 56.0 55.5 53.9 55.5 56.0 55.5 54.3 53.5 51.7 51.3 51.3 52.3 53.2 55.4 58.8 62.0 63.9 64.0 65.3 69.3
75.0 73.0 81.8 78.4 69.4 66.6 66.2 67.1 68.3 69.6 68.8 66.9 66.5 65.8 66.3 65.9 66.2 65.9 66.4 66.0 66.4 65.9 66.2 65.9 66.3 65.8 66.5 66.9 68.8 69.6 68.3 67.1 66.2 66.6 69.4 78.4 81.8 73.0 63.6 61.3 59.8 59.1 56.5 54.2 52.3 51.1 49.9 48.9 48.8 48.6 48.0 48.2 48.7 47.8 48.3 47.0 48.3 47.8 48.7 48.2 48.0 48.6 48.8 48.9 49.9 51.1 52.3 54.2 56.5 59.1 59.8 61.3 63.6
77.5 61.3 65.1 64.2 62.3 62.2 62.3 62.8 63.2 64.1 64.0 63.2 63.3 63.0 63.5 63.3 63.7 63.3 63.7 63.5 63.7 63.3 63.7 63.3 63.5 63.0 63.3 63.2 64.0 64.1 63.2 62.8 62.3 62.2 62.3 64.2 65.1 61.3 58.0 56.3 55.0 54.3 52.3 51.2 49.9 48.7 47.8 47.0 46.8 46.7 45.8 45.5 45.6 45.1 45.2 44.4 45.2 45.1 45.6 45.5 45.8 46.7 46.8 47.0 47.8 48.7 49.9 51.2 52.3 54.3 55.0 56.3 58.0
80.0 55.8 56.8 57.7 58.0 58.6 59.0 59.5 59.6 59.9 60.3 60.3 60.8 60.5 60.8 60.7 61.1 60.7 61.3 60.9 61.3 60.7 61.1 60.7 60.8 60.5 60.8 60.3 60.3 59.9 59.6 59.5 59.0 58.6 58.0 57.7 56.8 55.8 54.1 53.3 51.8 51.2 49.5 48.7 47.5 46.5 45.8 45.0 45.0 44.3 44.0 43.6 43.3 43.0 43.0 42.3 43.0 43.0 43.3 43.6 44.0 44.3 45.0 45.0 45.8 46.5 47.5 48.7 49.5 51.2 51.8 53.3 54.1
82.5 53.0 53.7 54.8 54.9 56.0 56.0 56.7 56.8 57.1 57.4 57.5 57.9 57.8 58.3 58.3 58.5 58.3 58.8 58.3 58.8 58.3 58.5 58.3 58.3 57.8 57.9 57.5 57.4 57.1 56.8 56.7 56.0 56.0 54.9 54.8 53.7 53.0 51.7 50.7 49.5 48.8 47.3 46.4 45.3 44.6 43.7 43.3 43.1 42.3 42.1 41.5 41.5 41.2 41.3 40.8 41.3 41.2 41.5 41.5 42.1 42.3 43.1 43.3 43.7 44.6 45.3 46.4 47.3 48.8 49.5 50.7 51.7
85.0 50.6 51.2 52.2 52.5 53.4 53.5 54.0 54.3 54.5 54.8 54.9 55.4 55.2 55.7 55.6 55.8 55.8 56.2 55.9 56.2 55.8 55.8 55.6 55.7 55.2 55.4 54.9 54.8 54.5 54.3 54.0 53.5 53.4 52.5 52.2 51.2 50.6 49.2 48.4 47.2 46.4 45.3 44.3 43.3 42.5 42.0 41.8 41.5 40.4 40.4 40.1 39.9 39.7 39.8 39.4 39.8 39.7 39.9 40.1 40.4 40.4 41.5 41.8 42.0 42.5 43.3 44.3 45.3 46.4 47.2 48.4 49.2
87.5 48.2 48.8 49.7 50.2 50.8 51.0 51.7 51.8 52.1 52.2 52.3 52.8 52.8 53.1 53.0 53.3 53.0 53.4 53.3 53.4 53.0 53.3 53.0 53.1 52.8 52.8 52.3 52.2 52.1 51.8 51.7 51.0 50.8 50.2 49.7 48.8 48.2 47.0 46.2 44.9 44.3 43.0 42.2 41.3 40.7 40.2 39.8 39.8 38.8 38.5 38.1 37.9 37.8 38.5 39.1 38.5 37.8 37.9 38.1 38.5 38.8 39.8 39.8 40.2 40.7 41.3 42.2 43.0 44.3 44.9 46.2 47.0
90.0 45.8 46.4 47.2 47.6 48.5 48.7 49.1 49.3 49.3 49.7 49.8 50.3 50.1 50.5 50.6 51.0 50.5 50.8 50.6 50.8 50.5 51.0 50.6 50.5 50.1 50.3 49.8 49.7 49.3 49.3 49.1 48.7 48.5 47.6 47.2 46.4 45.8 44.7 43.9 42.7 42.2 40.8 40.2 39.3 38.7 38.2 37.9 38.1 37.6 37.3 37.0 36.8 36.2 37.4 38.0 37.4 36.2 36.8 37.0 37.3 37.6 38.1 37.9 38.2 38.7 39.3 40.2 40.8 42.2 42.7 43.9 44.7
92.5 43.3 43.8 44.8 45.1 45.8 46.1 46.5 46.7 46.8 47.1 47.2 47.7 47.6 48.0 47.6 48.1 47.8 48.1 48.0 48.1 47.8 48.1 47.6 48.0 47.6 47.7 47.2 47.1 46.8 46.7 46.5 46.1 45.8 45.1 44.8 43.8 43.3 42.1 41.5 40.4 39.8 38.7 37.8 37.2 36.4 35.9 35.4 35.5 35.5 35.8 35.7 35.6 35.4 37.1 36.8 37.1 35.4 35.6 35.7 35.8 35.5 35.5 35.4 35.9 36.4 37.2 37.8 38.7 39.8 40.4 41.5 42.1
95.0 40.6 41.2 42.0 42.3 43.1 43.3 43.7 43.9 44.1 44.3 44.5 44.7 44.7 45.2 45.0 45.0 44.8 45.2 45.2 45.2 44.8 45.0 45.0 45.2 44.7 44.7 44.5 44.3 44.1 43.9 43.7 43.3 43.1 42.3 42.0 41.2 40.6 39.5 39.0 38.0 37.6 36.4 35.7 34.8 34.2 33.6 33.0 32.9 32.8 32.8 32.7 33.0 33.5 34.2 33.3 34.2 33.5 33.0 32.7 32.8 32.8 32.9 33.0 33.6 34.2 34.8 35.7 36.4 37.6 38.0 39.0 39.5
97.5 37.8 38.3 39.1 39.6 40.2 40.3 40.8 40.9 41.1 41.3 41.3 41.6 41.6 41.8 41.7 42.0 41.7 42.3 42.1 42.3 41.7 42.0 41.7 41.8 41.6 41.6 41.3 41.3 41.1 40.9 40.8 40.3 40.2 39.6 39.1 38.3 37.8 36.8 36.2 35.2 34.7 33.8 33.4 32.8 32.0 31.2 30.6 30.5 30.4 30.3 30.1 30.3 30.4 30.3 29.3 30.3 30.4 30.3 30.1 30.3 30.4 30.5 30.6 31.2 32.0 32.8 33.4 33.8 34.7 35.2 36.2 36.8
100.0 34.6 35.2 36.0 36.3 37.0 37.1 37.7 37.6 37.8 37.9 37.9 38.2 38.1 38.3 38.2 38.4 38.2 38.7 38.7 38.7 38.2 38.4 38.2 38.3 38.1 38.2 37.9 37.9 37.8 37.6 37.7 37.1 37.0 36.3 36.0 35.2 34.6 33.7 33.1 32.3 31.7 30.8 30.5 30.0 29.3 29.0 28.5 28.3 27.7 27.9 27.8 27.4 26.9 27.0 26.4 27.0 26.9 27.4 27.8 27.9 27.7 28.3 28.5 29.0 29.3 30.0 30.5 30.8 31.7 32.3 33.1 33.7
102.5 31.5 32.0 32.6 33.0 33.7 33.8 34.2 34.4 34.6 34.5 34.6 34.8 34.8 34.9 34.6 34.9 34.8 34.9 35.0 34.9 34.8 34.9 34.6 34.9 34.8 34.8 34.6 34.5 34.6 34.4 34.2 33.8 33.7 33.0 32.6 32.0 31.5 30.5 30.0 28.9 28.7 27.8 27.3 26.8 26.3 26.0 25.8 25.7 25.8 25.7 24.7 24.5 24.0 24.0 23.4 24.0 24.0 24.5 24.7 25.7 25.8 25.7 25.8 26.0 26.3 26.8 27.3 27.8 28.7 28.9 30.0 30.5
105.0 28.1 28.8 29.4 29.7 30.3 30.5 30.8 31.0 31.0 31.1 31.0 31.3 30.9 31.1 31.0 30.8 30.6 30.7 30.9 30.7 30.6 30.8 31.0 31.1 30.9 31.3 31.0 31.1 31.0 31.0 30.8 30.5 30.3 29.7 29.4 28.8 28.1 27.3 26.7 26.0 25.5 24.7 24.4 23.6 23.5 23.3 23.4 23.6 24.0 23.8 23.5 23.5 23.5 23.4 22.9 23.4 23.5 23.5 23.5 23.8 24.0 23.6 23.4 23.3 23.5 23.6 24.4 24.7 25.5 26.0 26.7 27.3
107.5 24.9 25.4 26.0 26.4 26.8 27.1 27.4 27.4 27.3 27.2 27.3 27.1 27.1 27.0 27.0 26.8 26.7 26.8 26.9 26.8 26.7 26.8 27.0 27.0 27.1 27.1 27.3 27.2 27.3 27.4 27.4 27.1 26.8 26.4 26.0 25.4 24.9 24.1 23.5 22.9 22.5 21.8 21.9 21.8 22.0 22.0 21.7 21.2 20.5 20.3 20.0 20.0 19.5 19.7 19.0 19.7 19.5 20.0 20.0 20.3 20.5 21.2 21.7 22.0 22.0 21.8 21.9 21.8 22.5 22.9 23.5 24.1
110.0 21.5 22.0 22.7 23.0 23.5 23.7 23.7 23.7 23.7 23.5 23.5 23.4 23.1 23.1 22.8 22.8 22.7 22.8 22.7 22.8 22.7 22.8 22.8 23.1 23.1 23.4 23.5 23.5 23.7 23.7 23.7 23.7 23.5 23.0 22.7 22.0 21.5 20.9 20.6 20.2 20.3 20.0 19.6 19.3 18.5 18.1 17.4 17.1 16.9 16.4 16.2 16.1 16.1 16.0 15.6 16.0 16.1 16.1 16.2 16.4 16.9 17.1 17.4 18.1 18.5 19.3 19.6 20.0 20.3 20.2 20.6 20.9
112.5 18.6 18.8 19.3 19.3 19.8 20.0 20.1 19.9 19.9 19.9 19.7 19.5 19.1 19.1 18.8 18.9 18.8 18.7 18.7 18.7 18.8 18.9 18.8 19.1 19.1 19.5 19.7 19.9 19.9 19.9 20.1 20.0 19.8 19.3 19.3 18.8 18.6 18.2 18.0 17.4 16.9 16.4 16.0 15.5 15.2 14.6 14.1 14.0 13.8 13.6 13.6 13.4 13.3 13.4 13.0 13.4 13.3 13.4 13.6 13.6 13.8 14.0 14.1 14.6 15.2 15.5 16.0 16.4 16.9 17.4 18.0 18.2
115.0 15.4 15.6 15.9 16.1 16.3 16.4 16.4 16.3 16.4 16.1 15.9 15.7 15.5 15.4 15.2 14.9 14.8 14.8 15.1 14.8 14.8 14.9 15.2 15.4 15.5 15.7 15.9 16.1 16.4 16.3 16.4 16.4 16.3 16.1 15.9 15.6 15.4 14.8 14.4 13.9 13.7 13.1 12.6 12.4 12.1 11.8 11.5 11.4 11.0 11.0 10.9 10.9 10.8 10.8 10.5 10.8 10.8 10.9 10.9 11.0 11.0 11.4 11.5 11.8 12.1 12.4 12.6 13.1 13.7 13.9 14.4 14.8
117.5 11.8 12.3 12.4 12.5 12.9 13.1 12.9 13.1 12.8 12.8 12.5 12.4 12.0 12.0 11.6 11.5 11.4 11.1 11.4 11.1 11.4 11.5 11.6 12.0 12.0 12.4 12.5 12.8 12.8 13.1 12.9 13.1 12.9 12.5 12.4 12.3 11.8 11.2 11.0 10.8 10.6 10.1 9.9 9.8 9.4 9.1 9.1 9.1 8.9 8.9 8.8 8.6 8.6 8.7 8.6 8.7 8.6 8.6 8.8 8.9 8.9 9.1 9.1 9.1 9.4 9.8 9.9 10.1 10.6 10.8 11.0 11.2
120.0 8.8 8.9 9.3 9.4 9.5 9.5 9.6 9.6 9.4 9.5 9.3 9.3 9.0 8.7 8.6 8.4 8.1 8.2 8.3 8.2 8.1 8.4 8.6 8.7 9.0 9.3 9.3 9.5 9.4 9.6 9.6 9.5 9.5 9.4 9.3 8.9 8.8 8.6 8.3 8.1 8.0 7.7 7.6 7.3 7.3 7.1 7.0 6.9 6.9 6.8 6.8 6.8 6.8 6.8 6.5 6.8 6.8 6.8 6.8 6.8 6.9 6.9 7.0 7.1 7.3 7.3 7.6 7.7 8.0 8.1 8.3 8.6
122.5 6.2 6.3 6.4 6.6 6.7 6.6 6.5 6.6 6.6 6.5 6.3 6.3 6.1 5.9 5.8 5.6 5.4 5.4 5.7 5.4 5.4 5.6 5.8 5.9 6.1 6.3 6.3 6.5 6.6 6.6 6.5 6.6 6.7 6.6 6.4 6.3 6.2 5.9 5.9 5.8 5.8 5.6 5.4 5.4 5.3 5.3 5.1 5.2 5.1 5.1 5.1 5.1 5.1 5.1 4.9 5.1 5.1 5.1 5.1 5.1 5.1 5.2 5.1 5.3 5.3 5.4 5.4 5.6 5.8 5.8 5.9 5.9
125.0 4.1 4.1 4.2 4.3 4.2 4.3 4.4 4.2 4.1 4.1 4.0 3.8 3.7 3.5 3.6 3.6 3.5 3.4 3.6 3.4 3.5 3.6 3.6 3.5 3.7 3.8 4.0 4.1 4.1 4.2 4.4 4.3 4.2 4.3 4.2 4.1 4.1 4.1 3.9 3.9 3.8 3.9 3.8 3.7 3.8 3.7 3.7 3.6 3.6 3.5 3.7 3.7 3.6 3.6 3.4 3.6 3.6 3.7 3.7 3.5 3.6 3.6 3.7 3.7 3.8 3.7 3.8 3.9 3.8 3.9 3.9 4.1
127.5 2.5 2.6 2.5 2.6 2.5 2.5 2.4 2.4 2.3 2.3 2.2 2.2 2.0 2.2 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.2 2.0 2.2 2.2 2.3 2.3 2.4 2.4 2.5 2.5 2.6 2.5 2.6 2.5 2.4 2.5 2.4 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.4 2.4 2.5 2.4 2.3 2.4 2.5 2.4 2.4 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.4 2.5 2.4
130.0 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.3 1.4 1.3 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.3 1.4 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.5 1.6 1.6 1.6 1.6 1.7 1.7 1.7 1.6 1.7 1.6 1.6 1.6 1.6 1.7 1.6 1.7 1.6 1.6 1.6 1.6 1.7 1.6 1.7 1.7 1.7 1.6 1.6 1.6 1.6 1.5 1.6 1.5
132.5 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
135.0 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.0 1.1 1.0 1.1 1.0 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
137.5 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
140.0 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
142.5 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
145.0 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3
147.5 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3
150.0 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3
152.5 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
155.0 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
157.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.4 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.4 1.5 1.4 1.4 1.4 1.4 1.4 1.4
160.0 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.4 1.4 1.5 1.4 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.4 1.5 1.4 1.4 1.5 1.4 1.4 1.4
162.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.4
165.0 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
167.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
170.0 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
172.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
175.0 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
177.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
180.0 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
