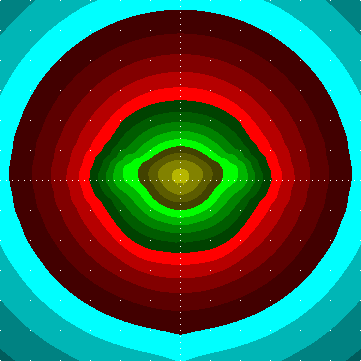

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] HAC-VTO-Ireflec200-5A
# [LUMCAT] HARMONY
# [DATE] 06/01/2014/25/10/2013/24/10/2013 / FAUVIN
# down given: 86%
# out given: 70.7%
# tilt: 0.0
# [LAMP] 1 ST 100 10000 1950 E40
# Bulbs: 1, 10000 lm each
# Source file: HARMONY_HAC-VTO-Ireflec200-5A_1_ST_100_10000_1950_E40.ldt
# Luminaire flux = 707 raw, for the given bulb(s) it would be 7068 lm,
# 70.7 % of the bulb flux
# between 75 and 90: 14.0 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 62.8 cd / 1000 lm , 21.6 % of the luminaire flux
# 90deg and above: max 51.8 cd / 1000 lm , 13.8?% of the luminaire flux
# CutOff Type: Non-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 428?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:1753?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 216 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 169 cd / 1000 lm,
# maximum spec. lum. intensity 216 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138
2.5 138 138 138 138 140 140 140 140 141 141 142 141 141 141 142 141 142 140 141 140 142 141 142 141 141 141 142 141 141 140 140 140 140 138 138 138 138 137 137 136 136 135 135 134 134 134 133 132 132 132 131 132 134 133 130 133 134 132 131 132 132 132 133 134 134 134 135 135 136 136 137 137
5.0 138 139 139 140 141 142 142 142 142 143 143 143 144 143 143 144 144 144 144 144 144 144 143 143 144 143 143 143 142 142 142 142 141 140 139 139 138 138 137 137 135 136 132 133 132 130 129 130 131 128 127 125 125 126 125 126 125 125 127 128 131 130 129 130 132 133 132 136 135 137 137 138
7.5 137 139 140 141 142 142 143 144 144 145 146 146 147 146 147 146 148 147 148 147 148 146 147 146 147 146 146 145 144 144 143 142 142 141 140 139 137 136 135 134 133 133 132 136 140 134 129 130 126 123 124 122 120 121 121 121 120 122 124 123 126 130 129 134 140 136 132 133 133 134 135 136
10.0 140 141 142 143 144 145 145 146 146 147 148 148 149 149 149 149 150 149 150 149 150 149 149 149 149 148 148 147 146 146 145 145 144 143 142 141 140 139 137 136 133 132 130 129 128 129 130 137 127 125 125 124 122 122 123 122 122 124 125 125 127 137 130 129 128 129 130 132 133 136 137 139
12.5 140 140 142 143 145 146 147 148 148 149 150 150 151 151 151 151 152 152 151 152 152 151 151 151 151 150 150 149 148 148 147 146 145 143 142 140 140 138 136 134 132 131 129 128 127 125 124 123 125 124 122 123 123 122 121 122 123 123 122 124 125 123 124 125 127 128 129 131 132 134 136 138
15.0 139 140 142 143 145 146 148 149 150 152 152 152 153 153 153 153 154 154 154 154 154 153 153 153 153 152 152 152 150 149 148 146 145 143 142 140 139 136 135 133 132 131 128 127 125 124 123 121 121 120 120 121 122 121 120 121 122 121 120 120 121 121 123 124 125 127 128 131 132 133 135 136
17.5 140 141 143 144 146 147 149 150 151 153 154 154 156 155 155 155 156 156 155 156 156 155 155 155 156 154 154 153 151 150 149 147 146 144 143 141 140 137 134 132 130 128 126 125 123 122 121 120 119 117 117 118 118 116 116 116 118 118 117 117 119 120 121 122 123 125 126 128 130 132 134 137
20.0 141 142 143 145 147 148 150 151 153 154 155 156 157 157 157 156 157 157 155 157 157 156 157 157 157 156 155 154 153 151 150 148 147 145 143 142 141 137 134 132 130 127 124 122 120 119 118 117 116 115 115 115 115 113 113 113 115 115 115 115 116 117 118 119 120 122 124 127 130 132 134 137
22.5 141 142 144 146 148 149 151 152 153 155 156 157 158 158 158 157 157 157 156 157 157 157 158 158 158 157 156 155 153 152 151 149 148 146 144 142 141 137 135 132 130 127 124 121 119 117 116 114 113 112 112 112 112 110 110 110 112 112 112 112 113 114 116 117 119 121 124 127 130 132 135 137
25.0 141 142 144 147 149 150 153 154 155 156 157 157 159 159 158 157 157 156 155 156 157 157 158 159 159 157 157 156 155 154 153 150 149 147 144 142 141 136 134 131 128 126 123 120 118 116 114 112 111 110 109 109 110 108 108 108 110 109 109 110 111 112 114 116 118 120 123 126 128 131 134 136
27.5 141 142 145 148 151 152 155 156 156 157 157 157 158 158 157 156 156 154 153 154 156 156 157 158 158 157 157 157 156 156 155 152 151 148 145 142 141 136 132 129 126 124 121 118 116 114 112 110 108 107 106 106 107 106 106 106 107 106 106 107 108 110 112 114 116 118 121 124 126 129 132 136
30.0 141 143 147 150 154 155 157 158 157 157 156 155 155 154 154 153 153 152 151 152 153 153 154 154 155 155 156 157 157 158 157 155 154 150 147 143 141 135 131 128 125 122 119 116 114 112 109 107 106 104 104 104 103 102 102 102 103 104 104 104 106 107 109 112 114 116 119 122 125 128 131 135
32.5 143 146 151 154 159 160 161 160 159 158 156 153 152 151 150 149 149 149 149 149 149 149 150 151 152 153 156 158 159 160 161 160 159 154 151 146 143 135 131 127 123 120 117 114 111 109 107 105 104 102 101 100 100 99.2 98.6 99.2 100 100 101 102 104 105 107 109 111 114 117 120 123 127 131 135
35.0 145 149 155 160 165 165 164 163 160 157 154 151 149 147 145 144 144 145 144 145 144 144 145 147 149 151 154 157 160 163 164 165 165 160 155 149 145 136 131 126 122 118 114 112 109 107 105 103 101 99.3 98.3 97.7 97.8 96.4 96.4 96.4 97.8 97.7 98.3 99.3 101 103 105 107 109 112 114 118 122 126 131 136
37.5 147 151 159 164 168 169 167 164 159 156 152 148 145 141 140 138 139 139 140 139 139 138 140 141 145 148 152 156 159 164 167 169 168 164 159 151 147 136 130 125 120 116 113 110 107 104 103 100 98.9 96.9 95.9 95.3 94.9 93.9 93.6 93.9 94.9 95.3 95.9 96.9 98.9 100 103 104 107 110 113 116 120 125 130 136
40.0 147 152 159 165 168 169 167 162 156 151 146 142 141 137 134 133 133 134 135 134 133 133 134 137 141 142 146 151 156 162 167 169 168 165 159 152 147 135 128 122 118 114 110 107 105 102 99.9 97.8 96.4 94.6 93.5 92.6 92.6 91.8 91.2 91.8 92.6 92.6 93.5 94.6 96.4 97.8 99.9 102 105 107 110 114 118 122 128 135
42.5 148 152 159 163 166 167 163 158 151 145 140 136 135 131 129 127 128 128 128 128 128 127 129 131 135 136 140 145 151 158 163 167 166 163 159 152 148 135 126 119 115 111 108 105 102 99.6 97.4 95.2 93.9 92.4 91.4 90.1 90.1 89.3 89.1 89.3 90.1 90.1 91.4 92.4 93.9 95.2 97.4 99.6 102 105 108 111 115 119 126 135
45.0 149 154 160 164 165 165 159 152 144 137 132 128 128 125 123 121 121 120 121 120 121 121 123 125 128 128 132 137 144 152 159 165 165 164 160 154 149 135 125 117 113 110 106 103 100 97.4 94.9 92.8 91.8 90.1 88.9 87.9 87.9 87.3 86.8 87.3 87.9 87.9 88.9 90.1 91.8 92.8 94.9 97.4 100 103 106 110 113 117 125 135
47.5 151 156 163 166 167 164 154 145 135 129 124 120 119 118 116 115 116 114 115 114 116 115 116 118 119 120 124 129 135 145 154 164 167 166 163 156 151 137 125 116 111 107 104 101 97.7 95.4 92.8 90.4 89.1 87.4 86.4 85.4 85.3 84.9 84.8 84.9 85.3 85.4 86.4 87.4 89.1 90.4 92.8 95.4 97.7 101 104 107 111 116 125 137
50.0 153 158 165 168 167 164 149 137 127 121 116 113 111 110 109 109 109 108 108 108 109 109 109 110 111 113 116 121 127 137 149 164 167 168 165 158 153 138 125 115 109 105 102 99.0 96.1 93.3 90.4 88.1 85.9 84.1 83.4 82.3 82.5 82.2 81.9 82.2 82.5 82.3 83.4 84.1 85.9 88.1 90.4 93.3 96.1 99.0 102 105 109 115 125 138
52.5 156 160 168 171 168 163 142 129 119 114 110 108 107 105 104 103 103 103 103 103 103 103 104 105 107 108 110 114 119 129 142 163 168 171 168 160 156 140 125 114 107 103 99.8 96.8 94.0 91.3 88.6 85.4 83.1 80.9 79.6 78.6 79.1 78.8 78.4 78.8 79.1 78.6 79.6 80.9 83.1 85.4 88.6 91.3 94.0 96.8 99.8 103 107 114 125 140
55.0 160 165 172 173 167 159 133 120 113 108 106 104 102 101 99.9 98.7 98.8 98.4 98.4 98.4 98.8 98.7 99.9 101 102 104 106 108 113 120 133 159 167 173 172 165 160 143 126 114 106 101 97.2 94.3 91.5 89.3 86.1 83.0 80.4 77.7 76.4 74.8 75.2 75.4 74.9 75.4 75.2 74.8 76.4 77.7 80.4 83.0 86.1 89.3 91.5 94.3 97.2 101 106 114 126 143
57.5 167 173 182 180 167 155 123 112 107 104 102 100 99.2 97.3 96.1 94.7 94.6 94.3 94.3 94.3 94.6 94.7 96.1 97.3 99.2 100 102 104 107 112 123 155 167 180 182 173 167 149 129 114 105 99.3 94.8 91.6 88.3 85.9 83.4 80.2 77.6 74.6 72.7 71.2 71.1 71.4 71.0 71.4 71.1 71.2 72.7 74.6 77.6 80.2 83.4 85.9 88.3 91.6 94.8 99.3 105 114 129 149
60.0 180 187 200 192 168 152 114 106 102 99.9 97.8 96.2 95.5 93.8 92.2 90.7 90.4 89.8 89.9 89.8 90.4 90.7 92.2 93.8 95.5 96.2 97.8 99.9 102 106 114 152 168 192 200 187 180 158 133 115 104 97.3 92.4 88.8 85.6 82.9 80.1 77.4 74.9 71.8 69.8 67.9 67.3 67.4 65.8 67.4 67.3 67.9 69.8 71.8 74.9 77.4 80.1 82.9 85.6 88.8 92.4 97.3 104 115 133 158
62.5 197 205 216 203 163 146 106 101 97.4 95.8 94.0 92.6 91.7 89.9 88.1 86.5 85.9 85.6 85.7 85.6 85.9 86.5 88.1 89.9 91.7 92.6 94.0 95.8 97.4 101 106 146 163 203 216 205 197 167 138 114 102 94.9 89.8 86.1 82.5 79.9 77.0 74.6 72.2 69.1 66.7 64.6 63.6 63.8 62.1 63.8 63.6 64.6 66.7 69.1 72.2 74.6 77.0 79.9 82.5 86.1 89.8 94.9 102 114 138 167
65.0 201 209 203 191 142 130 101 96.7 93.7 92.3 90.5 88.9 88.1 86.1 84.7 82.8 82.1 81.8 81.5 81.8 82.1 82.8 84.7 86.1 88.1 88.9 90.5 92.3 93.7 96.7 101 130 142 191 203 209 201 164 136 107 97.0 89.8 85.9 82.8 79.5 76.7 73.8 71.4 69.2 66.3 63.9 61.5 60.3 60.7 59.3 60.7 60.3 61.5 63.9 66.3 69.2 71.4 73.8 76.7 79.5 82.8 85.9 89.8 97.0 107 136 164
67.5 167 169 149 142 105 102 92.8 91.6 90.1 88.2 86.7 84.7 83.6 82.3 80.9 78.9 77.8 77.3 77.7 77.3 77.8 78.9 80.9 82.3 83.6 84.7 86.7 88.2 90.1 91.6 92.8 102 105 142 149 169 167 136 115 87.9 82.0 76.7 74.6 74.3 72.8 72.3 69.9 67.8 65.9 63.5 61.3 58.6 57.2 57.3 56.6 57.3 57.2 58.6 61.3 63.5 65.9 67.8 69.9 72.3 72.8 74.3 74.6 76.7 82.0 87.9 115 136
70.0 126 125 111 105 86.6 84.1 76.2 75.8 77.8 81.8 81.6 79.6 78.8 77.3 76.4 74.7 73.8 73.3 73.4 73.3 73.8 74.7 76.4 77.3 78.8 79.6 81.6 81.8 77.8 75.8 76.2 84.1 86.6 105 111 125 126 109 96.8 78.5 72.1 67.6 64.7 63.2 62.2 62.9 62.8 62.6 61.7 60.3 58.3 55.8 54.3 54.1 53.9 54.1 54.3 55.8 58.3 60.3 61.7 62.6 62.8 62.9 62.2 63.2 64.7 67.6 72.1 78.5 96.8 109
72.5 94.4 94.7 86.9 85.1 76.2 75.6 72.3 71.8 71.2 71.2 71.3 72.0 71.2 70.8 70.4 70.4 69.9 69.4 69.5 69.4 69.9 70.4 70.4 70.8 71.2 72.0 71.3 71.2 71.2 71.8 72.3 75.6 76.2 85.1 86.9 94.7 94.4 85.1 81.6 70.2 66.6 63.1 60.7 58.8 57.0 55.1 54.1 54.1 54.3 54.3 53.0 52.5 51.5 51.0 50.6 51.0 51.5 52.5 53.0 54.3 54.3 54.1 54.1 55.1 57.0 58.8 60.7 63.1 66.6 70.2 81.6 85.1
75.0 77.9 78.3 74.0 73.8 69.9 70.3 69.1 68.8 68.3 68.1 67.9 67.6 67.4 67.2 66.8 66.8 66.8 66.7 66.5 66.7 66.8 66.8 66.8 67.2 67.4 67.6 67.9 68.1 68.3 68.8 69.1 70.3 69.9 73.8 74.0 78.3 77.9 71.4 70.2 64.1 62.2 59.5 57.3 55.7 53.9 52.3 50.8 49.5 48.5 47.7 47.4 47.4 47.3 46.8 46.6 46.8 47.3 47.4 47.4 47.7 48.5 49.5 50.8 52.3 53.9 55.7 57.3 59.5 62.2 64.1 70.2 71.4
77.5 67.8 68.2 66.4 67.6 65.9 66.2 65.6 65.8 65.1 65.3 65.0 64.8 64.5 64.4 64.3 64.0 64.0 63.9 64.2 63.9 64.0 64.0 64.3 64.4 64.5 64.8 65.0 65.3 65.1 65.8 65.6 66.2 65.9 67.6 66.4 68.2 67.8 64.2 63.3 59.6 58.3 56.1 54.3 52.9 51.2 49.8 48.5 47.0 46.0 45.0 44.4 43.9 44.0 43.9 45.1 43.9 44.0 43.9 44.4 45.0 46.0 47.0 48.5 49.8 51.2 52.9 54.3 56.1 58.3 59.6 63.3 64.2
80.0 61.8 62.4 61.4 62.8 61.8 62.4 62.3 62.5 62.3 62.4 62.2 61.9 62.1 61.7 61.7 61.6 61.3 61.4 61.3 61.4 61.3 61.6 61.7 61.7 62.1 61.9 62.2 62.4 62.3 62.5 62.3 62.4 61.8 62.8 61.4 62.4 61.8 59.0 58.6 55.8 55.1 53.2 51.3 50.2 48.7 47.5 46.3 44.9 44.1 43.1 42.3 42.0 41.9 43.2 46.2 43.2 41.9 42.0 42.3 43.1 44.1 44.9 46.3 47.5 48.7 50.2 51.3 53.2 55.1 55.8 58.6 59.0
82.5 57.6 58.1 57.8 59.2 58.7 59.2 59.5 59.6 59.4 59.5 59.5 59.3 59.3 58.8 58.9 58.7 58.8 58.5 58.8 58.5 58.8 58.7 58.9 58.8 59.3 59.3 59.5 59.5 59.4 59.6 59.5 59.2 58.7 59.2 57.8 58.1 57.6 55.3 55.0 52.8 52.3 50.6 49.1 47.8 46.5 45.3 44.1 42.9 42.0 41.1 40.7 40.2 40.3 42.6 47.1 42.6 40.3 40.2 40.7 41.1 42.0 42.9 44.1 45.3 46.5 47.8 49.1 50.6 52.3 52.8 55.0 55.3
85.0 54.7 55.1 55.0 56.3 56.2 56.3 56.6 56.9 56.7 56.7 56.7 56.5 56.5 56.0 56.2 55.8 56.1 55.7 55.9 55.7 56.1 55.8 56.2 56.0 56.5 56.5 56.7 56.7 56.7 56.9 56.6 56.3 56.2 56.3 55.0 55.1 54.7 52.7 52.0 50.2 49.8 48.2 46.7 45.5 44.2 43.2 42.0 41.0 40.2 39.3 38.8 38.6 39.3 43.2 45.1 43.2 39.3 38.6 38.8 39.3 40.2 41.0 42.0 43.2 44.2 45.5 46.7 48.2 49.8 50.2 52.0 52.7
87.5 52.1 52.5 52.5 53.6 53.3 53.9 54.3 54.2 54.0 54.3 54.1 53.8 53.8 53.7 53.4 53.1 53.2 52.9 53.3 52.9 53.2 53.1 53.4 53.7 53.8 53.8 54.1 54.3 54.0 54.2 54.3 53.9 53.3 53.6 52.5 52.5 52.1 50.0 49.6 47.8 47.2 45.8 44.6 43.4 42.2 41.1 40.0 39.0 38.3 37.7 37.9 38.3 39.4 40.4 40.9 40.4 39.4 38.3 37.9 37.7 38.3 39.0 40.0 41.1 42.2 43.4 44.6 45.8 47.2 47.8 49.6 50.0
90.0 49.7 50.1 50.0 51.3 51.1 51.3 51.6 51.8 51.7 51.7 51.4 51.2 51.3 50.8 50.8 50.6 50.5 50.3 50.3 50.3 50.5 50.6 50.8 50.8 51.3 51.2 51.4 51.7 51.7 51.8 51.6 51.3 51.1 51.3 50.0 50.1 49.7 47.7 47.2 45.7 45.1 43.7 42.3 41.3 40.1 39.0 38.2 37.0 36.8 36.8 37.6 37.8 37.3 38.4 39.3 38.4 37.3 37.8 37.6 36.8 36.8 37.0 38.2 39.0 40.1 41.3 42.3 43.7 45.1 45.7 47.2 47.7
92.5 47.1 47.6 47.5 48.7 48.3 49.0 48.9 49.1 48.8 49.1 48.8 48.5 48.3 47.8 47.9 47.7 47.5 47.5 47.5 47.5 47.5 47.7 47.9 47.8 48.3 48.5 48.8 49.1 48.8 49.1 48.9 49.0 48.3 48.7 47.5 47.6 47.1 45.3 44.9 43.0 42.7 41.3 40.0 39.0 37.8 37.0 36.1 35.5 35.3 35.2 35.8 35.3 35.3 36.7 37.6 36.7 35.3 35.3 35.8 35.2 35.3 35.5 36.1 37.0 37.8 39.0 40.0 41.3 42.7 43.0 44.9 45.3
95.0 44.3 44.8 44.5 45.8 45.4 46.5 46.2 46.2 46.2 46.0 45.9 45.7 45.5 45.2 45.1 44.6 44.4 44.3 44.3 44.3 44.4 44.6 45.1 45.2 45.5 45.7 45.9 46.0 46.2 46.2 46.2 46.5 45.4 45.8 44.5 44.8 44.3 42.5 42.2 40.5 40.2 38.7 37.6 36.7 35.8 34.8 33.8 33.2 32.8 33.0 32.8 32.5 33.6 34.8 34.8 34.8 33.6 32.5 32.8 33.0 32.8 33.2 33.8 34.8 35.8 36.7 37.6 38.7 40.2 40.5 42.2 42.5
97.5 41.3 41.7 41.5 42.9 42.4 43.5 43.0 43.1 43.0 42.9 42.7 42.5 42.3 42.0 41.8 41.6 41.4 41.2 41.4 41.2 41.4 41.6 41.8 42.0 42.3 42.5 42.7 42.9 43.0 43.1 43.0 43.5 42.4 42.9 41.5 41.7 41.3 39.5 39.3 38.0 37.8 36.7 35.5 34.5 33.4 32.3 31.5 30.8 30.8 30.4 30.2 30.4 31.0 31.2 30.4 31.2 31.0 30.4 30.2 30.4 30.8 30.8 31.5 32.3 33.4 34.5 35.5 36.7 37.8 38.0 39.3 39.5
100.0 38.7 39.0 38.5 39.7 39.3 39.3 39.8 40.2 39.8 39.6 39.6 39.1 39.0 38.4 38.4 38.0 38.0 37.7 37.9 37.7 38.0 38.0 38.4 38.4 39.0 39.1 39.6 39.6 39.8 40.2 39.8 39.3 39.3 39.7 38.5 39.0 38.7 36.7 36.8 34.6 34.7 33.2 32.2 31.3 30.3 29.7 28.9 28.5 28.3 28.0 27.8 28.4 28.3 27.9 28.0 27.9 28.3 28.4 27.8 28.0 28.3 28.5 28.9 29.7 30.3 31.3 32.2 33.2 34.7 34.6 36.8 36.7
102.5 35.0 35.3 35.0 36.3 35.6 36.8 36.6 36.4 36.3 36.3 35.9 35.7 35.4 35.2 34.9 34.6 34.3 34.3 34.5 34.3 34.3 34.6 34.9 35.2 35.4 35.7 35.9 36.3 36.3 36.4 36.6 36.8 35.6 36.3 35.0 35.3 35.0 33.2 33.0 31.3 31.2 30.0 29.0 28.2 27.4 26.8 26.3 26.4 26.4 26.4 27.0 26.4 26.1 25.5 25.0 25.5 26.1 26.4 27.0 26.4 26.4 26.4 26.3 26.8 27.4 28.2 29.0 30.0 31.2 31.3 33.0 33.2
105.0 31.5 32.0 31.2 32.8 32.3 32.9 32.9 32.8 32.7 32.5 32.5 31.9 31.8 31.1 31.2 30.7 30.7 30.5 30.6 30.5 30.7 30.7 31.2 31.1 31.8 31.9 32.5 32.5 32.7 32.8 32.9 32.9 32.3 32.8 31.2 32.0 31.5 29.7 29.7 28.1 28.2 26.8 25.8 25.3 24.7 24.9 25.1 24.8 24.6 24.0 23.4 23.0 22.8 22.6 22.4 22.6 22.8 23.0 23.4 24.0 24.6 24.8 25.1 24.9 24.7 25.3 25.8 26.8 28.2 28.1 29.7 29.7
107.5 28.1 28.5 28.0 29.2 28.5 29.7 29.3 29.2 29.0 29.0 28.6 28.1 28.0 27.6 27.4 26.9 26.6 26.5 26.7 26.5 26.6 26.9 27.4 27.6 28.0 28.1 28.6 29.0 29.0 29.2 29.3 29.7 28.5 29.2 28.0 28.5 28.1 26.4 26.5 24.8 25.0 24.0 23.3 23.3 23.5 23.0 22.0 21.5 21.0 20.3 20.1 19.8 19.6 19.7 19.3 19.7 19.6 19.8 20.1 20.3 21.0 21.5 22.0 23.0 23.5 23.3 23.3 24.0 25.0 24.8 26.5 26.4
110.0 24.5 24.9 24.3 25.6 24.8 25.8 25.3 25.5 25.4 25.0 24.8 24.2 23.9 23.5 23.4 22.8 22.7 22.5 22.7 22.5 22.7 22.8 23.4 23.5 23.9 24.2 24.8 25.0 25.4 25.5 25.3 25.8 24.8 25.6 24.3 24.9 24.5 22.8 23.1 22.0 22.3 22.0 21.7 21.0 20.0 19.3 18.6 18.0 17.5 17.1 16.7 16.6 16.6 16.5 16.1 16.5 16.6 16.6 16.7 17.1 17.5 18.0 18.6 19.3 20.0 21.0 21.7 22.0 22.3 22.0 23.1 22.8
112.5 21.2 21.4 21.0 22.0 21.3 21.4 21.8 21.7 21.5 21.1 20.9 20.5 20.2 19.7 19.3 19.0 19.0 18.5 18.8 18.5 19.0 19.0 19.3 19.7 20.2 20.5 20.9 21.1 21.5 21.7 21.8 21.4 21.3 22.0 21.0 21.4 21.2 20.5 20.8 19.4 19.6 18.3 17.8 17.0 16.2 15.5 15.1 14.4 14.2 13.9 13.6 13.6 13.6 13.6 13.3 13.6 13.6 13.6 13.6 13.9 14.2 14.4 15.1 15.5 16.2 17.0 17.8 18.3 19.6 19.4 20.8 20.5
115.0 18.5 18.5 17.9 18.8 18.0 18.2 18.5 18.2 17.9 17.6 17.4 16.8 16.3 16.0 15.8 15.4 15.2 15.0 15.3 15.0 15.2 15.4 15.8 16.0 16.3 16.8 17.4 17.6 17.9 18.2 18.5 18.2 18.0 18.8 17.9 18.5 18.5 16.8 17.0 15.5 15.9 14.8 14.1 13.4 13.0 12.5 11.9 11.6 11.5 11.1 11.1 11.1 11.0 11.0 10.7 11.0 11.0 11.1 11.1 11.1 11.5 11.6 11.9 12.5 13.0 13.4 14.1 14.8 15.9 15.5 17.0 16.8
117.5 14.7 15.0 14.3 15.4 14.5 14.9 14.9 14.8 14.4 14.0 13.8 13.3 12.7 12.5 12.2 11.8 11.7 11.4 11.8 11.4 11.7 11.8 12.2 12.5 12.7 13.3 13.8 14.0 14.4 14.8 14.9 14.9 14.5 15.4 14.3 15.0 14.7 13.0 13.5 12.2 12.4 11.4 11.1 10.6 10.0 9.8 9.4 9.2 9.0 8.9 8.8 8.6 8.6 8.7 8.5 8.7 8.6 8.6 8.8 8.9 9.0 9.2 9.4 9.8 10.0 10.6 11.1 11.4 12.4 12.2 13.5 13.0
120.0 11.4 11.4 10.9 11.8 11.1 11.3 11.3 11.1 10.9 10.5 10.1 9.7 9.4 9.0 8.9 8.7 8.5 8.4 8.7 8.4 8.5 8.7 8.9 9.0 9.4 9.7 10.1 10.5 10.9 11.1 11.3 11.3 11.1 11.8 10.9 11.4 11.4 10.0 10.4 9.0 9.5 8.6 8.3 8.0 7.6 7.5 7.2 7.1 7.0 6.8 6.8 6.8 6.9 6.8 6.6 6.8 6.9 6.8 6.8 6.8 7.0 7.1 7.2 7.5 7.6 8.0 8.3 8.6 9.5 9.0 10.4 10.0
122.5 7.8 8.1 7.5 8.4 7.7 8.1 7.9 7.7 7.6 7.3 7.1 6.8 6.5 6.3 6.1 5.9 5.8 5.6 5.9 5.6 5.8 5.9 6.1 6.3 6.5 6.8 7.1 7.3 7.6 7.7 7.9 8.1 7.7 8.4 7.5 8.1 7.8 6.9 7.4 6.5 6.8 6.2 5.9 5.6 5.5 5.4 5.3 5.2 5.1 5.0 5.1 5.0 5.0 5.1 4.9 5.1 5.0 5.0 5.1 5.0 5.1 5.2 5.3 5.4 5.5 5.6 5.9 6.2 6.8 6.5 7.4 6.9
125.0 5.3 5.4 4.8 5.5 4.8 5.4 5.0 4.8 4.8 4.6 4.4 4.2 4.1 3.9 3.8 3.8 3.6 3.5 3.7 3.5 3.6 3.8 3.8 3.9 4.1 4.2 4.4 4.6 4.8 4.8 5.0 5.4 4.8 5.5 4.8 5.4 5.3 4.4 4.9 4.2 4.5 4.1 4.1 3.8 3.8 3.8 3.8 3.6 3.6 3.7 3.7 3.6 3.7 3.7 3.5 3.7 3.7 3.6 3.7 3.7 3.6 3.6 3.8 3.8 3.8 3.8 4.1 4.1 4.5 4.2 4.9 4.4
127.5 2.7 3.2 2.8 3.2 2.8 2.7 2.8 2.8 2.7 2.6 2.5 2.4 2.3 2.3 2.2 2.2 2.1 2.1 2.2 2.1 2.1 2.2 2.2 2.3 2.3 2.4 2.5 2.6 2.7 2.8 2.8 2.7 2.8 3.2 2.8 3.2 2.7 2.7 3.0 2.5 2.8 2.7 2.6 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.4 2.4 2.4 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.6 2.6 2.7 2.8 2.5 3.0 2.7
130.0 1.5 1.8 1.5 1.8 1.5 1.5 1.5 1.6 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.6 1.5 1.5 1.5 1.8 1.5 1.8 1.5 1.5 1.8 1.6 1.8 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.8 1.6 1.8 1.5
132.5 1.2 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.4 1.4 1.4 1.5 1.4 1.5 1.4 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.4 1.5 1.4 1.5 1.4 1.4 1.4 1.3 1.3 1.3
135.0 1.2 1.3 1.4 1.4 1.3 1.2 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.2 1.3 1.4 1.4 1.3 1.2 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4
137.5 1.2 1.4 1.4 1.4 1.4 1.2 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.2 1.4 1.4 1.4 1.4 1.2 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4
140.0 1.2 1.4 1.4 1.4 1.4 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.4 1.4 1.4 1.4 1.2 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4
142.5 1.2 1.4 1.4 1.4 1.4 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.4 1.4 1.4 1.4 1.2 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4
145.0 1.3 1.5 1.4 1.4 1.4 1.2 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.2 1.4 1.4 1.4 1.5 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
147.5 1.3 1.5 1.5 1.5 1.5 1.3 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
150.0 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
152.5 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
155.0 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
157.5 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.5 1.5 1.5 1.5
160.0 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.3 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6
162.5 1.3 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.5 1.5 1.5 1.5 1.3 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.5 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.5 1.6
165.0 1.3 1.6 1.6 1.6 1.6 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.6 1.6 1.6 1.6 1.3 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
167.5 1.3 1.6 1.6 1.6 1.6 1.3 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.3 1.6 1.6 1.6 1.6 1.3 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
170.0 1.3 1.6 1.6 1.6 1.6 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.6 1.6 1.6 1.6 1.3 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.6 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
