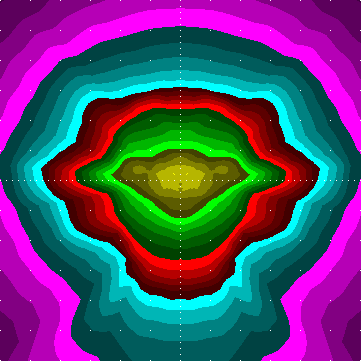

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] HAC-VTC-Ireflec220-5A
# [LUMCAT] HARMONY
# [DATE] 09/07/2013/22/05/2013/21/05/2013 / FAUVIN
# down given: 96%
# out given: 75.6%
# tilt: 0.0
# [LAMP] 1 MT 150 16500 2800 E40
# Bulbs: 1, 16500 lm each
# Source file: HARMONY_HAC-VTC-Ireflec220-5A_1_MT_150_16500_2800_E40.ldt
# Luminaire flux = 756 raw, for the given bulb(s) it would be 12474 lm,
# 75.6 % of the bulb flux
# between 75 and 90: 2.0 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 46.9 cd / 1000 lm , 4.4 % of the luminaire flux
# 90deg and above: max 46.9 cd / 1000 lm , 3.6 % of the luminaire flux
# CutOff Type: CIE_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 84 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 312 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 585 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 487 cd / 1000 lm,
# maximum spec. lum. intensity 590 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181 181
2.5 168 172 159 174 161 177 165 174 169 182 173 179 172 175 172 173 170 169 169 169 170 173 172 175 172 179 173 182 169 174 165 177 161 174 159 172 168 183 179 196 184 196 179 186 172 181 166 169 156 157 154 160 154 158 153 158 154 160 154 157 156 169 166 181 172 186 179 196 184 196 179 183
5.0 169 173 171 177 173 183 176 185 185 192 184 190 185 191 186 187 182 178 178 178 182 187 186 191 185 190 184 192 185 185 176 183 173 177 171 173 169 169 166 183 185 201 189 180 157 153 145 145 137 141 131 126 121 117 124 117 121 126 131 141 137 145 145 153 157 180 189 201 185 183 166 169
7.5 179 185 185 193 187 197 189 194 190 200 196 199 192 197 194 192 185 182 182 182 185 192 194 197 192 199 196 200 190 194 189 197 187 193 185 185 179 178 171 174 165 178 172 189 190 168 142 142 138 136 127 118 108 108 110 108 108 118 127 136 138 142 142 168 190 189 172 178 165 174 171 178
10.0 189 200 196 207 197 206 195 201 195 204 197 203 197 202 200 197 191 187 184 187 191 197 200 202 197 203 197 204 195 201 195 206 197 207 196 200 189 189 178 181 174 179 164 167 161 184 191 171 153 146 139 138 135 133 137 133 135 138 139 146 153 171 191 184 161 167 164 179 174 181 178 189
12.5 189 193 192 204 197 210 202 208 203 212 206 211 206 213 210 206 198 194 190 194 198 206 210 213 206 211 206 212 203 208 202 210 197 204 192 193 189 188 181 186 178 182 171 173 163 164 154 162 158 168 163 155 159 156 159 156 159 155 163 168 158 162 154 164 163 173 171 182 178 186 181 188
15.0 181 191 195 206 202 218 213 220 216 224 215 219 215 221 219 215 206 200 193 200 206 215 219 221 215 219 215 224 216 220 213 218 202 206 195 191 181 182 175 181 174 181 171 175 167 170 161 164 153 147 139 140 139 138 138 138 139 140 139 147 153 164 161 170 167 175 171 181 174 181 175 182
17.5 184 196 203 213 209 225 219 227 223 232 225 229 224 231 232 228 218 208 203 208 218 228 232 231 224 229 225 232 223 227 219 225 209 213 203 196 184 180 173 177 167 177 168 173 171 174 165 170 157 150 147 149 146 142 144 142 146 149 147 150 157 170 165 174 171 173 168 177 167 177 173 180
20.0 188 198 201 216 214 233 227 234 230 241 232 234 230 235 238 235 228 215 207 215 228 235 238 235 230 234 232 241 230 234 227 233 214 216 201 198 188 186 176 178 168 174 163 168 159 165 160 168 157 153 154 153 151 149 154 149 151 153 154 153 157 168 160 165 159 168 163 174 168 178 176 186
22.5 192 201 205 223 220 237 228 238 234 243 231 229 223 225 231 231 224 210 198 210 224 231 231 225 223 229 231 243 234 238 228 237 220 223 205 201 192 187 178 179 171 178 166 168 158 159 151 157 146 147 142 147 142 141 140 141 142 147 142 147 146 157 151 159 158 168 166 178 171 179 178 187
25.0 198 209 214 235 233 244 227 229 225 234 220 214 207 208 210 215 209 196 181 196 209 215 210 208 207 214 220 234 225 229 227 244 233 235 214 209 198 195 188 189 179 184 172 174 162 162 152 153 141 142 138 139 137 135 136 135 137 139 138 142 141 153 152 162 162 174 172 184 179 189 188 195
27.5 209 218 225 248 246 250 224 222 214 219 209 203 191 191 189 192 188 180 165 180 188 192 189 191 191 203 209 219 214 222 224 250 246 248 225 218 209 205 198 199 189 195 180 180 164 164 154 150 139 139 133 132 130 131 130 131 130 132 133 139 139 150 154 164 164 180 180 195 189 199 198 205
30.0 209 220 230 262 263 255 221 215 206 209 194 194 180 177 172 172 169 163 151 163 169 172 172 177 180 194 194 209 206 215 221 255 263 262 230 220 209 210 204 208 198 203 189 185 166 165 154 147 135 135 129 126 124 124 125 124 124 126 129 135 135 147 154 165 166 185 189 203 198 208 204 210
32.5 219 230 240 273 269 261 216 210 204 203 185 179 171 166 160 158 156 151 144 151 156 158 160 166 171 179 185 203 204 210 216 261 269 273 240 230 219 221 215 219 210 214 198 192 171 166 151 141 131 130 127 124 122 121 121 121 122 124 127 130 131 141 151 166 171 192 198 214 210 219 215 221
35.0 225 239 250 285 270 255 224 213 189 192 176 170 160 159 156 158 157 156 156 156 157 158 156 159 160 170 176 192 189 213 224 255 270 285 250 239 225 228 221 227 215 217 203 196 174 164 144 137 128 130 127 126 123 121 121 121 123 126 127 130 128 137 144 164 174 196 203 217 215 227 221 228
37.5 231 245 258 291 267 251 229 227 193 172 162 158 150 152 156 160 162 162 164 162 162 160 156 152 150 158 162 172 193 227 229 251 267 291 258 245 231 233 225 229 213 219 206 199 173 157 139 133 127 133 130 130 127 125 123 125 127 130 130 133 127 133 139 157 173 199 206 219 213 229 225 233
40.0 233 245 258 290 260 250 236 227 195 171 140 139 138 145 150 156 156 154 156 154 156 156 150 145 138 139 140 171 195 227 236 250 260 290 258 245 233 237 231 232 213 214 204 194 165 148 135 133 129 138 136 136 135 132 132 132 135 136 136 138 129 133 135 148 165 194 204 214 213 232 231 237
42.5 234 237 241 268 241 250 240 223 186 168 141 130 131 135 136 139 134 129 133 129 134 139 136 135 131 130 141 168 186 223 240 250 241 268 241 237 234 245 236 232 209 210 191 178 148 139 131 131 131 139 140 142 141 138 137 138 141 142 140 139 131 131 131 139 148 178 191 210 209 232 236 245
45.0 241 241 244 259 226 230 213 199 170 155 134 126 124 125 118 117 112 107 107 107 112 117 118 125 124 126 134 155 170 199 213 230 226 259 244 241 241 252 241 231 203 200 171 151 128 130 126 127 129 137 142 143 143 139 137 139 143 143 142 137 129 127 126 130 128 151 171 200 203 231 241 252
47.5 250 256 257 271 247 242 196 164 139 138 123 120 115 113 106 104 99.4 95.6 94.7 95.6 99.4 104 106 113 115 120 123 138 139 164 196 242 247 271 257 256 250 262 242 223 192 184 150 132 120 125 120 121 122 132 135 141 142 137 135 137 142 141 135 132 122 121 120 125 120 132 150 184 192 223 242 262
50.0 272 281 290 312 288 267 194 153 125 120 114 111 106 106 101 99.7 95.1 91.8 90.9 91.8 95.1 99.7 101 106 106 111 114 120 125 153 194 267 288 312 290 281 272 271 243 218 184 167 132 121 113 117 114 114 115 121 126 132 137 135 132 135 137 132 126 121 115 114 114 117 113 121 132 167 184 218 243 271
52.5 299 329 349 386 358 297 195 152 124 118 111 109 104 105 98.7 97.9 94.2 89.9 89.7 89.9 94.2 97.9 98.7 105 104 109 111 118 124 152 195 297 358 386 349 329 299 282 237 209 172 151 121 117 110 113 108 107 107 110 114 122 128 129 125 129 128 122 114 110 107 107 108 113 110 117 121 151 172 209 237 282
55.0 334 394 436 470 433 325 196 156 125 118 111 108 101 101 96.1 96.4 96.5 92.6 93.1 92.6 96.5 96.4 96.1 101 101 108 111 118 125 156 196 325 433 470 436 394 334 288 231 201 161 137 114 112 108 109 102 101 100 103 104 110 114 119 115 119 114 110 104 103 100 101 102 109 108 112 114 137 161 201 231 288
57.5 368 473 521 558 483 331 196 160 128 118 111 105 96.9 94.3 91.4 95.2 97.1 96.8 101 96.8 97.1 95.2 91.4 94.3 96.9 105 111 118 128 160 196 331 483 558 521 473 368 286 221 184 145 126 110 110 103 103 96.0 95.8 95.0 97.4 95.1 95.8 101 108 104 108 101 95.8 95.1 97.4 95.0 95.8 96.0 103 103 110 110 126 145 184 221 286
60.0 401 548 579 590 476 313 191 166 132 120 111 103 92.4 89.1 87.4 94.8 99.0 95.1 94.4 95.1 99.0 94.8 87.4 89.1 92.4 103 111 120 132 166 191 313 476 590 579 548 401 280 202 158 127 120 107 106 97.9 98.3 91.7 90.5 89.5 90.8 85.4 85.8 90.4 96.8 96.4 96.8 90.4 85.8 85.4 90.8 89.5 90.5 91.7 98.3 97.9 106 107 120 127 158 202 280
62.5 418 585 542 496 390 269 183 170 138 123 109 99.6 91.8 85.6 87.4 96.8 89.9 80.8 78.9 80.8 89.9 96.8 87.4 85.6 91.8 99.6 109 123 138 170 183 269 390 496 542 585 418 263 170 130 115 113 106 102 91.8 91.7 84.3 84.7 83.2 83.4 81.1 80.7 82.6 89.3 88.9 89.3 82.6 80.7 81.1 83.4 83.2 84.7 84.3 91.7 91.8 102 106 113 115 130 170 263
65.0 395 550 413 311 243 195 160 165 140 123 106 95.4 87.4 84.3 88.4 88.9 75.3 66.9 65.4 66.9 75.3 88.9 88.4 84.3 87.4 95.4 106 123 140 165 160 195 243 311 413 550 395 209 112 93.9 88.4 95.2 94.3 90.1 83.2 82.9 78.5 76.6 74.8 77.4 78.2 76.1 75.8 81.7 77.7 81.7 75.8 76.1 78.2 77.4 74.8 76.6 78.5 82.9 83.2 90.1 94.3 95.2 88.4 93.9 112 209
67.5 359 487 289 155 114 104 92.6 116 119 112 96.1 85.9 83.1 82.1 84.5 73.4 58.5 53.8 54.1 53.8 58.5 73.4 84.5 82.1 83.1 85.9 96.1 112 119 116 92.6 104 114 155 289 487 359 149 64.8 52.5 50.8 58.3 58.7 59.4 55.1 60.9 65.4 68.6 70.1 73.7 74.8 75.1 73.5 76.1 74.1 76.1 73.5 75.1 74.8 73.7 70.1 68.6 65.4 60.9 55.1 59.4 58.7 58.3 50.8 52.5 64.8 149
70.0 299 387 196 83.7 59.3 57.4 56.0 69.8 64.0 60.0 60.3 56.6 63.7 55.0 49.7 37.3 24.9 24.3 26.0 24.3 24.9 37.3 49.7 55.0 63.7 56.6 60.3 60.0 64.0 69.8 56.0 57.4 59.3 83.7 196 387 299 114 48.7 42.3 45.8 49.8 44.0 31.7 18.8 23.3 28.3 46.5 57.3 64.6 70.8 72.9 71.2 73.4 68.1 73.4 71.2 72.9 70.8 64.6 57.3 46.5 28.3 23.3 18.8 31.7 44.0 49.8 45.8 42.3 48.7 114
72.5 204 238 109 48.0 31.9 34.3 36.4 45.6 43.7 35.0 21.4 16.3 14.6 12.9 10.9 10.6 10.2 9.1 9.4 9.1 10.2 10.6 10.9 12.9 14.6 16.3 21.4 35.0 43.7 45.6 36.4 34.3 31.9 48.0 109 238 204 83.7 36.9 34.8 39.5 40.7 30.5 18.9 11.9 10.2 9.5 11.8 20.2 34.2 50.5 55.4 58.5 59.1 55.1 59.1 58.5 55.4 50.5 34.2 20.2 11.8 9.5 10.2 11.9 18.9 30.5 40.7 39.5 34.8 36.9 83.7
75.0 116 112 48.5 27.0 18.2 19.5 20.2 26.0 27.5 23.0 13.4 9.9 8.9 8.1 7.3 6.9 6.9 6.8 7.0 6.8 6.9 6.9 7.3 8.1 8.9 9.9 13.4 23.0 27.5 26.0 20.2 19.5 18.2 27.0 48.5 112 116 55.2 25.5 24.0 24.9 22.8 14.6 9.5 7.1 7.3 6.6 9.2 15.3 13.9 21.8 24.0 22.4 25.7 24.2 25.7 22.4 24.0 21.8 13.9 15.3 9.2 6.6 7.3 7.1 9.5 14.6 22.8 24.9 24.0 25.5 55.2
77.5 34.0 39.0 20.1 14.0 11.0 11.4 11.9 13.3 14.0 12.5 8.3 6.9 6.1 5.8 5.3 5.3 5.3 5.3 5.4 5.3 5.3 5.3 5.3 5.8 6.1 6.9 8.3 12.5 14.0 13.3 11.9 11.4 11.0 14.0 20.1 39.0 34.0 21.2 11.1 10.1 8.6 8.4 6.8 5.9 5.2 5.2 4.8 8.3 14.9 9.8 13.1 15.8 15.2 15.9 15.6 15.9 15.2 15.8 13.1 9.8 14.9 8.3 4.8 5.2 5.2 5.9 6.8 8.4 8.6 10.1 11.1 21.2
80.0 7.8 9.9 7.8 7.1 6.3 6.3 5.9 6.2 5.8 6.0 4.6 4.6 4.7 4.2 4.1 4.1 4.1 4.0 4.0 4.0 4.1 4.1 4.1 4.2 4.7 4.6 4.6 6.0 5.8 6.2 5.9 6.3 6.3 7.1 7.8 9.9 7.8 6.9 5.3 5.0 4.5 4.6 4.3 4.2 3.8 4.0 4.5 9.4 10.4 8.9 10.5 12.0 11.9 12.3 12.0 12.3 11.9 12.0 10.5 8.9 10.4 9.4 4.5 4.0 3.8 4.2 4.3 4.6 4.5 5.0 5.3 6.9
82.5 4.2 4.6 4.1 4.0 3.6 3.8 3.5 3.6 3.3 3.4 3.1 3.3 3.0 3.1 3.0 3.1 3.1 3.0 3.0 3.0 3.1 3.1 3.0 3.1 3.0 3.3 3.1 3.4 3.3 3.6 3.5 3.8 3.6 4.0 4.1 4.6 4.2 4.1 3.6 3.6 3.3 3.5 3.3 3.3 3.1 3.6 6.3 7.2 8.1 9.1 11.3 13.8 13.9 13.7 14.8 13.7 13.9 13.8 11.3 9.1 8.1 7.2 6.3 3.6 3.1 3.3 3.3 3.5 3.3 3.6 3.6 4.1
85.0 2.8 3.0 2.8 2.8 2.6 2.6 2.5 2.4 2.3 2.3 2.3 2.3 2.2 2.5 2.4 2.7 3.3 2.3 2.4 2.3 3.3 2.7 2.4 2.5 2.2 2.3 2.3 2.3 2.3 2.4 2.5 2.6 2.6 2.8 2.8 3.0 2.8 2.9 2.8 2.8 2.8 2.8 2.7 2.8 3.0 5.1 7.9 9.1 7.9 11.3 12.8 14.3 16.5 20.0 21.9 20.0 16.5 14.3 12.8 11.3 7.9 9.1 7.9 5.1 3.0 2.8 2.7 2.8 2.8 2.8 2.8 2.9
87.5 2.4 2.4 2.2 2.3 2.1 2.1 2.0 1.9 1.8 1.8 1.8 2.0 2.2 2.4 2.6 2.3 2.2 1.9 1.8 1.9 2.2 2.3 2.6 2.4 2.2 2.0 1.8 1.8 1.8 1.9 2.0 2.1 2.1 2.3 2.2 2.4 2.4 2.5 2.3 2.5 2.4 2.5 2.4 3.1 4.6 7.4 9.3 12.2 9.2 9.9 10.5 12.9 17.6 23.5 32.7 23.5 17.6 12.9 10.5 9.9 9.2 12.2 9.3 7.4 4.6 3.1 2.4 2.5 2.4 2.5 2.3 2.5
90.0 2.3 2.3 2.2 2.2 2.0 2.0 1.8 1.8 1.7 1.8 2.0 2.3 2.5 3.3 3.3 3.2 2.5 2.2 1.9 2.2 2.5 3.2 3.3 3.3 2.5 2.3 2.0 1.8 1.7 1.8 1.8 2.0 2.0 2.2 2.2 2.3 2.3 2.4 2.3 2.5 2.4 3.0 3.2 3.7 4.8 8.4 12.6 15.6 15.5 13.7 16.0 17.0 18.1 31.0 41.0 31.0 18.1 17.0 16.0 13.7 15.5 15.6 12.6 8.4 4.8 3.7 3.2 3.0 2.4 2.5 2.3 2.4
92.5 2.3 2.3 2.1 2.1 2.0 2.0 1.8 1.8 1.8 2.1 2.2 2.8 3.0 4.1 3.3 3.5 3.9 3.2 2.5 3.2 3.9 3.5 3.3 4.1 3.0 2.8 2.2 2.1 1.8 1.8 1.8 2.0 2.0 2.1 2.1 2.3 2.3 2.4 2.7 3.0 3.0 3.4 3.5 3.8 4.3 6.3 9.0 16.1 22.5 22.5 24.8 24.9 27.8 46.9 46.8 46.9 27.8 24.9 24.8 22.5 22.5 16.1 9.0 6.3 4.3 3.8 3.5 3.4 3.0 3.0 2.7 2.4
95.0 2.8 2.5 2.3 2.3 2.0 2.1 2.0 2.1 2.0 2.1 2.1 2.6 2.7 3.6 3.3 3.2 3.7 3.6 4.5 3.6 3.7 3.2 3.3 3.6 2.7 2.6 2.1 2.1 2.0 2.1 2.0 2.1 2.0 2.3 2.3 2.5 2.8 3.3 3.5 4.7 4.8 5.2 4.1 4.2 4.3 5.4 7.7 12.3 15.3 22.0 23.9 29.3 36.7 45.3 44.3 45.3 36.7 29.3 23.9 22.0 15.3 12.3 7.7 5.4 4.3 4.2 4.1 5.2 4.8 4.7 3.5 3.3
97.5 3.8 3.3 2.8 2.7 2.4 2.4 2.3 2.3 2.2 2.2 2.2 2.4 2.4 2.8 3.1 3.3 3.6 4.6 4.8 4.6 3.6 3.3 3.1 2.8 2.4 2.4 2.2 2.2 2.2 2.3 2.3 2.4 2.4 2.7 2.8 3.3 3.8 4.4 4.9 5.9 6.4 8.4 8.5 7.2 5.6 5.5 6.7 9.3 12.6 15.7 21.8 28.4 31.0 28.8 23.8 28.8 31.0 28.4 21.8 15.7 12.6 9.3 6.7 5.5 5.6 7.2 8.5 8.4 6.4 5.9 4.9 4.4
100.0 3.4 3.3 2.8 2.8 2.6 2.7 2.6 2.5 2.3 2.5 2.3 2.4 2.3 2.6 2.7 3.3 4.2 4.3 4.6 4.3 4.2 3.3 2.7 2.6 2.3 2.4 2.3 2.5 2.3 2.5 2.6 2.7 2.6 2.8 2.8 3.3 3.4 3.8 4.6 5.9 7.5 9.5 9.8 10.3 9.3 8.3 8.4 10.4 11.1 17.6 23.4 20.2 16.7 15.7 14.5 15.7 16.7 20.2 23.4 17.6 11.1 10.4 8.4 8.3 9.3 10.3 9.8 9.5 7.5 5.9 4.6 3.8
102.5 3.3 3.2 2.9 2.9 2.8 2.8 2.5 2.6 2.5 2.7 2.5 2.7 2.4 3.7 4.8 4.0 4.0 3.7 3.9 3.7 4.0 4.0 4.8 3.7 2.4 2.7 2.5 2.7 2.5 2.6 2.5 2.8 2.8 2.9 2.9 3.2 3.3 3.7 3.9 4.8 5.4 6.8 7.7 8.3 8.3 10.1 12.6 14.8 21.9 23.5 22.0 25.1 26.8 26.2 32.2 26.2 26.8 25.1 22.0 23.5 21.9 14.8 12.6 10.1 8.3 8.3 7.7 6.8 5.4 4.8 3.9 3.7
105.0 3.0 3.1 2.9 3.0 2.9 3.0 2.8 2.9 2.8 2.9 3.2 3.7 3.2 3.6 3.3 3.0 2.7 2.5 2.7 2.5 2.7 3.0 3.3 3.6 3.2 3.7 3.2 2.9 2.8 2.9 2.8 3.0 2.9 3.0 2.9 3.1 3.0 3.5 3.6 4.4 5.1 5.7 6.1 7.6 10.9 20.0 32.1 43.2 39.1 37.2 30.5 30.9 29.4 28.5 27.5 28.5 29.4 30.9 30.5 37.2 39.1 43.2 32.1 20.0 10.9 7.6 6.1 5.7 5.1 4.4 3.6 3.5
107.5 3.8 3.7 3.4 3.3 3.0 3.2 3.1 3.0 2.8 2.8 2.4 2.5 2.8 2.7 2.5 2.4 2.3 2.2 2.2 2.2 2.3 2.4 2.5 2.7 2.8 2.5 2.4 2.8 2.8 3.0 3.1 3.2 3.0 3.3 3.4 3.7 3.8 4.0 4.0 4.4 4.9 8.1 14.3 22.8 28.0 30.0 25.5 23.0 17.9 15.6 14.4 13.1 12.2 12.7 11.4 12.7 12.2 13.1 14.4 15.6 17.9 23.0 25.5 30.0 28.0 22.8 14.3 8.1 4.9 4.4 4.0 4.0
110.0 3.3 3.3 3.2 3.5 3.7 3.5 3.1 2.8 2.5 2.3 2.2 2.3 2.7 2.3 2.2 2.1 2.1 2.0 2.0 2.0 2.1 2.1 2.2 2.3 2.7 2.3 2.2 2.3 2.5 2.8 3.1 3.5 3.7 3.5 3.2 3.3 3.3 4.1 5.8 10.4 15.8 17.9 17.8 18.0 14.4 13.1 10.5 8.9 7.6 7.8 7.4 7.1 6.7 6.6 6.2 6.6 6.7 7.1 7.4 7.8 7.6 8.9 10.5 13.1 14.4 18.0 17.8 17.9 15.8 10.4 5.8 4.1
112.5 7.1 5.0 4.2 3.8 3.3 3.0 2.5 2.3 2.2 2.2 2.2 2.1 2.5 2.0 2.0 2.0 1.9 1.9 2.1 1.9 1.9 2.0 2.0 2.0 2.5 2.1 2.2 2.2 2.2 2.3 2.5 3.0 3.3 3.8 4.2 5.0 7.1 9.5 11.9 11.3 9.8 10.1 9.5 8.8 7.6 6.6 5.1 4.4 3.4 3.5 3.5 3.8 3.7 3.5 3.8 3.5 3.7 3.8 3.5 3.5 3.4 4.4 5.1 6.6 7.6 8.8 9.5 10.1 9.8 11.3 11.9 9.5
115.0 7.9 8.4 7.5 5.8 4.1 3.3 2.5 2.5 2.2 2.3 2.0 2.0 2.5 2.0 1.9 1.8 1.8 1.8 1.9 1.8 1.8 1.8 1.9 2.0 2.5 2.0 2.0 2.3 2.2 2.5 2.5 3.3 4.1 5.8 7.5 8.4 7.9 6.9 5.9 6.3 6.4 6.4 4.9 4.4 3.3 3.1 2.6 2.3 2.1 2.0 2.0 2.3 2.7 2.8 2.9 2.8 2.7 2.3 2.0 2.0 2.1 2.3 2.6 3.1 3.3 4.4 4.9 6.4 6.4 6.3 5.9 6.9
117.5 4.4 5.0 5.2 5.6 5.1 5.0 4.1 3.5 3.0 2.6 2.3 2.1 2.0 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 2.0 2.1 2.3 2.6 3.0 3.5 4.1 5.0 5.1 5.6 5.2 5.0 4.4 3.8 3.5 3.7 3.6 3.2 2.7 2.7 2.4 2.3 2.0 1.9 1.8 1.8 1.7 1.8 1.8 2.4 2.7 2.4 1.8 1.8 1.7 1.8 1.8 1.9 2.0 2.3 2.4 2.7 2.7 3.2 3.6 3.7 3.5 3.8
120.0 2.2 2.3 2.3 3.2 3.4 3.8 4.3 4.0 3.6 3.3 2.8 2.4 2.0 1.9 1.8 1.7 1.7 1.6 1.6 1.6 1.7 1.7 1.8 1.9 2.0 2.4 2.8 3.3 3.6 4.0 4.3 3.8 3.4 3.2 2.3 2.3 2.2 2.5 2.6 2.8 2.3 2.3 2.1 2.1 2.0 2.0 1.8 1.8 1.7 1.6 1.6 1.6 1.8 2.0 1.9 2.0 1.8 1.6 1.6 1.6 1.7 1.8 1.8 2.0 2.0 2.1 2.1 2.3 2.3 2.8 2.6 2.5
122.5 2.0 2.0 2.0 2.1 2.0 2.2 2.3 2.2 2.1 2.2 2.3 2.3 2.0 2.0 2.0 2.0 1.9 1.9 2.0 1.9 1.9 2.0 2.0 2.0 2.0 2.3 2.3 2.2 2.1 2.2 2.3 2.2 2.0 2.1 2.0 2.0 2.0 1.9 1.8 1.9 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.6 1.6 1.5 1.7 1.7 1.5 1.6 1.5 1.7 1.7 1.5 1.6 1.6 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.9 1.8 1.9
125.0 1.8 1.8 1.8 2.0 1.8 2.0 1.8 1.8 1.7 1.7 1.5 1.5 1.7 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.7 1.5 1.5 1.7 1.7 1.8 1.8 2.0 1.8 2.0 1.8 1.8 1.8 1.7 1.7 1.7 1.7 1.8 1.7 1.8 1.8 1.8 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.7 1.8 1.8 1.8 1.7 1.8 1.7 1.7 1.7 1.7
127.5 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.6 1.5 1.4 1.7 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.7 1.4 1.5 1.6 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.7 1.6 1.7 1.6 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.6 1.7 1.6 1.7
130.0 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.6 1.5 1.5 1.7 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.7 1.5 1.5 1.6 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.7 1.6 1.7 1.6 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.6 1.7 1.6 1.7
132.5 1.8 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.7 1.5 1.5 1.8 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.8 1.5 1.5 1.7 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.8 1.8 1.7 1.7 1.7 1.8 1.7 1.8 1.8 1.8 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.6 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.7 1.8 1.8 1.8 1.7 1.8 1.7 1.7 1.7 1.8
135.0 1.8 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.7 1.6 1.5 1.8 1.4 1.3 1.4 1.3 1.4 1.4 1.4 1.3 1.4 1.3 1.4 1.8 1.5 1.6 1.7 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.8 1.8 1.7 1.8 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.6 1.5 1.5 1.6 1.5 1.5 1.6 1.6 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.8 1.7 1.8
137.5 1.8 1.8 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.8 1.6 1.6 1.8 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.8 1.6 1.6 1.8 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.8 1.8 1.8 1.7 1.8 1.7 1.8 1.8 1.8 1.8 1.9 1.8 1.8 1.7 1.7 1.7 1.6 1.7 1.6 1.7 1.6 1.7 1.6 1.7 1.7 1.7 1.8 1.8 1.9 1.8 1.8 1.8 1.8 1.7 1.8 1.7 1.8
140.0 1.8 1.8 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.6 1.8 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.8 1.6 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.8 1.8 1.8 1.7 1.8 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.8 1.8 1.7 1.7 1.7 1.6 1.7 1.6 1.7 1.7 1.7 1.8 1.8 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.8 1.7 1.8
142.5 1.8 1.8 1.8 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.7 1.9 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.9 1.7 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.8 1.7 1.8 1.8 1.9 1.9 2.0 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.8 1.8 1.8 1.8 1.8 2.0 1.9 1.9 1.8 1.8 1.7 1.8 1.7 1.8
145.0 1.8 1.8 1.8 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.7 1.7 1.9 1.6 1.5 1.6 1.5 1.5 1.6 1.5 1.5 1.6 1.5 1.6 1.9 1.7 1.7 1.8 1.8 1.9 1.8 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.9 1.8 1.9 1.9 2.0 1.8 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.9 1.8 2.0 1.9 1.9 1.8 1.9 1.8 1.8 1.8 1.8
147.5 1.8 1.8 1.8 1.9 1.8 2.0 1.8 1.9 1.8 1.9 1.8 1.8 1.9 1.7 1.7 1.6 1.7 1.6 1.6 1.6 1.7 1.6 1.7 1.7 1.9 1.8 1.8 1.9 1.8 1.9 1.8 2.0 1.8 1.9 1.8 1.8 1.8 1.8 1.8 1.9 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 1.8 1.9 1.8 1.9 1.8 1.9 1.9 1.9 1.8 1.9 1.8 1.9 1.8 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 1.9 1.8 1.8
150.0 1.9 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.8 1.9 1.8 1.8 1.9 1.8 1.8 1.8 1.8 1.8 1.7 1.8 1.8 1.8 1.8 1.8 1.9 1.8 1.8 1.9 1.8 1.9 1.9 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.8 1.9 1.8 1.9 1.8 1.9 1.9 1.9 1.8 1.9 1.8 1.9 1.8 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 2.0
152.5 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.0 1.9 1.9 1.8 1.9 2.0 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 2.0 1.9 1.8 1.9 1.9 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.2 2.0 2.1 2.0 2.1 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 2.0 2.0 2.1 2.0 2.1 2.0 2.2 2.0 2.0 2.0 2.0
155.0 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.0 1.9 1.9 1.9 1.9 2.0 1.9 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.9 1.8 1.9 2.0 1.9 1.9 1.9 1.9 2.0 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.1 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.9 2.0 1.9 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.1
157.5 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.0 1.9 2.0 1.9 1.9 2.0 1.9 1.8 1.9 1.8 1.9 1.9 1.9 1.8 1.9 1.8 1.9 2.0 1.9 1.9 2.0 1.9 2.0 2.0 2.2 2.0 2.2 2.0 2.2 2.1 2.1 2.0 2.2 2.0 2.2 2.1 2.2 2.0 2.2 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.2 2.0 2.2 2.1 2.2 2.0 2.2 2.0 2.1
160.0 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 1.9 2.0 1.9 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.2 2.0 2.2 2.0 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.1 2.0 2.1 2.0 2.0 2.0 1.9 2.0 1.9 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.1 2.0 2.1 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.2
162.5 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.1 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.1 2.2
165.0 2.1 2.2 2.2 2.2 2.1 2.2 2.0 2.1 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.1 2.0 2.2 2.1 2.2 2.2 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.1 2.2
167.5 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.1 2.2
170.0 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.1 2.1 2.1 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.1 2.0 2.1 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.1 2.0 2.1 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.2
172.5 2.1 2.2 2.0 2.2 2.1 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.1 2.1 2.0 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.0 2.1 2.1 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.1 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.1 2.1 2.0 2.2 2.0 2.1 2.1 2.1 2.0 2.2 2.0 2.1 2.1 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.1 2.2 2.1 2.2
175.0 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.1 2.2 2.1 2.1 2.0 2.1 2.0 2.2 2.2 2.2 2.1 2.2 2.2 2.2 2.0 2.1 2.0 2.1 2.1 2.2 2.1 2.2 2.0 2.2 2.1 2.2 2.1 2.2
177.5 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.2 2.2 2.2 2.2 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.2 2.1 2.2 2.1 2.2 2.1 2.2 2.2 2.2 2.2 2.2
180.0 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6
