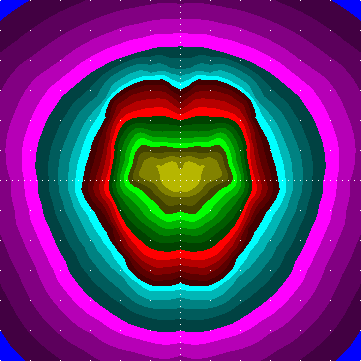

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] FU2-3EU-7B
# [LUMCAT] Fusion
# [DATE] 13/09/2012/16/07/2012/
# down given: 100%
# out given: 67.2%
# tilt: 0.0
# [LAMP] 1 MT 150 13500 2800 E40
# Bulbs: 1, 13500 lm each
# Source file: Fusion_FU2-3EU-7B_1_MT_150_13500_2800_E40.ldt
# Luminaire flux = 672 raw, for the given bulb(s) it would be 9068 lm,
# 67.2 % of the bulb flux
# between 75 and 90: 0.6 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 3.2 cd / 1000 lm , 0.3 % of the luminaire flux
# 90deg and above: max 1.0 cd / 1000 lm , 0.1?% of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 4?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 18?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 229 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 112 cd / 1000 lm,
# maximum spec. lum. intensity 428 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159
2.5 159 160 160 161 161 162 161 161 161 161 161 161 160 160 160 160 160 160 159 160 160 160 160 160 160 161 161 161 161 161 161 162 161 161 160 160 159 160 159 159 158 158 158 158 158 158 157 157 157 157 157 157 157 157 157 157 157 157 157 157 157 157 157 158 158 158 158 158 158 159 159 160
5.0 161 163 163 164 164 165 164 164 163 163 163 162 161 161 161 160 160 160 160 160 160 160 161 161 161 162 163 163 163 164 164 165 164 164 163 163 161 162 160 161 160 160 160 160 159 159 158 158 156 156 155 155 154 154 153 154 154 155 155 156 156 158 158 159 159 160 160 160 160 161 160 162
7.5 165 167 166 168 168 169 168 169 167 166 165 164 163 163 161 161 160 159 160 159 160 161 161 163 163 164 165 166 167 169 168 169 168 168 166 167 165 167 164 166 165 166 168 167 165 166 164 163 160 160 157 156 154 154 151 154 154 156 157 160 160 163 164 166 165 167 168 166 165 166 164 167
10.0 171 174 172 175 174 175 175 174 172 170 168 167 166 165 163 163 161 160 161 160 161 163 163 165 166 167 168 170 172 174 175 175 174 175 172 174 171 175 172 175 174 177 180 180 178 177 176 172 169 166 163 160 157 155 152 155 157 160 163 166 169 172 176 177 178 180 180 177 174 175 172 175
12.5 181 185 182 184 182 184 184 181 179 176 174 172 170 168 165 164 162 161 162 161 162 164 165 168 170 172 174 176 179 181 184 184 182 184 182 185 181 185 184 188 188 190 194 194 192 189 188 183 180 175 171 166 162 158 154 158 162 166 171 175 180 183 188 189 192 194 194 190 188 188 184 185
15.0 192 195 193 195 192 195 195 191 189 185 182 178 174 170 167 163 162 159 160 159 162 163 167 170 174 178 182 185 189 191 195 195 192 195 193 195 192 194 194 196 198 199 201 200 200 197 196 191 188 182 177 170 165 160 155 160 165 170 177 182 188 191 196 197 200 200 201 199 198 196 194 194
17.5 199 202 200 202 200 204 208 205 202 195 190 184 179 173 167 162 159 156 156 156 159 162 167 173 179 184 190 195 202 205 208 204 200 202 200 202 199 200 199 199 199 197 197 196 197 195 197 193 190 183 177 170 163 157 152 157 163 170 177 183 190 193 197 195 197 196 197 197 199 199 199 200
20.0 207 209 210 212 209 213 219 220 215 207 199 190 183 175 168 162 158 155 153 155 158 162 168 175 183 190 199 207 215 220 219 213 209 212 210 209 207 204 202 198 195 192 189 189 188 187 188 187 183 177 171 163 156 151 144 151 156 163 171 177 183 187 188 187 188 189 189 192 195 198 202 204
22.5 222 227 229 231 228 227 229 231 224 218 208 198 188 180 172 167 162 157 154 157 162 167 172 180 188 198 208 218 224 231 229 227 228 231 229 227 222 216 209 202 195 189 185 183 180 178 176 174 171 166 159 152 147 143 136 143 147 152 159 166 171 174 176 178 180 183 185 189 195 202 209 216
25.0 242 250 255 255 256 250 243 242 232 226 216 207 196 190 182 176 169 163 159 163 169 176 182 190 196 207 216 226 232 242 243 250 256 255 255 250 242 231 219 207 196 188 183 179 174 170 165 161 157 152 147 141 137 134 128 134 137 141 147 152 157 161 165 170 174 179 183 188 196 207 219 231
27.5 245 252 256 260 264 263 258 254 244 236 226 217 208 203 198 188 179 170 164 170 179 188 198 203 208 217 226 236 244 254 258 263 264 260 256 252 245 235 221 208 194 186 179 173 167 161 154 149 144 139 135 132 129 127 122 127 129 132 135 139 144 149 154 161 167 173 179 186 194 208 221 235
30.0 232 237 242 248 254 259 258 259 259 250 237 227 222 218 213 201 187 175 168 175 187 201 213 218 222 227 237 250 259 259 258 259 254 248 242 237 232 224 214 201 189 180 173 167 160 152 145 139 134 130 127 125 122 120 116 120 122 125 127 130 134 139 145 152 160 167 173 180 189 201 214 224
32.5 221 227 233 240 249 256 255 255 260 261 252 238 231 228 222 209 191 176 168 176 191 209 222 228 231 238 252 261 260 255 255 256 249 240 233 227 221 212 202 192 182 174 166 159 152 145 137 132 128 124 122 119 116 114 110 114 116 119 122 124 128 132 137 145 152 159 166 174 182 192 202 212
35.0 213 222 229 238 249 260 260 257 255 258 260 243 231 231 221 208 188 172 164 172 188 208 221 231 231 243 260 258 255 257 260 260 249 238 229 222 213 203 190 182 174 167 160 152 145 138 132 128 125 123 120 117 113 110 106 110 113 117 120 123 125 128 132 138 145 152 160 167 174 182 190 203
37.5 210 220 226 235 251 269 272 269 257 252 249 236 227 224 211 195 178 161 156 161 178 195 211 224 227 236 249 252 257 269 272 269 251 235 226 220 210 197 182 173 164 160 153 145 138 132 129 126 124 123 120 117 112 108 103 108 112 117 120 123 124 126 129 132 138 145 153 160 164 173 182 197
40.0 216 228 234 239 250 277 293 289 266 247 231 219 214 203 194 176 162 148 145 148 162 176 194 203 214 219 231 247 266 289 293 277 250 239 234 228 216 197 178 166 157 152 145 138 132 127 126 125 125 124 121 117 111 105 99.8 105 111 117 121 124 125 125 126 127 132 138 145 152 157 166 178 197
42.5 229 250 255 260 264 288 318 317 276 237 213 199 189 180 174 158 144 134 132 134 144 158 174 180 189 199 213 237 276 317 318 288 264 260 255 250 229 203 177 161 151 145 137 130 124 122 123 126 128 128 123 116 109 103 97.8 103 109 116 123 128 128 126 123 122 124 130 137 145 151 161 177 203
45.0 247 277 292 299 303 316 341 348 286 228 198 182 169 163 154 140 127 119 118 119 127 140 154 163 169 182 198 228 286 348 341 316 303 299 292 277 247 210 176 157 145 137 129 120 115 114 117 123 129 130 124 115 107 99.9 95.3 99.9 107 115 124 130 129 123 117 114 115 120 129 137 145 157 176 210
47.5 263 307 339 356 350 353 369 372 297 223 191 174 159 151 138 121 108 102 103 102 108 121 138 151 159 174 191 223 297 372 369 353 350 356 339 307 263 214 175 154 141 131 122 115 110 108 110 116 126 130 125 114 105 97.6 93.0 97.6 105 114 125 130 126 116 110 108 110 115 122 131 141 154 175 214
50.0 275 335 383 406 395 383 382 378 305 224 185 170 158 144 123 102 91.8 86.2 87.0 86.2 91.8 102 123 144 158 170 185 224 305 378 382 383 395 406 383 335 275 215 172 150 136 125 116 110 108 108 108 111 119 124 122 113 104 96.3 91.5 96.3 104 113 122 124 119 111 108 108 108 110 116 125 136 150 172 215
52.5 293 374 419 428 412 402 387 353 302 227 177 162 145 126 103 85.3 78.1 76.2 75.6 76.2 78.1 85.3 103 126 145 162 177 227 302 353 387 402 412 428 419 374 293 219 170 145 131 119 110 105 105 107 108 109 113 117 118 112 101 92.3 87.3 92.3 101 112 118 117 113 109 108 107 105 105 110 119 131 145 170 219
55.0 315 399 415 396 383 391 394 344 284 228 172 143 125 104 85.3 74.5 69.9 67.8 67.4 67.8 69.9 74.5 85.3 104 125 143 172 228 284 344 394 391 383 396 415 399 315 226 170 141 125 112 104 100 101 105 107 106 107 110 111 108 97.3 88.2 82.2 88.2 97.3 108 111 110 107 106 107 105 101 100 104 112 125 141 170 226
57.5 309 359 342 311 307 328 363 332 290 232 173 123 101 83.9 72.9 66.9 62.5 60.9 59.7 60.9 62.5 66.9 72.9 83.9 101 123 173 232 290 332 363 328 307 311 342 359 309 227 168 137 117 105 97.5 94.8 96.1 98.6 99.5 98.1 97.7 102 103 99.0 94.8 84.9 78.2 84.9 94.8 99.0 103 102 97.7 98.1 99.5 98.6 96.1 94.8 97.5 105 117 137 168 227
60.0 253 265 242 226 217 251 280 286 281 239 180 116 86.0 73.2 64.5 59.8 55.1 52.6 50.0 52.6 55.1 59.8 64.5 73.2 86.0 116 180 239 281 286 280 251 217 226 242 265 253 210 162 131 110 97.1 90.1 87.4 87.4 89.0 88.0 86.8 86.2 91.0 93.3 89.3 84.2 74.1 66.9 74.1 84.2 89.3 93.3 91.0 86.2 86.8 88.0 89.0 87.4 87.4 90.1 97.1 110 131 162 210
62.5 180 183 163 152 152 176 199 219 229 221 179 112 79.2 65.4 58.3 54.2 47.6 42.7 39.3 42.7 47.6 54.2 58.3 65.4 79.2 112 179 221 229 219 199 176 152 152 163 183 180 173 147 120 99.8 89.2 82.9 79.3 77.5 77.1 75.8 75.3 75.6 80.5 83.8 78.9 70.9 65.3 60.2 65.3 70.9 78.9 83.8 80.5 75.6 75.3 75.8 77.1 77.5 79.3 82.9 89.2 99.8 120 147 173
65.0 99.1 93.4 89.0 93.6 101 124 134 150 162 171 153 100 69.6 58.1 52.4 48.2 41.6 35.0 30.3 35.0 41.6 48.2 52.4 58.1 69.6 100 153 171 162 150 134 124 101 93.6 89.0 93.4 99.1 109 104 86.7 76.2 75.2 68.0 69.5 67.5 65.1 64.6 64.9 67.2 71.3 72.5 68.8 64.3 58.9 54.5 58.9 64.3 68.8 72.5 71.3 67.2 64.9 64.6 65.1 67.5 69.5 68.0 75.2 76.2 86.7 104 109
67.5 45.2 38.3 35.7 36.9 41.0 58.6 84.2 97.7 107 112 101 75.7 58.2 51.4 46.5 42.9 36.1 27.1 19.7 27.1 36.1 42.9 46.5 51.4 58.2 75.7 101 112 107 97.7 84.2 58.6 41.0 36.9 35.7 38.3 45.2 52.3 51.8 38.5 32.0 33.9 38.6 42.1 48.3 50.4 52.9 54.8 57.8 62.0 61.6 59.2 56.9 51.5 46.0 51.5 56.9 59.2 61.6 62.0 57.8 54.8 52.9 50.4 48.3 42.1 38.6 33.9 32.0 38.5 51.8 52.3
70.0 24.9 21.8 19.5 19.2 19.6 23.0 26.9 41.0 57.4 67.2 61.3 54.7 47.6 44.1 39.8 37.2 31.3 20.8 13.1 20.8 31.3 37.2 39.8 44.1 47.6 54.7 61.3 67.2 57.4 41.0 26.9 23.0 19.6 19.2 19.5 21.8 24.9 30.3 27.2 20.1 14.9 13.4 13.7 12.8 17.5 23.5 32.6 38.5 46.8 51.3 51.6 50.2 45.2 40.5 37.2 40.5 45.2 50.2 51.6 51.3 46.8 38.5 32.6 23.5 17.5 12.8 13.7 13.4 14.9 20.1 27.2 30.3
72.5 13.5 12.7 12.1 11.5 11.9 12.4 12.4 12.5 13.9 24.4 38.9 37.1 38.3 33.4 30.5 24.9 21.5 11.4 8.5 11.4 21.5 24.9 30.5 33.4 38.3 37.1 38.9 24.4 13.9 12.5 12.4 12.4 11.9 11.5 12.1 12.7 13.5 15.5 13.8 11.2 9.2 9.0 8.7 8.6 9.0 8.9 11.0 12.7 20.8 28.4 32.8 35.5 29.5 25.5 18.9 25.5 29.5 35.5 32.8 28.4 20.8 12.7 11.0 8.9 9.0 8.6 8.7 9.0 9.2 11.2 13.8 15.5
75.0 7.5 7.4 7.5 7.3 7.0 7.0 7.2 7.2 6.7 6.2 7.8 10.3 10.6 10.8 10.2 7.0 6.8 4.8 4.4 4.8 6.8 7.0 10.2 10.8 10.6 10.3 7.8 6.2 6.7 7.2 7.2 7.0 7.0 7.3 7.5 7.4 7.5 7.5 6.6 6.4 5.9 5.8 5.9 5.7 6.2 6.4 6.8 7.2 7.6 9.6 12.1 13.4 11.8 10.4 9.1 10.4 11.8 13.4 12.1 9.6 7.6 7.2 6.8 6.4 6.2 5.7 5.9 5.8 5.9 6.4 6.6 7.5
77.5 4.1 4.5 4.6 4.6 4.5 4.5 4.3 4.3 4.0 3.8 3.7 3.5 3.4 3.2 3.1 3.0 3.1 2.9 3.0 2.9 3.1 3.0 3.1 3.2 3.4 3.5 3.7 3.8 4.0 4.3 4.3 4.5 4.5 4.6 4.6 4.5 4.1 4.1 3.8 3.8 3.6 3.6 3.7 3.7 4.2 4.4 4.7 4.8 5.1 5.3 5.9 6.1 6.2 5.9 5.6 5.9 6.2 6.1 5.9 5.3 5.1 4.8 4.7 4.4 4.2 3.7 3.7 3.6 3.6 3.8 3.8 4.1
80.0 2.4 2.7 2.9 3.0 3.0 3.0 3.0 2.9 2.6 2.4 2.3 2.2 2.1 2.0 2.0 1.9 1.9 1.9 1.8 1.9 1.9 1.9 2.0 2.0 2.1 2.2 2.3 2.4 2.6 2.9 3.0 3.0 3.0 3.0 2.9 2.7 2.4 2.4 2.3 2.4 2.3 2.3 2.3 2.5 2.7 2.8 2.9 3.0 2.9 3.1 3.1 3.0 3.1 3.2 2.8 3.2 3.1 3.0 3.1 3.1 2.9 3.0 2.9 2.8 2.7 2.5 2.3 2.3 2.3 2.4 2.3 2.4
82.5 1.6 1.8 2.0 2.1 2.1 2.1 2.1 2.0 1.8 1.7 1.6 1.5 1.4 1.4 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.4 1.4 1.5 1.6 1.7 1.8 2.0 2.1 2.1 2.1 2.1 2.0 1.8 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.4 1.3 1.4 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5
85.0 1.2 1.3 1.4 1.4 1.4 1.5 1.4 1.3 1.2 1.2 1.2 1.0 1.0 0.9 0.9 0.8 0.7 0.7 0.7 0.7 0.7 0.8 0.9 0.9 1.0 1.0 1.2 1.2 1.2 1.3 1.4 1.5 1.4 1.4 1.4 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.2 1.2 1.2 1.2
87.5 1.0 1.0 0.9 1.0 0.9 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.4 0.4 0.4 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 1.0 0.9 1.0 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0
90.0 0.7 0.6 0.6 0.6 0.6 0.5 0.6 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.6 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.7
92.5 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.6 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.8
95.0 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.8 0.8
97.5 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.7 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9
100.0 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.8 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0
