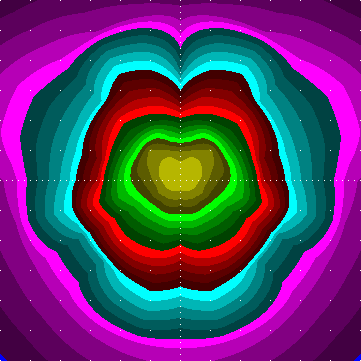

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] FU15I08S.LDT
# [LUMINAIRE] FU2-3EU-4B#
# [LUMCAT] Fusion
# [DATE] 20/11/2012/
# down given: 99%
# out given: 73.4%
# tilt: 0.0
# [LAMP] 1 MT 150 13500 2800 E40
# Bulbs: 1, 13500 lm each
# Source file: Fusion_FU2-3EU-4B-_1_MT_150_13500_2800_E40.ldt
# Luminaire flux = 734 raw, for the given bulb(s) it would be 9904 lm,
# 73.4 % of the bulb flux
# between 75 and 90: 0.9 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 5.9 cd / 1000 lm , 1.1 % of the luminaire flux
# 90deg and above: max 1.3 cd / 1000 lm , 0.8 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 13 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 39 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 192 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 131 cd / 1000 lm,
# maximum spec. lum. intensity 443 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166
2.5 167 168 167 166 167 168 169 168 167 166 167 168 167 167 167 165 164 164 163 164 164 165 167 167
5.0 169 170 169 167 169 170 172 170 169 167 169 170 169 168 168 164 162 162 160 162 162 164 168 168
7.5 173 174 172 169 170 171 175 171 170 169 172 174 173 172 169 164 161 159 158 159 161 164 169 172
10.0 178 178 176 171 171 173 178 173 171 171 176 178 178 175 171 165 160 156 156 156 160 165 171 175
12.5 183 183 180 175 174 175 181 175 174 175 180 183 183 179 173 166 160 156 153 156 160 166 173 179
15.0 188 189 185 180 177 177 185 177 177 180 185 189 188 182 175 168 161 155 151 155 161 168 175 182
17.5 192 193 189 184 181 179 187 179 181 184 189 193 192 185 177 169 161 153 148 153 161 169 177 185
20.0 196 198 193 188 185 182 190 182 185 188 193 198 196 187 178 169 160 152 146 152 160 169 178 187
22.5 198 198 196 193 190 187 193 187 190 193 196 198 198 187 179 170 159 149 141 149 159 170 179 187
25.0 199 198 200 198 196 191 197 191 196 198 200 198 199 188 180 170 158 146 137 146 158 170 180 188
27.5 206 209 215 215 213 201 200 201 213 215 215 209 206 188 182 169 156 144 135 144 156 169 182 188
30.0 213 221 230 231 230 211 204 211 230 231 230 221 213 188 184 167 154 141 134 141 154 167 184 188
32.5 212 233 252 256 253 224 210 224 253 256 252 233 212 184 184 164 152 138 129 138 152 164 184 184
35.0 212 245 275 281 275 237 217 237 275 281 275 245 212 180 185 162 149 134 124 134 149 162 185 180
37.5 207 244 275 295 289 248 221 248 289 295 275 244 207 175 181 155 146 131 118 131 146 155 181 175
40.0 201 243 274 310 304 259 226 259 304 310 274 243 201 171 177 149 143 128 113 128 143 149 177 171
42.5 200 243 279 313 305 253 213 253 305 313 279 243 200 170 169 140 139 124 110 124 139 140 169 170
45.0 199 243 285 316 307 246 200 246 307 316 285 243 199 168 160 132 134 121 107 121 134 132 160 168
47.5 204 253 308 340 298 215 169 215 298 340 308 253 204 170 152 124 127 117 106 117 127 124 152 170
50.0 209 264 332 364 290 184 137 184 290 364 332 264 209 172 143 117 119 114 105 114 119 117 143 172
52.5 217 289 350 404 275 158 113 158 275 404 350 289 217 174 135 112 109 107 98.3 107 109 112 135 174
55.0 224 313 367 443 261 132 87.8 132 261 443 367 313 224 176 127 106 97.7 101 91.2 101 97.7 106 127 176
57.5 227 274 281 327 229 115 73.0 115 229 327 281 274 227 173 116 99.3 90.4 92.2 79.6 92.2 90.4 99.3 116 173
60.0 230 235 195 210 197 98.5 58.2 98.5 197 210 195 235 230 170 106 92.7 83.1 83.3 68.1 83.3 83.1 92.7 106 170
62.5 192 179 150 153 138 76.8 46.8 76.8 138 153 150 179 192 171 98.4 86.2 76.4 77.0 54.3 77.0 76.4 86.2 98.4 171
65.0 154 123 105 96.2 77.8 55.0 35.5 55.0 77.8 96.2 105 123 154 171 90.7 79.7 69.8 70.7 40.5 70.7 69.8 79.7 90.7 171
67.5 94.3 74.0 77.8 84.1 64.7 47.0 24.3 47.0 64.7 84.1 77.8 74.0 94.3 131 71.7 71.6 64.6 58.0 34.0 58.0 64.6 71.6 71.7 131
70.0 34.4 25.5 50.5 71.9 51.5 38.9 13.0 38.9 51.5 71.9 50.5 25.5 34.4 91.1 52.7 63.5 59.3 45.4 27.4 45.4 59.3 63.5 52.7 91.1
72.5 22.5 17.4 30.0 41.6 41.3 29.7 8.4 29.7 41.3 41.6 30.0 17.4 22.5 54.3 29.3 34.8 37.5 33.1 20.4 33.1 37.5 34.8 29.3 54.3
75.0 10.6 9.3 9.4 11.3 31.0 20.5 3.8 20.5 31.0 11.3 9.4 9.3 10.6 17.6 5.8 6.1 15.6 20.7 13.4 20.7 15.6 6.1 5.8 17.6
77.5 6.7 7.4 7.6 7.6 16.8 11.3 2.8 11.3 16.8 7.6 7.6 7.4 6.7 10.0 4.1 4.3 9.3 12.0 8.4 12.0 9.3 4.3 4.1 10.0
80.0 2.8 5.5 5.9 3.9 2.5 2.0 1.7 2.0 2.5 3.9 5.9 5.5 2.8 2.4 2.3 2.5 2.9 3.2 3.4 3.2 2.9 2.5 2.3 2.4
82.5 2.3 4.0 4.0 2.7 1.9 1.5 1.2 1.5 1.9 2.7 4.0 4.0 2.3 2.1 2.0 2.0 2.2 2.3 2.4 2.3 2.2 2.0 2.0 2.1
85.0 1.8 2.5 2.1 1.5 1.2 0.9 0.6 0.9 1.2 1.5 2.1 2.5 1.8 1.7 1.6 1.5 1.5 1.4 1.4 1.4 1.5 1.5 1.6 1.7
87.5 1.5 1.8 1.5 1.2 1.0 0.8 0.6 0.8 1.0 1.2 1.5 1.8 1.5 1.5 1.5 1.4 1.3 1.2 1.2 1.2 1.3 1.4 1.5 1.5
90.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
92.5 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
95.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
97.5 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
100.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
102.5 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
105.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
107.5 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
110.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
112.5 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
115.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
117.5 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
120.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
122.5 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
125.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
127.5 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
130.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
132.5 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
135.0 1.1 1.0 1.0 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.2
137.5 1.0 0.9 0.9 0.9 0.8 0.6 0.4 0.6 0.8 0.9 0.9 0.9 1.0 1.2 1.3 1.3 1.0 0.9 0.9 0.9 1.0 1.3 1.3 1.2
140.0 1.0 0.9 0.9 0.8 0.7 0.6 0.4 0.6 0.7 0.8 0.9 0.9 1.0 1.1 1.2 1.2 1.0 0.9 0.9 0.9 1.0 1.2 1.2 1.1
142.5 0.9 0.9 0.9 0.8 0.6 0.6 0.4 0.6 0.6 0.8 0.9 0.9 0.9 1.0 1.1 1.1 0.9 0.9 0.9 0.9 0.9 1.1 1.1 1.0
145.0 0.9 0.8 0.8 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.8 0.8 0.9 0.9 1.0 1.0 0.9 0.8 0.8 0.8 0.9 1.0 1.0 0.9
147.5 0.8 0.8 0.8 0.6 0.6 0.5 0.4 0.5 0.6 0.6 0.8 0.8 0.8 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9
150.0 0.7 0.7 0.7 0.6 0.5 0.5 0.3 0.5 0.5 0.6 0.7 0.7 0.7 0.8 0.9 0.9 0.7 0.7 0.7 0.7 0.7 0.9 0.9 0.8
152.5 0.6 0.6 0.6 0.6 0.4 0.4 0.3 0.4 0.4 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8
155.0 0.6 0.6 0.6 0.5 0.4 0.4 0.3 0.4 0.4 0.5 0.6 0.6 0.6 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7
157.5 0.6 0.5 0.5 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.6 0.6 0.6 0.6
160.0 0.5 0.4 0.4 0.4 0.4 0.3 0.2 0.3 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.5 0.4 0.4 0.4 0.5 0.6 0.6 0.5
162.5 0.4 0.4 0.4 0.4 0.4 0.3 0.2 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.4
165.0 0.4 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.4 0.4 0.4 0.4
167.5 0.3 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.4
170.0 0.2 0.2 0.2 0.2 0.2 0.2 0.1 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3
172.5 0.2 0.2 0.2 0.2 0.2 0.2 0.1 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
175.0 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
177.5 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
