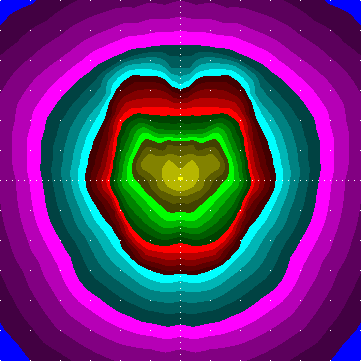

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] FU2-3EU-1B#
# [LUMCAT] Fusion
# [DATE] 13/09/2012/16/07/2012/
# down given: 100%
# out given: 65.2%
# tilt: 0.0
# [LAMP] 1 MT 100 8700 2800 E40
# Bulbs: 1, 8700 lm each
# Source file: Fusion_FU2-3EU-1B-_1_MT_100_8700_2800_E40.ldt
# Luminaire flux = 652 raw, for the given bulb(s) it would be 5669 lm,
# 65.2 % of the bulb flux
# between 75 and 90: 0.6 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 3.1 cd / 1000 lm , 0.3 % of the luminaire flux
# 90deg and above: max 0.9 cd / 1000 lm , 0.1?% of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 4?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 18?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 268 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 130 cd / 1000 lm,
# maximum spec. lum. intensity 451 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195 195
2.5 196 196 198 200 200 202 201 203 203 204 204 205 205 205 207 207 207 206 204 206 207 207 207 205 205 205 204 204 203 203 201 202 200 200 198 196 196 194 193 193 192 192 190 190 190 189 190 189 189 189 189 187 187 188 189 188 187 187 189 189 189 189 190 189 190 190 190 192 192 193 193 194
5.0 194 195 197 199 200 203 203 206 207 208 209 210 211 211 212 211 211 210 209 210 211 211 212 211 211 210 209 208 207 206 203 203 200 199 197 195 194 192 192 192 191 192 191 191 191 191 190 190 190 188 189 187 186 186 188 186 186 187 189 188 190 190 190 191 191 191 191 192 191 192 192 192
7.5 191 190 192 194 197 200 201 204 205 207 206 208 207 208 207 205 204 204 205 204 204 205 207 208 207 208 206 207 205 204 201 200 197 194 192 190 191 191 191 192 192 194 193 197 196 198 196 198 196 196 195 192 191 189 190 189 191 192 195 196 196 198 196 198 196 197 193 194 192 192 191 191
10.0 188 187 187 190 192 195 196 199 199 200 198 199 197 198 195 193 191 190 191 190 191 193 195 198 197 199 198 200 199 199 196 195 192 190 187 187 188 189 190 193 193 196 196 201 200 204 202 205 203 203 201 197 194 191 191 191 194 197 201 203 203 205 202 204 200 201 196 196 193 193 190 189
12.5 187 185 185 187 190 192 193 194 194 194 192 191 188 187 184 180 177 177 177 177 177 180 184 187 188 191 192 194 194 194 193 192 190 187 185 185 187 188 190 191 191 196 196 200 200 203 202 206 203 202 198 195 190 188 184 188 190 195 198 202 203 206 202 203 200 200 196 196 191 191 190 188
15.0 187 186 186 188 191 193 192 192 192 191 189 187 184 180 177 172 169 167 168 167 169 172 177 180 184 187 189 191 192 192 192 193 191 188 186 186 187 187 188 189 190 191 192 195 195 197 195 196 193 191 186 181 177 175 170 175 177 181 186 191 193 196 195 197 195 195 192 191 190 189 188 187
17.5 188 189 189 192 195 196 196 195 195 194 193 189 184 180 174 169 164 161 161 161 164 169 174 180 184 189 193 194 195 195 196 196 195 192 189 189 188 186 186 186 186 186 185 186 185 183 180 178 175 172 167 164 160 158 154 158 160 164 167 172 175 178 180 183 185 186 185 186 186 186 186 186
20.0 189 193 195 199 202 203 203 202 203 202 200 196 188 183 176 169 163 159 156 159 163 169 176 183 188 196 200 202 203 202 203 203 202 199 195 193 189 186 184 182 182 181 178 177 173 169 164 160 156 152 148 145 144 142 139 142 144 145 148 152 156 160 164 169 173 177 178 181 182 182 184 186
22.5 191 197 202 211 215 218 217 218 217 214 211 207 199 188 180 171 164 159 154 159 164 171 180 188 199 207 211 214 217 218 217 218 215 211 202 197 191 185 182 180 179 177 173 168 162 156 150 145 140 137 135 132 132 131 128 131 132 132 135 137 140 145 150 156 162 168 173 177 179 180 182 185
25.0 193 202 211 224 232 241 242 242 239 231 224 218 209 195 184 175 167 161 155 161 167 175 184 195 209 218 224 231 239 242 242 241 232 224 211 202 193 186 181 178 176 173 167 160 153 145 140 134 130 127 126 124 123 122 121 122 123 124 126 127 130 134 140 145 153 160 167 173 176 178 181 186
27.5 194 204 216 230 243 259 266 273 268 255 241 228 217 203 190 179 171 165 158 165 171 179 190 203 217 228 241 255 268 273 266 259 243 230 216 204 194 185 180 177 174 169 161 153 144 136 130 127 123 122 120 117 117 116 115 116 117 117 120 122 123 127 130 136 144 153 161 169 174 177 180 185
30.0 191 201 213 226 239 254 266 281 283 279 263 240 225 211 197 183 174 169 162 169 174 183 197 211 225 240 263 279 283 281 266 254 239 226 213 201 191 183 178 174 171 163 154 144 136 129 123 121 119 117 115 113 111 110 109 110 111 113 115 117 119 121 123 129 136 144 154 163 171 174 178 183
32.5 184 193 202 213 224 238 249 261 272 283 276 259 236 219 204 189 177 172 166 172 177 189 204 219 236 259 276 283 272 261 249 238 224 213 202 193 184 178 174 171 167 158 148 138 130 123 119 117 115 114 113 110 107 105 104 105 107 110 113 114 115 117 119 123 130 138 148 158 167 171 174 178
35.0 177 184 193 204 214 226 234 244 251 261 268 274 251 226 210 194 180 173 169 173 180 194 210 226 251 274 268 261 251 244 234 226 214 204 193 184 177 171 170 168 164 155 144 133 126 119 115 112 113 113 111 108 104 102 101 102 104 108 111 113 113 112 115 119 126 133 144 155 164 168 170 171
37.5 172 180 191 203 216 226 232 238 240 243 252 269 264 234 215 198 183 173 170 173 183 198 215 234 264 269 252 243 240 238 232 226 216 203 191 180 172 167 166 165 161 153 142 132 125 117 112 110 109 110 110 106 103 98.9 98.4 98.9 103 106 110 110 109 110 112 117 125 132 142 153 161 165 166 167
40.0 172 182 197 215 228 239 241 240 240 240 240 251 262 243 214 196 181 173 170 173 181 196 214 243 262 251 240 240 240 240 241 239 228 215 197 182 172 166 165 163 157 149 138 131 123 118 112 109 107 106 108 106 102 98.0 97.0 98.0 102 106 108 106 107 109 112 118 123 131 138 149 157 163 165 166
42.5 172 186 206 232 254 266 260 253 247 245 238 235 244 241 208 194 182 177 176 177 182 194 208 241 244 235 238 245 247 253 260 266 254 232 206 186 172 166 161 156 146 135 124 119 115 114 110 109 107 107 107 106 102 97.8 96.9 97.8 102 106 107 107 107 109 110 114 115 119 124 135 146 156 161 166
45.0 171 189 216 252 287 307 297 281 263 255 242 223 212 215 206 199 189 185 186 185 189 199 206 215 212 223 242 255 263 281 297 307 287 252 216 189 171 160 153 145 134 122 113 107 105 103 103 104 106 108 108 106 102 97.4 96.5 97.4 102 106 108 108 106 104 103 103 105 107 113 122 134 145 153 160
47.5 169 190 225 270 320 352 355 336 298 272 248 213 187 190 209 206 191 185 187 185 191 206 209 190 187 213 248 272 298 336 355 352 320 270 225 190 169 157 150 141 129 117 108 103 99.7 97.9 96.9 98.4 103 108 108 106 102 96.5 95.8 96.5 102 106 108 108 103 98.4 96.9 97.9 99.7 103 108 117 129 141 150 157
50.0 171 196 240 295 363 401 415 397 348 295 257 205 173 182 213 205 183 171 175 171 183 205 213 182 173 205 257 295 348 397 415 401 363 295 240 196 171 156 147 136 122 111 103 99.6 96.2 95.1 94.2 95.8 99.8 107 109 107 101 95.9 94.7 95.9 101 107 109 107 99.8 95.8 94.2 95.1 96.2 99.6 103 111 122 136 147 156
52.5 176 207 264 331 409 443 451 429 384 322 263 203 168 178 202 188 156 141 144 141 156 188 202 178 168 203 263 322 384 429 451 443 409 331 264 207 176 155 142 128 115 106 98.6 95.1 92.8 92.6 93.5 95.7 98.9 104 107 106 99.7 93.4 91.2 93.4 99.7 106 107 104 98.9 95.7 93.5 92.6 92.8 95.1 98.6 106 115 128 142 155
55.0 181 216 273 342 409 429 423 410 391 340 265 213 167 161 158 148 118 105 100 105 118 148 158 161 167 213 265 340 391 410 423 429 409 342 273 216 181 156 138 121 109 99.8 93.4 90.8 89.3 90.0 92.3 95.6 98.0 102 104 103 96.4 88.1 85.1 88.1 96.4 103 104 102 98.0 95.6 92.3 90.0 89.3 90.8 93.4 99.8 109 121 138 156
57.5 183 210 245 301 329 348 335 339 357 337 274 219 158 124 111 91.8 77.0 70.0 70.7 70.0 77.0 91.8 111 124 158 219 274 337 357 339 335 348 329 301 245 210 183 156 133 113 102 94.2 88.6 86.2 84.4 85.6 88.4 92.6 94.1 97.9 100 95.4 88.4 77.1 72.9 77.1 88.4 95.4 100 97.9 94.1 92.6 88.4 85.6 84.4 86.2 88.6 94.2 102 113 133 156
60.0 174 180 192 218 225 246 240 263 289 306 286 219 137 95.9 77.4 64.8 59.6 56.6 57.3 56.6 59.6 64.8 77.4 95.9 137 219 286 306 289 263 240 246 225 218 192 180 174 154 126 106 94.3 88.2 83.1 80.9 78.3 78.6 80.8 83.8 83.4 87.1 90.6 84.9 76.1 65.8 58.3 65.8 76.1 84.9 90.6 87.1 83.4 83.8 80.8 78.6 78.3 80.9 83.1 88.2 94.3 106 126 154
62.5 152 147 140 152 154 167 164 185 211 248 268 216 121 78.8 64.0 55.7 51.7 49.3 49.5 49.3 51.7 55.7 64.0 78.8 121 216 268 248 211 185 164 167 154 152 140 147 152 143 113 97.9 85.4 81.8 77.2 74.4 70.8 68.9 70.3 70.6 70.7 71.8 73.4 68.2 59.9 50.3 44.4 50.3 59.9 68.2 73.4 71.8 70.7 70.6 70.3 68.9 70.8 74.4 77.2 81.8 85.4 97.9 113 143
65.0 93.2 83.4 79.8 99.8 100 115 115 128 140 178 204 178 105 67.3 55.5 48.8 46.2 43.8 43.6 43.8 46.2 48.8 55.5 67.3 105 178 204 178 140 128 115 115 100 99.8 79.8 83.4 93.2 86.9 69.2 56.8 49.4 56.8 51.4 60.1 58.0 60.3 59.5 59.2 59.4 57.2 58.3 52.8 47.5 40.4 37.3 40.4 47.5 52.8 58.3 57.2 59.4 59.2 59.5 60.3 58.0 60.1 51.4 56.8 49.4 56.8 69.2 86.9
67.5 42.5 35.1 30.9 31.6 35.1 45.8 65.1 93.6 97.3 120 130 121 80.5 55.8 47.3 42.7 40.6 35.3 34.5 35.3 40.6 42.7 47.3 55.8 80.5 121 130 120 97.3 93.6 65.1 45.8 35.1 31.6 30.9 35.1 42.5 39.3 27.8 18.3 16.9 14.5 17.4 17.7 24.9 35.0 39.8 47.2 49.0 48.1 43.9 41.0 39.1 36.4 35.5 36.4 39.1 41.0 43.9 48.1 49.0 47.2 39.8 35.0 24.9 17.7 17.4 14.5 16.9 18.3 27.8 39.3
70.0 24.0 21.0 17.5 17.5 17.6 18.7 21.5 31.0 52.7 75.4 74.3 69.3 53.8 45.8 39.7 36.7 32.3 21.5 17.2 21.5 32.3 36.7 39.7 45.8 53.8 69.3 74.3 75.4 52.7 31.0 21.5 18.7 17.6 17.5 17.5 21.0 24.0 21.7 15.9 12.1 10.4 9.6 9.0 8.3 8.9 9.3 14.0 16.0 22.4 30.8 28.1 26.5 28.3 26.8 22.3 26.8 28.3 26.5 28.1 30.8 22.4 16.0 14.0 9.3 8.9 8.3 9.0 9.6 10.4 12.1 15.9 21.7
72.5 11.6 11.8 10.9 11.5 11.2 12.0 12.0 12.6 14.1 20.8 38.7 46.3 41.5 37.6 33.2 28.7 21.1 10.6 7.4 10.6 21.1 28.7 33.2 37.6 41.5 46.3 38.7 20.8 14.1 12.6 12.0 12.0 11.2 11.5 10.9 11.8 11.6 10.6 8.8 7.9 7.4 7.1 6.5 6.3 6.5 7.1 7.4 7.8 8.8 10.1 10.9 11.6 12.0 10.7 9.4 10.7 12.0 11.6 10.9 10.1 8.8 7.8 7.4 7.1 6.5 6.3 6.5 7.1 7.4 7.9 8.8 10.6
75.0 6.3 6.7 6.4 6.7 6.8 7.1 7.1 7.3 7.1 7.2 8.6 17.3 21.8 24.0 17.6 14.2 10.4 4.9 4.7 4.9 10.4 14.2 17.6 24.0 21.8 17.3 8.6 7.2 7.1 7.3 7.1 7.1 6.8 6.7 6.4 6.7 6.3 5.7 5.3 4.9 4.9 4.8 4.4 4.6 4.9 5.4 5.7 5.9 6.0 6.4 7.3 7.7 7.6 7.3 6.7 7.3 7.6 7.7 7.3 6.4 6.0 5.9 5.7 5.4 4.9 4.6 4.4 4.8 4.9 4.9 5.3 5.7
77.5 3.5 3.8 3.8 4.3 4.3 4.6 4.4 4.3 4.1 4.1 3.9 4.0 3.8 3.7 3.7 3.4 3.3 3.2 3.2 3.2 3.3 3.4 3.7 3.7 3.8 4.0 3.9 4.1 4.1 4.3 4.4 4.6 4.3 4.3 3.8 3.8 3.5 3.3 3.3 3.3 3.2 3.0 3.0 3.0 3.5 4.0 4.1 4.0 4.2 4.4 4.4 4.7 4.6 4.8 4.3 4.8 4.6 4.7 4.4 4.4 4.2 4.0 4.1 4.0 3.5 3.0 3.0 3.0 3.2 3.3 3.3 3.3
80.0 2.0 2.3 2.5 2.7 2.8 3.1 3.0 2.9 2.7 2.5 2.4 2.4 2.3 2.2 2.2 1.9 2.0 1.8 2.0 1.8 2.0 1.9 2.2 2.2 2.3 2.4 2.4 2.5 2.7 2.9 3.0 3.1 2.8 2.7 2.5 2.3 2.0 2.0 2.0 2.0 2.0 2.1 2.0 2.2 2.3 2.5 2.7 2.7 2.7 2.7 2.7 2.6 2.5 2.6 2.3 2.6 2.5 2.6 2.7 2.7 2.7 2.7 2.7 2.5 2.3 2.2 2.0 2.1 2.0 2.0 2.0 2.0
82.5 1.4 1.5 1.6 1.8 1.9 2.0 2.0 1.9 1.7 1.7 1.5 1.5 1.5 1.4 1.2 1.2 1.2 1.0 1.1 1.0 1.2 1.2 1.2 1.4 1.5 1.5 1.5 1.7 1.7 1.9 2.0 2.0 1.9 1.8 1.6 1.5 1.4 1.3 1.4 1.4 1.4 1.3 1.4 1.4 1.5 1.5 1.6 1.5 1.5 1.5 1.5 1.4 1.3 1.4 1.2 1.4 1.3 1.4 1.5 1.5 1.5 1.5 1.6 1.5 1.5 1.4 1.4 1.3 1.4 1.4 1.4 1.3
85.0 1.0 1.1 1.2 1.2 1.3 1.4 1.3 1.2 1.1 1.0 0.9 1.0 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.7 0.8 0.8 0.9 0.9 1.0 0.9 1.0 1.1 1.2 1.3 1.4 1.3 1.2 1.2 1.1 1.0 1.0 1.0 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.0 1.0
87.5 0.9 0.9 0.8 0.9 0.8 0.9 0.8 0.9 0.8 0.8 0.6 0.6 0.6 0.6 0.5 0.5 0.4 0.5 0.4 0.5 0.4 0.5 0.5 0.6 0.6 0.6 0.6 0.8 0.8 0.9 0.8 0.9 0.8 0.9 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
90.0 0.6 0.6 0.6 0.4 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.4 0.6 0.6 0.6 0.6 0.8 0.7 0.8 0.7 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.7 0.8 0.7 0.8 0.6
92.5 0.6 0.6 0.6 0.6 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.7 0.7
95.0 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.8 0.8 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.7 0.7 0.7 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.8 0.8 0.8 0.8
97.5 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8
100.0 0.8 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.9 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
