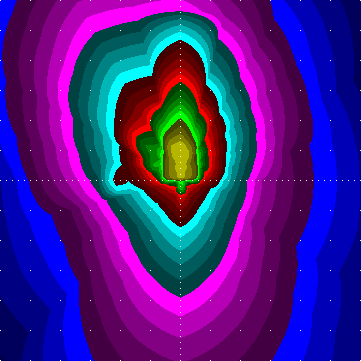

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] FP15I04N.LDT
# [LUMINAIRE] FU2-3EP-2L-20°G
# [LUMCAT] Fusion
# [DATE] 20/11/2012/2007
# down given: 99%
# out given: 23.7%
# tilt: 0.0
# [LAMP] 1 MD 150 14200 4200 RX7s
# Bulbs: 1, 14200 lm each
# Source file: Fusion_FU2-3EP-2L-20G_1_MD_150_14200_4200_RX7S.ldt
# Luminaire flux = 237 raw, for the given bulb(s) it would be 3369 lm,
# 23.7 % of the bulb flux
# between 75 and 90: 1.2 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 6.2 cd / 1000 lm , 1.1 % of the luminaire flux
# 90deg and above: max 1.6 cd / 1000 lm , 0.8 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 14 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 39 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 426 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 299 cd / 1000 lm,
# maximum spec. lum. intensity 615 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4 40.4
2.5 41.3 55.0 69.6 81.4 88.6 97.9 92.6 91.3 85.5 78.3 68.2 53.7 39.3 31.7 29.8 30.7 30.9 31.7 31.4 31.4 31.1 30.9 31.3 34.1
5.0 42.2 69.6 98.7 122 137 155 145 142 131 116 96.0 66.9 38.2 22.9 19.2 21.0 21.3 22.9 22.3 22.3 21.8 21.3 22.1 27.8
7.5 35.9 75.8 107 134 150 166 154 151 138 118 100 75.1 34.2 15.8 13.3 14.3 16.9 20.5 20.5 20.3 21.5 19.1 17.5 19.6
10.0 29.6 81.9 116 146 163 176 163 161 144 121 104 83.2 30.2 8.6 7.4 7.6 12.5 18.2 18.7 18.3 21.2 17.0 12.9 11.4
12.5 27.8 86.1 113 134 157 183 171 168 138 118 106 87.3 30.7 8.3 6.8 5.4 7.9 15.6 17.5 17.1 17.0 10.3 9.3 9.0
15.0 26.0 90.3 110 122 151 190 179 175 132 116 107 91.4 31.1 8.0 6.1 3.2 3.3 12.9 16.2 16.0 12.9 3.5 5.6 6.7
17.5 25.0 92.5 109 121 143 214 207 192 130 115 107 94.2 30.9 7.4 4.7 3.0 2.9 9.6 14.1 14.7 8.5 3.0 4.2 5.8
20.0 24.0 94.7 107 120 136 238 235 210 128 114 106 97.0 30.6 6.9 3.2 2.7 2.6 6.3 11.9 13.4 4.2 2.4 2.7 5.0
22.5 22.1 91.8 105 118 148 236 235 207 138 115 104 94.1 29.1 5.7 3.0 2.6 2.3 4.2 8.2 8.6 3.0 2.2 2.4 4.0
25.0 20.2 89.0 103 116 159 234 234 204 148 116 102 91.2 27.6 4.5 2.7 2.4 1.9 2.1 4.5 3.9 1.9 1.9 2.1 2.9
27.5 16.2 72.4 94.9 114 147 227 234 199 150 114 95.2 75.3 22.3 3.8 2.3 2.1 1.7 1.9 3.7 3.0 1.7 1.6 1.8 2.5
30.0 12.2 55.8 87.0 112 135 220 234 194 151 112 88.8 59.5 17.0 3.0 1.9 1.8 1.5 1.8 2.9 2.1 1.5 1.4 1.6 2.1
32.5 8.3 34.4 61.5 106 132 243 262 216 156 106 65.7 38.5 11.9 2.7 1.8 1.6 1.5 1.7 2.8 2.0 1.4 1.3 1.5 1.8
35.0 4.3 13.0 36.1 99.5 129 267 291 239 161 99.2 42.6 17.6 6.7 2.3 1.8 1.5 1.5 1.6 2.7 1.9 1.3 1.3 1.4 1.6
37.5 3.5 9.4 23.4 73.8 129 303 338 281 159 81.1 34.0 14.0 5.8 2.2 1.7 1.5 1.5 1.6 2.5 1.8 1.3 1.2 1.3 1.5
40.0 2.7 5.8 10.7 48.1 129 338 386 322 156 63.0 25.5 10.4 5.0 2.1 1.6 1.4 1.4 1.6 2.3 1.8 1.3 1.1 1.1 1.4
42.5 2.6 5.6 11.8 33.5 120 364 438 369 138 48.0 33.5 9.9 4.6 2.0 1.5 1.3 1.3 1.6 2.3 1.7 1.2 1.0 1.0 1.2
45.0 2.4 5.3 12.8 18.9 112 390 490 415 121 33.0 41.6 9.3 4.2 1.9 1.4 1.1 1.3 1.6 2.3 1.6 1.1 1.0 0.9 1.0
47.5 2.1 4.6 10.1 17.4 82.1 372 552 454 101 35.7 35.8 8.4 3.7 1.7 1.3 1.0 1.2 1.5 2.3 1.6 1.1 0.9 0.9 0.9
50.0 1.8 3.9 7.5 15.9 52.6 354 615 493 80.9 38.3 30.0 7.6 3.2 1.5 1.1 1.0 1.1 1.5 2.3 1.6 1.1 0.9 0.8 0.9
52.5 1.5 3.3 6.0 13.5 38.3 289 580 445 61.7 43.7 24.0 6.5 3.0 1.3 1.0 0.9 1.0 1.5 2.2 1.5 1.0 0.9 0.7 0.8
55.0 1.1 2.6 4.5 11.2 23.9 224 545 396 42.5 49.1 18.1 5.4 2.7 1.1 0.9 0.9 1.0 1.4 2.1 1.5 1.0 0.8 0.6 0.6
57.5 1.0 1.8 3.5 8.9 20.8 187 506 325 39.7 54.7 12.9 4.9 2.7 1.0 0.9 0.9 1.0 1.4 2.0 1.5 0.9 0.7 0.6 0.6
60.0 0.8 1.1 2.6 6.6 17.7 151 466 254 36.8 60.3 7.6 4.3 2.6 1.0 0.8 0.8 1.0 1.4 1.9 1.4 0.9 0.6 0.5 0.5
62.5 0.6 1.0 2.0 5.1 15.3 113 426 193 32.3 47.5 6.7 3.9 4.1 0.9 0.7 0.7 0.9 1.4 2.0 1.4 0.9 0.6 0.5 0.5
65.0 0.5 0.8 1.5 3.5 12.9 75.8 386 132 27.7 34.8 5.8 3.5 5.7 0.8 0.6 0.6 0.9 1.4 2.1 1.4 0.9 0.6 0.5 0.5
67.5 0.4 0.7 1.3 2.8 9.0 49.1 299 81.1 26.3 23.8 5.1 2.8 3.4 0.7 0.6 0.6 0.9 1.4 2.1 1.4 0.9 0.6 0.4 0.4
70.0 0.3 0.6 1.0 2.1 5.1 22.4 212 30.0 24.8 12.7 4.3 2.1 1.1 0.6 0.5 0.6 0.9 1.4 2.1 1.4 0.9 0.5 0.3 0.3
72.5 0.3 0.5 0.8 1.5 3.8 14.9 145 22.9 21.5 10.4 3.6 1.8 1.0 0.5 0.4 0.6 0.9 1.4 2.1 1.4 0.9 0.5 0.3 0.3
75.0 0.3 0.3 0.6 1.0 2.4 7.4 78.9 15.7 18.2 8.2 2.9 1.4 0.8 0.3 0.3 0.5 0.8 1.4 2.1 1.4 0.8 0.5 0.3 0.3
77.5 0.3 0.3 0.5 0.8 1.7 4.9 42.0 10.4 12.2 5.7 2.1 1.0 0.6 0.3 0.3 0.4 0.8 1.4 2.0 1.4 0.9 0.5 0.3 0.3
80.0 0.3 0.3 0.3 0.5 0.9 2.4 5.2 5.0 6.2 3.2 1.3 0.6 0.3 0.3 0.3 0.3 0.8 1.4 1.9 1.4 0.9 0.5 0.3 0.3
82.5 0.2 0.2 0.2 0.4 0.6 1.5 3.0 2.8 3.3 1.8 0.8 0.4 0.2 0.2 0.3 0.3 0.8 1.4 1.8 1.4 0.9 0.5 0.3 0.3
85.0 0.1 0.1 0.1 0.3 0.3 0.6 0.9 0.5 0.3 0.3 0.3 0.1 0.1 0.1 0.3 0.3 0.8 1.4 1.8 1.4 0.9 0.5 0.3 0.3
87.5 0.1 0.1 0.1 0.2 0.2 0.4 0.4 0.3 0.2 0.2 0.2 0.1 0.1 0.1 0.2 0.3 0.8 1.3 1.7 1.4 0.9 0.5 0.3 0.2
90.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
92.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
95.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
97.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
100.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
102.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
105.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
107.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
110.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
112.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
115.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
117.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
120.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
122.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
125.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
127.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
130.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
132.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
135.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.3 1.6 1.4 1.0 0.5 0.3 0.1
137.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.8 1.2 1.5 1.3 0.9 0.5 0.3 0.1
140.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.7 1.2 1.4 1.2 0.9 0.4 0.3 0.1
142.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.7 1.1 1.3 1.2 0.8 0.4 0.3 0.1
145.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.2 0.6 1.0 1.2 1.1 0.8 0.4 0.2 0.1
147.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.2 0.6 0.9 1.2 1.0 0.7 0.4 0.2 0.1
150.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.2 0.5 0.9 1.1 0.9 0.7 0.3 0.2 0.1
152.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.2 0.5 0.8 1.0 0.9 0.6 0.3 0.2 0.1
155.0 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.2 0.4 0.7 0.9 0.8 0.6 0.3 0.2 0.1
157.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.2 0.4 0.6 0.8 0.7 0.5 0.3 0.2 0.1
160.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.4 0.6 0.7 0.6 0.4 0.2 0.1 0.0
162.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.5 0.6 0.5 0.4 0.2 0.1 0.0
165.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.3 0.4 0.5 0.5 0.3 0.2 0.1 0.0
167.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.2 0.4 0.4 0.4 0.3 0.1 0.1 0.0
170.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.2 0.3 0.4 0.3 0.2 0.1 0.1 0.0
172.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.1 0.2 0.3 0.2 0.2 0.1 0.1 0.0
175.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.1 0.2 0.2 0.1 0.1 0.0 0.0
177.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.1 0.1 0.1 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
