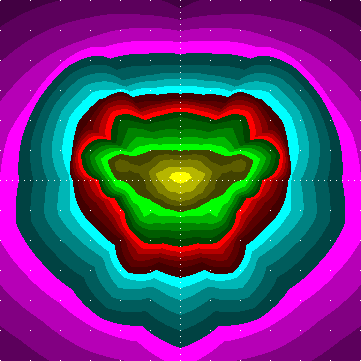

| In left plots, specific illuminances by a continuous row of luminaires spaced 5 and 6 heights are shown in their left halves (right half concerns a single luminaire). | The right plot is for a single luminaire, unrotated. | |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] FU10I18S.LDT
# [LUMINAIRE] FU1-OP5-1C
# [LUMCAT] Fusion
# [DATE] 20/11/2012/20008
# down given: 99%
# out given: 72.1%
# tilt: 0.0
# [LAMP] 1 MT 100 8700 2800 E40
# Bulbs: 1, 8700 lm each
# Source file: FUSION_FU1-OP5-1C_1_MT_100_8700_2800_E40.ldt
# Luminaire flux = 721 raw, for the given bulb(s) it would be 6274 lm,
# 72.1 % of the bulb flux
# between 75 and 90: 1.0 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 6.0 cd / 1000 lm , 1.4 % of the luminaire flux
# 90deg and above: max 2.0 cd / 1000 lm , 1.0 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 17 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 49 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 878 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 691 cd / 1000 lm,
# maximum spec. lum. intensity 878 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213 213
2.5 214 216 216 218 219 220 220 220 219 218 216 216 214 212 210 209 209 209 209 209 209 209 210 212
5.0 215 219 219 223 225 227 228 227 225 223 219 219 215 212 207 206 205 205 206 205 205 206 207 212
7.5 217 224 229 238 239 235 235 235 239 238 229 224 217 212 206 203 202 200 201 200 202 203 206 212
10.0 219 229 239 253 253 244 242 244 253 253 239 229 219 212 204 201 198 195 196 195 198 201 204 212
12.5 219 231 244 253 246 236 235 236 246 253 244 231 219 213 202 197 195 190 190 190 195 197 202 213
15.0 219 232 249 253 238 229 228 229 238 253 249 232 219 213 200 193 192 185 185 185 192 193 200 213
17.5 223 240 246 246 230 215 213 215 230 246 246 240 223 213 199 193 186 178 179 178 186 193 199 213
20.0 228 247 243 239 222 201 198 201 222 239 243 247 228 213 198 193 179 171 174 171 179 193 198 213
22.5 227 247 240 226 206 186 181 186 206 226 240 247 227 212 197 189 168 165 171 165 168 189 197 212
25.0 227 248 237 212 191 170 164 170 191 212 237 248 227 210 196 185 156 159 168 159 156 185 196 210
27.5 235 257 231 208 184 165 161 165 184 208 231 257 235 201 191 180 156 152 170 152 156 180 191 201
30.0 244 266 226 204 177 161 158 161 177 204 226 266 244 192 186 175 157 144 172 144 157 175 186 192
32.5 242 276 221 201 179 158 148 158 179 201 221 276 242 184 178 166 153 143 160 143 153 166 178 184
35.0 241 287 216 197 181 155 138 155 181 197 216 287 241 176 169 157 149 142 148 142 149 157 169 176
37.5 235 289 217 199 173 140 127 140 173 199 217 289 235 180 174 143 139 131 132 131 139 143 174 180
40.0 230 290 218 200 166 124 116 124 166 200 218 290 230 184 179 128 128 120 116 120 128 128 179 184
42.5 220 280 213 201 155 110 102 110 155 201 213 280 220 183 169 120 116 106 112 106 116 120 169 183
45.0 210 269 208 203 143 96.9 87.9 96.9 143 203 208 269 210 183 160 111 104 91.8 108 91.8 104 111 160 183
47.5 197 265 201 188 127 91.2 82.4 91.2 127 188 201 265 197 182 142 105 98.1 84.7 93.7 84.7 98.1 105 142 182
50.0 183 260 194 172 110 85.5 77.0 85.5 110 172 194 260 183 182 125 98.2 92.5 77.6 79.0 77.6 92.5 98.2 125 182
52.5 197 274 204 169 102 80.6 71.3 80.6 102 169 204 274 197 190 126 103 96.4 74.9 71.4 74.9 96.4 103 126 190
55.0 212 287 214 165 93.2 75.7 65.5 75.7 93.2 165 214 287 212 198 127 108 100 72.2 63.9 72.2 100 108 127 198
57.5 244 367 225 152 85.5 71.6 62.2 71.6 85.5 152 225 367 244 194 137 134 91.4 66.5 60.7 66.5 91.4 134 137 194
60.0 276 446 237 138 77.8 67.5 58.9 67.5 77.8 138 237 446 276 190 147 160 82.6 60.8 57.4 60.8 82.6 160 147 190
62.5 331 662 192 146 72.9 63.3 61.7 63.3 72.9 146 192 662 331 123 94.7 119 78.3 52.7 53.5 52.7 78.3 119 94.7 123
65.0 385 878 147 154 68.0 59.2 64.5 59.2 68.0 154 147 878 385 55.7 42.5 78.5 74.0 44.5 49.6 44.5 74.0 78.5 42.5 55.7
67.5 225 691 105 152 43.8 35.5 37.5 35.5 43.8 152 105 691 225 40.6 29.6 46.0 55.1 29.2 32.8 29.2 55.1 46.0 29.6 40.6
70.0 64.8 505 62.4 150 19.6 11.9 10.5 11.9 19.6 150 62.4 505 64.8 25.5 16.8 13.4 36.2 13.9 16.1 13.9 36.2 13.4 16.8 25.5
72.5 37.3 262 43.2 85.1 12.5 7.8 6.9 7.8 12.5 85.1 43.2 262 37.3 19.1 12.8 9.9 24.0 10.1 12.9 10.1 24.0 9.9 12.8 19.1
75.0 9.7 18.4 24.0 20.7 5.3 3.8 3.3 3.8 5.3 20.7 24.0 18.4 9.7 12.8 8.9 6.4 11.9 6.4 9.6 6.4 11.9 6.4 8.9 12.8
77.5 7.2 11.4 13.9 11.9 3.8 2.7 2.2 2.7 3.8 11.9 13.9 11.4 7.2 9.4 6.8 5.2 7.9 4.9 7.7 4.9 7.9 5.2 6.8 9.4
80.0 4.7 4.5 3.7 3.0 2.2 1.6 1.0 1.6 2.2 3.0 3.7 4.5 4.7 6.0 4.8 4.0 3.9 3.5 5.7 3.5 3.9 4.0 4.8 6.0
82.5 4.1 3.8 3.1 2.4 1.7 1.2 0.7 1.2 1.7 2.4 3.1 3.8 4.1 4.8 4.2 3.5 3.2 2.7 3.6 2.7 3.2 3.5 4.2 4.8
85.0 3.4 3.2 2.4 1.8 1.2 0.8 0.4 0.8 1.2 1.8 2.4 3.2 3.4 3.6 3.5 3.1 2.5 1.8 1.6 1.8 2.5 3.1 3.5 3.6
87.5 2.5 2.3 1.7 1.3 0.9 0.6 0.4 0.6 0.9 1.3 1.7 2.3 2.5 2.8 2.8 2.5 2.0 1.5 1.4 1.5 2.0 2.5 2.8 2.8
90.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
92.5 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
95.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
97.5 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
100.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
102.5 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
105.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
107.5 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
110.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
112.5 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
115.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
117.5 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
120.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
122.5 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
125.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
127.5 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
130.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
132.5 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
135.0 1.6 1.4 0.9 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.9 1.4 1.6 1.9 2.0 2.0 1.6 1.2 1.1 1.2 1.6 2.0 2.0 1.9
137.5 1.5 1.3 0.9 0.6 0.6 0.4 0.4 0.4 0.6 0.6 0.9 1.3 1.5 1.8 1.9 1.9 1.5 1.2 1.0 1.2 1.5 1.9 1.9 1.8
140.0 1.4 1.2 0.8 0.6 0.5 0.4 0.4 0.4 0.5 0.6 0.8 1.2 1.4 1.7 1.8 1.8 1.4 1.1 1.0 1.1 1.4 1.8 1.8 1.7
142.5 1.3 1.2 0.8 0.6 0.5 0.4 0.4 0.4 0.5 0.6 0.8 1.2 1.3 1.6 1.7 1.7 1.3 1.0 0.9 1.0 1.3 1.7 1.7 1.6
145.0 1.2 1.1 0.7 0.5 0.5 0.4 0.3 0.4 0.5 0.5 0.7 1.1 1.2 1.5 1.6 1.6 1.2 0.9 0.9 0.9 1.2 1.6 1.6 1.5
147.5 1.2 1.0 0.6 0.5 0.4 0.4 0.3 0.4 0.4 0.5 0.6 1.0 1.2 1.4 1.5 1.5 1.2 0.9 0.8 0.9 1.2 1.5 1.5 1.4
150.0 1.1 0.9 0.6 0.5 0.4 0.3 0.3 0.3 0.4 0.5 0.6 0.9 1.1 1.3 1.3 1.3 1.1 0.8 0.7 0.8 1.1 1.3 1.3 1.3
152.5 1.0 0.9 0.6 0.4 0.4 0.3 0.3 0.3 0.4 0.4 0.6 0.9 1.0 1.2 1.2 1.2 1.0 0.8 0.6 0.8 1.0 1.2 1.2 1.2
155.0 0.9 0.8 0.5 0.4 0.3 0.3 0.2 0.3 0.3 0.4 0.5 0.8 0.9 1.1 1.1 1.1 0.9 0.7 0.6 0.7 0.9 1.1 1.1 1.1
157.5 0.8 0.7 0.4 0.4 0.3 0.3 0.2 0.3 0.3 0.4 0.4 0.7 0.8 1.0 1.0 1.0 0.8 0.6 0.6 0.6 0.8 1.0 1.0 1.0
160.0 0.7 0.6 0.4 0.3 0.3 0.2 0.2 0.2 0.3 0.3 0.4 0.6 0.7 0.8 0.9 0.9 0.7 0.5 0.5 0.5 0.7 0.9 0.9 0.8
162.5 0.6 0.6 0.4 0.3 0.3 0.2 0.2 0.2 0.3 0.3 0.4 0.6 0.6 0.7 0.8 0.8 0.6 0.4 0.4 0.4 0.6 0.8 0.8 0.7
165.0 0.5 0.5 0.3 0.2 0.2 0.2 0.1 0.2 0.2 0.2 0.3 0.5 0.5 0.6 0.7 0.7 0.5 0.4 0.4 0.4 0.5 0.7 0.7 0.6
167.5 0.4 0.4 0.3 0.2 0.2 0.2 0.1 0.2 0.2 0.2 0.3 0.4 0.4 0.5 0.6 0.6 0.4 0.4 0.3 0.4 0.4 0.6 0.6 0.5
170.0 0.4 0.3 0.2 0.2 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.3 0.4 0.4 0.4 0.4 0.4 0.3 0.2 0.3 0.4 0.4 0.4 0.4
172.5 0.3 0.3 0.2 0.2 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.3 0.3 0.3 0.3
175.0 0.2 0.2 0.1 0.1 0.1 0.1 0.0 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2 0.2 0.2 0.1 0.1 0.1 0.2 0.2 0.2 0.2
177.5 0.1 0.1 0.1 0.1 0.1 0.1 0.0 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
