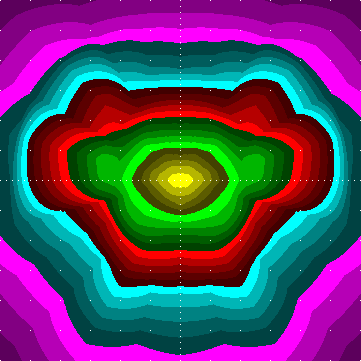

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] FU07S05S.LDT
# [LUMINAIRE] FU1-OP5-1B#
# [LUMCAT] Fusion
# [DATE] 20/11/2012/
# down given: 99%
# out given: 72.8%
# tilt: 0.0
# [LAMP] 1 ST 70 6600 1950 E27
# Bulbs: 1, 6600 lm each
# Source file: FUSION_FU1-OP5-1B-_1_ST_70_6600_1950_E27.ldt
# Luminaire flux = 729 raw, for the given bulb(s) it would be 4808 lm,
# 72.9 % of the bulb flux
# between 75 and 90: 2.7 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 11.5 cd / 1000 lm , 1.4 % of the luminaire flux
# 90deg and above: max 1.6 cd / 1000 lm , 0.9 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 16 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 45 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 215 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 396 cd / 1000 lm,
# maximum spec. lum. intensity 396 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248 248
2.5 250 249 247 247 247 248 246 248 247 247 247 249 250 249 247 245 244 245 245 245 244 245 247 249
5.0 251 250 245 245 246 247 245 247 246 245 245 250 251 250 246 242 239 242 242 242 239 242 246 250
7.5 255 253 247 245 242 241 237 241 242 245 247 253 255 253 247 241 236 234 236 234 236 241 247 253
10.0 258 256 249 244 238 235 230 235 238 244 249 256 258 255 249 239 233 227 231 227 233 239 249 255
12.5 258 257 250 241 229 224 219 224 229 241 250 257 258 256 246 238 228 220 225 220 228 238 246 256
15.0 259 258 250 238 221 213 209 213 221 238 250 258 259 257 243 237 222 212 219 212 222 237 243 257
17.5 256 254 245 231 215 206 200 206 215 231 245 254 256 249 236 230 219 206 212 206 219 230 236 249
20.0 254 250 240 224 209 198 192 198 209 224 240 250 254 242 229 222 216 200 204 200 216 222 229 242
22.5 258 250 233 216 203 191 183 191 203 216 233 250 258 241 223 212 206 193 194 193 206 212 223 241
25.0 261 250 226 208 197 184 174 184 197 208 226 250 261 240 218 202 195 186 185 186 195 202 218 240
27.5 262 248 220 205 190 175 163 175 190 205 220 248 262 232 208 196 188 181 180 181 188 196 208 232
30.0 262 247 215 201 184 165 153 165 184 201 215 247 262 225 198 191 182 176 176 176 182 191 198 225
32.5 263 246 207 194 173 153 142 153 173 194 207 246 263 218 188 181 171 172 188 172 171 181 188 218
35.0 264 245 200 188 162 142 131 142 162 188 200 245 264 211 179 172 160 168 200 168 160 172 179 211
37.5 260 245 195 178 157 134 124 134 157 178 195 245 260 200 170 160 151 157 186 157 151 160 170 200
40.0 256 245 190 169 152 126 116 126 152 169 190 245 256 190 162 149 142 145 173 145 142 149 162 190
42.5 250 241 182 158 149 120 110 120 149 158 182 241 250 184 156 143 136 136 153 136 136 143 156 184
45.0 244 236 174 148 146 114 104 114 146 148 174 236 244 179 150 136 130 127 134 127 130 136 150 179
47.5 237 221 166 145 137 106 96.6 106 137 145 166 221 237 171 146 132 124 118 122 118 124 132 146 171
50.0 229 205 158 142 129 97.8 89.6 97.8 129 142 158 205 229 162 142 128 117 108 111 108 117 128 142 162
52.5 227 199 157 149 117 89.8 82.7 89.8 117 149 157 199 227 167 145 131 116 106 101 106 116 131 145 167
55.0 224 192 156 157 105 81.8 75.8 81.8 105 157 156 192 224 171 149 134 114 104 90.9 104 114 134 149 171
57.5 223 188 157 148 94.6 72.4 65.8 72.4 94.6 148 157 188 223 177 154 140 113 93.3 83.4 93.3 113 140 154 177
60.0 222 185 158 139 84.6 63.1 55.8 63.1 84.6 139 158 185 222 184 159 146 112 82.8 75.8 82.8 112 146 159 184
62.5 215 180 138 112 75.6 53.7 48.0 53.7 75.6 112 138 180 215 148 154 148 109 75.3 66.8 75.3 109 148 154 148
65.0 207 176 119 84.8 66.6 44.3 40.3 44.3 66.6 84.8 119 176 207 113 149 150 105 67.8 57.7 67.8 105 150 149 113
67.5 254 286 114 63.6 44.2 31.6 28.1 31.6 44.2 63.6 114 286 254 84.9 94.4 103 85.6 57.3 45.7 57.3 85.6 103 94.4 84.9
70.0 301 396 109 42.3 21.7 19.0 16.0 19.0 21.7 42.3 109 396 301 57.0 40.1 55.4 66.3 46.8 33.6 46.8 66.3 55.4 40.1 57.0
72.5 232 316 79.6 54.6 17.2 12.3 10.3 12.3 17.2 54.6 79.6 316 232 41.0 26.5 33.5 47.0 30.1 22.8 30.1 47.0 33.5 26.5 41.0
75.0 163 236 50.6 66.8 12.6 5.6 4.5 5.6 12.6 66.8 50.6 236 163 24.9 13.0 11.5 27.7 13.5 11.9 13.5 27.7 11.5 13.0 24.9
77.5 86.1 124 28.6 36.6 7.8 4.1 3.3 4.1 7.8 36.6 28.6 124 86.1 17.5 9.4 8.4 18.7 9.7 9.4 9.7 18.7 8.4 9.4 17.5
80.0 9.6 11.5 6.7 6.4 3.0 2.5 2.2 2.5 3.0 6.4 6.7 11.5 9.6 10.0 5.8 5.4 9.6 5.9 6.8 5.9 9.6 5.4 5.8 10.0
82.5 6.2 7.0 4.3 4.0 2.2 1.8 1.5 1.8 2.2 4.0 4.3 7.0 6.2 6.4 4.4 4.0 6.0 4.0 4.6 4.0 6.0 4.0 4.4 6.4
85.0 2.8 2.5 2.0 1.5 1.3 1.0 0.8 1.0 1.3 1.5 2.0 2.5 2.8 2.8 2.9 2.6 2.3 2.1 2.3 2.1 2.3 2.6 2.9 2.8
87.5 2.2 2.0 1.6 1.3 1.1 0.9 0.7 0.9 1.1 1.3 1.6 2.0 2.2 2.2 2.2 1.9 1.6 1.4 1.5 1.4 1.6 1.9 2.2 2.2
90.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
92.5 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
95.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
97.5 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
100.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
102.5 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
105.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
107.5 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
110.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
112.5 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
115.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
117.5 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
120.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
122.5 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
125.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
127.5 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
130.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
132.5 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
135.0 1.6 1.5 1.2 1.0 0.9 0.8 0.6 0.8 0.9 1.0 1.2 1.5 1.6 1.6 1.5 1.3 1.0 0.8 0.8 0.8 1.0 1.3 1.5 1.6
137.5 1.5 1.4 1.2 0.9 0.9 0.8 0.6 0.8 0.9 0.9 1.2 1.4 1.5 1.5 1.4 1.3 0.9 0.8 0.8 0.8 0.9 1.3 1.4 1.5
140.0 1.4 1.3 1.1 0.9 0.8 0.7 0.5 0.7 0.8 0.9 1.1 1.3 1.4 1.4 1.3 1.2 0.9 0.7 0.7 0.7 0.9 1.2 1.3 1.4
142.5 1.3 1.3 1.0 0.9 0.8 0.6 0.5 0.6 0.8 0.9 1.0 1.3 1.3 1.3 1.3 1.1 0.9 0.6 0.6 0.6 0.9 1.1 1.3 1.3
145.0 1.2 1.2 0.9 0.8 0.7 0.6 0.5 0.6 0.7 0.8 0.9 1.2 1.2 1.2 1.2 1.0 0.8 0.6 0.6 0.6 0.8 1.0 1.2 1.2
147.5 1.2 1.1 0.9 0.8 0.6 0.6 0.4 0.6 0.6 0.8 0.9 1.1 1.2 1.2 1.1 0.9 0.8 0.6 0.6 0.6 0.8 0.9 1.1 1.2
150.0 1.1 1.0 0.8 0.7 0.6 0.5 0.4 0.5 0.6 0.7 0.8 1.0 1.1 1.1 1.0 0.9 0.7 0.5 0.5 0.5 0.7 0.9 1.0 1.1
152.5 1.0 0.9 0.8 0.6 0.6 0.4 0.4 0.4 0.6 0.6 0.8 0.9 1.0 1.0 0.9 0.8 0.6 0.4 0.4 0.4 0.6 0.8 0.9 1.0
155.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0.9 0.8 0.7 0.6 0.4 0.4 0.4 0.6 0.7 0.8 0.9
157.5 0.8 0.8 0.6 0.5 0.4 0.4 0.3 0.4 0.4 0.5 0.6 0.8 0.8 0.8 0.8 0.6 0.5 0.4 0.4 0.4 0.5 0.6 0.8 0.8
160.0 0.7 0.7 0.5 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.5 0.7 0.7 0.7 0.7 0.6 0.4 0.4 0.4 0.4 0.4 0.6 0.7 0.7
162.5 0.6 0.6 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.6 0.6 0.6 0.6 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.6
165.0 0.5 0.5 0.4 0.3 0.3 0.3 0.2 0.3 0.3 0.3 0.4 0.5 0.5 0.5 0.5 0.4 0.3 0.3 0.3 0.3 0.3 0.4 0.5 0.5
167.5 0.4 0.4 0.4 0.3 0.3 0.3 0.2 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.4
170.0 0.4 0.3 0.3 0.2 0.2 0.2 0.1 0.2 0.2 0.2 0.3 0.3 0.4 0.4 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.4
172.5 0.3 0.3 0.2 0.2 0.2 0.2 0.1 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3
175.0 0.2 0.2 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2
177.5 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
