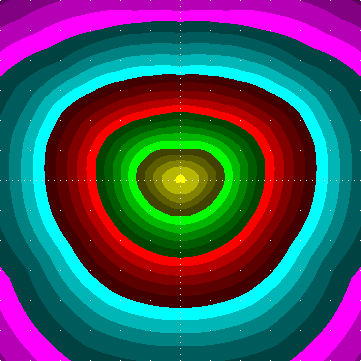

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] FU12F00S.LDT
# [LUMINAIRE] FUSION1-OP5-1B#
# [LUMCAT] Fusion
# [DATE] 20/11/2012/2008
# down given: 99%
# out given: 65.3%
# tilt: 0.0
# [LAMP] 1 QE 125 6800 4100 E27
# Bulbs: 1, 6800 lm each
# Source file: FUSION_FU1-OP5-1B-_1_QE_125_6800_4100_E27.ldt
# Luminaire flux = 653 raw, for the given bulb(s) it would be 4443 lm,
# 65.3 % of the bulb flux
# between 75 and 90: 2.8 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 17.1 cd / 1000 lm , 1.8 % of the luminaire flux
# 90deg and above: max 1.5 cd / 1000 lm , 1.0 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 17 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 49 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 157 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 121 cd / 1000 lm,
# maximum spec. lum. intensity 214 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208 208
2.5 208 209 210 211 211 210 210 210 211 211 210 209 208 208 208 207 205 205 204 205 205 207 208 208
5.0 208 210 211 213 214 211 211 211 214 213 211 210 208 208 208 205 202 202 199 202 202 205 208 208
7.5 209 210 211 213 213 210 211 210 213 213 211 210 209 208 207 203 201 199 196 199 201 203 207 208
10.0 209 211 210 212 213 209 212 209 213 212 210 211 209 207 207 202 199 196 193 196 199 202 207 207
12.5 208 210 209 209 209 205 208 205 209 209 209 210 208 208 206 199 195 191 190 191 195 199 206 208
15.0 207 209 208 205 205 202 205 202 205 205 208 209 207 208 205 197 191 187 186 187 191 197 205 208
17.5 206 209 206 201 197 195 197 195 197 201 206 209 206 207 202 193 188 183 183 183 188 193 202 207
20.0 206 208 205 197 190 187 188 187 190 197 205 208 206 206 198 189 185 179 179 179 185 189 198 206
22.5 204 206 202 194 185 179 179 179 185 194 202 206 204 203 198 186 180 175 174 175 180 186 198 203
25.0 203 204 200 190 180 171 171 171 180 190 200 204 203 199 197 183 175 172 168 172 175 183 197 199
27.5 204 205 196 183 174 164 162 164 174 183 196 205 204 199 192 181 173 168 163 168 173 181 192 199
30.0 206 207 193 177 168 157 153 157 168 177 193 207 206 200 187 178 171 164 157 164 171 178 187 200
32.5 205 208 190 173 162 149 145 149 162 173 190 208 205 196 182 170 166 163 156 163 166 170 182 196
35.0 204 210 187 170 156 141 137 141 156 170 187 210 204 192 176 162 161 161 156 161 161 162 176 192
37.5 202 209 185 165 149 131 126 131 149 165 185 209 202 185 167 153 153 154 151 154 153 153 167 185
40.0 200 208 183 159 142 122 116 122 142 159 183 208 200 178 158 144 144 147 146 147 144 144 158 178
42.5 196 203 178 156 136 114 107 114 136 156 178 203 196 174 152 138 135 139 137 139 135 138 152 174
45.0 192 199 173 153 130 106 98.2 106 130 153 173 199 192 170 146 133 126 131 128 131 126 133 146 170
47.5 189 196 170 151 126 102 96.3 102 126 151 170 196 189 165 145 133 125 128 122 128 125 133 145 165
50.0 187 194 167 150 122 99.0 94.3 99.0 122 150 167 194 187 161 144 134 123 124 115 124 123 134 144 161
52.5 184 192 165 149 120 96.5 90.9 96.5 120 149 165 192 184 159 142 133 121 120 115 120 121 133 142 159
55.0 182 191 163 147 118 94.0 87.4 94.0 118 147 163 191 182 157 140 131 120 117 115 117 120 131 140 157
57.5 171 182 161 140 108 86.2 81.8 86.2 108 140 161 182 171 151 133 122 113 109 113 109 113 122 133 151
60.0 161 173 159 132 98.7 78.4 76.1 78.4 98.7 132 159 173 161 145 126 113 105 101 110 101 105 113 126 145
62.5 143 157 146 115 82.9 66.9 66.2 66.9 82.9 115 146 157 143 130 115 103 94.6 92.4 98.5 92.4 94.6 103 115 130
65.0 126 141 133 97.1 67.1 55.5 56.2 55.5 67.1 97.1 133 141 126 116 104 92.8 83.8 83.9 87.1 83.9 83.8 92.8 104 116
67.5 107 121 112 80.4 54.5 44.3 43.3 44.3 54.5 80.4 112 121 107 96.6 85.8 78.8 72.4 72.0 73.4 72.0 72.4 78.8 85.8 96.6
70.0 87.4 101 91.9 63.8 41.9 33.0 30.5 33.0 41.9 63.8 91.9 101 87.4 77.3 67.9 64.8 60.9 60.1 59.7 60.1 60.9 64.8 67.9 77.3
72.5 67.3 77.8 71.1 47.9 31.4 24.1 21.5 24.1 31.4 47.9 71.1 77.8 67.3 59.5 51.4 50.5 48.7 47.1 46.5 47.1 48.7 50.5 51.4 59.5
75.0 47.3 54.2 50.3 32.0 20.9 15.3 12.5 15.3 20.9 32.0 50.3 54.2 47.3 41.7 34.9 36.2 36.4 34.1 33.3 34.1 36.4 36.2 34.9 41.7
77.5 31.5 35.7 32.9 20.6 13.7 9.9 8.1 9.9 13.7 20.6 32.9 35.7 31.5 28.0 23.2 25.3 26.2 24.1 23.1 24.1 26.2 25.3 23.2 28.0
80.0 15.6 17.1 15.5 9.3 6.5 4.4 3.7 4.4 6.5 9.3 15.5 17.1 15.6 14.3 11.5 14.4 15.9 14.2 13.0 14.2 15.9 14.4 11.5 14.3
82.5 9.3 10.0 9.1 5.7 4.0 2.8 2.3 2.8 4.0 5.7 9.1 10.0 9.3 8.8 7.4 8.9 10.1 8.8 7.8 8.8 10.1 8.9 7.4 8.8
85.0 3.0 2.9 2.6 2.0 1.5 1.1 0.8 1.1 1.5 2.0 2.6 2.9 3.0 3.2 3.3 3.5 4.3 3.4 2.7 3.4 4.3 3.5 3.3 3.2
87.5 2.0 2.0 1.8 1.5 1.2 1.0 0.8 1.0 1.2 1.5 1.8 2.0 2.0 2.3 2.4 2.5 2.8 2.3 2.0 2.3 2.8 2.5 2.4 2.3
90.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
92.5 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
95.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
97.5 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
100.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
102.5 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
105.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
107.5 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
110.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
112.5 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
115.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
117.5 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
120.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
122.5 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
125.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
127.5 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
130.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
132.5 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
135.0 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.3 1.5 1.5 1.3 1.2 1.2 1.2 1.3 1.5 1.5 1.3
137.5 1.0 0.9 0.9 0.9 0.9 0.9 0.6 0.9 0.9 0.9 0.9 0.9 1.0 1.3 1.4 1.4 1.3 1.2 1.2 1.2 1.3 1.4 1.4 1.3
140.0 1.0 0.9 0.9 0.9 0.8 0.8 0.6 0.8 0.8 0.9 0.9 0.9 1.0 1.2 1.3 1.3 1.2 1.1 1.1 1.1 1.2 1.3 1.3 1.2
142.5 0.9 0.9 0.9 0.9 0.8 0.8 0.6 0.8 0.8 0.9 0.9 0.9 0.9 1.1 1.3 1.3 1.1 1.0 1.0 1.0 1.1 1.3 1.3 1.1
145.0 0.9 0.8 0.8 0.8 0.7 0.7 0.5 0.7 0.7 0.8 0.8 0.8 0.9 1.0 1.2 1.2 1.0 0.9 0.9 0.9 1.0 1.2 1.2 1.0
147.5 0.8 0.8 0.8 0.8 0.6 0.6 0.5 0.6 0.6 0.8 0.8 0.8 0.8 0.9 1.1 1.1 0.9 0.9 0.9 0.9 0.9 1.1 1.1 0.9
150.0 0.7 0.7 0.7 0.7 0.6 0.6 0.5 0.6 0.6 0.7 0.7 0.7 0.7 0.9 1.0 1.0 0.9 0.8 0.8 0.8 0.9 1.0 1.0 0.9
152.5 0.6 0.6 0.6 0.6 0.6 0.6 0.4 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.8
155.0 0.6 0.6 0.6 0.6 0.5 0.5 0.4 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.7
157.5 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.6
160.0 0.5 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.7 0.7 0.6 0.5 0.5 0.5 0.6 0.7 0.7 0.6
162.5 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.6 0.5 0.4 0.4 0.4 0.5 0.6 0.6 0.5
165.0 0.4 0.3 0.3 0.3 0.3 0.3 0.2 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.4
167.5 0.3 0.3 0.3 0.3 0.3 0.3 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
170.0 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
172.5 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.2
175.0 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.1
177.5 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
