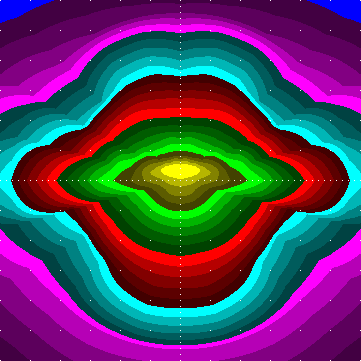

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] FU07I32S.LDT
# [LUMINAIRE] FU1-OP4-3C
# [LUMCAT] Fusion
# [DATE] 20/11/2012/2008
# down given: 99%
# out given: 72.5%
# tilt: 0.0
# [LAMP] 1 MT 70 7300 3000 G12
# Bulbs: 1, 7300 lm each
# Source file: FUSION_FU1-OP4-3C_1_MT_70_7300_3000_G12.ldt
# Luminaire flux = 725 raw, for the given bulb(s) it would be 5295 lm,
# 72.5 % of the bulb flux
# between 75 and 90: 2.6 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 57.8 cd / 1000 lm , 1.3 % of the luminaire flux
# 90deg and above: max 1.8 cd / 1000 lm , 0.9 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 15 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 43 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 456 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 529 cd / 1000 lm,
# maximum spec. lum. intensity 529 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182
2.5 181 185 190 193 196 199 200 199 196 193 190 185 181 177 173 171 169 169 169 169 169 171 173 177
5.0 180 189 197 204 210 215 217 215 210 204 197 189 180 171 163 159 156 155 156 155 156 159 163 171
7.5 179 192 205 215 224 230 233 230 224 215 205 192 179 168 158 152 147 147 148 147 147 152 158 168
10.0 178 196 214 227 237 245 250 245 237 227 214 196 178 165 153 145 139 139 140 139 139 145 153 165
12.5 180 202 225 242 252 257 261 257 252 242 225 202 180 164 149 140 135 133 134 133 135 140 149 164
15.0 182 207 236 257 267 268 273 268 267 257 236 207 182 164 146 136 131 128 128 128 131 136 146 164
17.5 187 219 251 272 284 283 292 283 284 272 251 219 187 164 144 133 127 125 126 125 127 133 144 164
20.0 192 232 265 287 300 298 312 298 300 287 265 232 192 164 143 130 124 123 123 123 124 130 143 164
22.5 191 239 288 314 333 318 319 318 333 314 288 239 191 160 140 129 123 121 121 121 123 129 140 160
25.0 191 247 312 341 366 337 327 337 366 341 312 247 191 155 137 128 122 120 118 120 122 128 137 155
27.5 186 256 348 366 356 323 293 323 356 366 348 256 186 149 131 125 121 117 116 117 121 125 131 149
30.0 182 265 384 391 345 309 259 309 345 391 384 265 182 143 124 122 120 115 114 115 120 122 124 143
32.5 187 276 400 369 277 255 205 255 277 369 400 276 187 143 121 118 117 111 110 111 117 118 121 143
35.0 192 286 415 347 209 200 152 200 209 347 415 286 192 143 118 114 114 108 106 108 114 114 118 143
37.5 206 308 370 275 165 155 126 155 165 275 370 308 206 142 117 112 110 104 103 104 110 112 117 142
40.0 221 330 326 202 122 109 101 109 122 202 326 330 221 141 115 110 107 101 99.3 101 107 110 115 141
42.5 242 357 308 167 110 99.4 93.4 99.4 110 167 308 357 242 140 113 107 103 98.8 96.8 98.8 103 107 113 140
45.0 263 384 291 132 98.1 89.9 85.8 89.9 98.1 132 291 384 263 138 112 105 99.8 96.6 94.2 96.6 99.8 105 112 138
47.5 279 388 270 116 91.6 86.9 83.7 86.9 91.6 116 270 388 279 137 110 102 96.8 93.9 92.8 93.9 96.8 102 110 137
50.0 295 392 249 99.9 85.2 84.0 81.5 84.0 85.2 99.9 249 392 295 135 107 99.5 93.8 91.2 91.4 91.2 93.8 99.5 107 135
52.5 326 359 219 94.8 80.0 80.7 72.4 80.7 80.0 94.8 219 359 326 133 104 96.6 91.1 88.0 88.1 88.0 91.1 96.6 104 133
55.0 356 327 190 89.7 74.8 77.4 63.3 77.4 74.8 89.7 190 327 356 130 100 93.7 88.4 84.8 84.8 84.8 88.4 93.7 100 130
57.5 369 292 153 84.3 70.4 65.8 55.2 65.8 70.4 84.3 153 292 369 126 96.3 89.9 84.8 80.9 80.9 80.9 84.8 89.9 96.3 126
60.0 381 257 116 79.0 65.9 54.2 47.1 54.2 65.9 79.0 116 257 381 121 92.4 86.1 81.2 77.0 77.0 77.0 81.2 86.1 92.4 121
62.5 419 273 105 73.8 60.7 48.0 43.5 48.0 60.7 73.8 105 273 419 116 86.9 81.7 77.3 72.4 72.6 72.4 77.3 81.7 86.9 116
65.0 456 289 93.4 68.5 55.5 41.7 40.0 41.7 55.5 68.5 93.4 289 456 111 81.4 77.3 73.3 67.8 68.2 67.8 73.3 77.3 81.4 111
67.5 493 216 79.9 61.6 51.0 38.1 35.3 38.1 51.0 61.6 79.9 216 493 100 74.4 71.4 67.6 62.5 63.9 62.5 67.6 71.4 74.4 100
70.0 529 143 66.4 54.7 46.4 34.4 30.7 34.4 46.4 54.7 66.4 143 529 89.2 67.3 65.4 61.8 57.1 59.6 57.1 61.8 65.4 67.3 89.2
72.5 424 96.8 38.1 31.0 30.7 25.3 20.5 25.3 30.7 31.0 38.1 96.8 424 56.9 38.9 39.7 45.7 49.0 49.5 49.0 45.7 39.7 38.9 56.9
75.0 320 50.7 9.8 7.2 15.0 16.2 10.4 16.2 15.0 7.2 9.8 50.7 320 24.7 10.4 13.9 29.5 40.9 39.4 40.9 29.5 13.9 10.4 24.7
77.5 189 32.5 6.8 4.6 8.3 8.7 5.8 8.7 8.3 4.6 6.8 32.5 189 16.9 7.3 8.8 16.6 22.2 21.3 22.2 16.6 8.8 7.3 16.9
80.0 57.8 14.4 3.7 2.1 1.5 1.2 1.1 1.2 1.5 2.1 3.7 14.4 57.8 9.1 4.3 3.7 3.7 3.4 3.2 3.4 3.7 3.7 4.3 9.1
82.5 30.1 8.1 2.5 1.5 1.1 1.0 0.9 1.0 1.1 1.5 2.5 8.1 30.1 5.6 3.1 2.6 2.5 2.3 2.2 2.3 2.5 2.6 3.1 5.6
85.0 2.4 1.7 1.2 0.9 0.8 0.7 0.7 0.7 0.8 0.9 1.2 1.7 2.4 2.0 1.8 1.5 1.3 1.1 1.2 1.1 1.3 1.5 1.8 2.0
87.5 2.1 1.6 1.2 0.9 0.8 0.7 0.6 0.7 0.8 0.9 1.2 1.6 2.1 1.9 1.7 1.3 1.0 0.9 1.0 0.9 1.0 1.3 1.7 1.9
90.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
92.5 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
95.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
97.5 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
100.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
102.5 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
105.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
107.5 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
110.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
112.5 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
115.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
117.5 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
120.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
122.5 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
125.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
127.5 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
130.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
132.5 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
135.0 1.7 1.5 1.2 0.8 0.7 0.7 0.6 0.7 0.7 0.8 1.2 1.5 1.7 1.8 1.6 1.1 0.8 0.7 0.8 0.7 0.8 1.1 1.6 1.8
137.5 1.6 1.4 1.2 0.8 0.6 0.6 0.6 0.6 0.6 0.8 1.2 1.4 1.6 1.7 1.5 1.0 0.8 0.6 0.8 0.6 0.8 1.0 1.5 1.7
140.0 1.5 1.3 1.1 0.7 0.6 0.6 0.5 0.6 0.6 0.7 1.1 1.3 1.5 1.6 1.4 1.0 0.7 0.6 0.7 0.6 0.7 1.0 1.4 1.6
142.5 1.4 1.3 1.0 0.6 0.6 0.6 0.5 0.6 0.6 0.6 1.0 1.3 1.4 1.5 1.3 0.9 0.6 0.6 0.6 0.6 0.6 0.9 1.3 1.5
145.0 1.3 1.2 0.9 0.6 0.5 0.5 0.5 0.5 0.5 0.6 0.9 1.2 1.3 1.4 1.2 0.9 0.6 0.5 0.6 0.5 0.6 0.9 1.2 1.4
147.5 1.2 1.1 0.9 0.6 0.5 0.5 0.4 0.5 0.5 0.6 0.9 1.1 1.2 1.3 1.2 0.8 0.6 0.5 0.6 0.5 0.6 0.8 1.2 1.3
150.0 1.1 1.0 0.8 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.8 1.0 1.1 1.2 1.1 0.7 0.5 0.5 0.5 0.5 0.5 0.7 1.1 1.2
152.5 1.0 0.9 0.8 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.8 0.9 1.0 1.1 1.0 0.6 0.4 0.4 0.4 0.4 0.4 0.6 1.0 1.1
155.0 0.9 0.8 0.7 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.7 0.8 0.9 1.0 0.9 0.6 0.4 0.4 0.4 0.4 0.4 0.6 0.9 1.0
157.5 0.9 0.8 0.6 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.6 0.8 0.9 0.9 0.8 0.6 0.4 0.4 0.4 0.4 0.4 0.6 0.8 0.9
160.0 0.8 0.7 0.5 0.4 0.3 0.3 0.3 0.3 0.3 0.4 0.5 0.7 0.8 0.8 0.7 0.5 0.4 0.3 0.4 0.3 0.4 0.5 0.7 0.8
162.5 0.7 0.6 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.6 0.7 0.7 0.6 0.4 0.4 0.3 0.4 0.3 0.4 0.4 0.6 0.7
165.0 0.6 0.5 0.4 0.3 0.2 0.2 0.2 0.2 0.2 0.3 0.4 0.5 0.6 0.6 0.5 0.4 0.3 0.2 0.3 0.2 0.3 0.4 0.5 0.6
167.5 0.5 0.4 0.4 0.3 0.2 0.2 0.2 0.2 0.2 0.3 0.4 0.4 0.5 0.5 0.4 0.3 0.3 0.2 0.3 0.2 0.3 0.3 0.4 0.5
170.0 0.4 0.3 0.3 0.2 0.2 0.2 0.1 0.2 0.2 0.2 0.3 0.3 0.4 0.4 0.4 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.4 0.4
172.5 0.3 0.3 0.2 0.2 0.2 0.2 0.1 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3
175.0 0.2 0.2 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2
177.5 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
