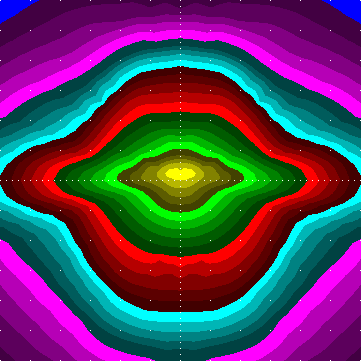

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] FU1-OP4-3B
# [LUMCAT] Fusion
# [DATE] 13/09/2012/14/12/2009/
# down given: 100%
# out given: 70.8%
# tilt: 0.0
# [LAMP] 1 MT 150 15000 3000 G12
# Bulbs: 1, 15000 lm each
# Source file: FUSION_FU1-OP4-3B_1_MT_150_15000_3000_G12.ldt
# Luminaire flux = 708 raw, for the given bulb(s) it would be 10626 lm,
# 70.8 % of the bulb flux
# between 75 and 90: 3.1 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 93.3 cd / 1000 lm , 0.6 % of the luminaire flux
# 90deg and above: max 1.1 cd / 1000 lm , 0.1?% of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 4?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 19?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 404 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 418 cd / 1000 lm,
# maximum spec. lum. intensity 418 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199 199
2.5 201 201 203 204 205 207 207 208 209 210 210 211 211 212 212 214 213 213 214 213 213 214 212 212 211 211 210 210 209 208 207 207 205 204 203 201 201 198 198 195 195 194 192 190 190 190 188 188 187 187 186 185 186 185 184 185 186 185 186 187 187 188 188 190 190 190 192 194 195 195 198 198
5.0 202 204 207 209 212 215 216 217 219 221 221 221 223 223 224 225 225 224 225 224 225 225 224 223 223 221 221 221 219 217 216 215 212 209 207 204 202 198 196 192 190 188 186 182 182 180 178 177 176 174 174 174 173 172 173 172 173 174 174 174 176 177 178 180 182 182 186 188 190 192 196 198
7.5 204 207 212 215 219 223 225 226 229 231 232 232 232 233 234 233 232 232 231 232 232 233 234 233 232 232 232 231 229 226 225 223 219 215 212 207 204 198 195 190 187 183 180 175 174 172 169 167 165 164 163 164 163 162 162 162 163 164 163 164 165 167 169 172 174 175 180 183 187 190 195 198
10.0 205 208 215 219 225 229 234 235 238 240 239 239 240 239 239 237 236 235 233 235 236 237 239 239 240 239 239 240 238 235 234 229 225 219 215 208 205 197 193 187 183 178 173 170 166 164 161 159 156 155 153 154 154 153 152 153 154 154 153 155 156 159 161 164 166 170 173 178 183 187 193 197
12.5 206 211 219 223 231 235 240 240 245 247 247 247 246 245 244 241 238 236 234 236 238 241 244 245 246 247 247 247 245 240 240 235 231 223 219 211 206 197 192 184 180 174 169 164 160 158 154 153 149 148 145 146 145 145 144 145 145 146 145 148 149 153 154 158 160 164 169 174 180 184 192 197
15.0 206 213 222 229 239 242 246 246 250 251 254 254 255 252 252 245 241 237 236 237 241 245 252 252 255 254 254 251 250 246 246 242 239 229 222 213 206 196 190 182 176 169 164 159 155 152 149 147 144 142 140 140 138 139 138 139 138 140 140 142 144 147 149 152 155 159 164 169 176 182 190 196
17.5 205 214 225 234 244 251 256 256 259 256 258 261 263 261 257 250 243 237 237 237 243 250 257 261 263 261 258 256 259 256 256 251 244 234 225 214 205 195 187 179 173 166 160 155 151 148 144 142 139 137 136 135 134 134 133 134 134 135 136 137 139 142 144 148 151 155 160 166 173 179 187 195
20.0 208 221 231 243 255 262 268 268 271 268 264 263 267 267 264 256 244 238 237 238 244 256 264 267 267 263 264 268 271 268 268 262 255 243 231 221 208 197 188 179 171 164 157 151 147 144 140 139 136 134 132 132 130 130 130 130 130 132 132 134 136 139 140 144 147 151 157 164 171 179 188 197
22.5 211 226 239 254 271 276 281 280 282 281 275 267 267 272 270 262 245 236 236 236 245 262 270 272 267 267 275 281 282 280 281 276 271 254 239 226 211 199 187 178 168 161 155 149 144 141 137 135 133 131 129 129 128 127 127 127 128 129 129 131 133 135 137 141 144 149 155 161 168 178 187 199
25.0 211 229 245 265 279 289 292 291 288 288 281 276 265 270 268 259 242 230 228 230 242 259 268 270 265 276 281 288 288 291 292 289 279 265 245 229 211 197 183 173 164 157 151 145 141 139 135 134 130 129 126 127 125 124 124 124 125 127 126 129 130 134 135 139 141 145 151 157 164 173 183 197
27.5 210 230 251 275 287 300 297 297 289 287 281 279 260 260 254 247 231 217 211 217 231 247 254 260 260 279 281 287 289 297 297 300 287 275 251 230 210 193 179 166 158 150 145 140 136 135 132 131 128 126 124 124 122 121 122 121 122 124 124 126 128 131 132 135 136 140 145 150 158 166 179 193
30.0 208 228 251 280 292 305 296 295 283 282 267 266 248 234 230 227 210 201 195 201 210 227 230 234 248 266 267 282 283 295 296 305 292 280 251 228 208 189 175 161 153 144 139 133 132 131 128 128 126 124 121 120 119 119 118 119 119 120 121 124 126 128 128 131 132 133 139 144 153 161 175 189
32.5 209 230 254 282 295 303 290 283 269 264 249 243 225 201 199 199 185 180 175 180 185 199 199 201 225 243 249 264 269 283 290 303 295 282 254 230 209 189 174 159 150 140 134 128 126 126 124 125 122 121 118 117 116 115 115 115 116 117 118 121 122 125 124 126 126 128 134 140 150 159 174 189
35.0 212 234 259 281 295 292 280 265 247 234 220 210 190 174 163 168 160 156 152 156 160 168 163 174 190 210 220 234 247 265 280 292 295 281 259 234 212 192 176 159 148 136 129 124 122 122 120 121 120 118 115 114 113 111 111 111 113 114 115 118 120 121 120 122 122 124 129 136 148 159 176 192
37.5 218 238 260 276 286 271 257 234 223 204 187 173 157 146 136 137 132 132 130 132 132 137 136 146 157 173 187 204 223 234 257 271 286 276 260 238 218 197 178 159 145 133 126 121 119 117 117 117 116 115 112 111 109 109 108 109 109 111 112 115 116 117 117 117 119 121 126 133 145 159 178 197
40.0 229 248 264 278 276 257 230 198 193 173 159 143 132 125 119 117 114 115 112 115 114 117 119 125 132 143 159 173 193 198 230 257 276 278 264 248 229 204 181 158 142 130 123 118 117 115 114 114 113 112 109 108 106 106 105 106 106 108 109 112 113 114 114 115 117 118 123 130 142 158 181 204
42.5 243 267 280 287 277 254 216 178 163 144 134 123 117 111 109 106 105 106 104 106 105 106 109 111 117 123 134 144 163 178 216 254 277 287 280 267 243 214 183 156 138 127 121 116 114 113 112 111 110 109 107 106 104 103 103 103 104 106 107 109 110 111 112 113 114 116 121 127 138 156 183 214
45.0 269 295 304 309 289 260 211 168 142 126 117 110 106 103 103 102 100 99.7 99.7 99.7 100 102 103 103 106 110 117 126 142 168 211 260 289 309 304 295 269 226 185 153 136 125 119 115 113 111 109 108 107 106 104 104 101 101 101 101 101 104 104 106 107 108 109 111 113 115 119 125 136 153 185 226
47.5 289 323 323 321 299 265 210 163 132 115 106 103 100 99.0 100 99.7 98.1 96.0 96.1 96.0 98.1 99.7 100 99.0 100 103 106 115 132 163 210 265 299 321 323 323 289 238 186 151 134 123 117 113 111 109 106 105 104 102 101 102 99.5 99.1 99.3 99.1 99.5 102 101 102 104 105 106 109 111 113 117 123 134 151 186 238
50.0 310 350 338 321 299 259 209 156 124 108 100 97.1 95.2 95.1 97.5 98.9 95.8 91.9 90.9 91.9 95.8 98.9 97.5 95.1 95.2 97.1 100 108 124 156 209 259 299 321 338 350 310 248 187 149 132 121 115 111 108 106 104 103 101 99.8 98.5 99.1 97.6 97.3 97.7 97.3 97.6 99.1 98.5 99.8 101 103 104 106 108 111 115 121 132 149 187 248
52.5 334 368 342 304 273 236 199 147 117 103 96.1 92.7 90.3 90.9 94.2 96.2 91.6 86.0 84.0 86.0 91.6 96.2 94.2 90.9 90.3 92.7 96.1 103 117 147 199 236 273 304 342 368 334 259 190 148 130 119 113 108 105 104 101 99.9 97.9 97.0 95.9 96.4 95.3 95.1 95.7 95.1 95.3 96.4 95.9 97.0 97.9 99.9 101 104 105 108 113 119 130 148 190 259
55.0 353 384 338 279 238 205 179 134 110 98.3 92.3 88.5 85.9 85.9 88.3 90.4 84.5 78.1 75.7 78.1 84.5 90.4 88.3 85.9 85.9 88.5 92.3 98.3 110 134 179 205 238 279 338 384 353 273 193 147 128 116 110 105 102 101 98.2 97.5 95.2 94.3 93.6 93.6 92.6 92.4 93.1 92.4 92.6 93.6 93.6 94.3 95.2 97.5 98.2 101 102 105 110 116 128 147 193 273
57.5 366 395 331 252 205 170 150 121 102 93.2 88.3 84.5 81.6 81.1 81.8 80.8 75.4 69.5 68.0 69.5 75.4 80.8 81.8 81.1 81.6 84.5 88.3 93.2 102 121 150 170 205 252 331 395 366 282 192 145 125 114 107 102 98.9 98.2 95.2 94.3 92.5 91.5 90.4 90.7 89.7 89.6 90.4 89.6 89.7 90.7 90.4 91.5 92.5 94.3 95.2 98.2 98.9 102 107 114 125 145 192 282
60.0 372 386 318 238 184 145 126 107 95.5 88.2 84.4 80.9 78.2 76.4 74.1 70.8 65.8 61.2 61.2 61.2 65.8 70.8 74.1 76.4 78.2 80.9 84.4 88.2 95.5 107 126 145 184 238 318 386 372 284 189 141 121 110 103 97.9 95.3 94.1 91.3 91.0 89.6 88.2 87.0 87.6 86.3 86.2 87.1 86.2 86.3 87.6 87.0 88.2 89.6 91.0 91.3 94.1 95.3 97.9 103 110 121 141 189 284
62.5 383 397 327 238 177 130 110 97.0 89.6 83.5 79.6 77.1 74.5 71.6 66.5 62.0 57.9 56.2 56.8 56.2 57.9 62.0 66.5 71.6 74.5 77.1 79.6 83.5 89.6 97.0 110 130 177 238 327 397 383 287 186 136 116 104 98.3 93.1 90.4 89.7 87.3 87.3 86.2 84.8 83.3 83.5 82.0 81.8 82.6 81.8 82.0 83.5 83.3 84.8 86.2 87.3 87.3 89.7 90.4 93.1 98.3 104 116 136 186 287
65.0 403 404 326 228 168 119 99.9 90.1 84.0 77.9 74.0 71.8 69.6 66.5 60.5 54.9 52.4 51.9 52.9 51.9 52.4 54.9 60.5 66.5 69.6 71.8 74.0 77.9 84.0 90.1 99.9 119 168 228 326 404 403 299 186 131 110 98.3 92.4 87.9 85.2 84.3 82.7 82.9 81.9 80.5 79.1 78.4 76.3 75.7 77.0 75.7 76.3 78.4 79.1 80.5 81.9 82.9 82.7 84.3 85.2 87.9 92.4 98.3 110 131 186 299
67.5 406 390 284 195 141 102 87.6 80.2 76.4 70.9 67.9 65.7 64.6 60.9 54.4 49.1 47.5 47.7 48.5 47.7 47.5 49.1 54.4 60.9 64.6 65.7 67.9 70.9 76.4 80.2 87.6 102 141 195 284 390 406 308 184 125 102 91.4 85.8 82.2 80.4 79.3 77.8 77.8 76.2 75.5 73.6 71.8 69.7 68.8 69.8 68.8 69.7 71.8 73.6 75.5 76.2 77.8 77.8 79.3 80.4 82.2 85.8 91.4 102 125 184 308
70.0 418 362 232 147 100 81.1 70.6 65.7 63.4 60.4 58.8 58.5 58.0 53.5 47.9 43.3 42.6 41.3 42.7 41.3 42.6 43.3 47.9 53.5 58.0 58.5 58.8 60.4 63.4 65.7 70.6 81.1 100 147 232 362 418 312 176 112 87.9 79.6 75.3 74.3 73.0 73.0 72.2 71.8 70.7 69.2 65.8 49.7 54.0 53.6 61.4 53.6 54.0 49.7 65.8 69.2 70.7 71.8 72.2 73.0 73.0 74.3 75.3 79.6 87.9 112 176 312
72.5 402 321 184 91.3 59.1 47.5 43.0 40.3 39.9 40.9 41.5 44.6 44.8 44.0 40.0 37.3 36.0 34.5 34.2 34.5 36.0 37.3 40.0 44.0 44.8 44.6 41.5 40.9 39.9 40.3 43.0 47.5 59.1 91.3 184 321 402 293 149 81.8 63.3 59.1 56.6 57.5 58.8 62.2 61.8 63.6 63.1 61.4 55.0 55.4 45.8 44.7 52.6 44.7 45.8 55.4 55.0 61.4 63.1 63.6 61.8 62.2 58.8 57.5 56.6 59.1 63.3 81.8 149 293
75.0 338 270 138 59.8 31.9 22.5 20.5 14.6 15.9 11.5 15.8 14.6 19.1 20.7 22.2 20.7 20.1 19.6 21.9 19.6 20.1 20.7 22.2 20.7 19.1 14.6 15.8 11.5 15.9 14.6 20.5 22.5 31.9 59.8 138 270 338 245 104 49.1 32.8 31.3 32.4 31.4 36.4 40.7 43.2 48.2 49.9 50.2 47.3 46.1 44.6 43.2 43.1 43.2 44.6 46.1 47.3 50.2 49.9 48.2 43.2 40.7 36.4 31.4 32.4 31.3 32.8 49.1 104 245
77.5 227 177 92.2 39.3 19.2 13.4 10.1 6.6 5.5 4.6 4.3 4.2 4.5 4.9 5.0 5.0 4.1 4.2 4.4 4.2 4.1 5.0 5.0 4.9 4.5 4.2 4.3 4.6 5.5 6.6 10.1 13.4 19.2 39.3 92.2 177 227 159 66.2 28.3 16.5 13.8 13.4 12.4 14.1 15.0 17.6 19.4 24.4 27.5 28.8 30.3 28.4 26.9 26.5 26.9 28.4 30.3 28.8 27.5 24.4 19.4 17.6 15.0 14.1 12.4 13.4 13.8 16.5 28.3 66.2 159
80.0 93.3 71.6 37.2 18.3 9.9 7.6 5.6 4.1 3.3 2.6 2.2 2.1 2.0 1.7 1.5 1.4 1.1 1.2 1.0 1.2 1.1 1.4 1.5 1.7 2.0 2.1 2.2 2.6 3.3 4.1 5.6 7.6 9.9 18.3 37.2 71.6 93.3 71.4 29.6 14.1 8.9 7.7 6.6 5.9 5.9 5.6 6.1 6.4 7.7 8.6 8.7 8.5 8.4 9.6 8.4 9.6 8.4 8.5 8.7 8.6 7.7 6.4 6.1 5.6 5.9 5.9 6.6 7.7 8.9 14.1 29.6 71.4
82.5 19.5 15.1 8.9 5.1 3.8 3.1 2.6 2.2 1.8 1.6 1.5 1.4 1.2 1.1 0.9 0.8 0.7 0.7 0.6 0.7 0.7 0.8 0.9 1.1 1.2 1.4 1.5 1.6 1.8 2.2 2.6 3.1 3.8 5.1 8.9 15.1 19.5 15.0 7.8 5.1 3.9 3.9 3.5 3.4 3.2 3.1 3.1 2.9 3.0 2.9 2.9 3.0 2.9 3.2 2.9 3.2 2.9 3.0 2.9 2.9 3.0 2.9 3.1 3.1 3.2 3.4 3.5 3.9 3.9 5.1 7.8 15.0
85.0 2.1 1.6 1.5 1.4 1.2 1.2 1.0 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.8 0.8 0.9 0.9 1.0 1.2 1.2 1.4 1.5 1.6 2.1 1.8 1.7 1.6 1.6 1.5 1.6 1.6 1.6 1.6 1.5 1.6 1.4 1.5 1.4 1.5 1.3 1.5 1.4 1.5 1.3 1.5 1.4 1.5 1.4 1.6 1.5 1.6 1.6 1.6 1.6 1.5 1.6 1.6 1.7 1.8
87.5 1.1 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.1 1.0 1.0 1.1 0.9 0.9 0.8 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.8 0.9 0.9 1.1 1.0 1.0 1.1 1.1
90.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.3 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9
92.5 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 0.9 0.9 0.9
95.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.7 0.6 0.5 0.5 0.5 0.5 0.4 0.5 0.4 0.5 0.4 0.5 0.4 0.5 0.5 0.5 0.5 0.6 0.7 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.0
97.5 1.1 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.8 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.4 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.8 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.8 0.9 0.9 1.0 1.0 1.0 1.1 1.1
100.0 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.9 0.9 1.0 1.0 1.1 1.1 1.1 1.1
