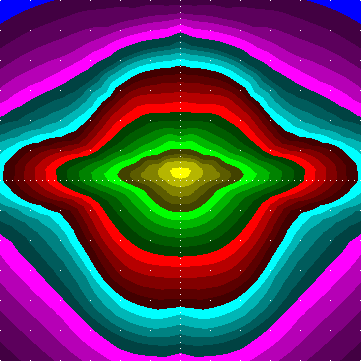

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] FU1-OP4-2B
# [LUMCAT] Fusion
# [DATE] 13/09/2012/14/12/2009/
# down given: 100%
# out given: 70.3%
# tilt: 0.0
# [LAMP] 1 MT 150 15000 3000 G12
# Bulbs: 1, 15000 lm each
# Source file: FUSION_FU1-OP4-2B_1_MT_150_15000_3000_G12.ldt
# Luminaire flux = 703 raw, for the given bulb(s) it would be 10549 lm,
# 70.3 % of the bulb flux
# between 75 and 90: 2.9 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 79.2 cd / 1000 lm , 0.6 % of the luminaire flux
# 90deg and above: max 1.1 cd / 1000 lm , 0.1?% of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 4?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 20?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 411 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 415 cd / 1000 lm,
# maximum spec. lum. intensity 415 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179 179
2.5 179 181 182 182 183 186 187 189 189 190 191 193 194 193 193 193 192 193 193 193 192 193 193 193 194 193 191 190 189 189 187 186 183 182 182 181 179 177 177 176 174 173 174 171 170 170 169 168 168 167 168 166 167 167 167 167 167 166 168 167 168 168 169 170 170 171 174 173 174 176 177 177
5.0 180 183 185 187 189 193 195 198 199 201 202 204 207 206 207 207 207 208 208 208 207 207 207 206 207 204 202 201 199 198 195 193 189 187 185 183 180 176 177 172 170 168 168 164 164 162 160 159 159 158 158 156 157 158 156 158 157 156 158 158 159 159 160 162 164 164 168 168 170 172 177 176
7.5 180 184 189 190 196 200 203 205 208 211 211 215 219 218 217 218 219 219 220 219 219 218 217 218 219 215 211 211 208 205 203 200 196 190 189 184 180 175 175 168 166 163 161 157 157 154 153 152 151 150 151 148 149 150 147 150 149 148 151 150 151 152 153 154 157 157 161 163 166 168 175 175
10.0 180 185 192 193 201 206 209 213 216 220 222 224 228 226 226 226 228 227 228 227 228 226 226 226 228 224 222 220 216 213 209 206 201 193 192 185 180 173 173 166 163 160 157 153 151 150 146 145 145 143 143 141 142 142 141 142 142 141 143 143 145 145 146 150 151 153 157 160 163 166 173 173
12.5 182 189 196 198 207 212 217 220 224 228 230 231 234 232 230 231 231 231 232 231 231 231 230 232 234 231 230 228 224 220 217 212 207 198 196 189 182 175 173 165 161 157 154 149 147 145 141 140 139 137 137 135 135 135 134 135 135 135 137 137 139 140 141 145 147 149 154 157 161 165 173 175
15.0 182 190 199 202 212 219 225 228 232 235 235 237 239 236 234 235 235 234 236 234 235 235 234 236 239 237 235 235 232 228 225 219 212 202 199 190 182 176 172 165 159 155 151 145 143 141 136 136 134 133 133 131 130 130 130 130 130 131 133 133 134 136 136 141 143 145 151 155 159 165 172 176
17.5 183 192 201 206 217 225 230 233 238 240 241 243 245 242 240 241 242 241 243 241 242 241 240 242 245 243 241 240 238 233 230 225 217 206 201 192 183 176 172 164 157 153 149 142 140 138 133 133 131 130 129 127 127 127 127 127 127 127 129 130 131 133 133 138 140 142 149 153 157 164 172 176
20.0 186 198 207 214 225 235 239 242 244 247 250 252 254 250 247 249 249 250 251 250 249 249 247 250 254 252 250 247 244 242 239 235 225 214 207 198 186 179 174 164 157 152 147 141 138 136 131 131 129 127 127 125 125 125 124 125 125 125 127 127 129 131 131 136 138 141 147 152 157 164 174 179
22.5 188 201 215 222 234 244 250 254 254 257 258 263 265 260 256 257 256 259 257 259 256 257 256 260 265 263 258 257 254 254 250 244 234 222 215 201 188 180 171 163 155 151 147 140 137 135 130 129 127 125 125 123 122 122 122 122 122 123 125 125 127 129 130 135 137 140 147 151 155 163 171 180
25.0 187 203 220 230 244 256 267 267 268 270 266 271 275 269 265 264 262 264 260 264 262 264 265 269 275 271 266 270 268 267 267 256 244 230 220 203 187 176 166 157 152 147 143 137 135 133 128 128 125 124 123 121 120 120 119 120 120 121 123 124 125 128 128 133 135 137 143 147 152 157 166 176
27.5 184 203 224 240 259 271 283 282 282 284 279 278 280 274 268 264 260 262 254 262 260 264 268 274 280 278 279 284 282 282 283 271 259 240 224 203 184 170 160 150 145 141 137 133 131 131 126 126 124 122 121 118 118 118 117 118 118 118 121 122 124 126 126 131 131 133 137 141 145 150 160 170
30.0 182 201 227 248 273 292 303 301 295 294 284 281 278 268 257 253 249 248 240 248 249 253 257 268 278 281 284 294 295 301 303 292 273 248 227 201 182 167 157 146 140 135 131 127 126 126 124 123 122 120 118 115 115 115 114 115 115 115 118 120 122 123 124 126 126 127 131 135 140 146 157 167
32.5 183 201 228 251 281 304 311 308 303 299 284 276 267 253 237 231 225 226 219 226 225 231 237 253 267 276 284 299 303 308 311 304 281 251 228 201 183 167 158 144 137 131 127 122 122 122 120 121 119 117 116 114 113 113 112 113 113 114 116 117 119 121 120 122 122 122 127 131 137 144 158 167
35.0 186 206 231 253 279 299 305 297 289 288 275 262 243 224 208 203 193 196 186 196 193 203 208 224 243 262 275 288 289 297 305 299 279 253 231 206 186 170 160 144 136 129 124 119 118 118 117 119 117 115 114 111 111 110 109 110 111 111 114 115 117 119 117 118 118 119 124 129 136 144 160 170
37.5 193 213 238 252 274 282 283 267 259 257 248 236 210 190 174 164 159 163 156 163 159 164 174 190 210 236 248 257 259 267 283 282 274 252 238 213 193 175 163 145 134 127 122 117 116 115 114 116 115 113 112 109 108 107 106 107 108 109 112 113 115 116 114 115 116 117 122 127 134 145 163 175
40.0 204 226 249 261 272 271 256 234 219 210 201 191 174 157 145 135 131 135 132 135 131 135 145 157 174 191 201 210 219 234 256 271 272 261 249 226 204 182 166 145 132 125 120 116 114 113 111 113 111 110 109 107 105 104 103 104 105 107 109 110 111 113 111 113 114 116 120 125 132 145 166 182
42.5 216 243 269 277 287 275 247 212 186 169 159 152 140 128 124 116 112 114 114 114 112 116 124 128 140 152 159 169 186 212 247 275 287 277 269 243 216 188 167 143 130 123 119 114 112 111 109 110 110 108 107 104 103 101 101 101 103 104 107 108 110 110 109 111 112 114 119 123 130 143 167 188
45.0 232 270 292 298 299 286 250 201 161 143 131 125 118 113 111 107 103 103 103 103 103 107 111 113 118 125 131 143 161 201 250 286 299 298 292 270 232 192 165 140 129 122 117 113 111 109 107 107 107 104 105 102 101 99.4 99.0 99.4 101 102 105 104 107 107 107 109 111 113 117 122 129 140 165 192
47.5 251 299 321 319 311 292 253 198 153 127 115 110 107 105 104 103 99.0 97.5 97.5 97.5 99.0 103 104 105 107 110 115 127 153 198 253 292 311 319 321 299 251 197 164 137 127 120 116 111 109 106 103 104 103 101 102 99.8 98.3 97.7 97.5 97.7 98.3 99.8 102 101 103 104 103 106 109 111 116 120 127 137 164 197
50.0 267 330 349 327 310 287 250 191 146 120 106 102 99.8 99.8 102 102 96.1 92.7 92.5 92.7 96.1 102 102 99.8 99.8 102 106 120 146 191 250 287 310 327 349 330 267 201 163 135 125 118 114 109 106 104 101 101 99.8 99.3 98.7 97.5 96.4 95.5 95.6 95.5 96.4 97.5 98.7 99.3 99.8 101 101 104 106 109 114 118 125 135 163 201
52.5 286 355 368 324 288 262 233 179 138 112 100 95.5 94.2 95.1 99.4 100 93.2 87.1 86.0 87.1 93.2 100 99.4 95.1 94.2 95.5 100 112 138 179 233 262 288 324 368 355 286 208 164 135 123 116 111 106 104 101 98.9 98.7 97.1 96.2 96.1 94.8 93.8 93.0 93.1 93.0 93.8 94.8 96.1 96.2 97.1 98.7 98.9 101 104 106 111 116 123 135 164 208
55.0 303 376 379 318 262 228 202 158 129 106 95.6 90.7 88.6 89.6 93.8 95.8 88.0 79.6 75.3 79.6 88.0 95.8 93.8 89.6 88.6 90.7 95.6 106 129 158 202 228 262 318 379 376 303 216 166 134 121 113 108 103 100 98.4 96.5 96.3 94.8 93.7 93.3 91.6 91.0 90.5 90.8 90.5 91.0 91.6 93.3 93.7 94.8 96.3 96.5 98.4 100 103 108 113 121 134 166 216
57.5 318 390 380 303 237 198 168 134 114 99.6 90.9 86.2 83.6 84.6 86.4 86.4 80.2 70.8 67.5 70.8 80.2 86.4 86.4 84.6 83.6 86.2 90.9 99.6 114 134 168 198 237 303 380 390 318 224 165 131 119 110 104 99.2 96.7 94.9 93.6 93.4 91.5 90.4 89.6 88.4 87.8 87.6 87.9 87.6 87.8 88.4 89.6 90.4 91.5 93.4 93.6 94.9 96.7 99.2 104 110 119 131 165 224
60.0 323 386 372 295 222 175 138 115 103 93.4 86.0 81.1 79.6 79.0 78.1 75.5 69.0 63.2 61.0 63.2 69.0 75.5 78.1 79.0 79.6 81.1 86.0 93.4 103 115 138 175 222 295 372 386 323 224 162 127 114 106 100 95.0 92.5 91.3 89.9 89.3 88.7 87.4 86.4 85.1 84.4 84.0 84.7 84.0 84.4 85.1 86.4 87.4 88.7 89.3 89.9 91.3 92.5 95.0 100 106 114 127 162 224
62.5 329 394 378 291 215 155 120 103 94.3 87.5 81.1 76.6 76.1 73.1 69.8 63.7 60.0 57.0 56.7 57.0 60.0 63.7 69.8 73.1 76.1 76.6 81.1 87.5 94.3 103 120 155 215 291 378 394 329 223 157 122 108 101 95.0 90.6 88.0 86.7 85.5 85.4 85.0 83.8 82.8 81.3 80.3 79.5 80.3 79.5 80.3 81.3 82.8 83.8 85.0 85.4 85.5 86.7 88.0 90.6 95.0 101 108 122 157 223
65.0 344 411 375 279 201 137 108 94.7 86.6 80.7 75.4 71.5 70.7 67.3 61.6 55.0 53.3 52.3 52.8 52.3 53.3 55.0 61.6 67.3 70.7 71.5 75.4 80.7 86.6 94.7 108 137 201 279 375 411 344 231 154 117 102 94.5 88.9 85.1 83.2 81.7 81.5 81.0 80.4 79.6 78.1 76.4 74.9 74.1 74.5 74.1 74.9 76.4 78.1 79.6 80.4 81.0 81.5 81.7 83.2 85.1 88.9 94.5 102 117 154 231
67.5 357 415 340 236 166 115 90.7 81.4 77.8 73.8 68.8 66.5 65.3 61.3 54.6 48.8 46.9 47.7 47.9 47.7 46.9 48.8 54.6 61.3 65.3 66.5 68.8 73.8 77.8 81.4 90.7 115 166 236 340 415 357 234 150 110 95.1 87.3 82.7 79.6 78.0 76.5 76.5 76.1 75.5 74.0 72.4 70.1 68.9 67.4 67.3 67.4 68.9 70.1 72.4 74.0 75.5 76.1 76.5 76.5 78.0 79.6 82.7 87.3 95.1 110 150 234
70.0 376 415 308 180 117 87.1 73.1 68.0 65.5 62.2 59.9 58.6 58.5 53.9 47.9 42.6 42.3 41.5 42.1 41.5 42.3 42.6 47.9 53.9 58.5 58.6 59.9 62.2 65.5 68.0 73.1 87.1 117 180 308 415 376 231 134 93.5 80.6 74.6 72.3 70.1 70.5 70.4 70.1 69.7 69.0 68.0 65.4 63.0 61.1 59.3 59.4 59.3 61.1 63.0 65.4 68.0 69.0 69.7 70.1 70.4 70.5 70.1 72.3 74.6 80.6 93.5 134 231
72.5 361 383 257 121 66.3 53.7 46.7 43.2 44.0 43.7 43.9 44.9 47.5 44.0 40.1 36.5 36.6 34.2 34.5 34.2 36.6 36.5 40.1 44.0 47.5 44.9 43.9 43.7 44.0 43.2 46.7 53.7 66.3 121 257 383 361 202 101 64.9 55.2 51.7 51.6 53.6 56.2 57.3 59.6 61.0 62.1 61.0 58.1 55.2 53.1 51.6 50.7 51.6 53.1 55.2 58.1 61.0 62.1 61.0 59.6 57.3 56.2 53.6 51.6 51.7 55.2 64.9 101 202
75.0 297 322 196 79.3 35.0 22.5 18.9 15.4 14.1 15.6 14.1 19.5 19.7 21.4 22.0 21.2 20.7 19.9 22.3 19.9 20.7 21.2 22.0 21.4 19.7 19.5 14.1 15.6 14.1 15.4 18.9 22.5 35.0 79.3 196 322 297 161 64.0 33.0 27.8 25.0 26.4 26.1 27.9 32.7 37.6 44.4 47.8 47.5 47.3 44.6 44.1 40.9 40.4 40.9 44.1 44.6 47.3 47.5 47.8 44.4 37.6 32.7 27.9 26.1 26.4 25.0 27.8 33.0 64.0 161
77.5 189 200 124 50.0 22.0 13.3 9.4 6.8 5.5 5.0 4.5 4.6 4.3 4.9 4.8 4.9 4.7 4.8 6.2 4.8 4.7 4.9 4.8 4.9 4.3 4.6 4.5 5.0 5.5 6.8 9.4 13.3 22.0 50.0 124 200 189 105 41.5 20.1 14.5 12.0 11.0 10.4 11.0 11.9 14.7 17.9 20.9 24.9 25.6 26.0 25.7 21.7 18.1 21.7 25.7 26.0 25.6 24.9 20.9 17.9 14.7 11.9 11.0 10.4 11.0 12.0 14.5 20.1 41.5 105
80.0 79.2 77.4 49.9 22.6 10.9 7.3 5.4 4.0 3.2 2.6 2.2 2.0 1.8 1.5 1.4 1.2 1.2 1.1 1.1 1.1 1.2 1.2 1.4 1.5 1.8 2.0 2.2 2.6 3.2 4.0 5.4 7.3 10.9 22.6 49.9 77.4 79.2 48.6 19.6 11.2 8.0 7.1 6.2 5.7 5.4 5.2 5.3 5.9 6.6 7.2 8.0 8.2 7.8 7.5 6.5 7.5 7.8 8.2 8.0 7.2 6.6 5.9 5.3 5.2 5.4 5.7 6.2 7.1 8.0 11.2 19.6 48.6
82.5 15.7 15.9 10.7 5.8 3.8 2.8 2.4 2.1 1.8 1.6 1.4 1.2 1.1 1.0 0.8 0.7 0.7 0.7 0.6 0.7 0.7 0.7 0.8 1.0 1.1 1.2 1.4 1.6 1.8 2.1 2.4 2.8 3.8 5.8 10.7 15.9 15.7 11.2 6.3 4.8 3.8 3.7 3.4 3.2 3.0 2.9 2.9 2.9 2.9 2.9 3.0 2.8 2.9 2.9 2.7 2.9 2.9 2.8 3.0 2.9 2.9 2.9 2.9 2.9 3.0 3.2 3.4 3.7 3.8 4.8 6.3 11.2
85.0 1.8 1.6 1.4 1.2 1.3 1.1 1.0 0.9 0.9 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.9 0.9 1.0 1.1 1.3 1.2 1.4 1.6 1.8 1.8 1.5 1.5 1.5 1.5 1.6 1.6 1.5 1.5 1.4 1.4 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.4 1.4 1.4 1.5 1.5 1.5 1.4 1.4 1.5 1.5 1.6 1.6 1.5 1.5 1.5 1.5 1.8
87.5 1.0 1.0 1.0 1.0 0.9 0.9 0.7 0.7 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.7 0.7 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.0 0.9 0.9 0.7 0.7 0.7 0.6 0.7 0.6 0.7 0.6 0.6 0.6 0.6 0.6 0.7 0.6 0.7 0.6 0.7 0.7 0.7 0.9 0.9 1.0 1.1 1.1 1.1 1.1 1.1
90.0 0.9 0.9 0.9 0.8 0.7 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.3 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.7 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9
92.5 0.9 0.9 0.9 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.9 0.9 0.9 0.9 0.9 0.9 1.0 0.9 0.9 0.9 0.9 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.9 0.9 0.9 0.9 1.0 0.9
95.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.9 0.9 1.0 1.0 1.0 1.0
97.5 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.4 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.1 1.0 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.0
100.0 1.1 1.1 1.1 1.1 1.1 1.0 1.0 0.9 0.9 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.9 0.9 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.9 1.0 1.0 1.0 1.1 1.1 1.1 1.1
